Escape Titanium Plug-In Hybrid
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Climate Controlled Seats
Climate Controlled Seats

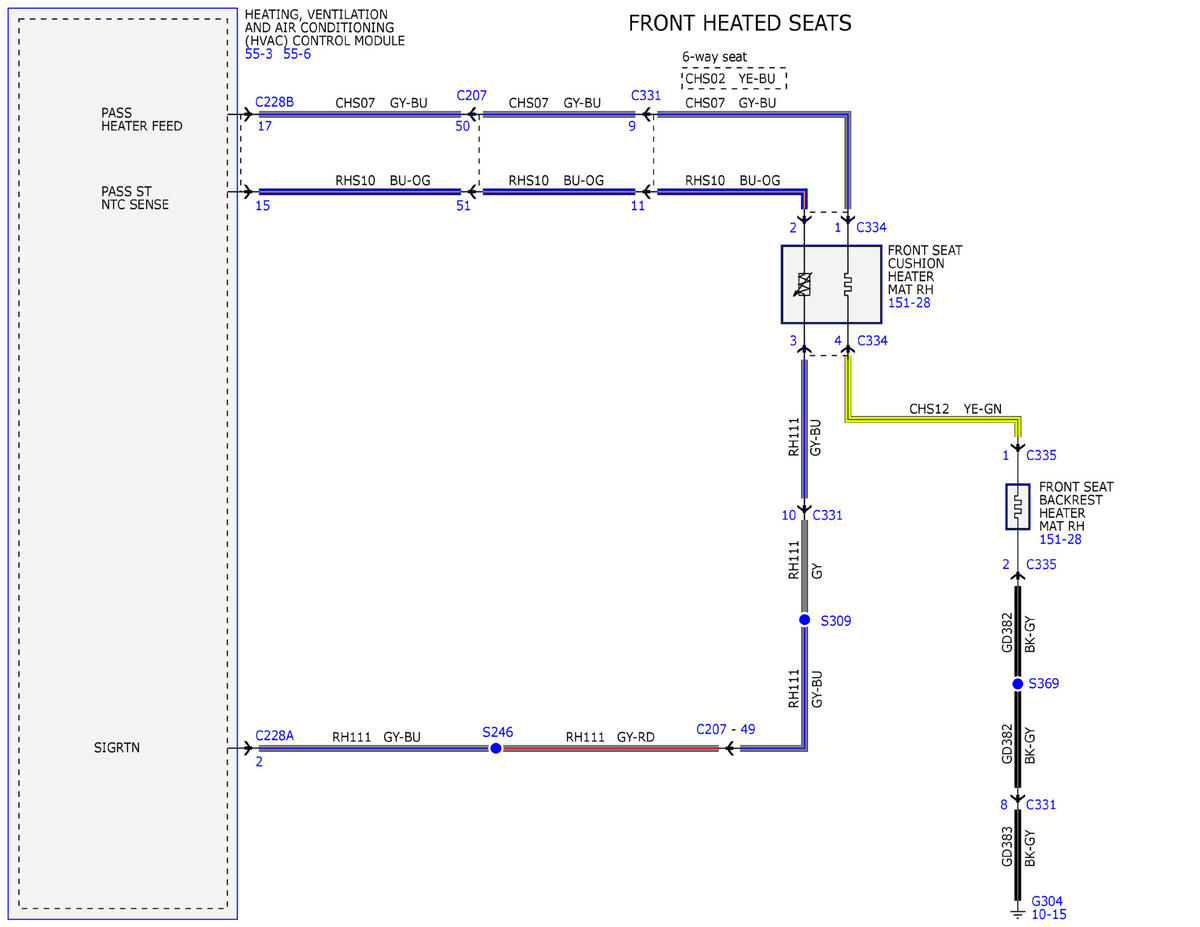

Fig 1: Climate Controlled Seats Wiring Diagram (1 of 3)
Courtesy of FORD MOTOR COMPANY

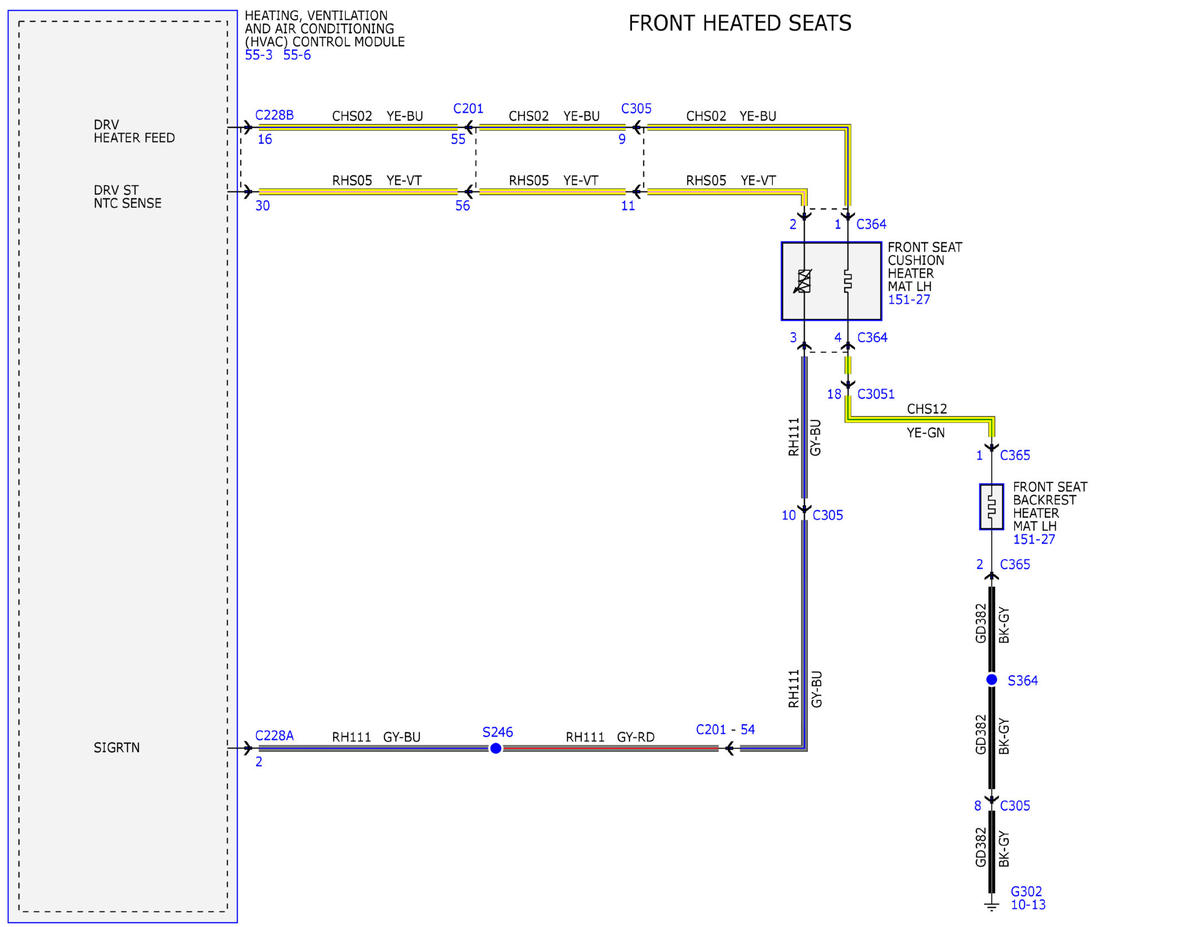

Fig 2: Climate Controlled Seats Wiring Diagram (2 of 3)
Courtesy of FORD MOTOR COMPANY

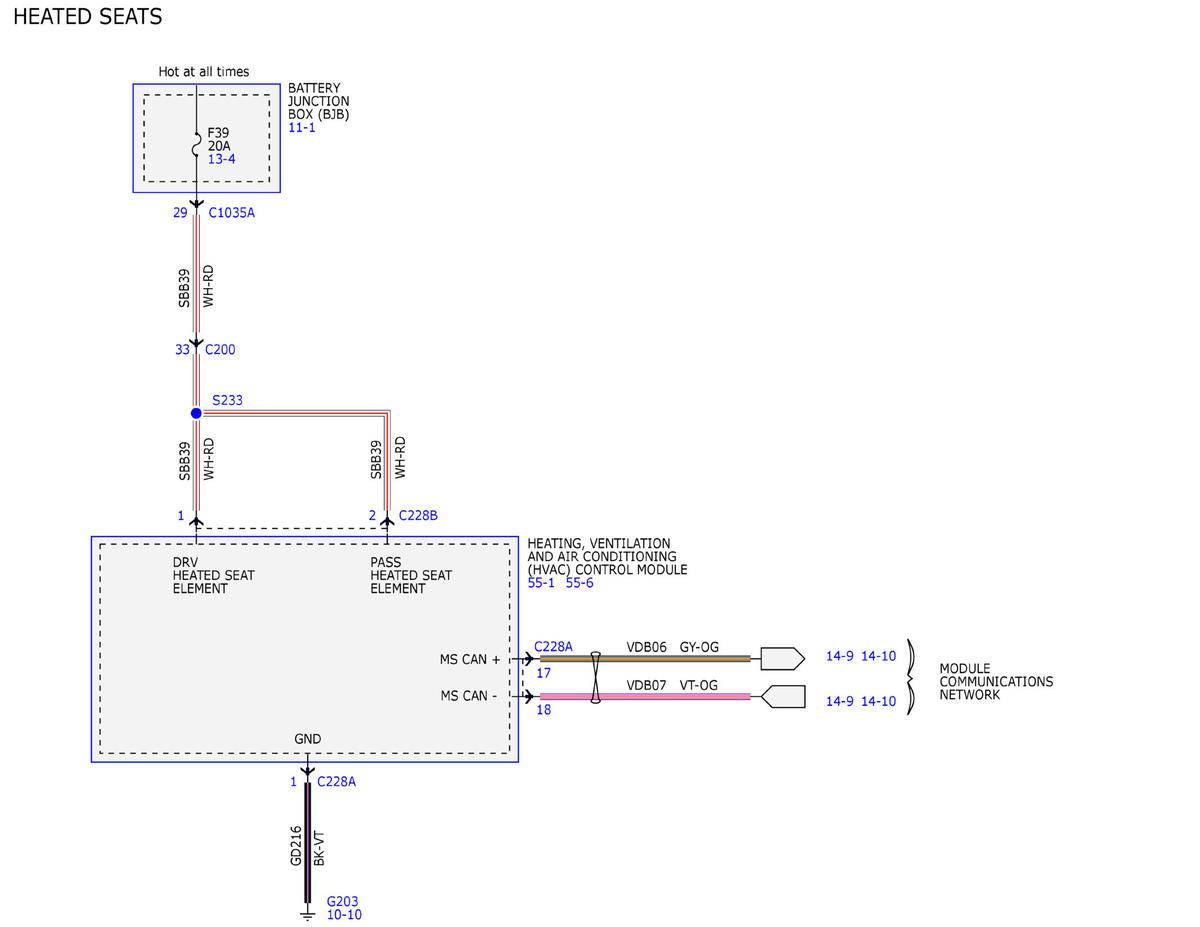

Fig 3: Climate Controlled Seats Wiring Diagram (3 of 3)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
