Charging System

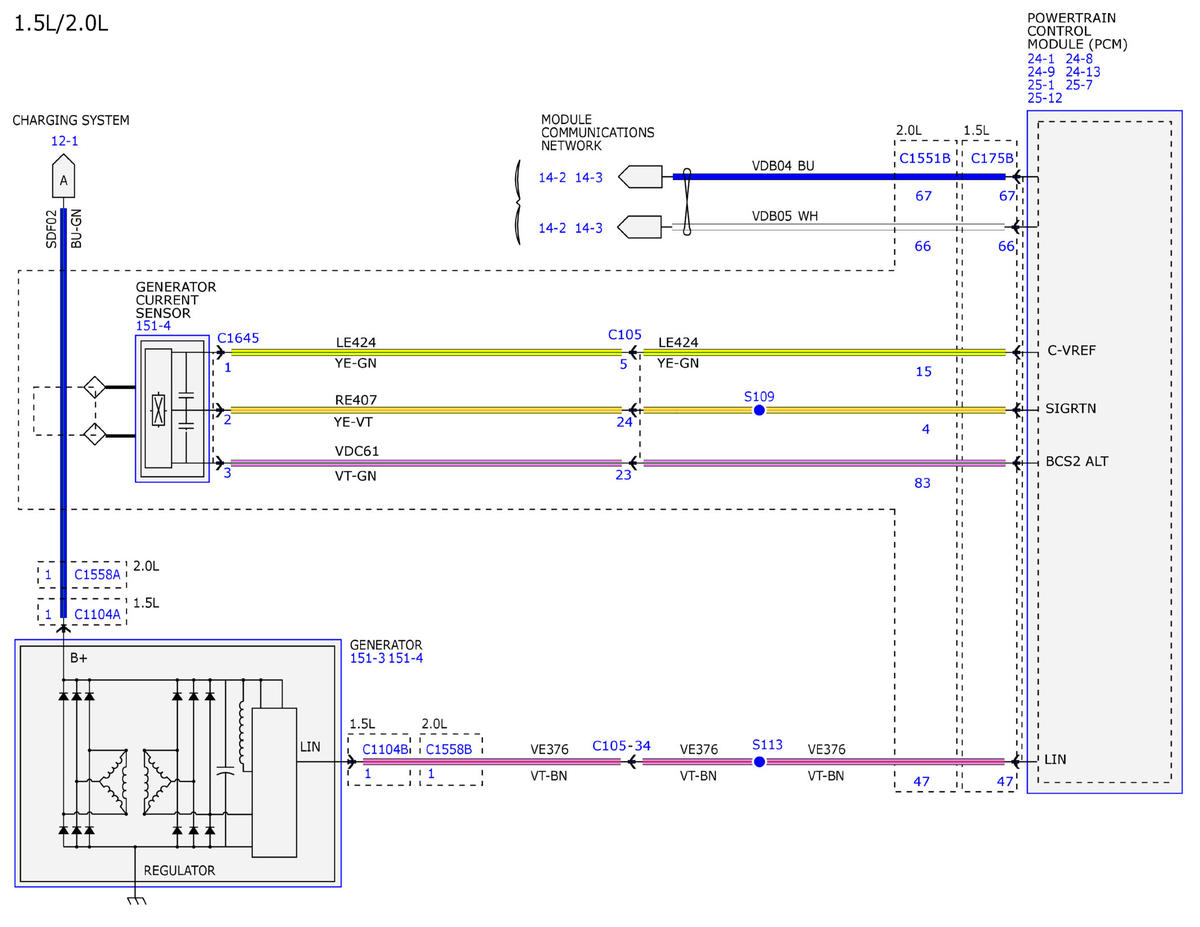

Fig 1: Charging System Wiring Diagram (1 of 8)
GFDWR91522Courtesy of FORD MOTOR COMPANY

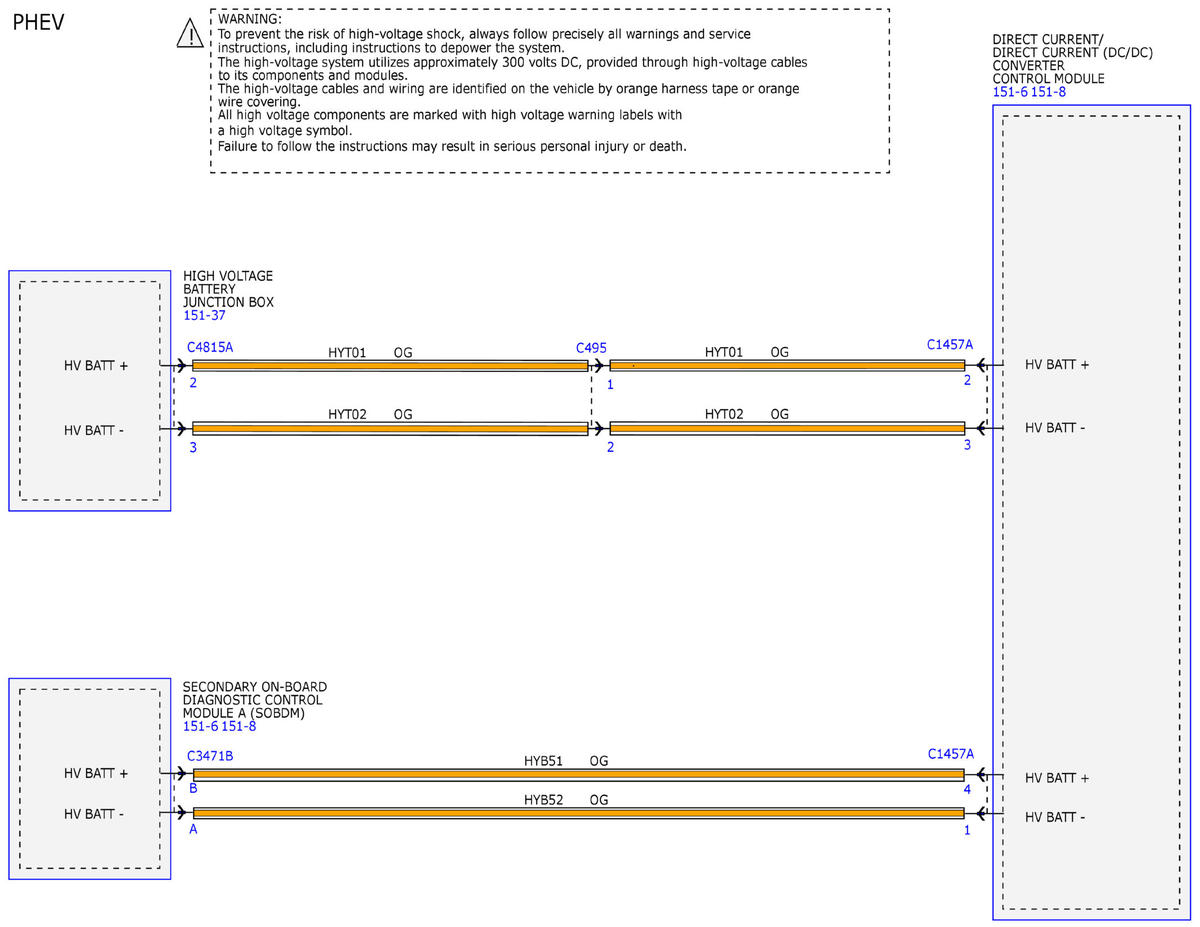

Fig 2: Charging System Wiring Diagram (2 of 8)
GFDWR91523Courtesy of FORD MOTOR COMPANY

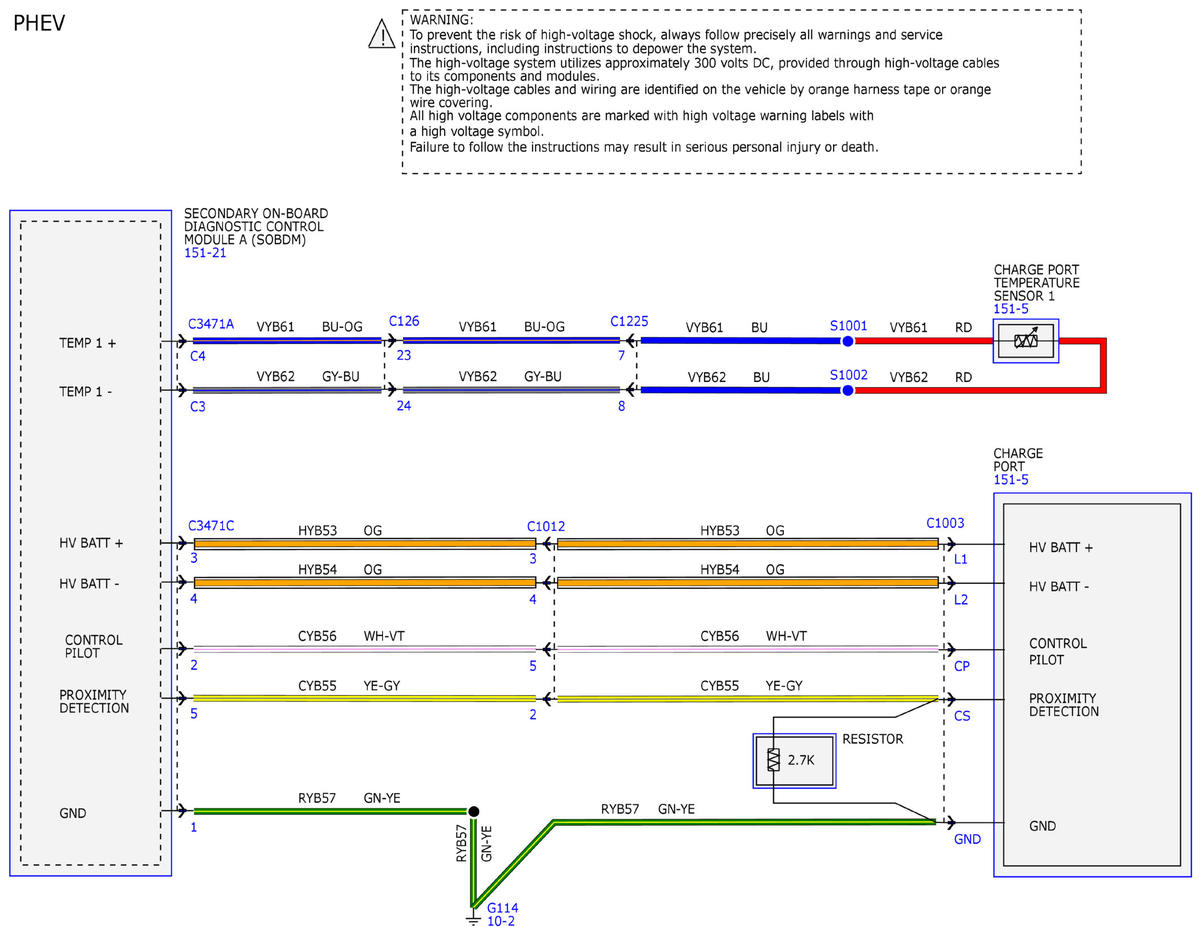

Fig 3: Charging System Wiring Diagram (3 of 8)
GFDWR91524Courtesy of FORD MOTOR COMPANY

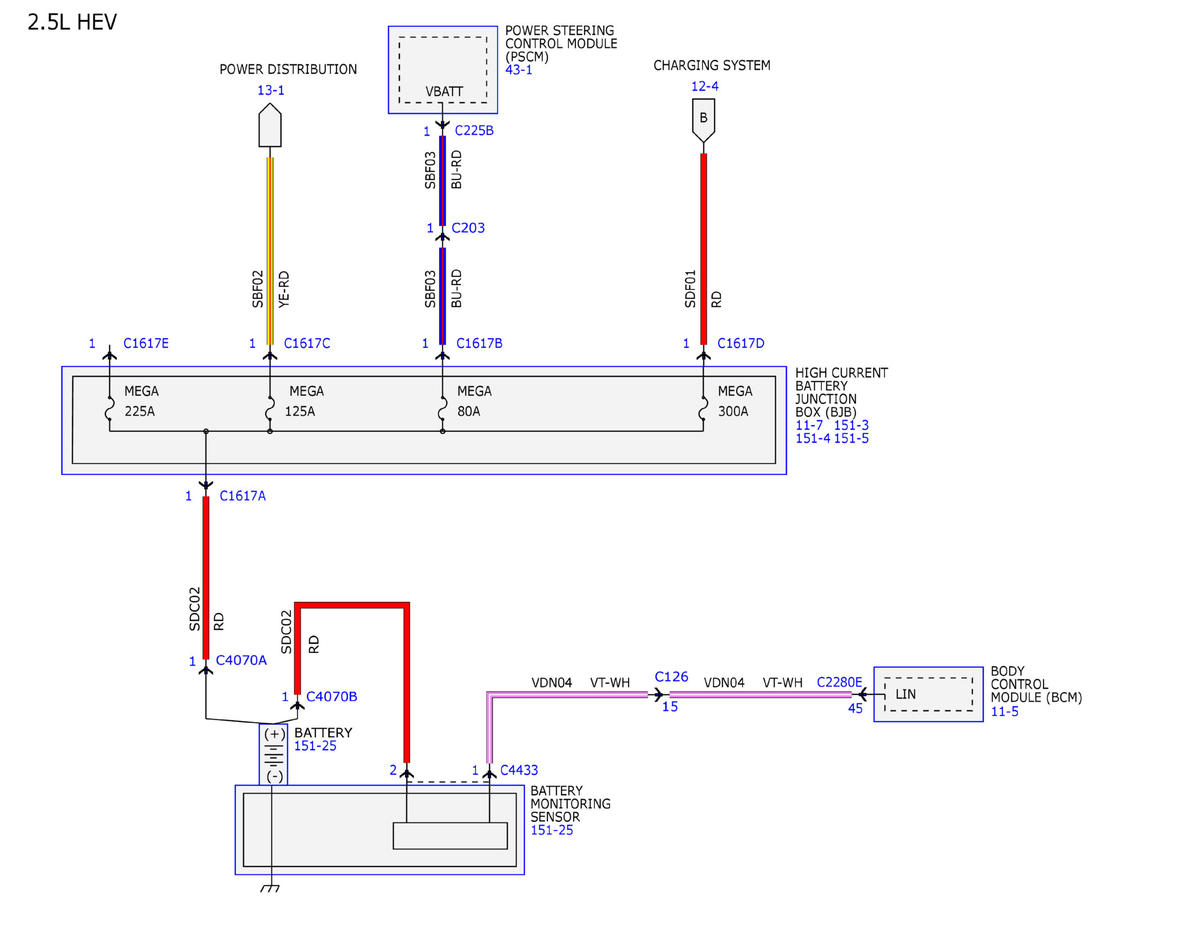

Fig 4: Charging System Wiring Diagram (4 of 8)
GFDWR91525Courtesy of FORD MOTOR COMPANY

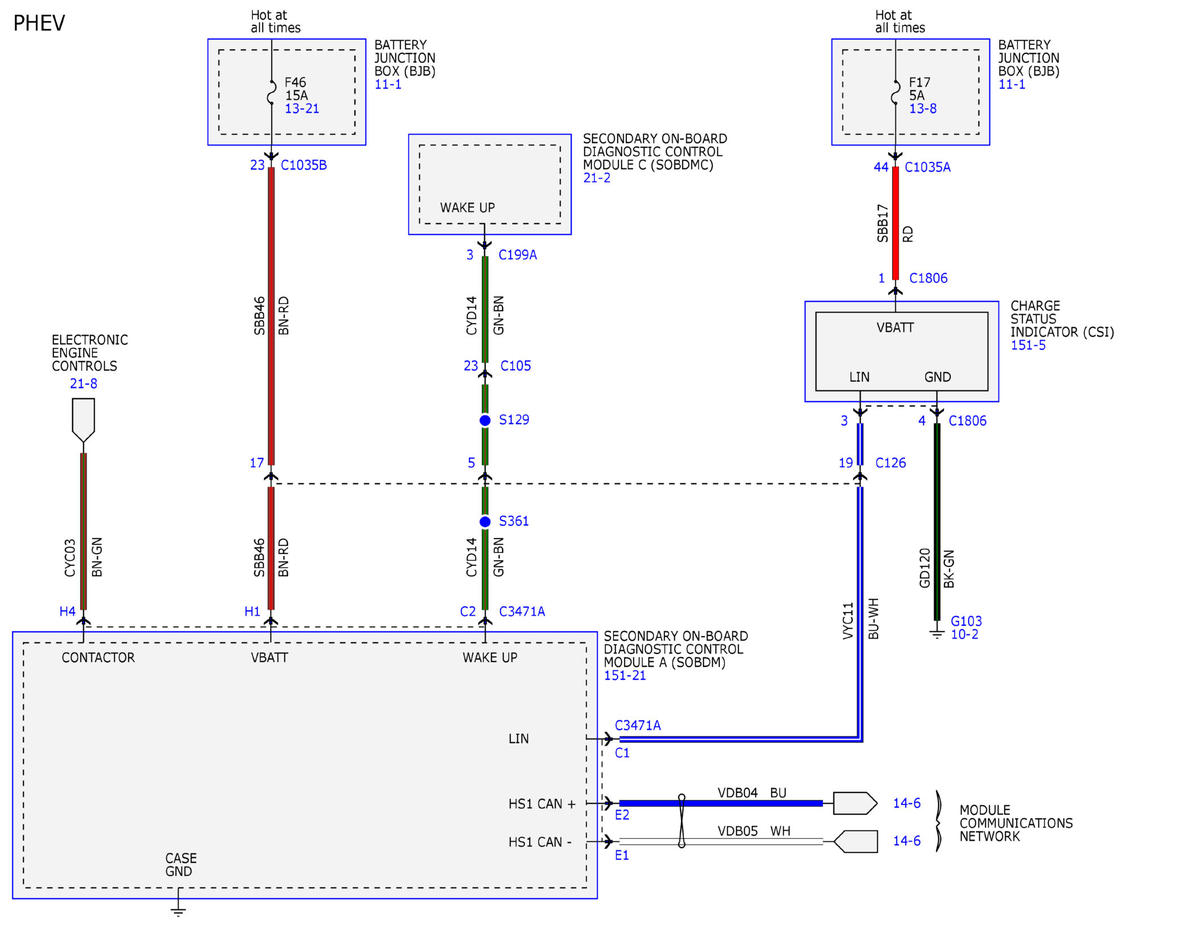

Fig 5: Charging System Wiring Diagram (5 of 8)
GFDWR91526Courtesy of FORD MOTOR COMPANY

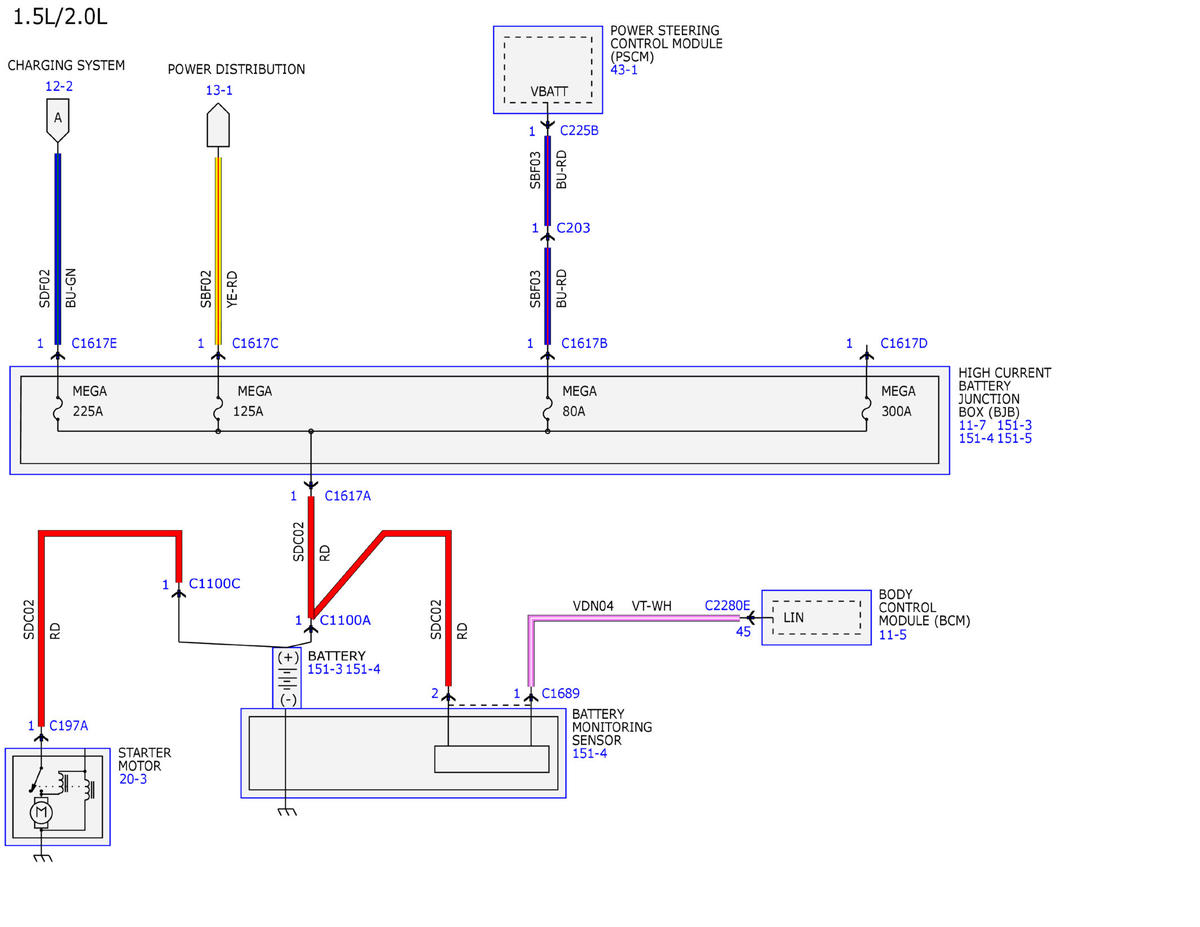

Fig 6: Charging System Wiring Diagram (6 of 8)
GFDWR91527Courtesy of FORD MOTOR COMPANY

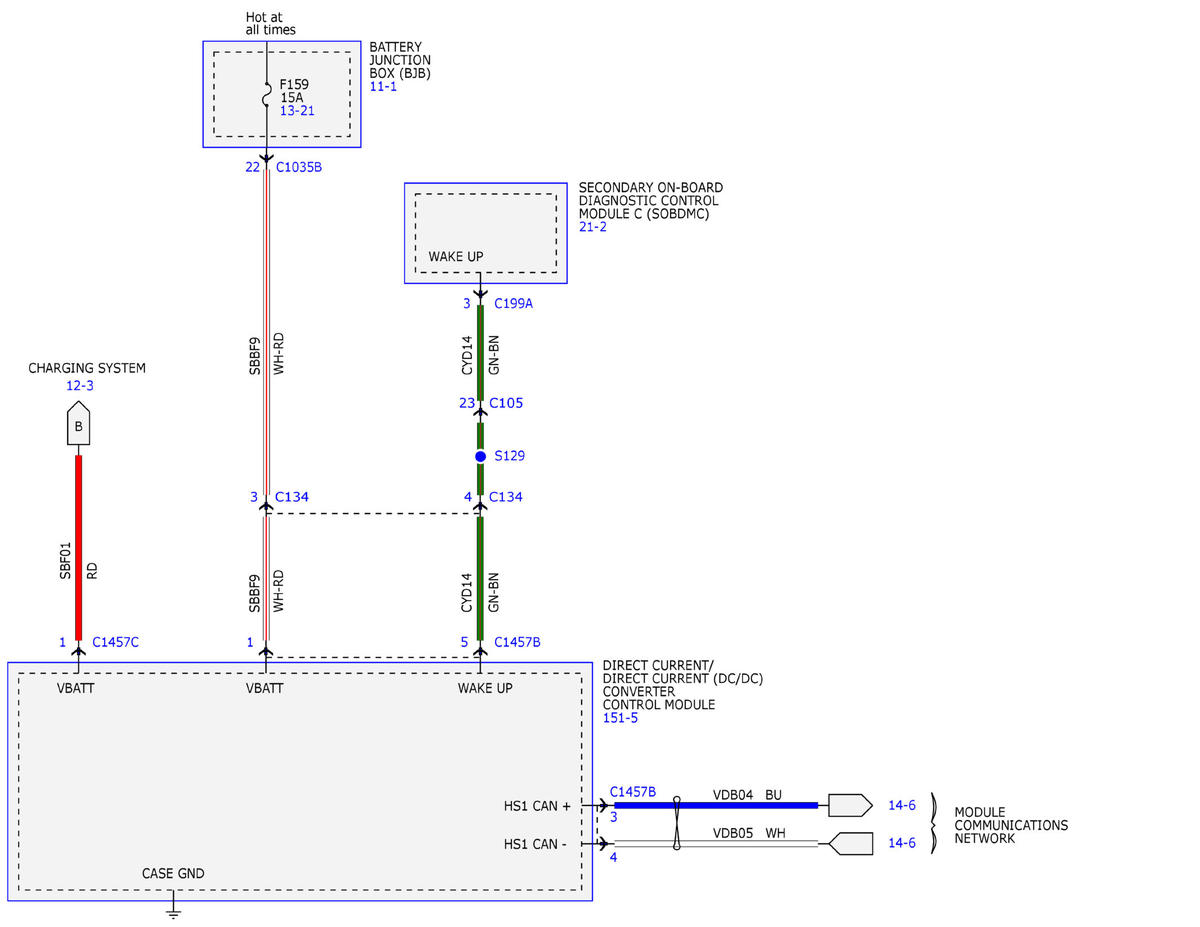

Fig 7: Charging System Wiring Diagram (7 of 8)
GFDWR91528Courtesy of FORD MOTOR COMPANY

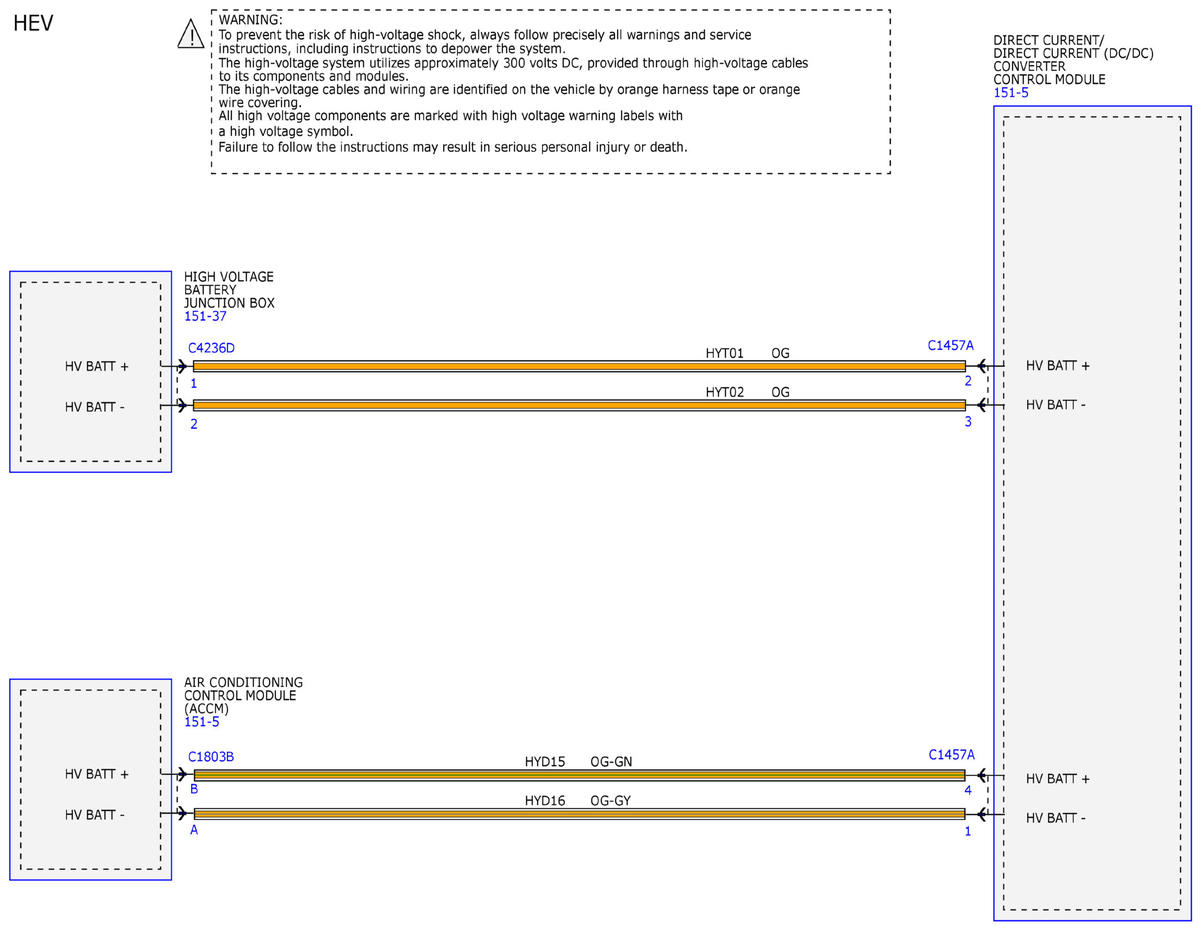

Fig 8: Charging System Wiring Diagram (8 of 8)
GFDWR91529Courtesy of FORD MOTOR COMPANY
