Automatic Climate Control System

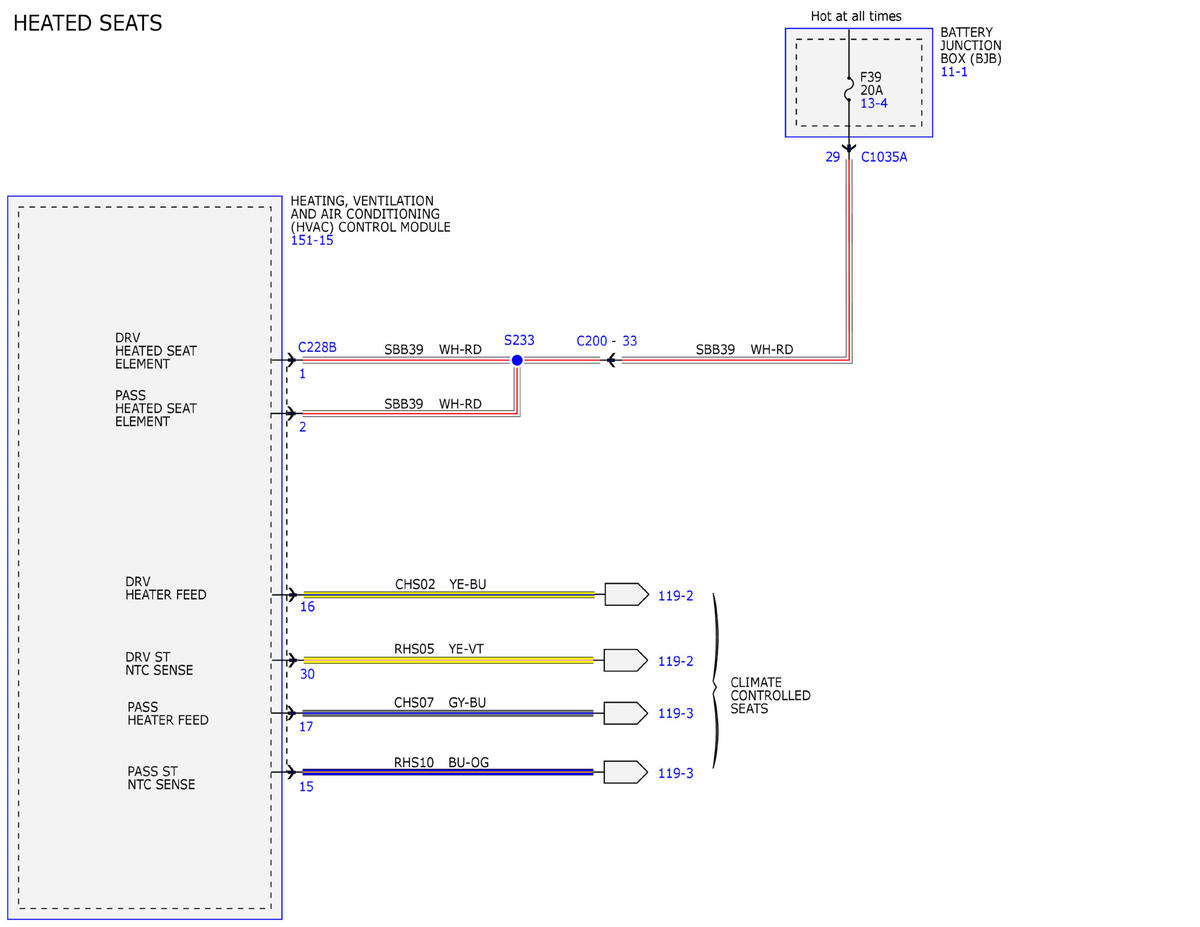

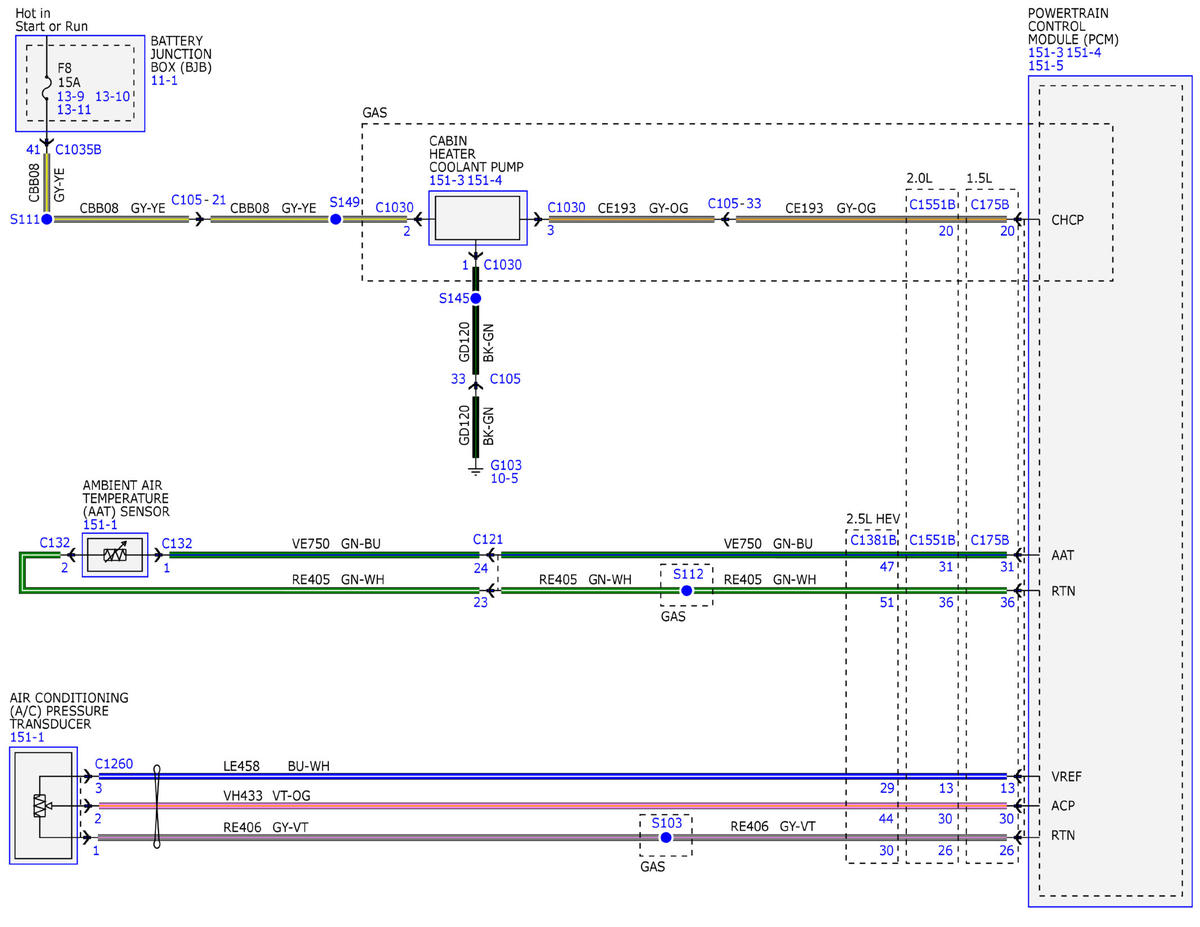

Fig 1: Automatic Climate Control System Wiring Diagram (1 of 14)

Courtesy of FORD MOTOR COMPANY

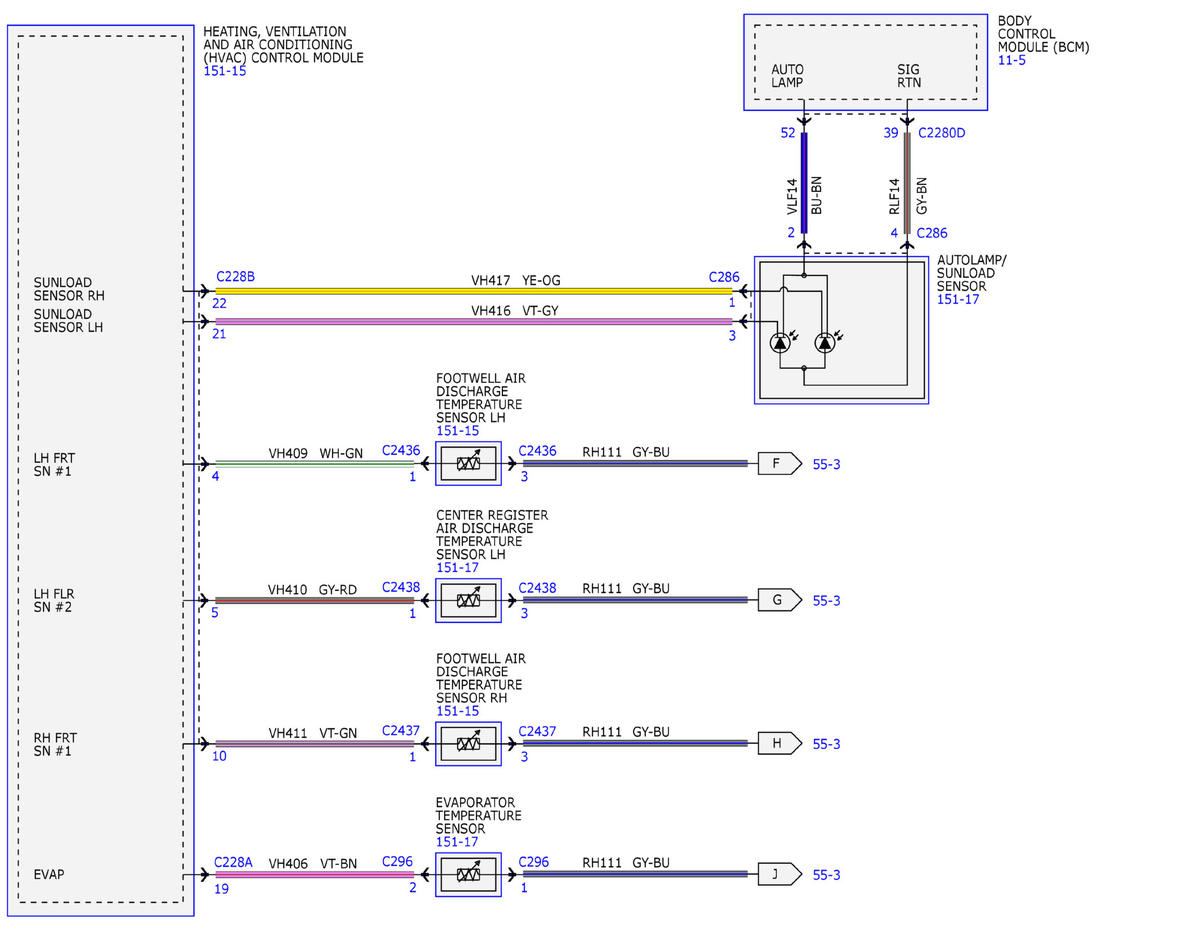

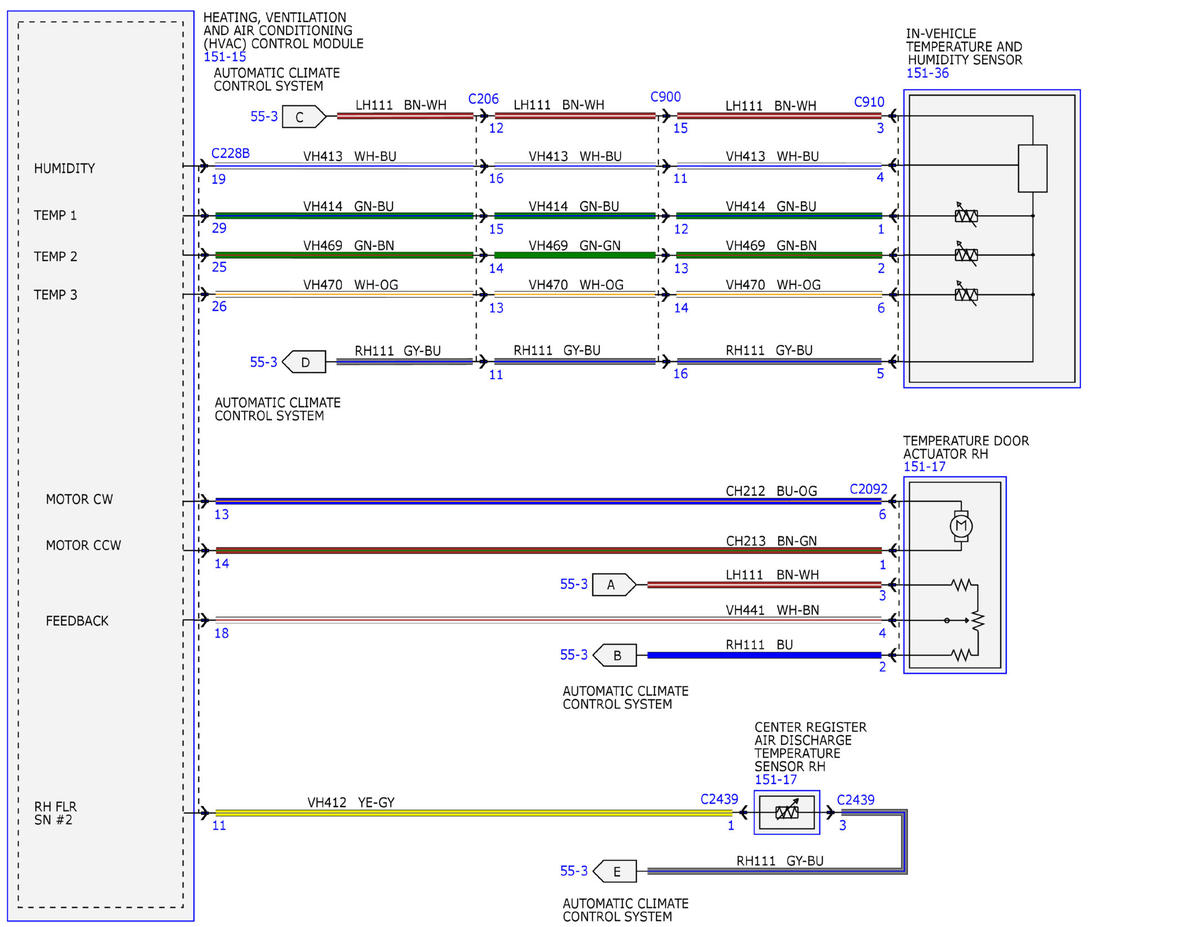

Fig 2: Automatic Climate Control System Wiring Diagram (2 of 14)

Courtesy of FORD MOTOR COMPANY

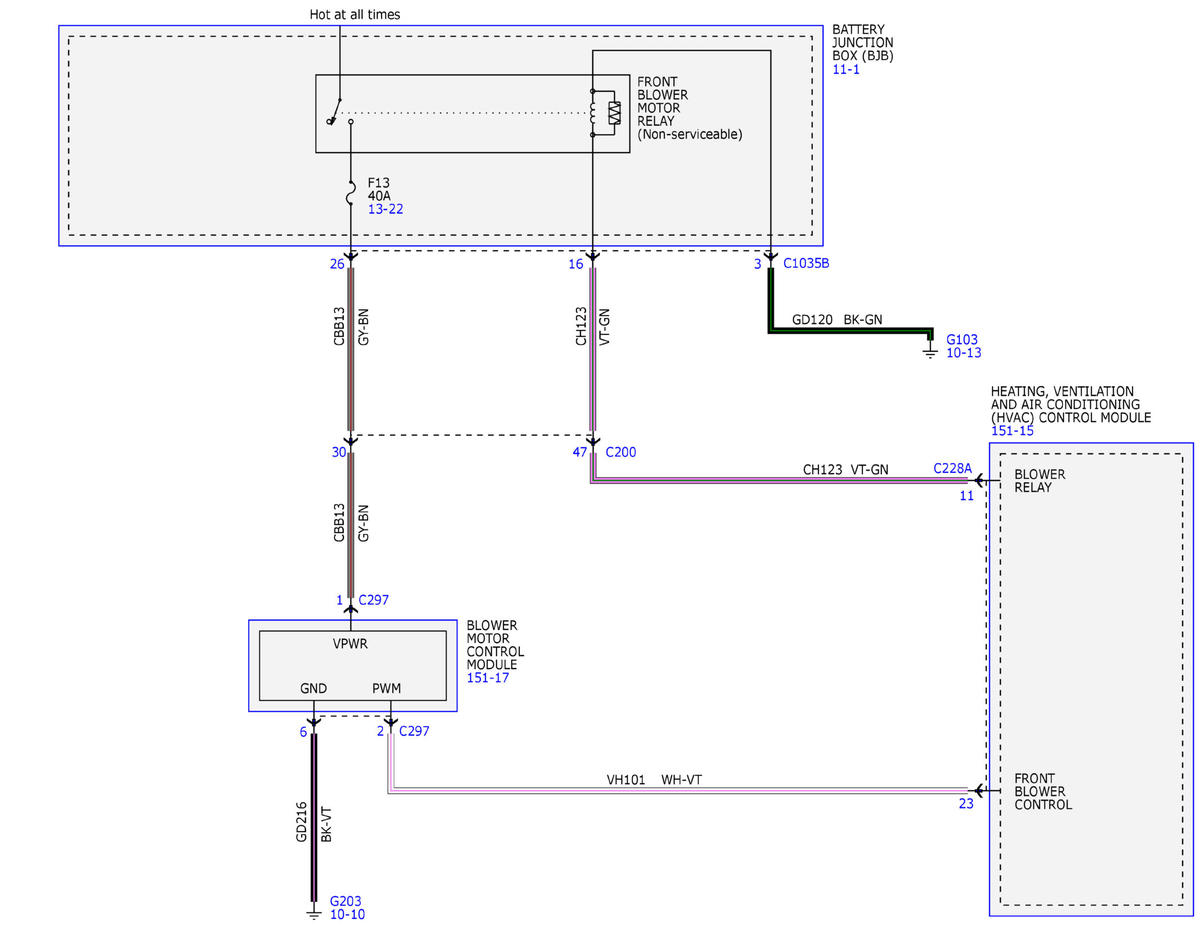

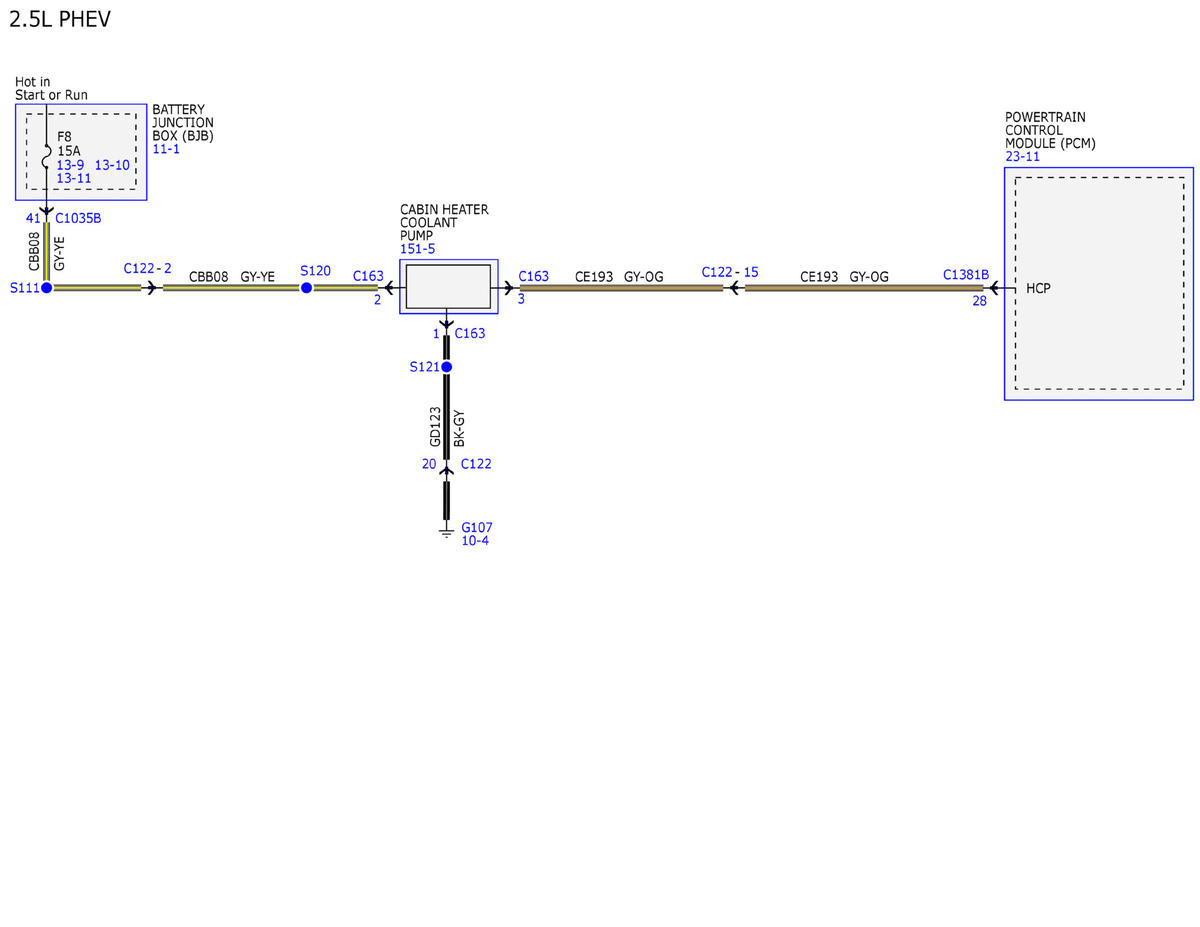

Fig 3: Automatic Climate Control System Wiring Diagram (3 of 14)

Courtesy of FORD MOTOR COMPANY

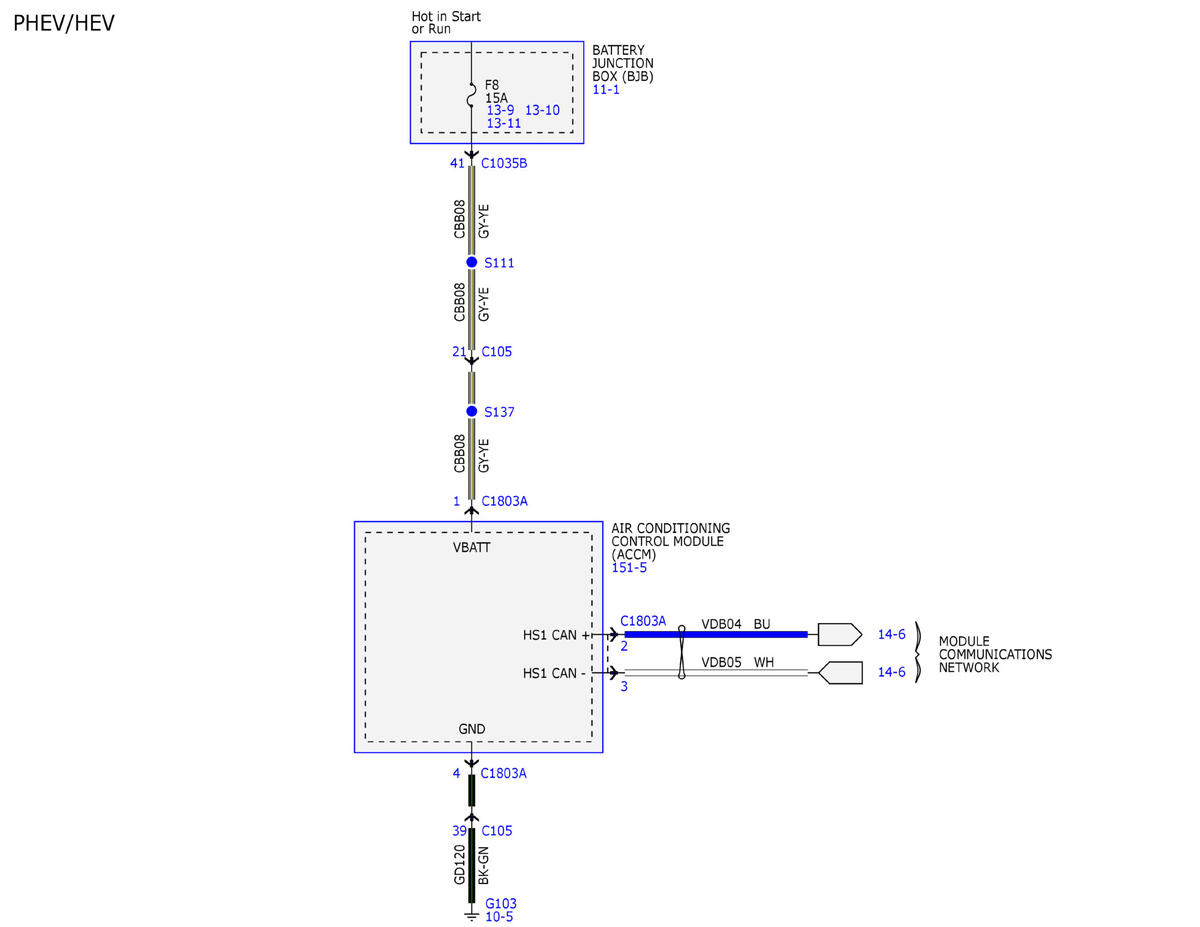

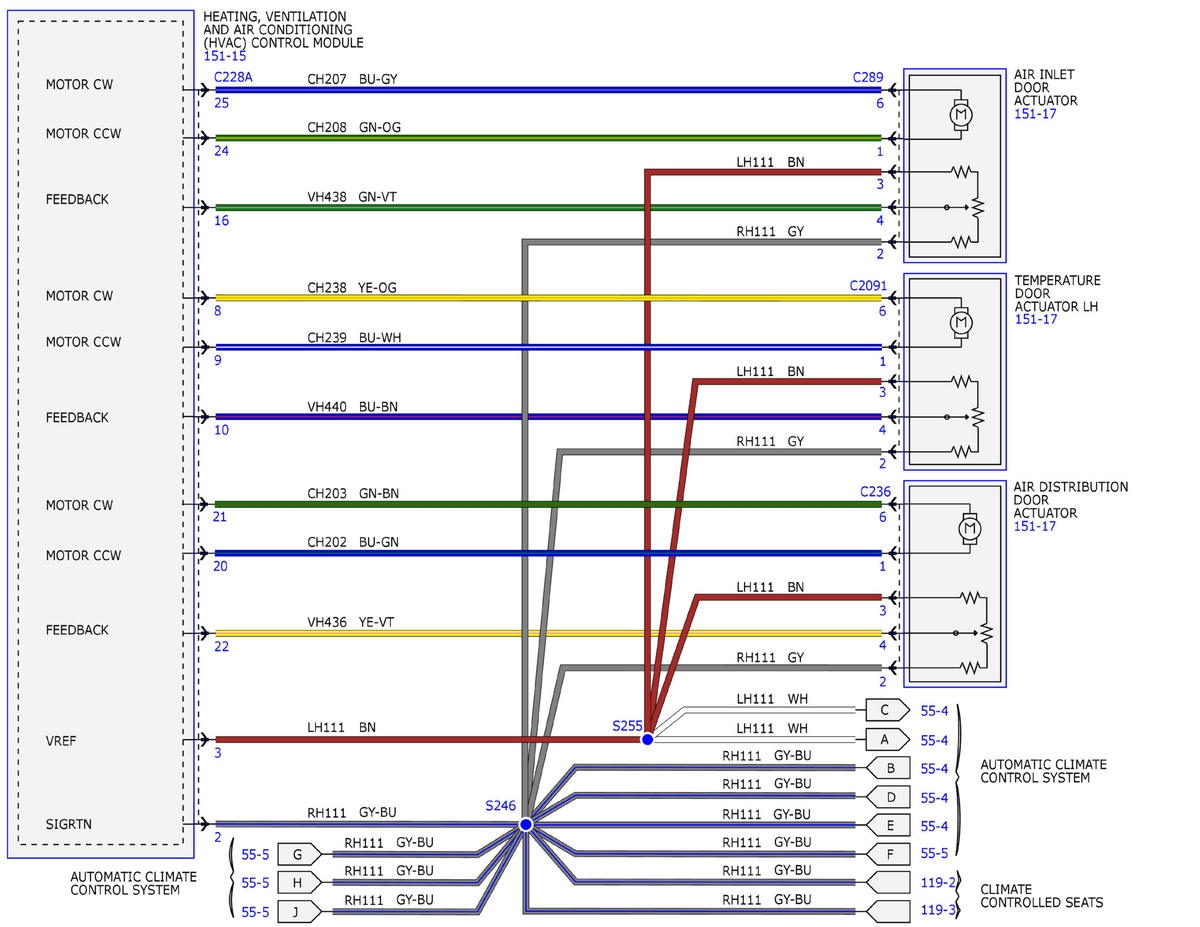

Fig 4: Automatic Climate Control System Wiring Diagram (4 of 14)

Courtesy of FORD MOTOR COMPANY

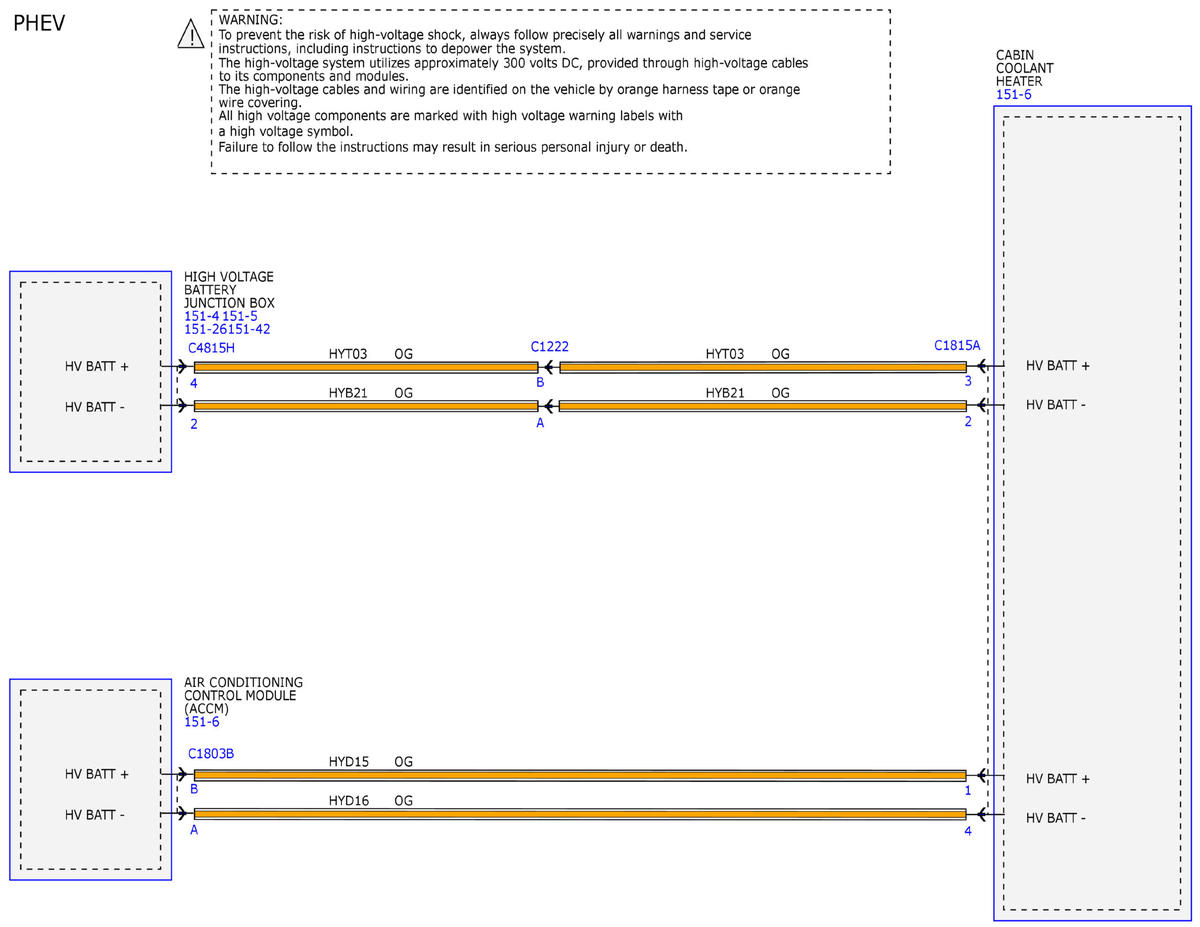

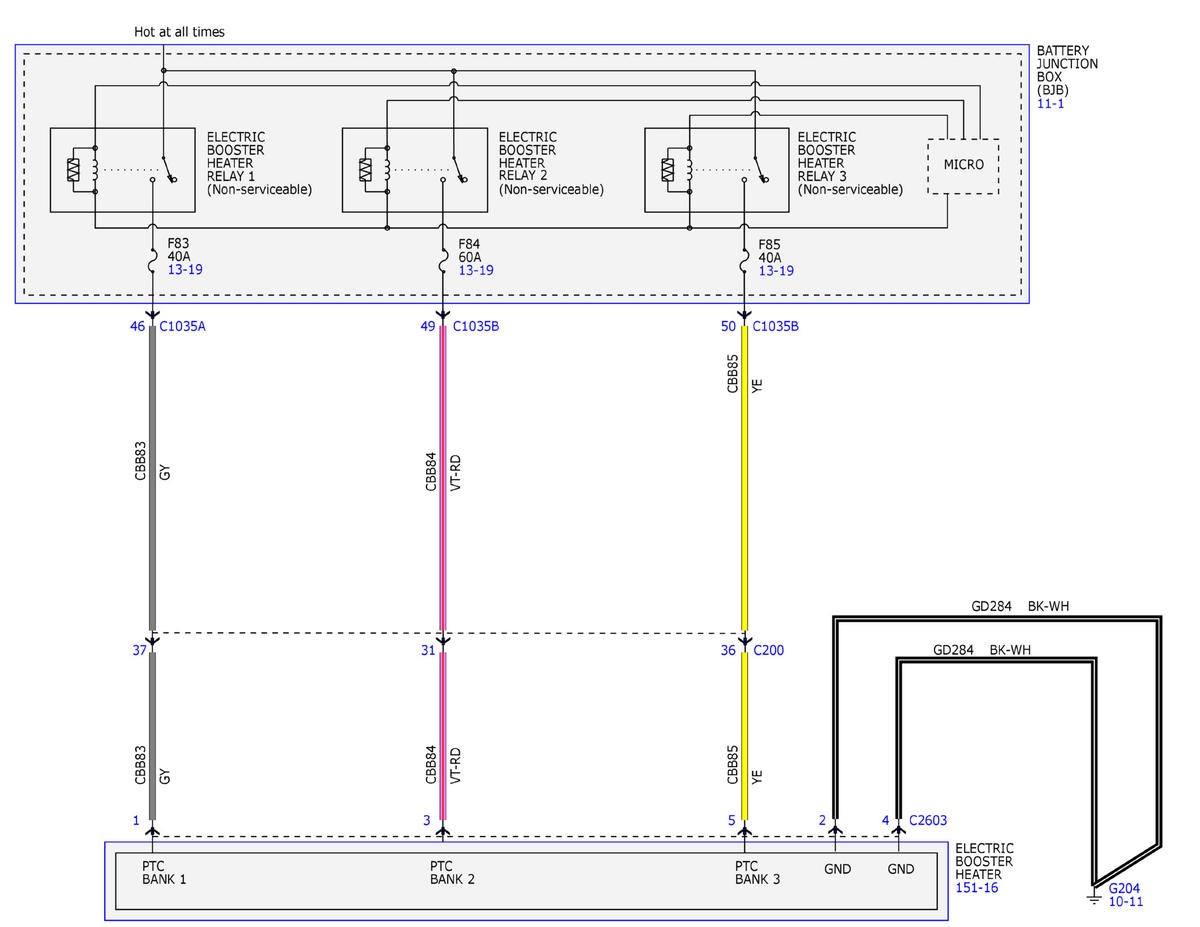

Fig 5: Automatic Climate Control System Wiring Diagram (5 of 14)

Courtesy of FORD MOTOR COMPANY

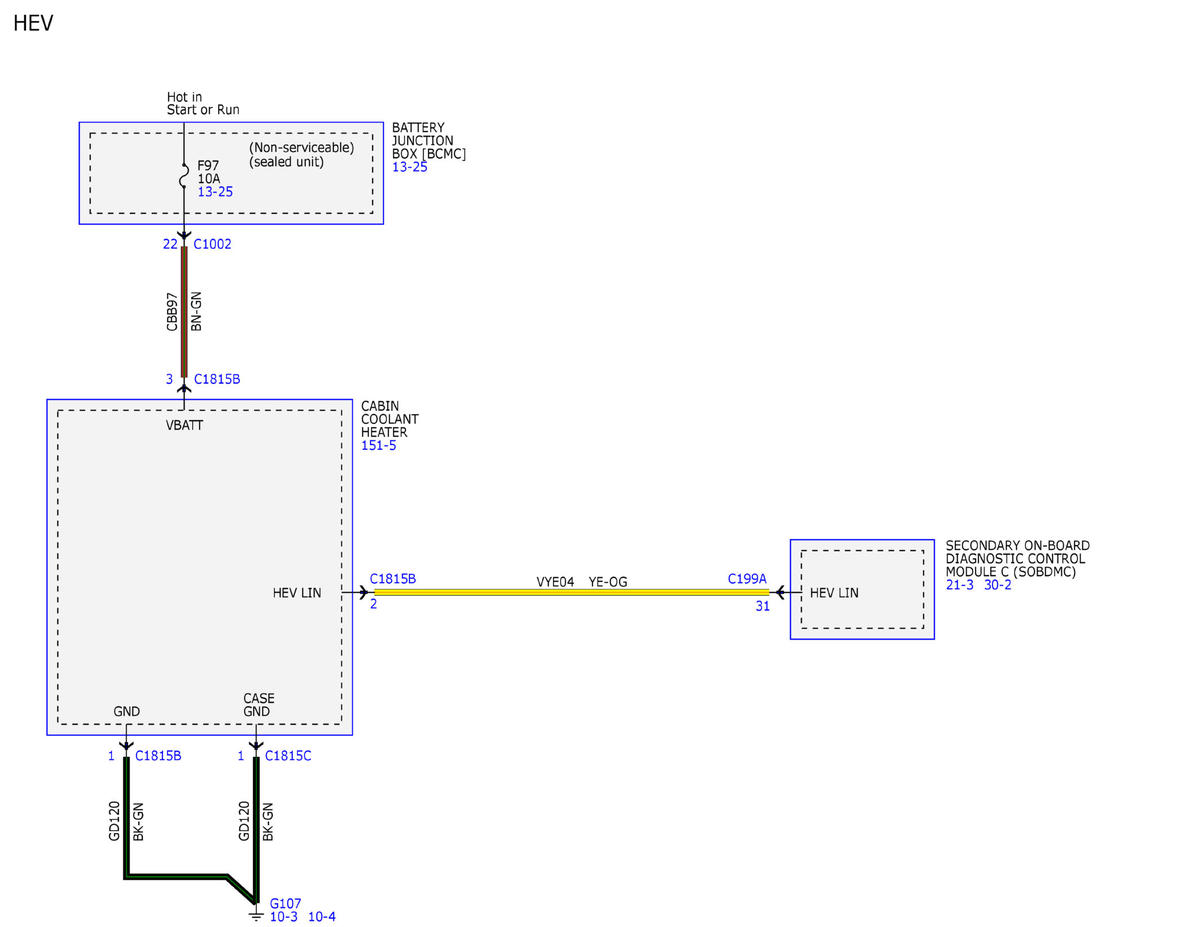

Fig 6: Automatic Climate Control System Wiring Diagram (6 of 14)

Courtesy of FORD MOTOR COMPANY

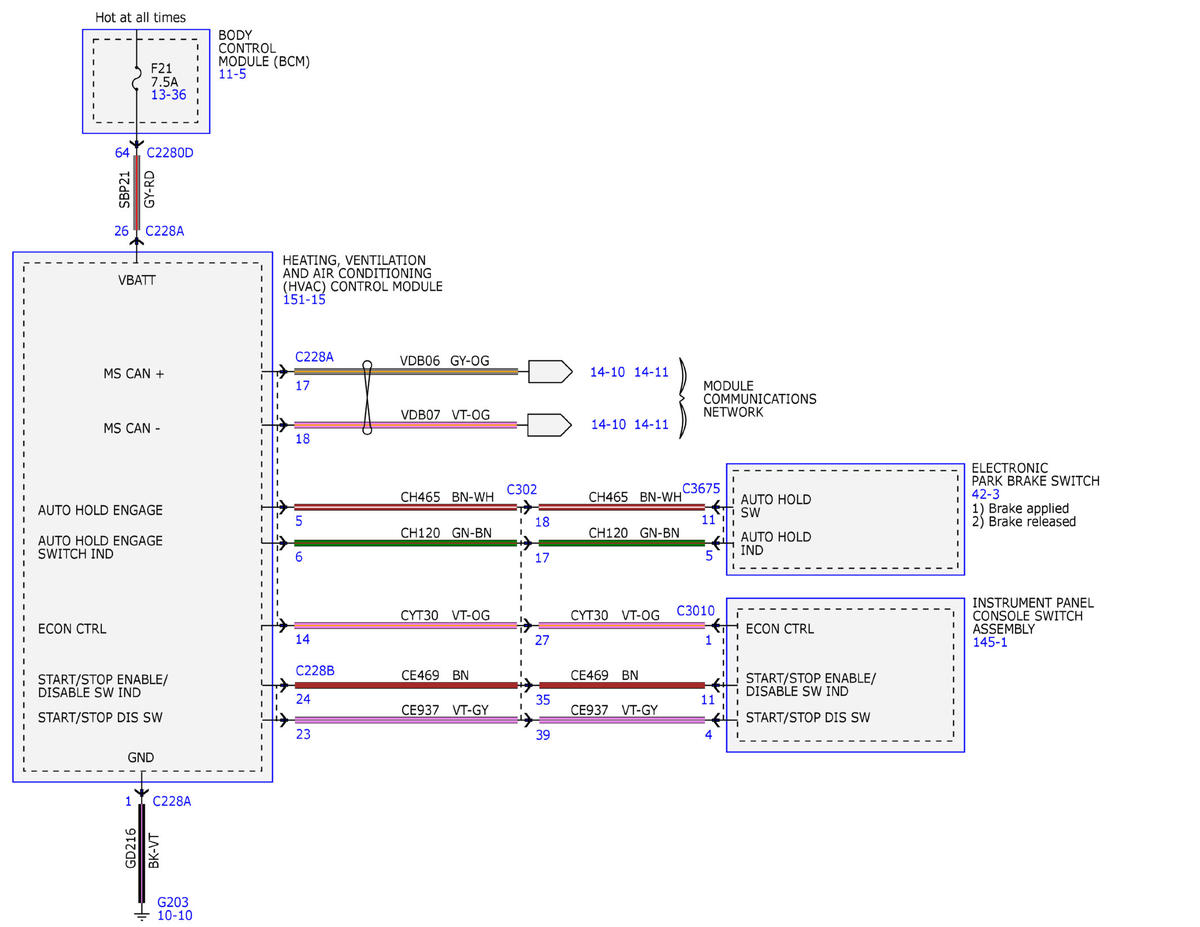

Fig 7: Automatic Climate Control System Wiring Diagram (7 of 14)

Courtesy of FORD MOTOR COMPANY

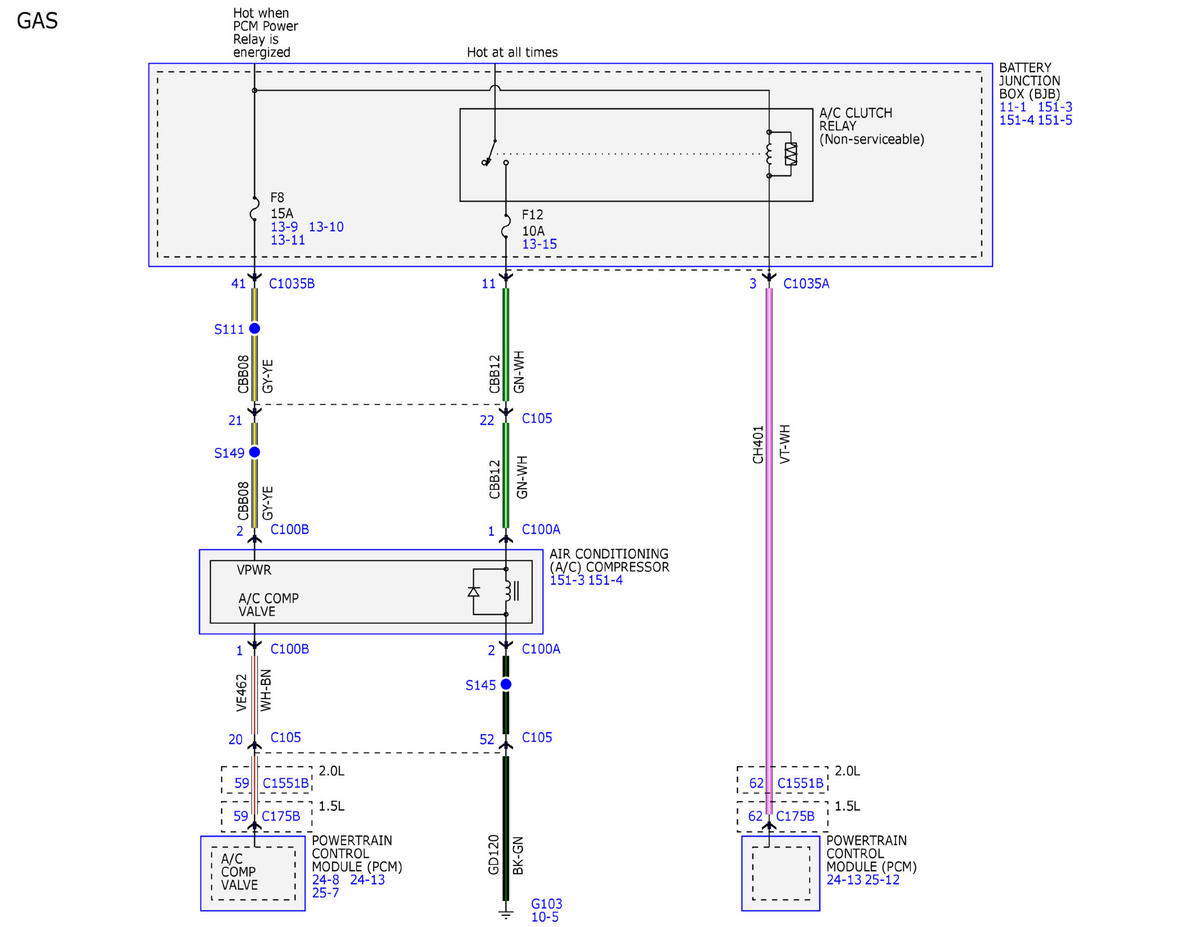

Fig 8: Automatic Climate Control System Wiring Diagram (8 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 9: Automatic Climate Control System Wiring Diagram (9 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 10: Automatic Climate Control System Wiring Diagram (10 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 11: Automatic Climate Control System Wiring Diagram (11 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 12: Automatic Climate Control System Wiring Diagram (12 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 13: Automatic Climate Control System Wiring Diagram (13 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 14: Automatic Climate Control System Wiring Diagram (14 of 14)

Courtesy of FORD MOTOR COMPANY
