Adjustable Steering Column
Adjustable Steering Column

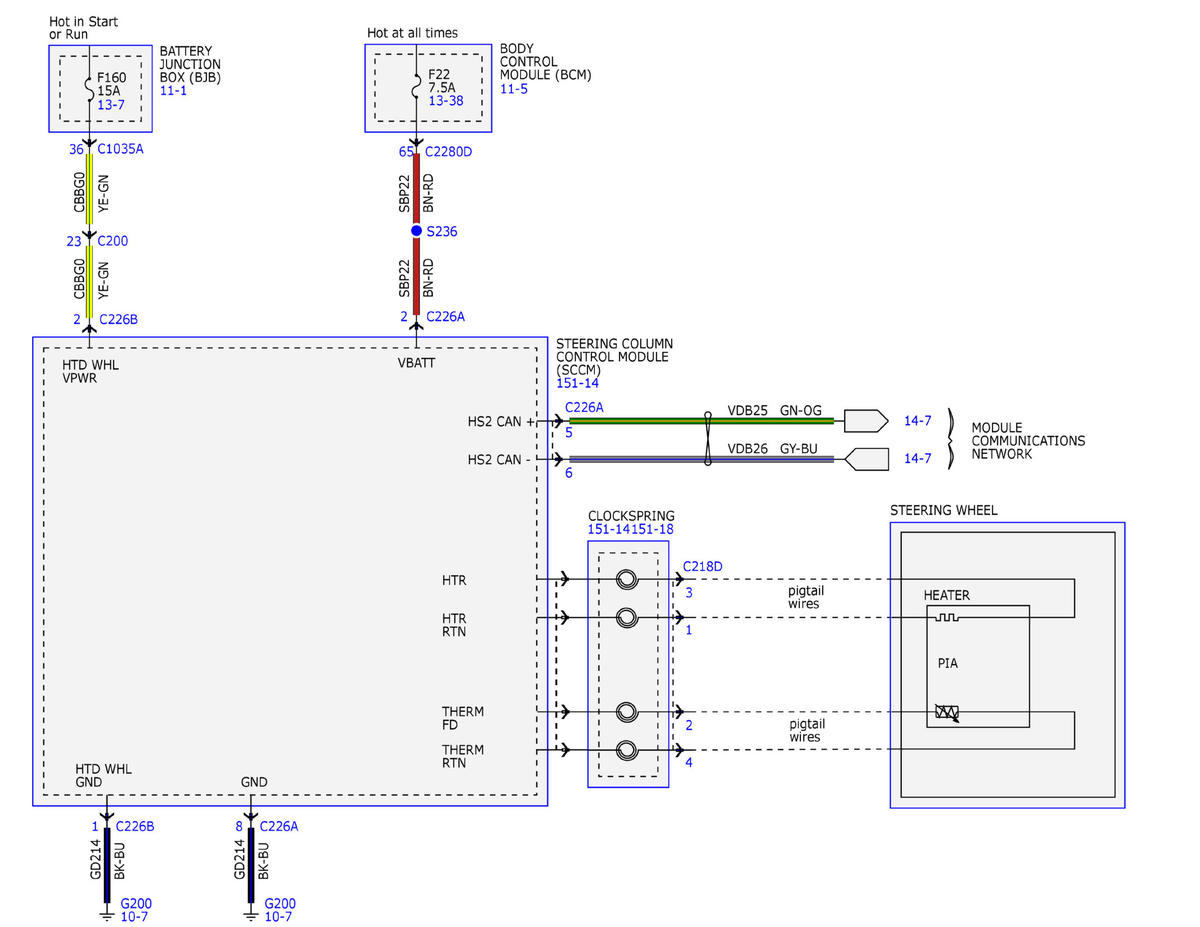

Fig 1: Adjustable Steering Column Wiring Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
