Instrument Panel: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Evacuate the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant . Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant . Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Hybrid Electric Vehicle (HEV), Vehicles With: R134A Refrigerant . Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Hybrid Electric Vehicle (HEV), Vehicles With: R1234YF Refrigerant .
  2. Drain the coolant. For 1.5L, Refer to: Engine Cooling System Draining, Vacuum Filling And Bleeding . For 2.5L, Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding . For 2.0L, Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding . For Electric Powertrain, Refer to: Cooling System Filling and Bleeding .

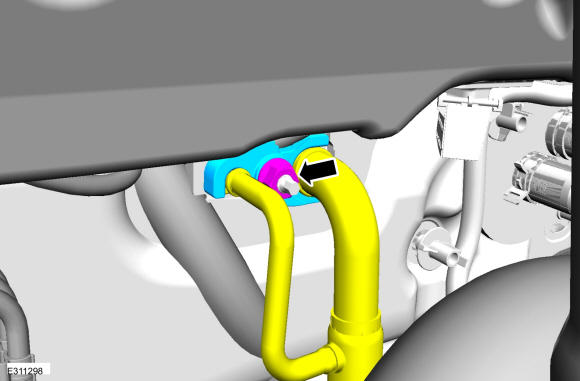

  3. Remove the nut and remove the HVAC flange.
    GFD477900Courtesy of FORD MOTOR COMPANY

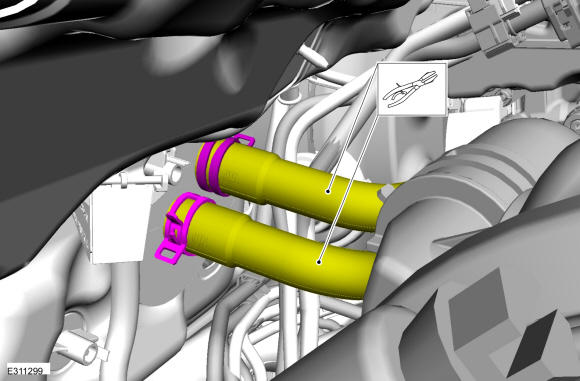

  4. Pinch the hoses, remove the clamps and position aside.
    GFD477901Courtesy of FORD MOTOR COMPANY
  5. Remove the wiper linkage assembly. Refer to: Wiper Linkage Assembly .

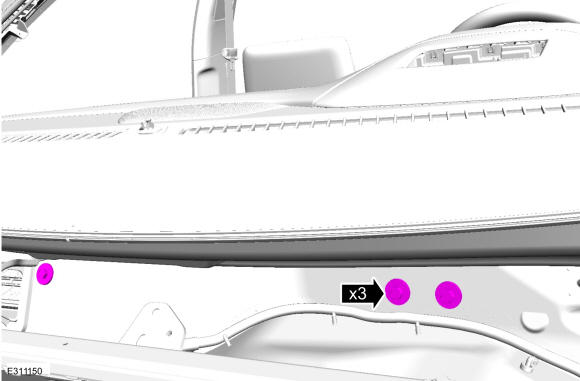

  6. Remove the bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD477902Courtesy of FORD MOTOR COMPANY
  7. Remove the driver side front door. Refer to: Front Door .
  8. Remove the front seats. Refer to: Front Seat .
  9. Remove the floor console. Refer to: Floor Console .
  10. Remove the A-pillar trim panels. Refer to: A-Pillar Trim Panel .

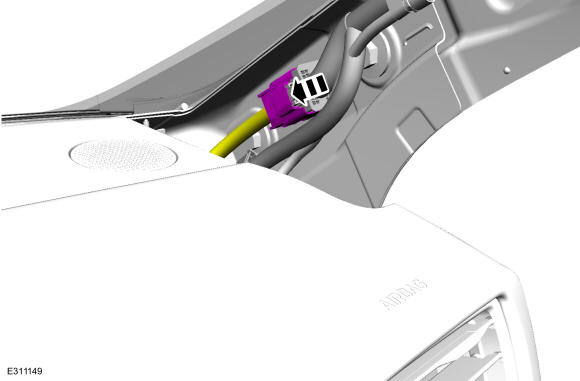

  11. NOTE: Right hand A-pillar.

    Disconnect the electrical connector.

    GFD477903Courtesy of FORD MOTOR COMPANY

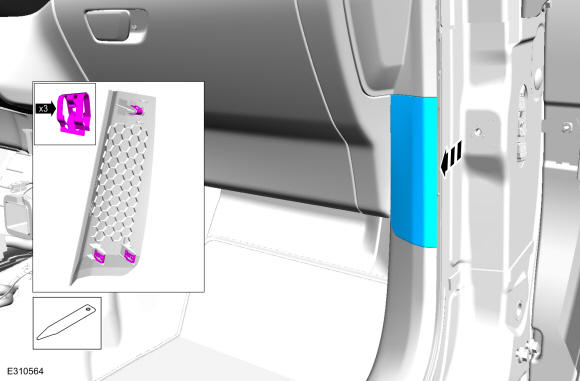

  12. Release the clips and remove the trim panel. Use the General Equipment: Interior Trim Remover
    GFD477509Courtesy of FORD MOTOR COMPANY

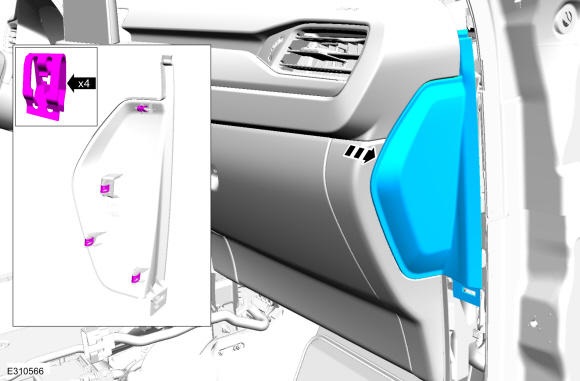

  13. Release the clips and remove the RH instrument panel end cap.
    GFD477510Courtesy of FORD MOTOR COMPANY

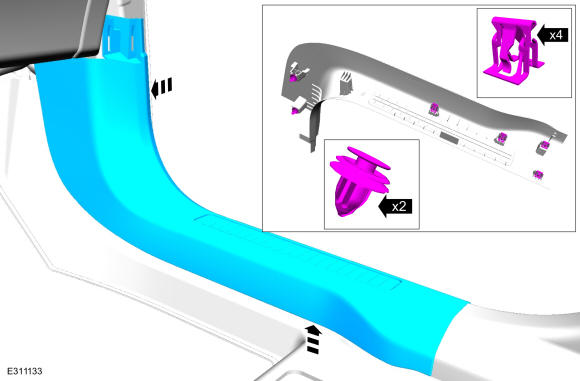

  14. Release the clips and remove the RH scuff plate.
    GFD477904Courtesy of FORD MOTOR COMPANY

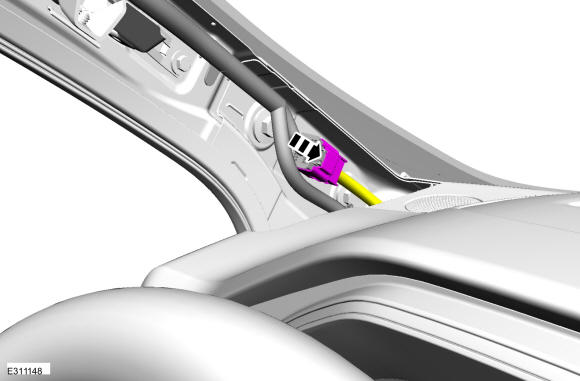

  15. NOTE: Left hand A-pillar.

    Disconnect the electrical connector.

    GFD477905Courtesy of FORD MOTOR COMPANY

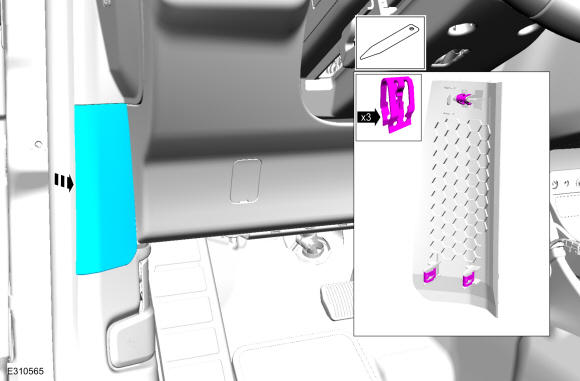

  16. Release the clips and remove the trim panel. Use the General Equipment: Interior Trim Remover
    GFD477506Courtesy of FORD MOTOR COMPANY

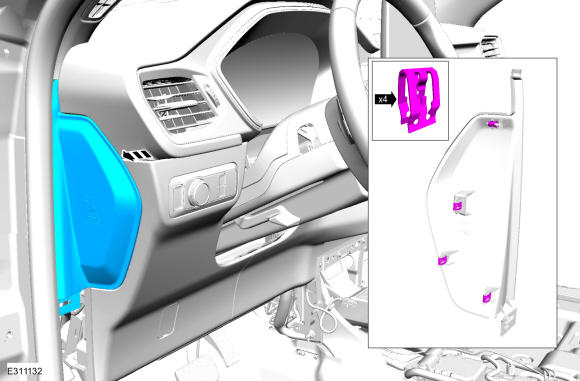

  17. Release the clips and remove the LH instrument panel end cap.
    GFD477507Courtesy of FORD MOTOR COMPANY

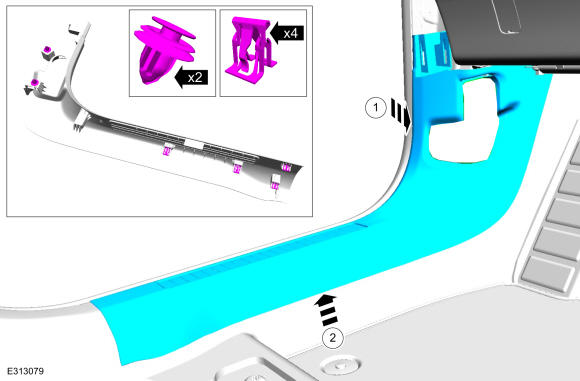

    1. Remove the hood release handle.
    2. Release the clips at the front of the LH scuff plate.
    3. Release the lower clips and remove the LH scuff plate.
    GFD477906Courtesy of FORD MOTOR COMPANY

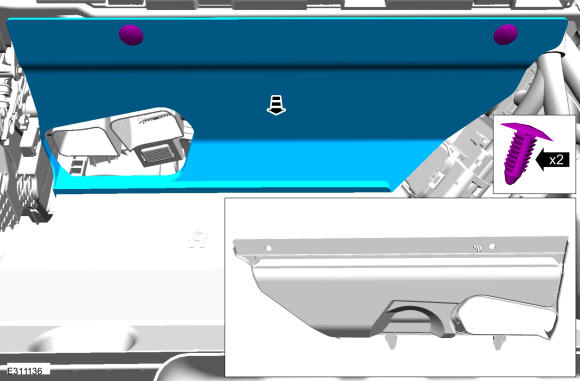

  19. NOTE: Right hand side.

    Release the clips and remove the lower insulation panel.

    GFD477907Courtesy of FORD MOTOR COMPANY
  20. NOTE: Right hand side.

    Release the clips and remove the trim panel. Use the General Equipment: Interior Trim Remover

    GFD477461Courtesy of FORD MOTOR COMPANY

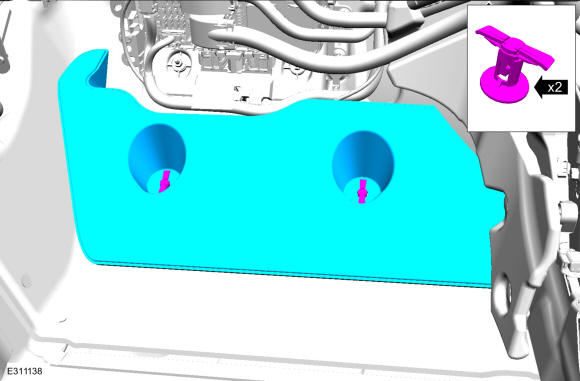

  21. Remove the retainers and remove the foam pad.
    GFD477908Courtesy of FORD MOTOR COMPANY

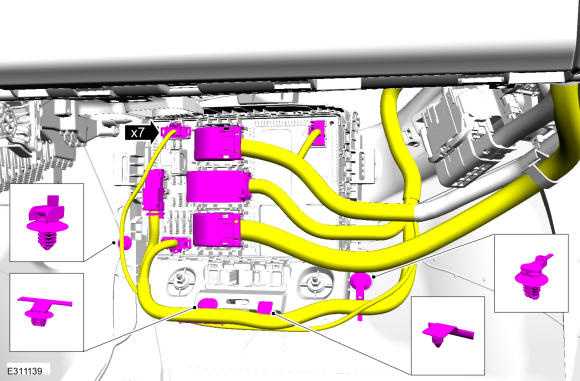

  22. Disconnect the electrical connectors and release the harness retainers.
    GFD477909Courtesy of FORD MOTOR COMPANY

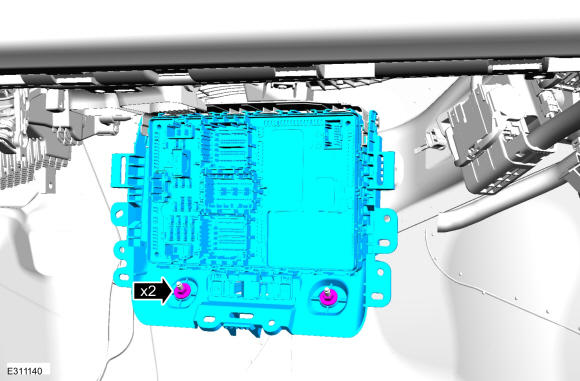

  23. Remove the nuts and the BCM.

    Torque: 62 lb.in (7 Nm)

    GFD477910Courtesy of FORD MOTOR COMPANY

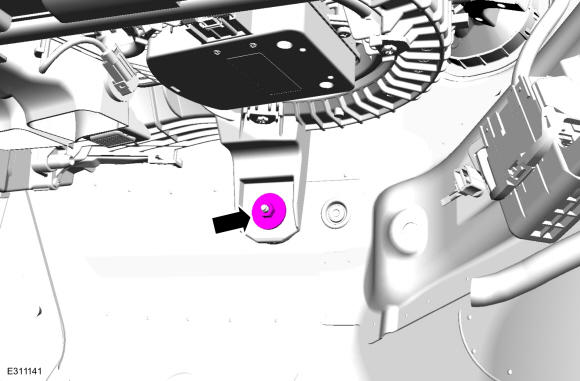

  24. Remove the nut.

    Torque: 62 lb.in (7 Nm)

    GFD477911Courtesy of FORD MOTOR COMPANY

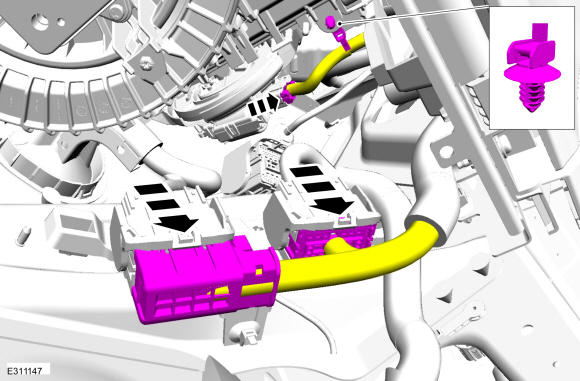

  25. NOTE: Lower right hand side.

    Disconnect the electrical connectors.

    GFD477912Courtesy of FORD MOTOR COMPANY

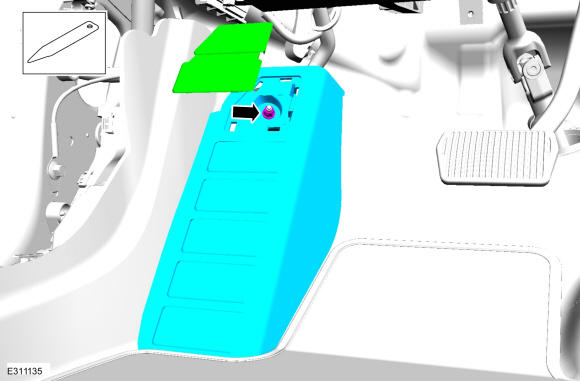

  26. Remove the cover, the nut and foot rest pad. Use the General Equipment: Interior Trim Remover

    Torque: 48 lb.in (5.4 Nm)

    GFD477913Courtesy of FORD MOTOR COMPANY

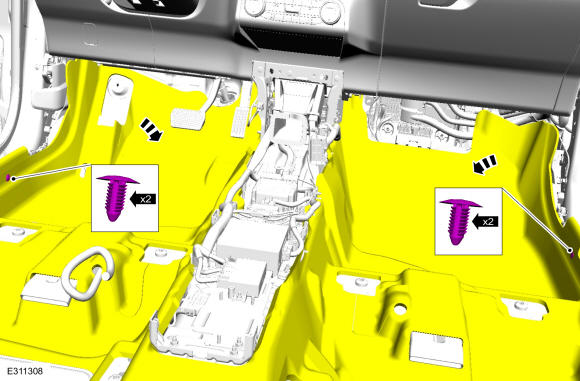

  27. Remove the pushpins and position the carpet rearward.
    GFD477914Courtesy of FORD MOTOR COMPANY

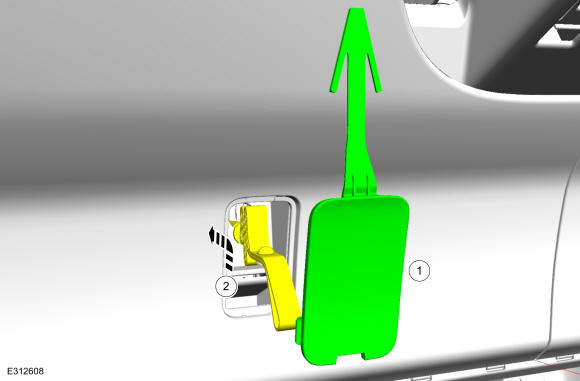

    1. Remove the cover.
    2. Lift the cable and strap upward and reward to disengage from the lower trim panel.
    GFD477915Courtesy of FORD MOTOR COMPANY

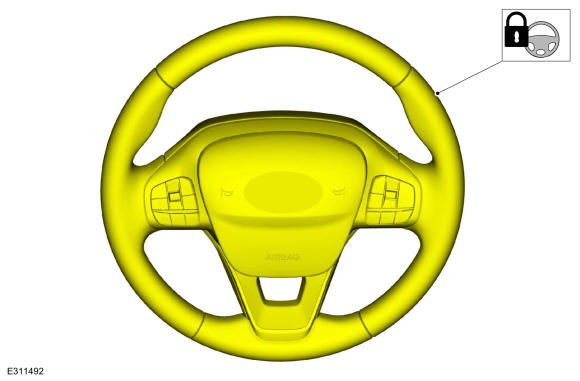

  29. NOTE: Do not allow the steering wheel to rotate while the steering column shaft is disconnected or damage to the clockspring may result. If there is evidence that the shaft has rotated, remove and recenter the clockspring

    Secure the steering wheel.

    GFD477916Courtesy of FORD MOTOR COMPANY

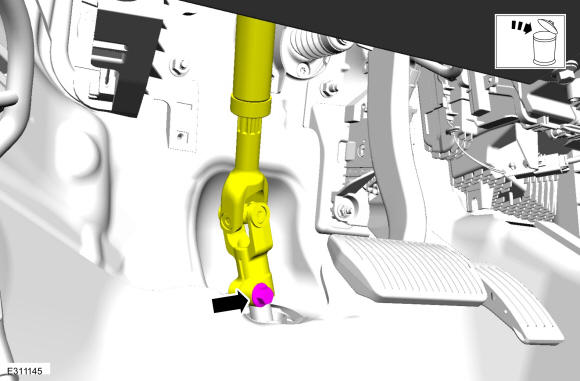

  30. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    1. Remove and discard the steering shaft coupler retainer.

      Torque: Stage 1: 35 lb.ft (48 Nm) | Stage 2: 120°

    2. Separate the steering column shaft from the steering column.

    GFD477917Courtesy of FORD MOTOR COMPANY

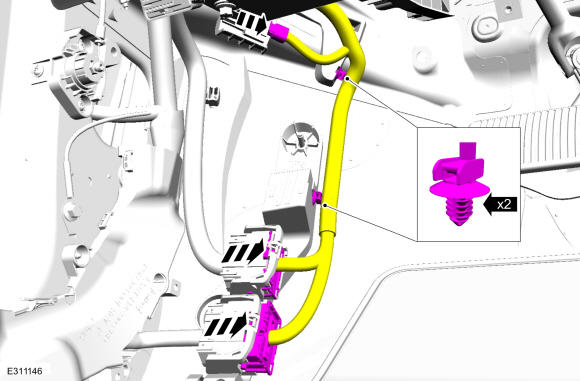

  31. NOTE: Lower left hand side.

    Disconnect the electrical connectors, and detach the harness retainers.

    GFD477918Courtesy of FORD MOTOR COMPANY

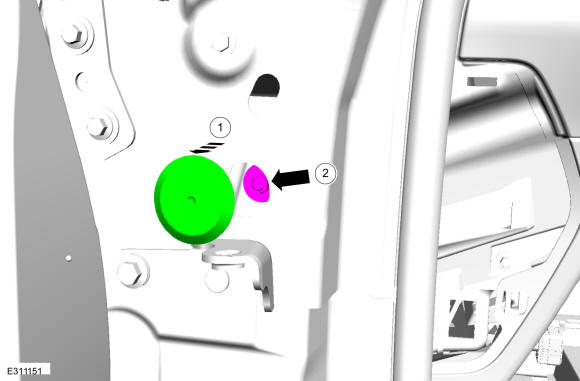

  32. NOTE: Left hand door opening.

    • Remove the cover.

    • Remove the bolt.

      Torque: 18 lb.ft (25 Nm)

    GFD477919Courtesy of FORD MOTOR COMPANY

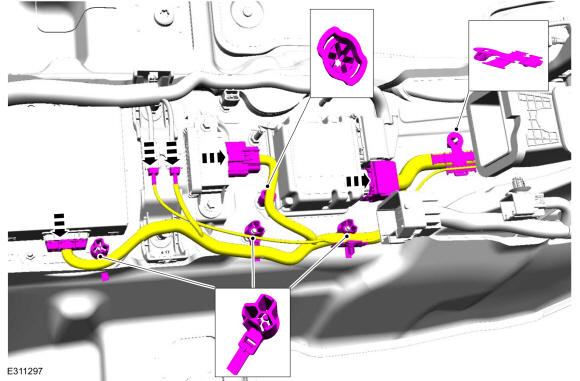

  33. Disconnect the electrical connectors, release the harness retainers and position the harness aside.
    GFD477920Courtesy of FORD MOTOR COMPANY

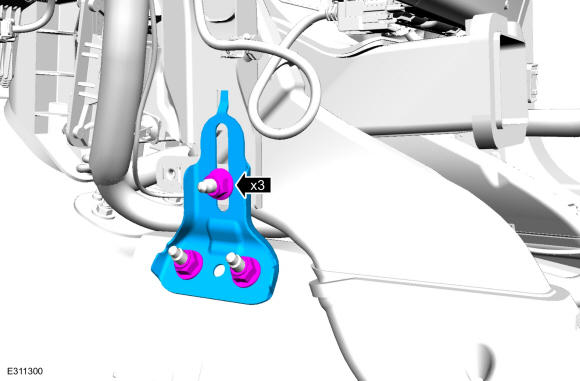

  34. Remove the nuts and the bracket.

    Torque: 18 lb.ft (25 Nm)

    GFD477921Courtesy of FORD MOTOR COMPANY

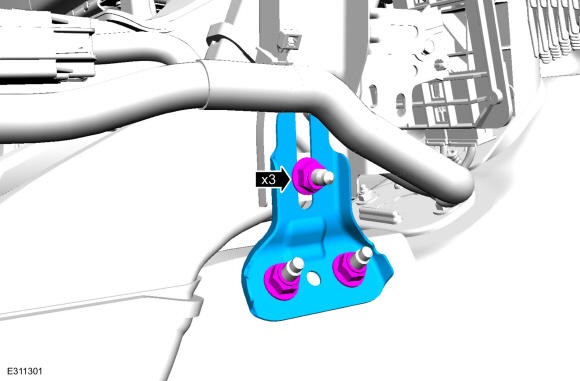

  35. Remove the nuts and the bracket.

    Torque: 18 lb.ft (25 Nm)

    GFD477922Courtesy of FORD MOTOR COMPANY

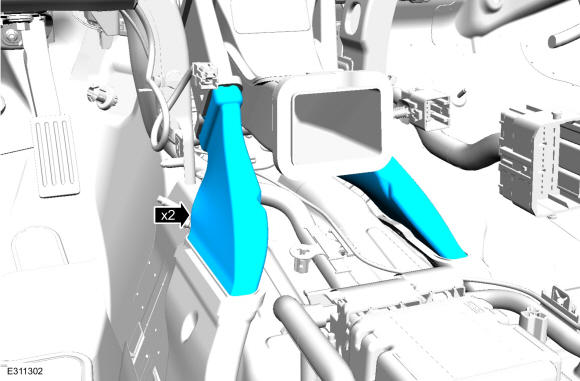

  36. Remove the HVAC ducts.
    GFD477923Courtesy of FORD MOTOR COMPANY

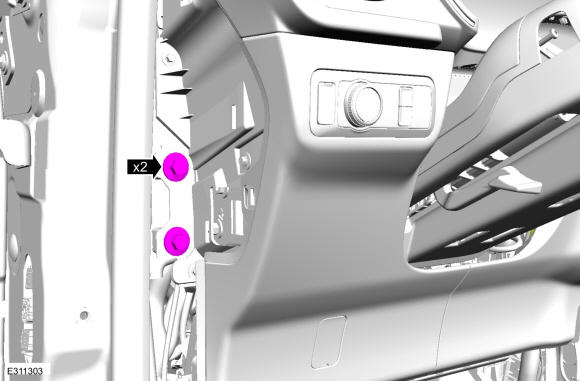

  37. NOTE: Leave the top bolt finger tight until ready to remove the instrument panel.

    Remove the bolts.

    Torque: 35 lb.ft (47.5 Nm)

    GFD477924Courtesy of FORD MOTOR COMPANY

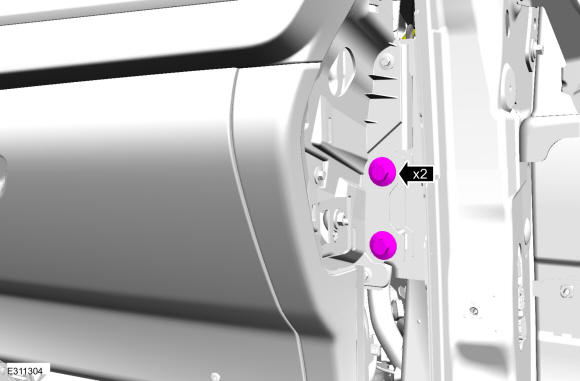

  38. NOTE: Leave the top bolt finger tight until ready to remove the instrument panel.

    Remove the bolts.

    Torque: 35 lb.ft (47.5 Nm)

    GFD477925Courtesy of FORD MOTOR COMPANY

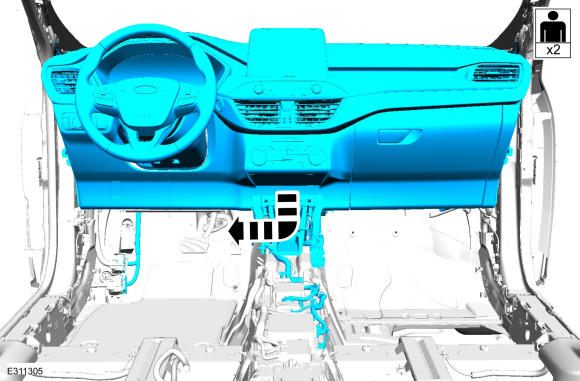

  39. NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out this step.
    NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

    Remove the instrument panel through the driver door opening.

GFD477926Courtesy of FORD MOTOR COMPANY
