Front Seat: Removal

NOTE: Driver seat shown, passenger seat similar.
NOTE: Removal steps in this procedure may contain installation details.

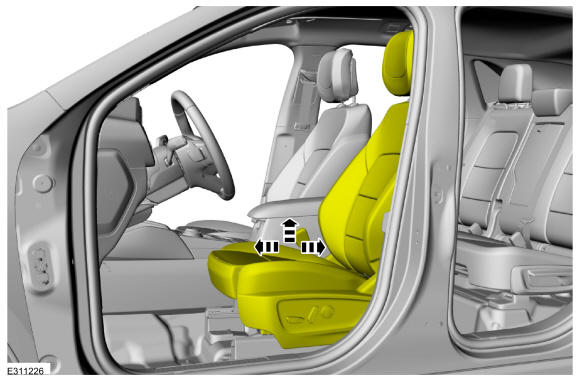

  1. Move the front seat to the full upward position and forward or rearward to access all of the seat bolts.
    GFD477769Courtesy of FORD MOTOR COMPANY
  2. Depower the SRS Refer to: Supplemental Restraint System (SRS) Depowering .

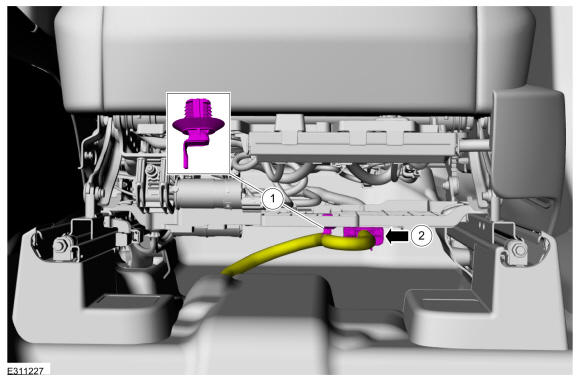

  3. Disconnect the front seat harness electrical connector.

    1. Detach the wiring harness retainer.
    2. Disconnect the electrical connector.

    GFD477770Courtesy of FORD MOTOR COMPANY

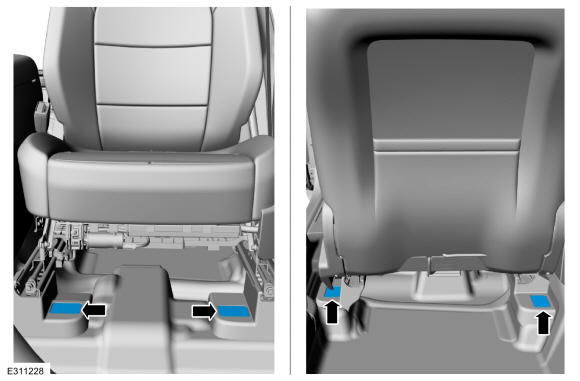

  4. Remove the front seat bolt covers.
    GFD477771Courtesy of FORD MOTOR COMPANY

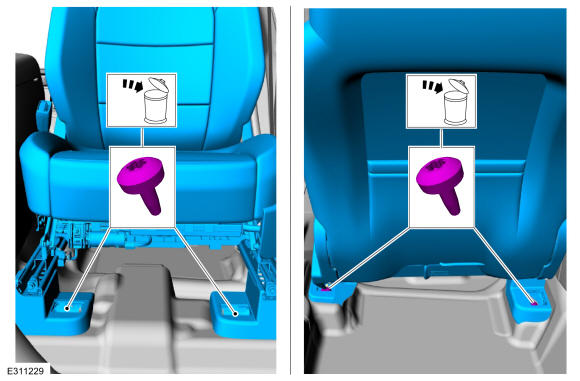

  5. NOTE: Follow the unique instructions or graphics for this step in the installation.

    Remove the front seat.

    • Remove and discard the seat bolts.

GFD477772Courtesy of FORD MOTOR COMPANY
