Front Seat Backrest: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the front seat. Refer to: Front Seat .

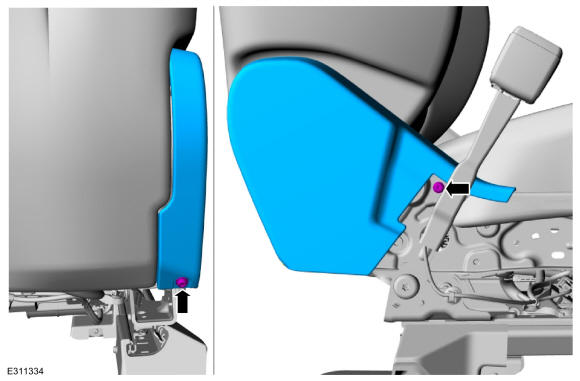

Remove the front seat side shield screws.

Courtesy of FORD MOTOR COMPANY

Passenger seat with manual recline.

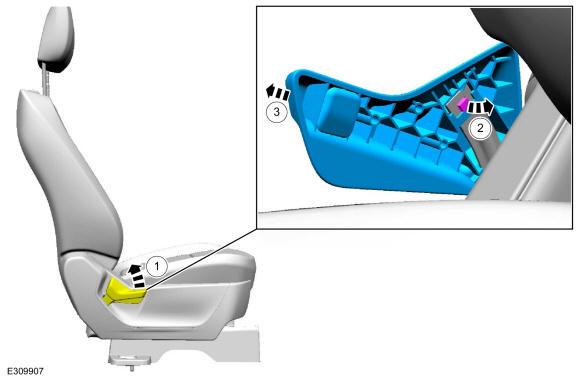

Remove the front seat recline handle cover.
1. Lift the recline handle.
2. Release the tab.
3. Remove the recline handle cover.
Courtesy of FORD MOTOR COMPANY

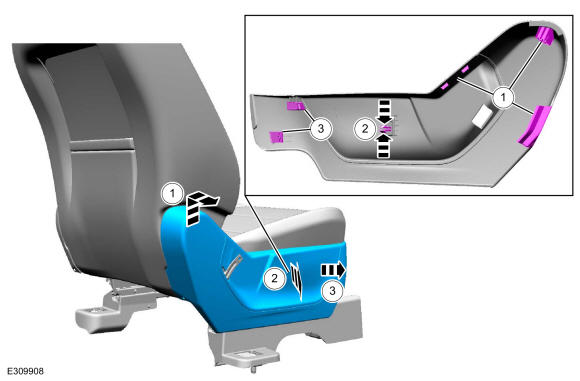

If equipped with a manual seat track.
1. Firmly grasp the front seat side shield, lift up and out, separating the side shield from the recliner bracket.
2. From underneath the seat, squeeze the retainers together and pull out on the front seat side shield.
3. Slide the front seat side shield forward and remove the front seat side shield.
Courtesy of FORD MOTOR COMPANY

Seats with power seat track
1. Firmly grasp the front seat side shield, lift up and out, separating the side shield from the recliner bracket.
2. Slide the front seat side shield forward and separate the side shield from the seat.
Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connector and remove the front seat side shield.

Courtesy of FORD MOTOR COMPANY

All seats
Remove the screws and the recline cover.

Courtesy of FORD MOTOR COMPANY

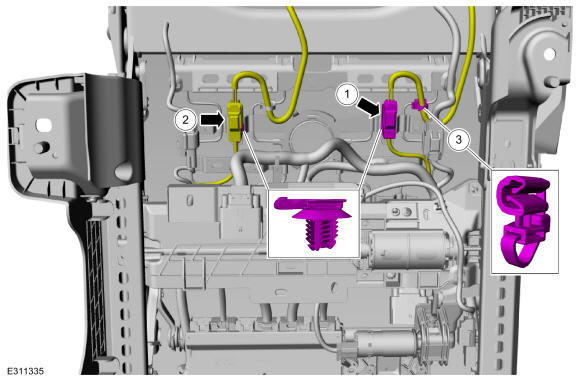

Vehicles with heated seats
1. Detach and disconnect the front seat backrest heater mat electrical connector.
2. Detach and disconnect the front seat backrest heater mat electrical connector.
3. Detach the front seat cushion heater mat wiring harness retainer and position aside.
Courtesy of FORD MOTOR COMPANY

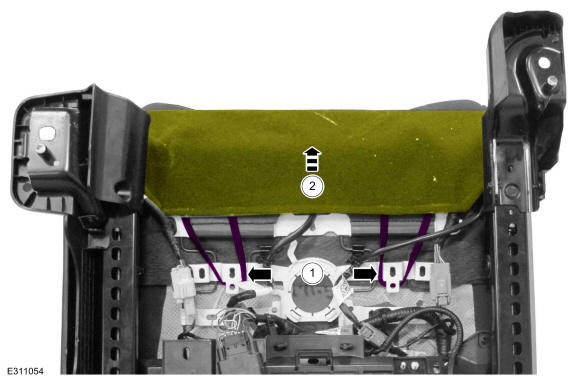

All Seats
1. Detach the front seat backrest cover straps.
2. Position the front seat backrest cover aside.
Courtesy of FORD MOTOR COMPANY
1. Disconnect the side airbag harness electrical connector.
2. Disconnect the front seat harness electrical connector.
3. Detach the front seat wiring harness retainers.
Courtesy of FORD MOTOR COMPANY

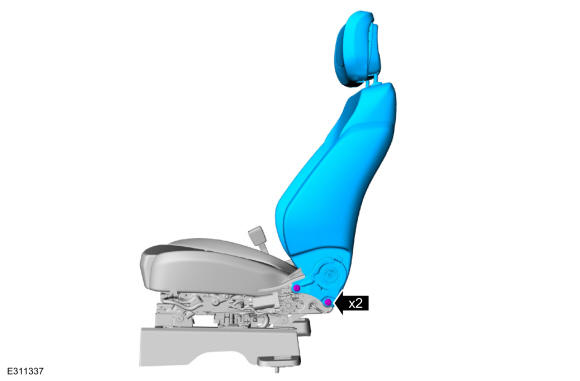

On both sides. Remove the bolts and the front seat backrest.
Torque: 33 lb.ft (45 Nm)

Courtesy of FORD MOTOR COMPANY
