Liftgate Release Switch: Removal

  1. Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .

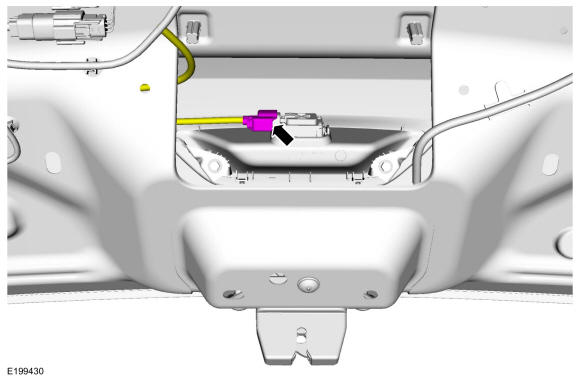

  2. Disconnect the electrical connector.
    GFD529411Courtesy of FORD MOTOR COMPANY

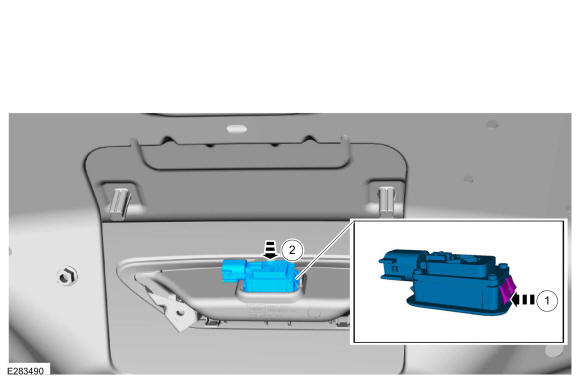

  3. Remove the liftgate release switch.

    1. Press the retaining tabs on the liftgate release switch.
    2. Remove the liftgate release switch.

GFD529412Courtesy of FORD MOTOR COMPANY
