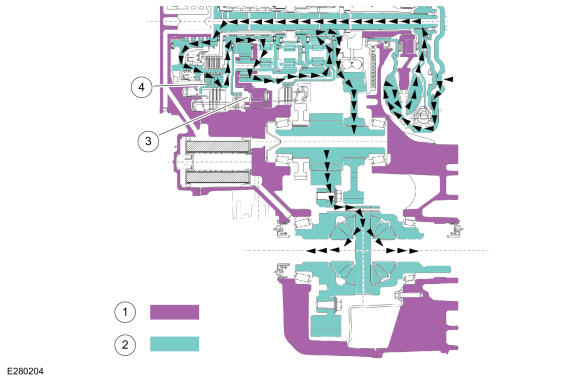

Reverse Position
| Item | Description |
|---|---|
| 1 | Held components |
| 2 | Driven components |
| 3 | Electronic Selectable One-Way Clutch (SOWC) |
| 4 | B (4, 6, R) clutch |
- With the vehicle in reverse, the electronic Selectable One-Way Clutch (SOWC) holds the overdrive/reaction carrier stationary.
- The B (4, 6, R) clutch drives the reaction sun gear at turbine shaft speed.
- The reaction ring and Output carrier rotates at a 2.88:1 ratio.
