Component Description: Powerflow

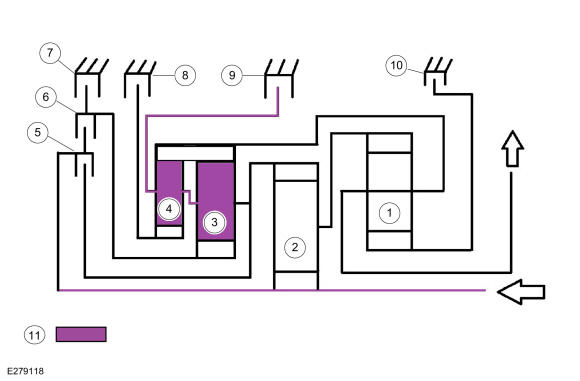

GFD527463Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 Electronic Selectable One-Way Clutch (SOWC)/One-Way clutch
10 A (1, 2, 3, 4, 5) clutch
11 Held components


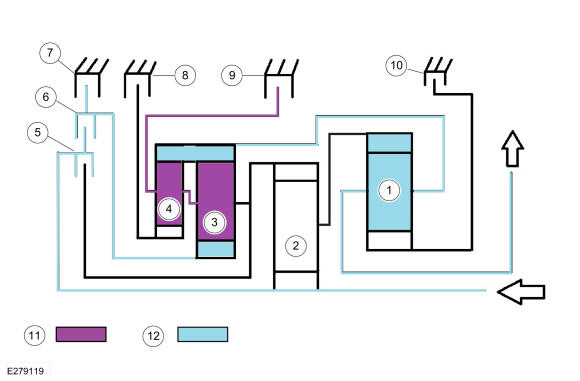

GFD527465Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Output planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 Electronic Selectable One-Way Clutch (SOWC)/One-Way clutch
10 A (1, 2, 3, 4, 5) clutch
11 Held components
12 Driven Components


GFD527463Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 Electronic Selectable One-Way Clutch (SOWC)/One-Way clutch
10 A (1, 2, 3, 4, 5) clutch
11 Held components
12 Driven components

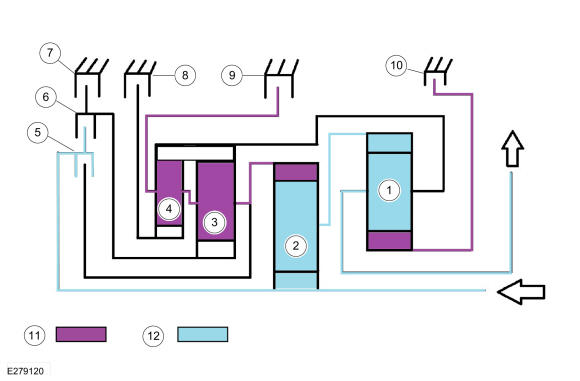

GFD527468Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 Electronic Selectable One-Way Clutch (SOWC)/One-Way clutch
10 A (1, 2, 3, 4, 5) clutch
11 Held components
12 Driven components

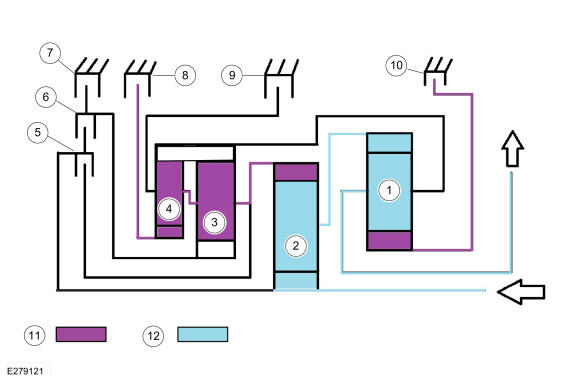

GFD527470Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 Electronic Selectable One-Way Clutch (SOWC)/One-Way clutch
10 A (1, 2, 3, 4, 5) clutch
11 Held components
12 Driven components

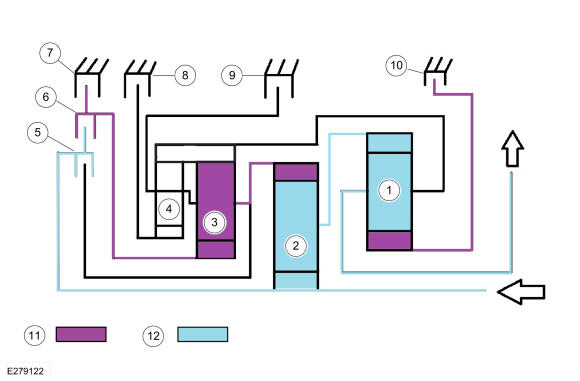

GFD527472Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 Electronic Selectable One-Way Clutch (SOWC)/One-Way clutch
10 A (1, 2, 3, 4, 5) clutch
11 Held components
12 Driven components

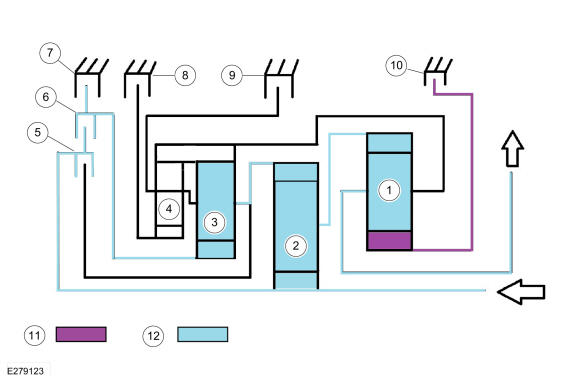

GFD527474Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 Electronic Selectable One-Way Clutch (SOWC)/One-Way clutch
10 A (1, 2, 3, 4, 5) clutch
11 Held components
12 Driven components

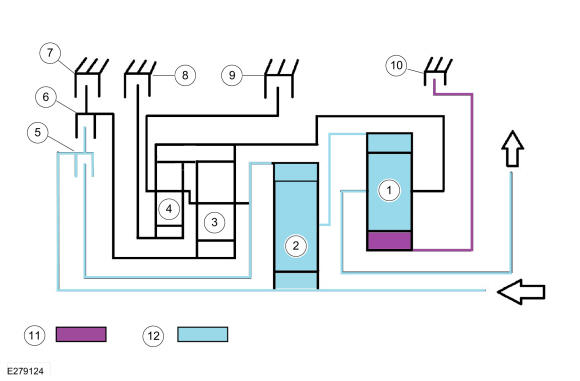

GFD527476Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 Electronic Selectable One-Way Clutch (SOWC)/One-Way clutch
10 A (1, 2, 3, 4, 5) clutch
11 Held components
12 Driven components

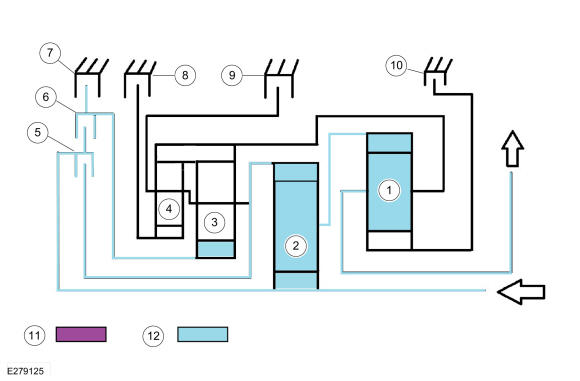

GFD527478Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 Electronic Selectable One-Way Clutch (SOWC)/One-Way clutch
10 Held components
11 Driven components

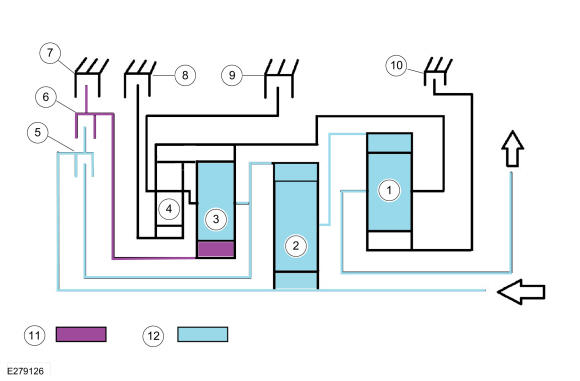

GFD527480Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 Electronic Selectable One-Way Clutch (SOWC)/One-Way clutch
10 A (1, 2, 3, 4, 5) clutch
11 Held components
12 Driven components

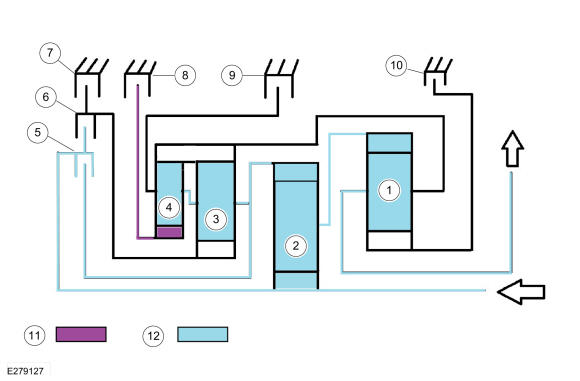

GFD527482Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 Electronic Selectable One-Way Clutch (SOWC)/One-Way clutch
10 A (1, 2, 3, 4, 5) clutch
11 Held components
12 Driven components
