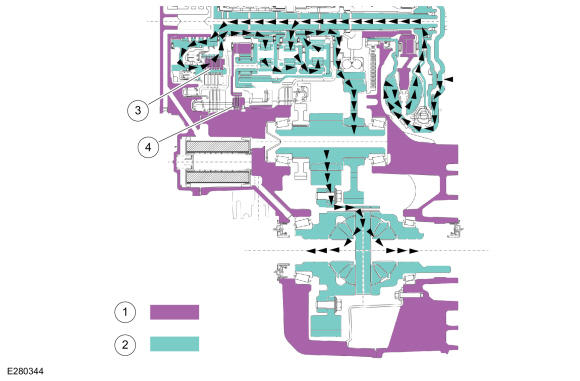

8th Gear Position
| Item | Description |
|---|---|
| 1 | Held components |
| 2 | Driven components |
| 3 | E (5, 6, 7, 8) clutch |
| 4 | F (2, 8) clutch |
- In eighth gear, the F (2, 8) clutch holds the overdrive sun gear stationary.
- The E (5, 6, 7, 8) clutch drives the reaction planetary carrier at turbine shaft speed.
- The reaction ring and the output carrier rotates at a 0.61:1 ratio.
