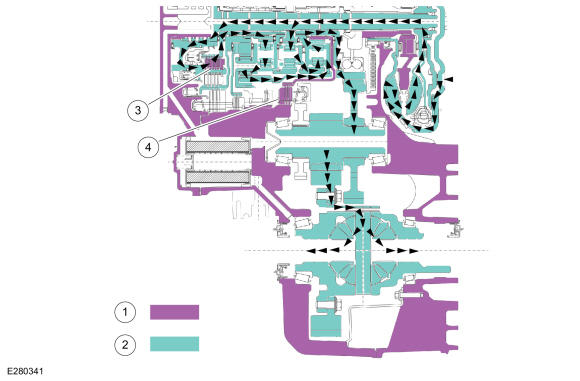

5th Gear Position
| Item | Description |
|---|---|
| 1 | Held components |
| 2 | Driven components |
| 3 | E (5, 6, 7, 8) clutch |
| 4 | A (1, 2, 3, 4, 5) clutch |
- In fifth gear, the A (1, 2, 3, 4, 5) clutch holds the output sun gear stationary.
- The E clutch holds the input ring gear at turbine shaft speed.
- The turbine shaft and the input sun rotate.
- The input carrier and the output ring rotate.
- The output carrier rotates at a 1.41:1 ratio.
