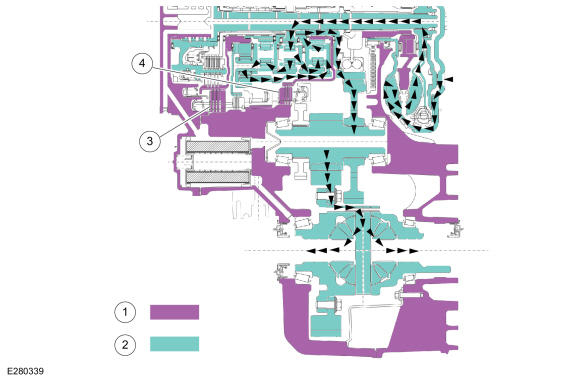

3rd Gear Position
| Item | Description |
|---|---|
| 1 | Held components |
| 2 | Driven components |
| 3 | C (3, 7) clutch |
| 4 | A (1, 2, 3, 4, 5) clutch |
- In third gear, the A (1, 2, 3, 4, 5) clutch holds the output sun gear stationary.
- The C (3, 7) clutch holds the reaction sun gear stationary.
- The turbine shaft and the Input sun rotate.
- The input ring rotates.
- The input carrier and the output ring rotate.
- The output carrier rotates at a 2.87:1 ratio.
