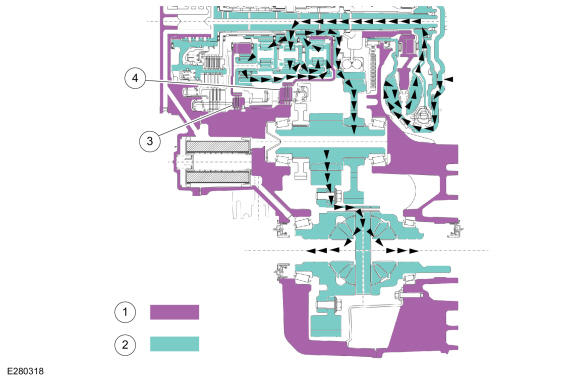

2nd Gear Position
| Item | Description |
|---|---|
| 1 | Held components |
| 2 | Driven components |
| 3 | F (2, 8) clutch |
| 4 | A (1, 2, 3, 4, 5) clutch |
- In second gear, the A (1, 2, 3, 4, 5) clutch holds the output sun gear stationary.
- The F (2, 8) clutch holds the overdrive sun gear stationary.
- The turbine shaft and input sun rotate.
- The input ring rotates.
- The input carrier and the output ring rotates.
- The output carrier rotates at a 3.14:1 ratio.
