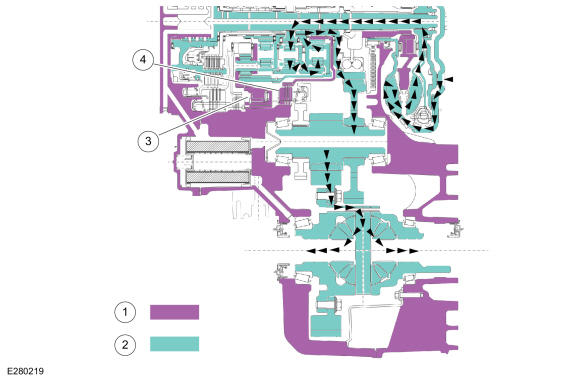

1st Gear Position
| Item | Description |
|---|---|
| 1 | Held components |
| 2 | Driven components |
| 3 | One-Way clutch |
| 4 | A (1, 2, 3, 4, 5) clutch |
- In first gear, the A (1, 2, 3, 4, 5) clutch holds the output sun gear stationary.
- The one-way clutch holds the input ring gear stationary.
- The turbine shaft and the input sun gear rotate.
- The input carrier and the output ring rotate.
- The output carrier rotates at a 4.48:1 ratio.
