Wipers And Washers

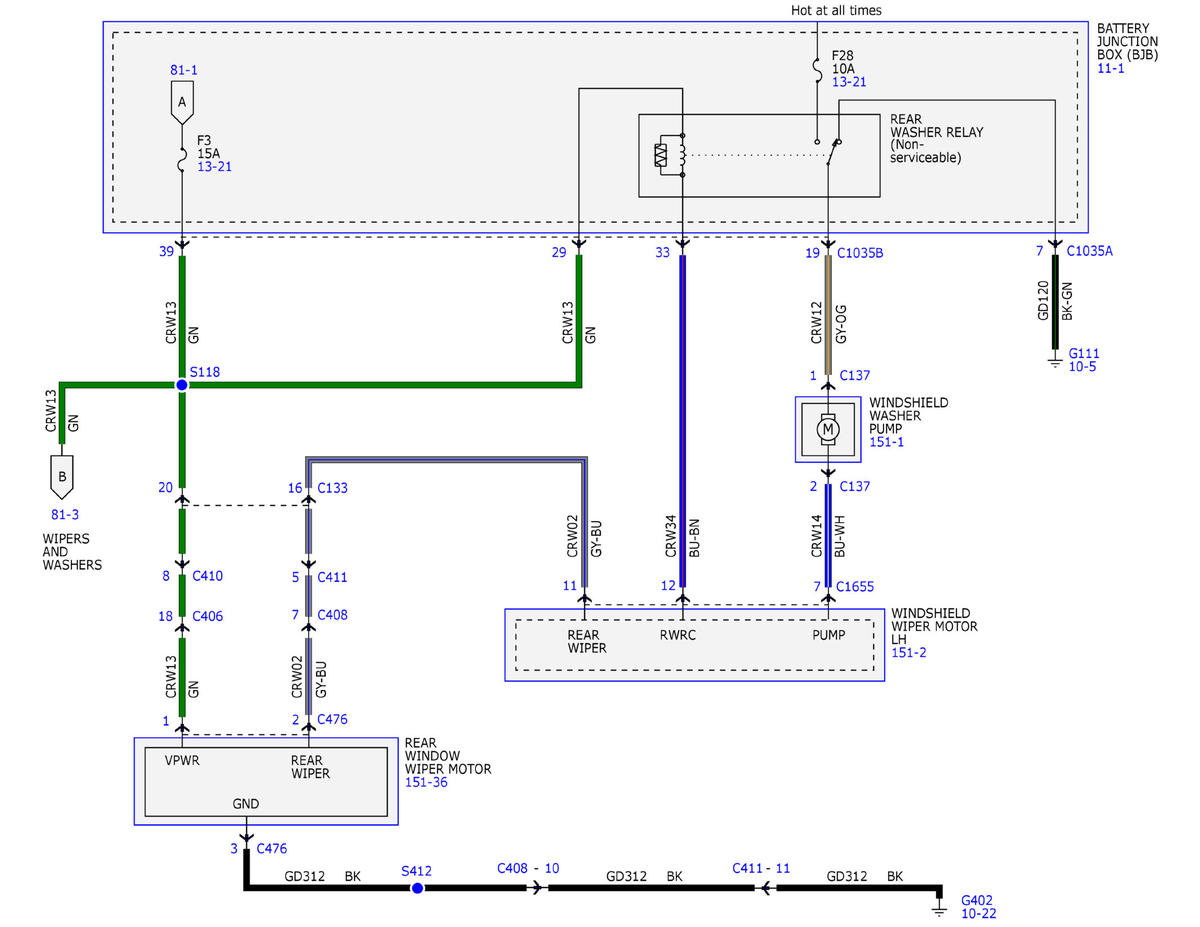

Fig 1: Wipers And Washers Wiring Diagram (1 Of 3)
GFDWR108944Courtesy of FORD MOTOR COMPANY

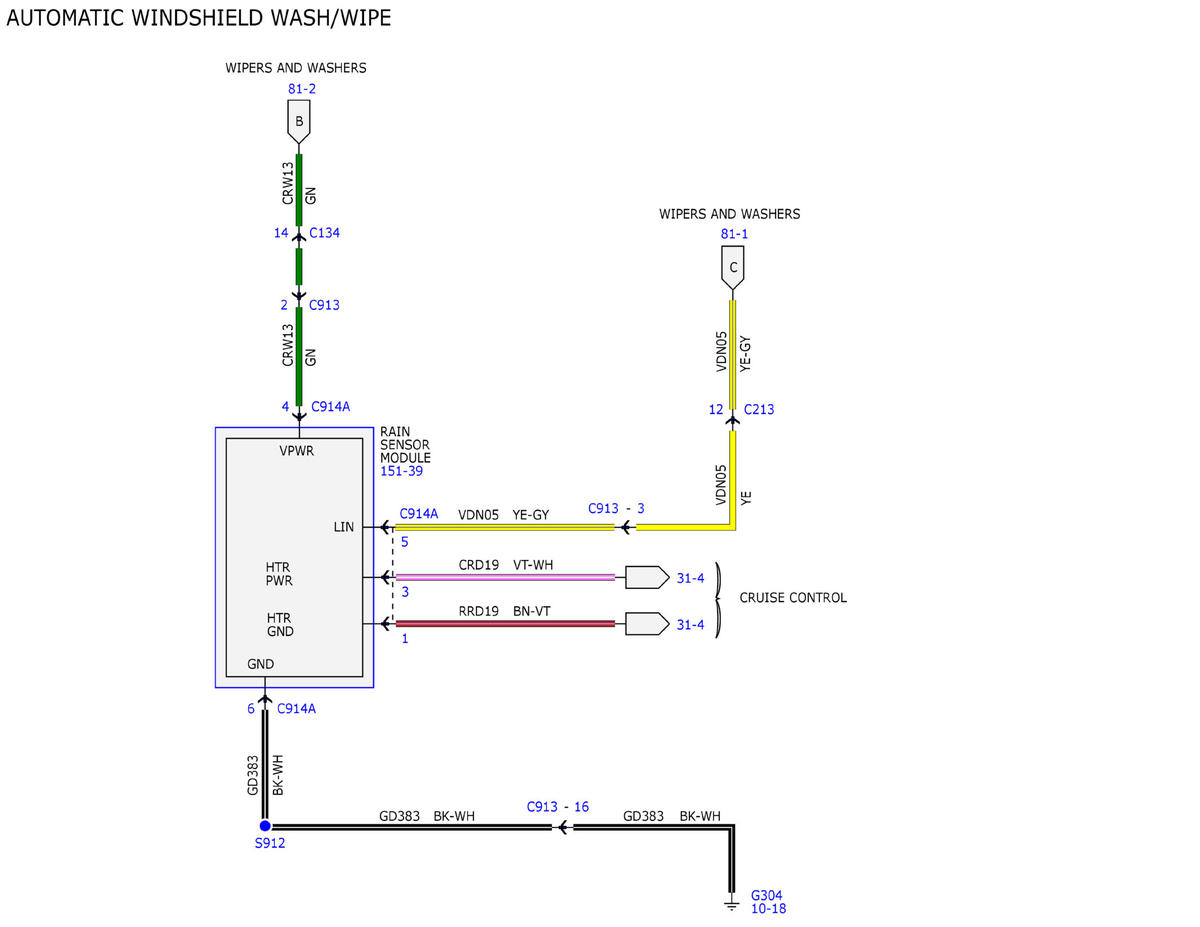

Fig 2: Wipers And Washers Wiring Diagram (2 Of 3)
GFDWR108945Courtesy of FORD MOTOR COMPANY

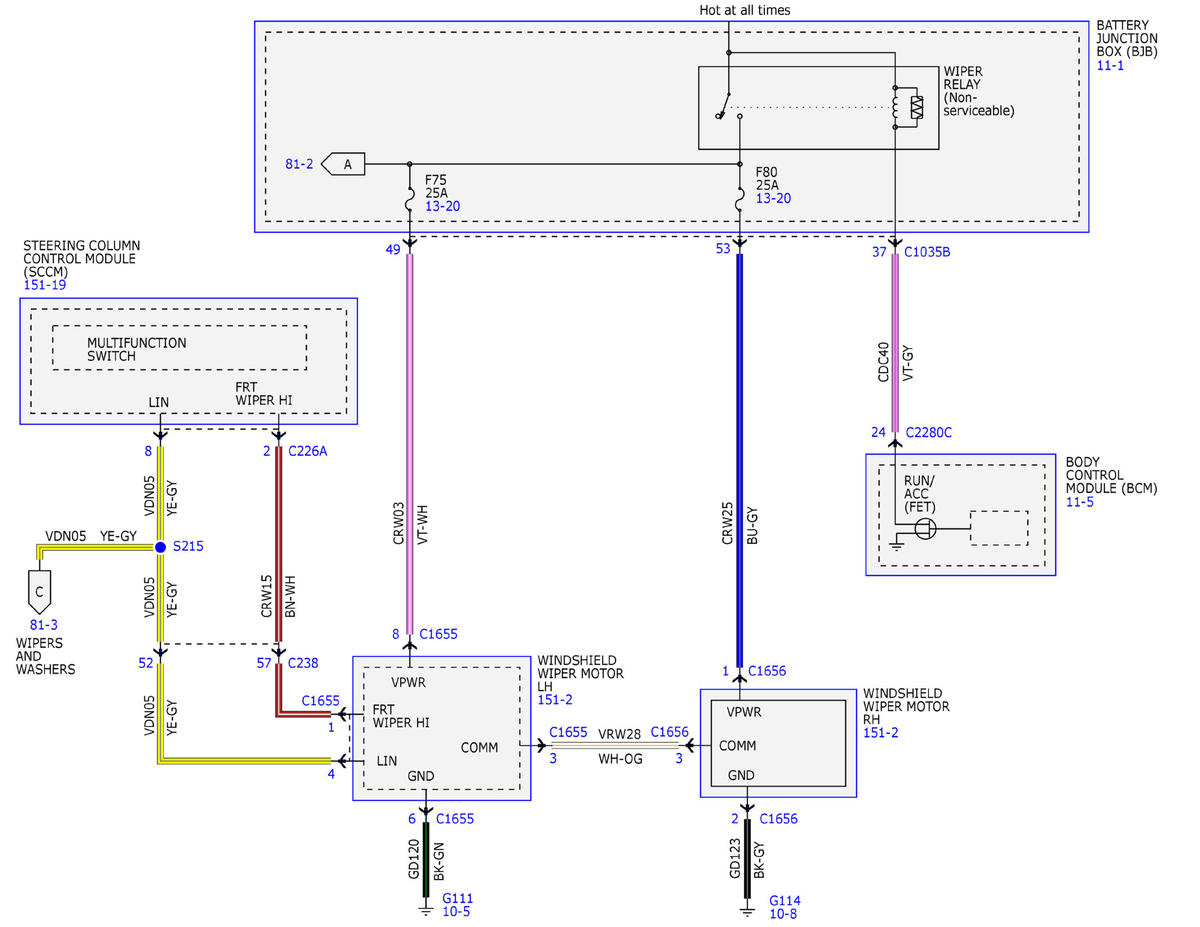

Fig 3: Wipers And Washers Wiring Diagram (3 Of 3)
GFDWR108946Courtesy of FORD MOTOR COMPANY
