Transmission Controls - 8F57

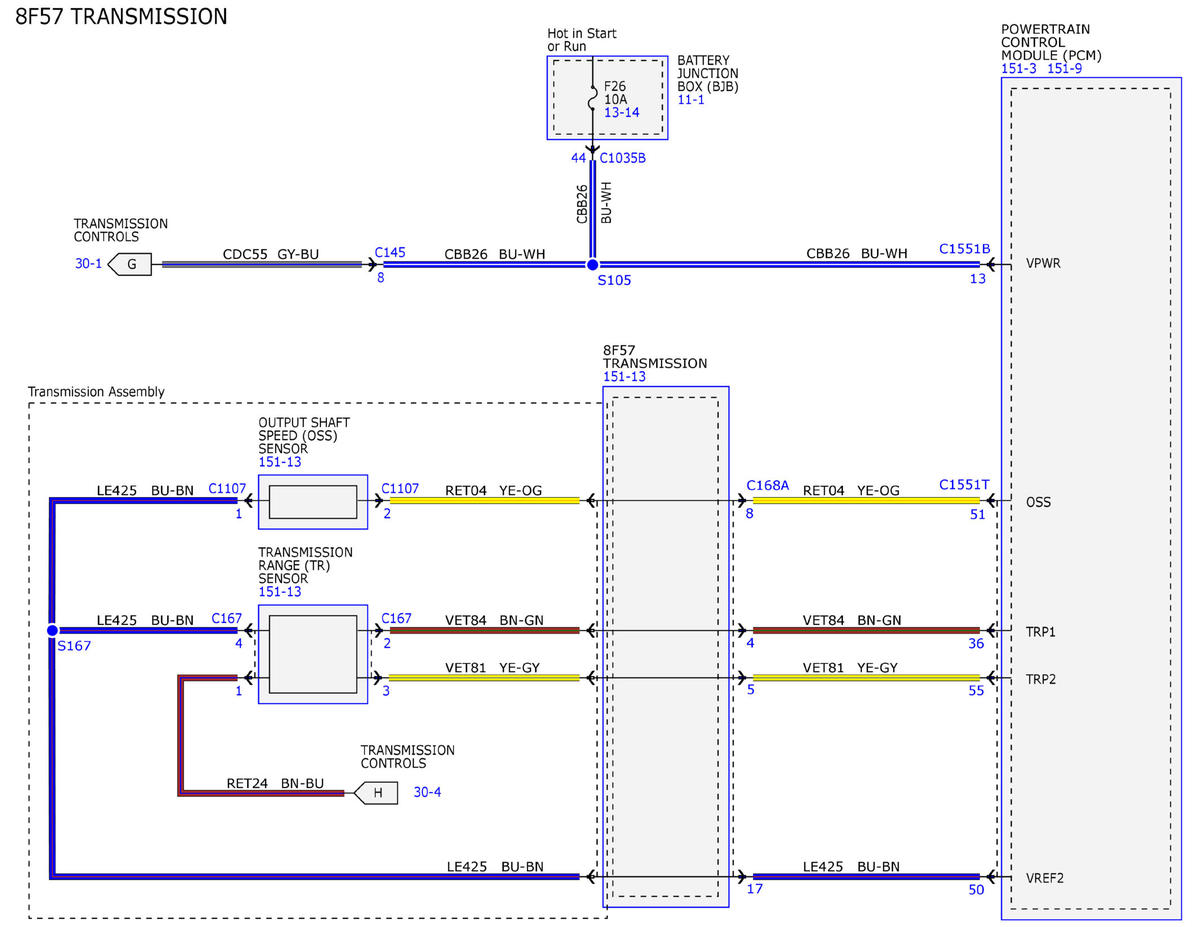

Fig 1: Transmission Controls - 8F57 Wiring Diagram (1 Of 8)
GFDWR108923Courtesy of FORD MOTOR COMPANY

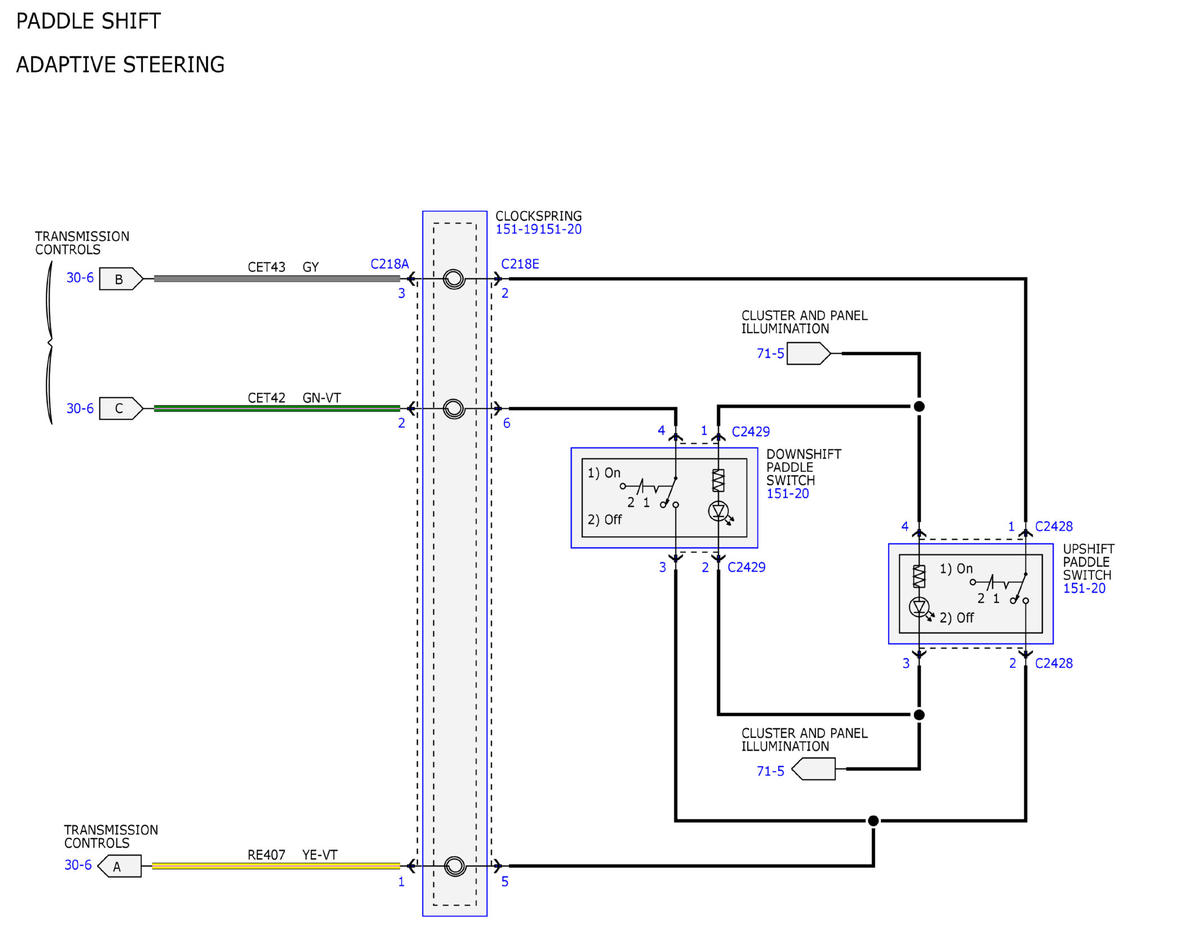

Fig 2: Transmission Controls - 8F57 Wiring Diagram (2 Of 8)
GFDWR108924Courtesy of FORD MOTOR COMPANY

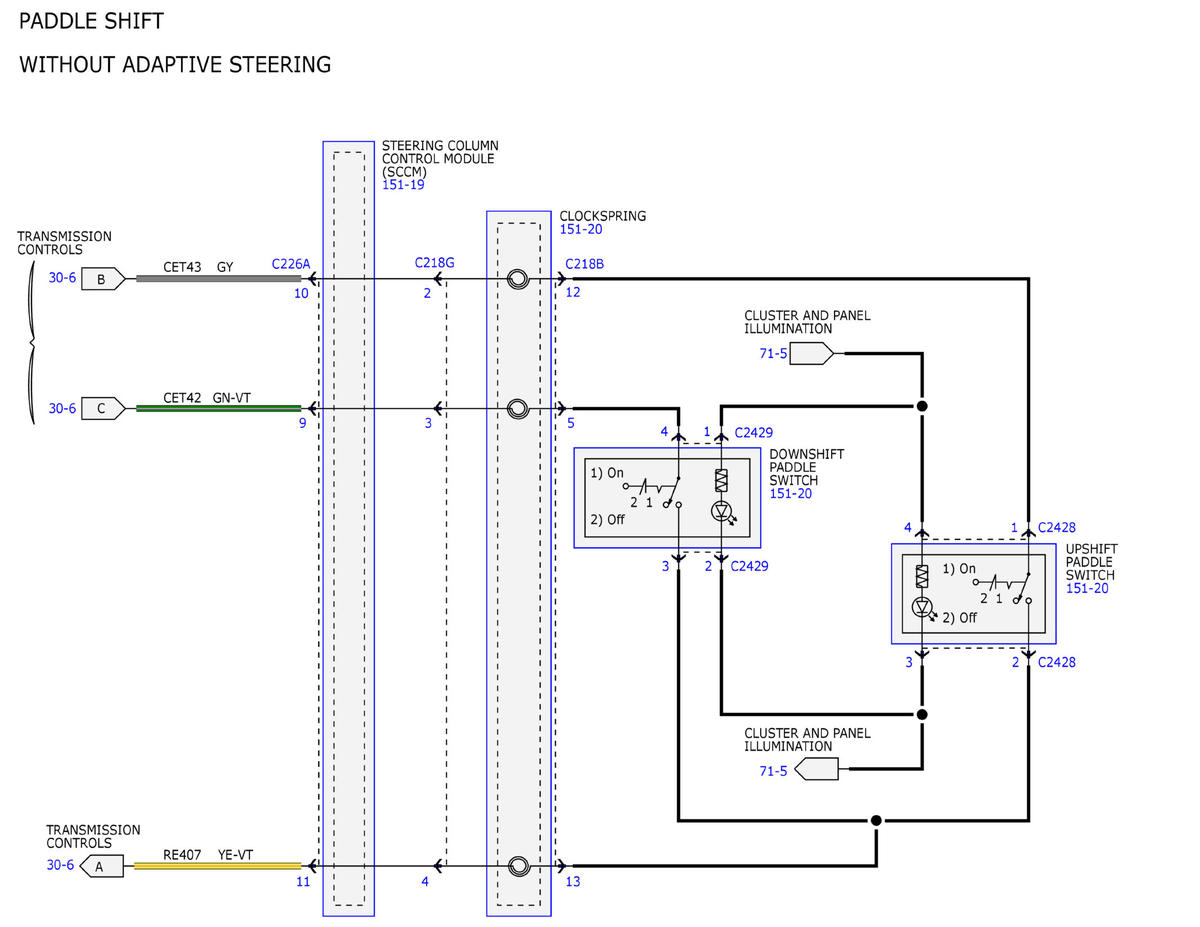

Fig 3: Transmission Controls - 8F57 Wiring Diagram (3 Of 8)
GFDWR108925Courtesy of FORD MOTOR COMPANY

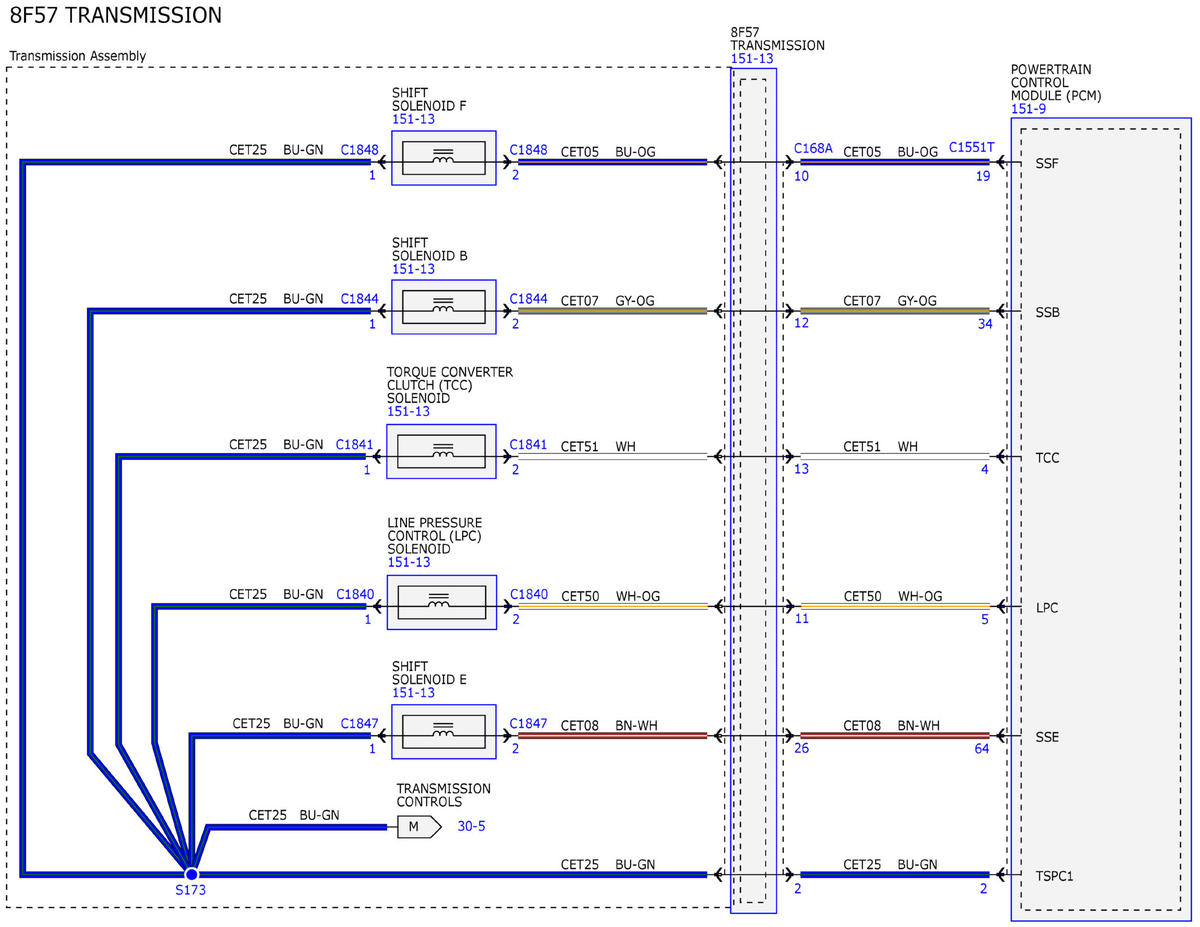

Fig 4: Transmission Controls - 8F57 Wiring Diagram (4 Of 8)
GFDWR108926Courtesy of FORD MOTOR COMPANY

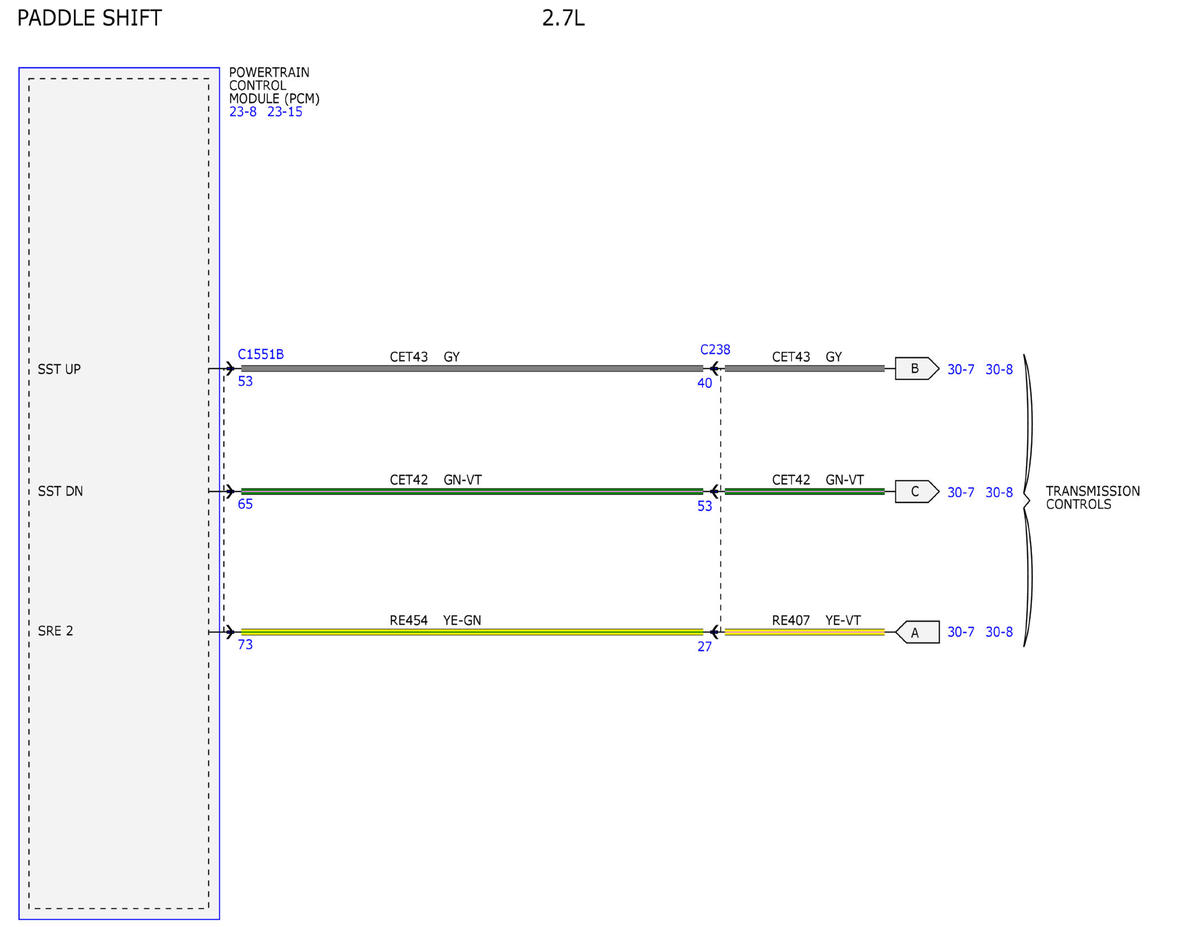

Fig 5: Transmission Controls - 8F57 Wiring Diagram (5 Of 8)
GFDWR108927Courtesy of FORD MOTOR COMPANY

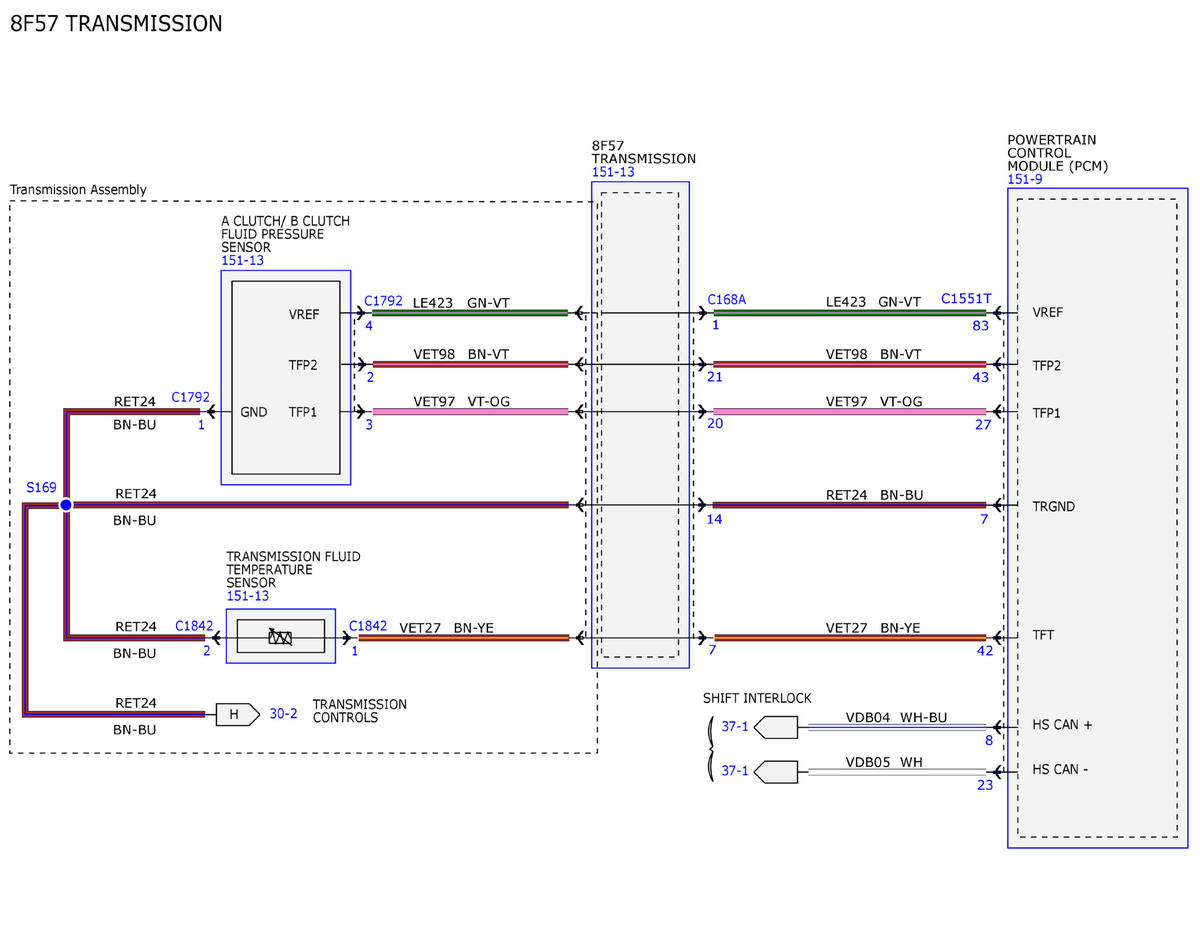

Fig 6: Transmission Controls - 8F57 Wiring Diagram (6 Of 8)
GFDWR108928Courtesy of FORD MOTOR COMPANY

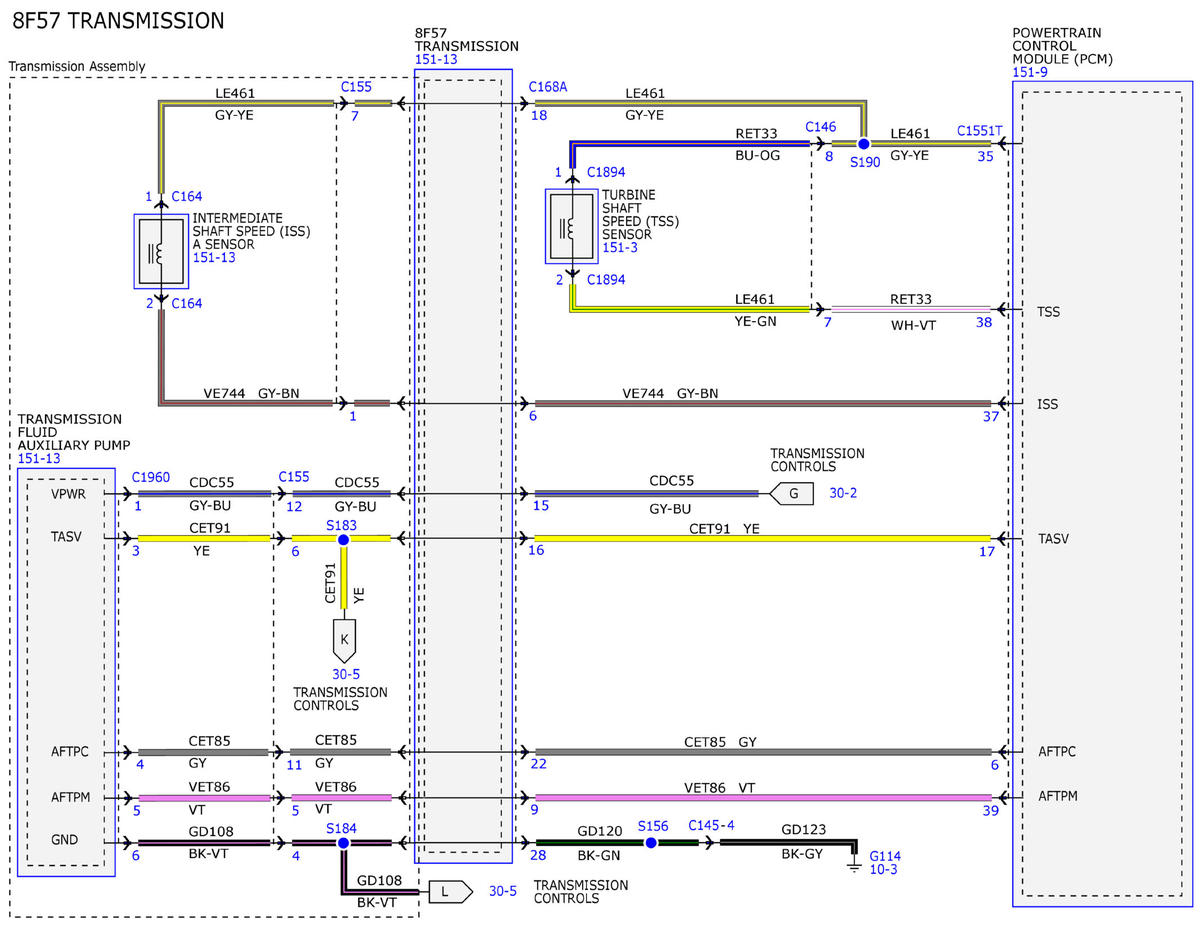

Fig 7: Transmission Controls - 8F57 Wiring Diagram (7 Of 8)
GFDWR108929Courtesy of FORD MOTOR COMPANY

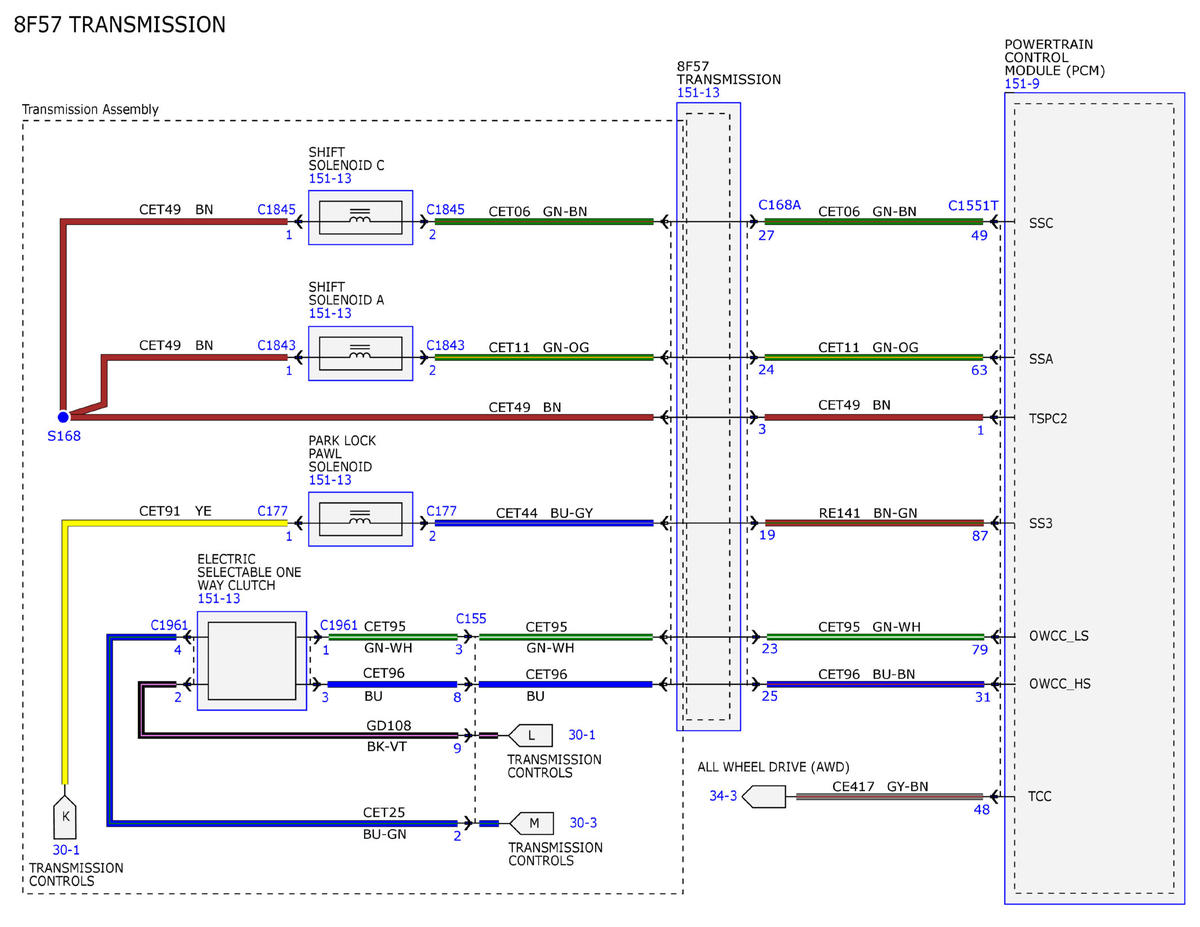

Fig 8: Transmission Controls - 8F57 Wiring Diagram (8 Of 8)
GFDWR108930Courtesy of FORD MOTOR COMPANY
