Transmission Controls - 8F35
Transmission Controls - 8F35

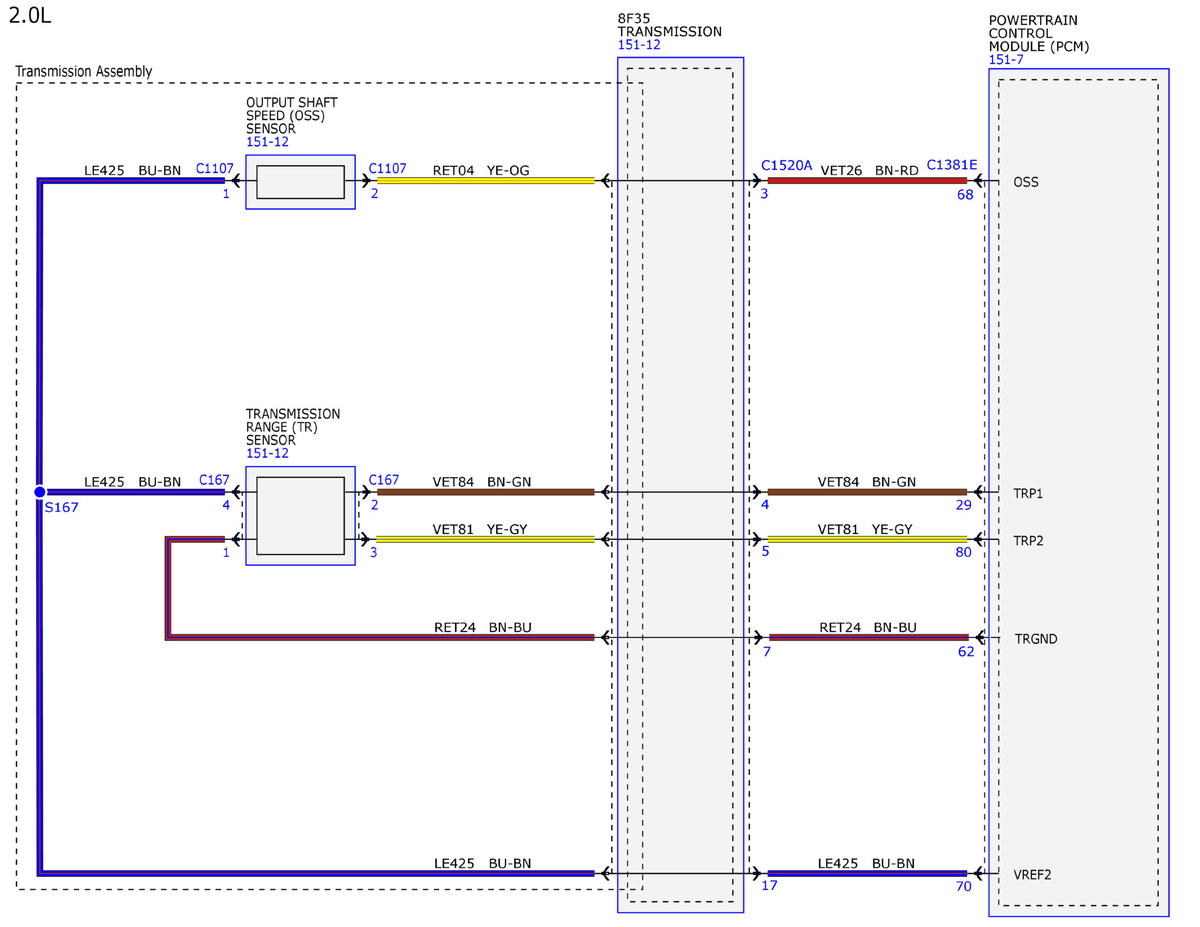

Fig 1: Transmission Controls - 8F35 Wiring Diagram (1 Of 6)
Courtesy of FORD MOTOR COMPANY

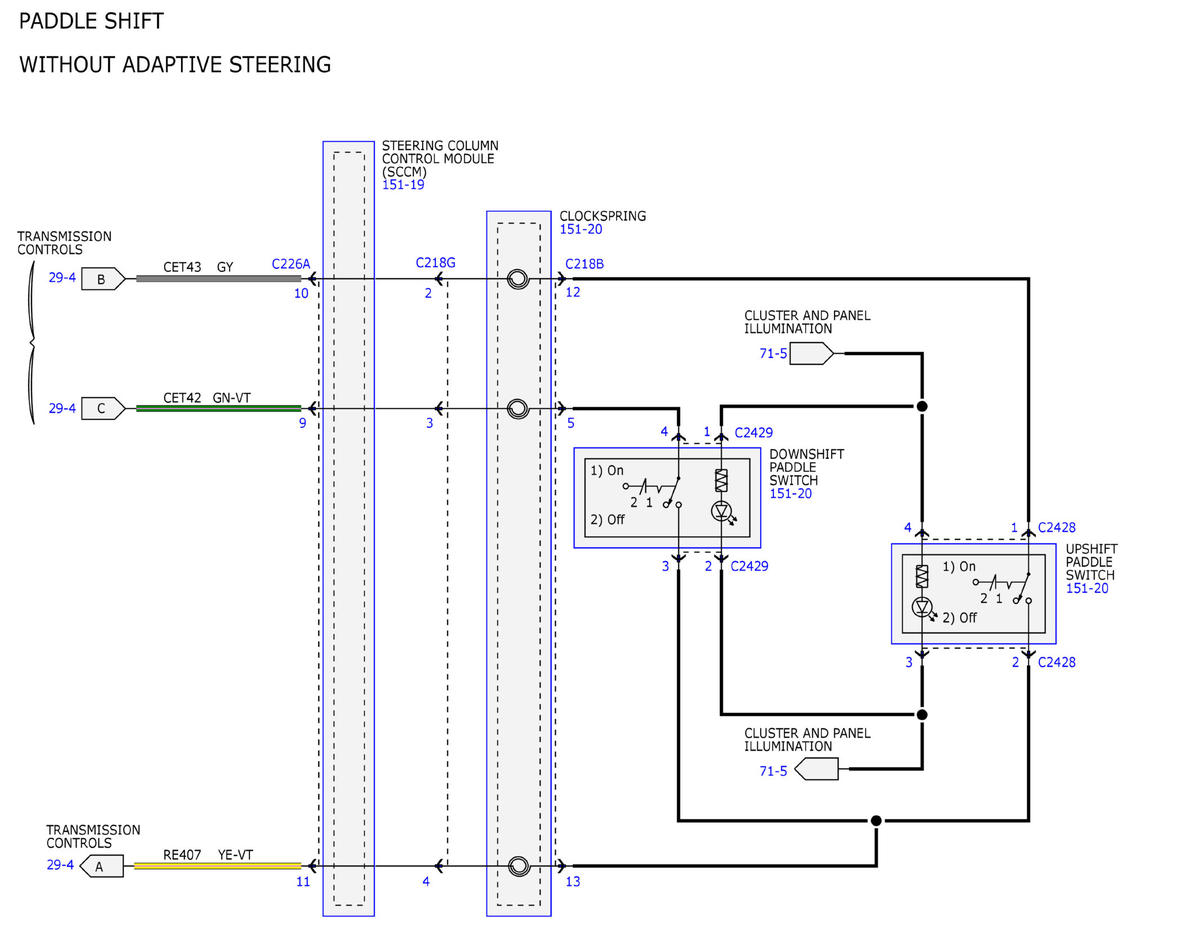

Fig 2: Transmission Controls - 8F35 Wiring Diagram (2 Of 6)
Courtesy of FORD MOTOR COMPANY

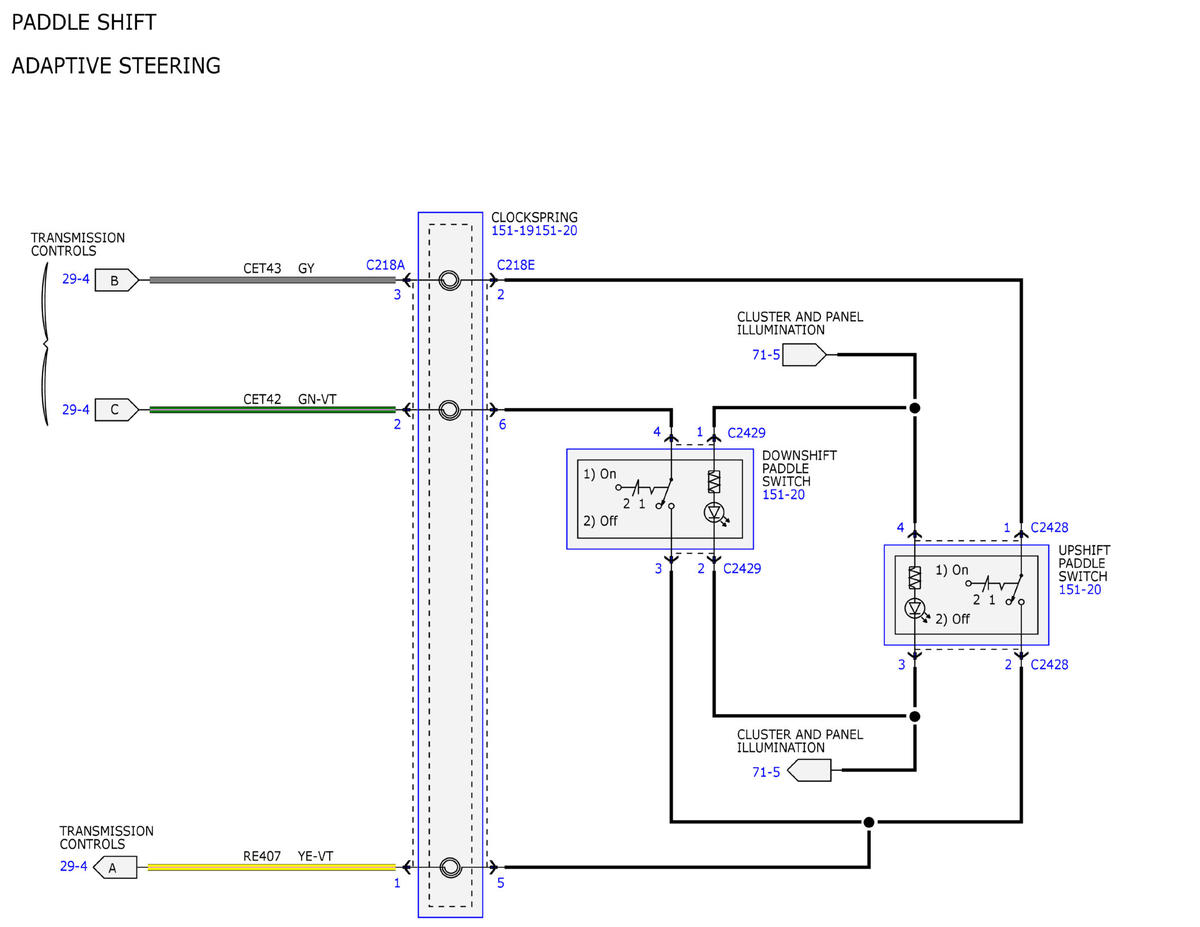

Fig 3: Transmission Controls - 8F35 Wiring Diagram (3 Of 6)
Courtesy of FORD MOTOR COMPANY

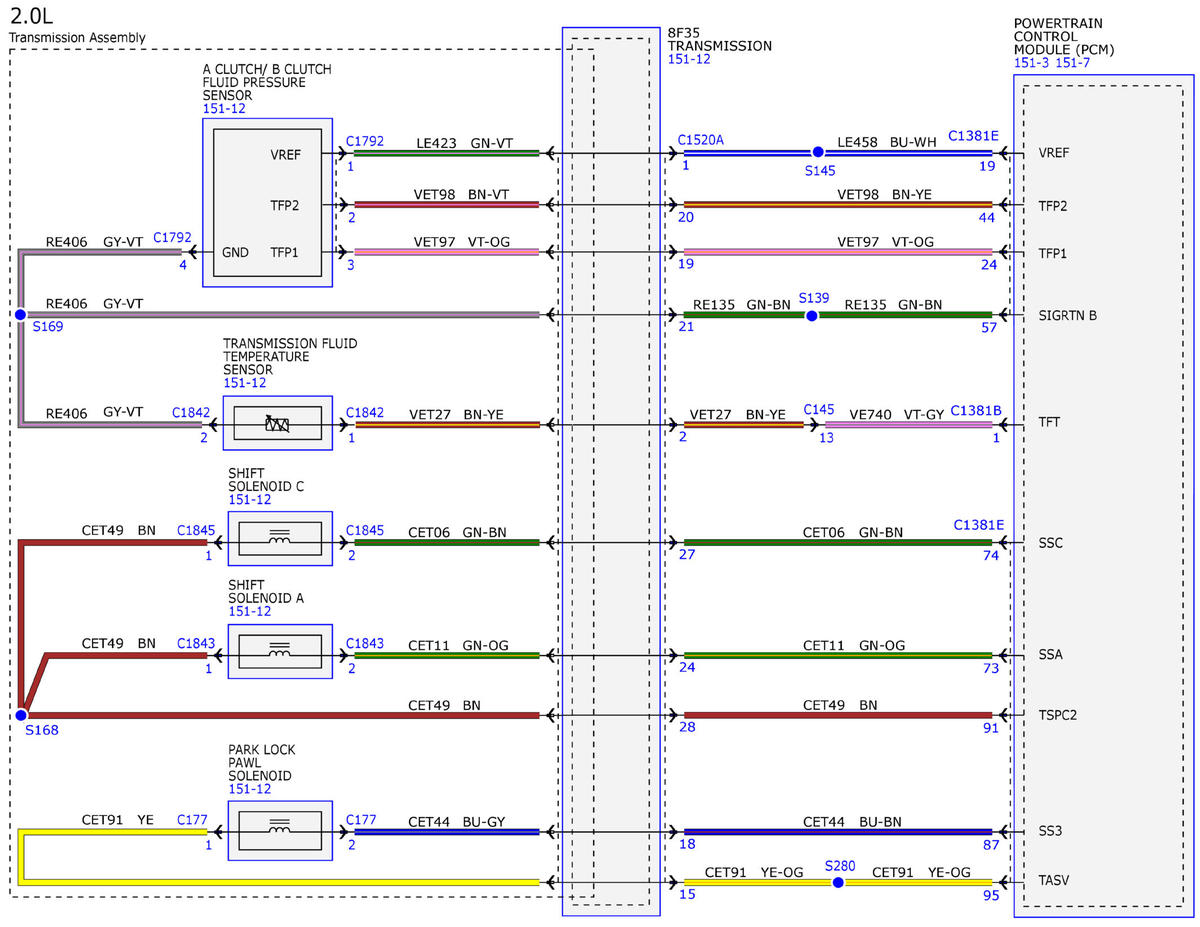

Fig 4: Transmission Controls - 8F35 Wiring Diagram (4 Of 6)
Courtesy of FORD MOTOR COMPANY

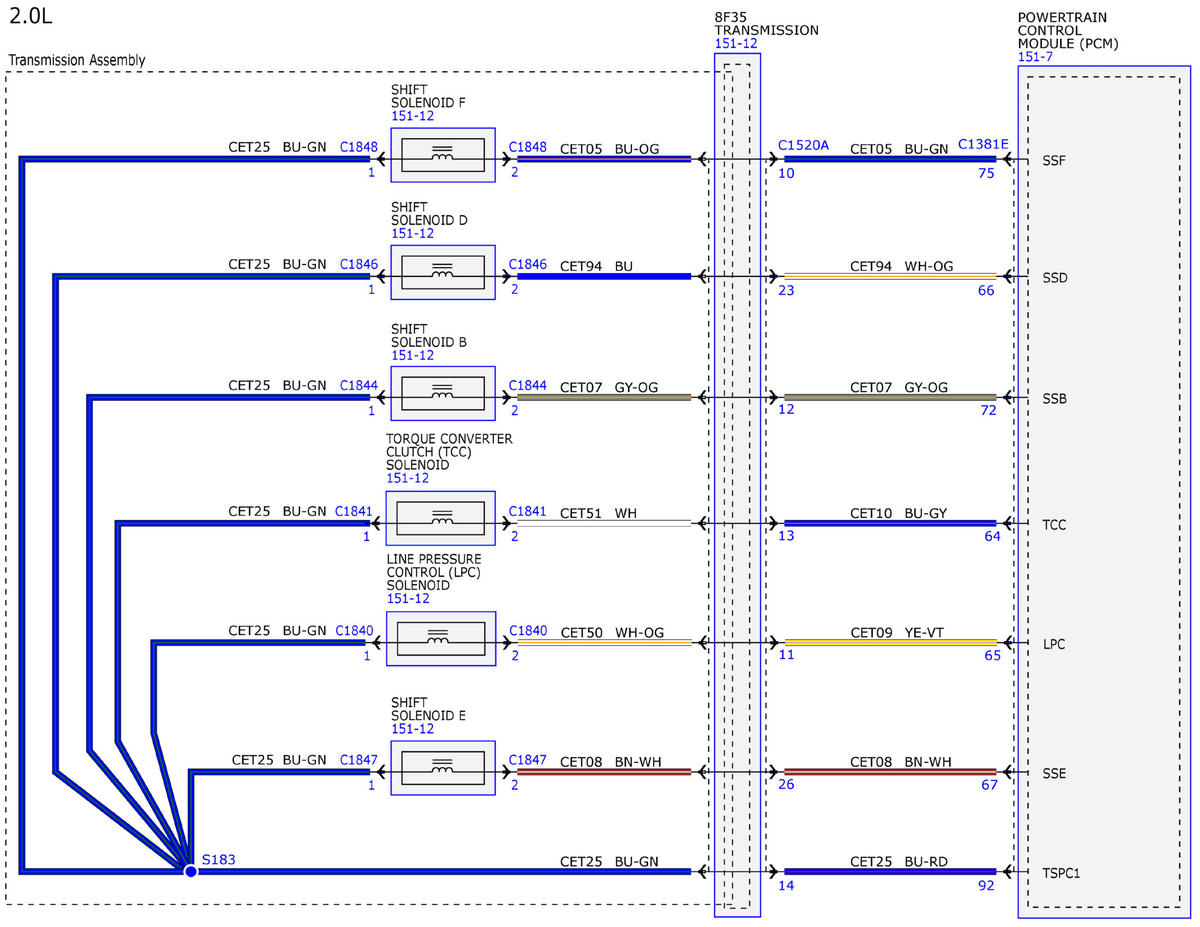

Fig 5: Transmission Controls - 8F35 Wiring Diagram (5 Of 6)
Courtesy of FORD MOTOR COMPANY

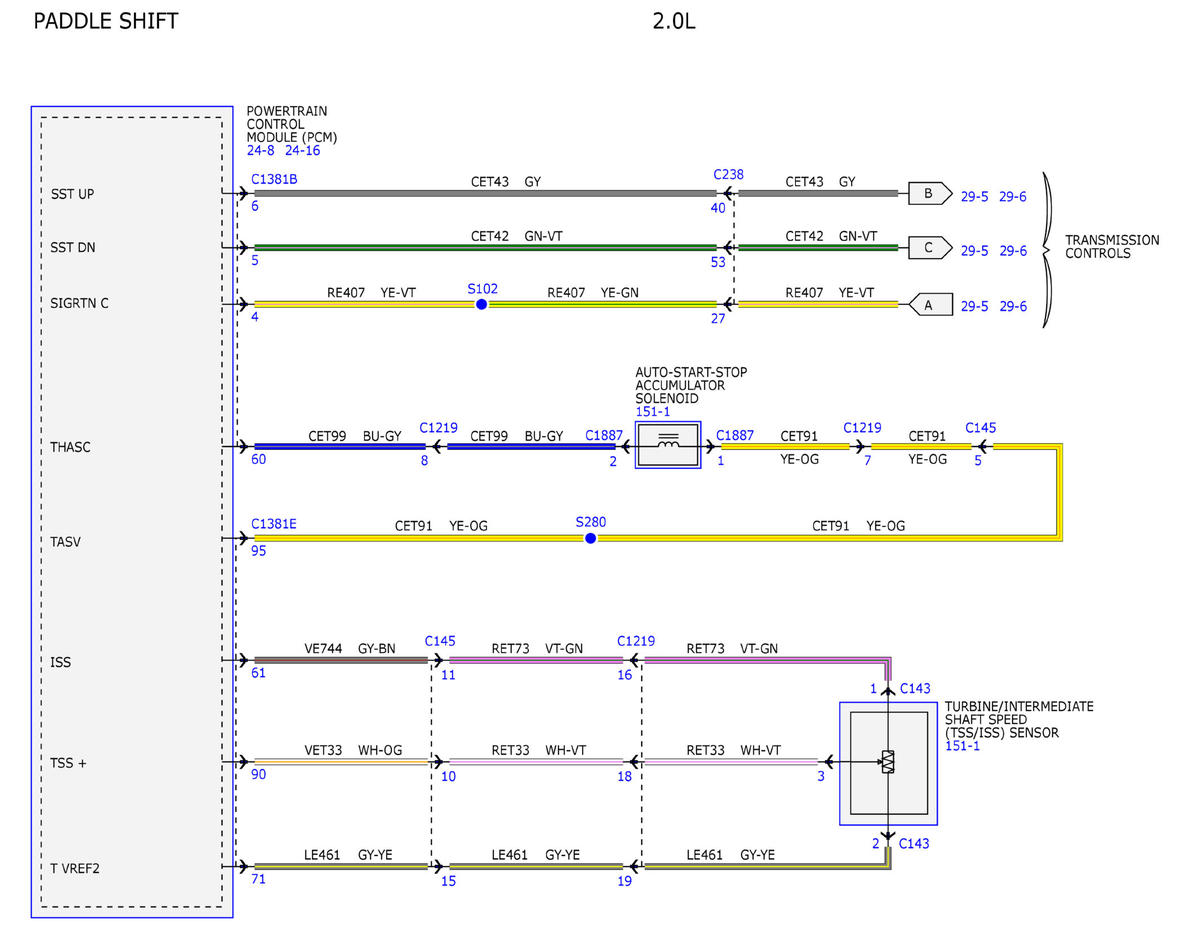

Fig 6: Transmission Controls - 8F35 Wiring Diagram (6 Of 6)
Courtesy of FORD MOTOR COMPANY
