Supplemental Restraint System

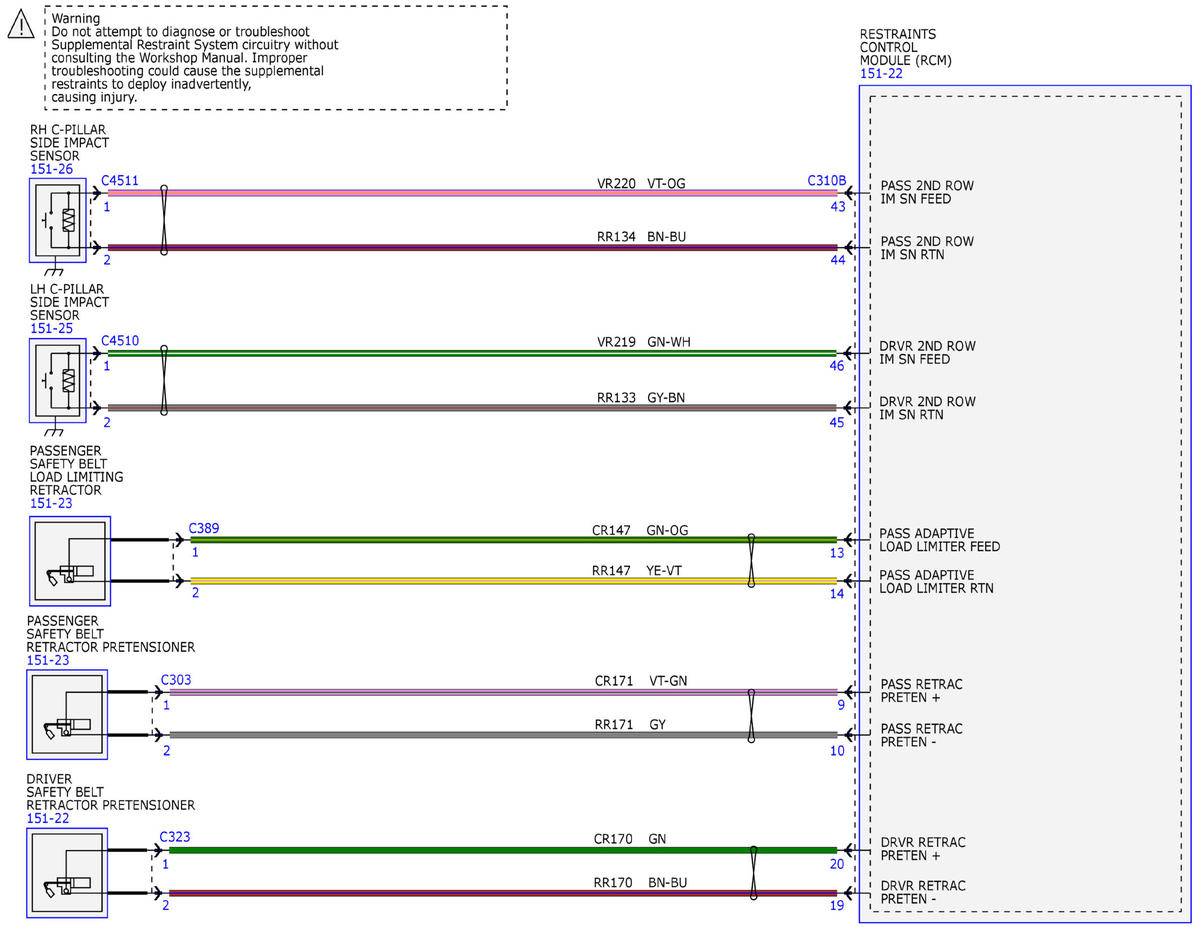

Fig 1: Supplemental Restraint System Wiring Diagram (1 Of 9)
GFDWR108906Courtesy of FORD MOTOR COMPANY

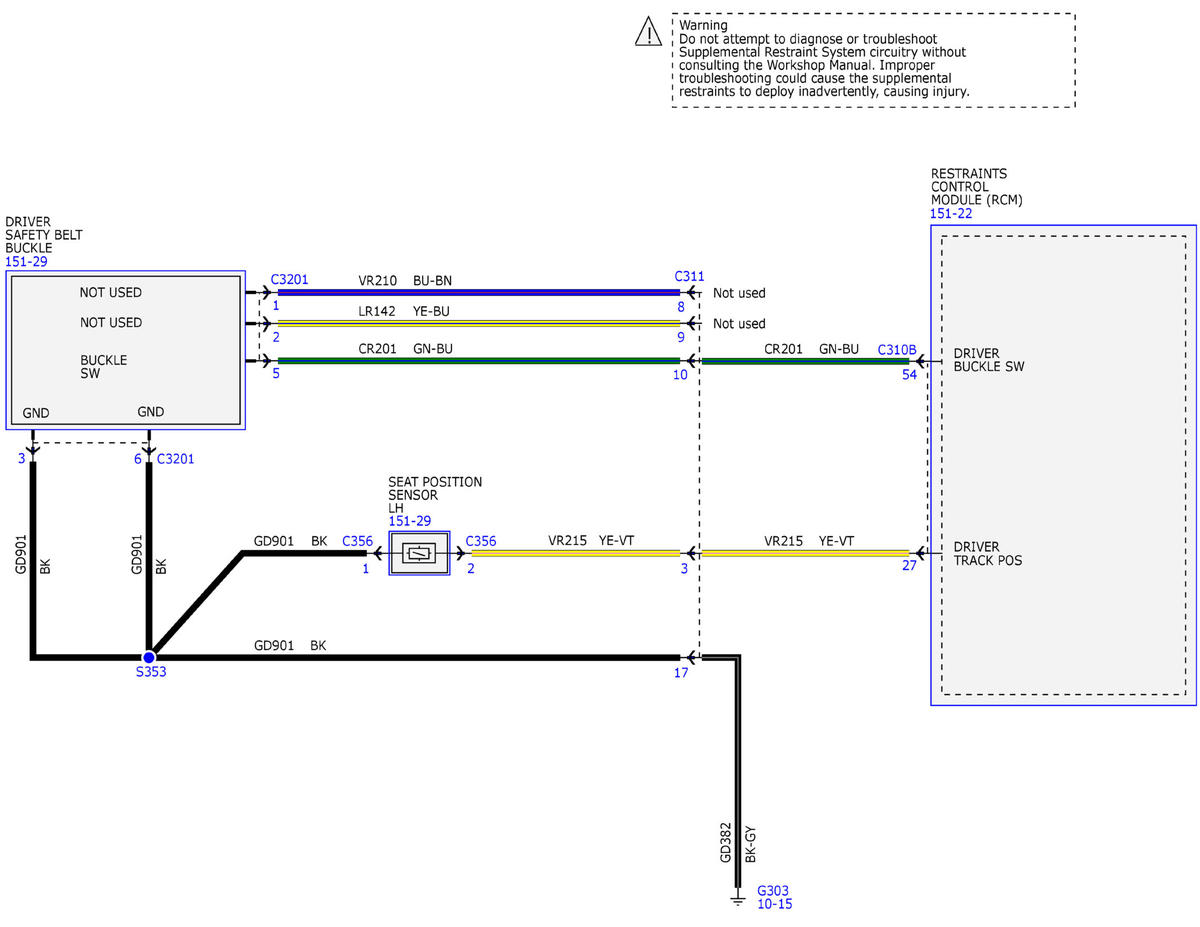

Fig 2: Supplemental Restraint System Wiring Diagram (2 Of 9)
GFDWR108907Courtesy of FORD MOTOR COMPANY

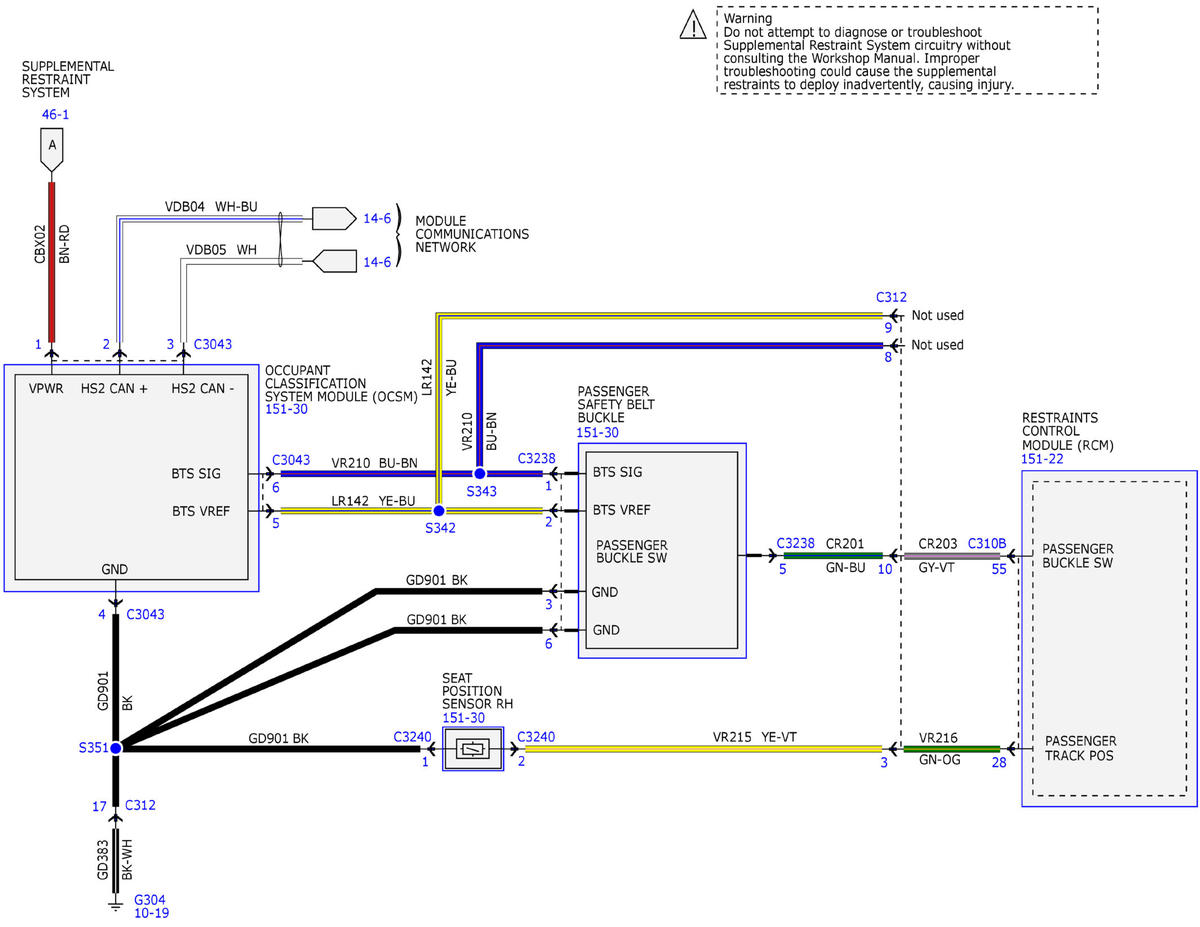

Fig 3: Supplemental Restraint System Wiring Diagram (3 Of 9)
GFDWR108908Courtesy of FORD MOTOR COMPANY

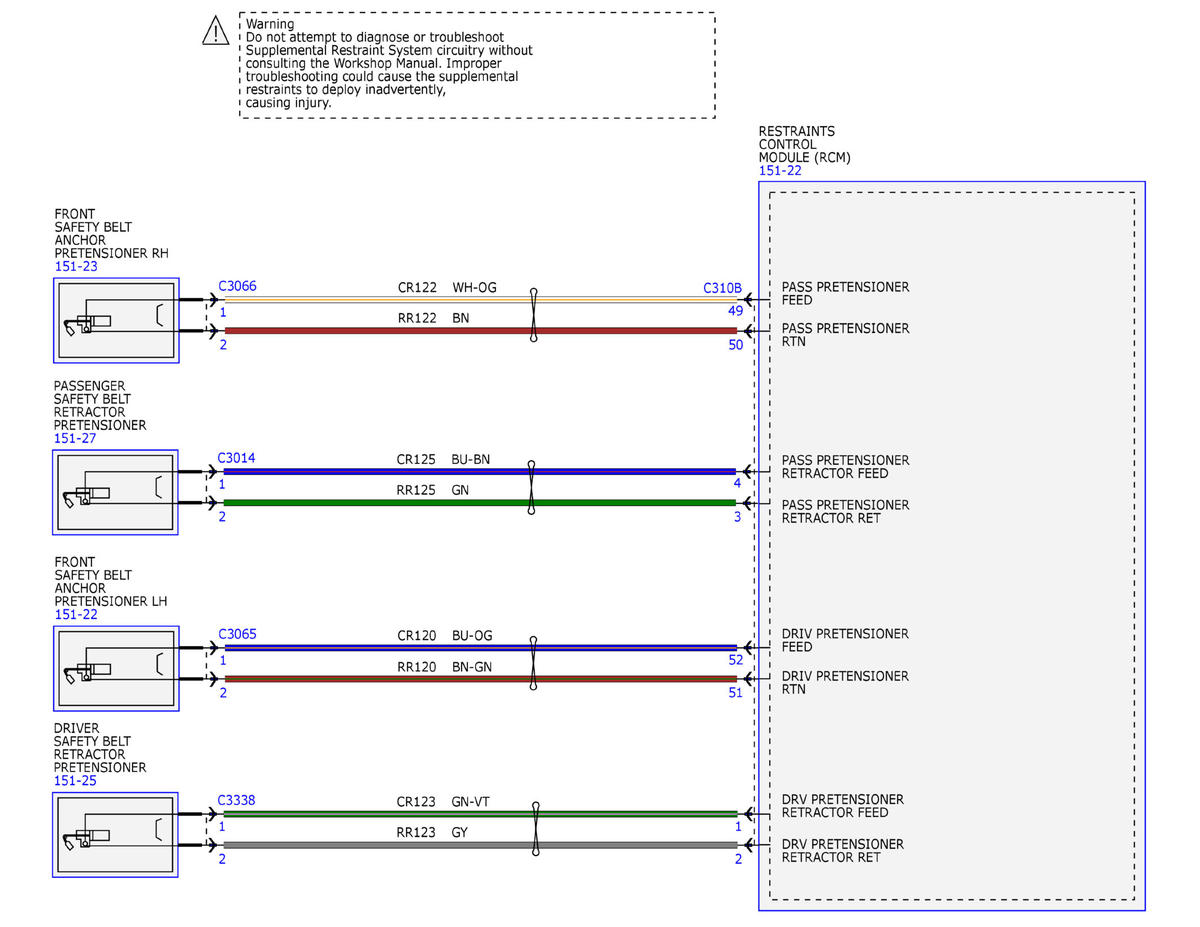

Fig 4: Supplemental Restraint System Wiring Diagram (4 Of 9)
GFDWR108909Courtesy of FORD MOTOR COMPANY
Fig 5: Supplemental Restraint System Wiring Diagram (5 Of 9)
GFDWR108910Courtesy of FORD MOTOR COMPANY

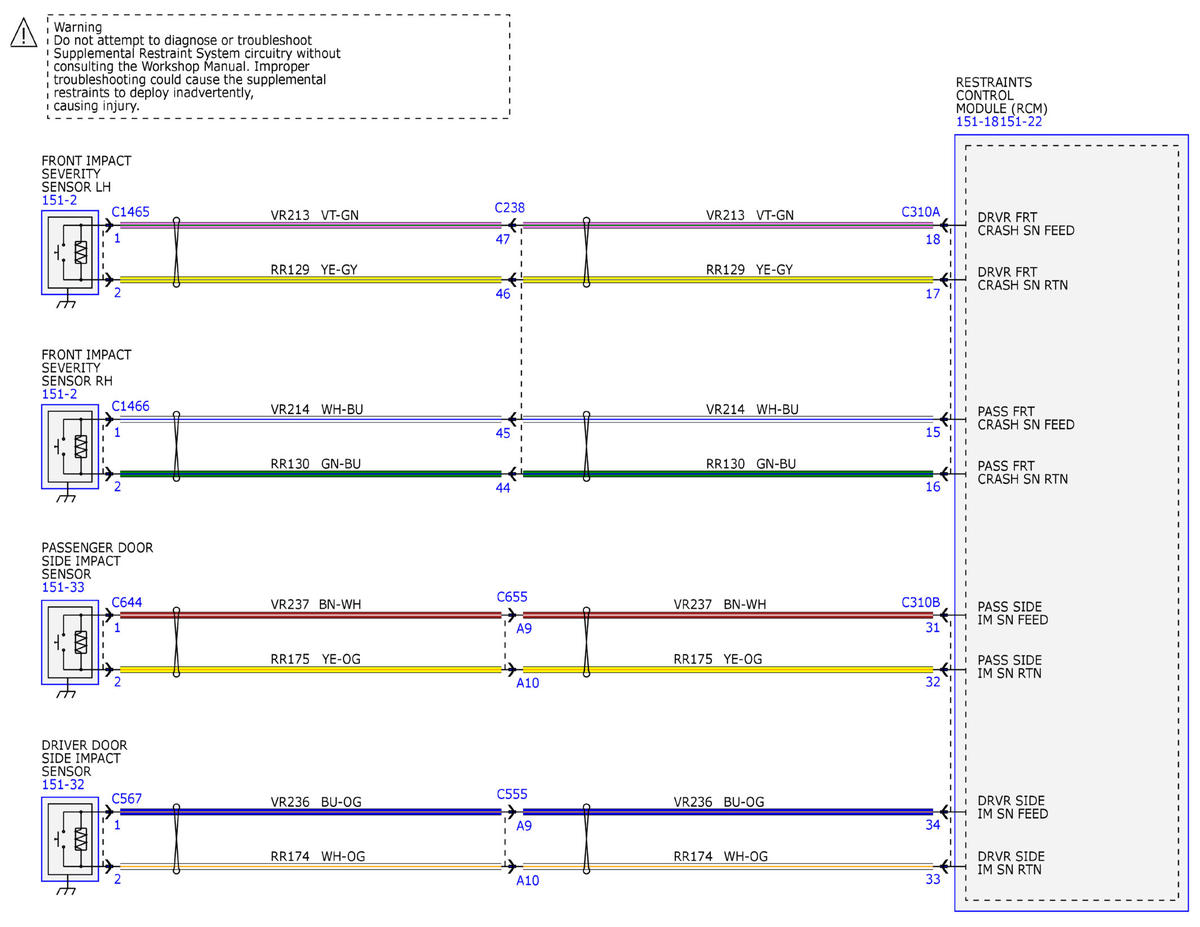

Fig 6: Supplemental Restraint System Wiring Diagram (6 Of 9)
GFDWR108911Courtesy of FORD MOTOR COMPANY

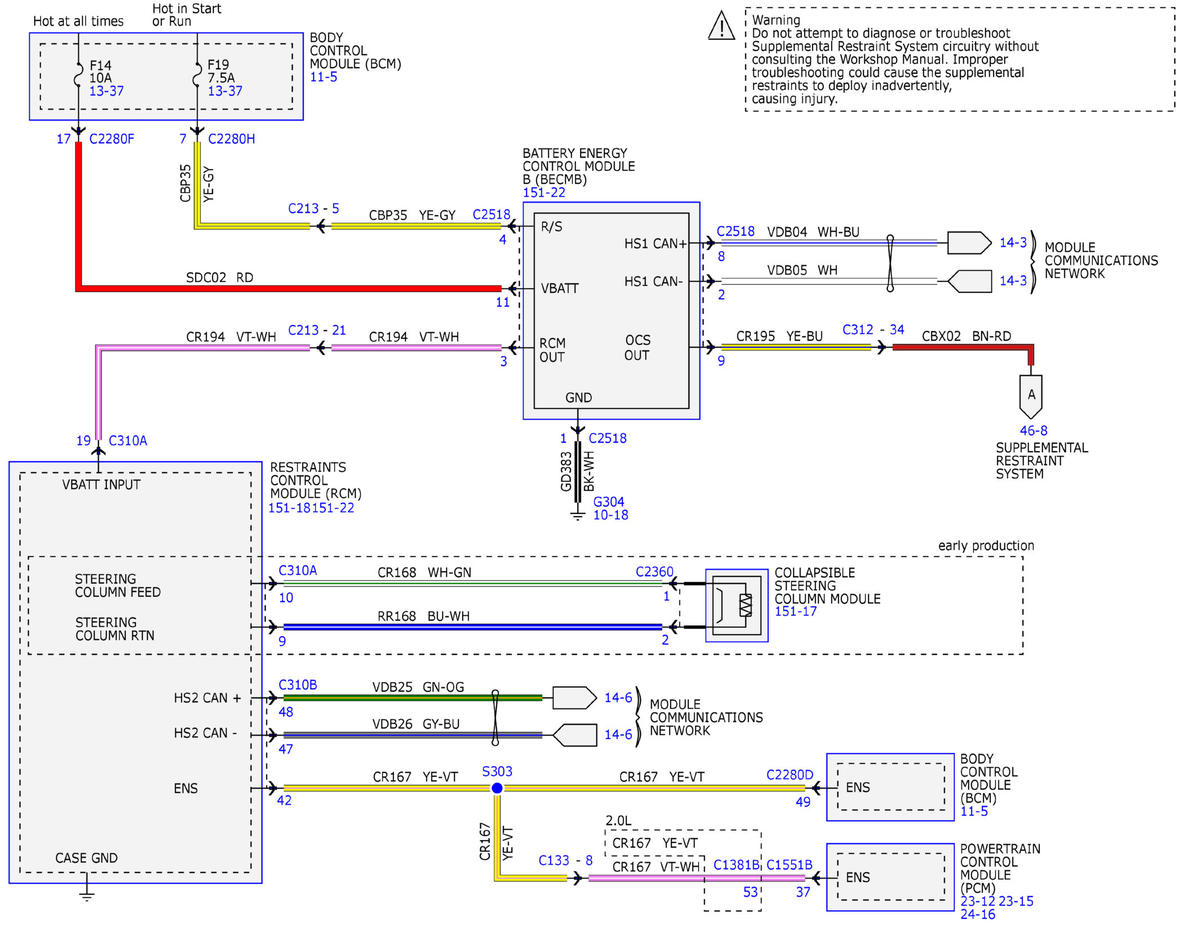

Fig 7: Supplemental Restraint System Wiring Diagram (7 Of 9)
GFDWR108912Courtesy of FORD MOTOR COMPANY

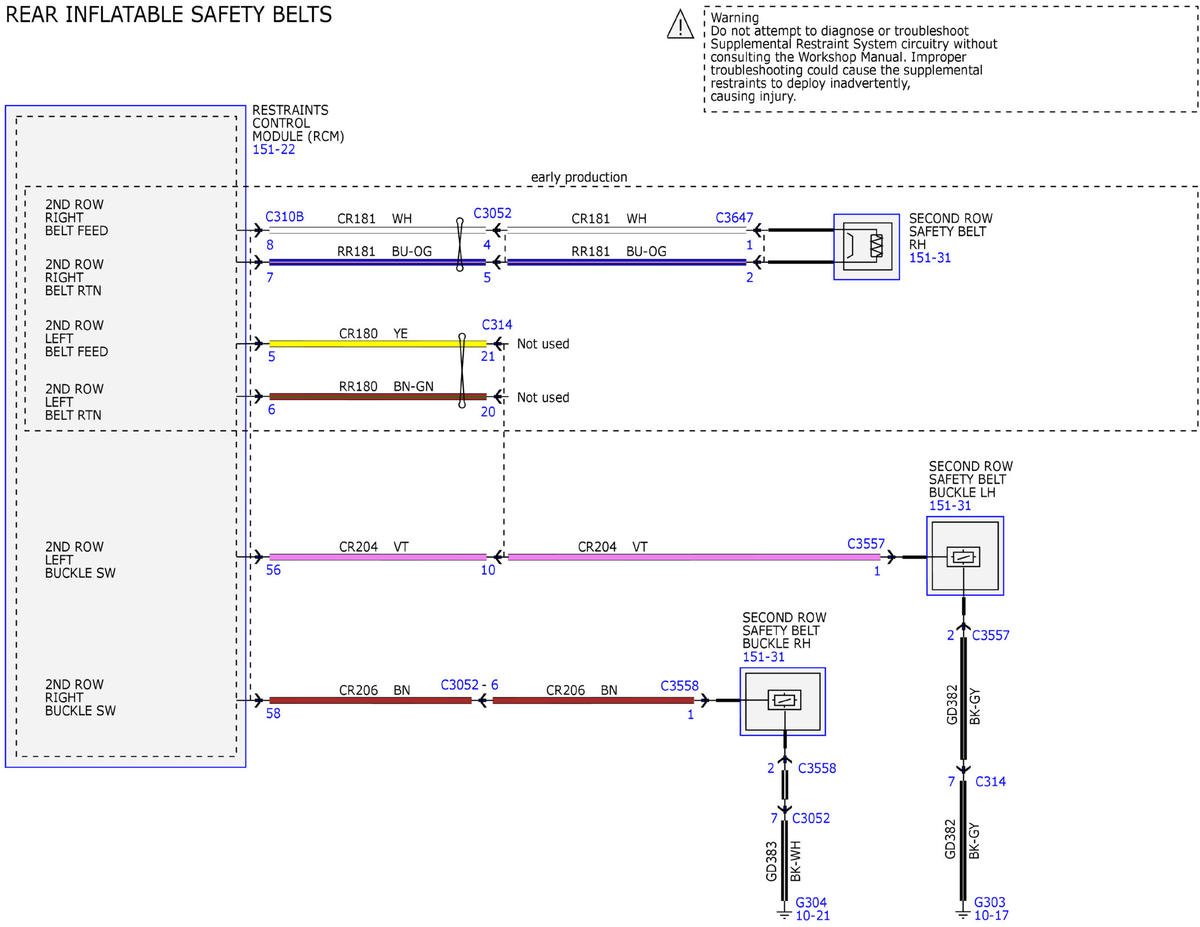

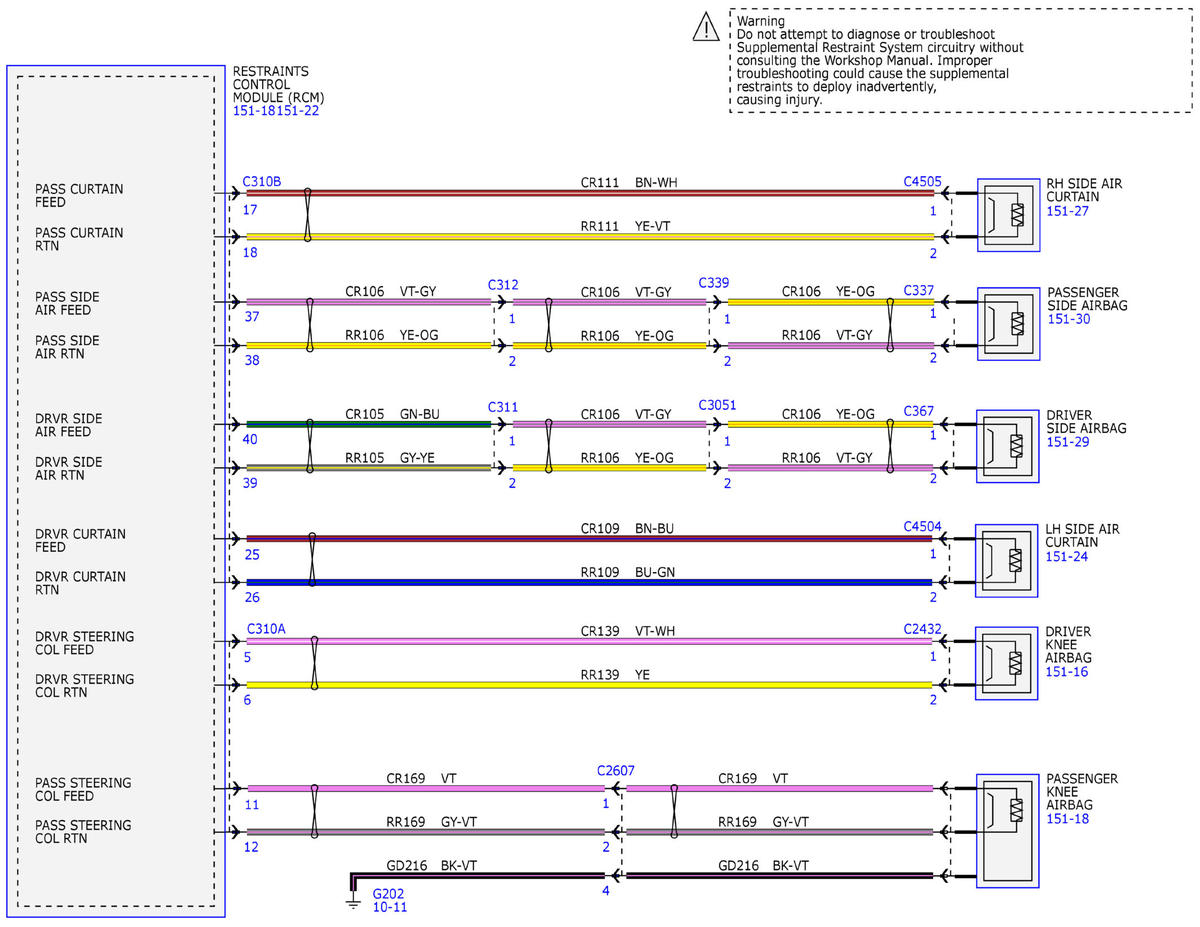

Fig 8: Supplemental Restraint System Wiring Diagram (8 Of 9)
GFDWR108913Courtesy of FORD MOTOR COMPANY

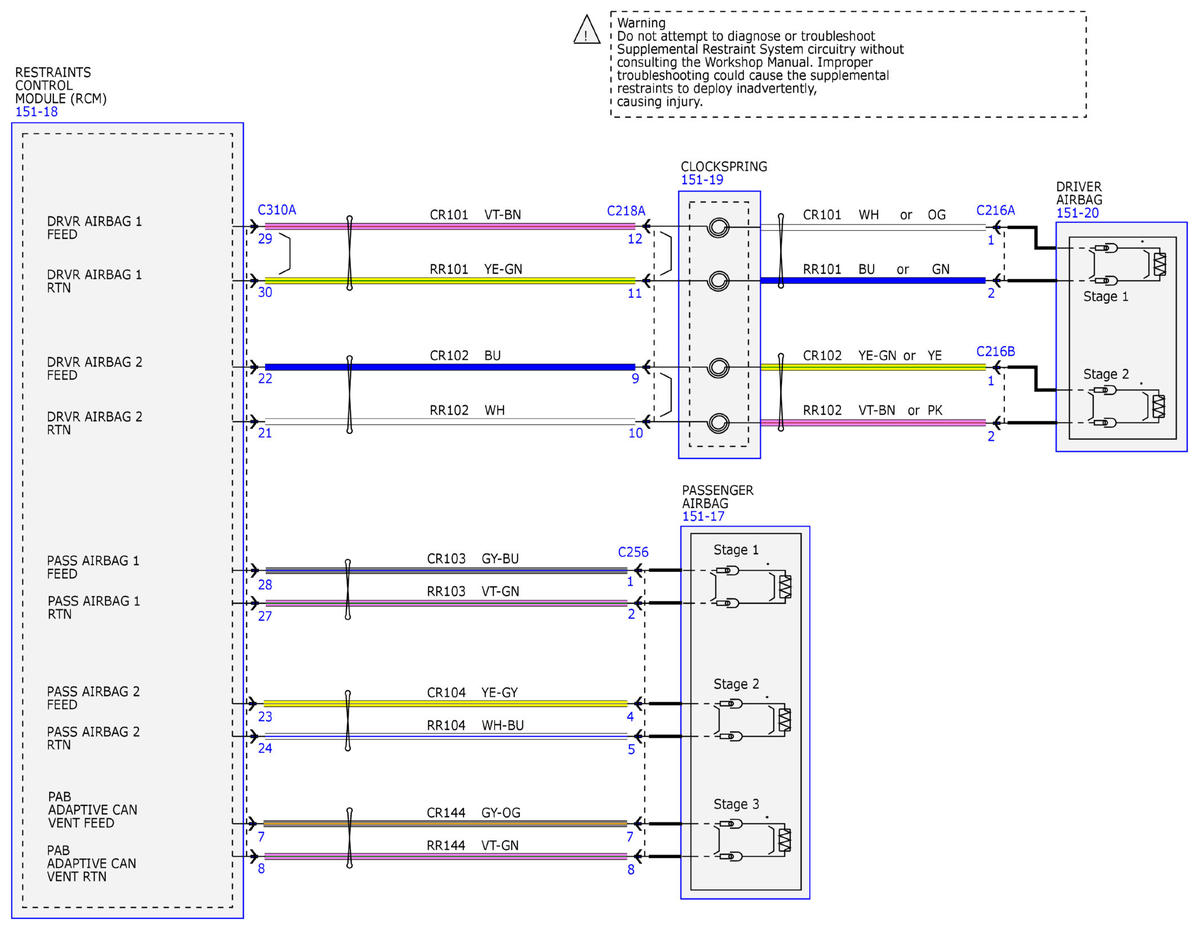

Fig 9: Supplemental Restraint System Wiring Diagram (9 Of 9)
GFDWR108914Courtesy of FORD MOTOR COMPANY
