Remote Keyless Entry And Alarm

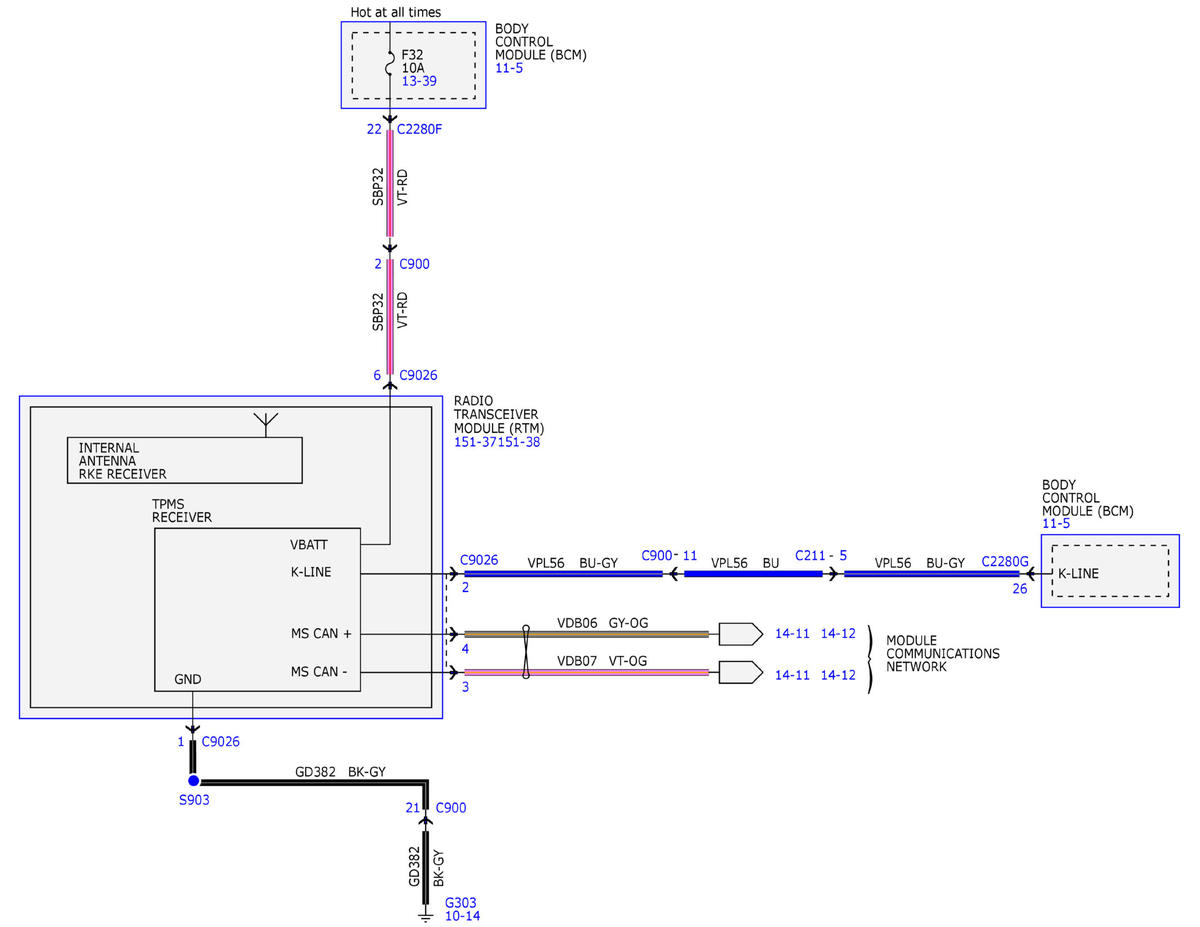

Fig 1: Remote Keyless Entry And Alarm Wiring Diagram (1 Of 14)

Courtesy of FORD MOTOR COMPANY

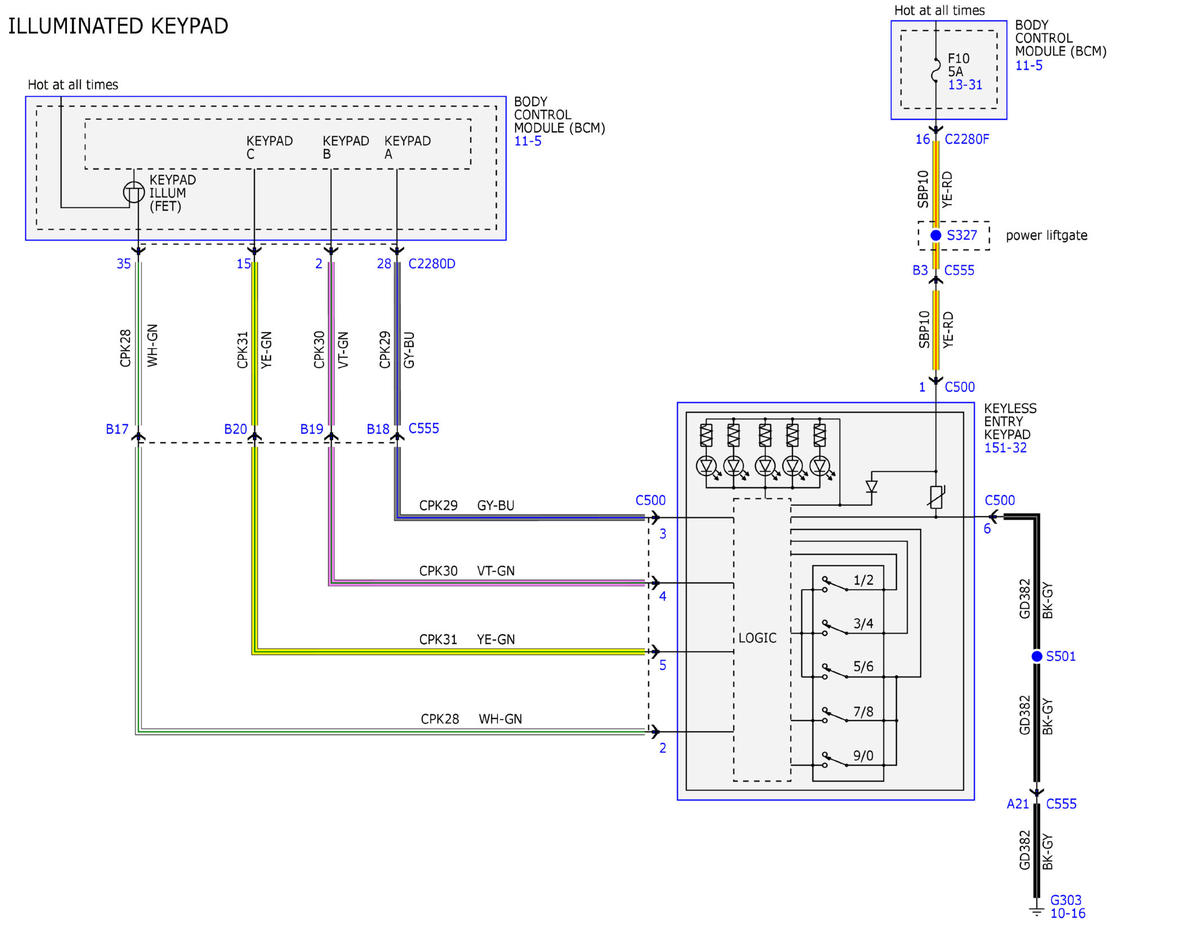

Fig 2: Remote Keyless Entry And Alarm Wiring Diagram (2 Of 14)

Courtesy of FORD MOTOR COMPANY

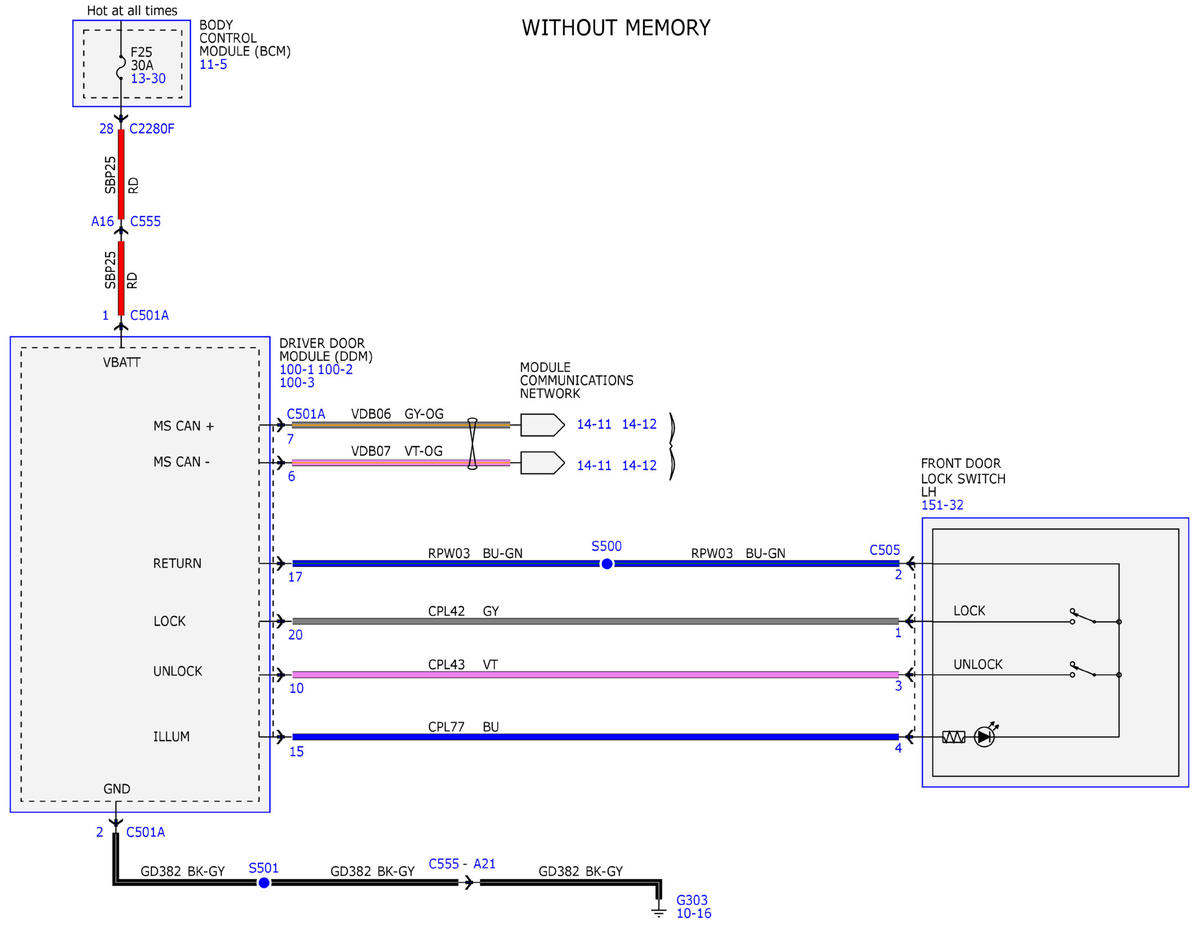

Fig 3: Remote Keyless Entry And Alarm Wiring Diagram (3 Of 14)

Courtesy of FORD MOTOR COMPANY

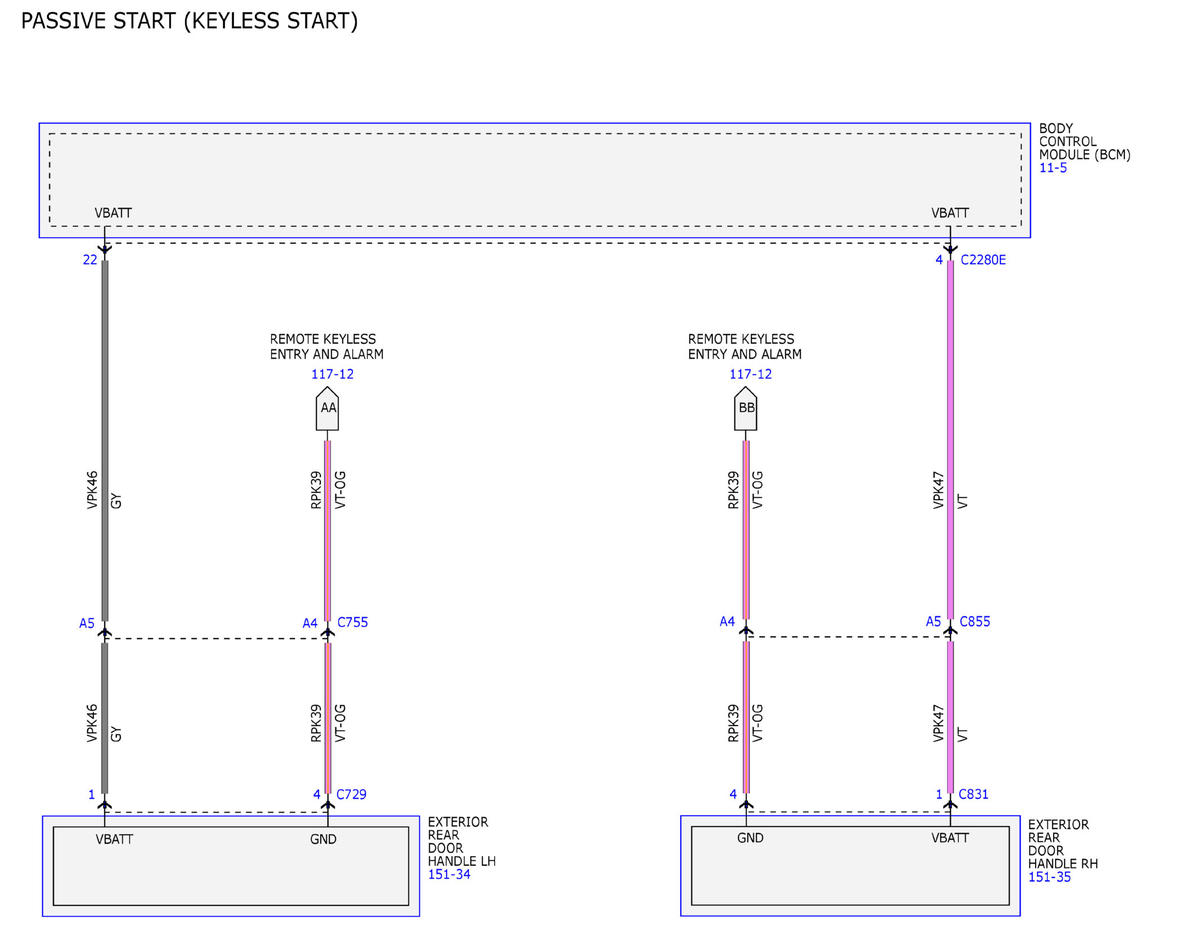

Fig 4: Remote Keyless Entry And Alarm Wiring Diagram (4 Of 14)

Courtesy of FORD MOTOR COMPANY

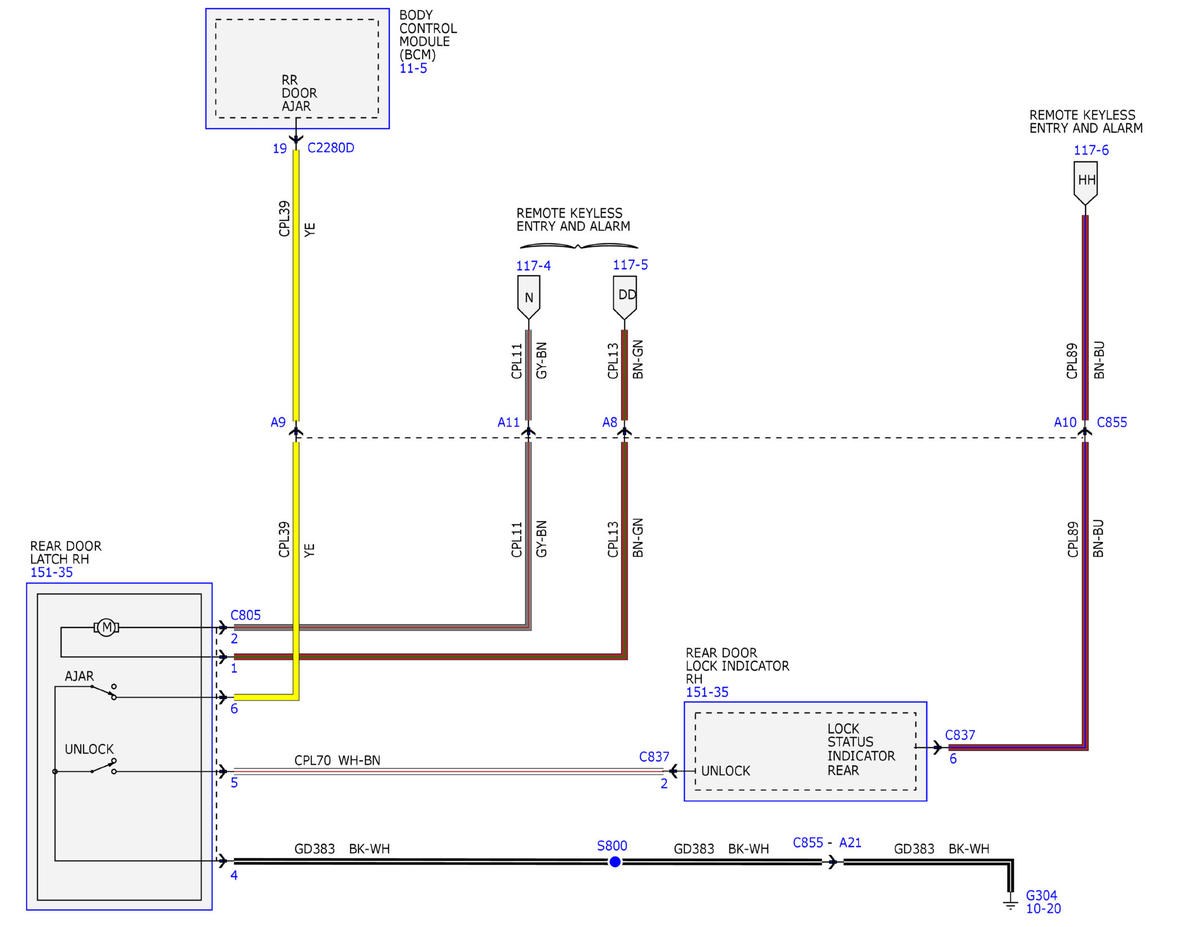

Fig 5: Remote Keyless Entry And Alarm Wiring Diagram (5 Of 14)

Courtesy of FORD MOTOR COMPANY

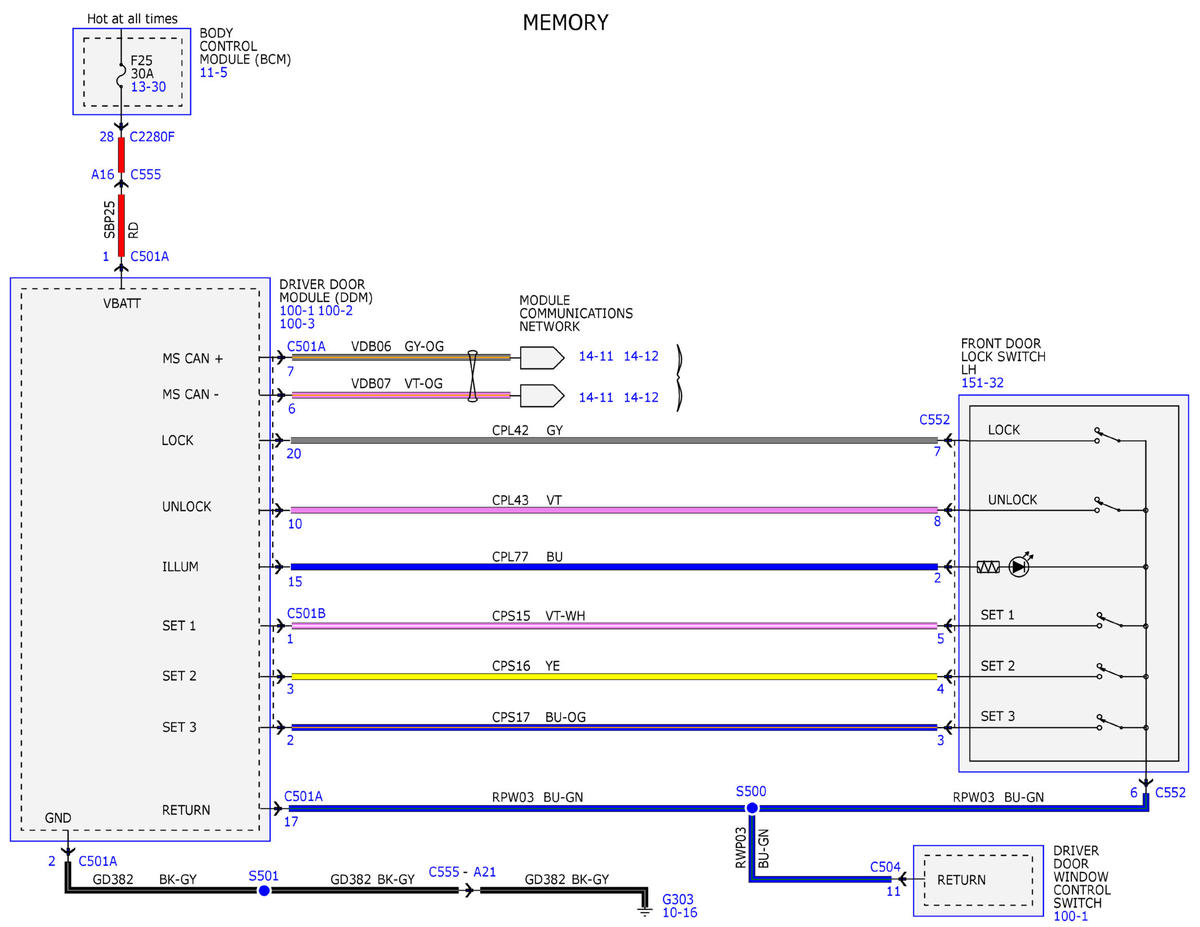

Fig 6: Remote Keyless Entry And Alarm Wiring Diagram (6 Of 14)

Courtesy of FORD MOTOR COMPANY

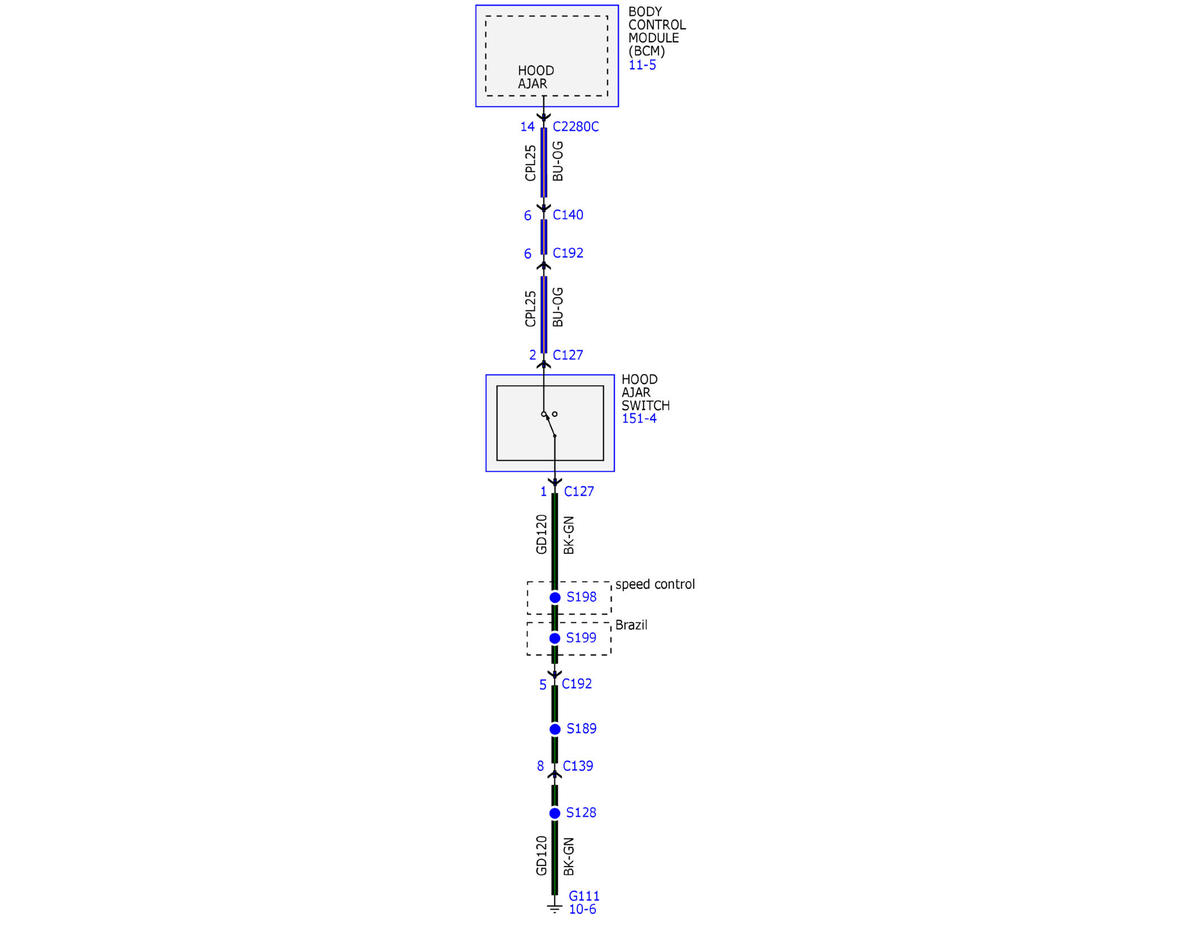

Fig 7: Remote Keyless Entry And Alarm Wiring Diagram (7 Of 14)

Courtesy of FORD MOTOR COMPANY

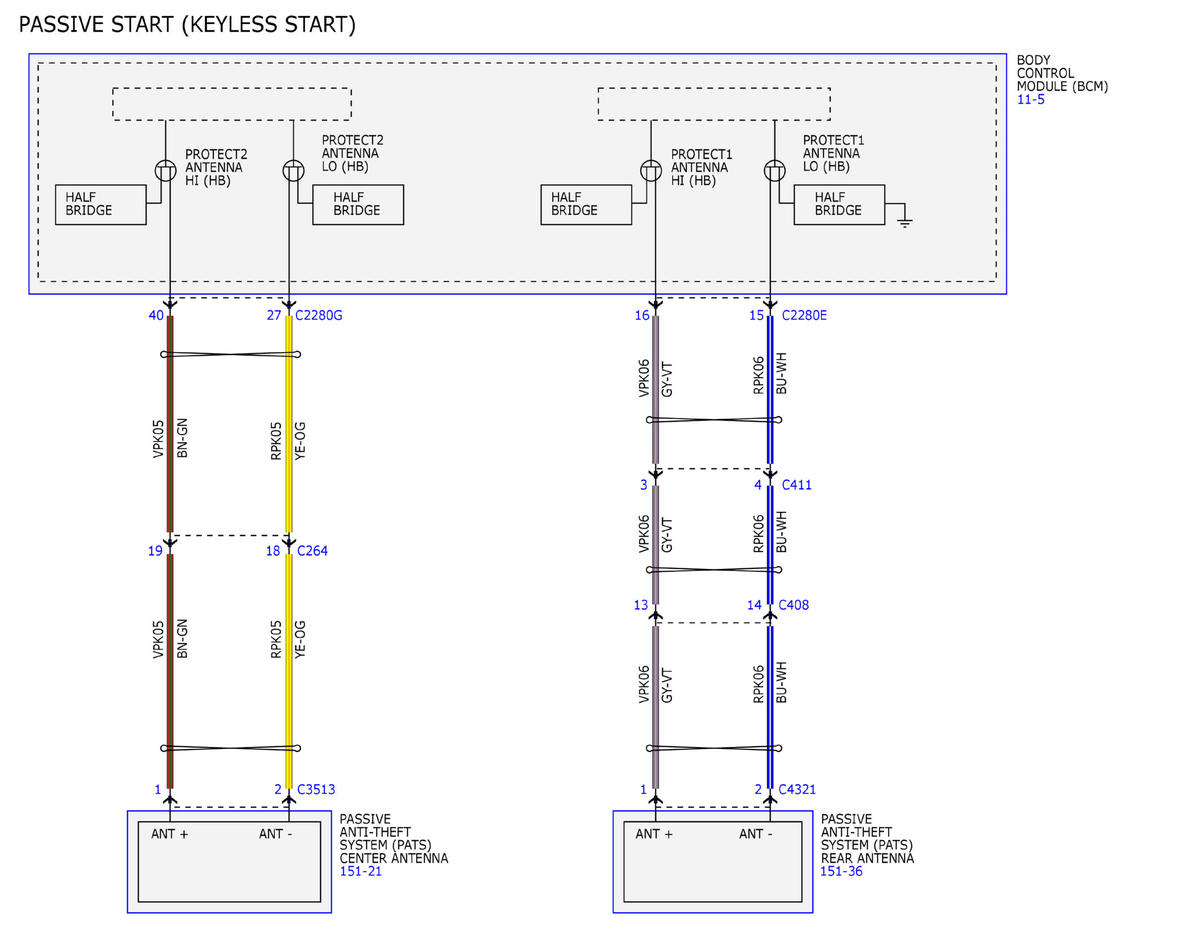

Fig 8: Remote Keyless Entry And Alarm Wiring Diagram (8 Of 14)

Courtesy of FORD MOTOR COMPANY

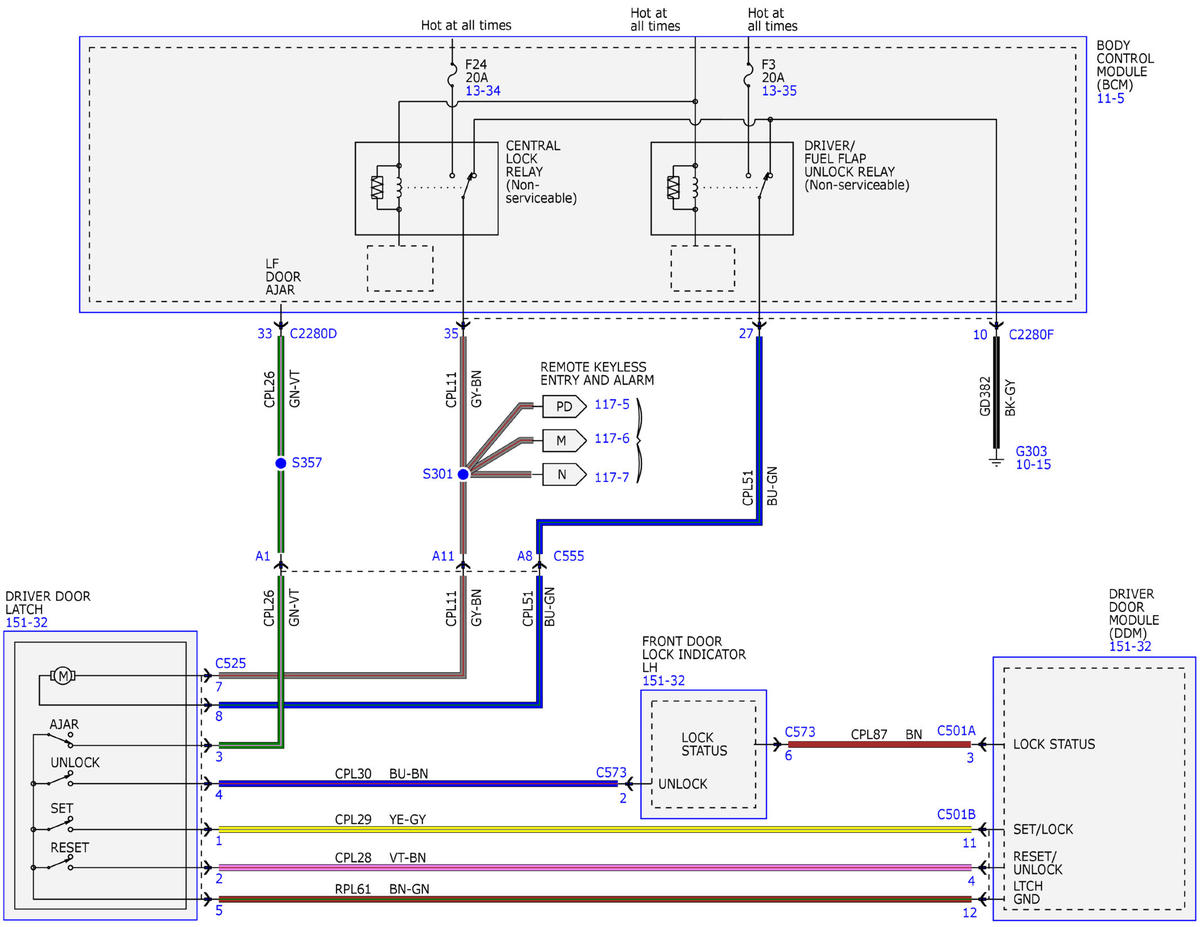

Fig 9: Remote Keyless Entry And Alarm Wiring Diagram (9 Of 14)

Courtesy of FORD MOTOR COMPANY

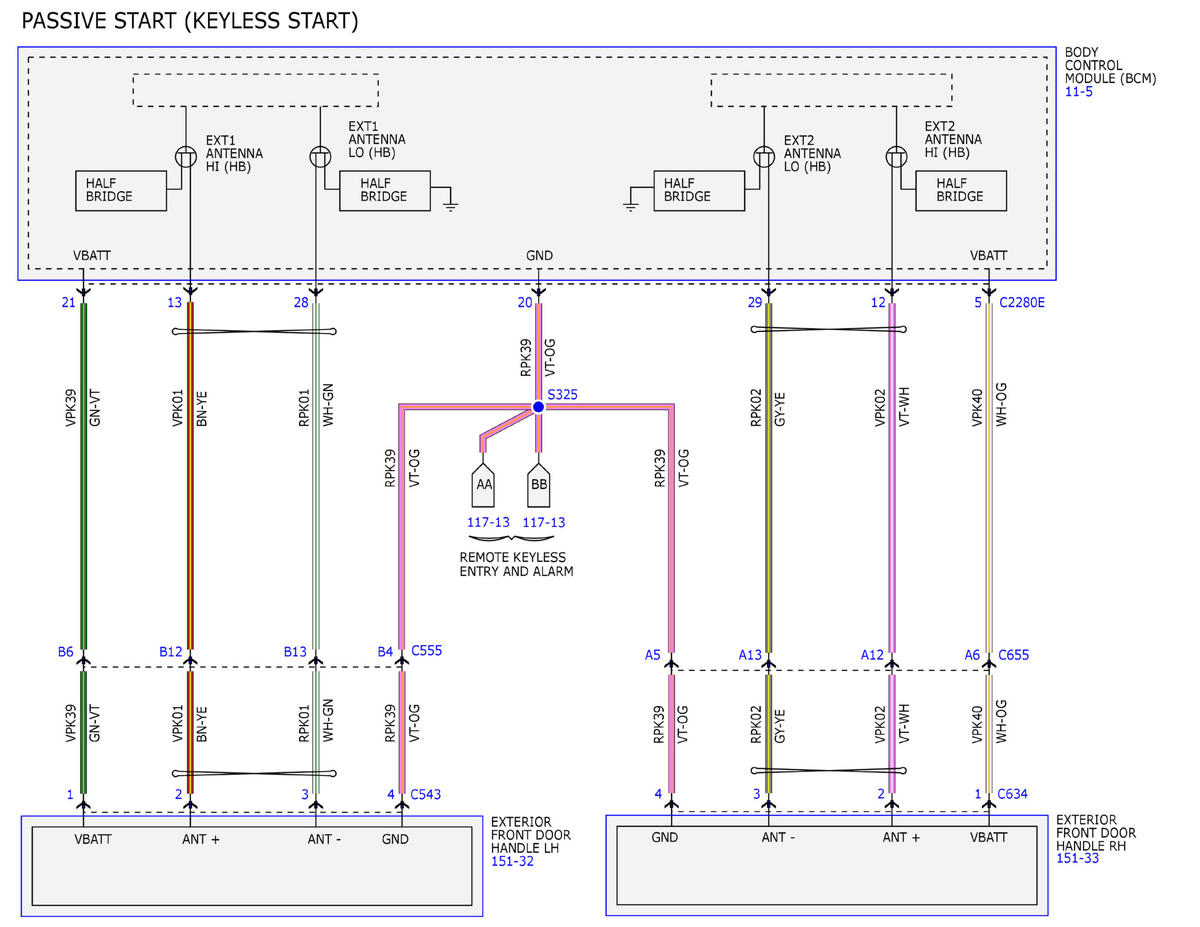

Fig 10: Remote Keyless Entry And Alarm Wiring Diagram (10 Of 14)

Courtesy of FORD MOTOR COMPANY

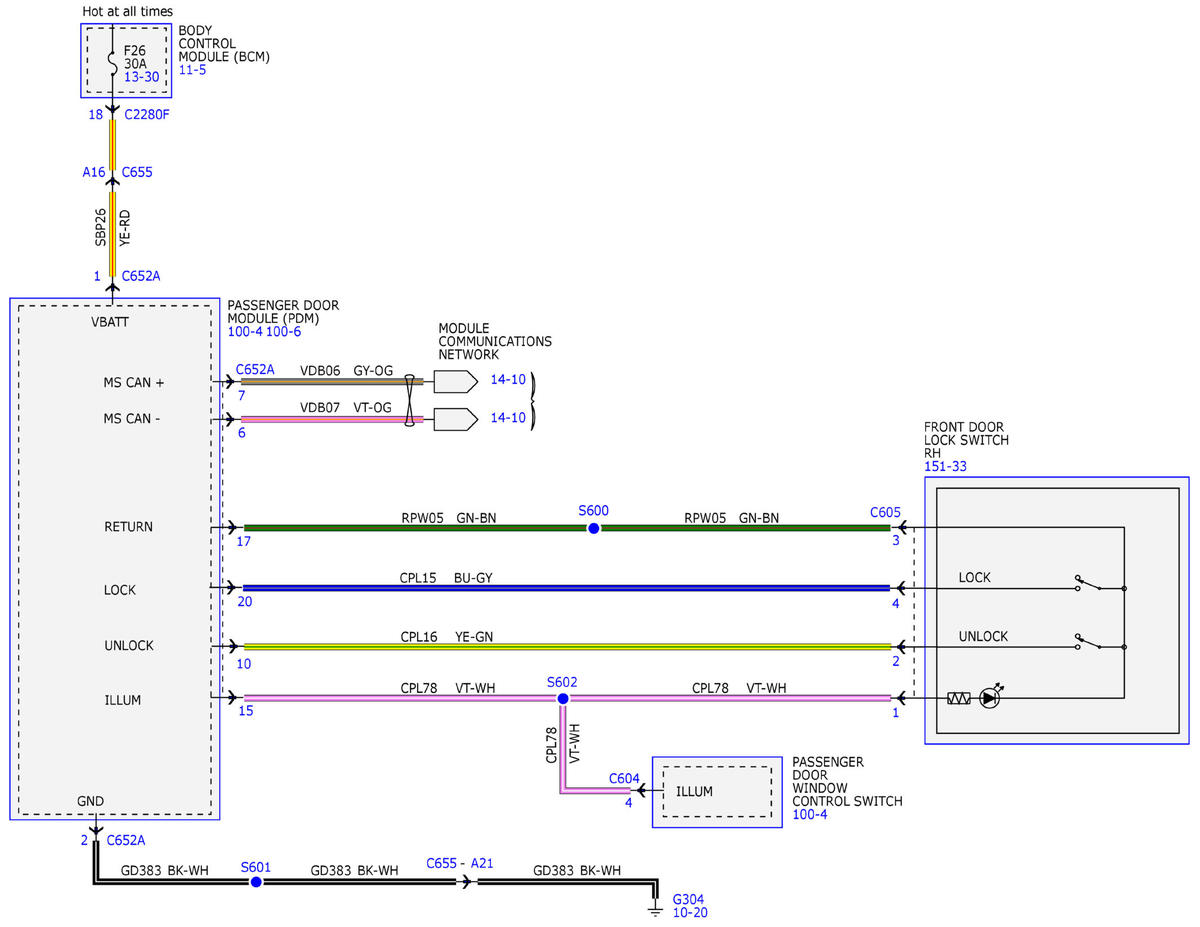

Fig 11: Remote Keyless Entry And Alarm Wiring Diagram (11 Of 14)

Courtesy of FORD MOTOR COMPANY

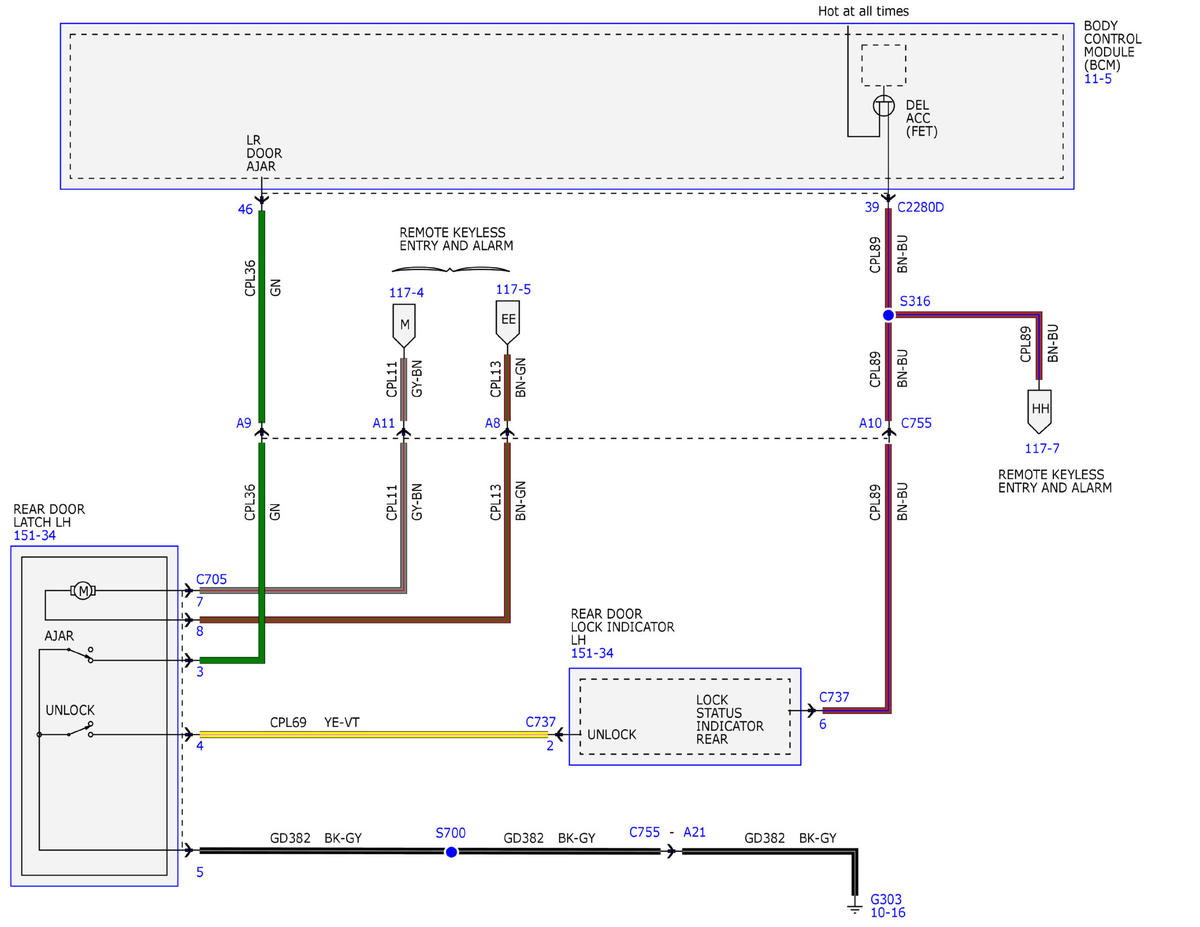

Fig 12: Remote Keyless Entry And Alarm Wiring Diagram (12 Of 14)

Courtesy of FORD MOTOR COMPANY

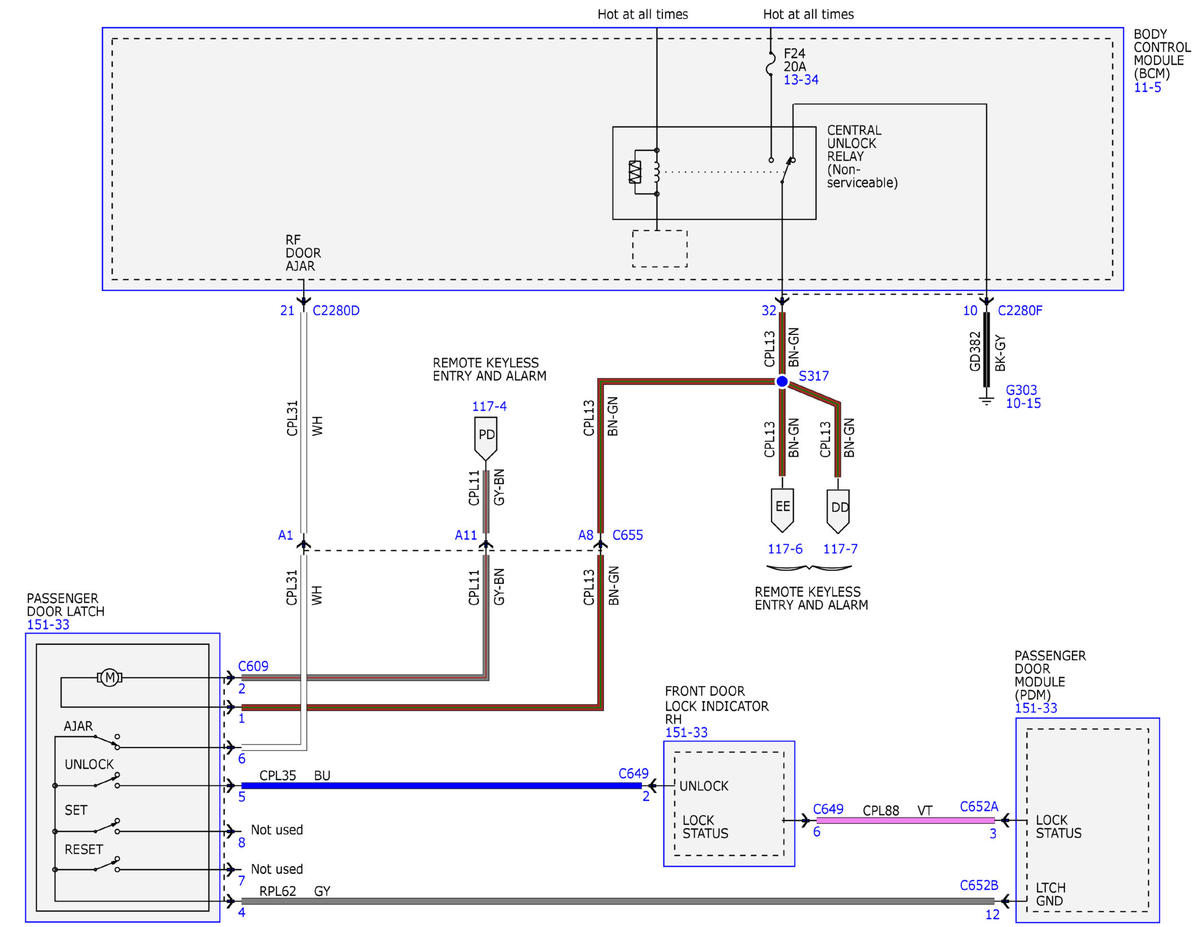

Fig 13: Remote Keyless Entry And Alarm Wiring Diagram (13 Of 14)

Courtesy of FORD MOTOR COMPANY

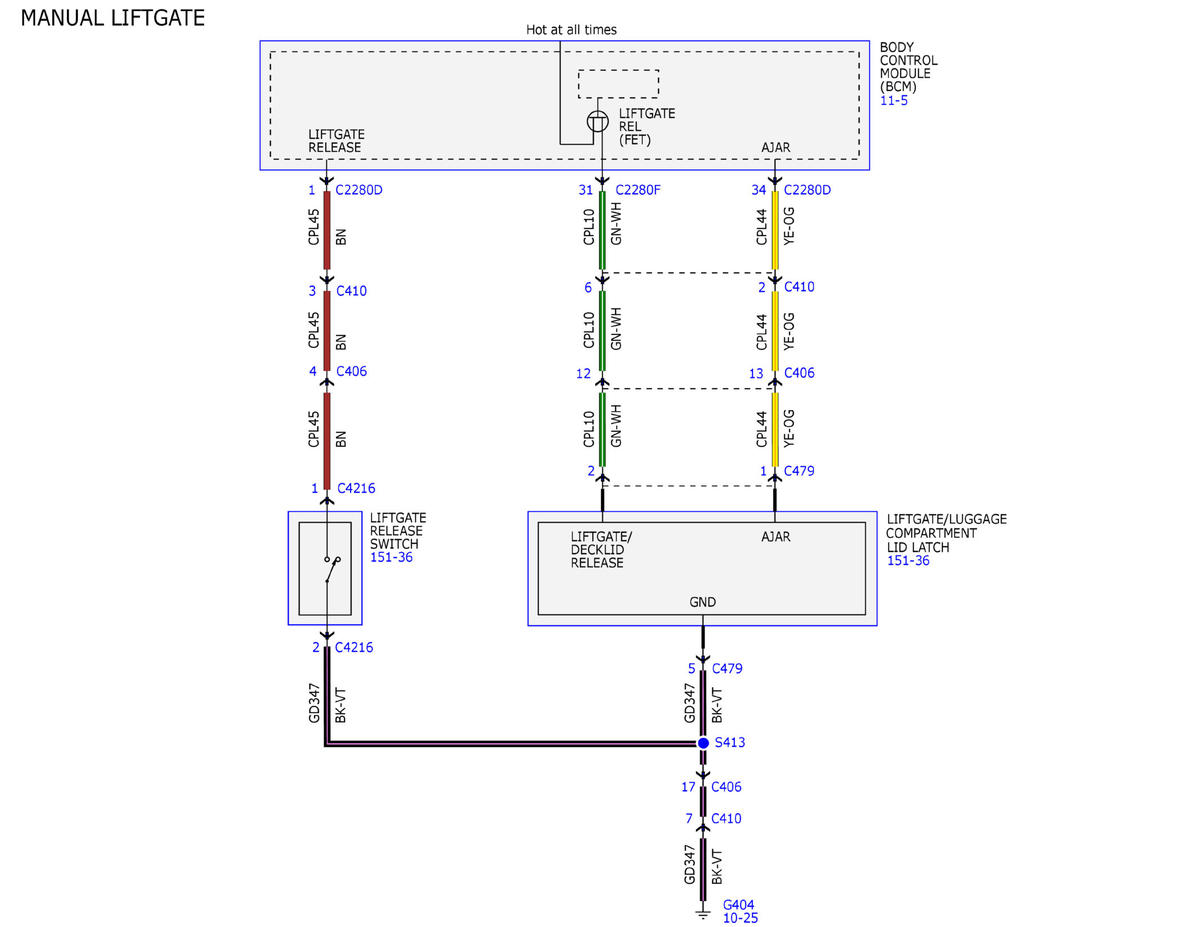

Fig 14: Remote Keyless Entry And Alarm Wiring Diagram (14 Of 14)

Courtesy of FORD MOTOR COMPANY
