Power Windows

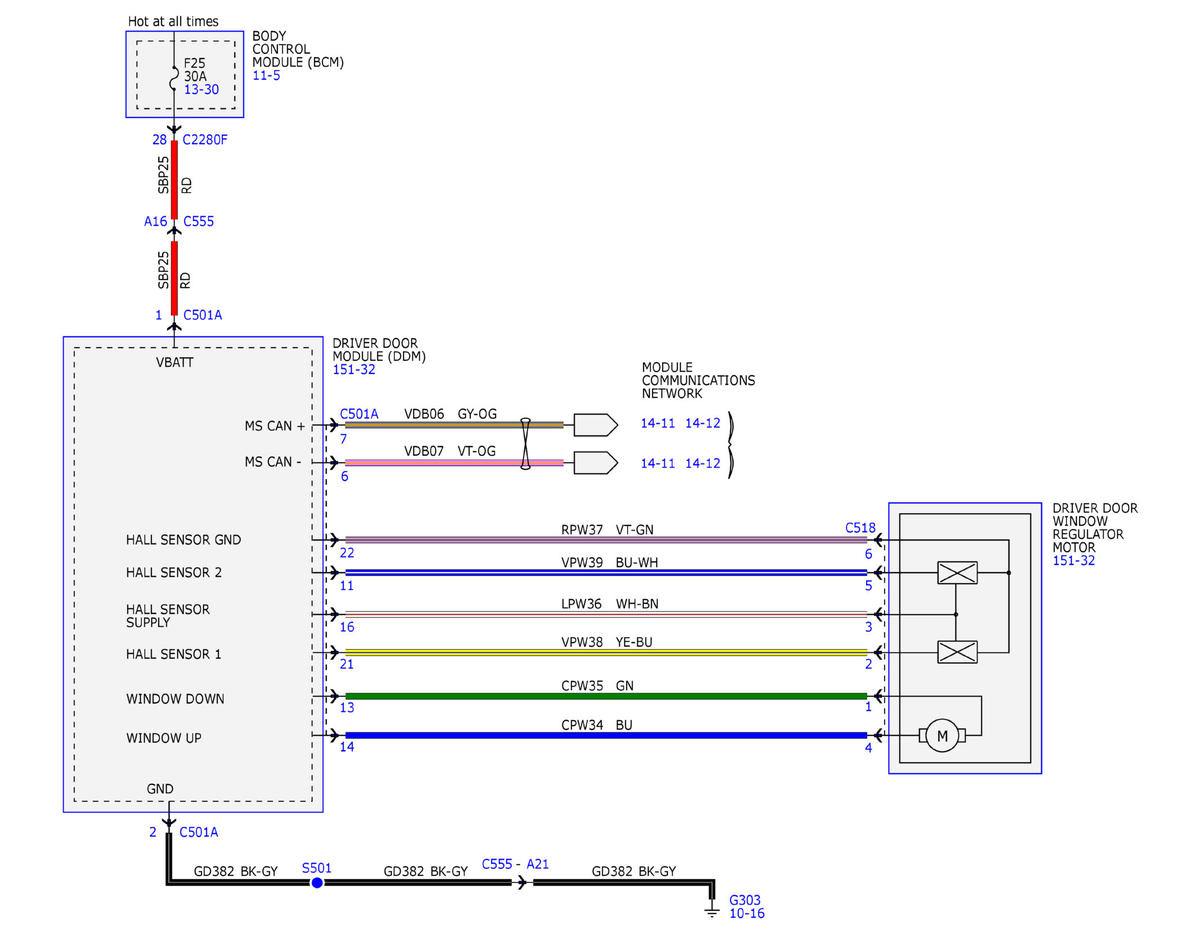

Fig 1: Power Windows Wiring Diagram (1 Of 9)
GFDWR108878Courtesy of FORD MOTOR COMPANY

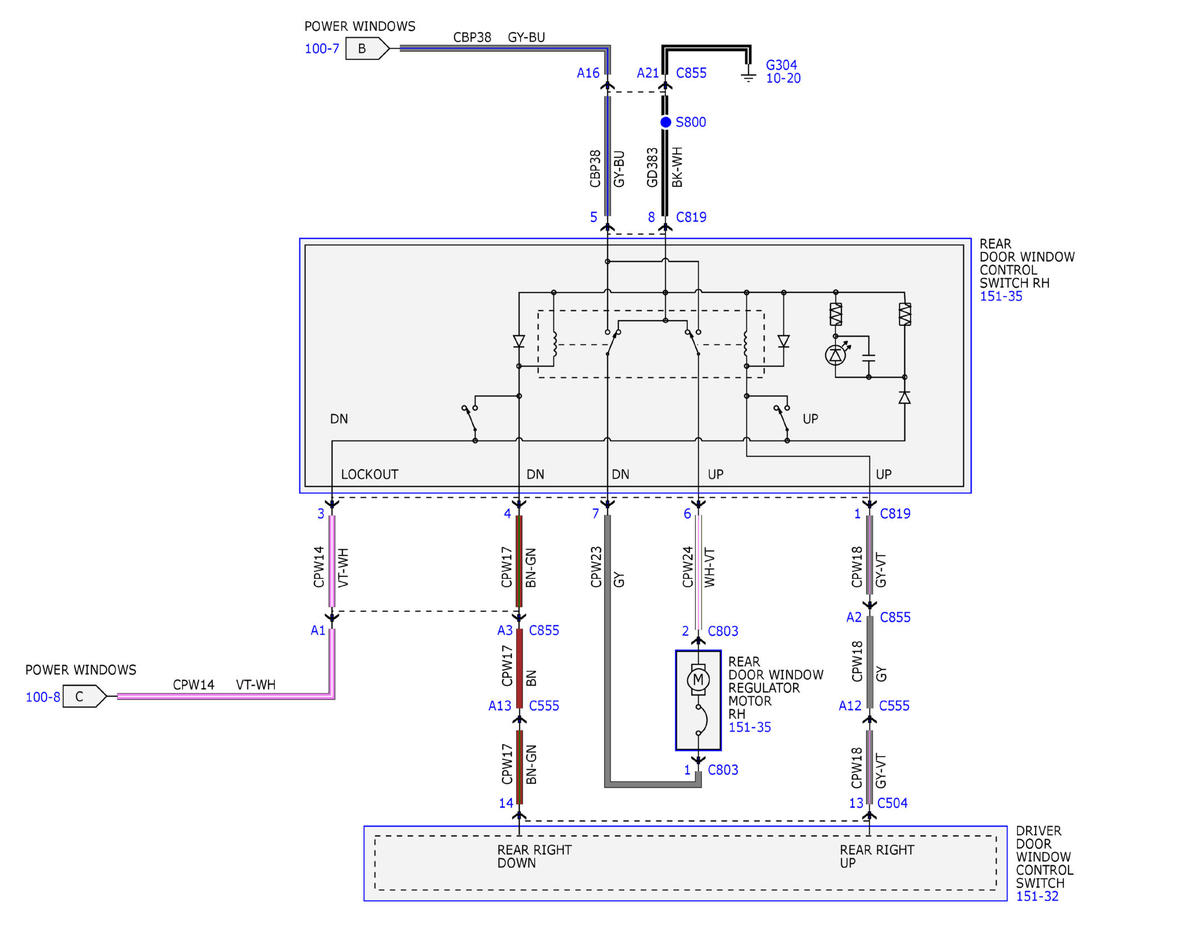

Fig 2: Power Windows Wiring Diagram (2 Of 9)
GFDWR108879Courtesy of FORD MOTOR COMPANY

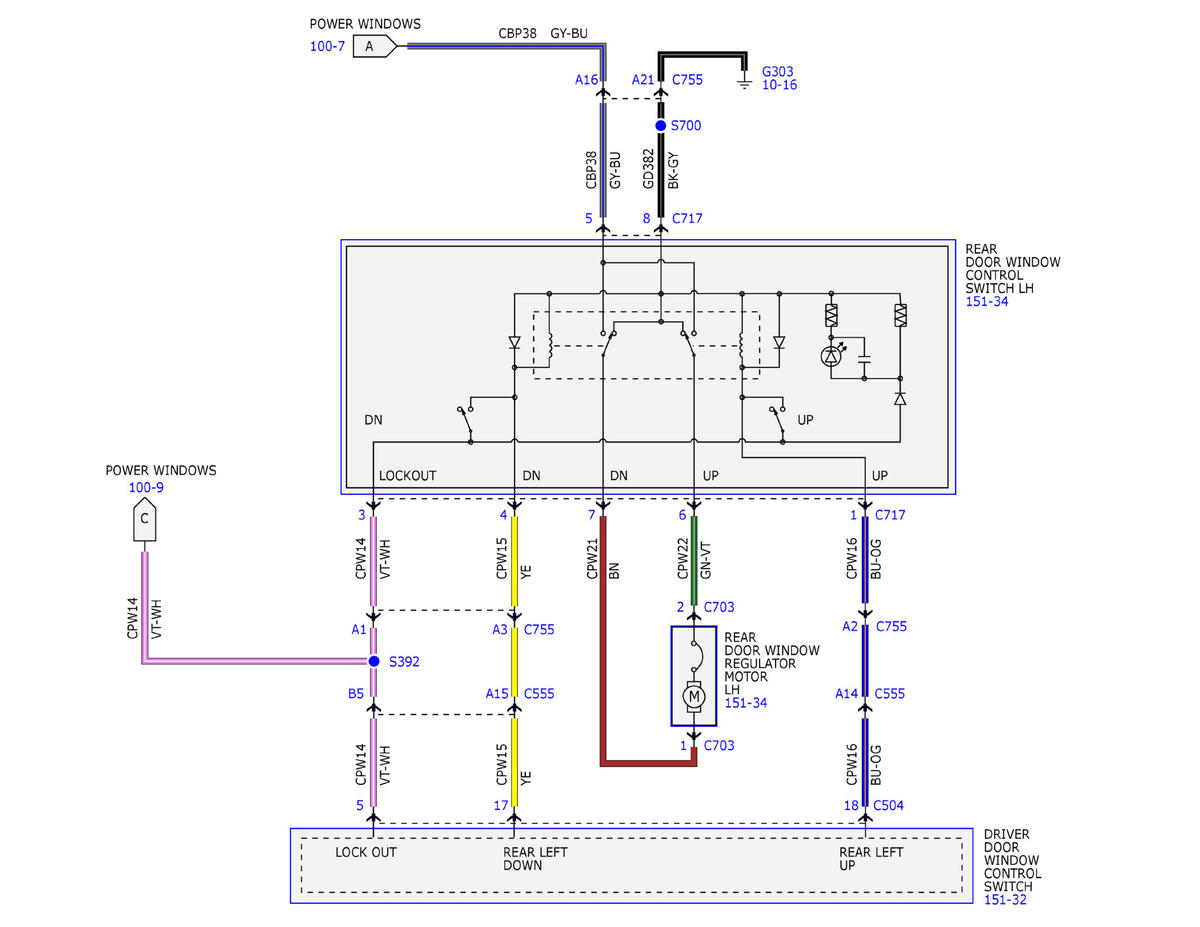

Fig 3: Power Windows Wiring Diagram (3 Of 9)
GFDWR108880Courtesy of FORD MOTOR COMPANY

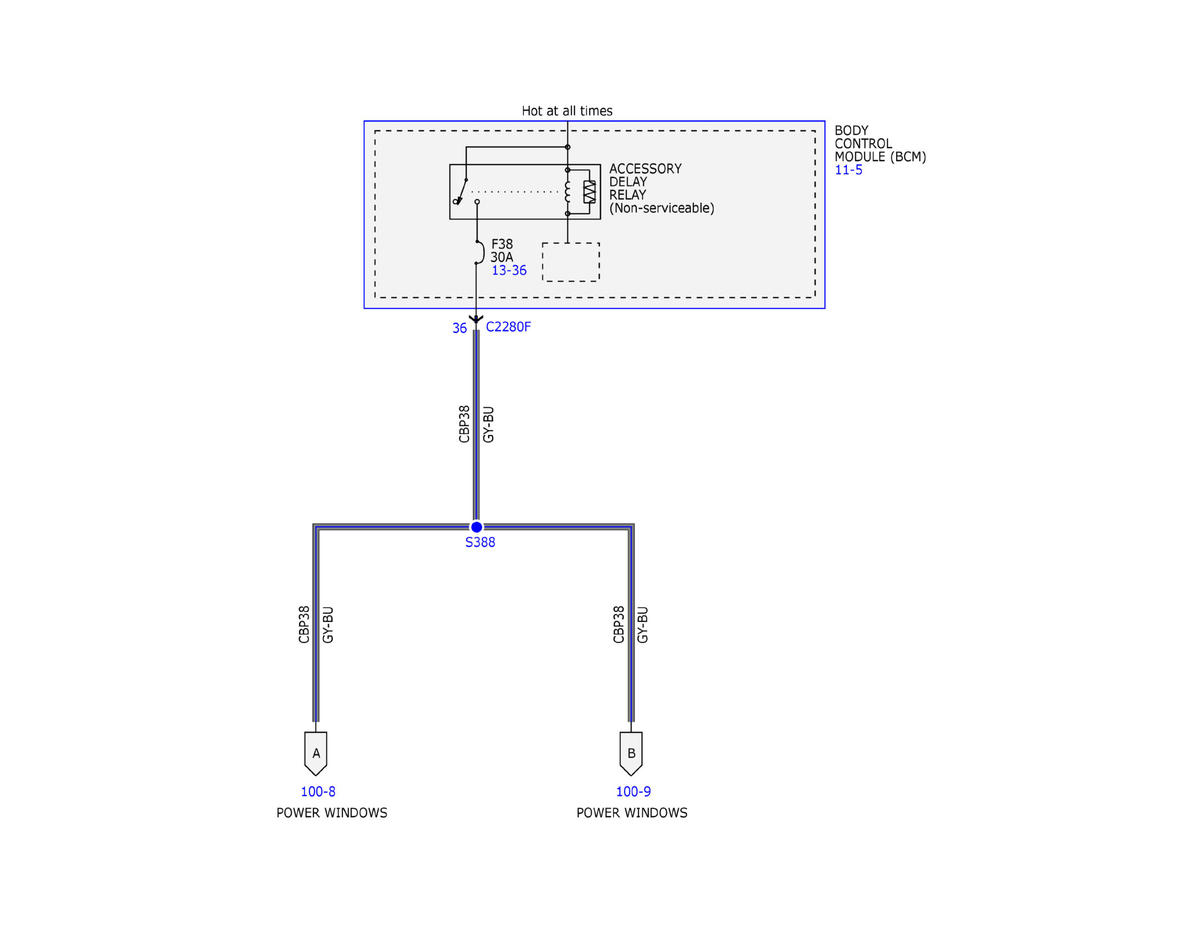

Fig 4: Power Windows Wiring Diagram (4 Of 9)
GFDWR108881Courtesy of FORD MOTOR COMPANY

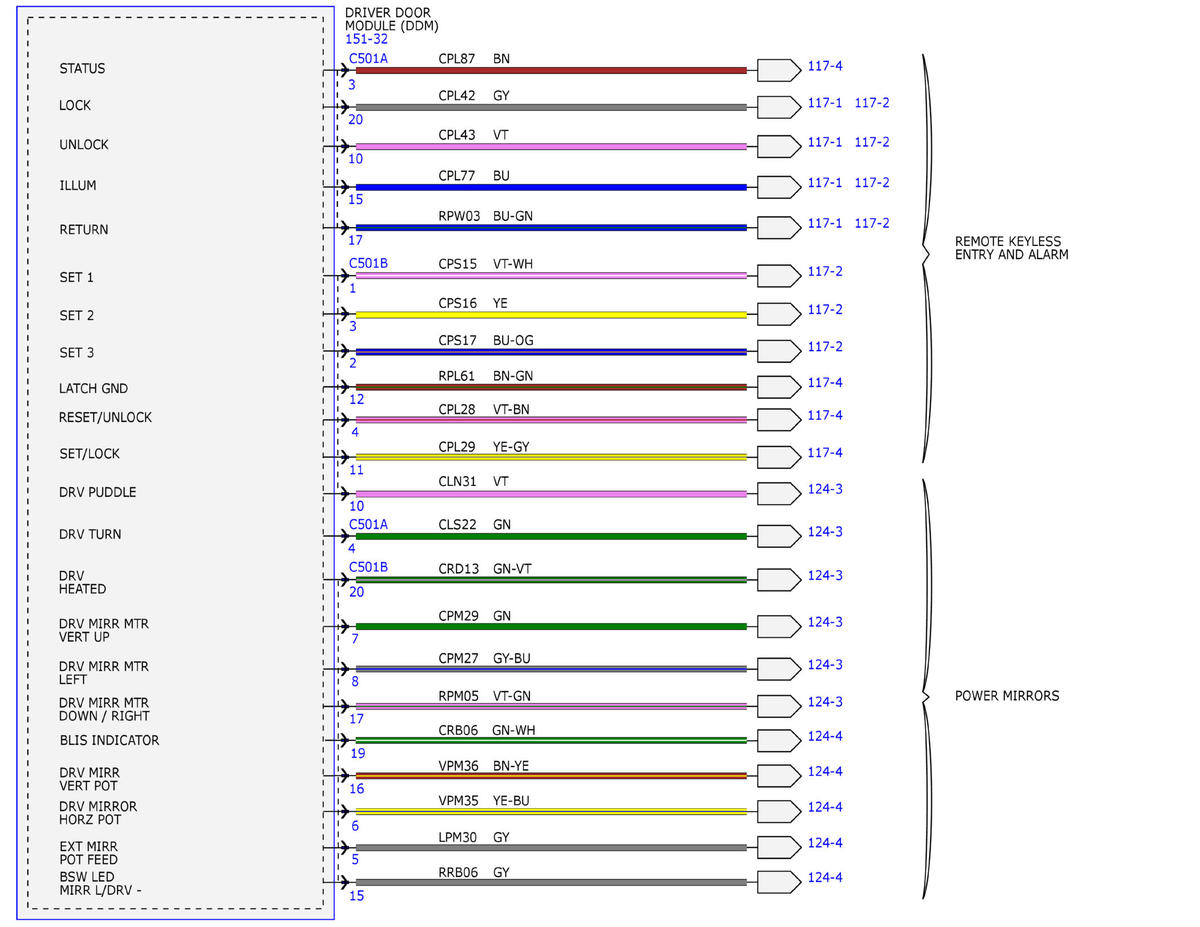

Fig 5: Power Windows Wiring Diagram (5 Of 9)
GFDWR108882Courtesy of FORD MOTOR COMPANY

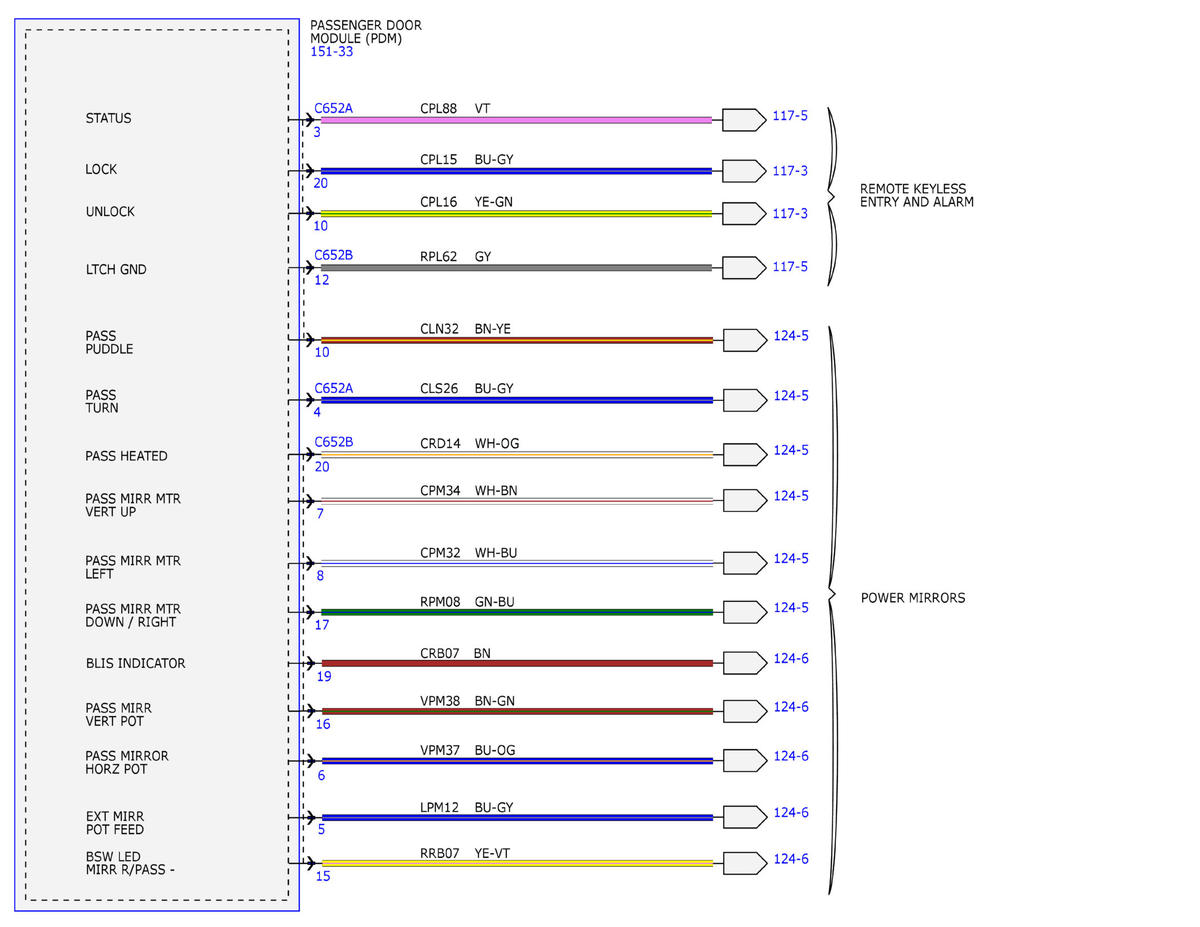

Fig 6: Power Windows Wiring Diagram (6 Of 9)
GFDWR108883Courtesy of FORD MOTOR COMPANY

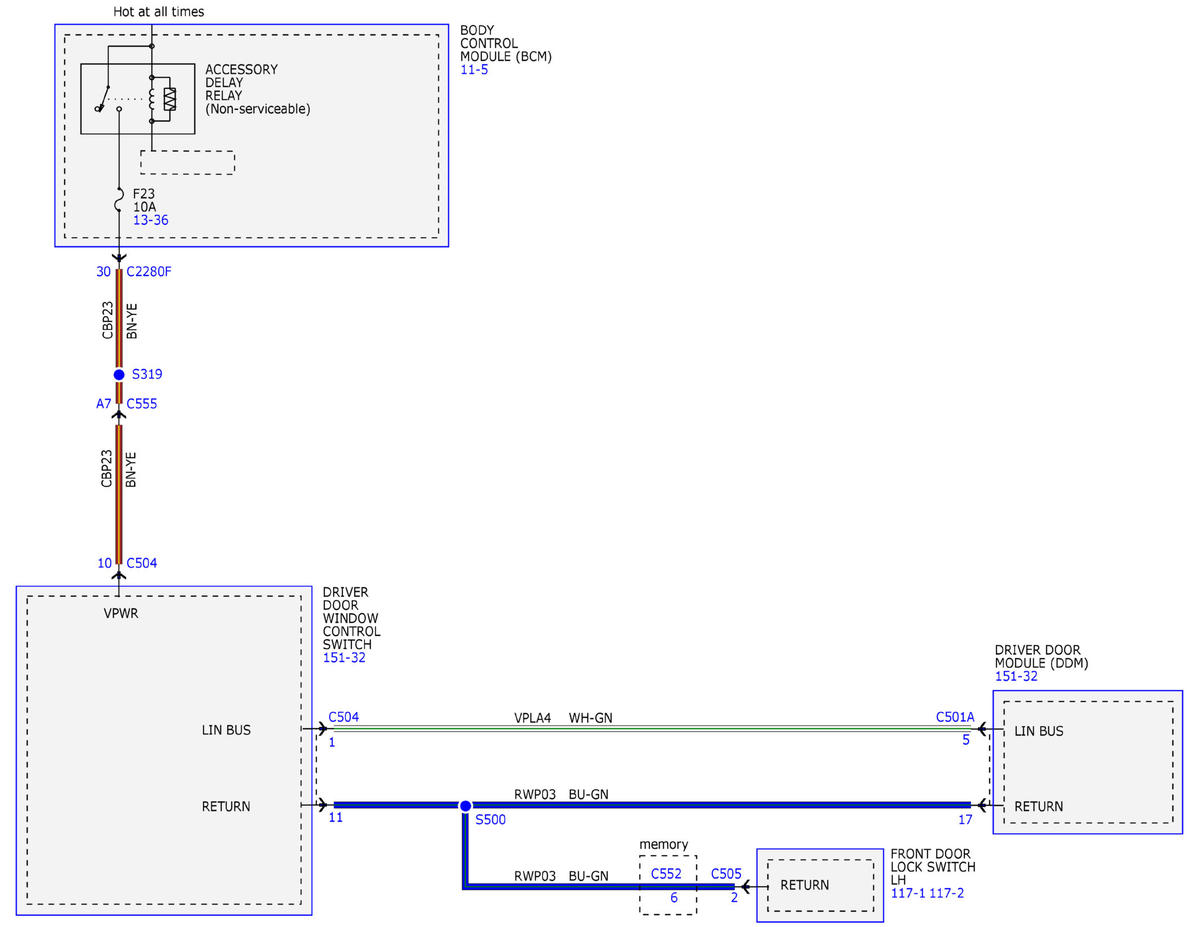

Fig 7: Power Windows Wiring Diagram (7 Of 9)
GFDWR108884Courtesy of FORD MOTOR COMPANY

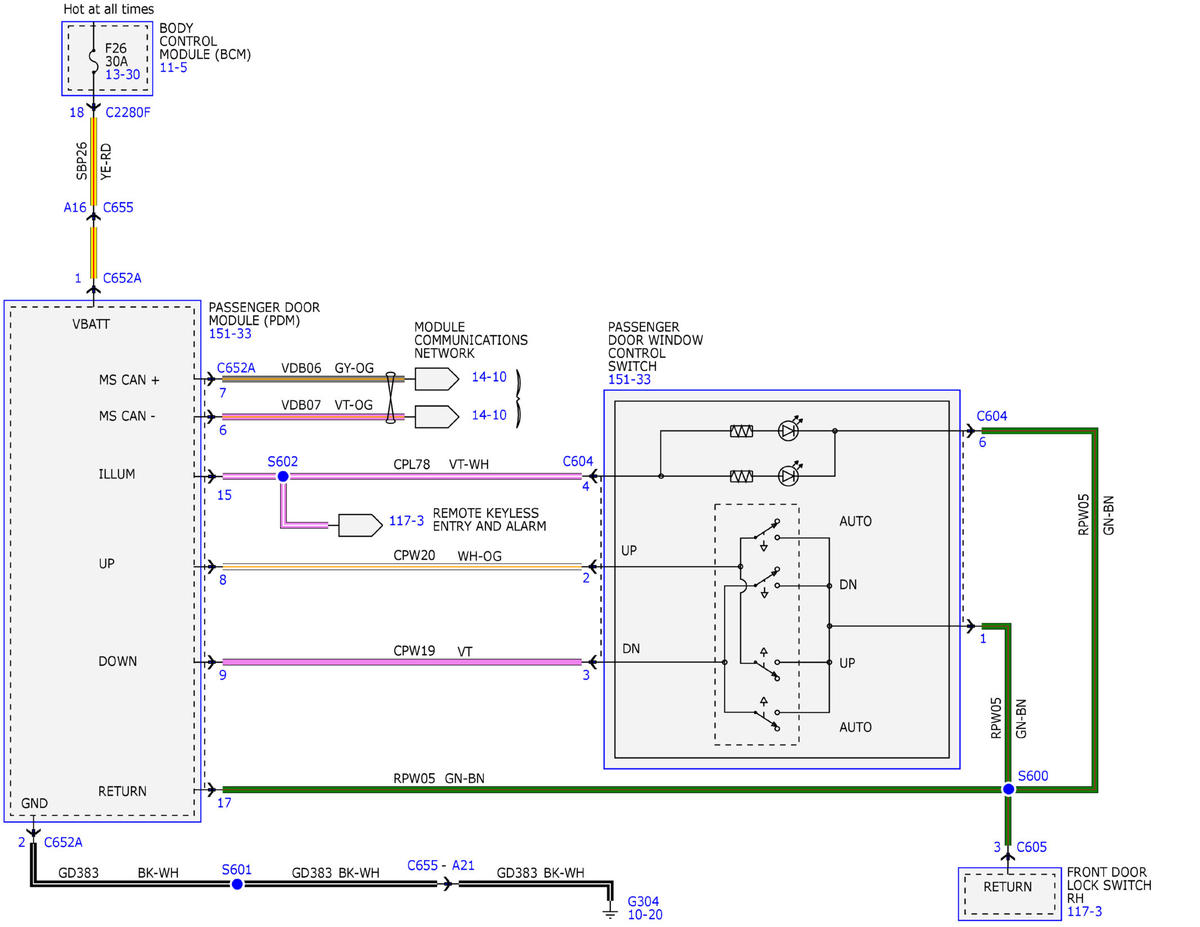

Fig 8: Power Windows Wiring Diagram (8 Of 9)
GFDWR108885Courtesy of FORD MOTOR COMPANY

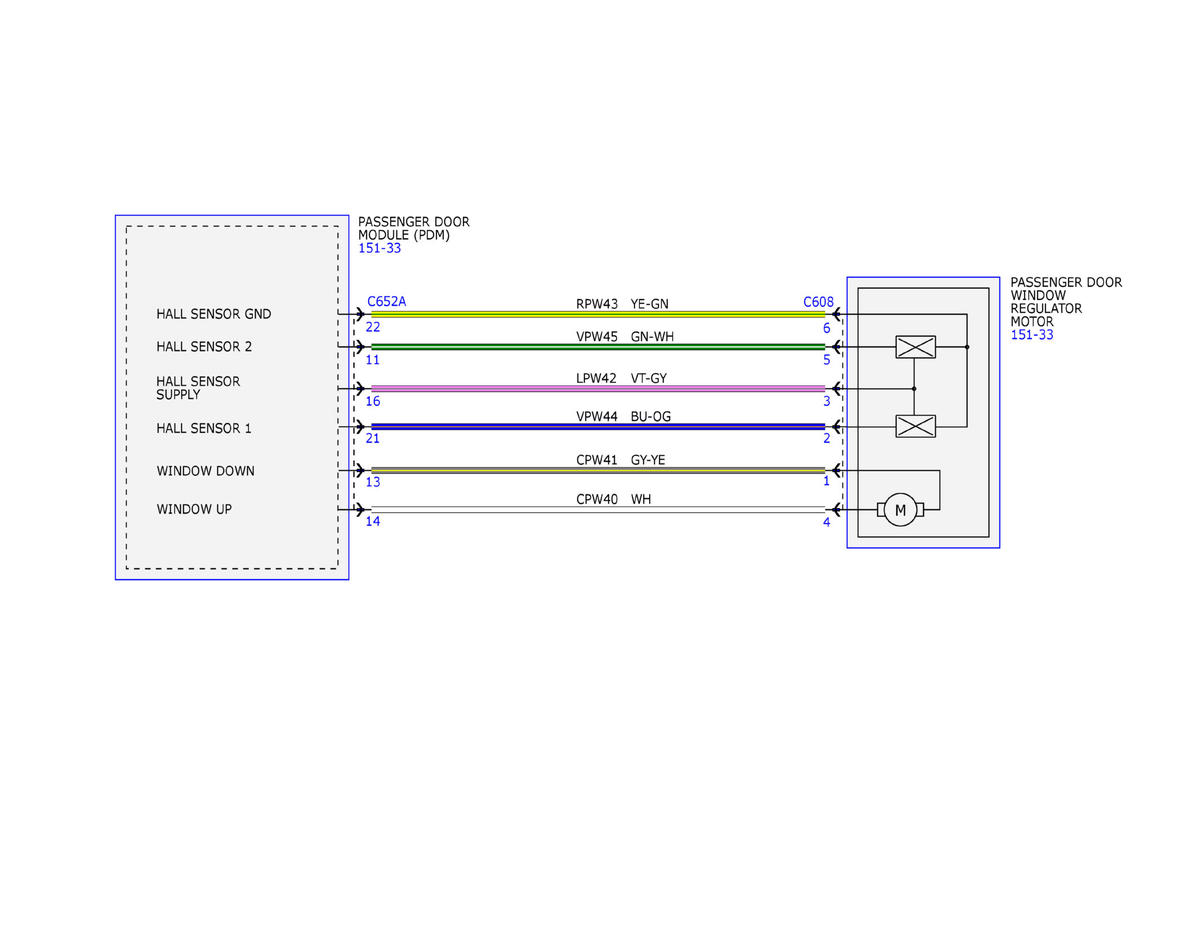

Fig 9: Power Windows Wiring Diagram (9 Of 9)
GFDWR108886Courtesy of FORD MOTOR COMPANY
