Power Seats

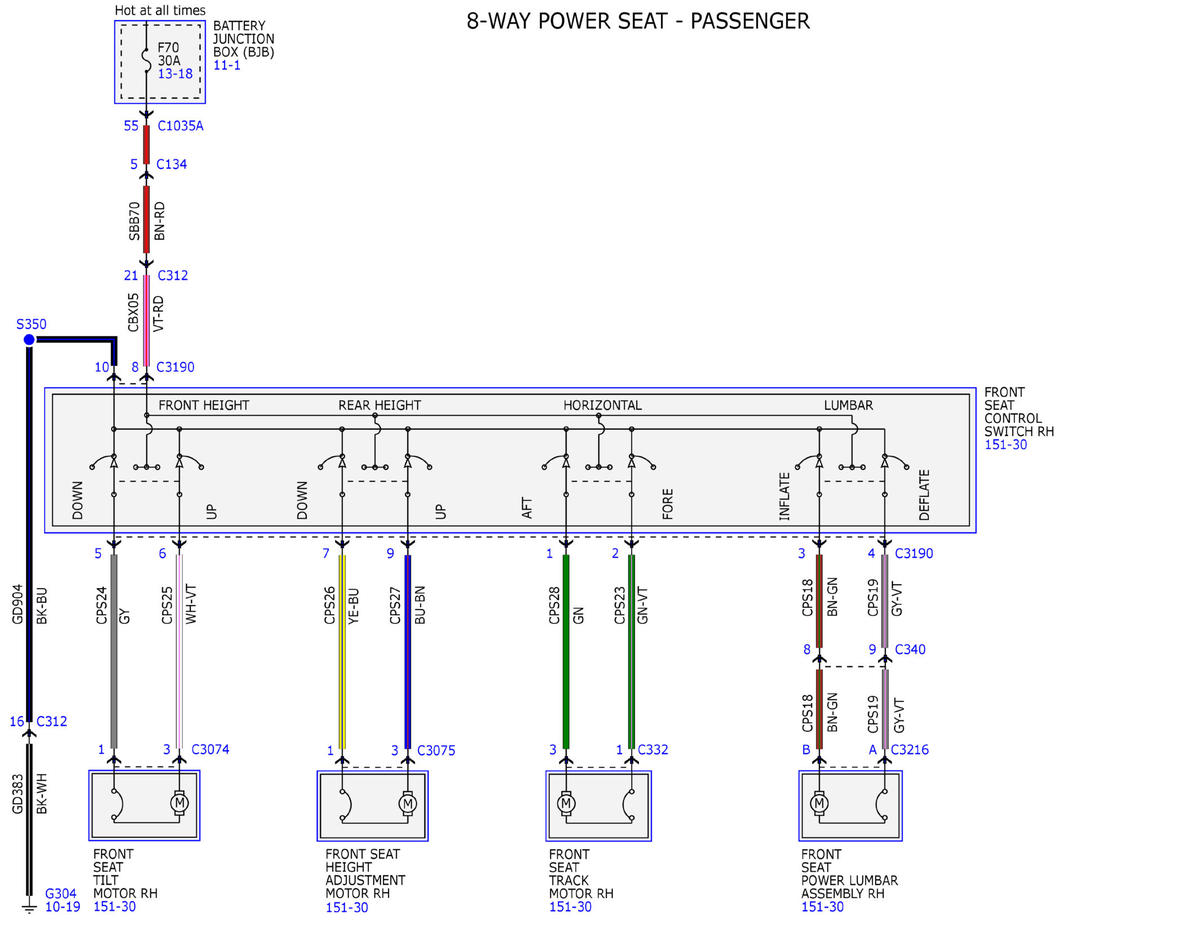

Fig 1: Power Seats Wiring Diagram (1 Of 4)
GFDWR108873Courtesy of FORD MOTOR COMPANY

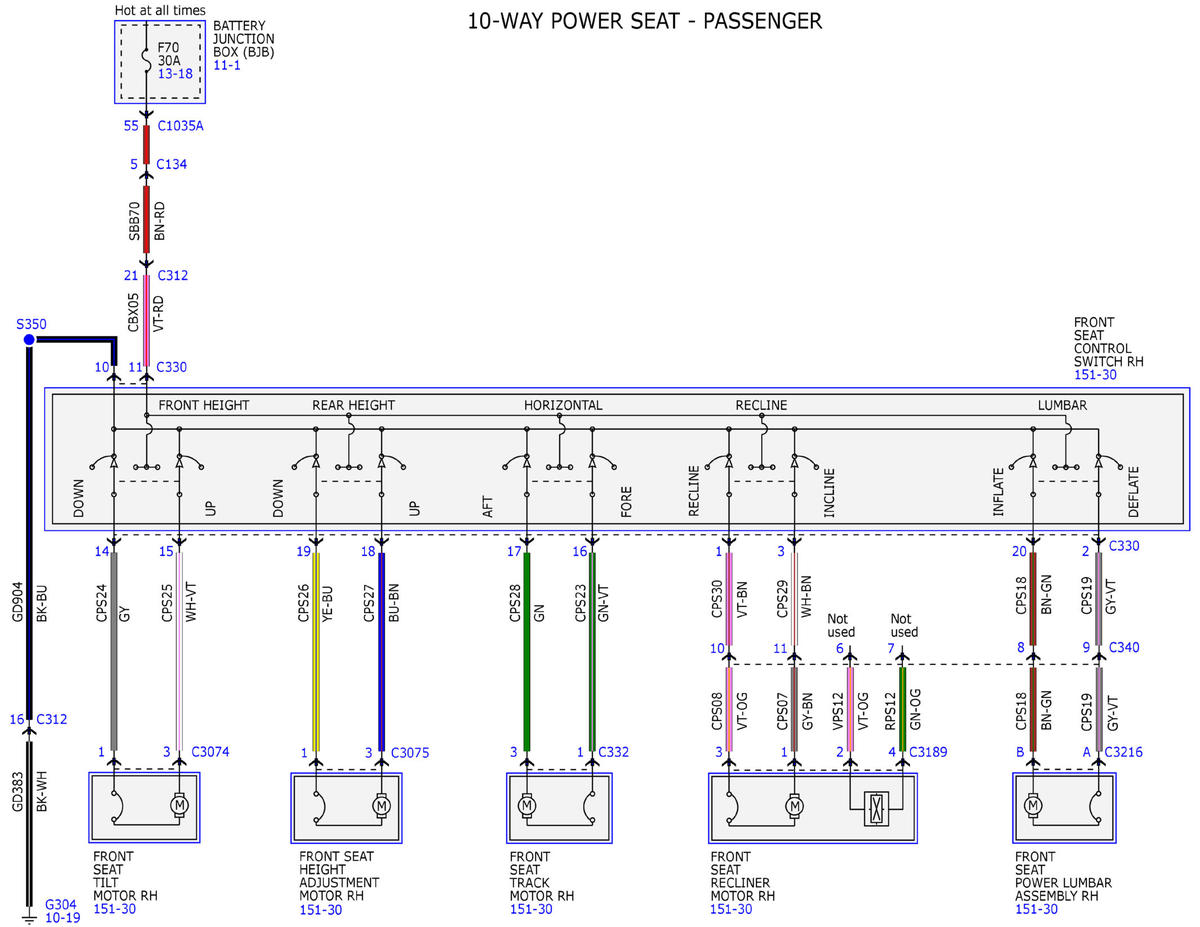

Fig 2: Power Seats Wiring Diagram (2 Of 4)
GFDWR108874Courtesy of FORD MOTOR COMPANY

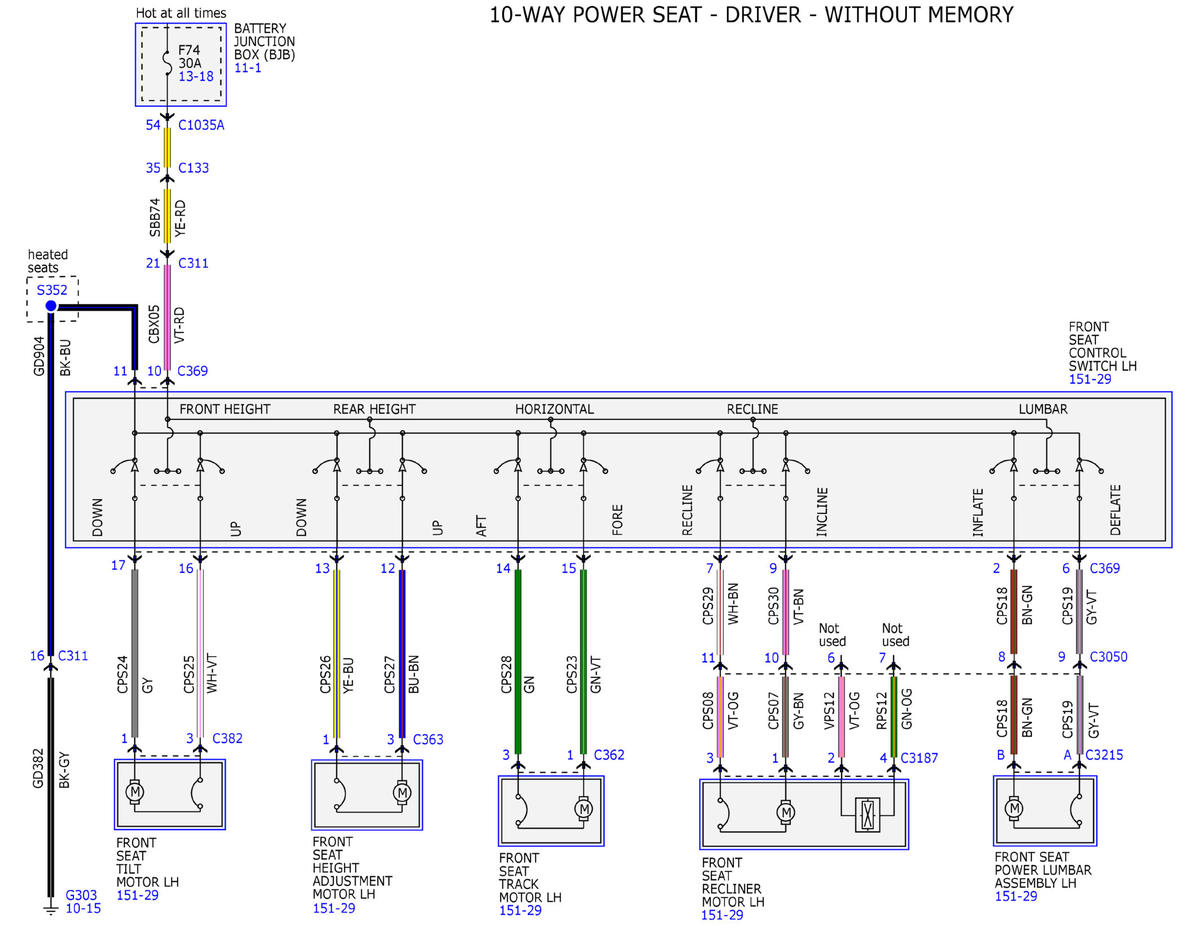

Fig 3: Power Seats Wiring Diagram (3 Of 4)
GFDWR108875Courtesy of FORD MOTOR COMPANY

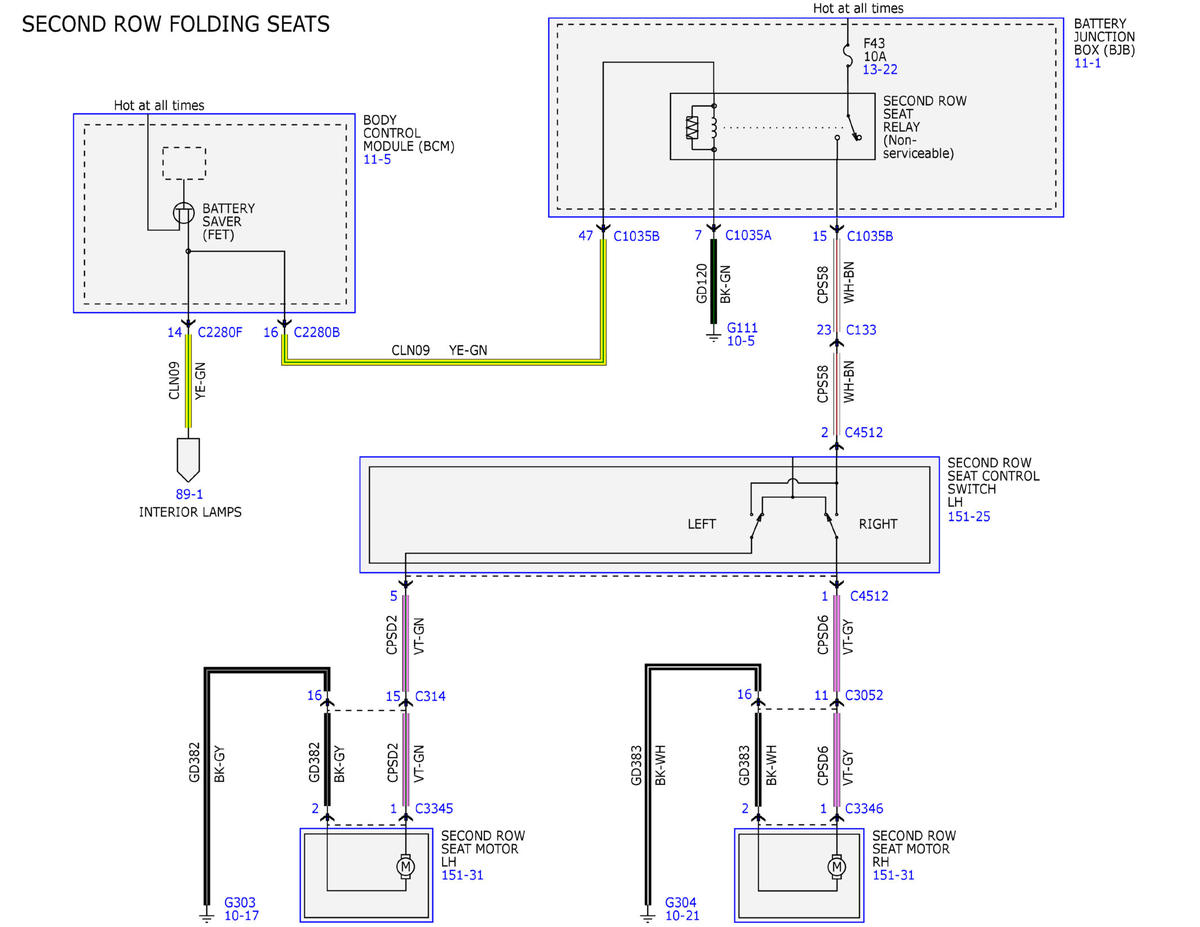

Fig 4: Power Seats Wiring Diagram (4 Of 4)
GFDWR108876Courtesy of FORD MOTOR COMPANY
