Power Distribution

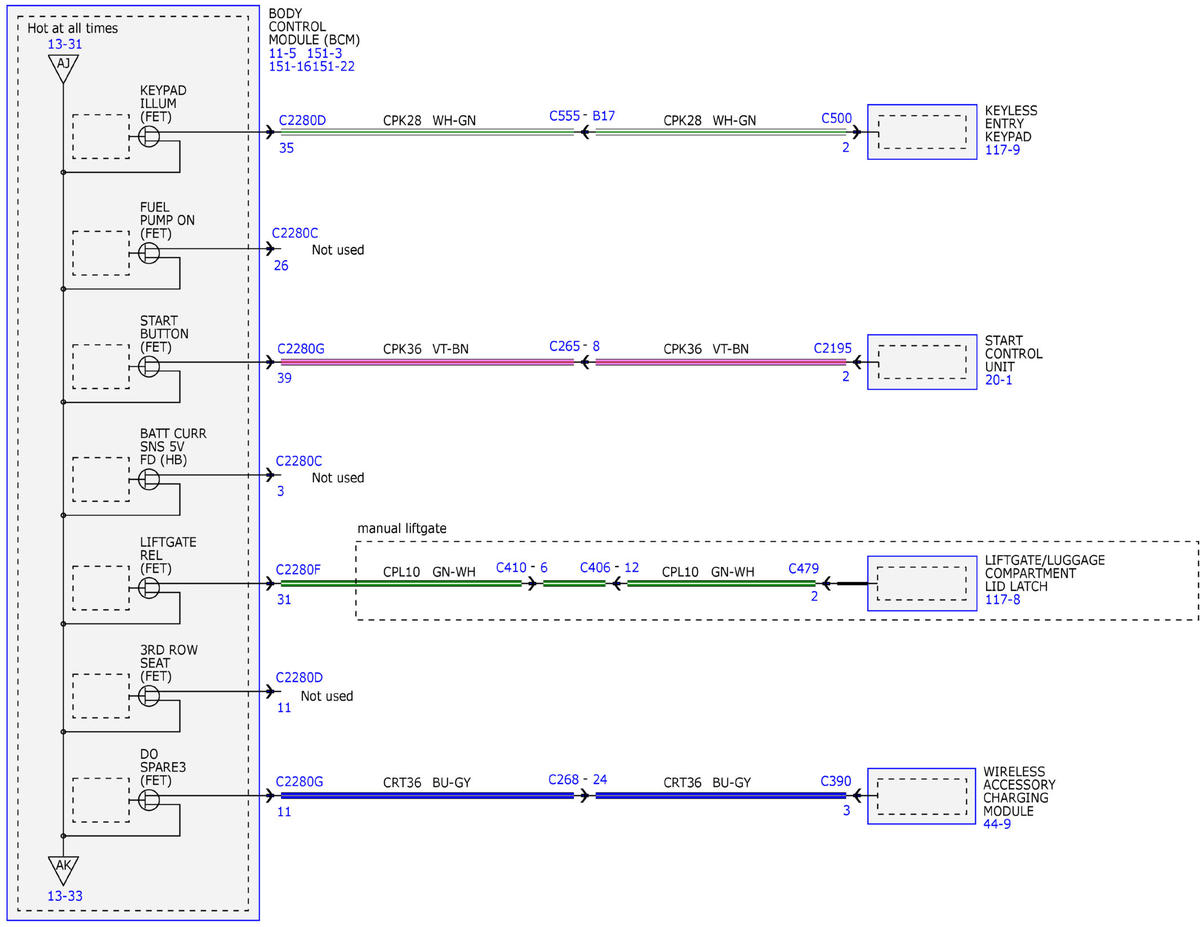

Fig 1: Power Distribution Wiring Diagram (1 Of 47)

GFDWR108813

Courtesy of FORD MOTOR COMPANY

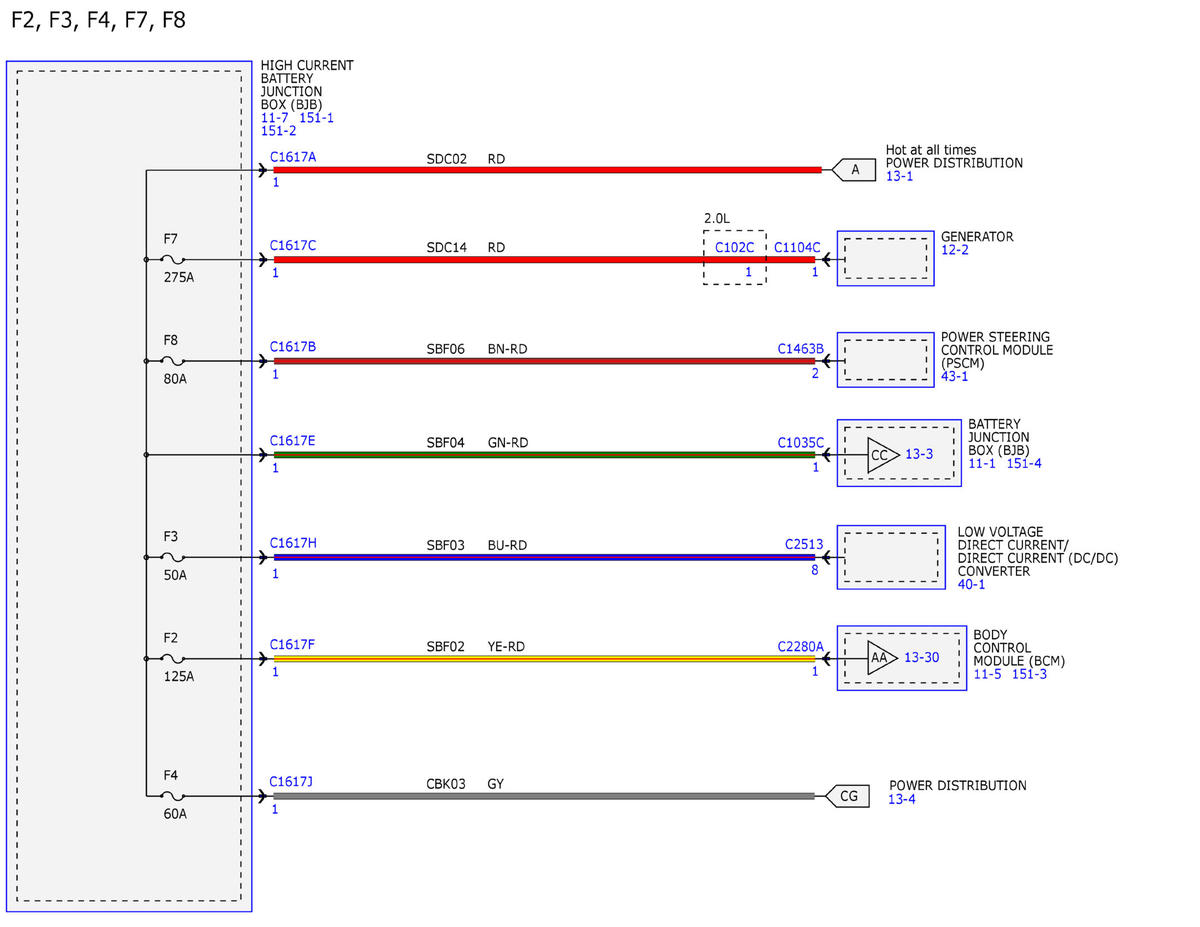

Fig 2: Power Distribution Wiring Diagram (2 Of 47)

GFDWR108814

Courtesy of FORD MOTOR COMPANY

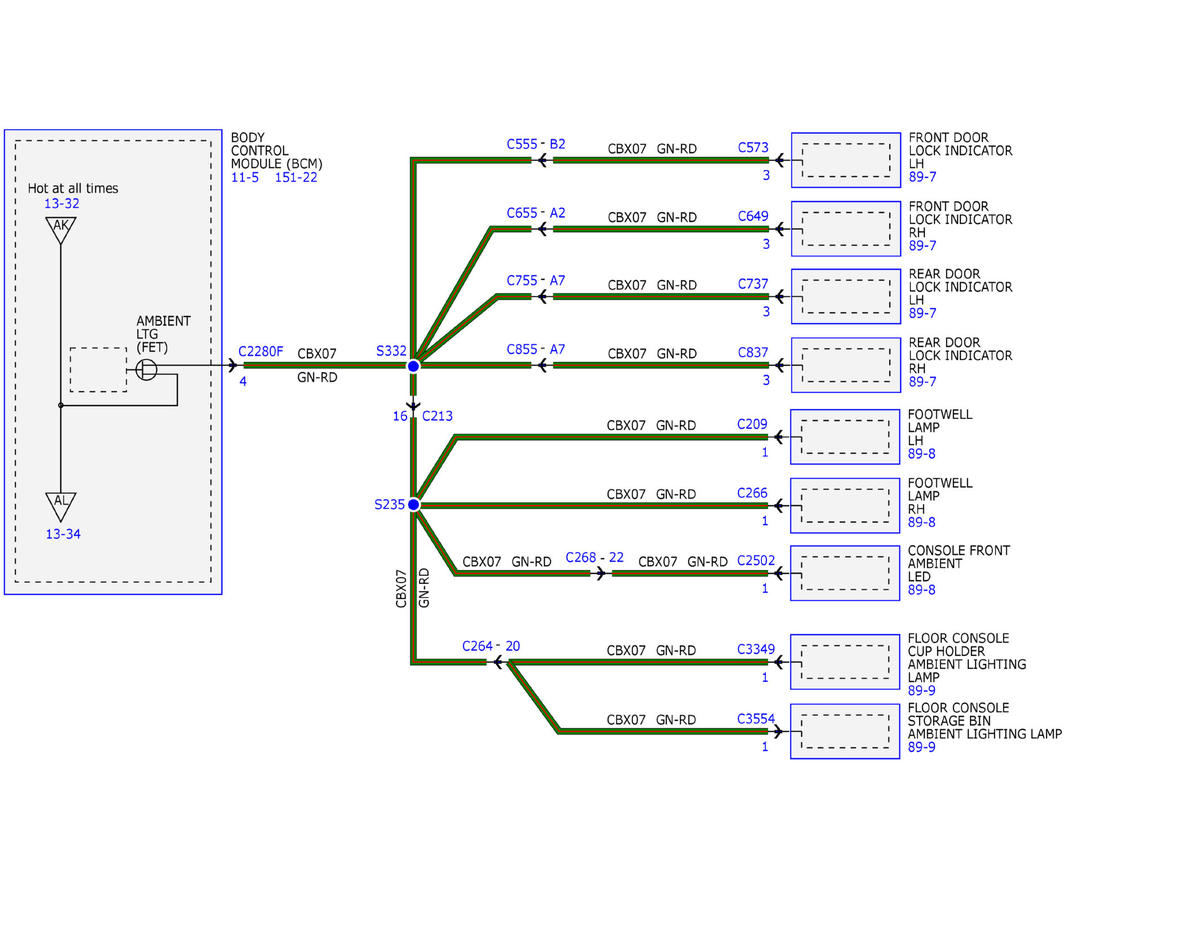

Fig 3: Power Distribution Wiring Diagram (3 Of 47)

GFDWR108815

Courtesy of FORD MOTOR COMPANY

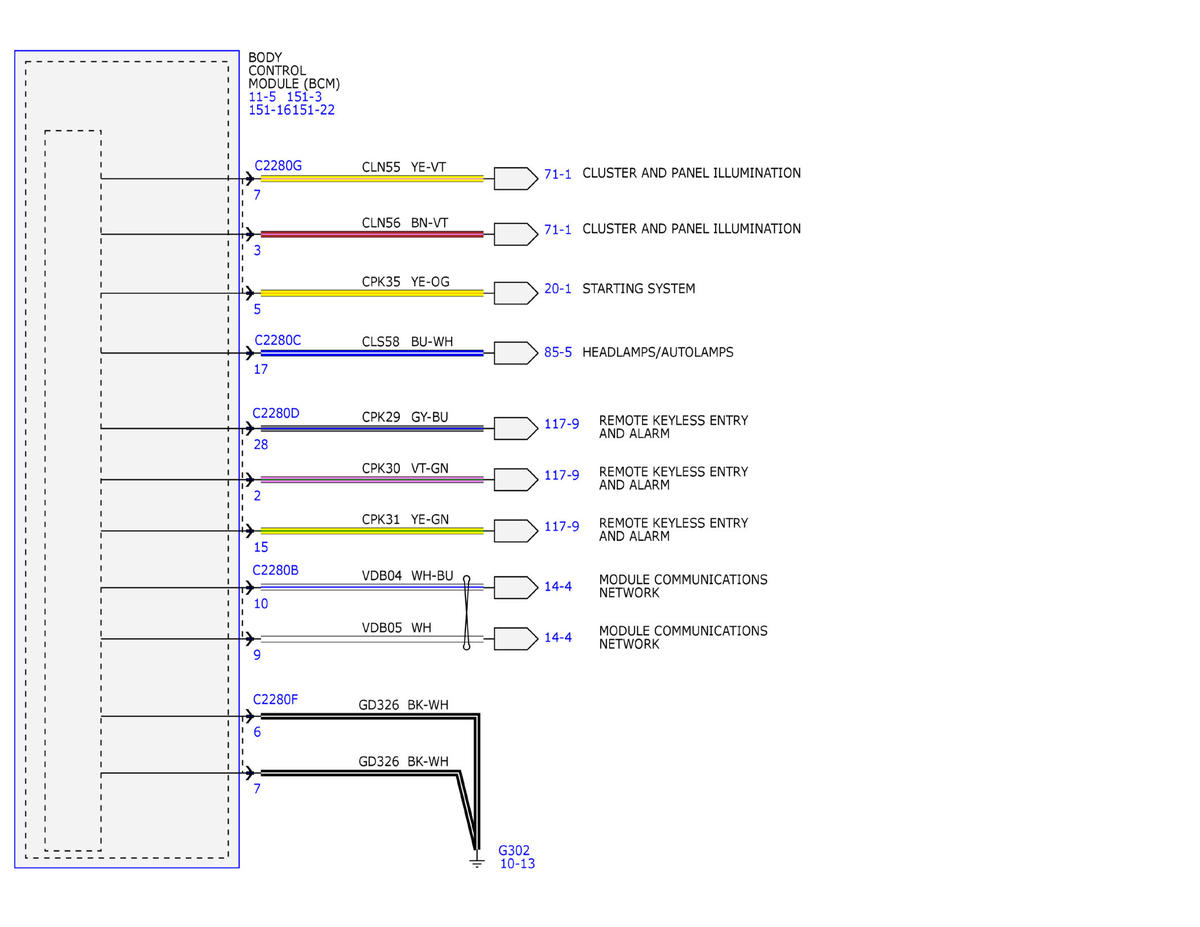

Fig 4: Power Distribution Wiring Diagram (4 Of 47)

GFDWR108816

Courtesy of FORD MOTOR COMPANY

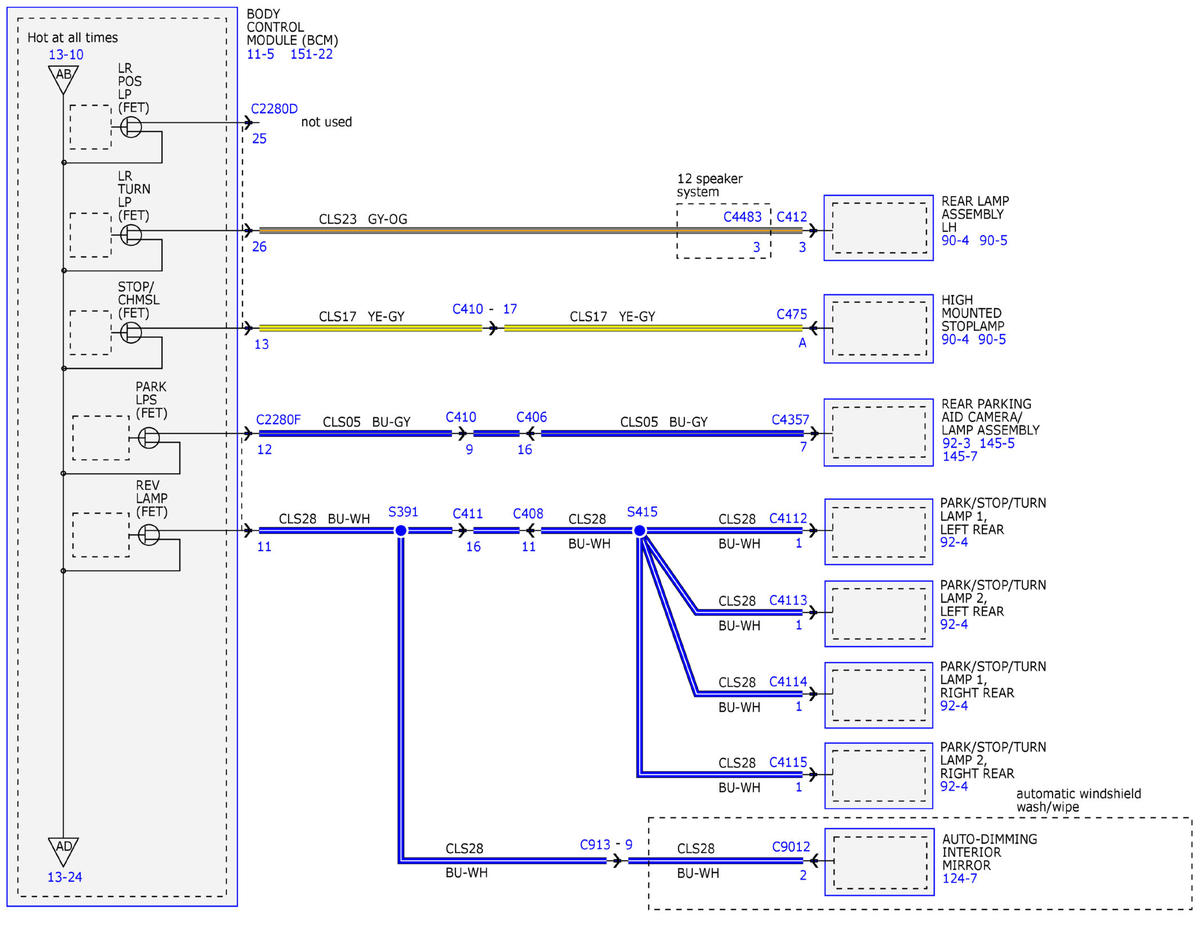

Fig 5: Power Distribution Wiring Diagram (5 Of 47)

GFDWR108817

Courtesy of FORD MOTOR COMPANY

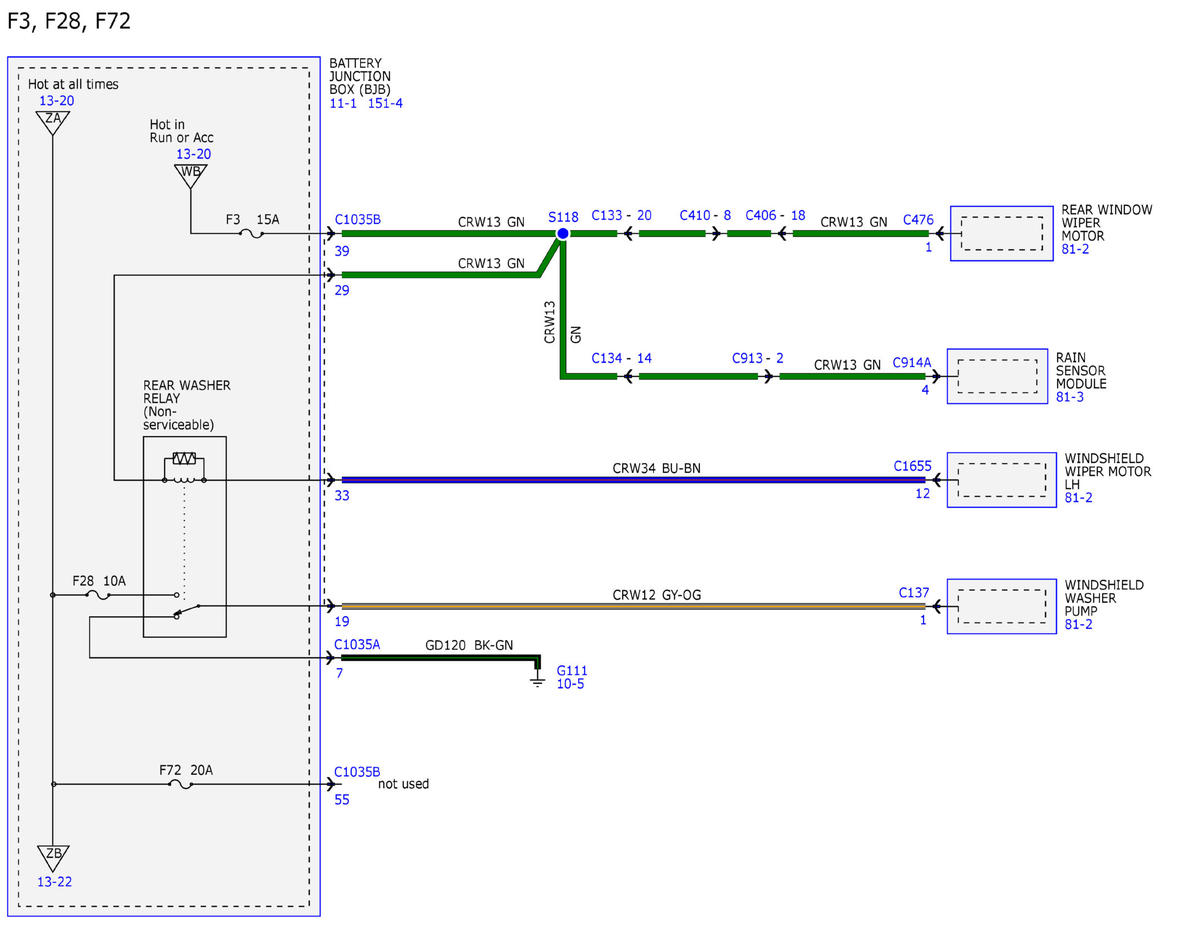

Fig 6: Power Distribution Wiring Diagram (6 Of 47)

GFDWR108818

Courtesy of FORD MOTOR COMPANY

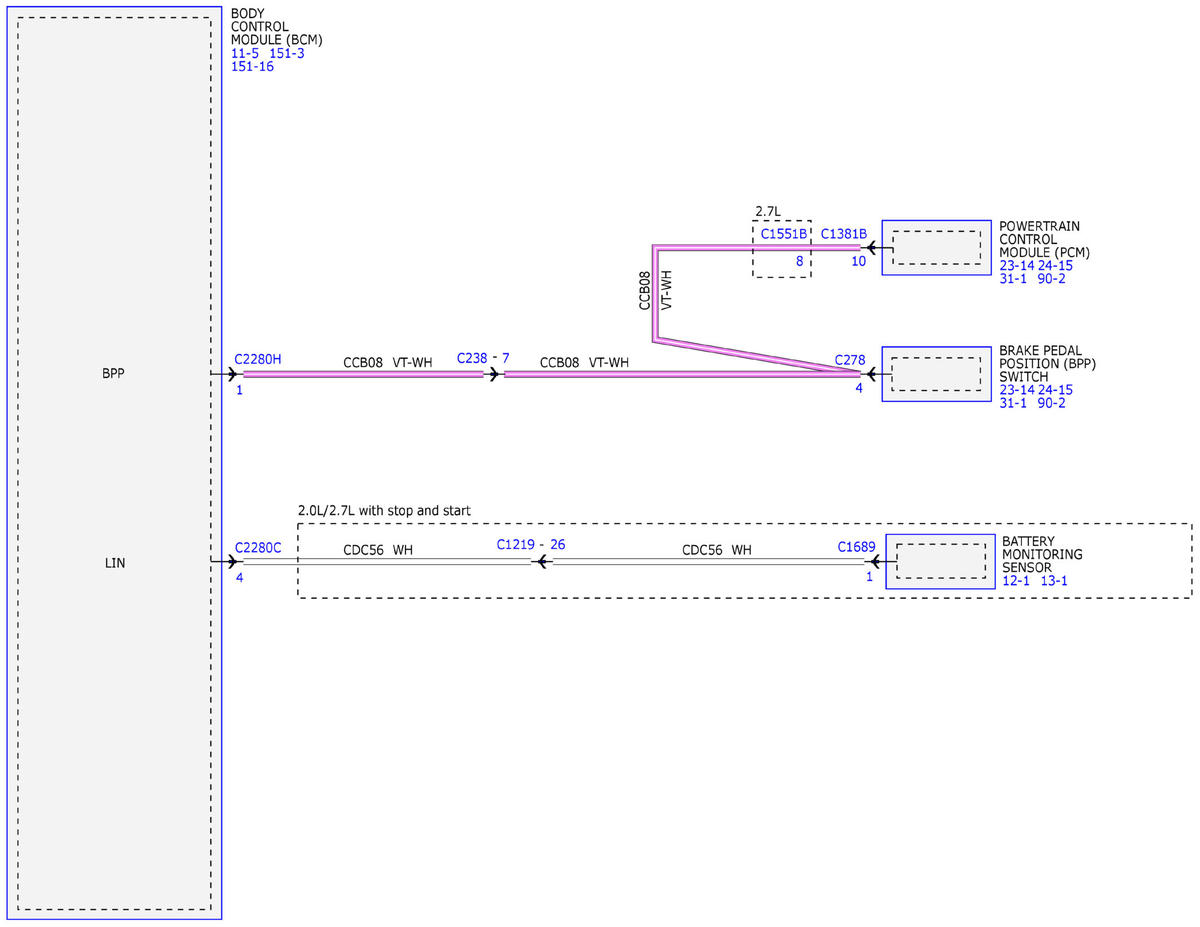

Fig 7: Power Distribution Wiring Diagram (7 Of 47)

GFDWR108819

Courtesy of FORD MOTOR COMPANY

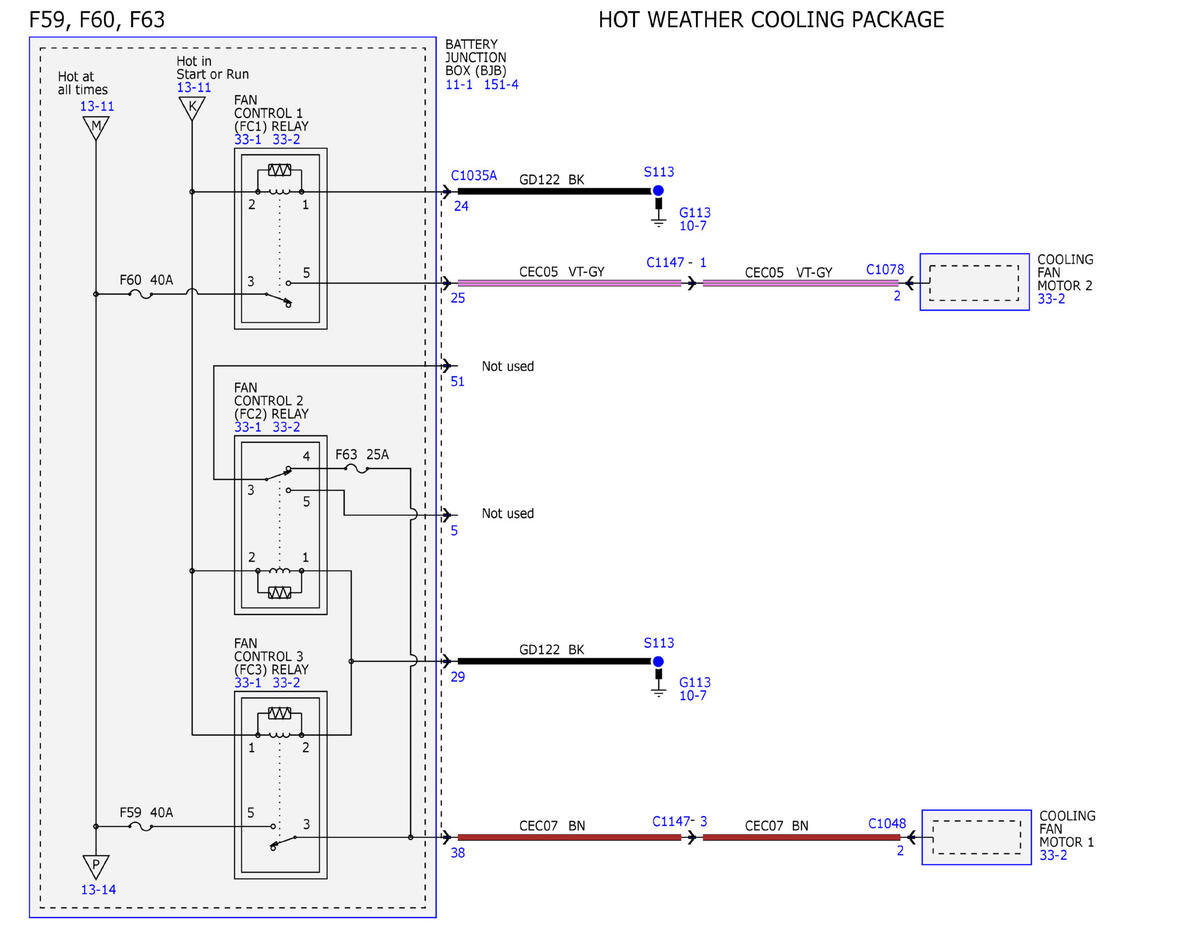

Fig 8: Power Distribution Wiring Diagram (8 Of 47)

GFDWR108820

Courtesy of FORD MOTOR COMPANY

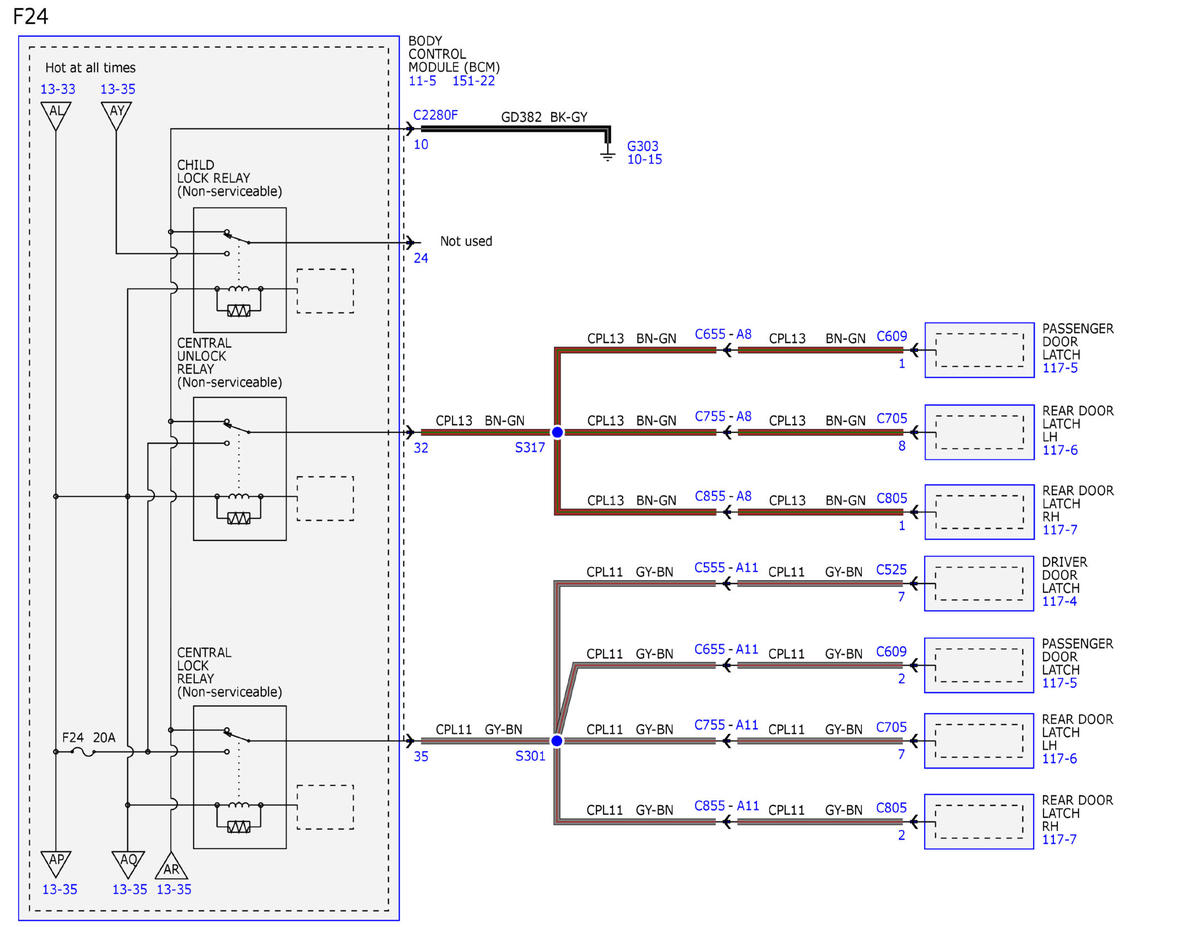

Fig 9: Power Distribution Wiring Diagram (9 Of 47)

GFDWR108821

Courtesy of FORD MOTOR COMPANY

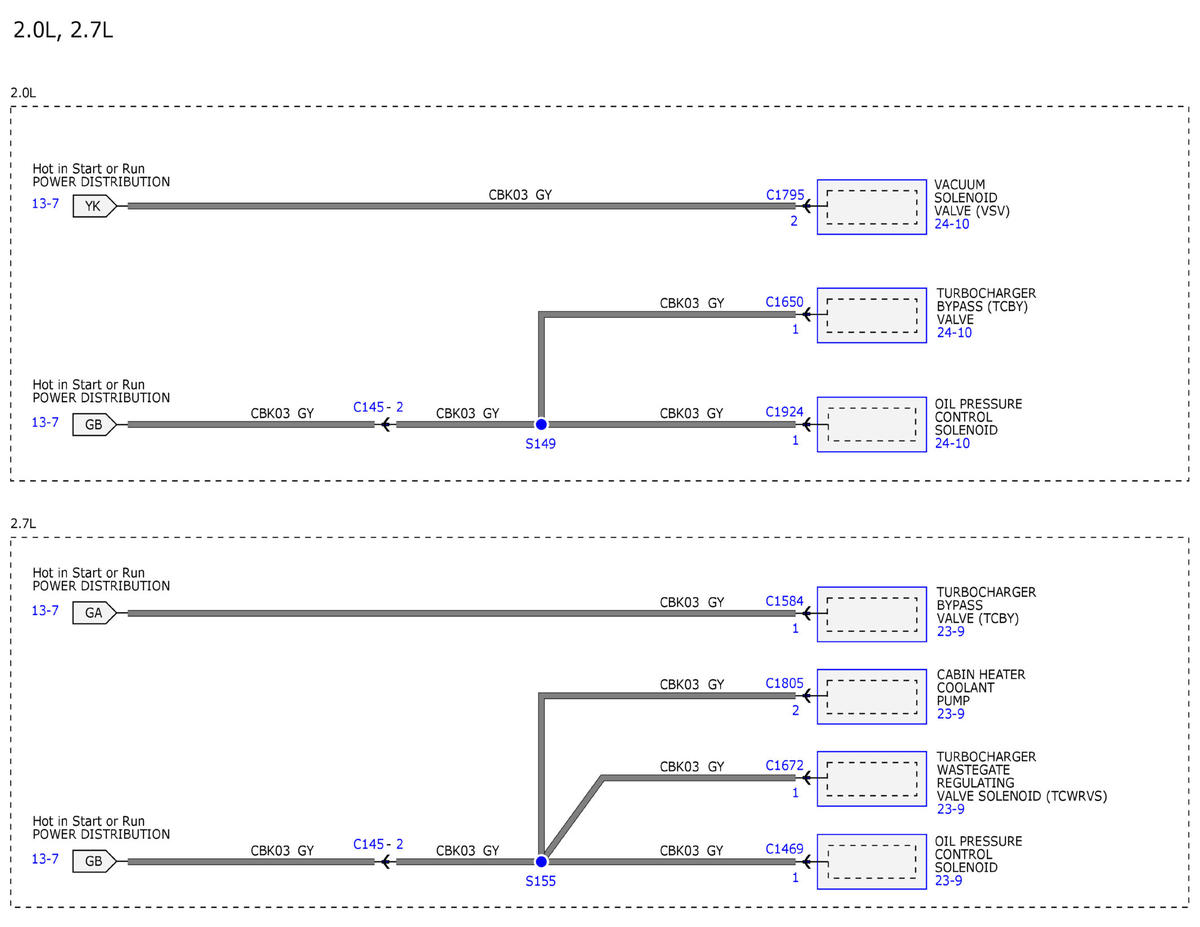

Fig 10: Power Distribution Wiring Diagram (10 Of 47)

GFDWR108822

Courtesy of FORD MOTOR COMPANY

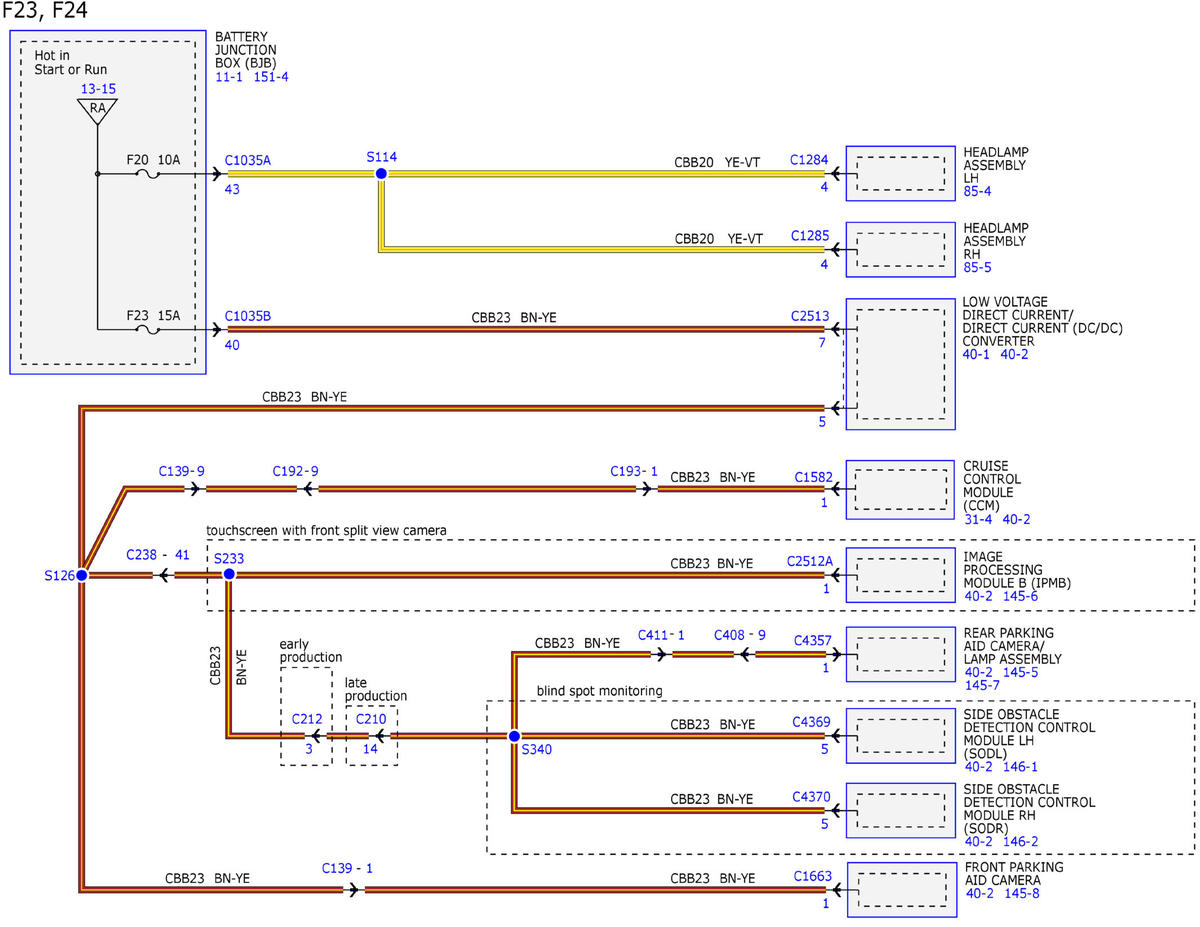

Fig 11: Power Distribution Wiring Diagram (11 Of 47)

GFDWR108823

Courtesy of FORD MOTOR COMPANY

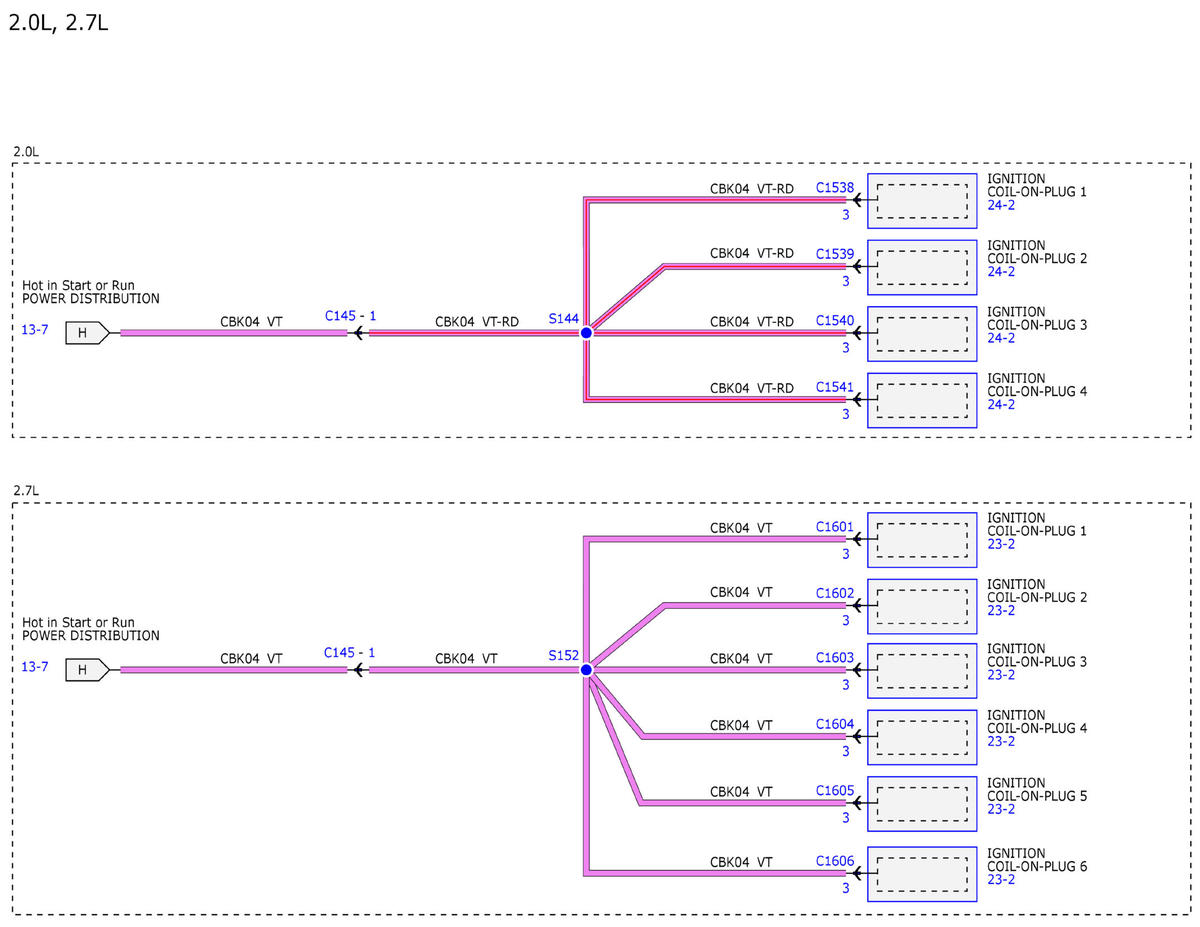

Fig 12: Power Distribution Wiring Diagram (12 Of 47)

GFDWR108824

Courtesy of FORD MOTOR COMPANY

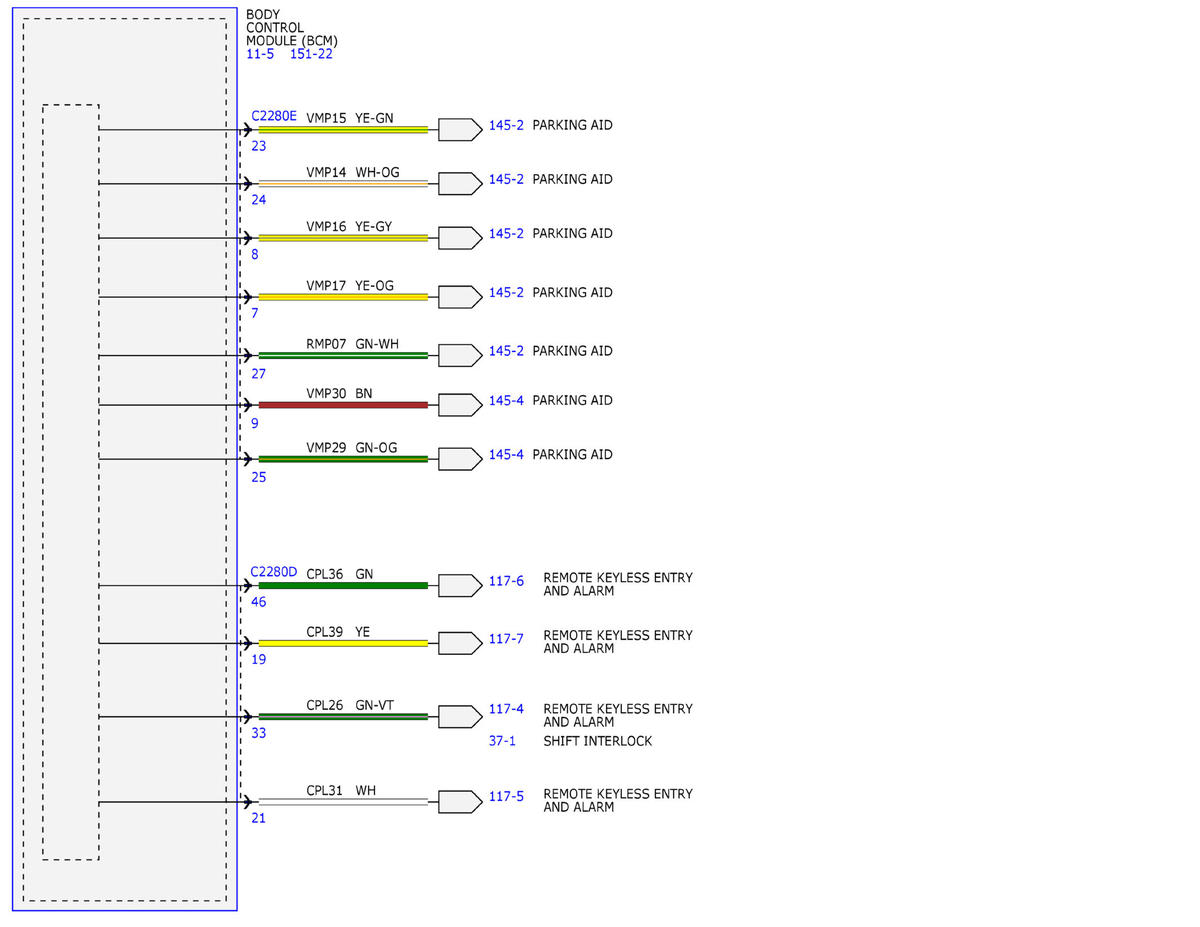

Fig 13: Power Distribution Wiring Diagram (13 Of 47)

GFDWR108825

Courtesy of FORD MOTOR COMPANY

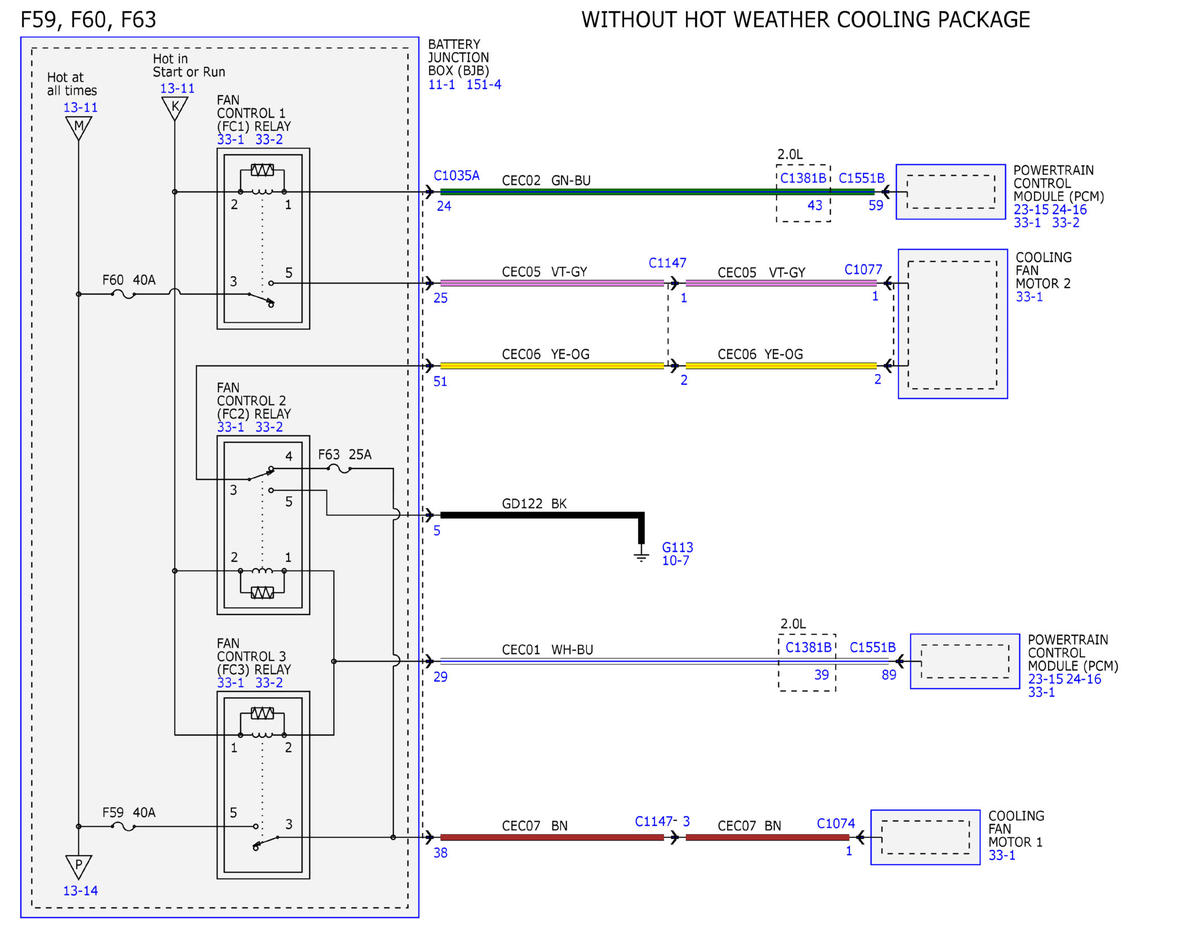

Fig 14: Power Distribution Wiring Diagram (14 Of 47)

GFDWR108826

Courtesy of FORD MOTOR COMPANY

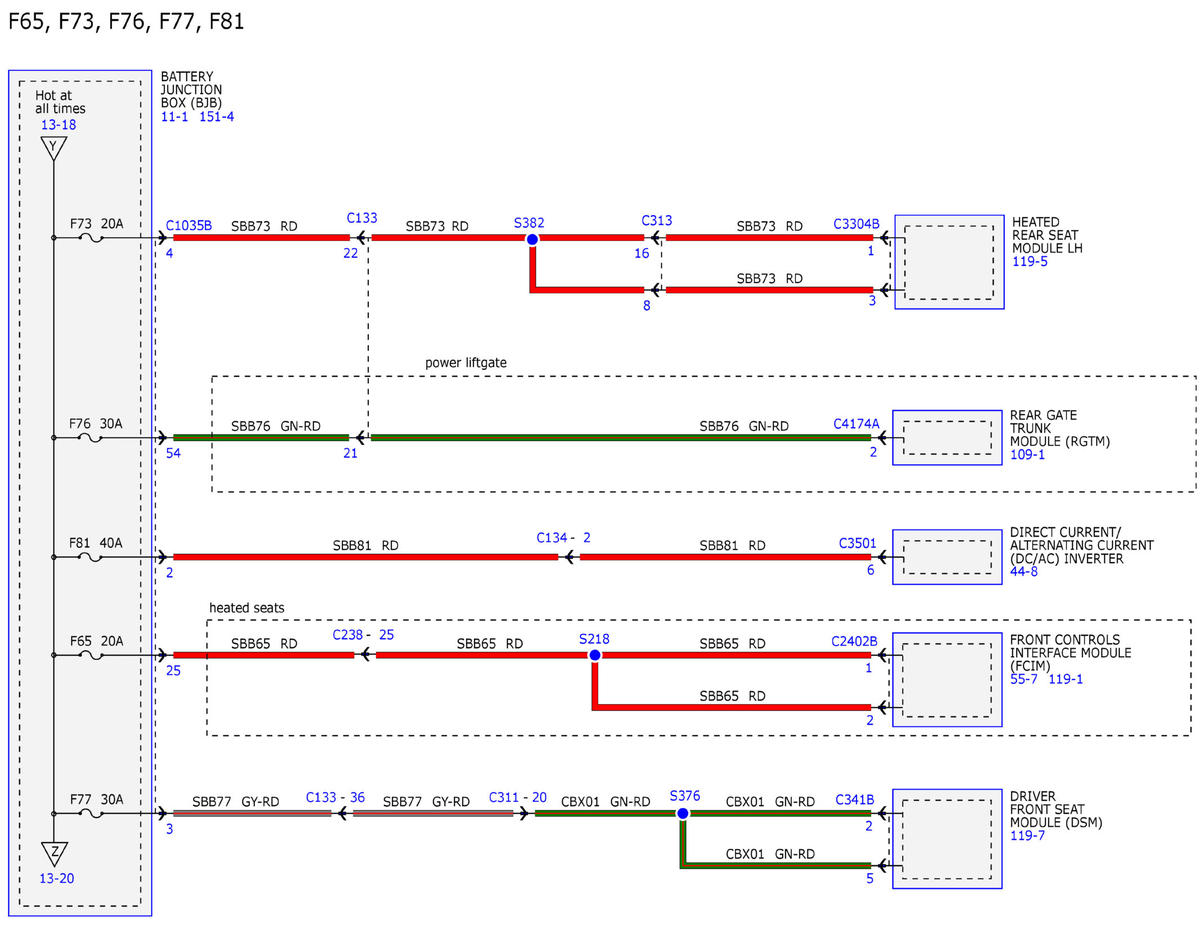

Fig 15: Power Distribution Wiring Diagram (15 Of 47)

GFDWR108827

Courtesy of FORD MOTOR COMPANY

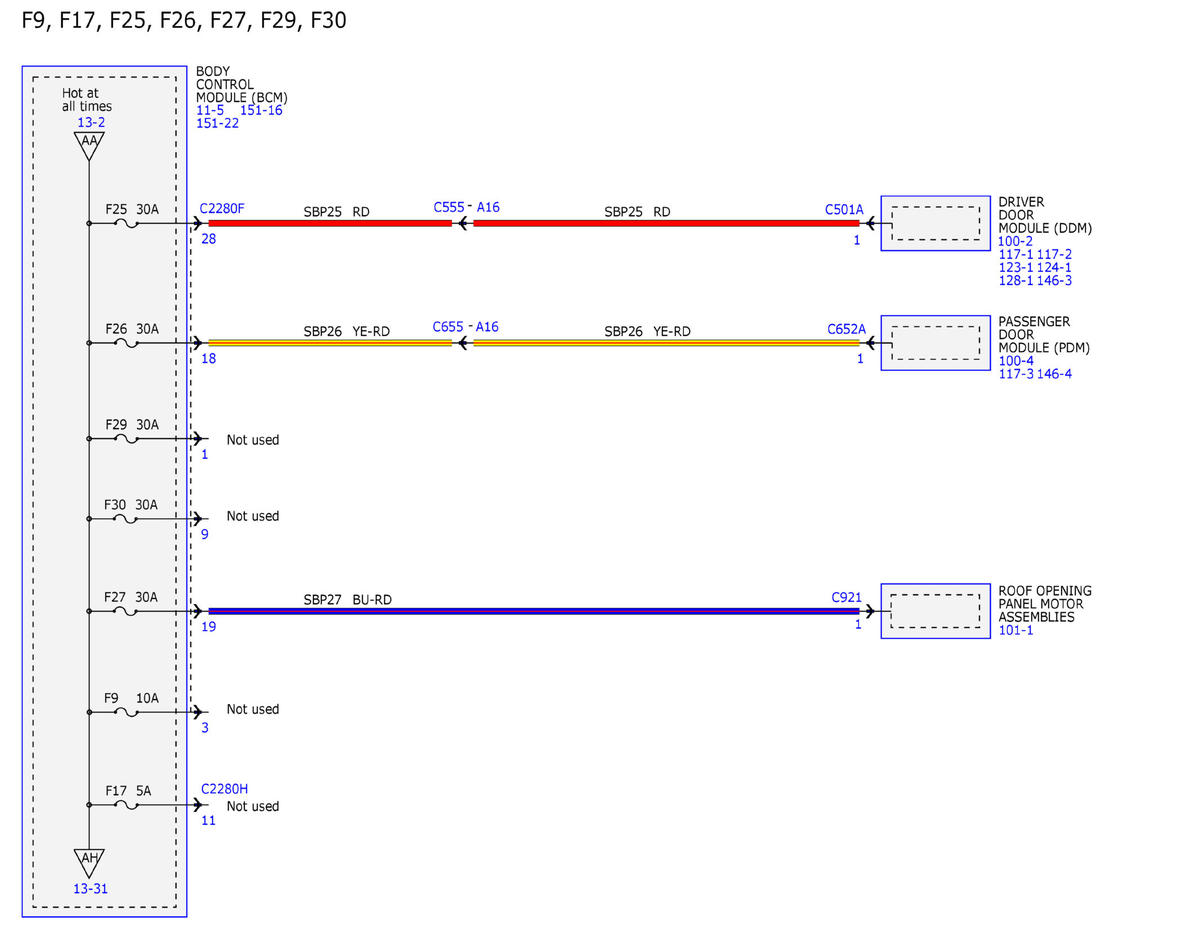

Fig 16: Power Distribution Wiring Diagram (16 Of 47)

GFDWR108828

Courtesy of FORD MOTOR COMPANY

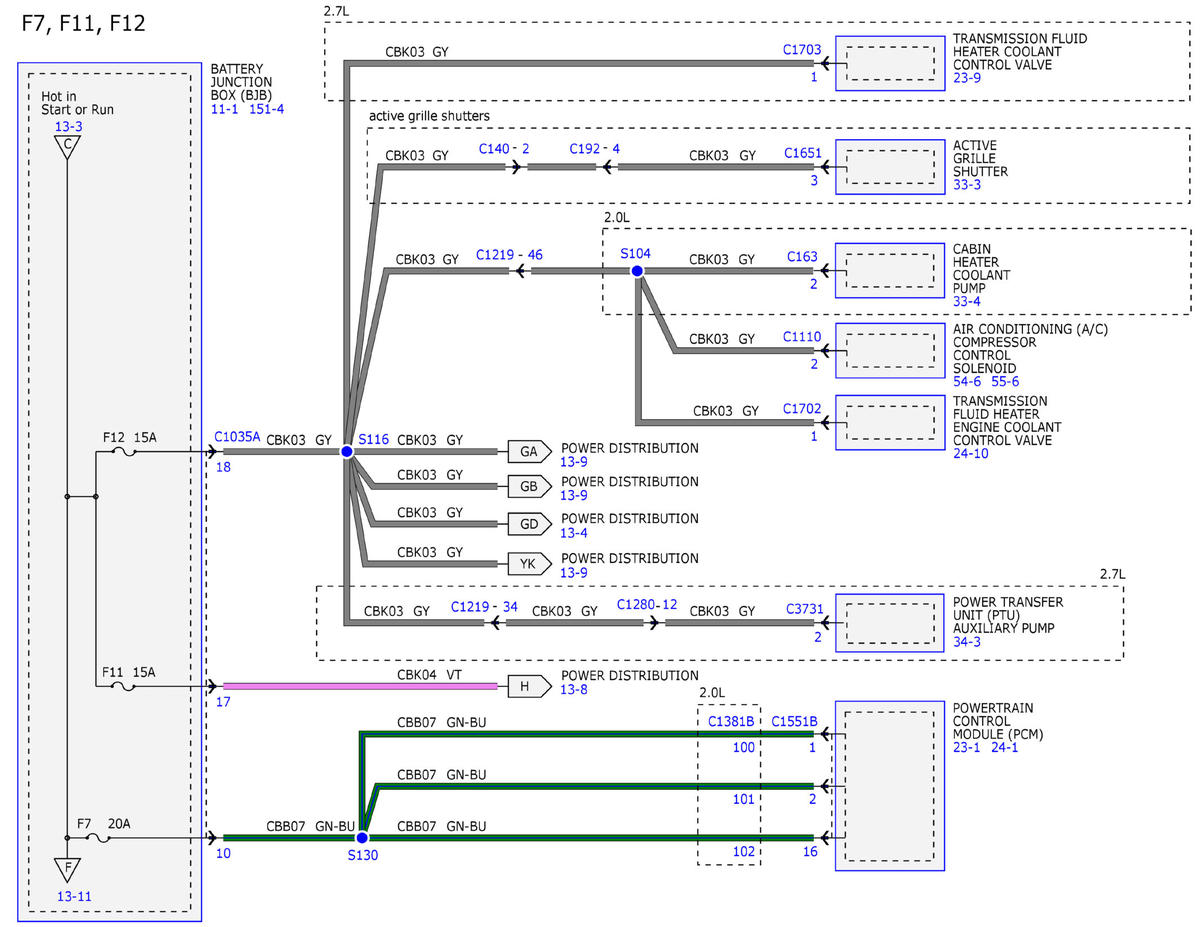

Fig 17: Power Distribution Wiring Diagram (17 Of 47)

GFDWR108829

Courtesy of FORD MOTOR COMPANY

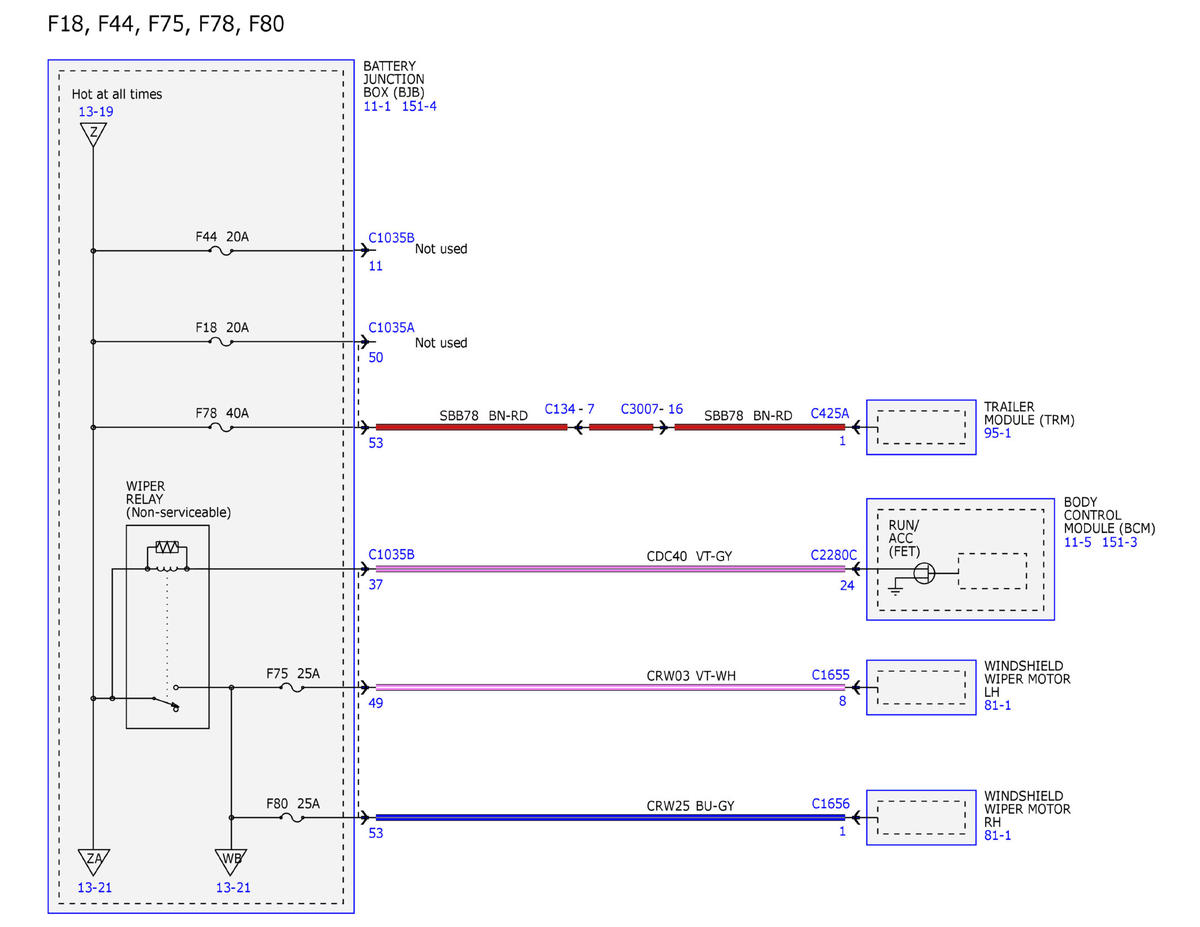

Fig 18: Power Distribution Wiring Diagram (18 Of 47)

GFDWR108830

Courtesy of FORD MOTOR COMPANY

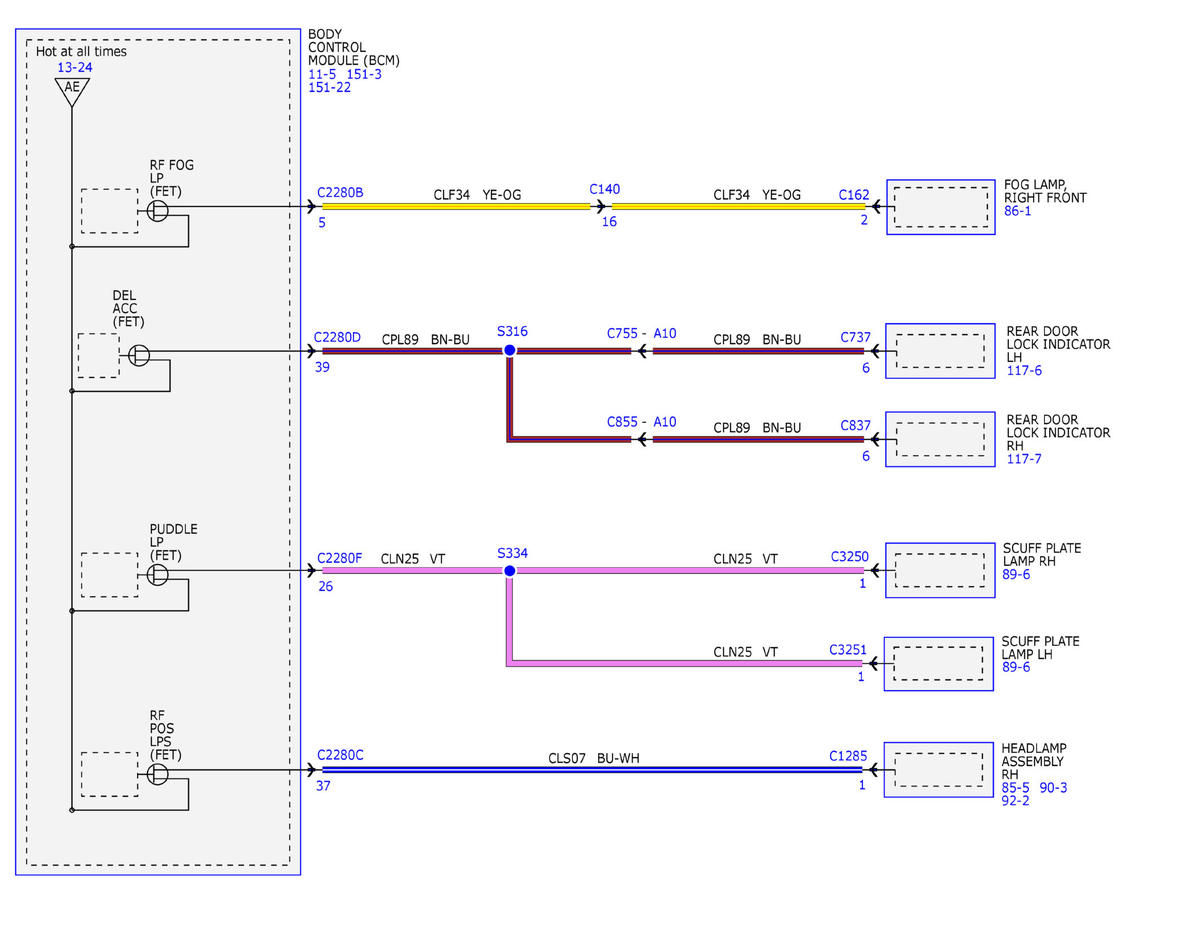

Fig 19: Power Distribution Wiring Diagram (19 Of 47)

GFDWR108831

Courtesy of FORD MOTOR COMPANY

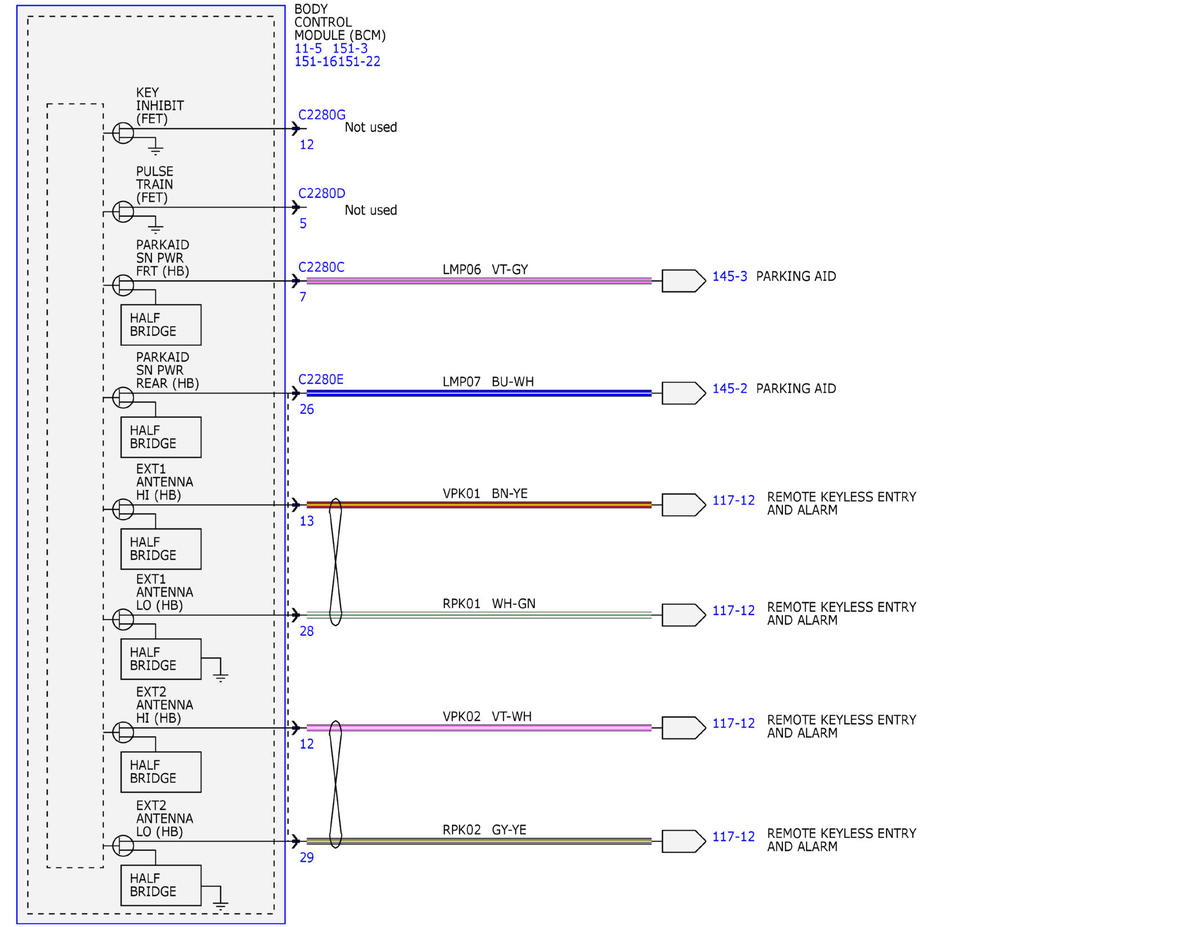

Fig 20: Power Distribution Wiring Diagram (20 Of 47)

GFDWR108832

Courtesy of FORD MOTOR COMPANY

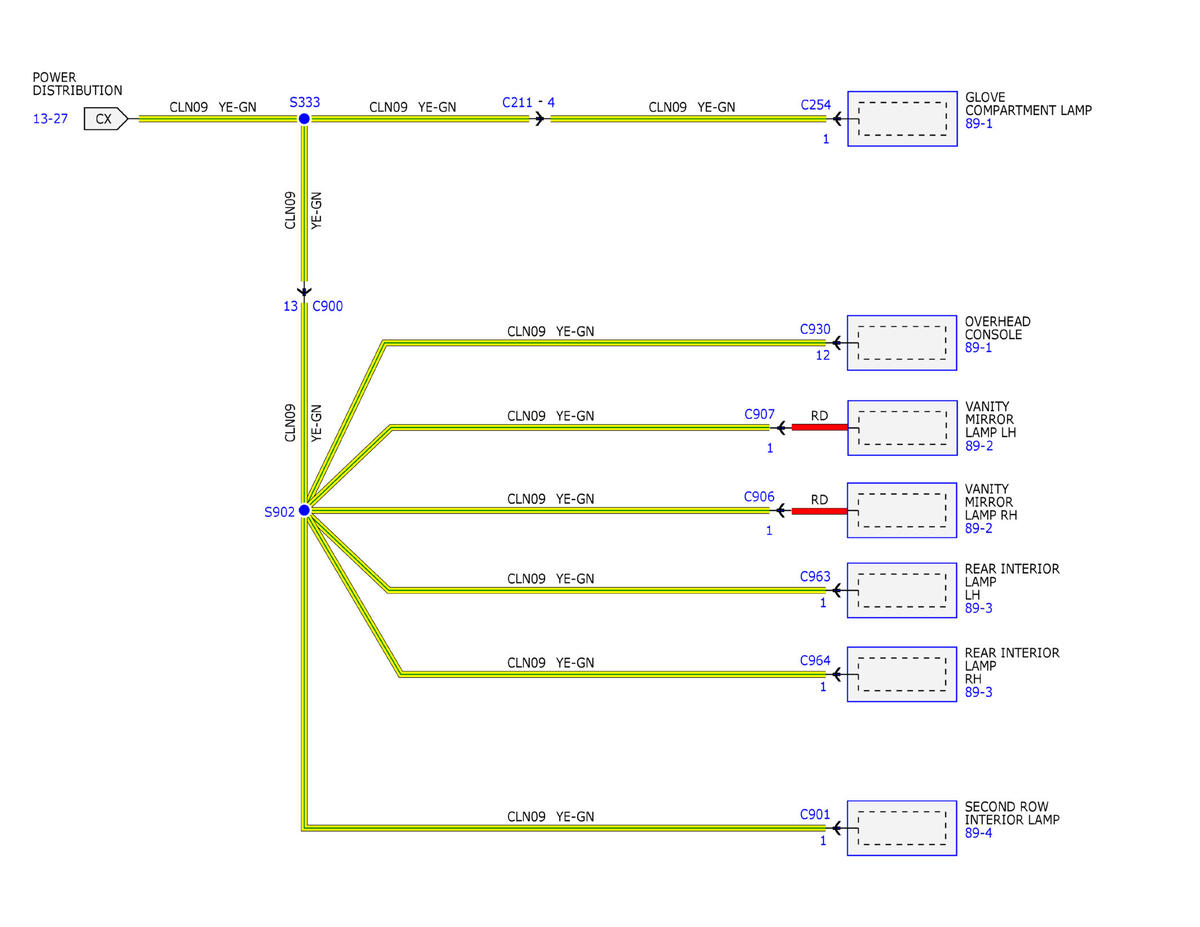

Fig 21: Power Distribution Wiring Diagram (21 Of 47)

GFDWR108833

Courtesy of FORD MOTOR COMPANY

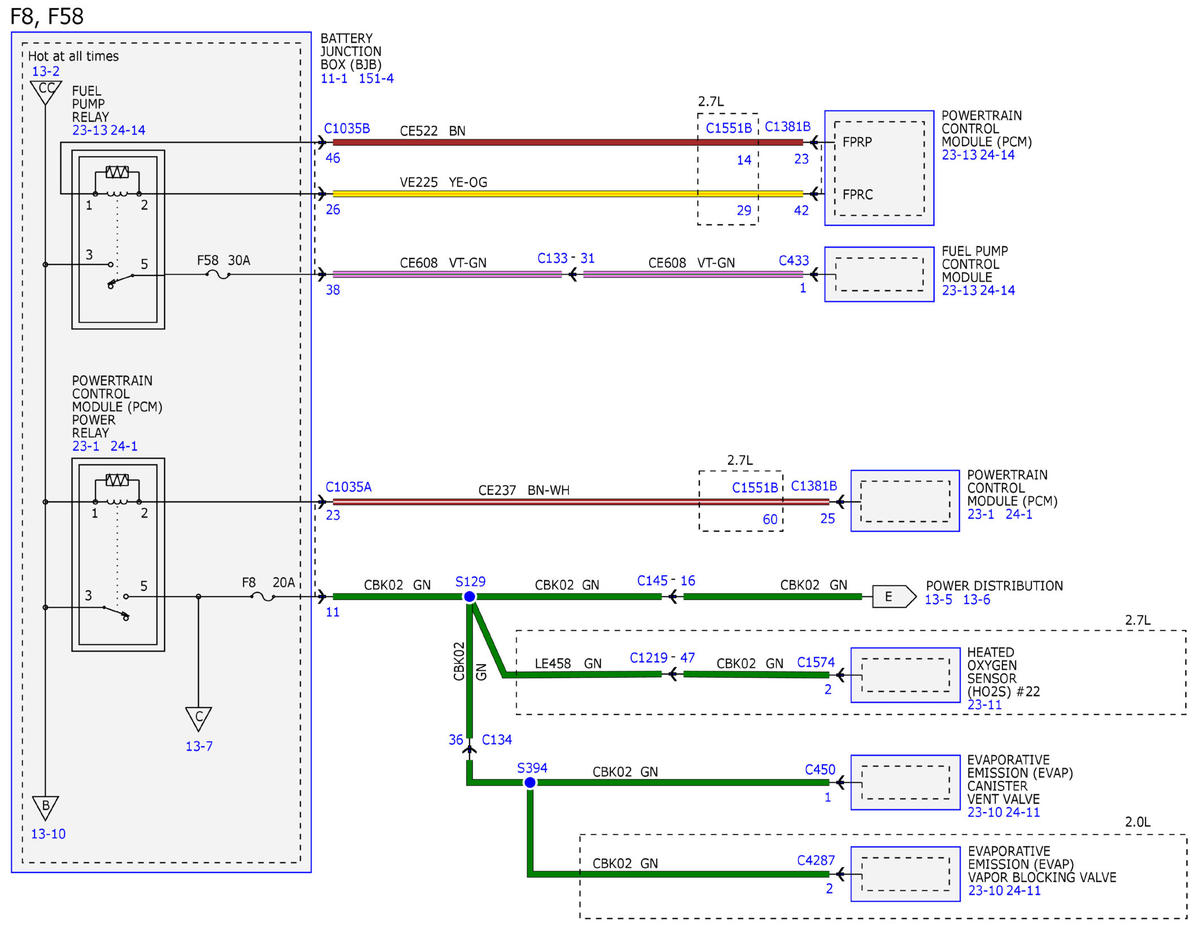

Fig 22: Power Distribution Wiring Diagram (22 Of 47)

GFDWR108834

Courtesy of FORD MOTOR COMPANY

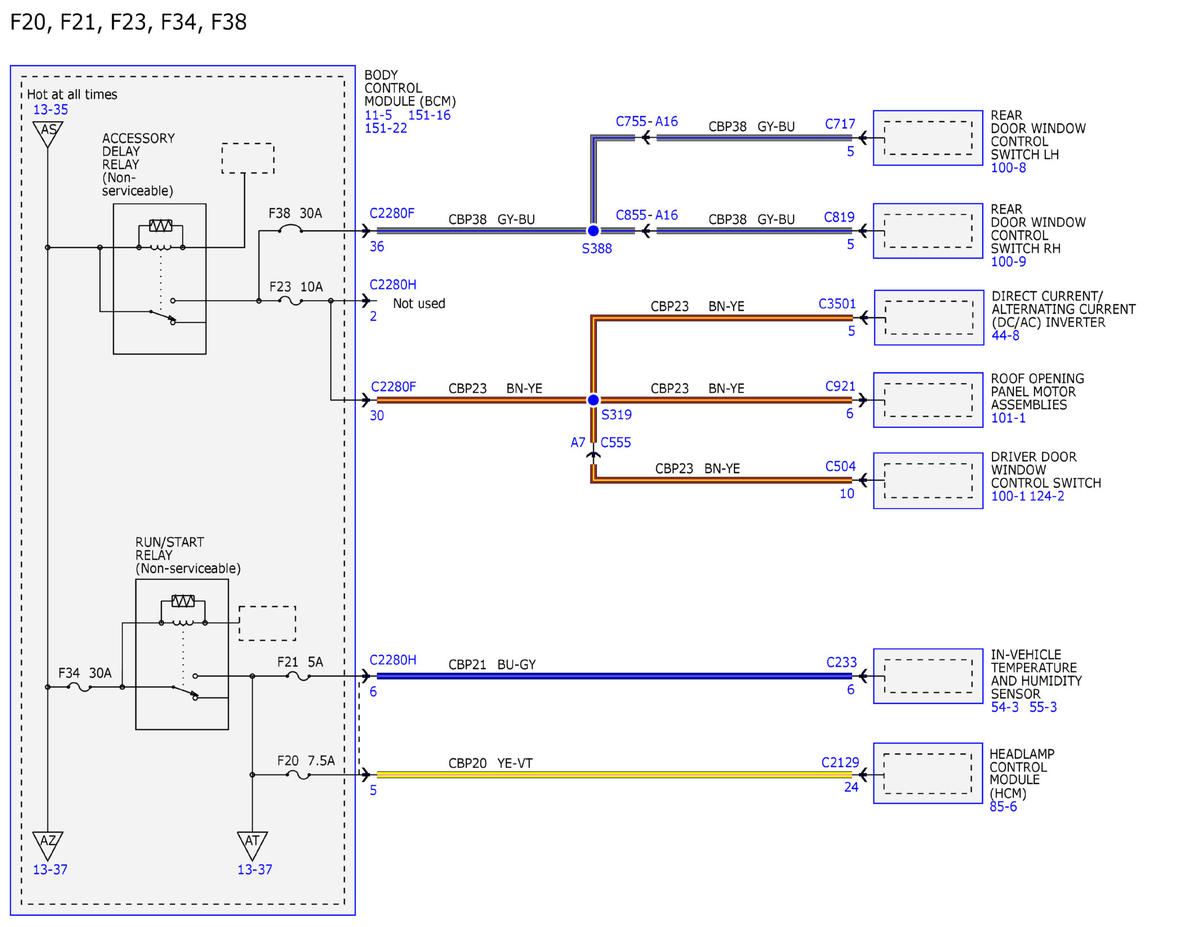

Fig 23: Power Distribution Wiring Diagram (23 Of 47)

GFDWR108835

Courtesy of FORD MOTOR COMPANY

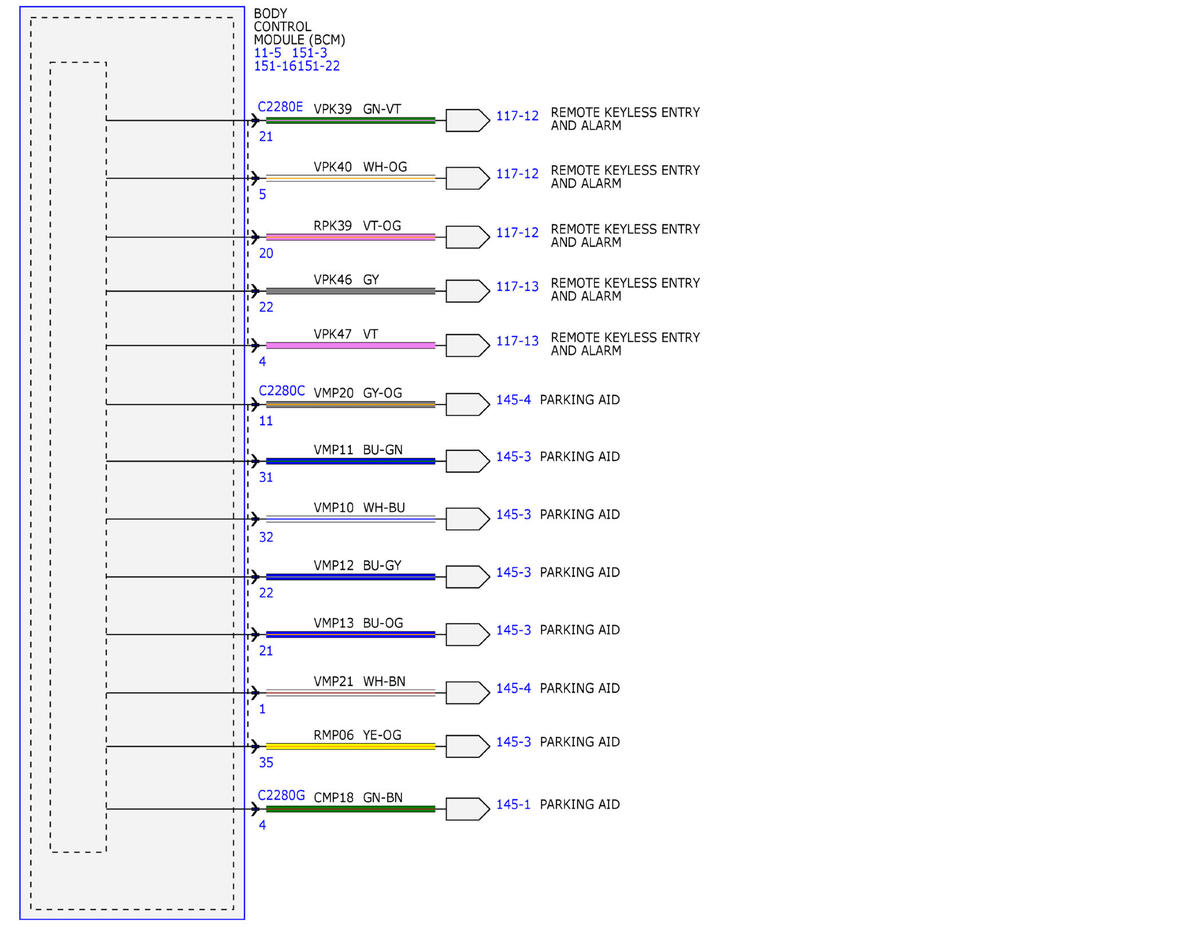

Fig 24: Power Distribution Wiring Diagram (24 Of 47)

GFDWR108836

Courtesy of FORD MOTOR COMPANY

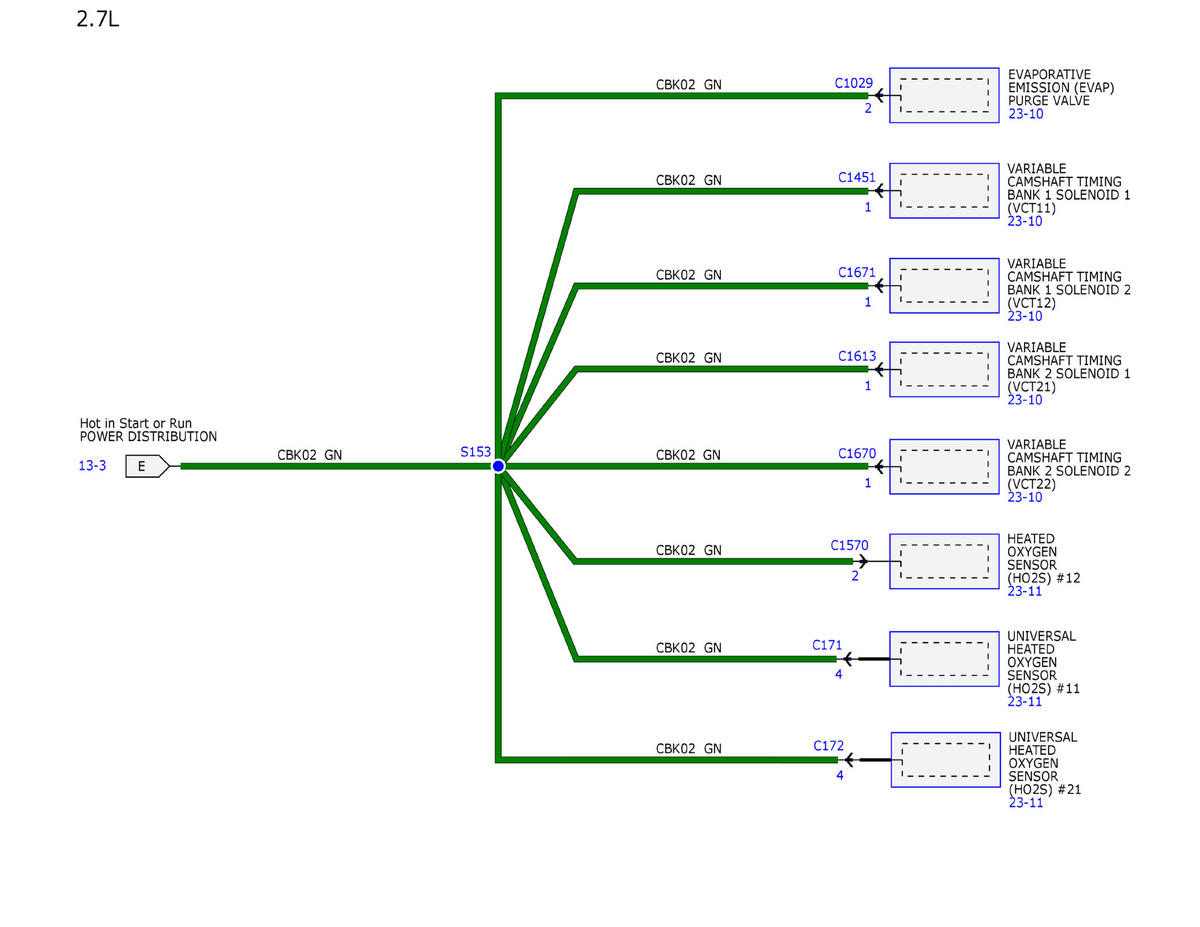

Fig 25: Power Distribution Wiring Diagram (25 Of 47)

GFDWR108837

Courtesy of FORD MOTOR COMPANY

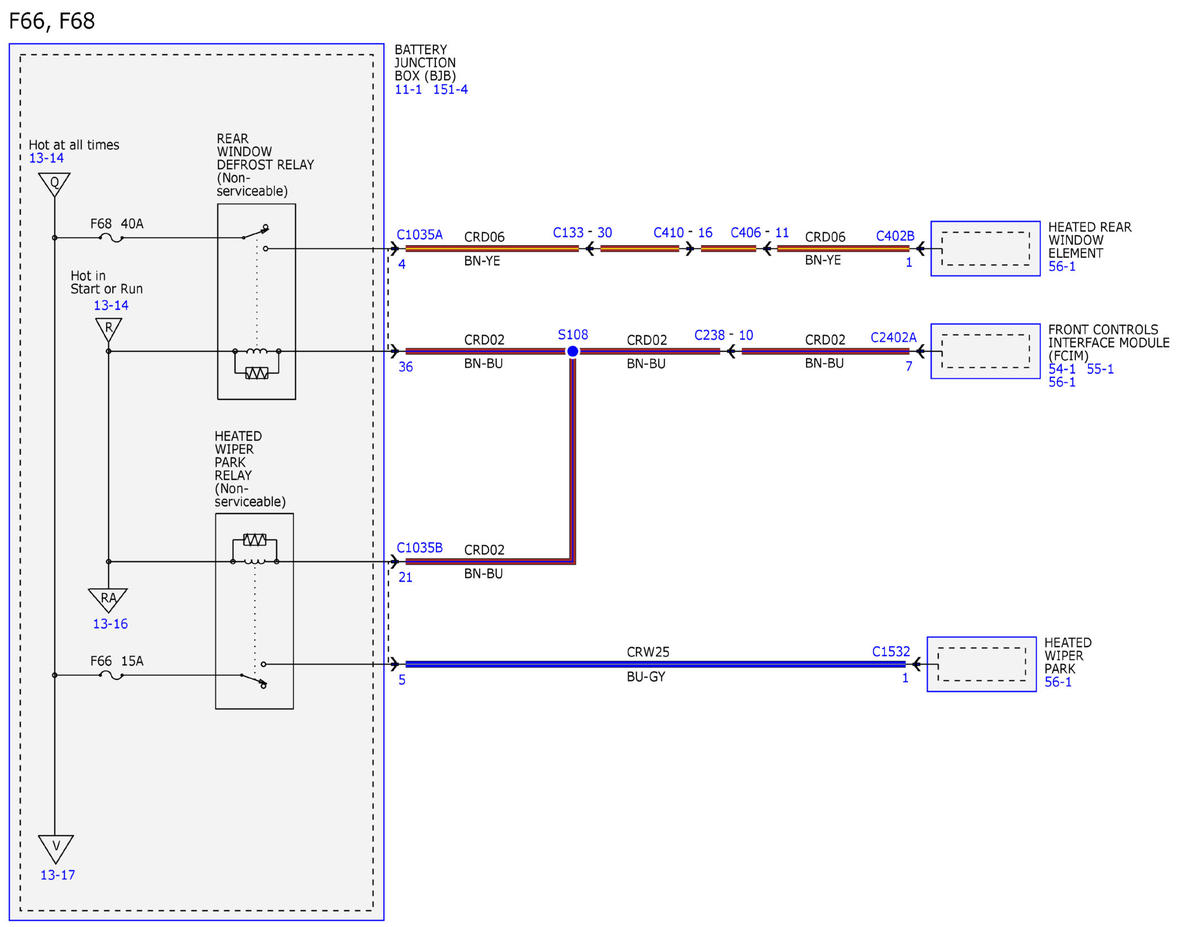

Fig 26: Power Distribution Wiring Diagram (26 Of 47)

GFDWR108838

Courtesy of FORD MOTOR COMPANY

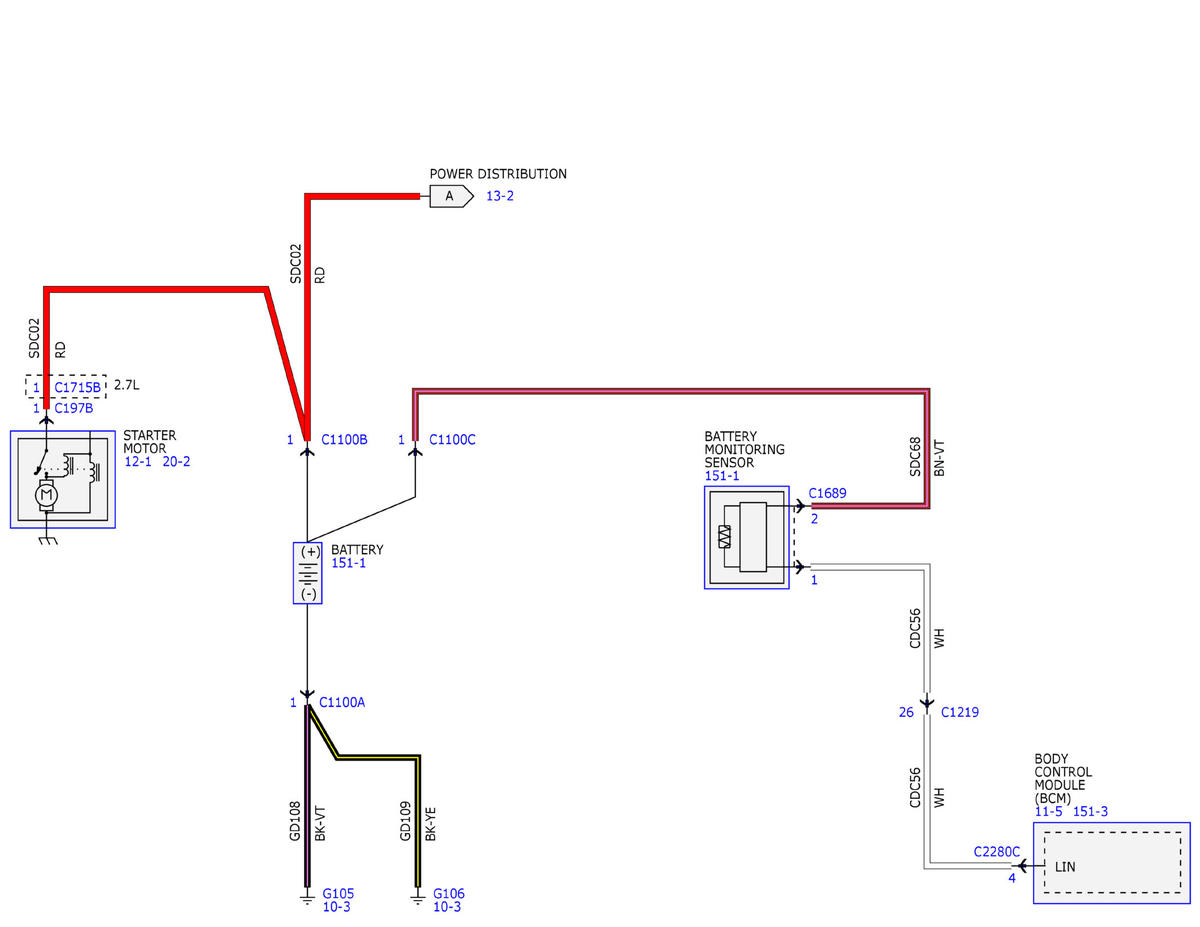

Fig 27: Power Distribution Wiring Diagram (27 Of 47)

GFDWR108839

Courtesy of FORD MOTOR COMPANY

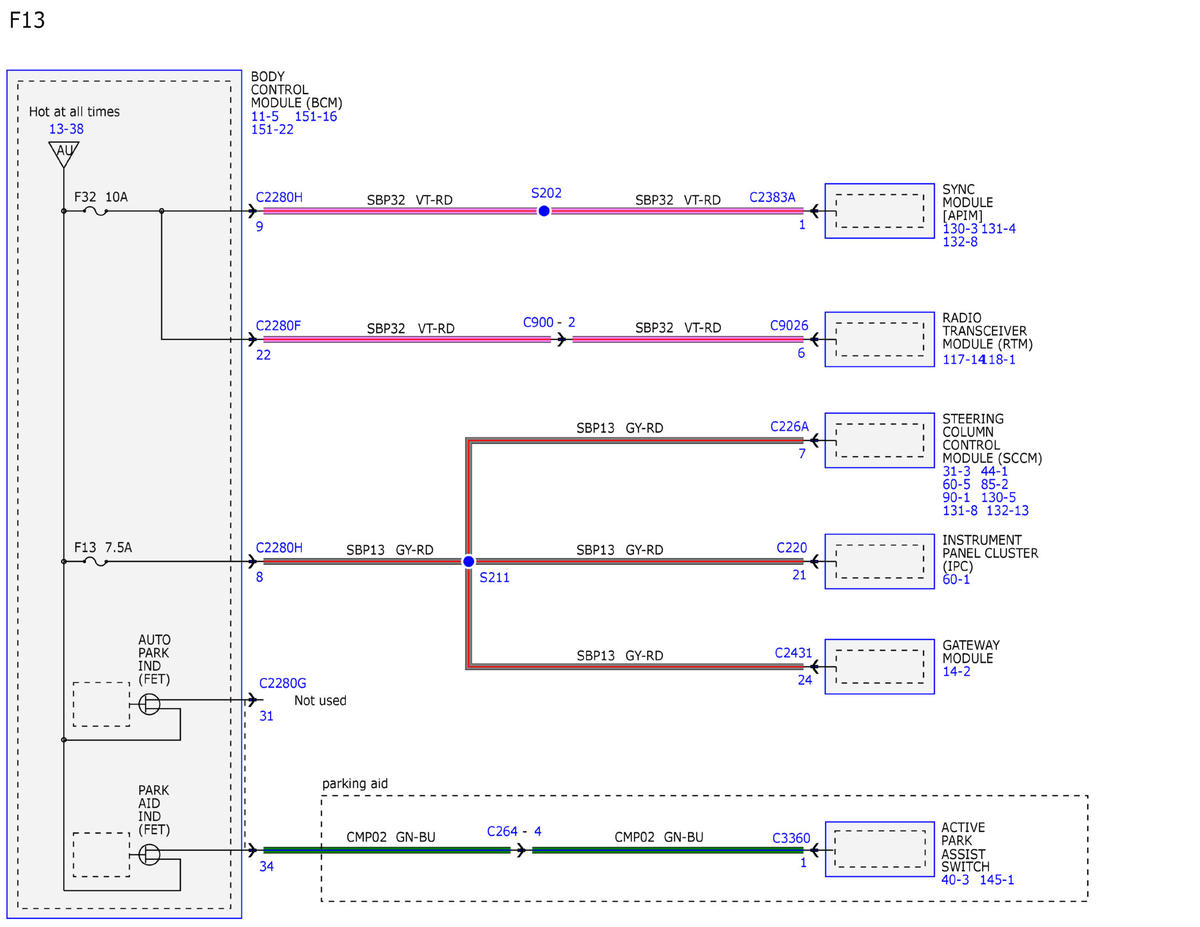

Fig 28: Power Distribution Wiring Diagram (28 Of 47)

GFDWR108840

Courtesy of FORD MOTOR COMPANY

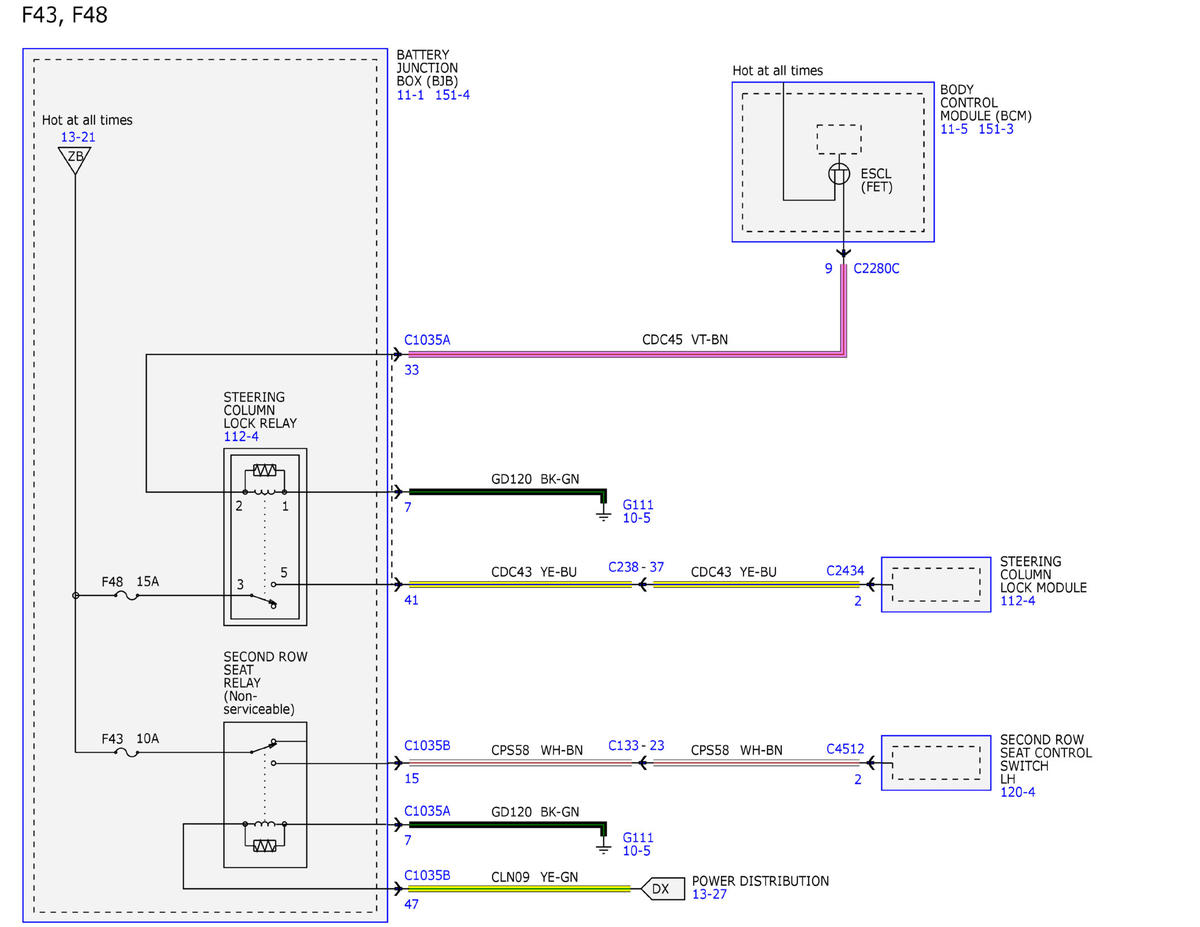

Fig 29: Power Distribution Wiring Diagram (29 Of 47)

GFDWR108841

Courtesy of FORD MOTOR COMPANY

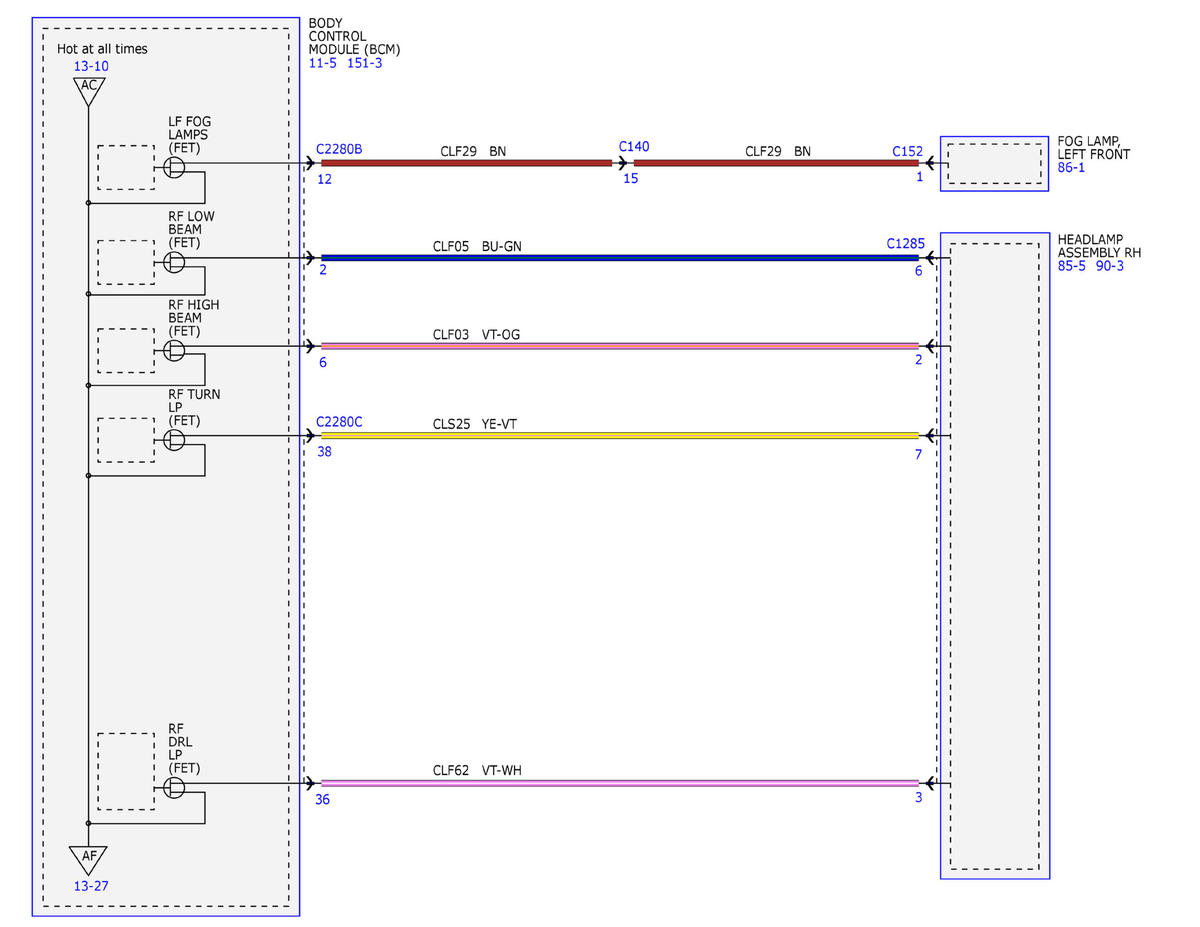

Fig 30: Power Distribution Wiring Diagram (30 Of 47)

GFDWR108842

Courtesy of FORD MOTOR COMPANY

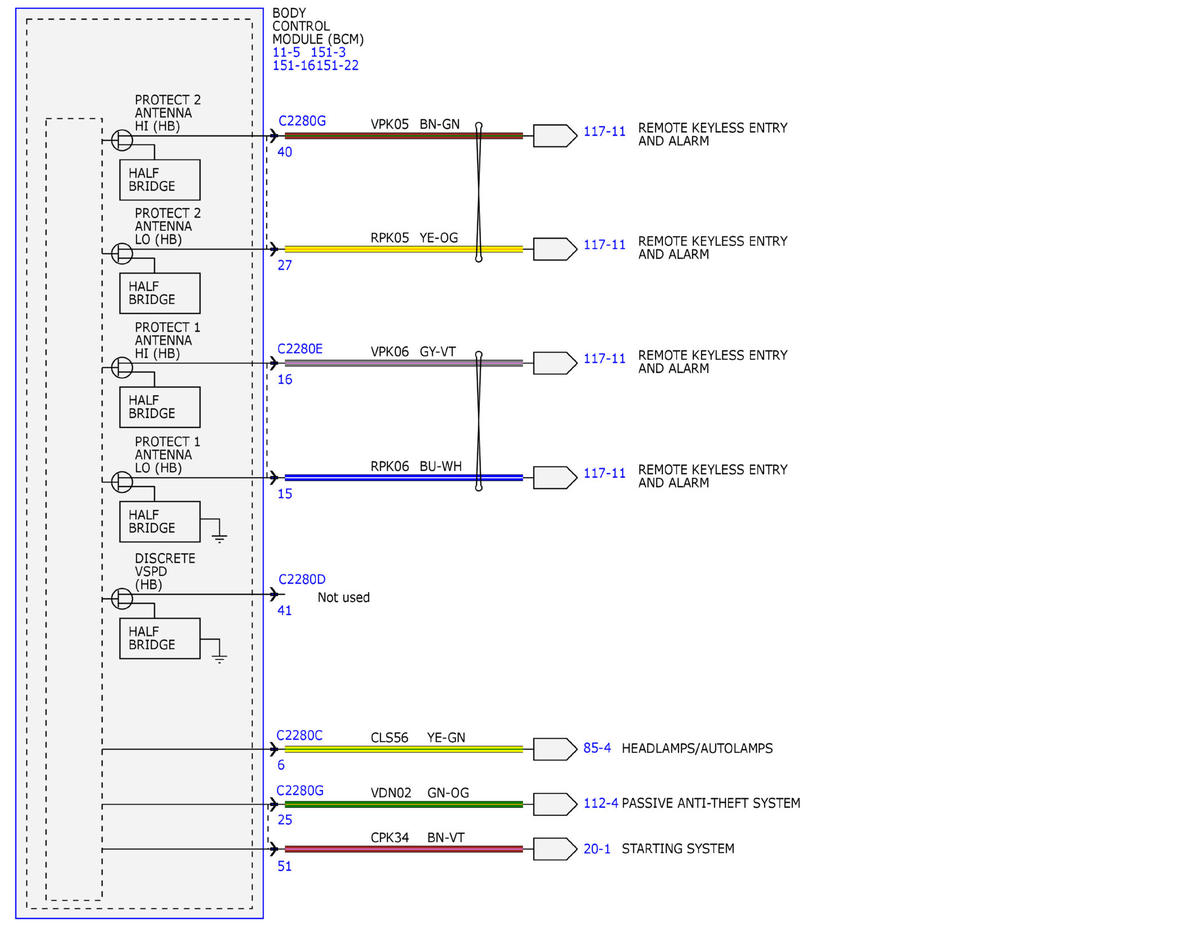

Fig 31: Power Distribution Wiring Diagram (31 Of 47)

GFDWR108843

Courtesy of FORD MOTOR COMPANY

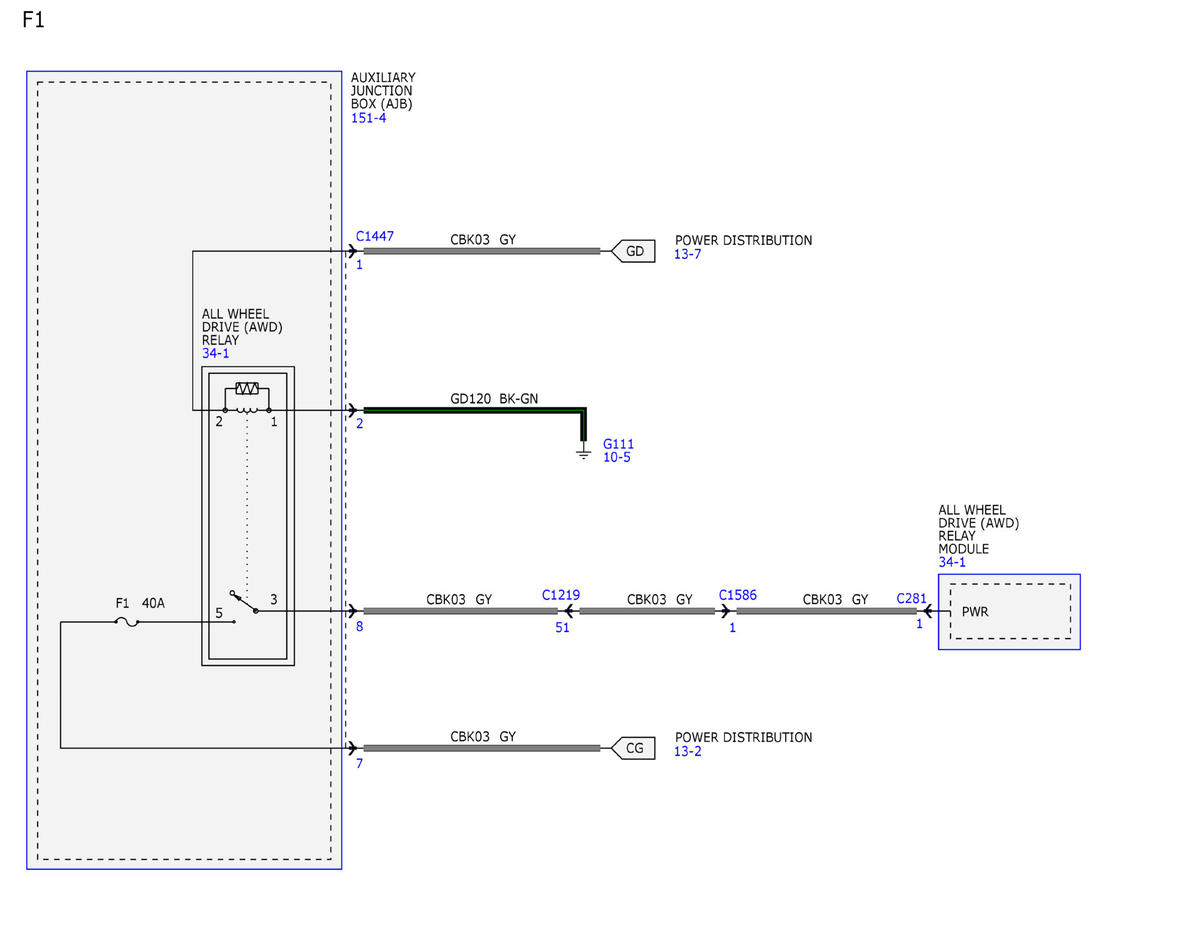

Fig 32: Power Distribution Wiring Diagram (32 Of 47)

GFDWR108844

Courtesy of FORD MOTOR COMPANY

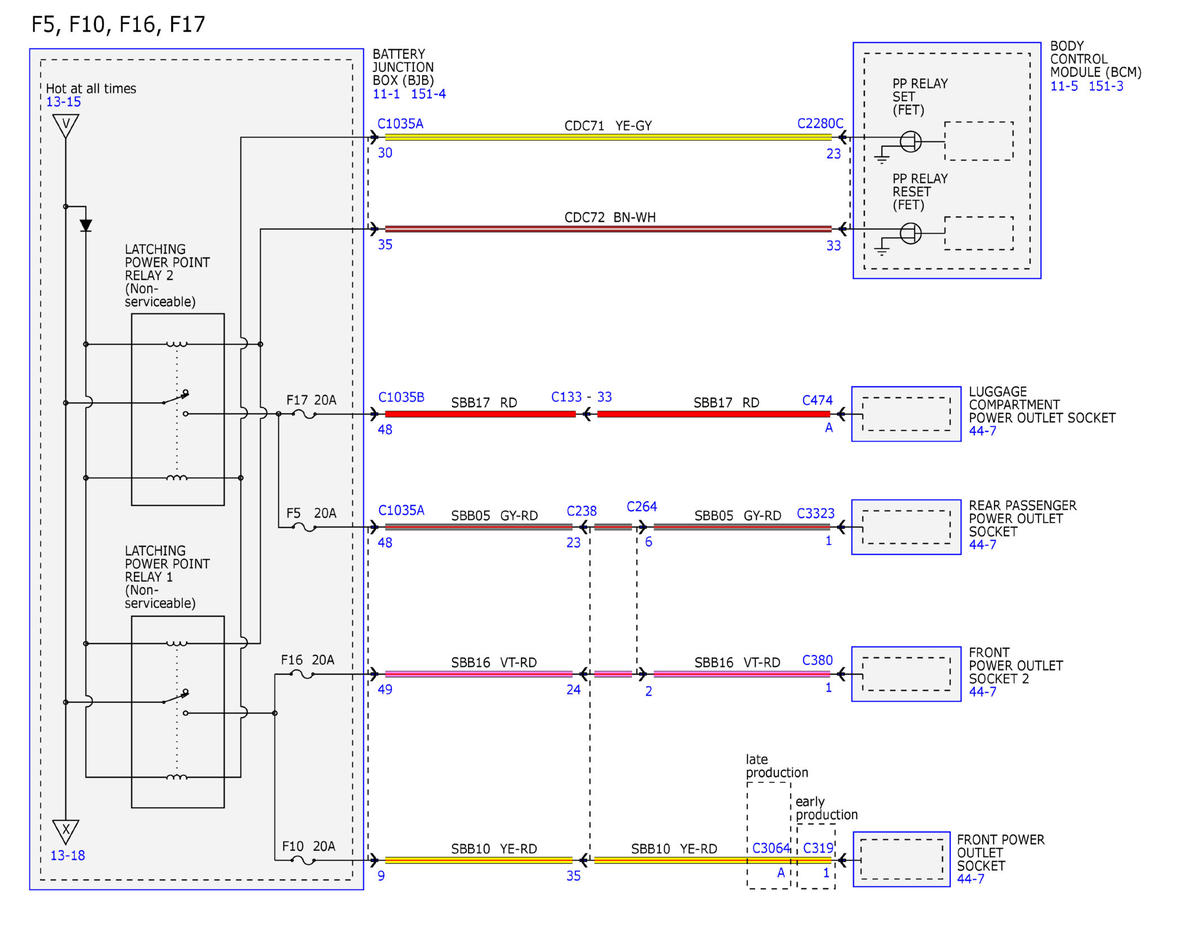

Fig 33: Power Distribution Wiring Diagram (33 Of 47)

GFDWR108845

Courtesy of FORD MOTOR COMPANY

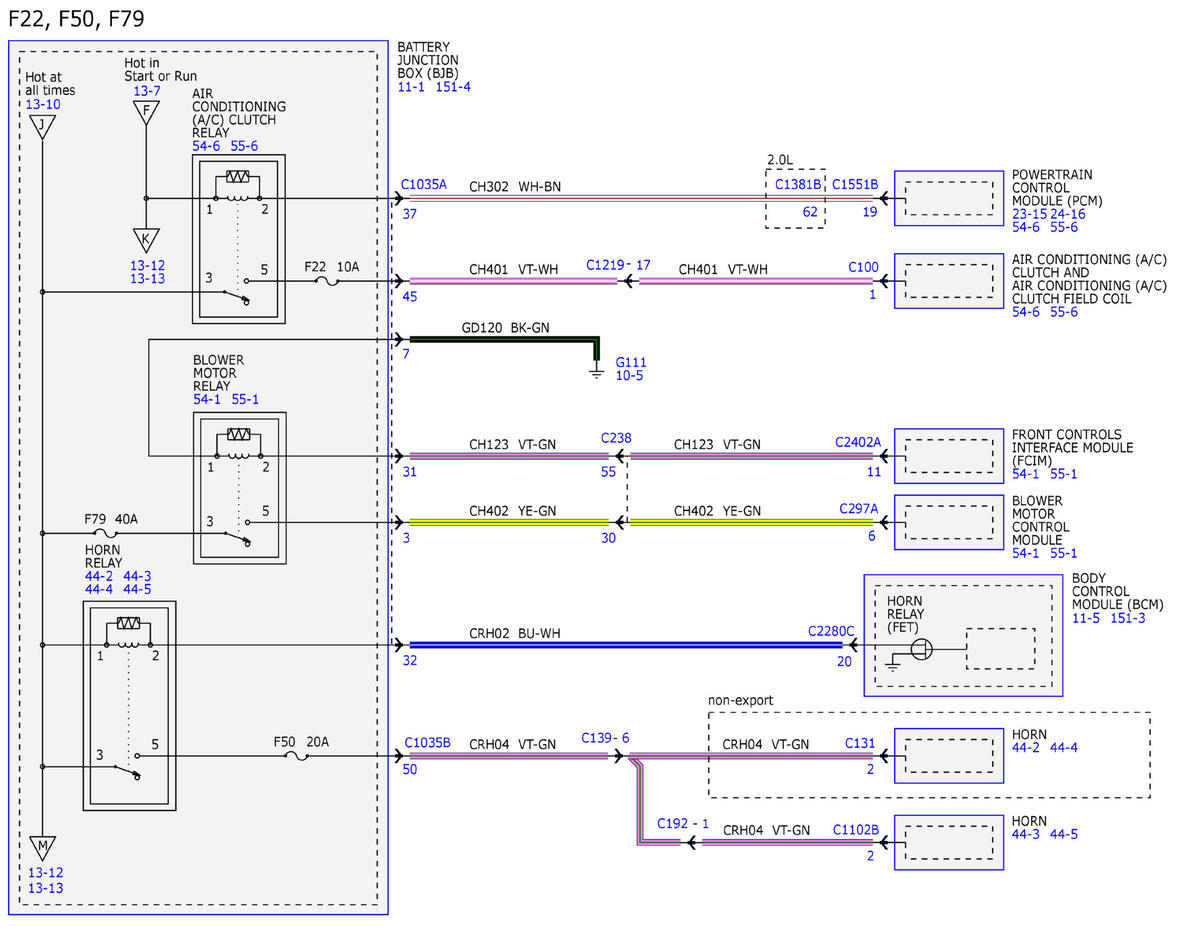

Fig 34: Power Distribution Wiring Diagram (34 Of 47)

GFDWR108846

Courtesy of FORD MOTOR COMPANY

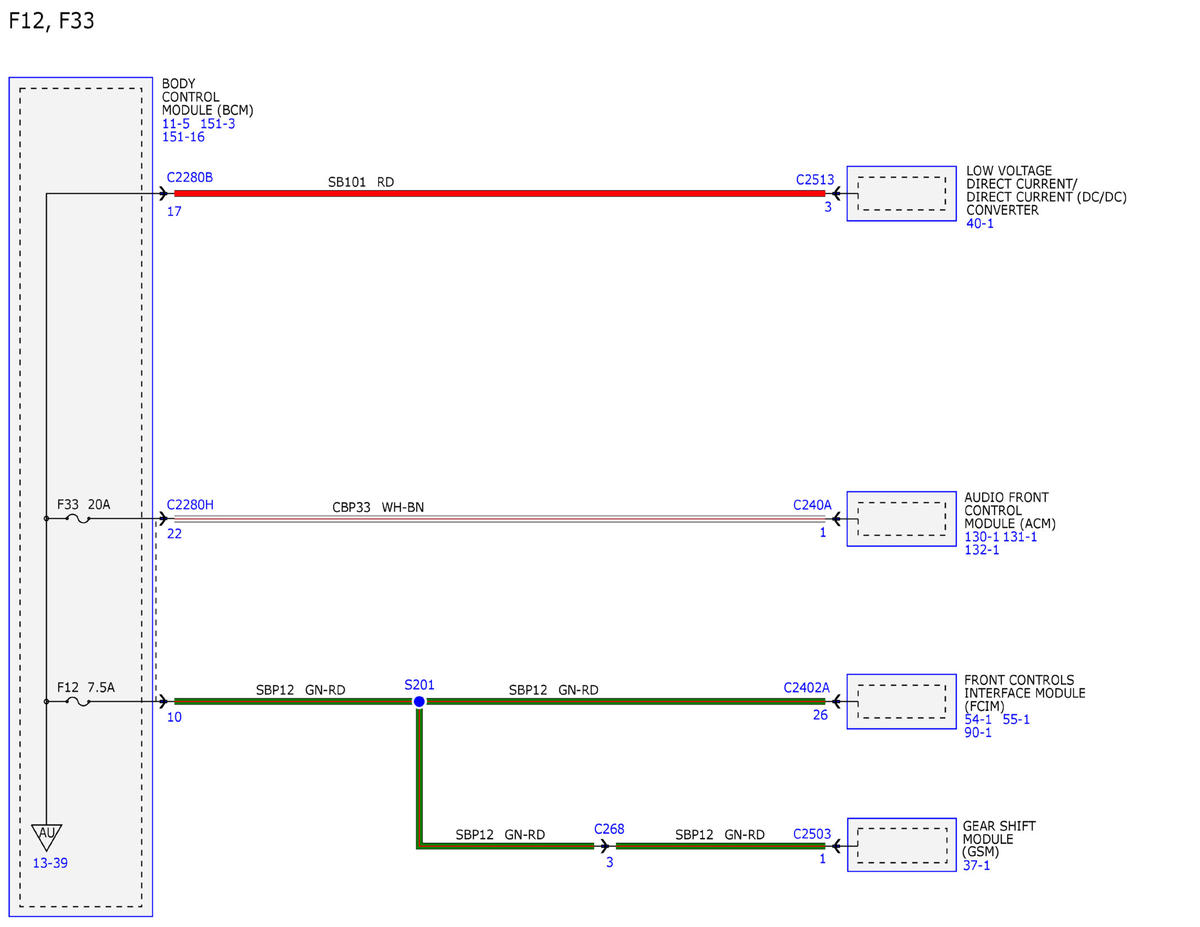

Fig 35: Power Distribution Wiring Diagram (35 Of 47)

GFDWR108847

Courtesy of FORD MOTOR COMPANY

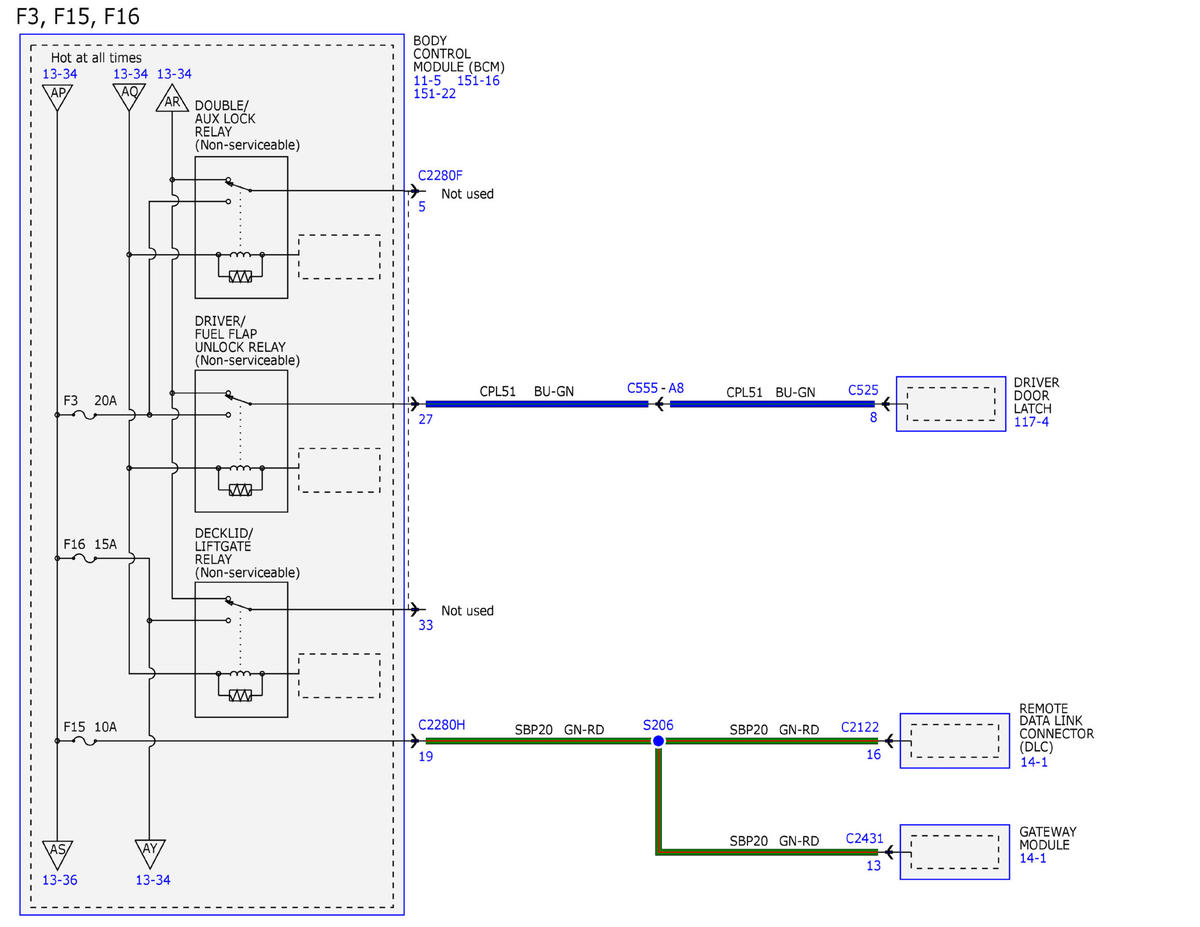

Fig 36: Power Distribution Wiring Diagram (36 Of 47)

GFDWR108848

Courtesy of FORD MOTOR COMPANY

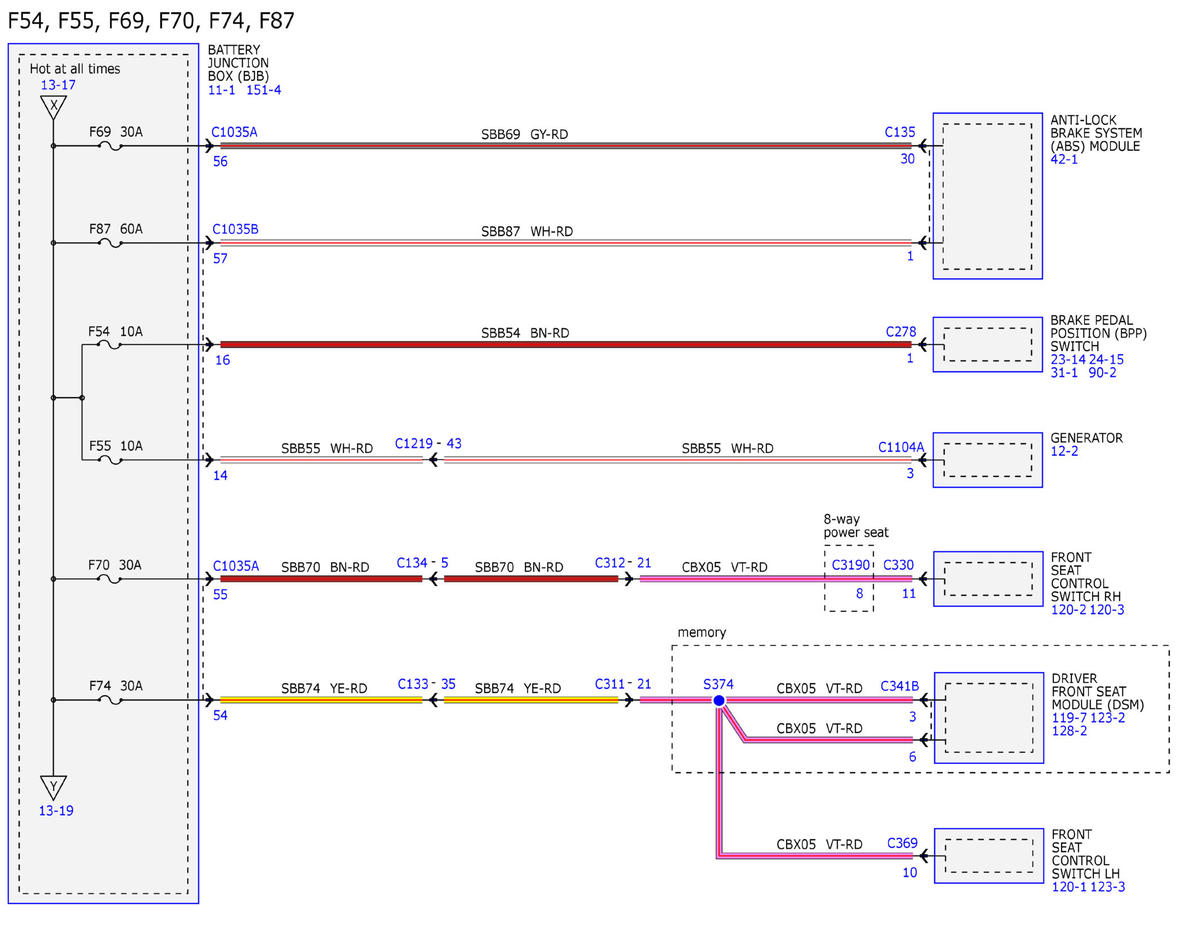

Fig 37: Power Distribution Wiring Diagram (37 Of 47)

GFDWR108849

Courtesy of FORD MOTOR COMPANY

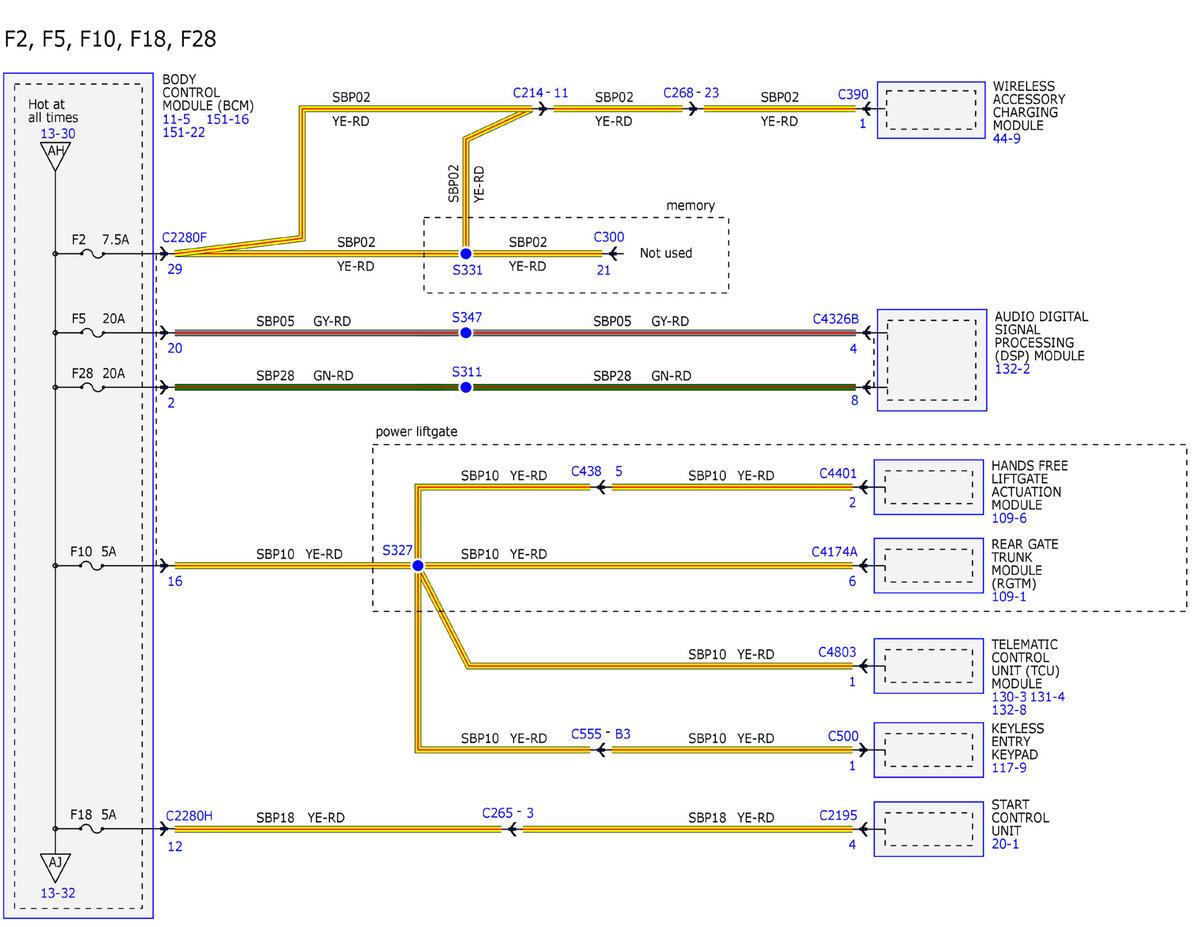

Fig 38: Power Distribution Wiring Diagram (38 Of 47)

GFDWR108850

Courtesy of FORD MOTOR COMPANY

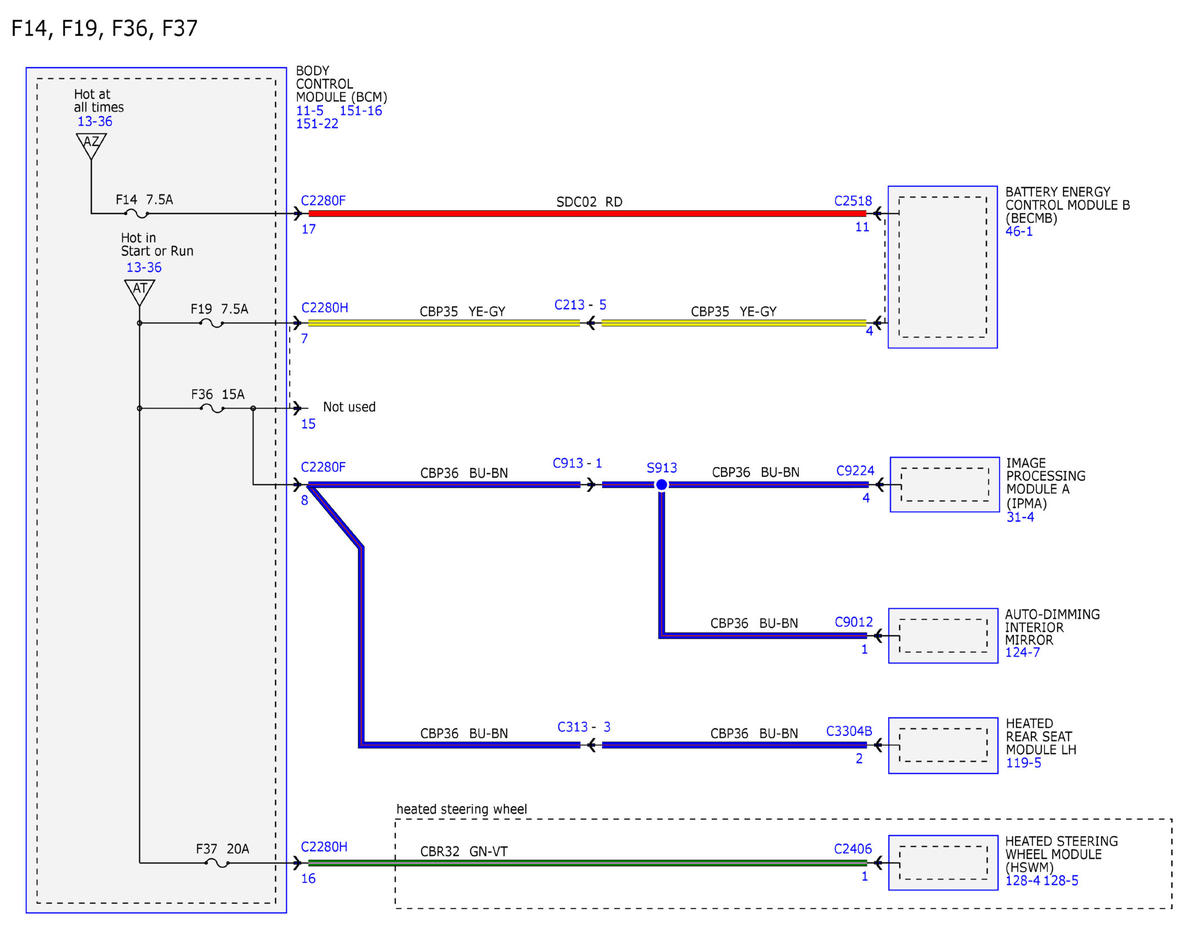

Fig 39: Power Distribution Wiring Diagram (39 Of 47)

GFDWR108851

Courtesy of FORD MOTOR COMPANY

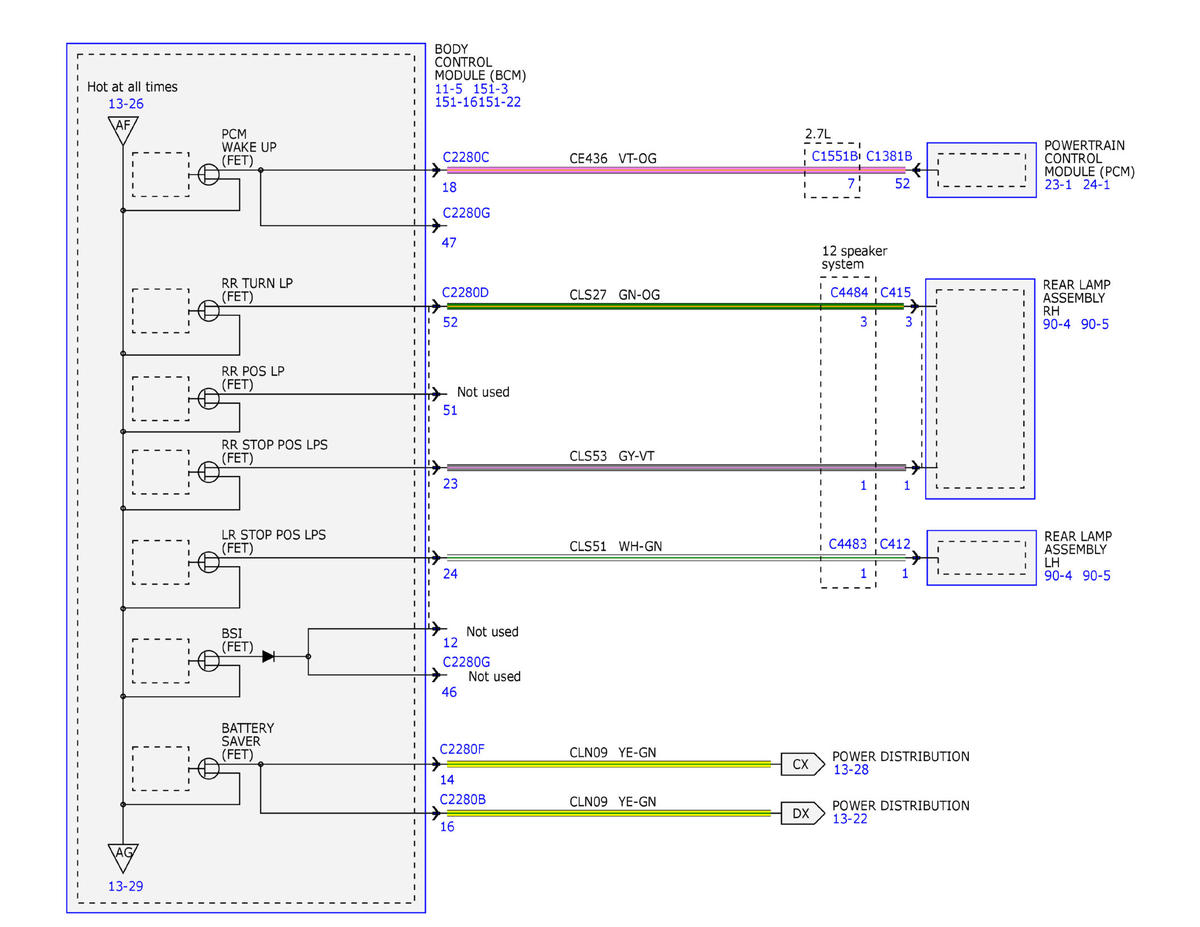

Fig 40: Power Distribution Wiring Diagram (40 Of 47)

GFDWR108852

Courtesy of FORD MOTOR COMPANY

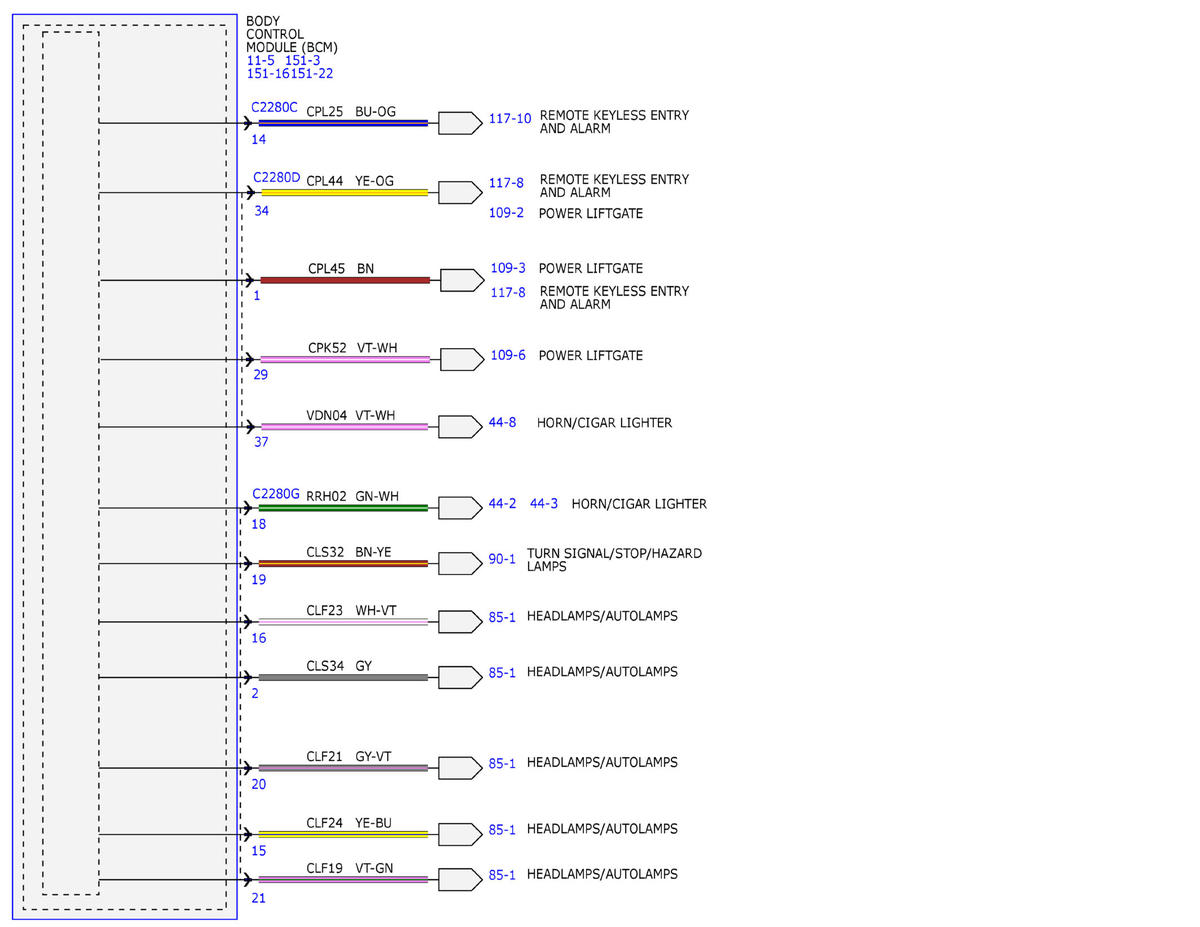

Fig 41: Power Distribution Wiring Diagram (41 Of 47)

GFDWR108853

Courtesy of FORD MOTOR COMPANY

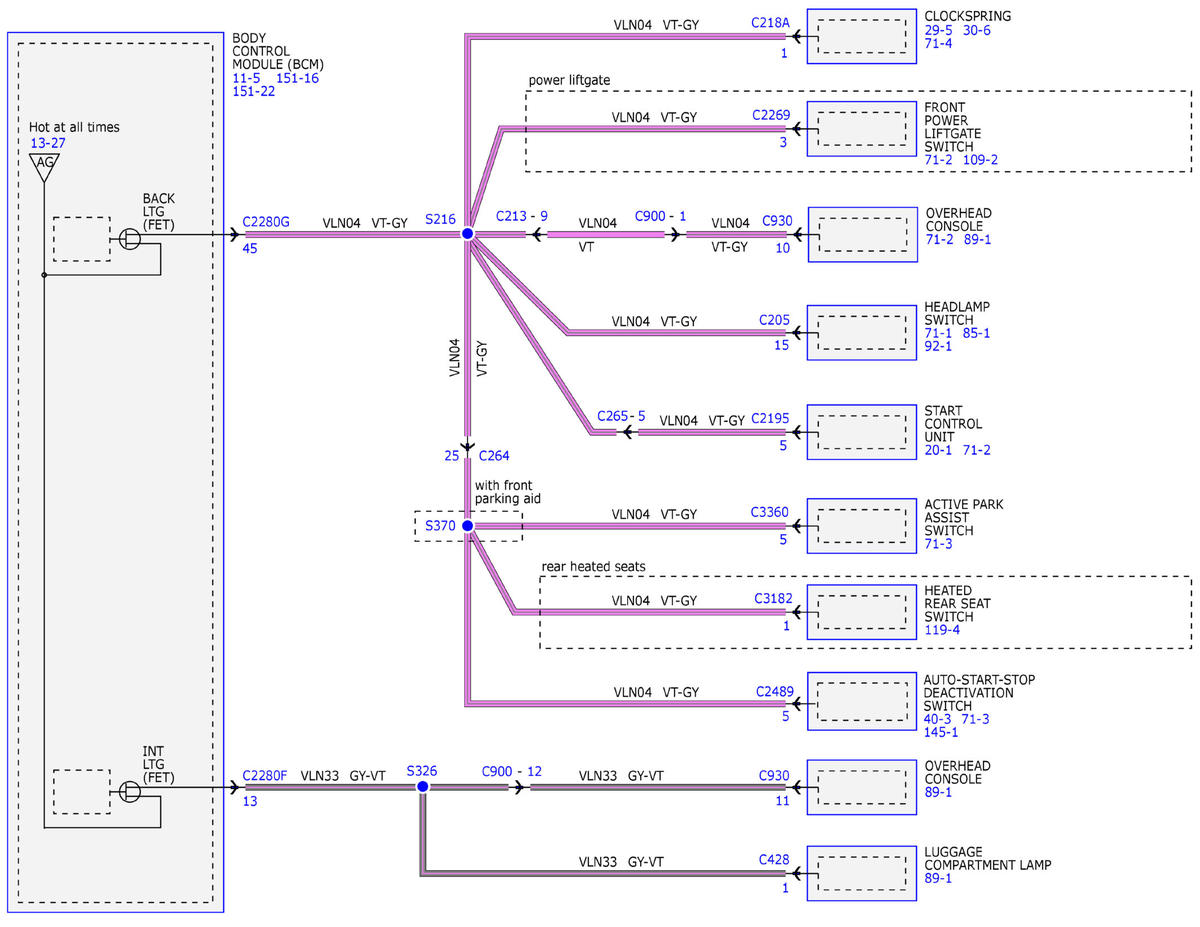

Fig 42: Power Distribution Wiring Diagram (42 Of 47)

GFDWR108854

Courtesy of FORD MOTOR COMPANY

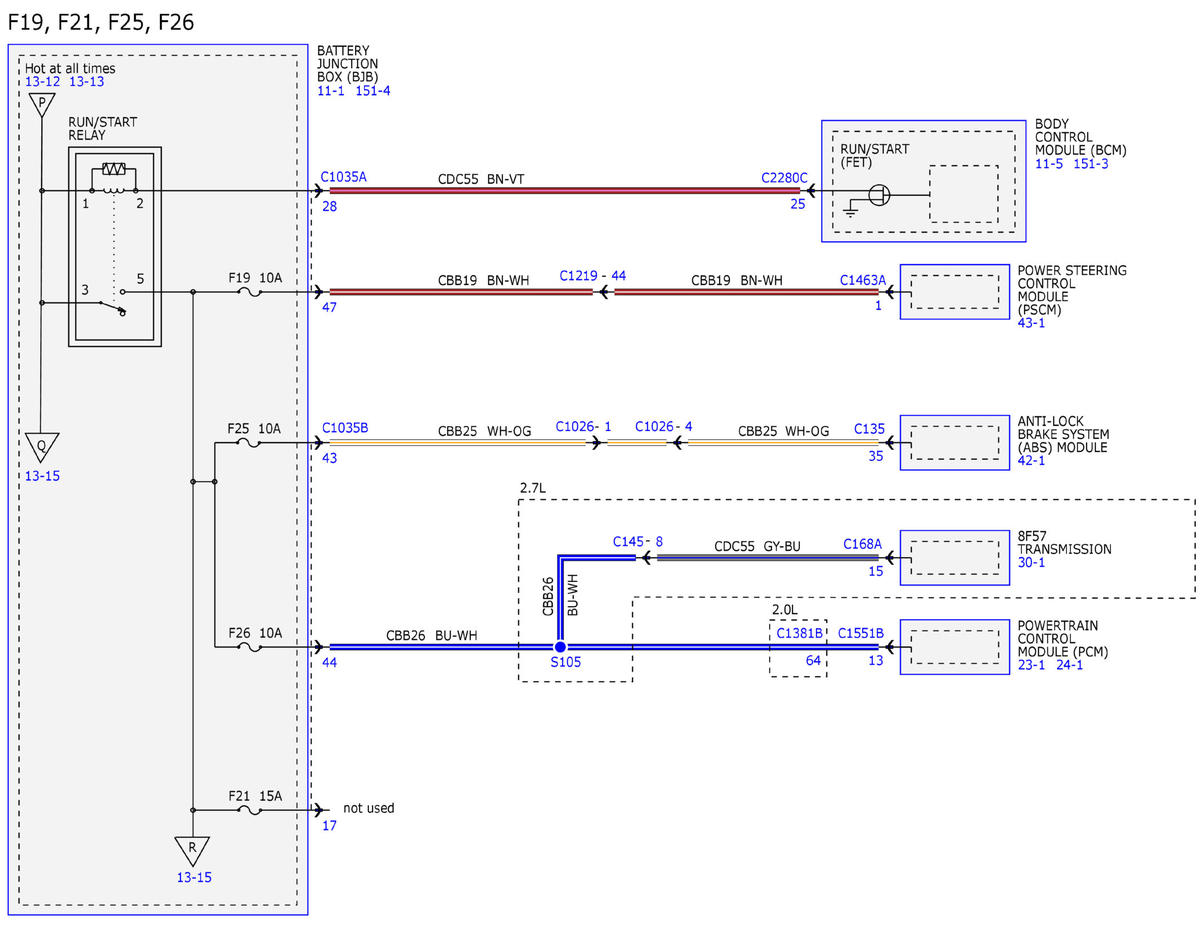

Fig 43: Power Distribution Wiring Diagram (43 Of 47)

GFDWR108855

Courtesy of FORD MOTOR COMPANY

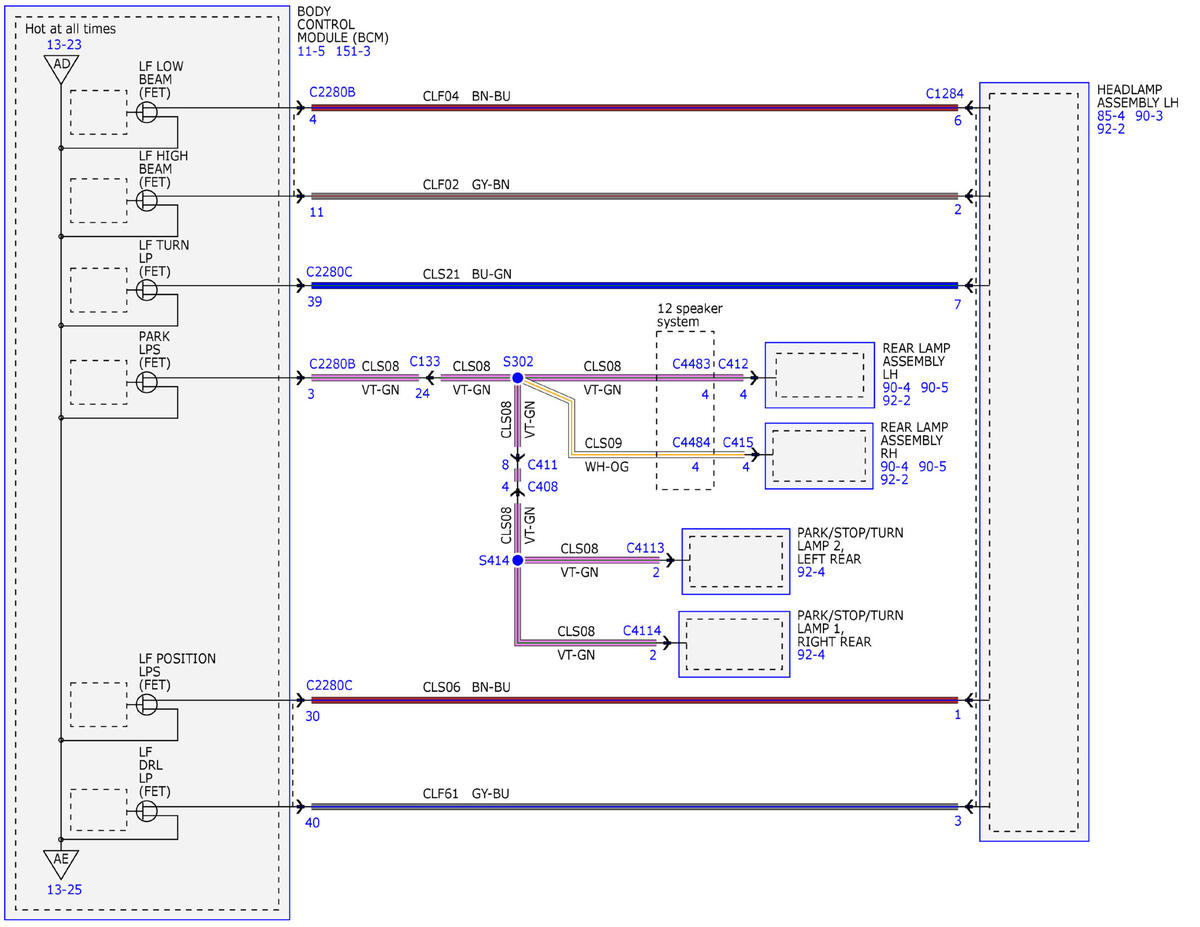

Fig 44: Power Distribution Wiring Diagram (44 Of 47)

GFDWR108856

Courtesy of FORD MOTOR COMPANY

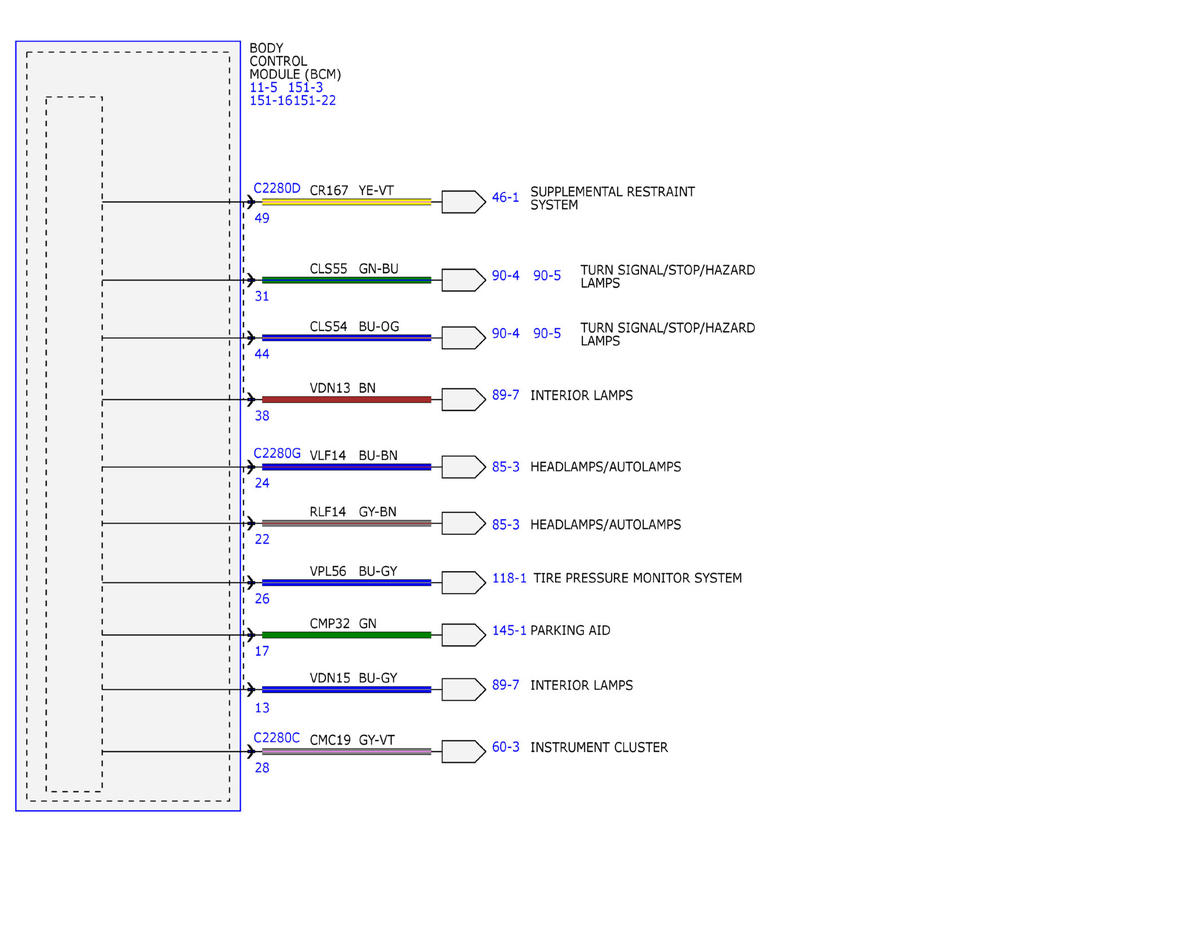

Fig 45: Power Distribution Wiring Diagram (45 Of 47)

GFDWR108857

Courtesy of FORD MOTOR COMPANY

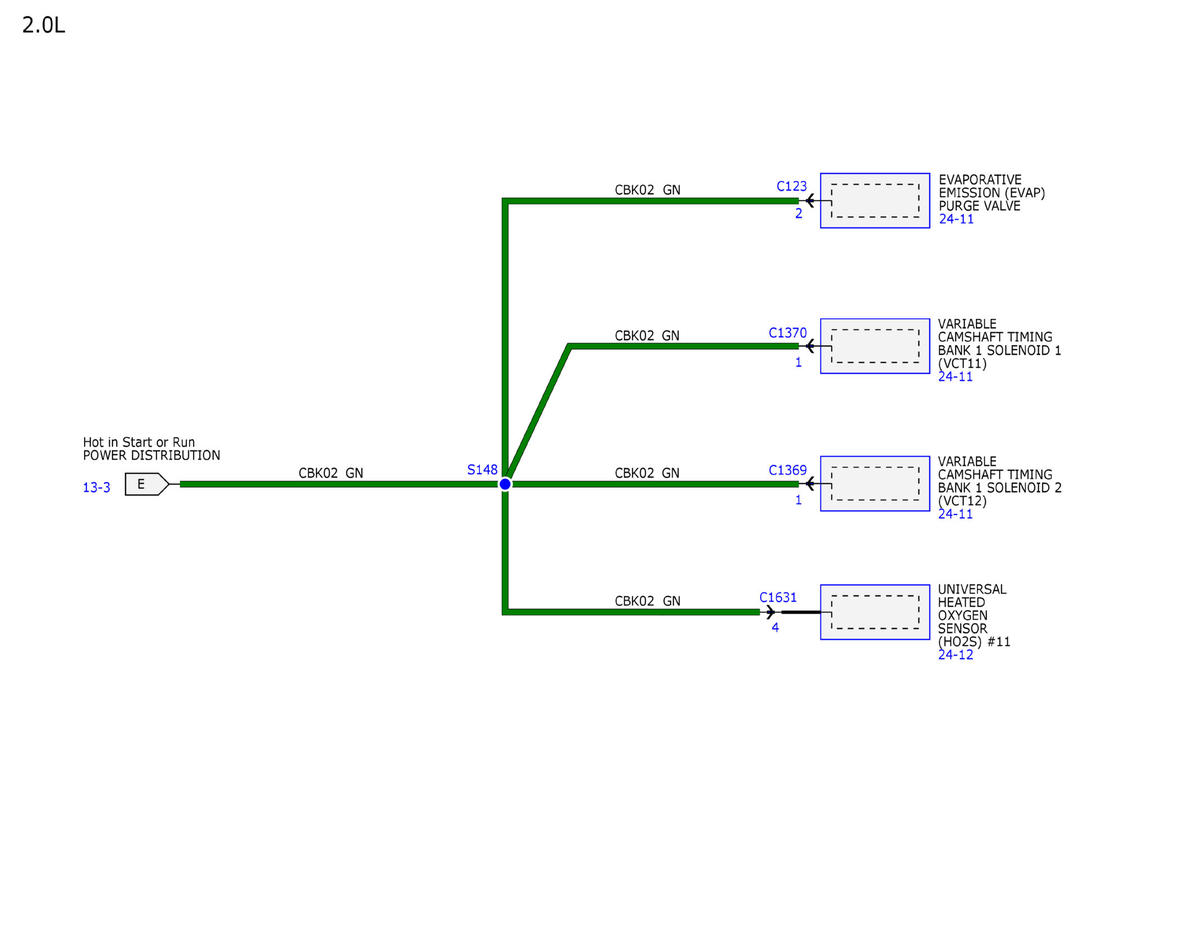

Fig 46: Power Distribution Wiring Diagram (46 Of 47)

GFDWR108858

Courtesy of FORD MOTOR COMPANY

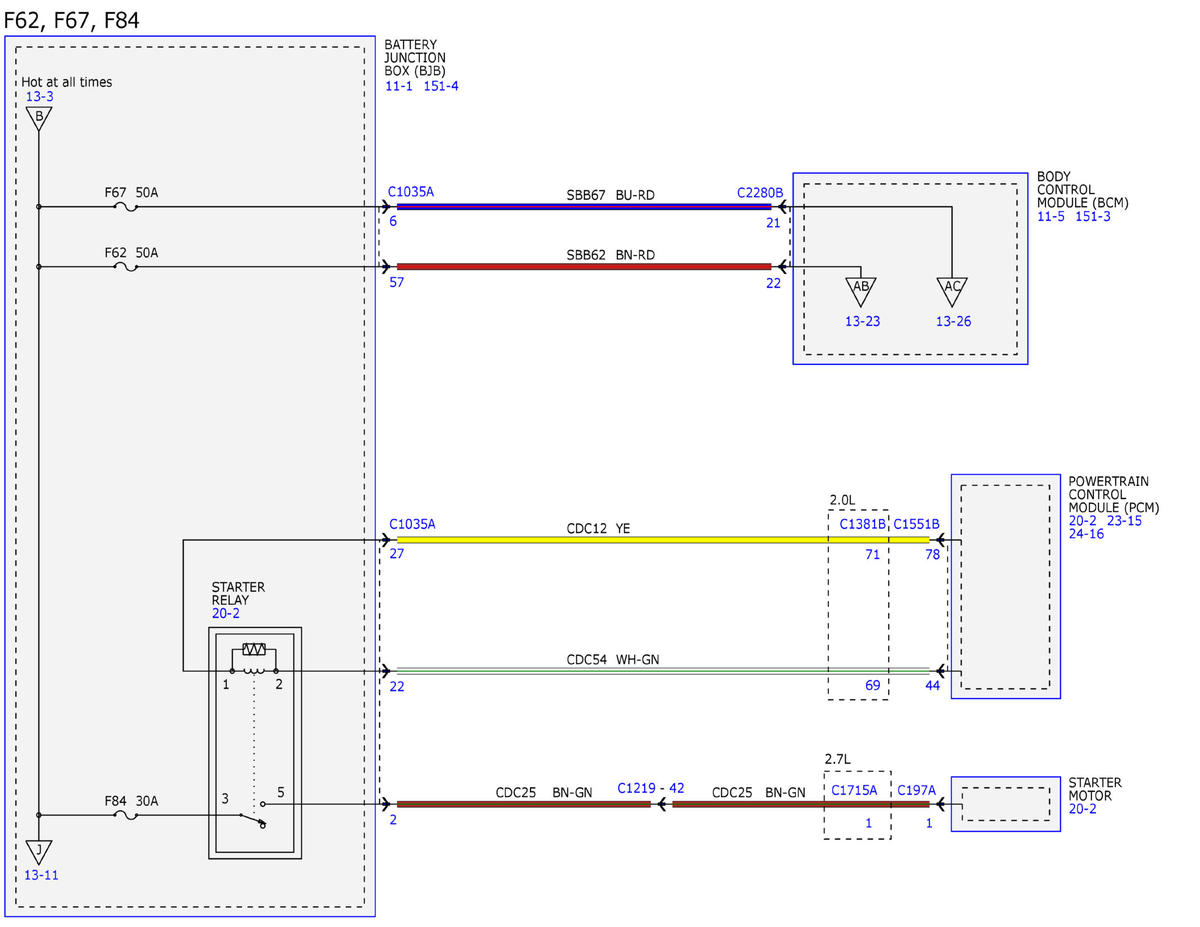

Fig 47: Power Distribution Wiring Diagram (47 Of 47)

GFDWR108859

Courtesy of FORD MOTOR COMPANY
