Automatic Climate Control System

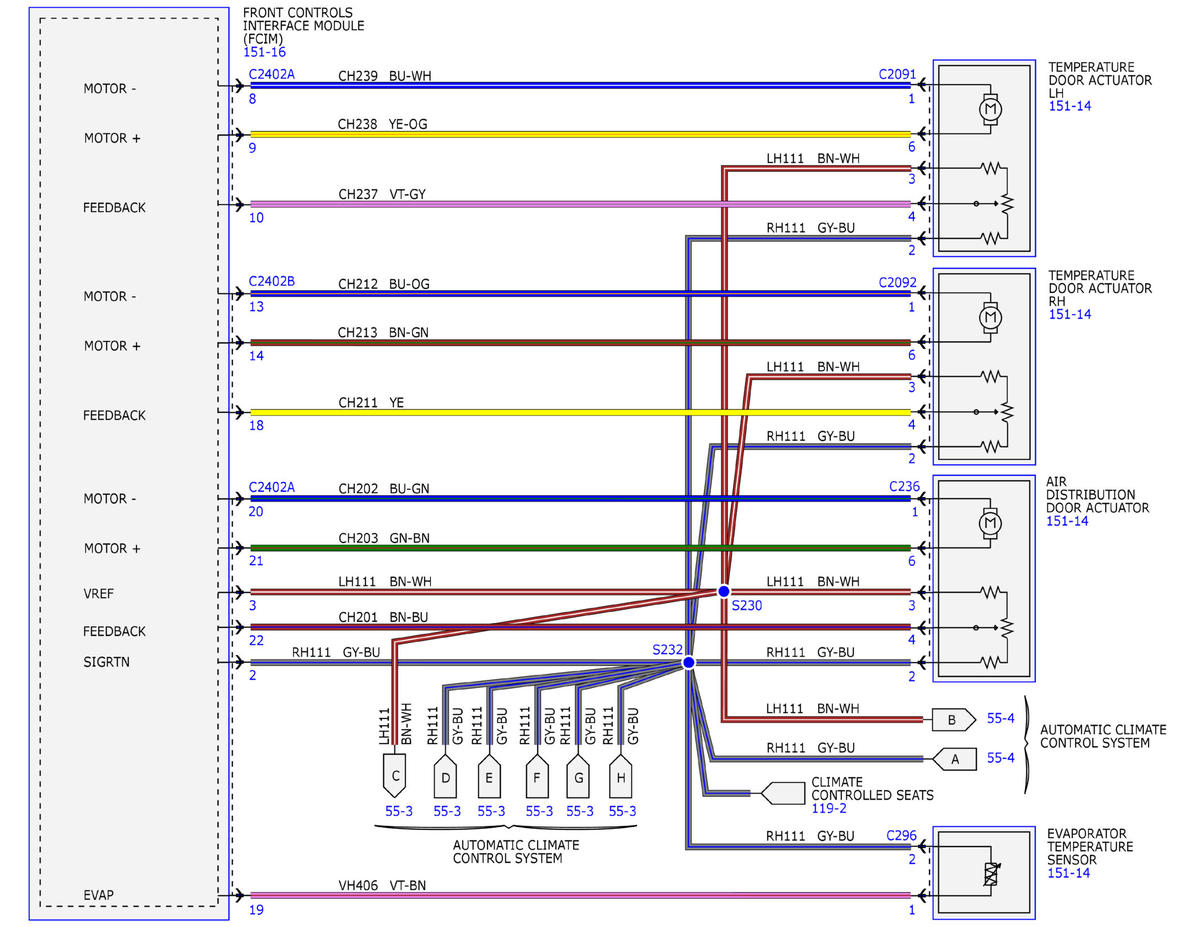

Fig 1: Automatic Climate Control System Wiring Diagram (1 Of 7)
GFDWR108667Courtesy of FORD MOTOR COMPANY

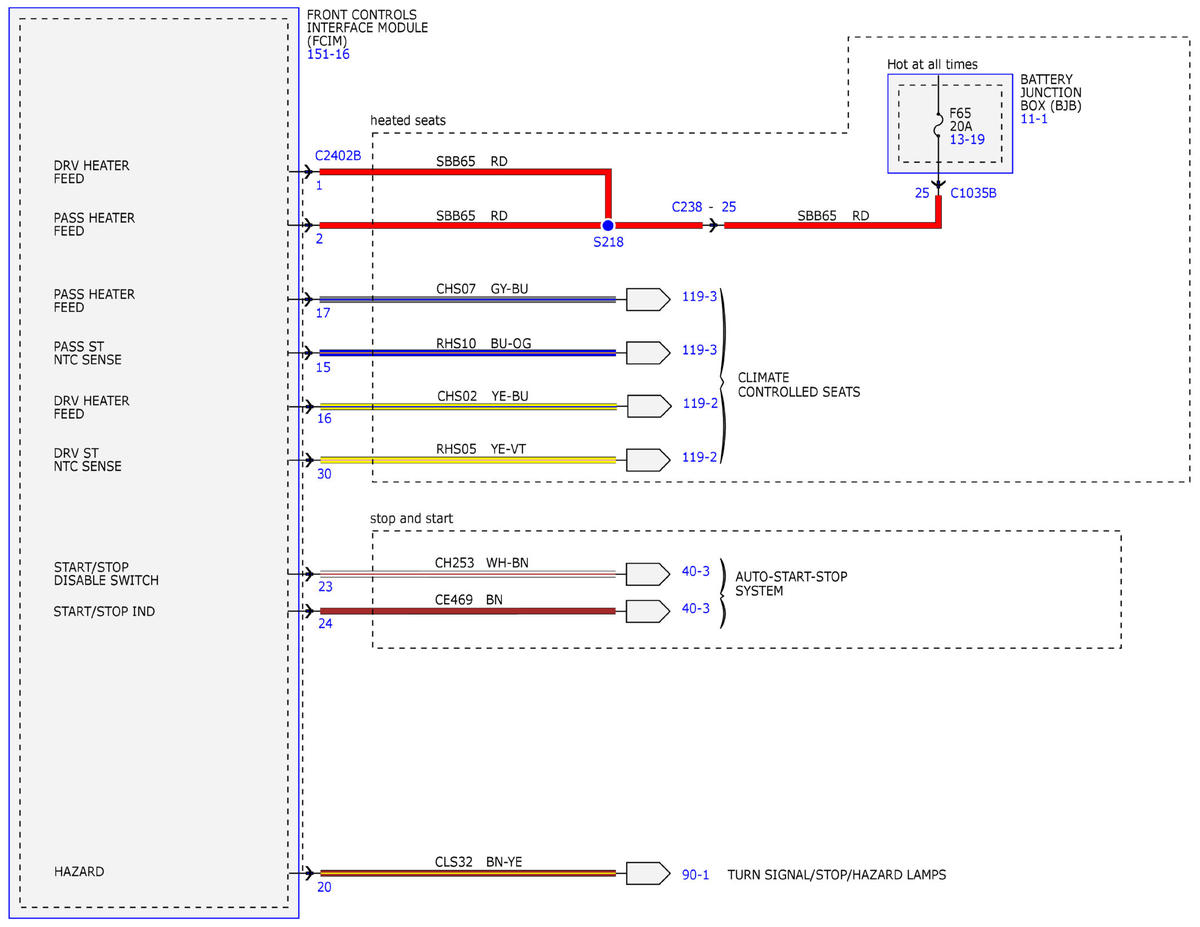

Fig 2: Automatic Climate Control System Wiring Diagram (2 Of 7)
GFDWR108668Courtesy of FORD MOTOR COMPANY

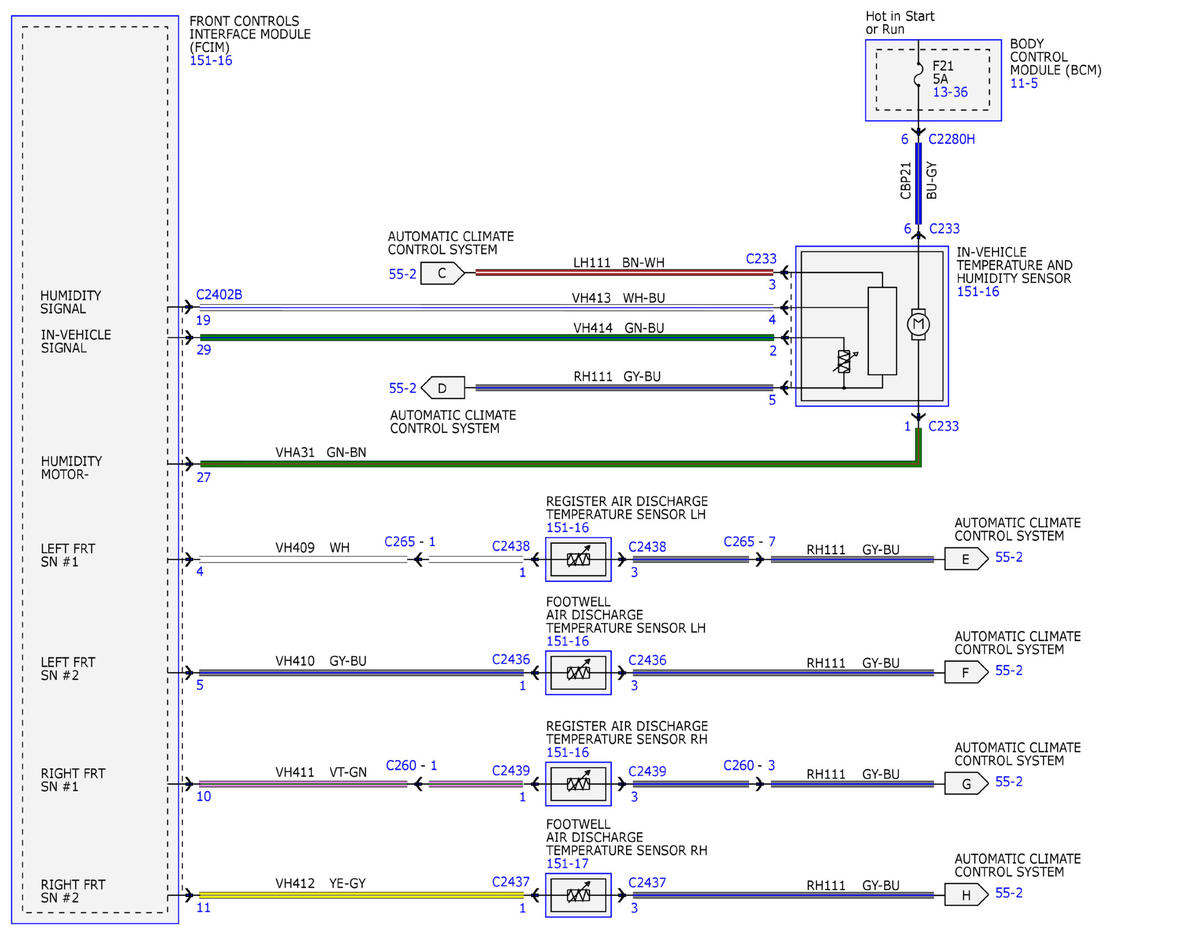

Fig 3: Automatic Climate Control System Wiring Diagram (3 Of 7)
GFDWR108669Courtesy of FORD MOTOR COMPANY

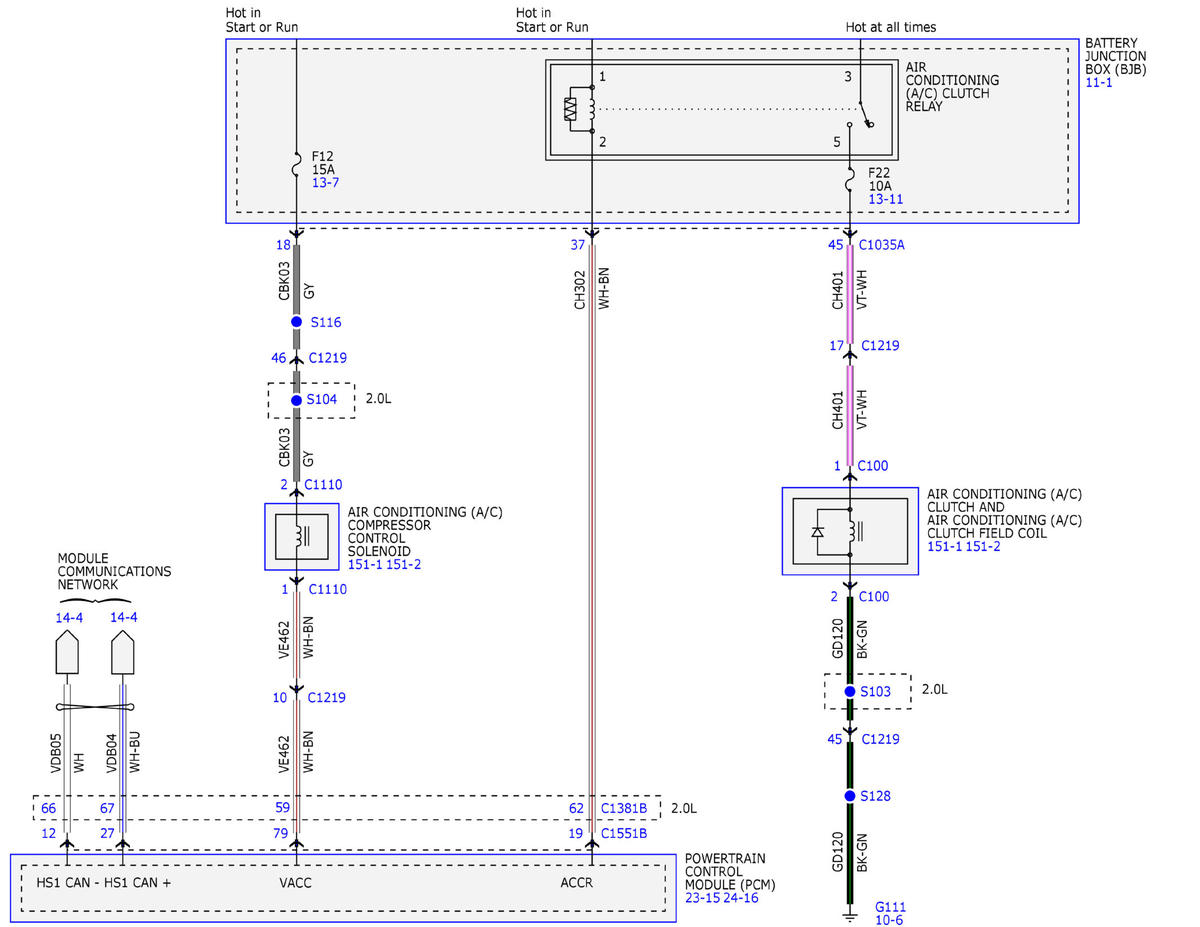

Fig 4: Automatic Climate Control System Wiring Diagram (4 Of 7)
GFDWR108670Courtesy of FORD MOTOR COMPANY

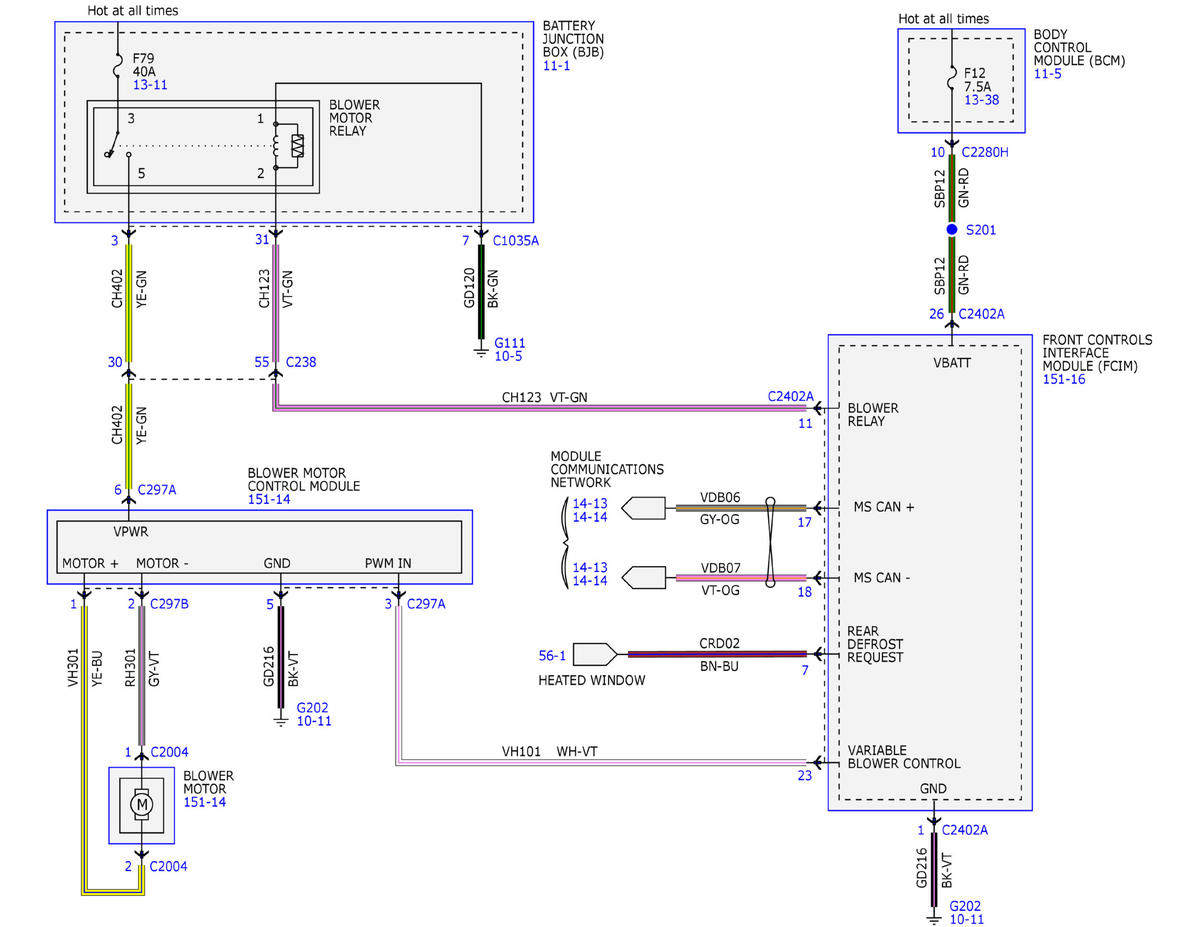

Fig 5: Automatic Climate Control System Wiring Diagram (5 Of 7)
GFDWR108671Courtesy of FORD MOTOR COMPANY

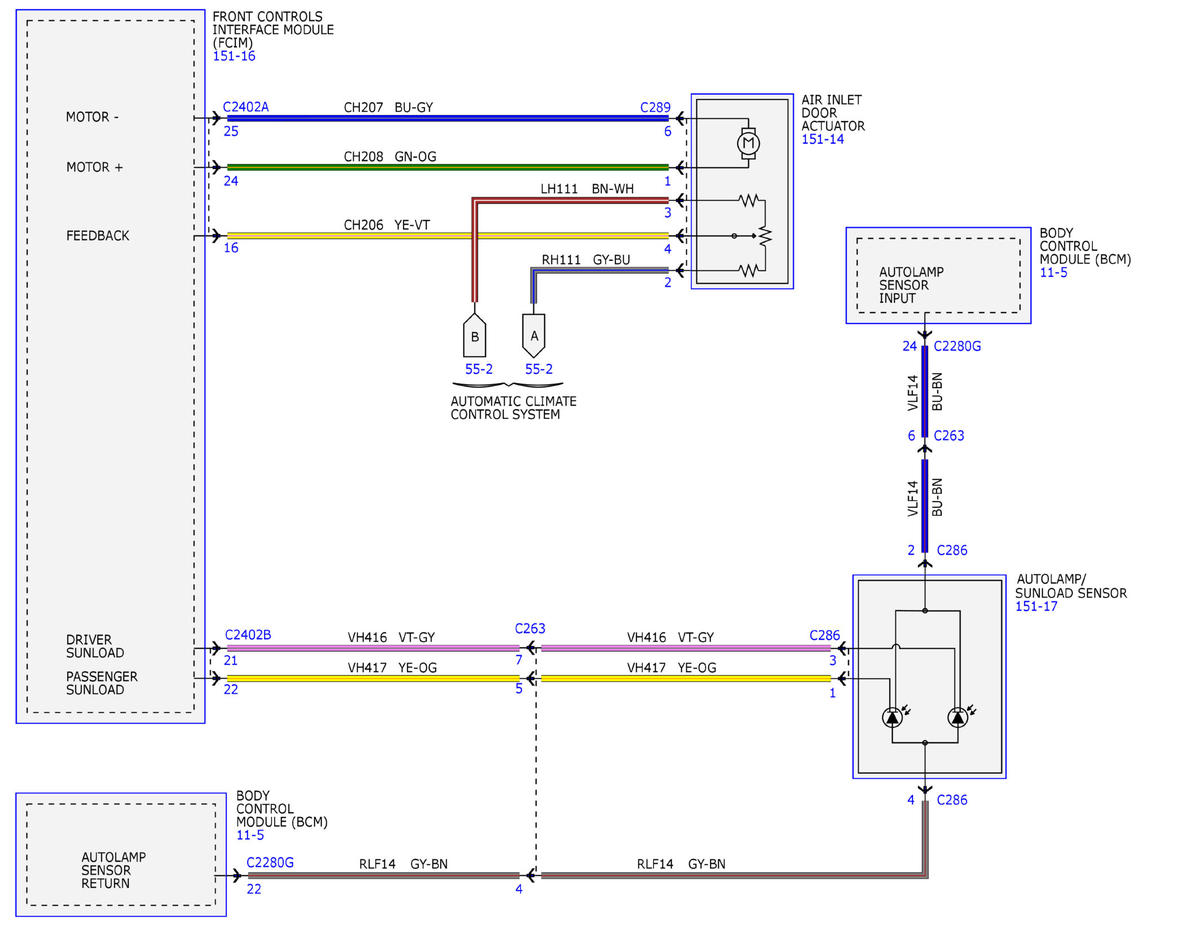

Fig 6: Automatic Climate Control System Wiring Diagram (6 Of 7)
GFDWR108672Courtesy of FORD MOTOR COMPANY

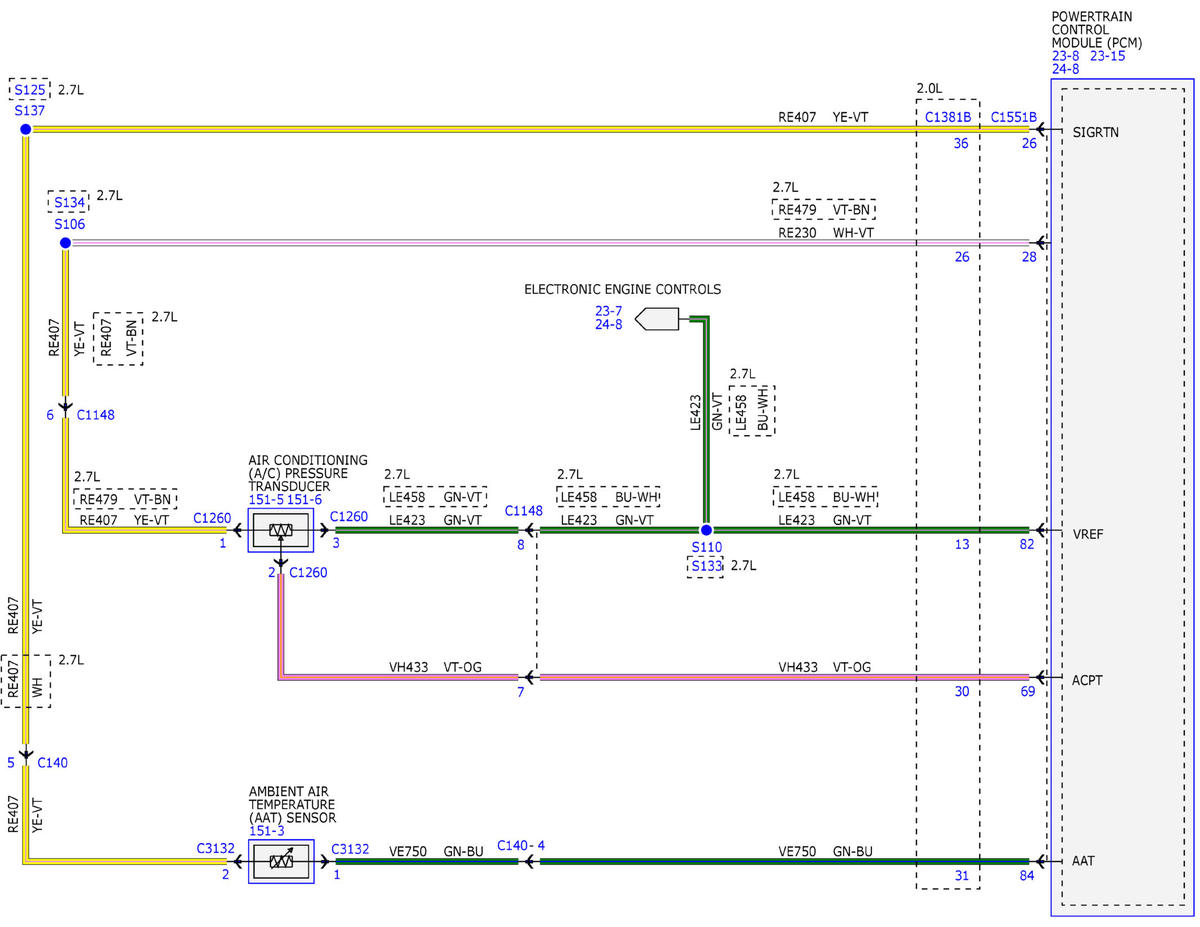

Fig 7: Automatic Climate Control System Wiring Diagram (7 Of 7)
GFDWR108673Courtesy of FORD MOTOR COMPANY
