Audio System/Navigation

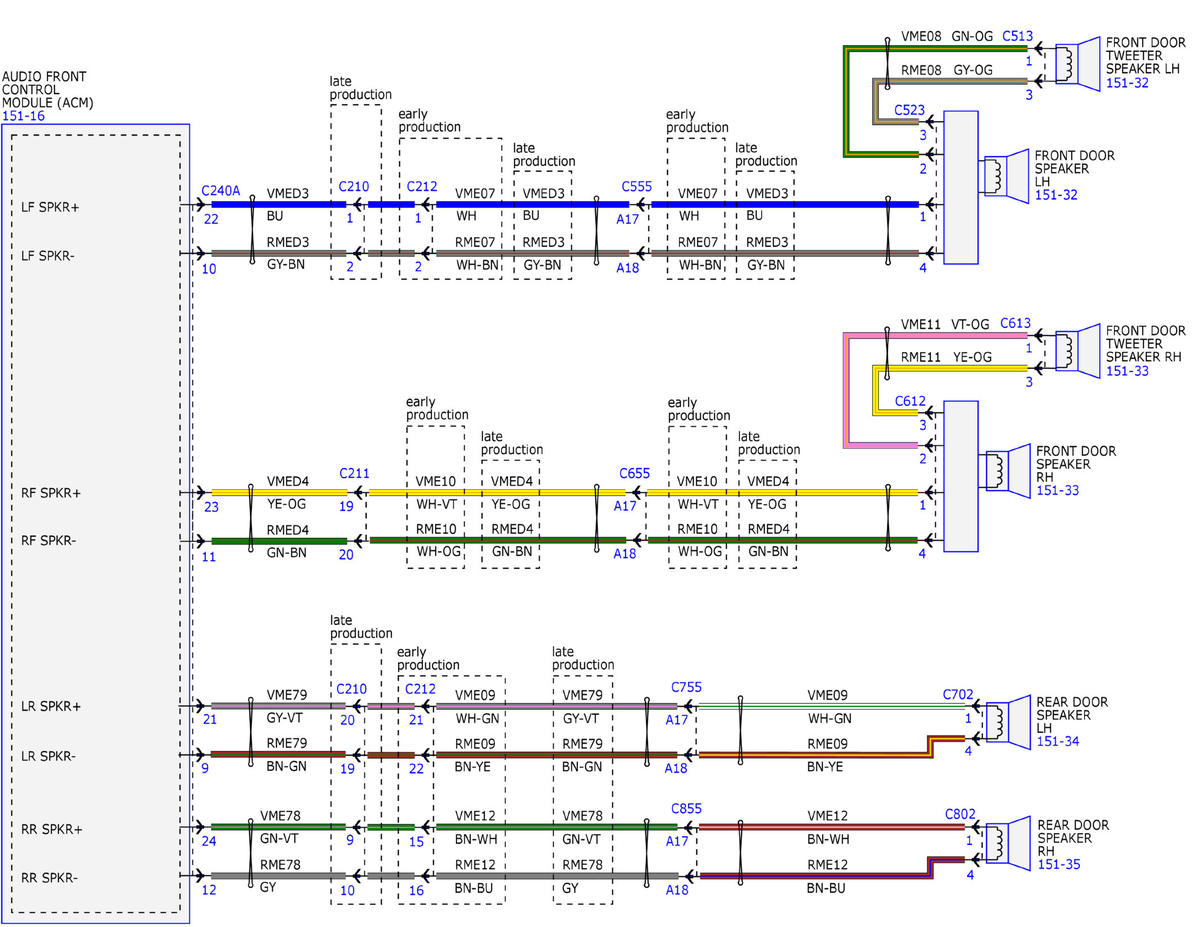

Fig 1: Audio System/Navigation Wiring Diagram (1 Of 9)
GFDWR108626Courtesy of FORD MOTOR COMPANY

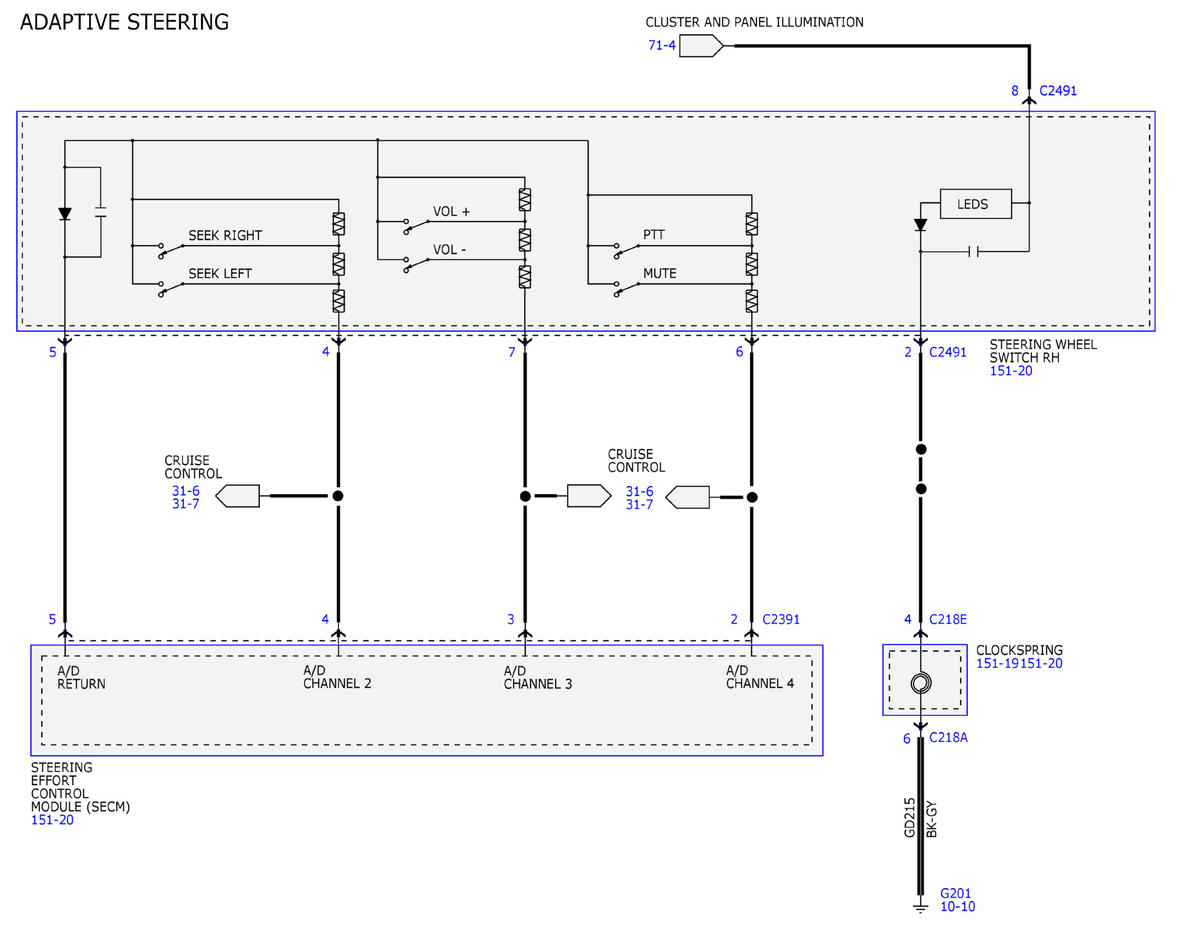

Fig 2: Audio System/Navigation Wiring Diagram (2 Of 9)
GFDWR108627Courtesy of FORD MOTOR COMPANY

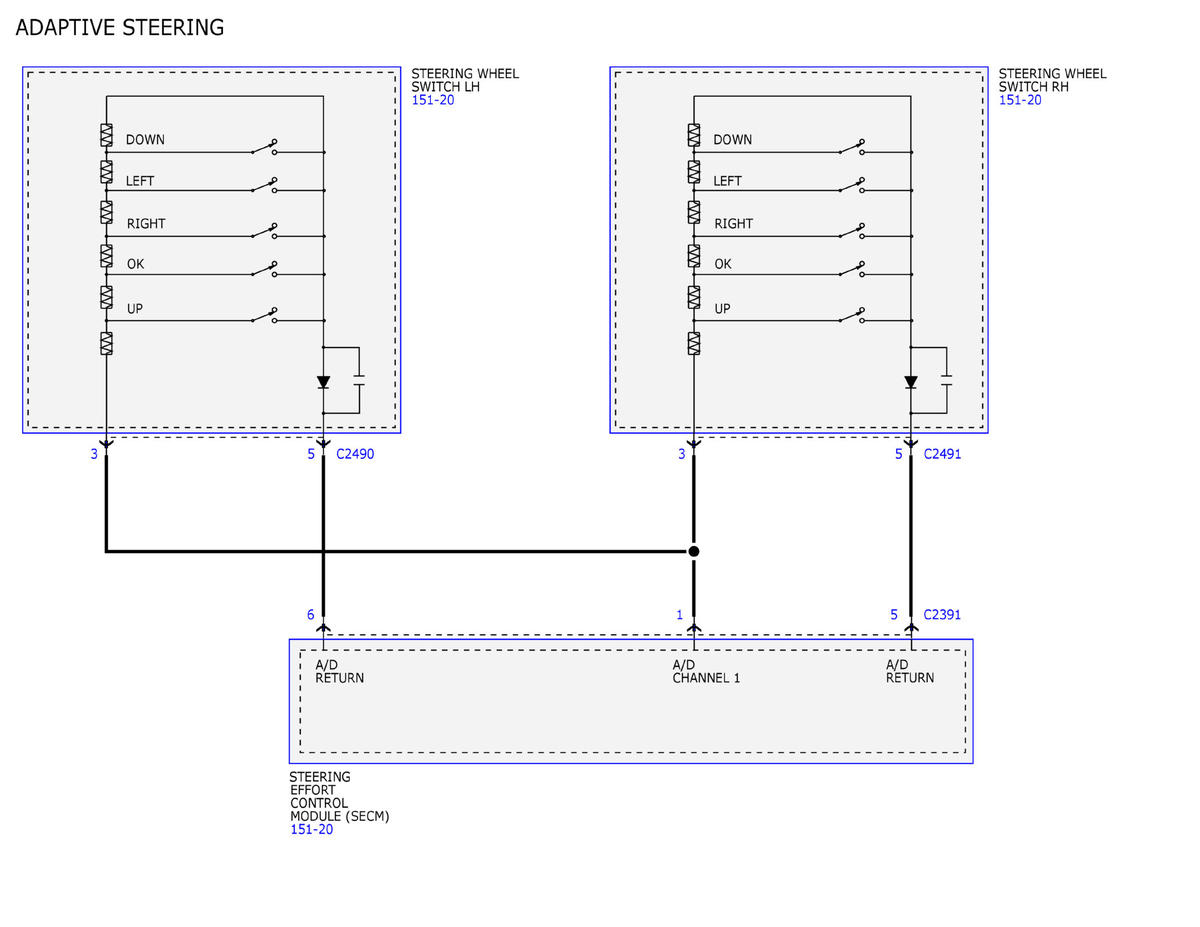

Fig 3: Audio System/Navigation Wiring Diagram (3 Of 9)
GFDWR108628Courtesy of FORD MOTOR COMPANY

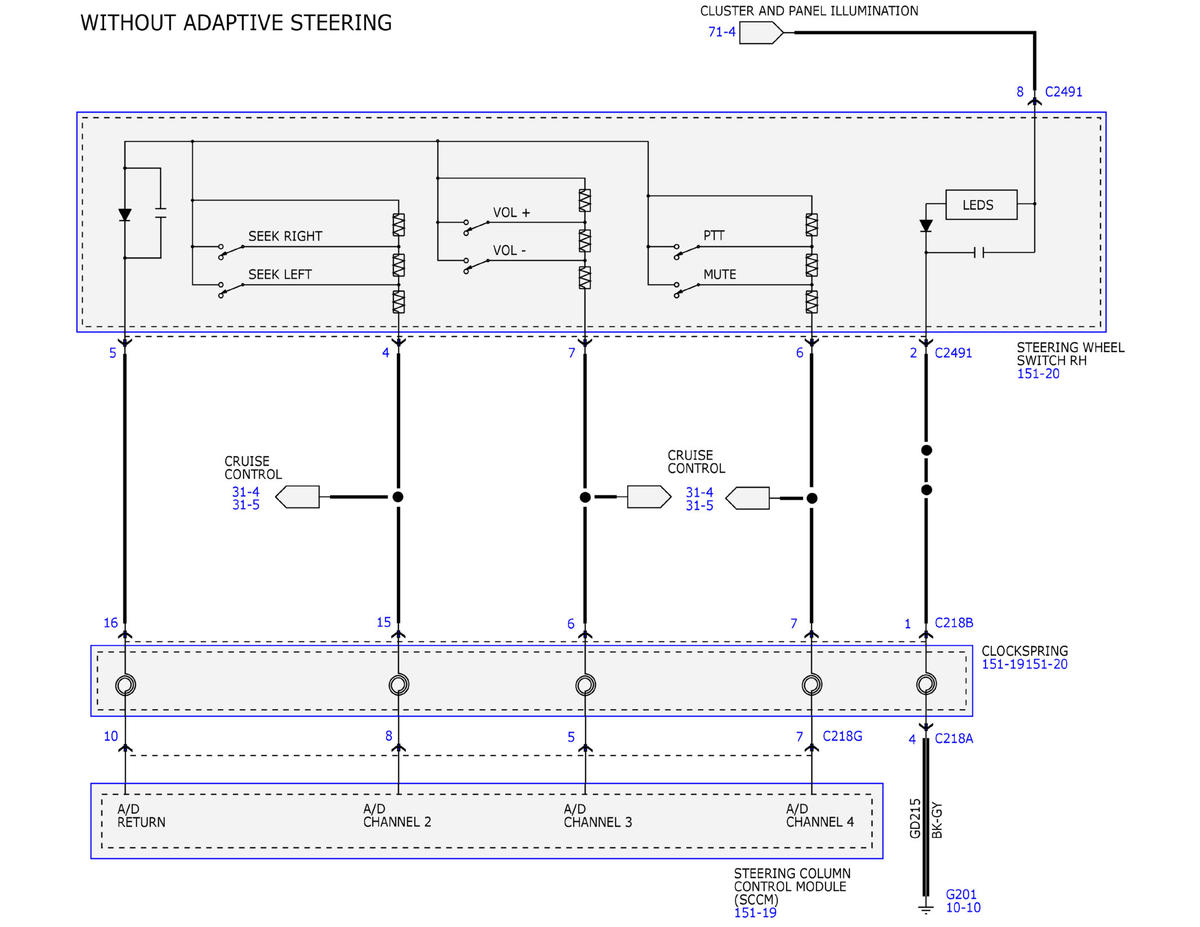

Fig 4: Audio System/Navigation Wiring Diagram (4 Of 9)
GFDWR108629Courtesy of FORD MOTOR COMPANY

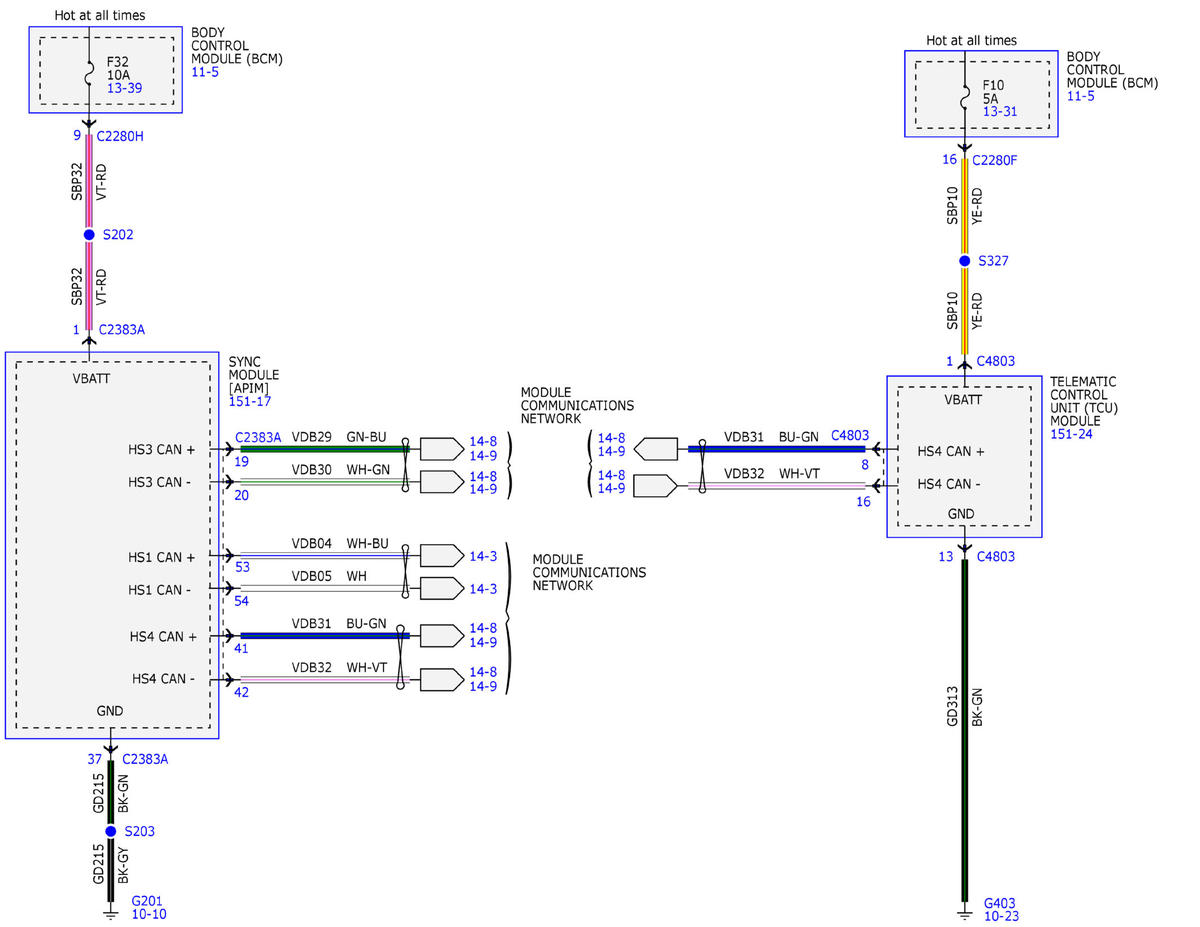

Fig 5: Audio System/Navigation Wiring Diagram (5 Of 9)
GFDWR108630Courtesy of FORD MOTOR COMPANY

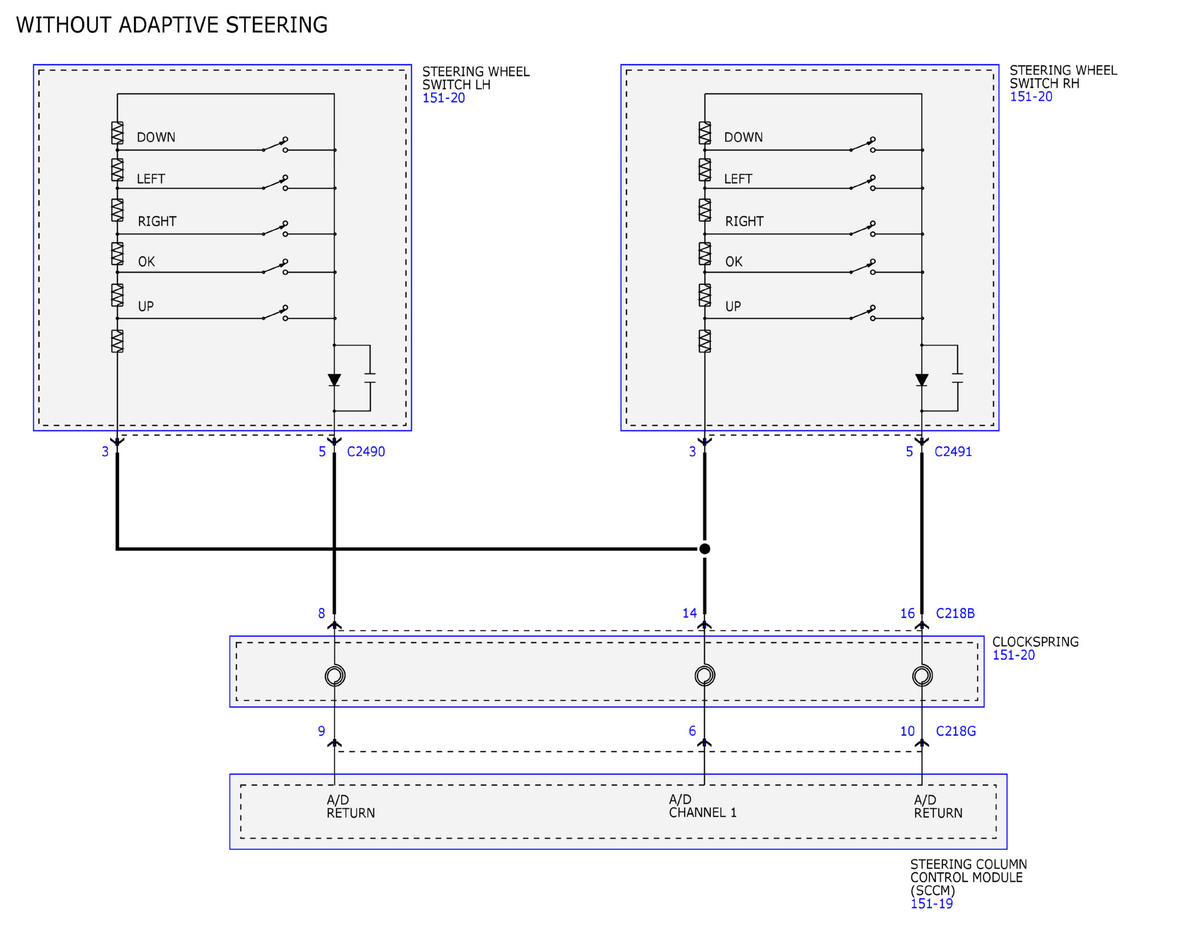

Fig 6: Audio System/Navigation Wiring Diagram (6 Of 9)
GFDWR108631Courtesy of FORD MOTOR COMPANY

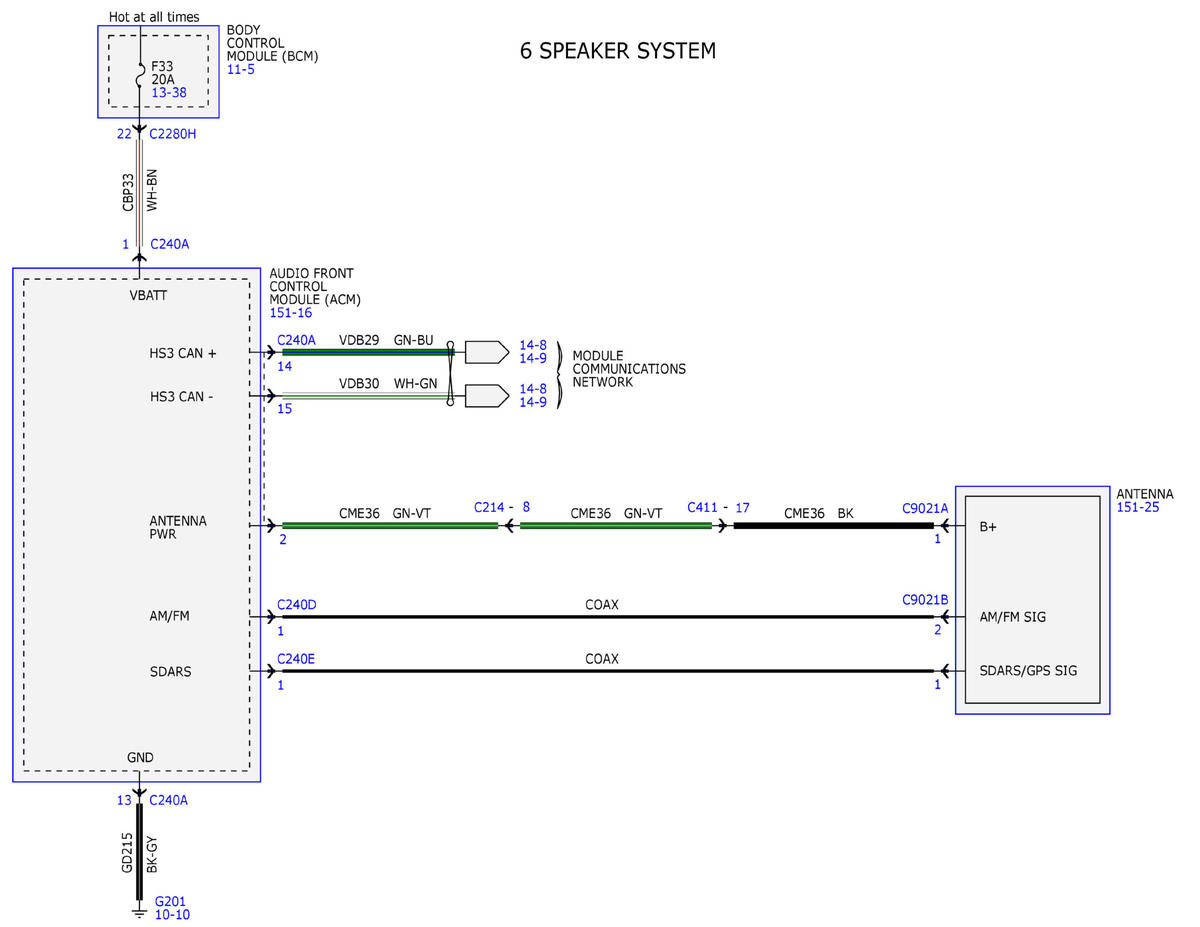

Fig 7: Audio System/Navigation Wiring Diagram (7 Of 9)
GFDWR108632Courtesy of FORD MOTOR COMPANY

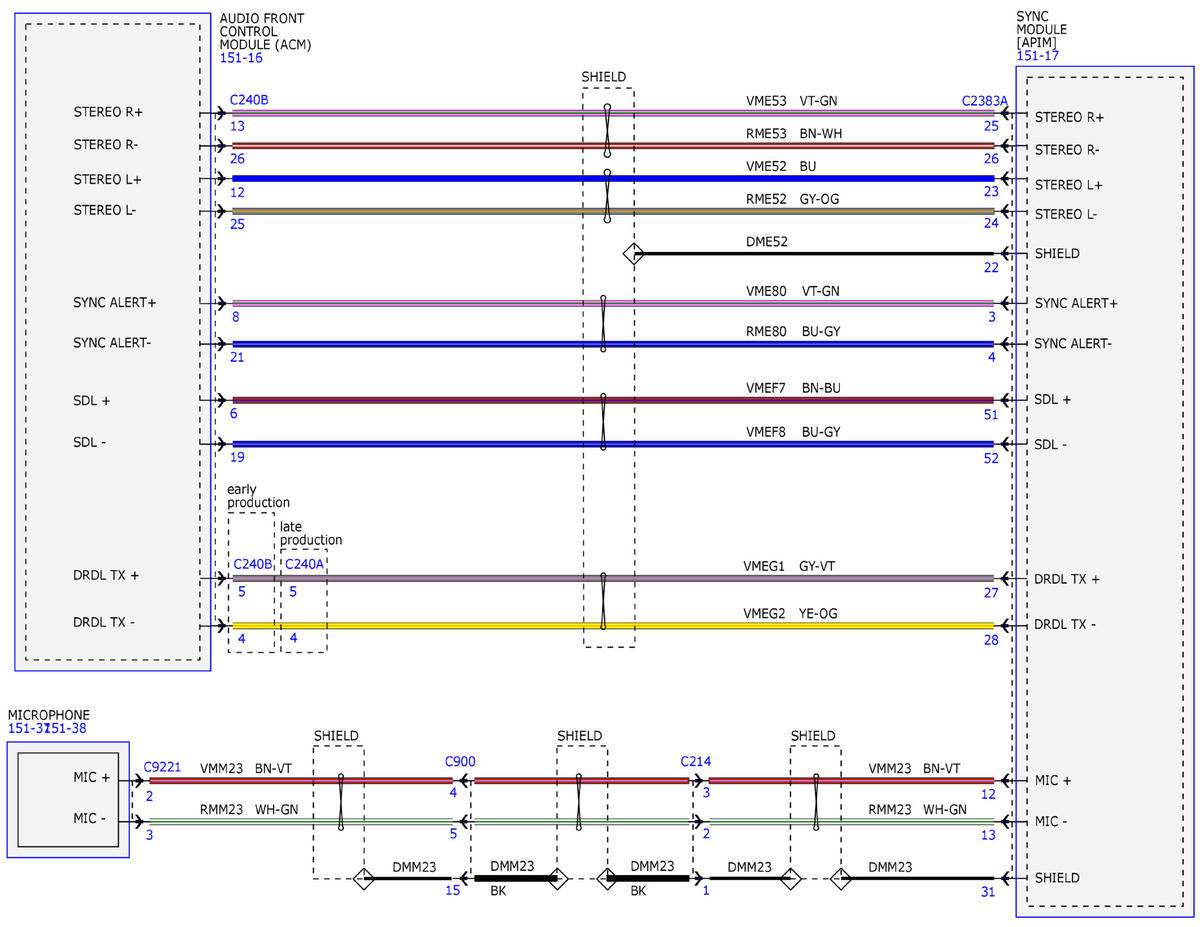

Fig 8: Audio System/Navigation Wiring Diagram (8 Of 9)
GFDWR108633Courtesy of FORD MOTOR COMPANY

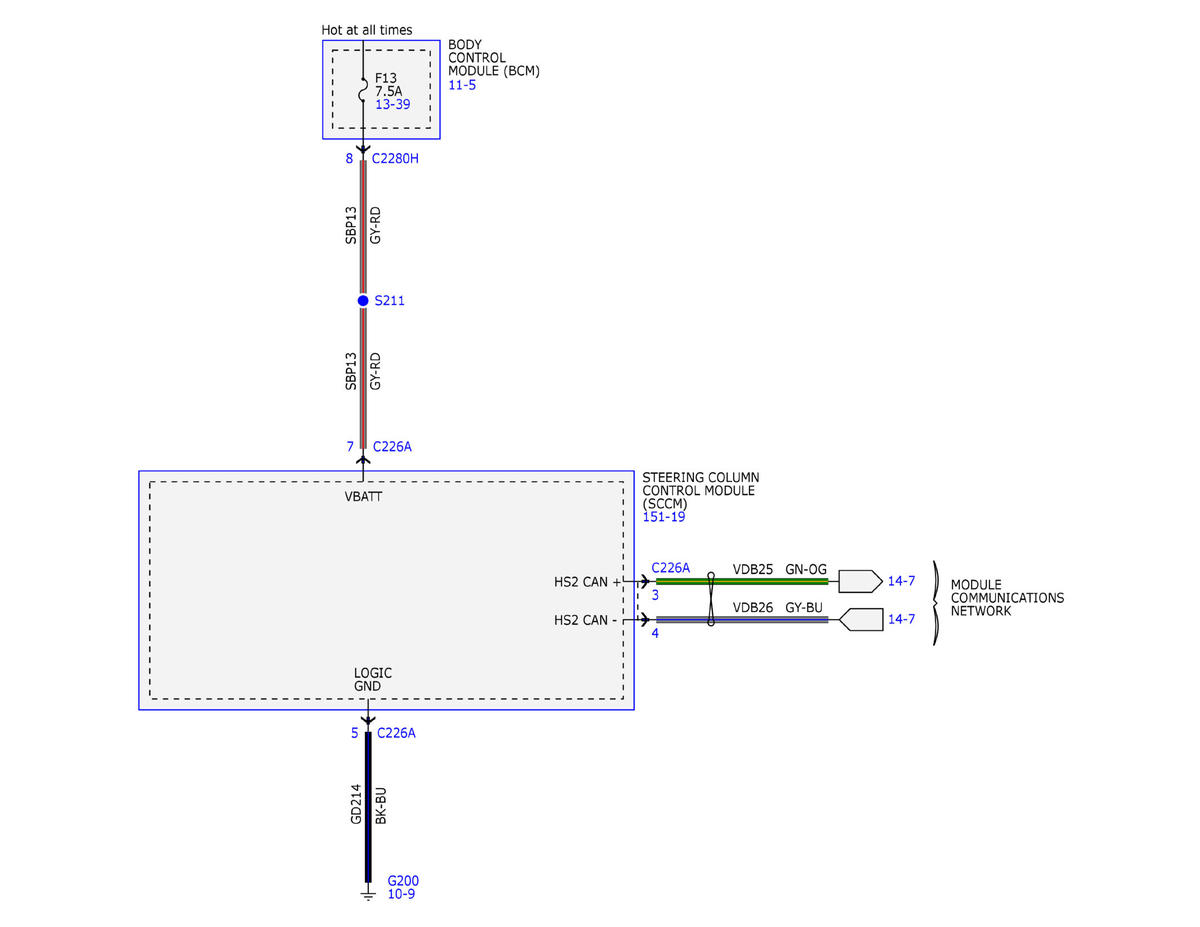

Fig 9: Audio System/Navigation Wiring Diagram (9 Of 9)
GFDWR108634Courtesy of FORD MOTOR COMPANY
