Home >> Ford >> 2020 >> Edge ST-Line, FWD >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Electrical Wiring Diagram Introduction >> Introduction

OEM Electrical Wiring Diagram Introduction: Introduction

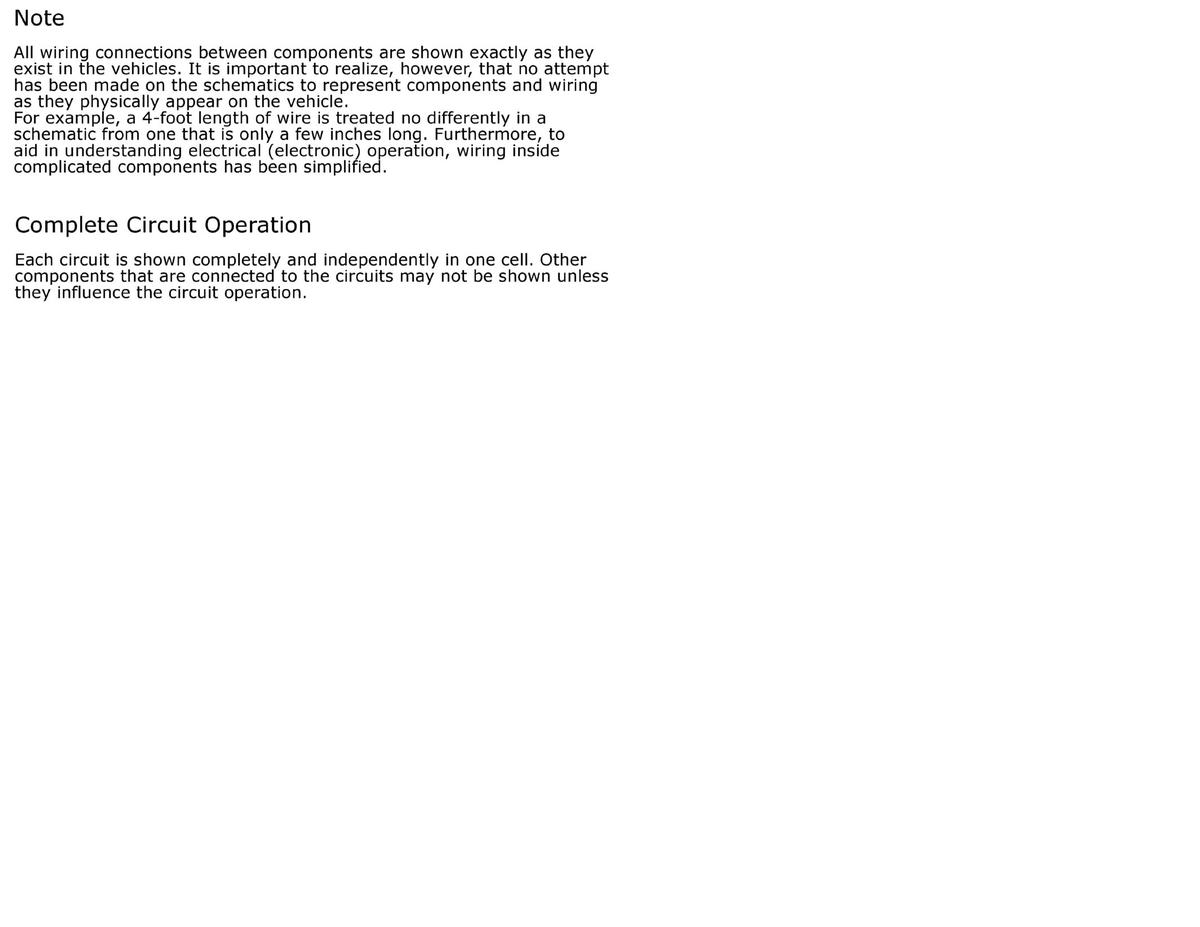

GFDWR108582Courtesy of FORD MOTOR COMPANY

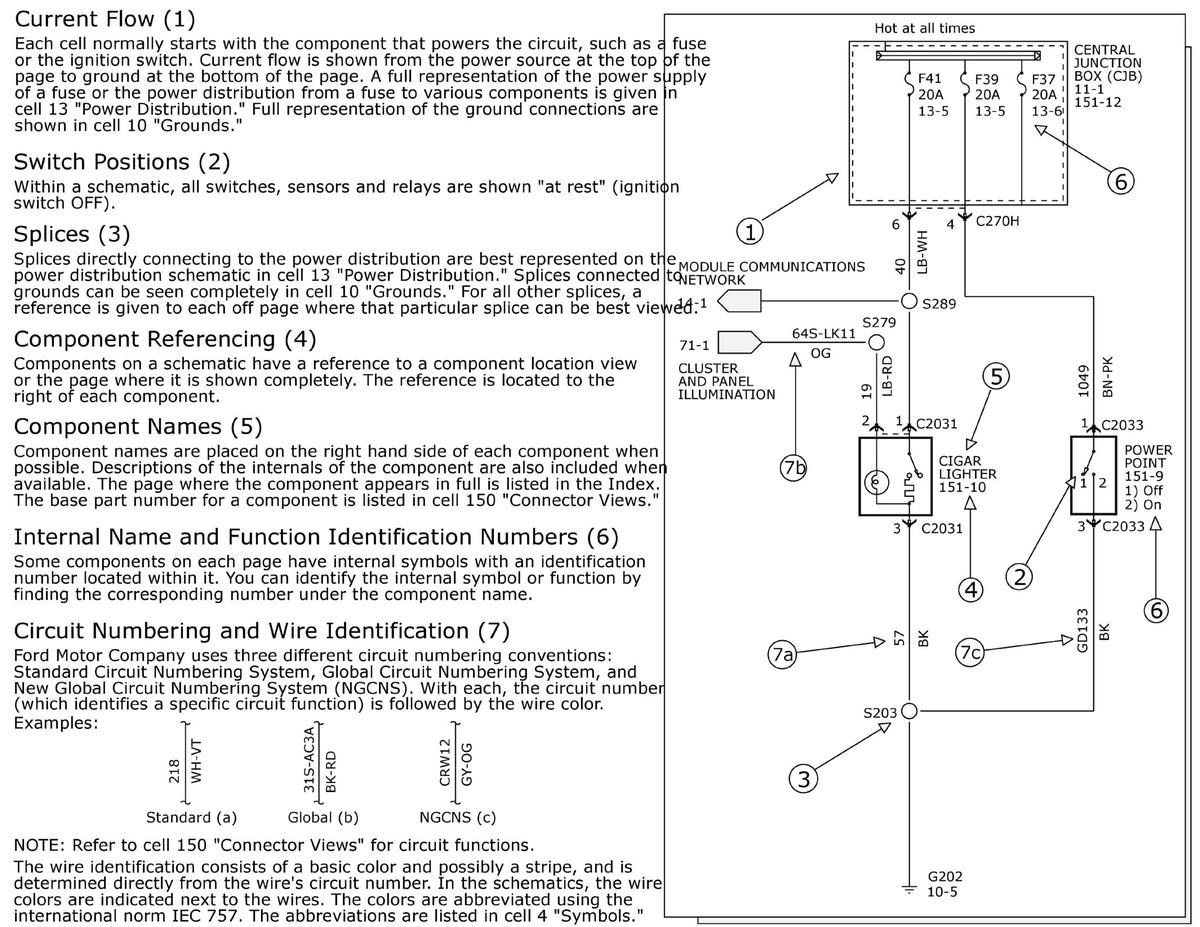

GFDWR108580Courtesy of FORD MOTOR COMPANY

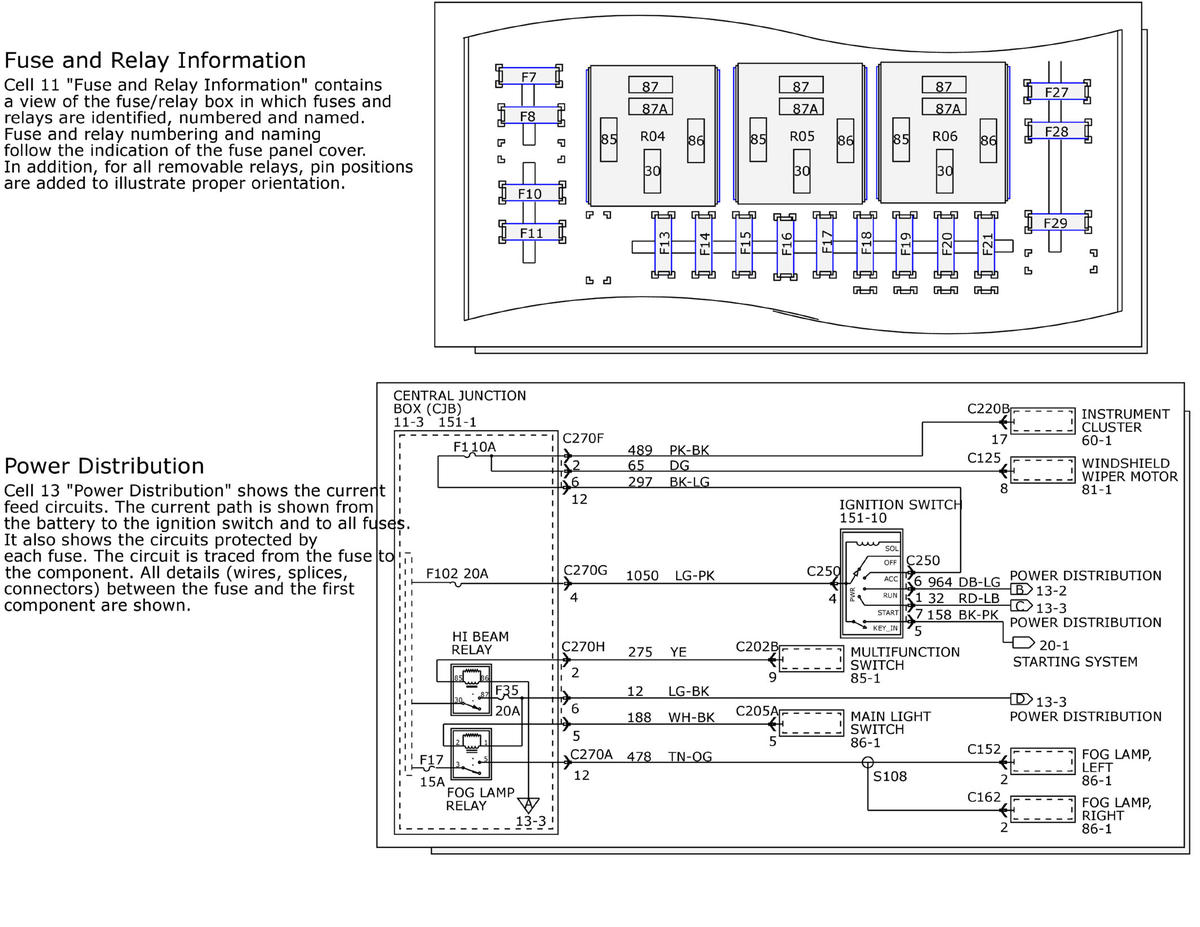

GFDWR108581Courtesy of FORD MOTOR COMPANY

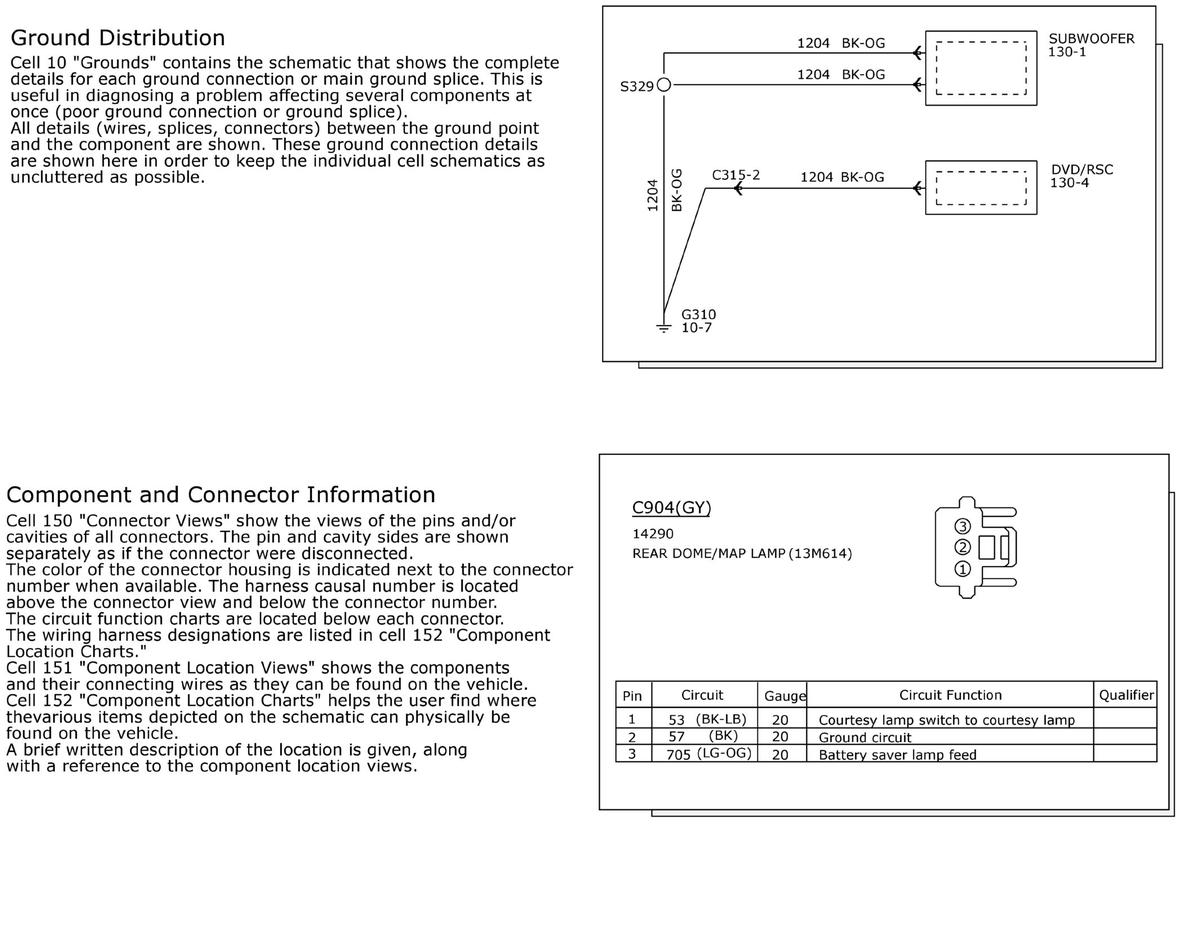

GFDWR108583Courtesy of FORD MOTOR COMPANY

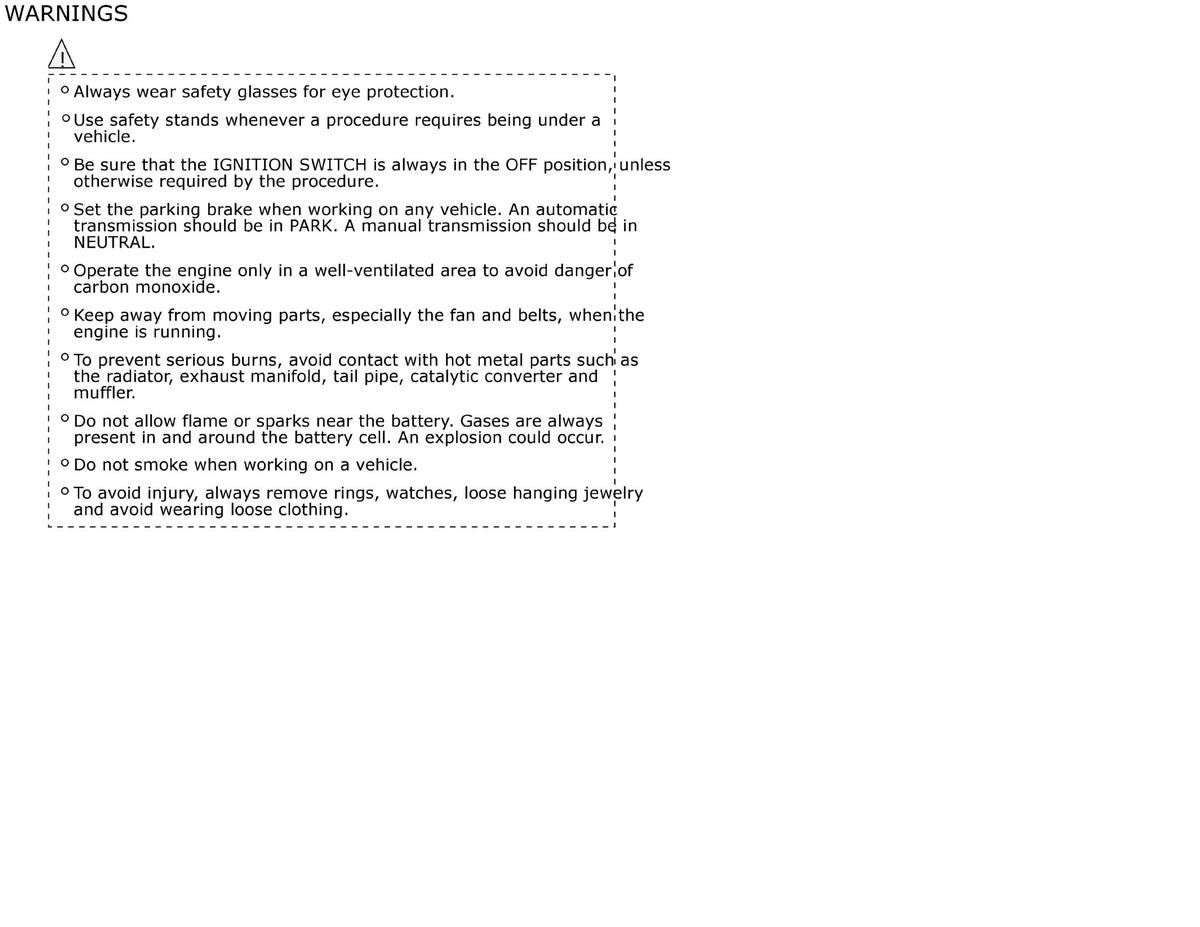

GFDWR108584Courtesy of FORD MOTOR COMPANY
