Front Wheel Speed Sensor: Removal

WARNING: This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. Refer to: Wheel and Tire .

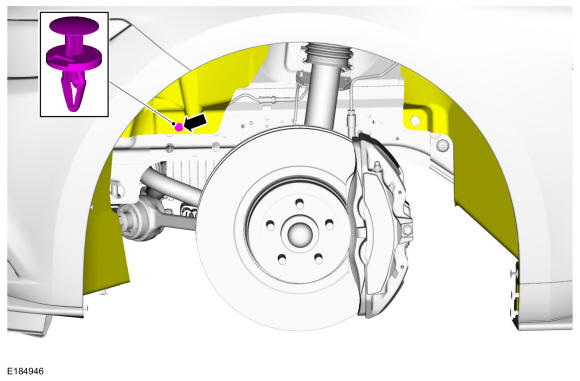

Remove the retainer and position aside the fender splash shield.

Courtesy of FORD MOTOR COMPANY

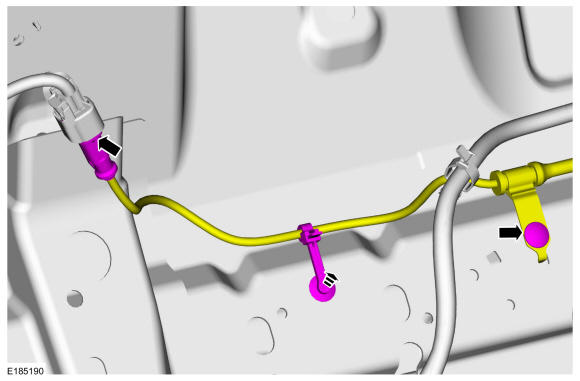

Disconnect the front wheel speed sensor electrical connector and detach the 2 harness retainers.

Courtesy of FORD MOTOR COMPANY

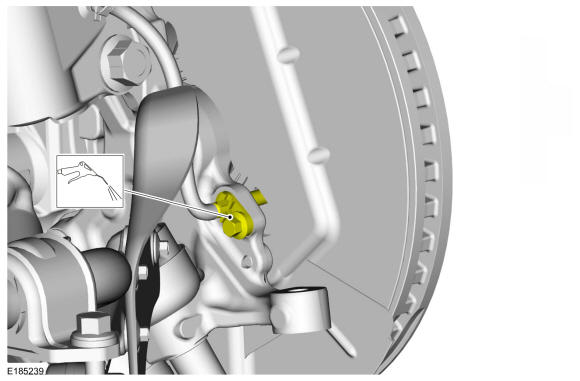

Using compressed air, clean the area surrounding the front wheel speed sensor.

Courtesy of FORD MOTOR COMPANY

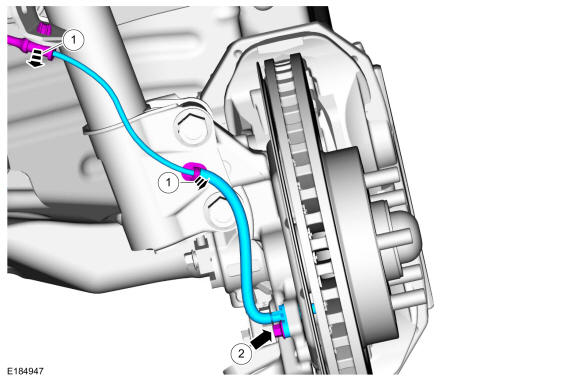

1. Detach the 2 sensor harness retainers.
2. Remove the bolt and the front wheel speed sensor.
  Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
