Transmission Controls - Tr9070

WARNING: This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

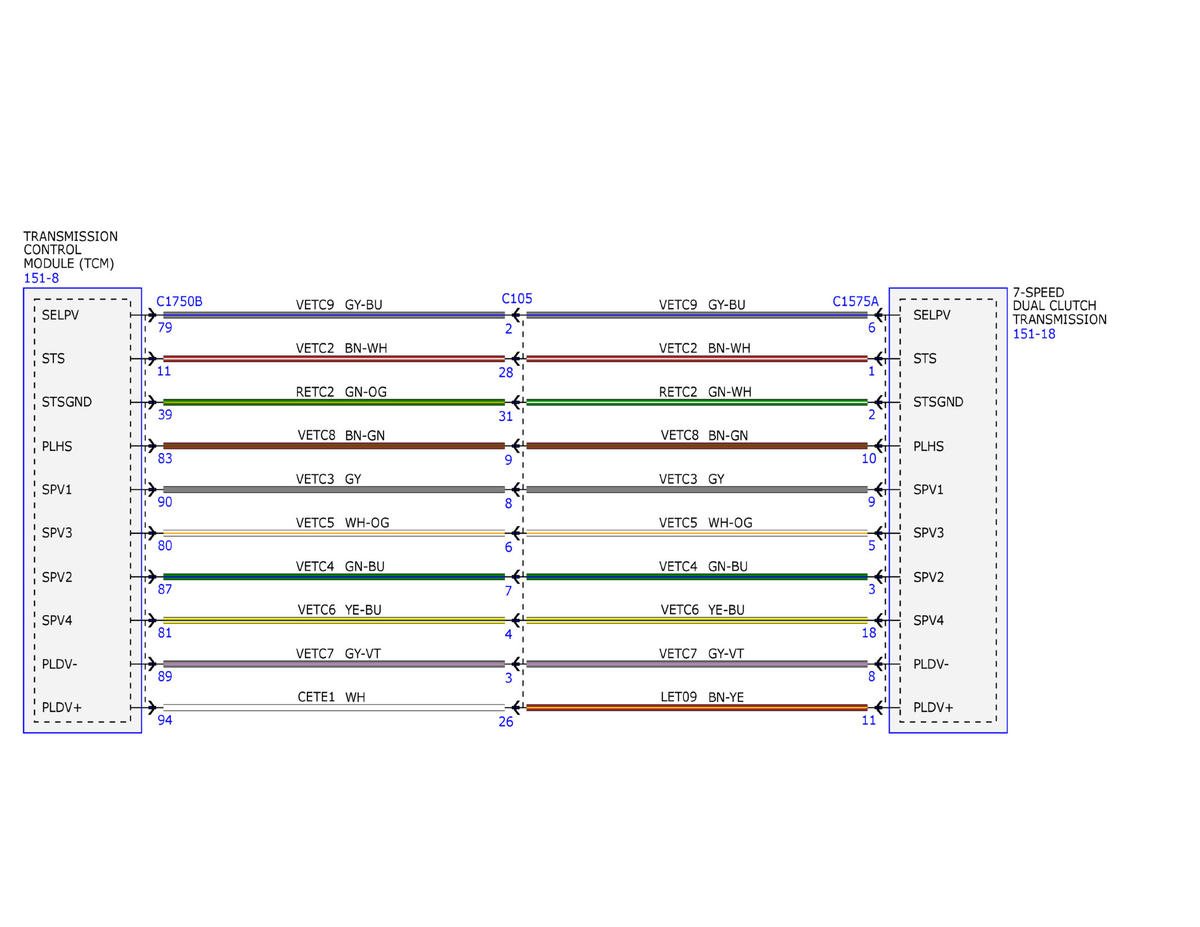

Fig 1: Transmission Controls - TR9070 Wiring Diagrams (1 Of 8)

Courtesy of FORD MOTOR COMPANY

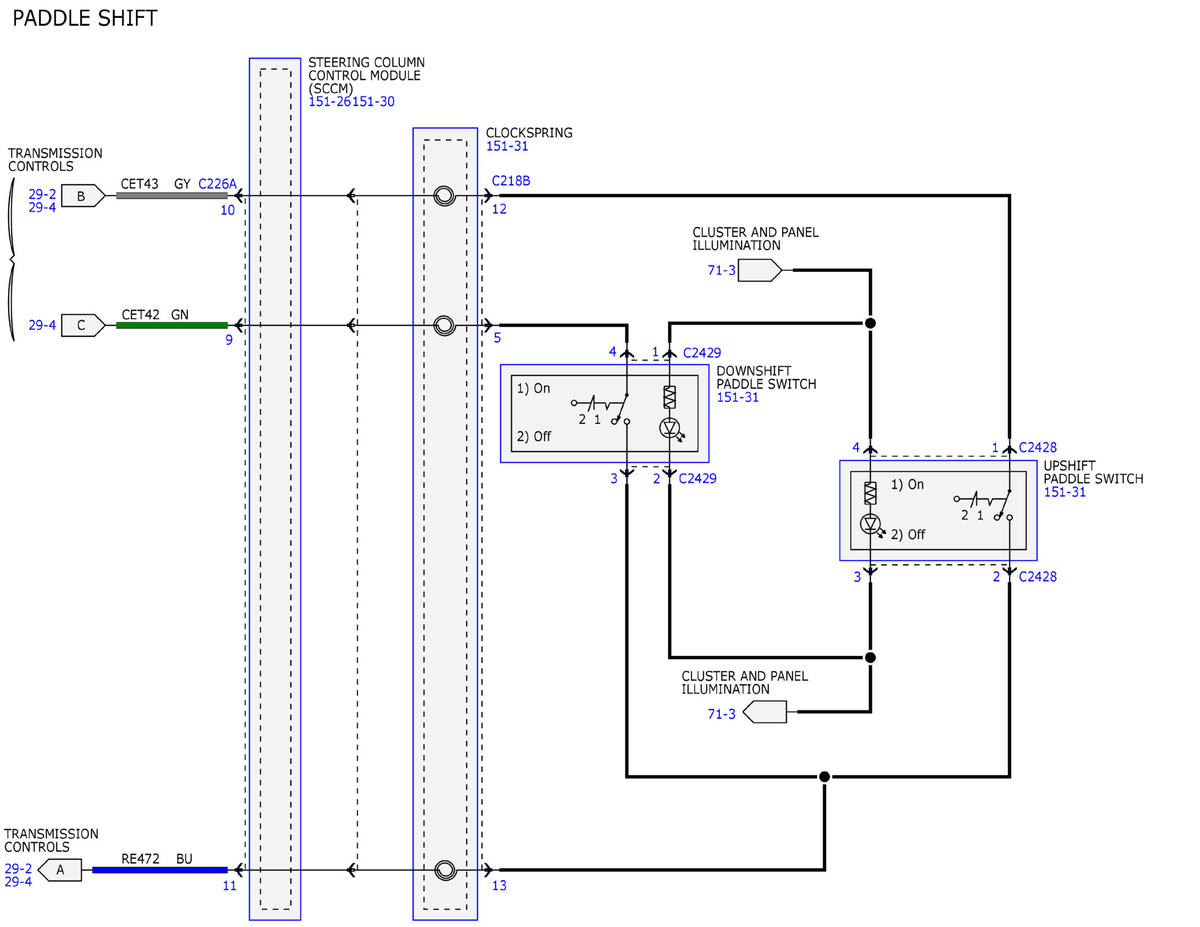

Fig 2: Transmission Controls - TR9070 Wiring Diagrams (2 Of 8)

Courtesy of FORD MOTOR COMPANY

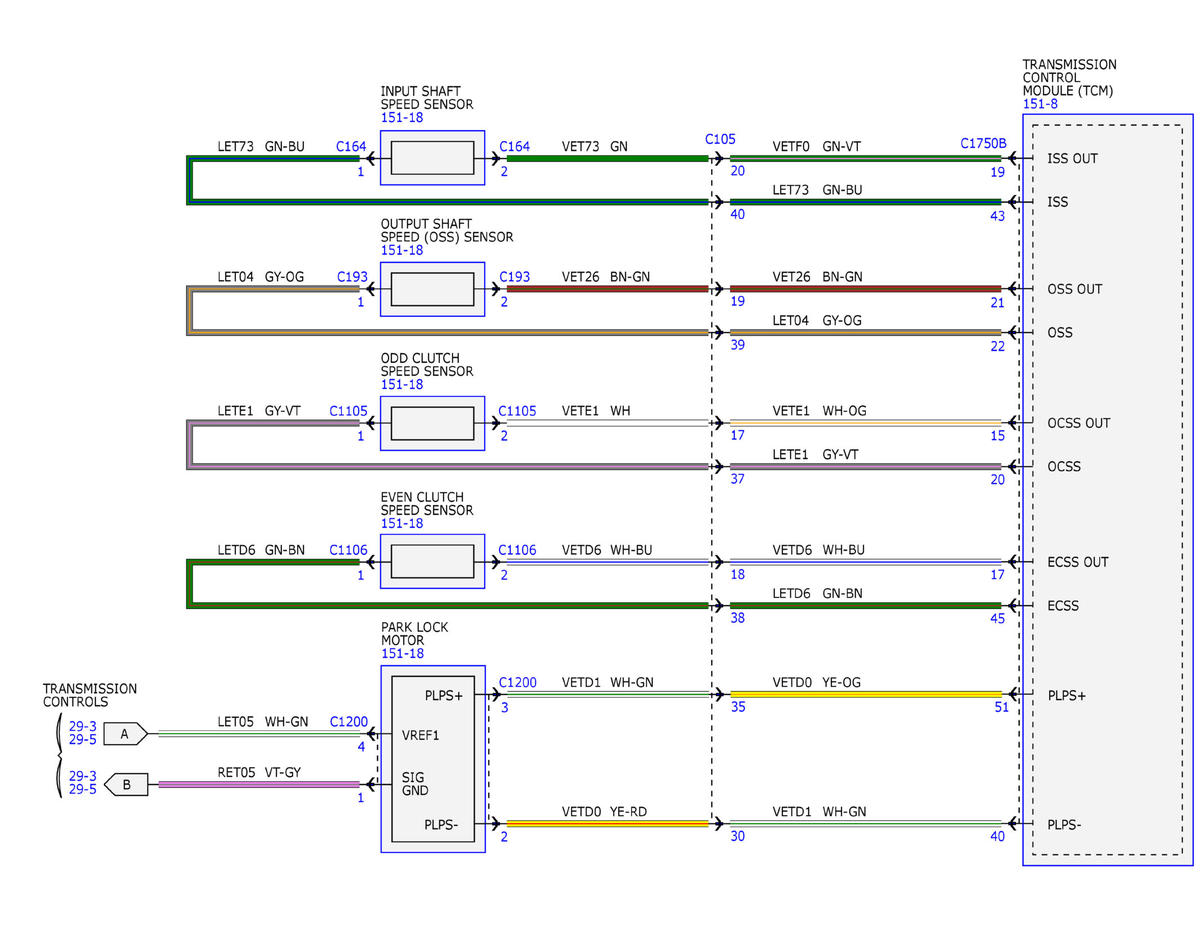

Fig 3: Transmission Controls - TR9070 Wiring Diagrams (3 Of 8)

Courtesy of FORD MOTOR COMPANY

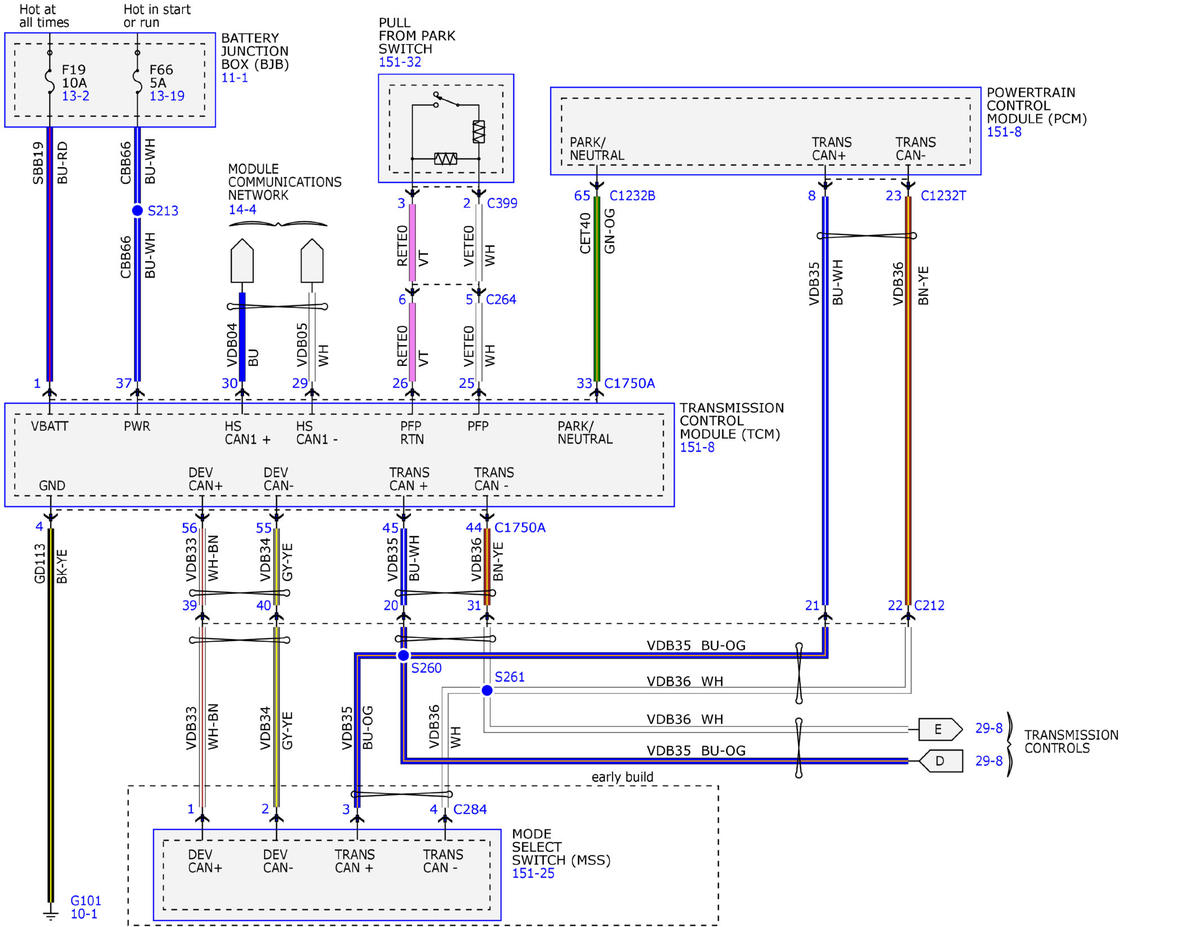

Fig 4: Transmission Controls - TR9070 Wiring Diagrams (4 Of 8)

Courtesy of FORD MOTOR COMPANY

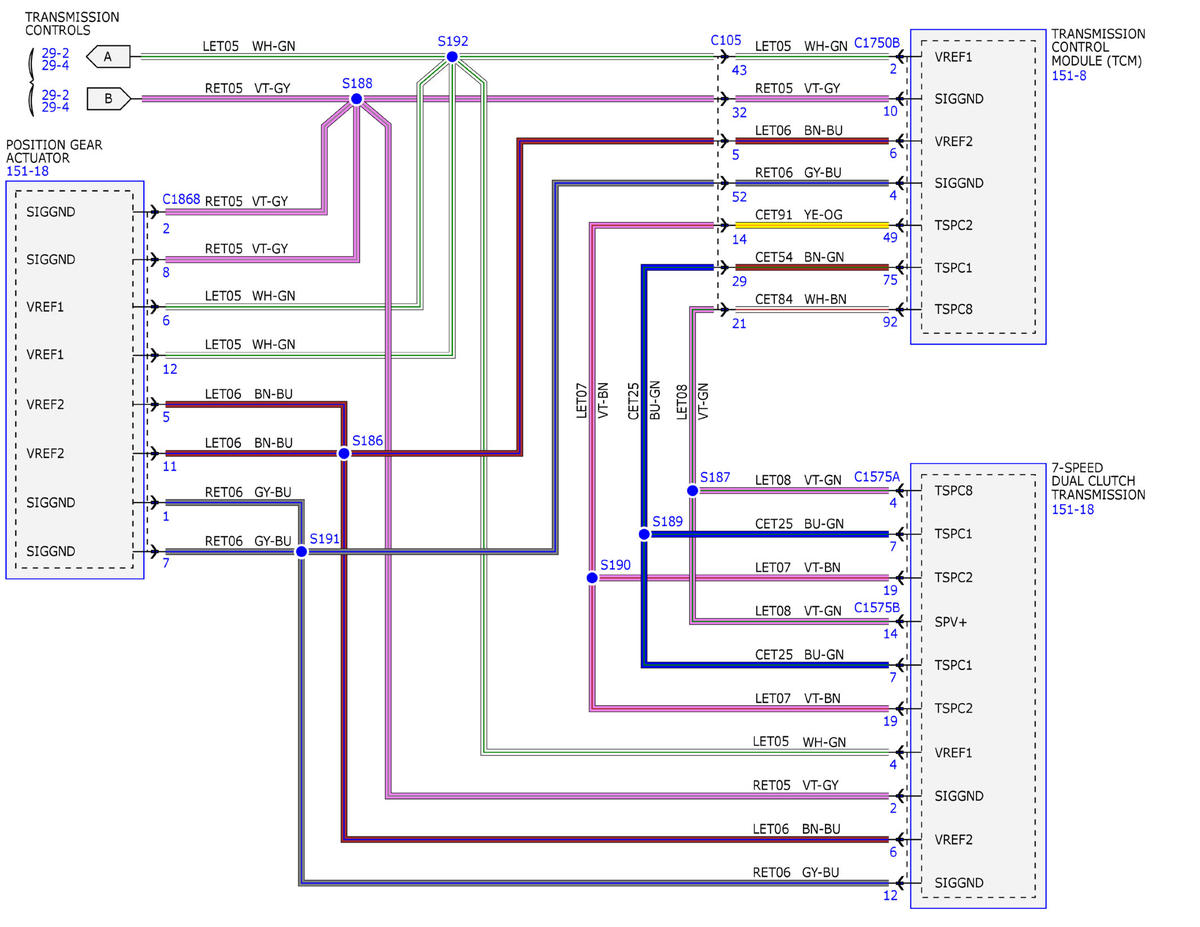

Fig 5: Transmission Controls - TR9070 Wiring Diagrams (5 Of 8)

Courtesy of FORD MOTOR COMPANY

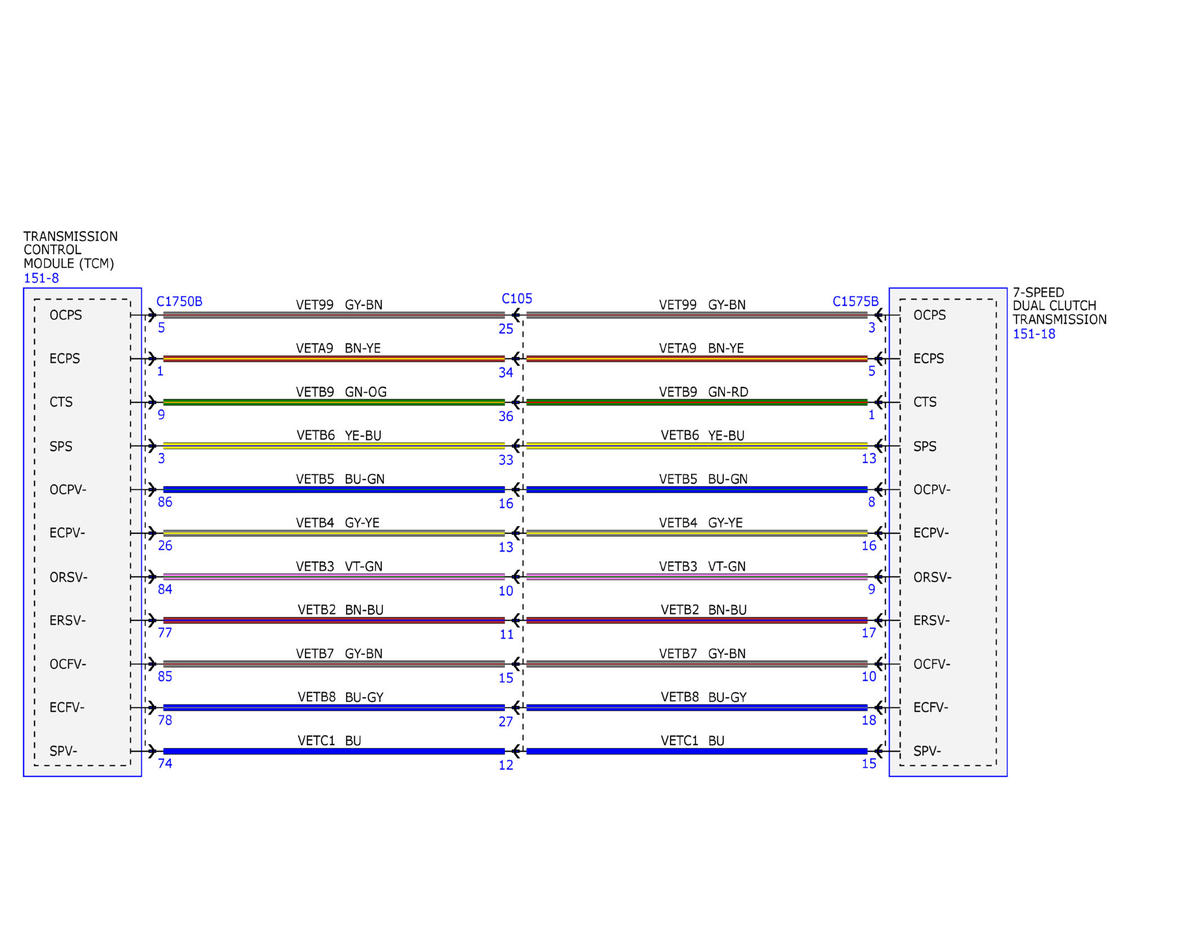

Fig 6: Transmission Controls - TR9070 Wiring Diagrams (6 Of 8)

Courtesy of FORD MOTOR COMPANY

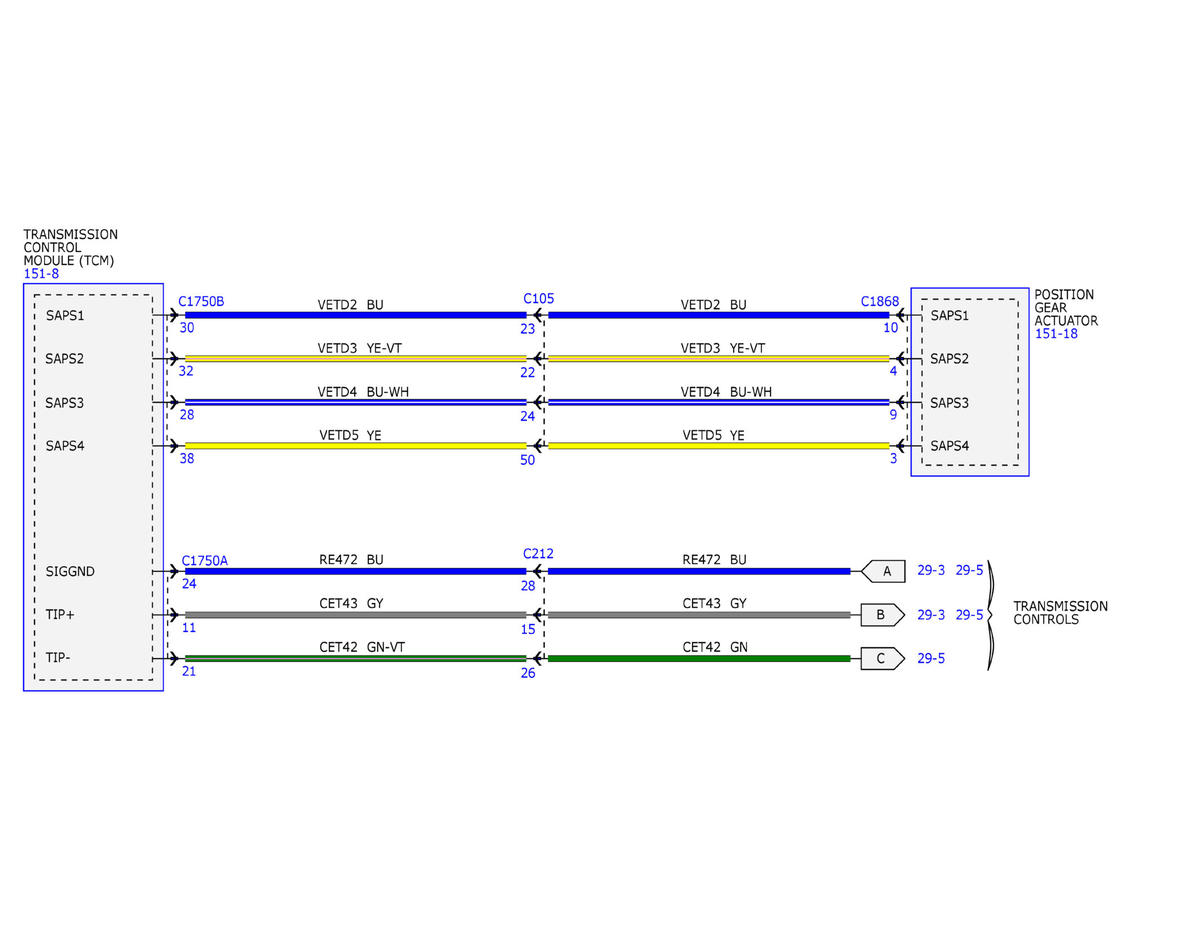

Fig 7: Transmission Controls - TR9070 Wiring Diagrams (7 Of 8)

Courtesy of FORD MOTOR COMPANY

Fig 8: Transmission Controls - TR9070 Wiring Diagrams (8 Of 8)

Courtesy of FORD MOTOR COMPANY
