WARNING: This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

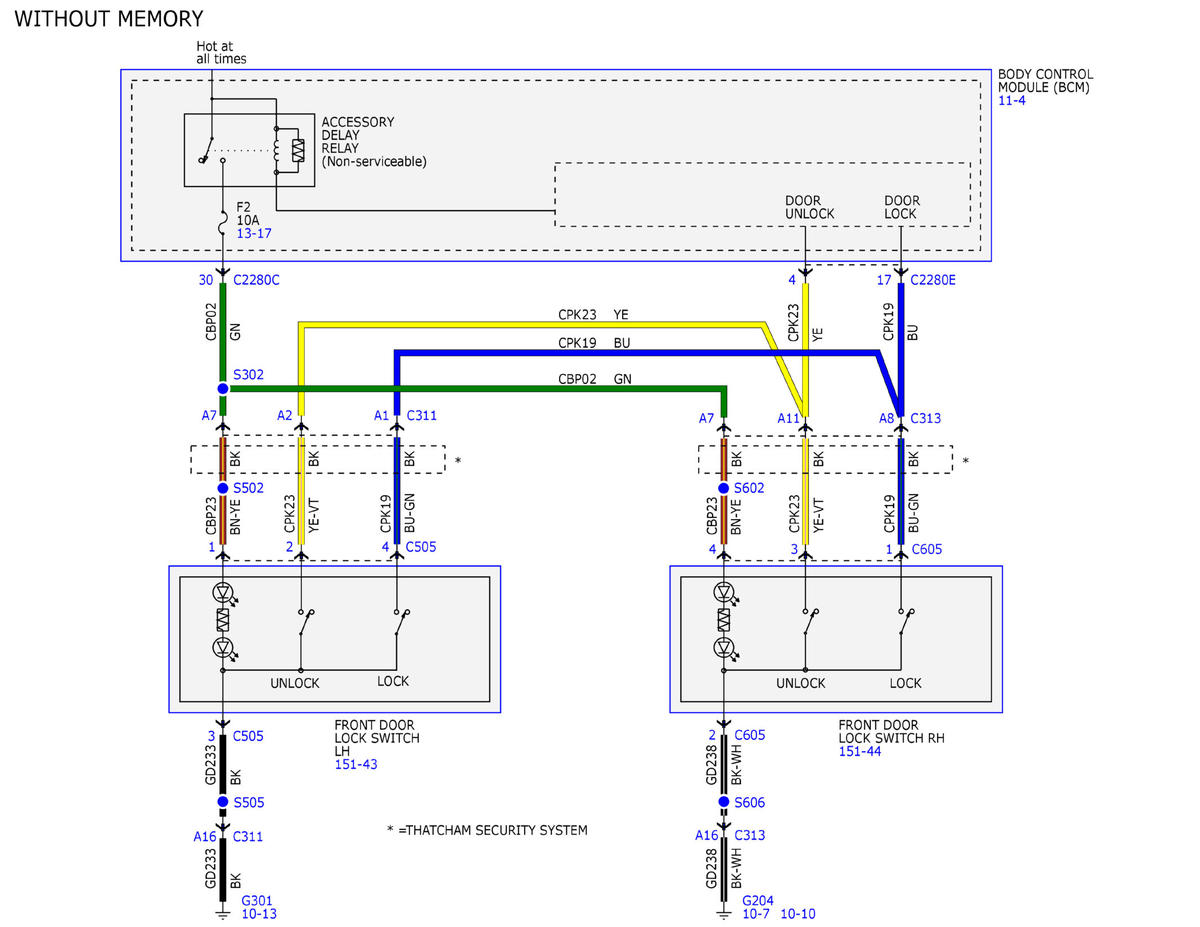

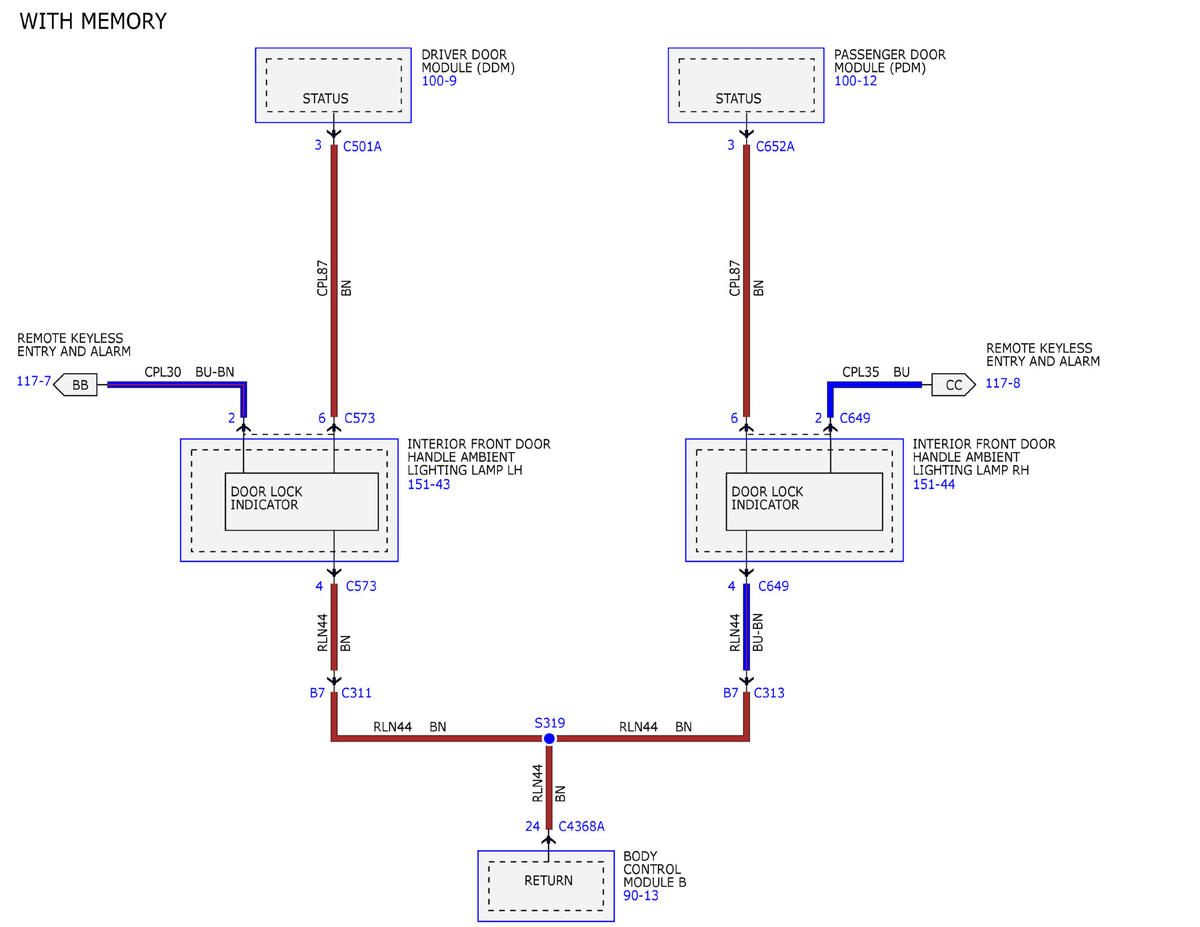

Fig 1: Remote Keyless Entry and Alarm Wiring Diagrams (1 Of 15)
Courtesy of FORD MOTOR COMPANY

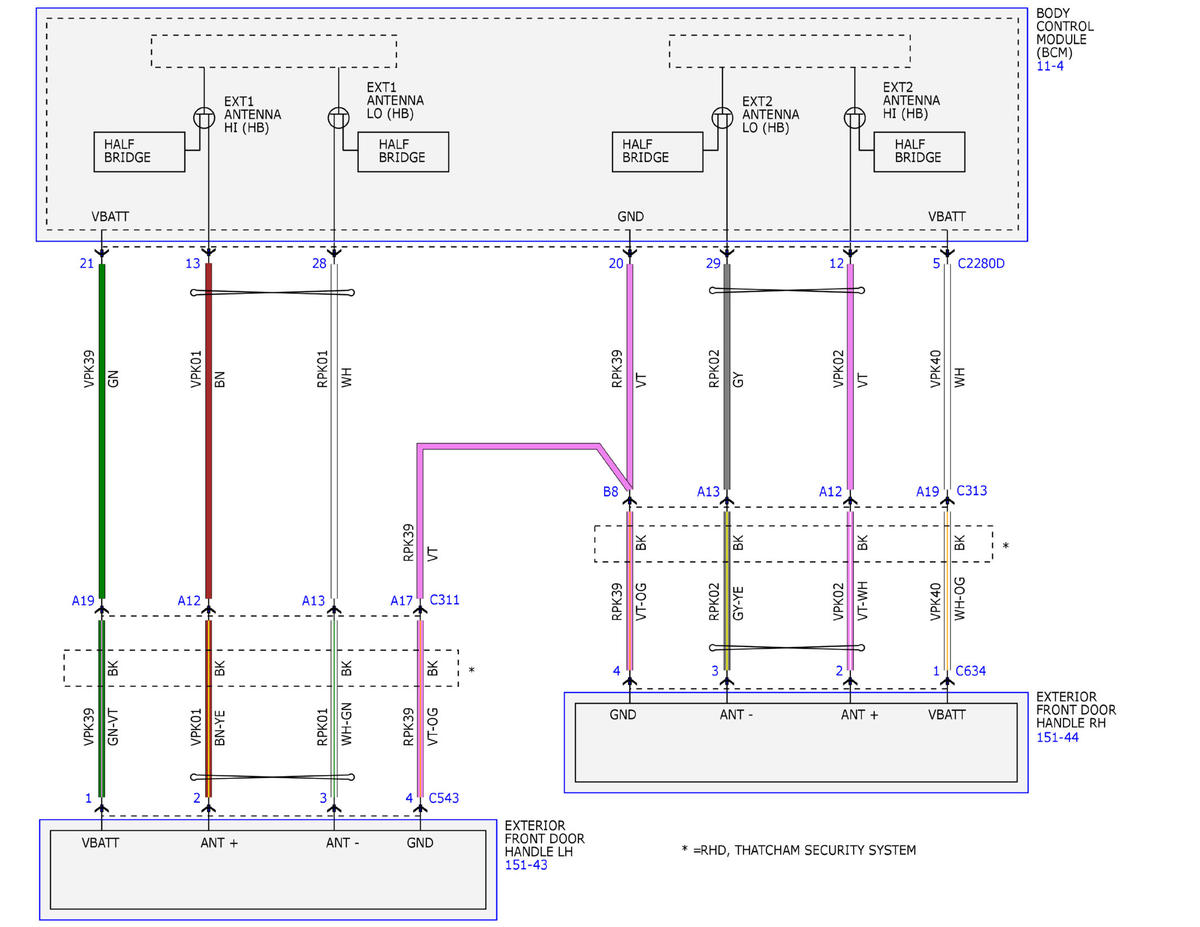

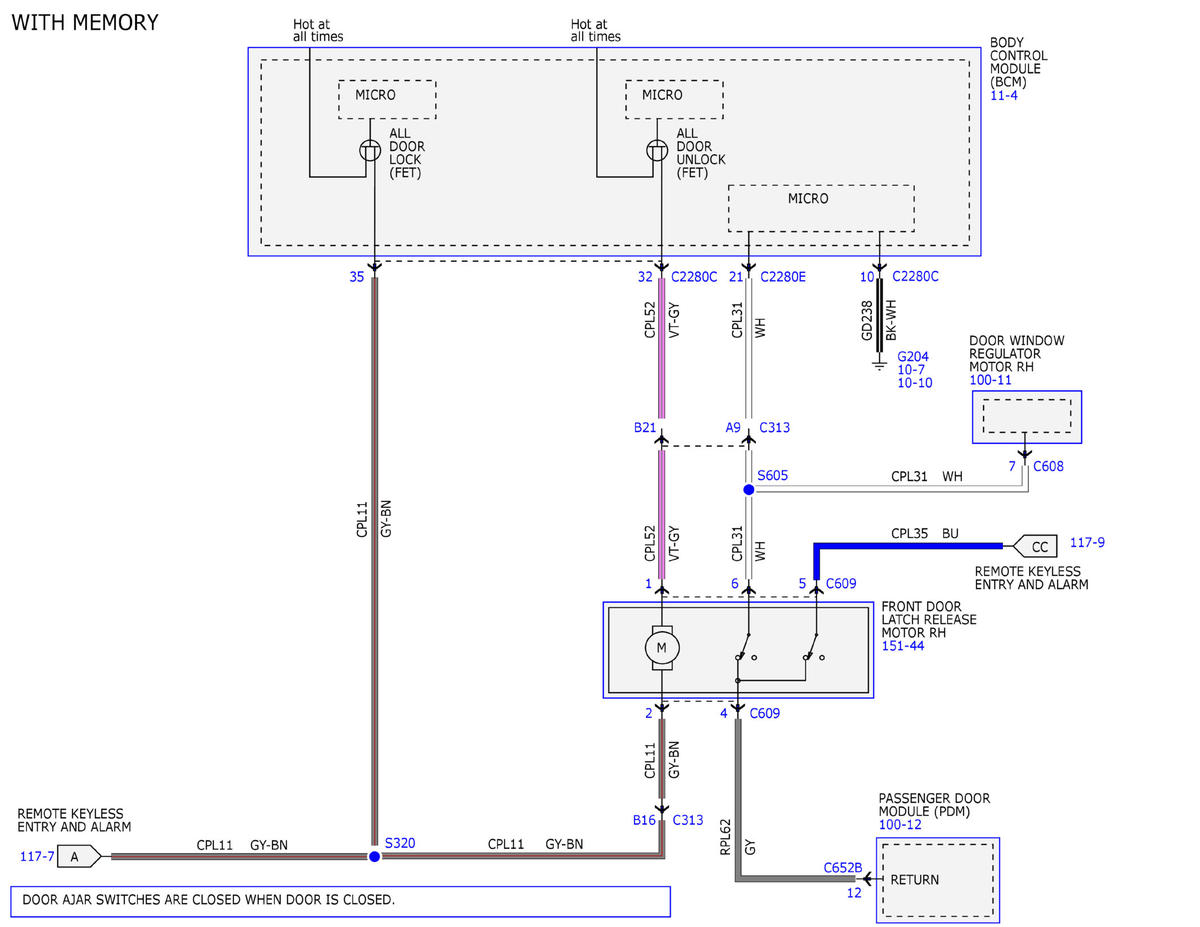

Fig 2: Remote Keyless Entry and Alarm Wiring Diagrams (2 Of 15)
Courtesy of FORD MOTOR COMPANY

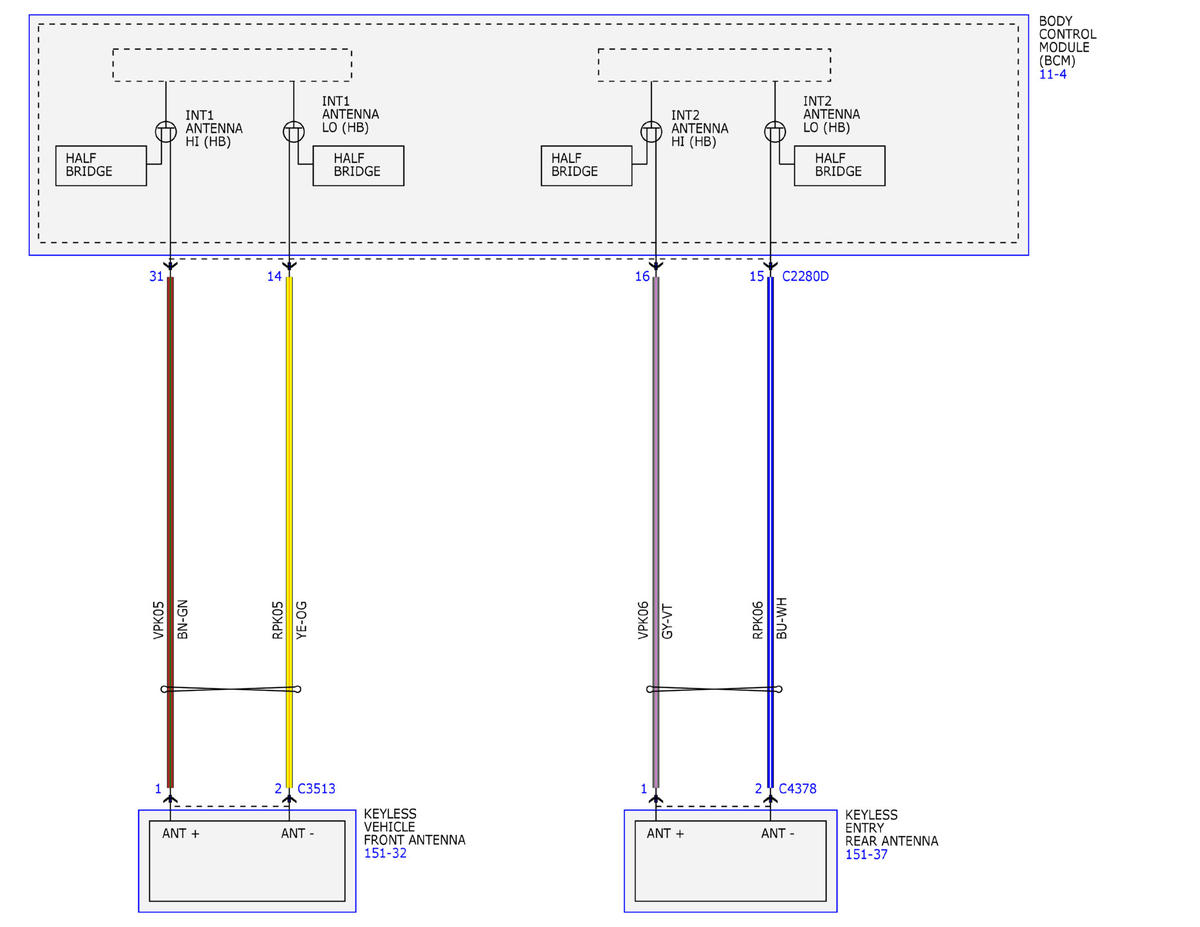

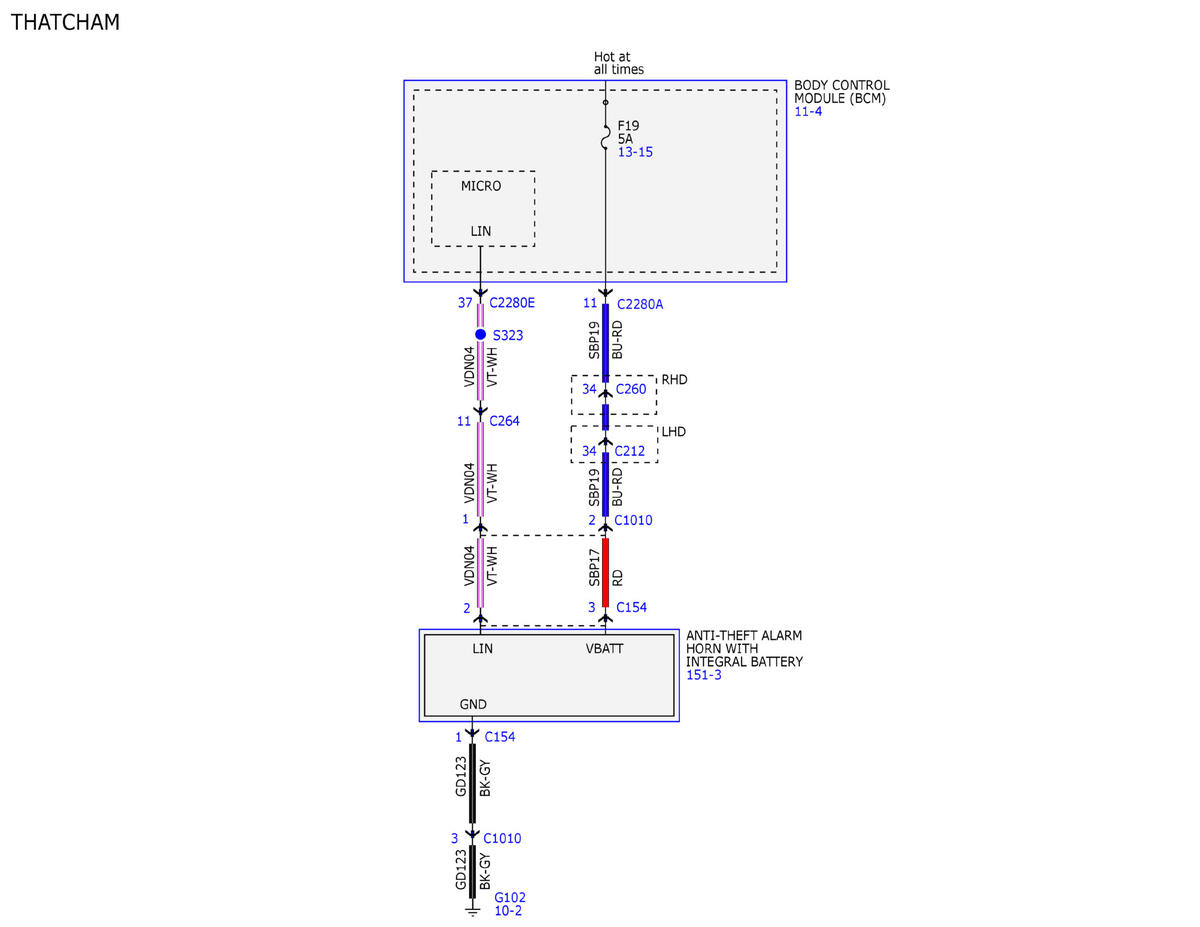

Fig 3: Remote Keyless Entry and Alarm Wiring Diagrams (3 Of 15)
Courtesy of FORD MOTOR COMPANY

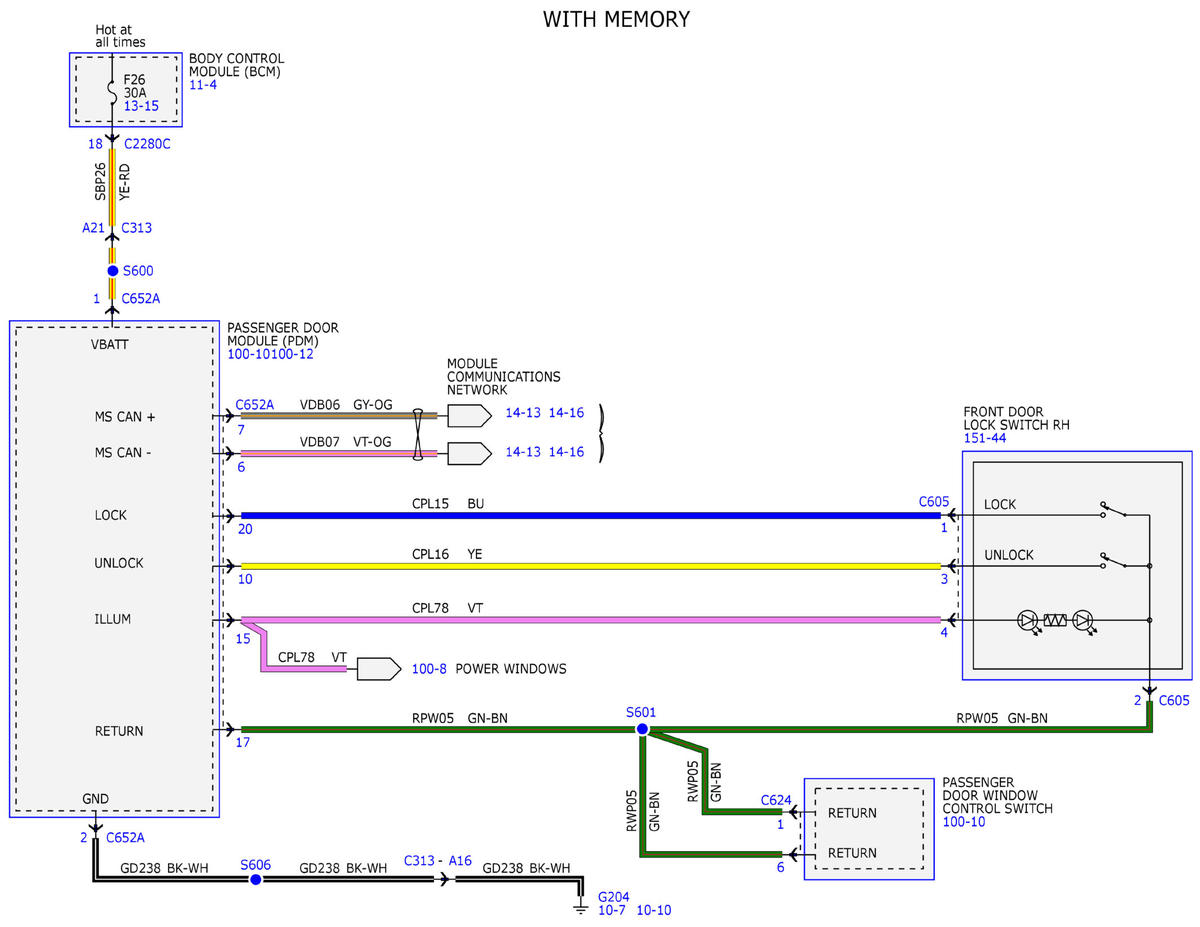

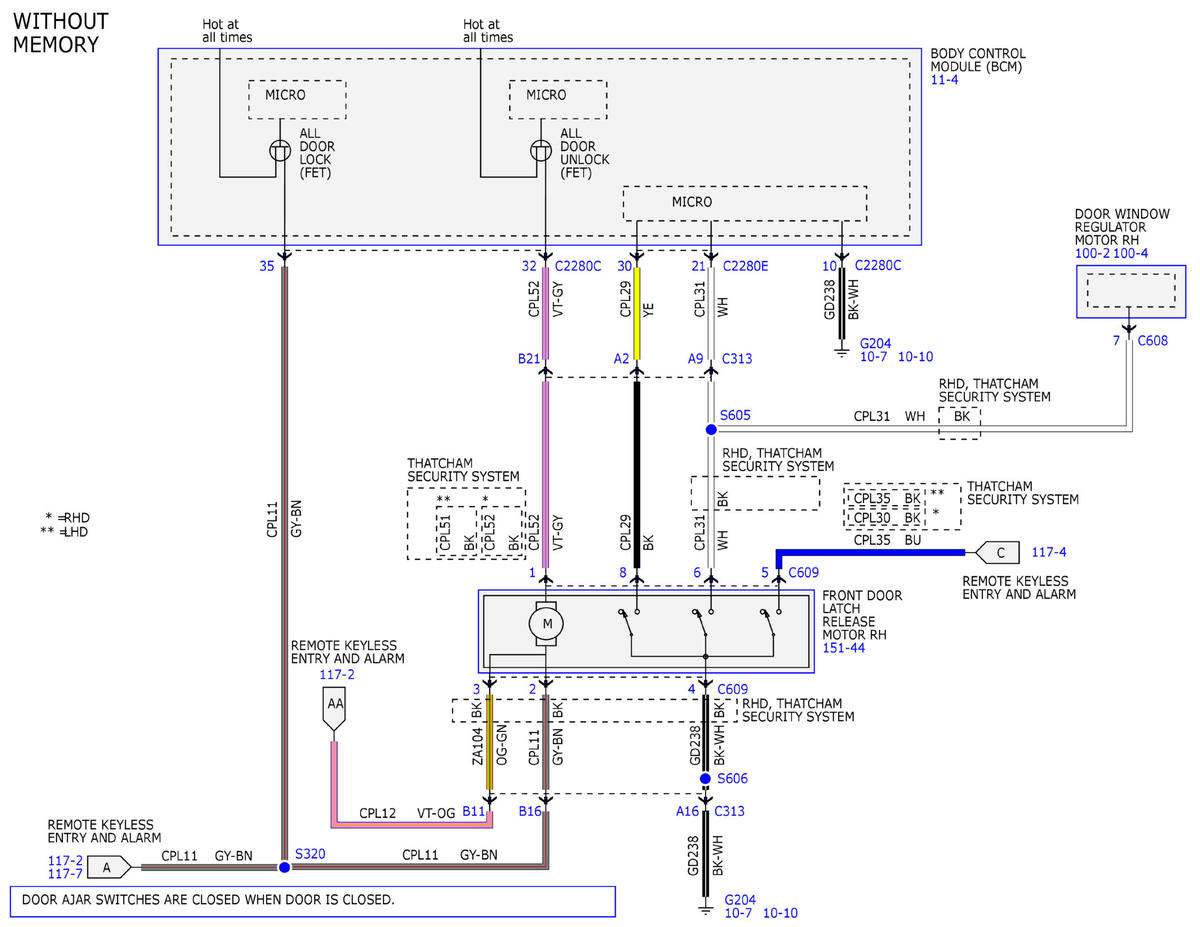

Fig 4: Remote Keyless Entry and Alarm Wiring Diagrams (4 Of 15)
Courtesy of FORD MOTOR COMPANY

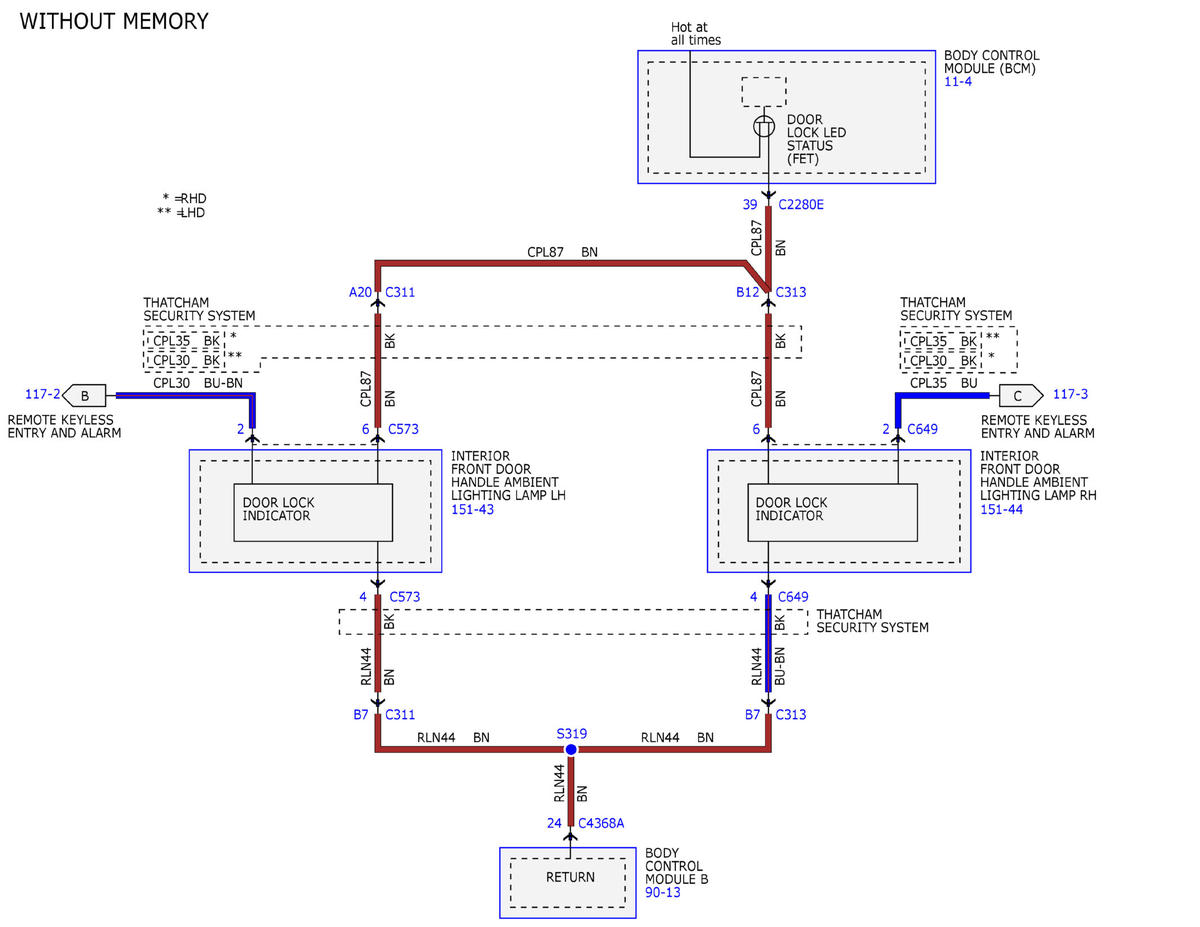

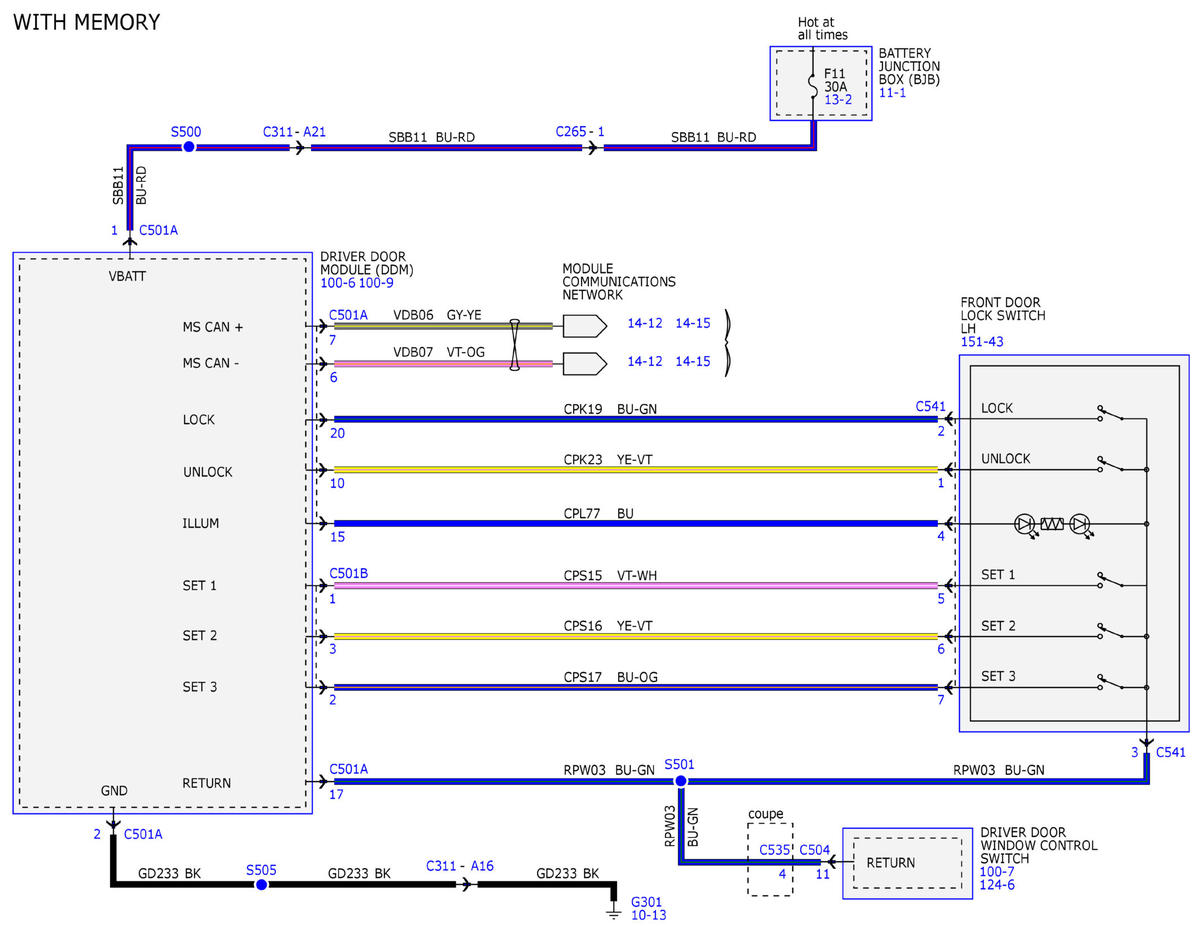

Fig 5: Remote Keyless Entry and Alarm Wiring Diagrams (5 Of 15)
Courtesy of FORD MOTOR COMPANY

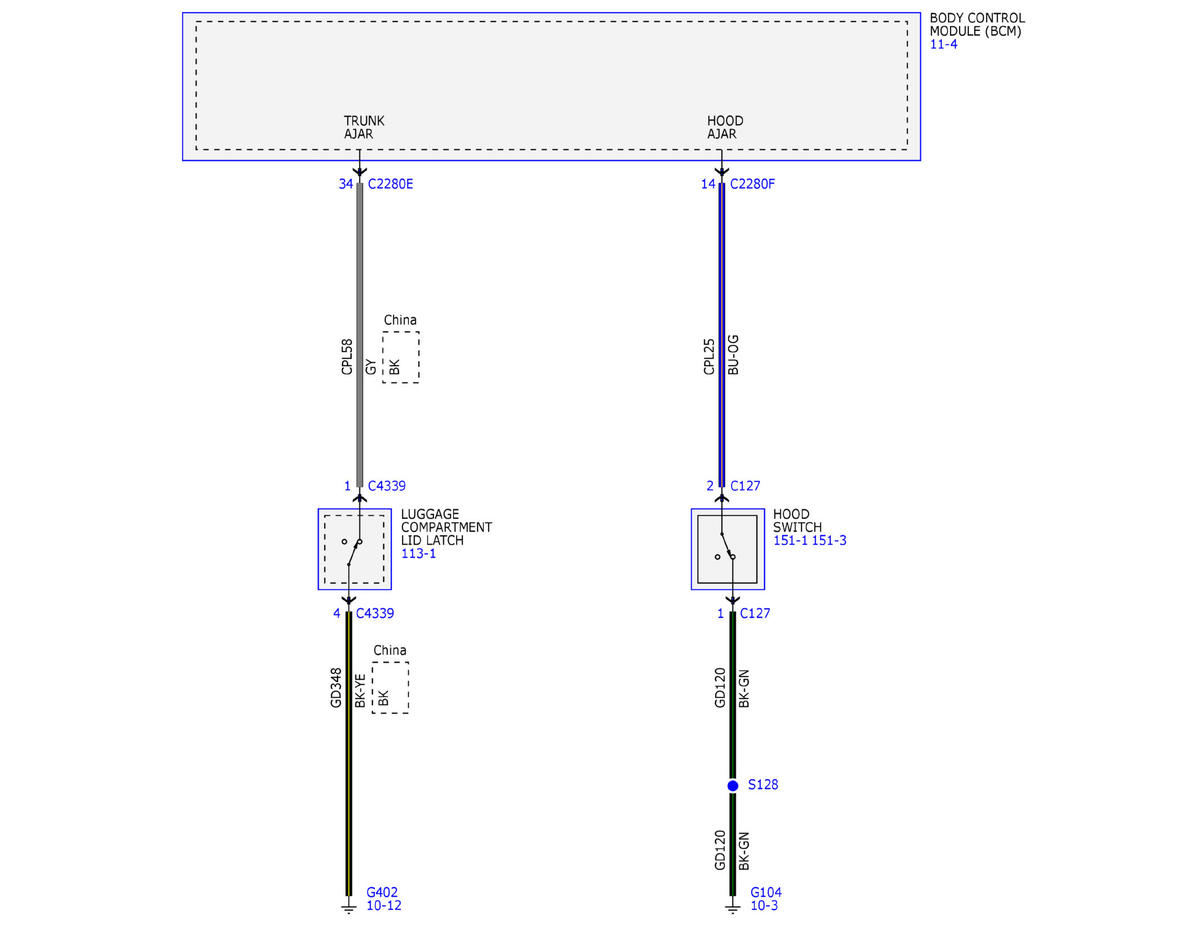

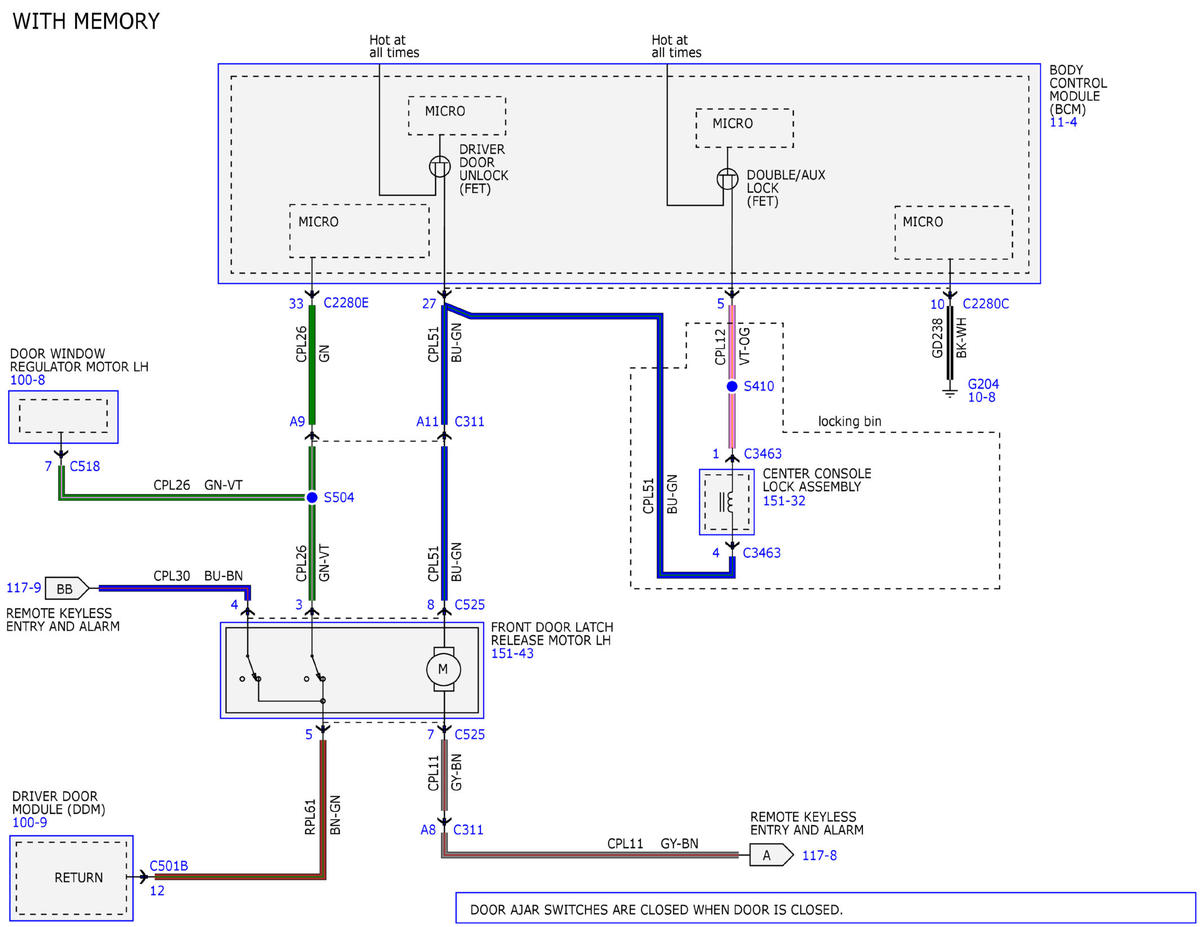

Fig 6: Remote Keyless Entry and Alarm Wiring Diagrams (6 Of 15)
Courtesy of FORD MOTOR COMPANY

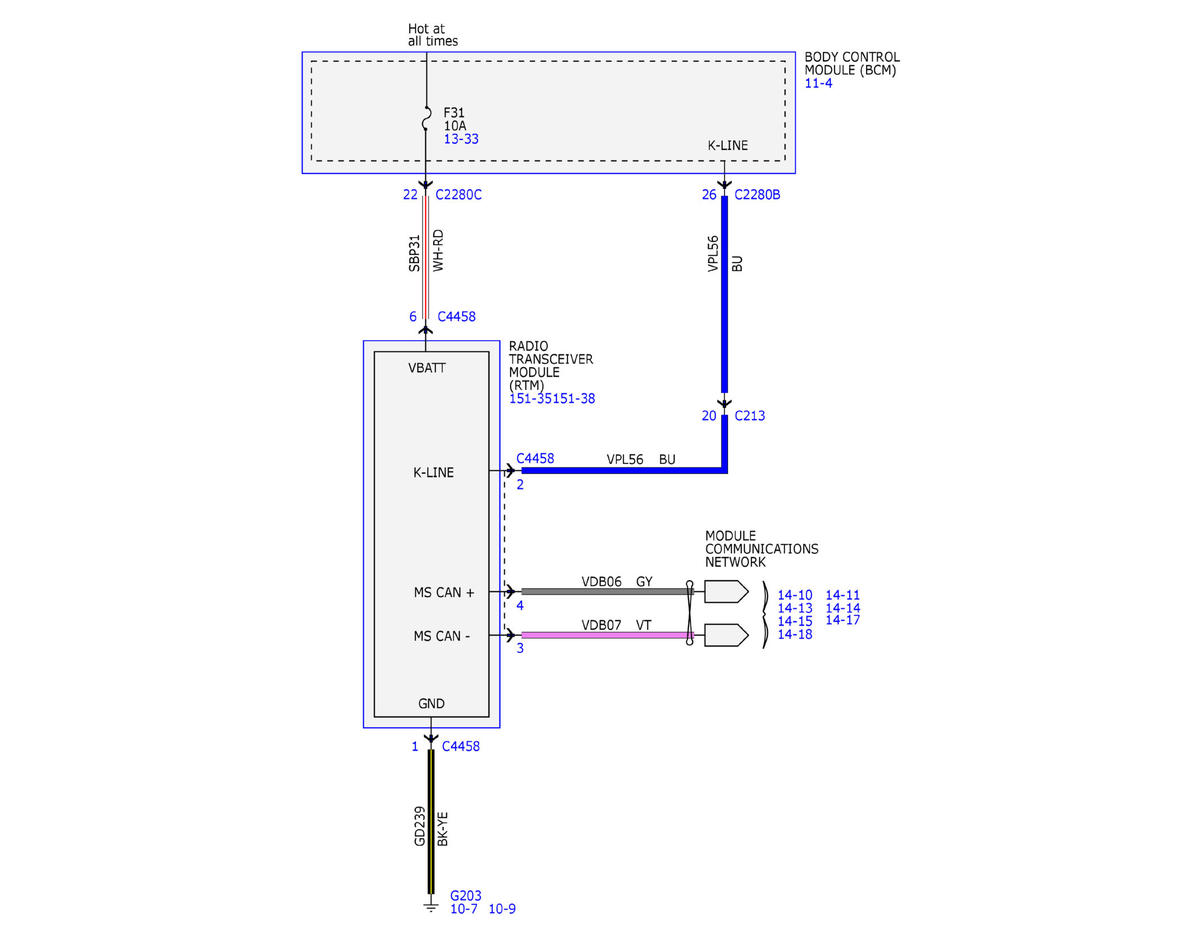

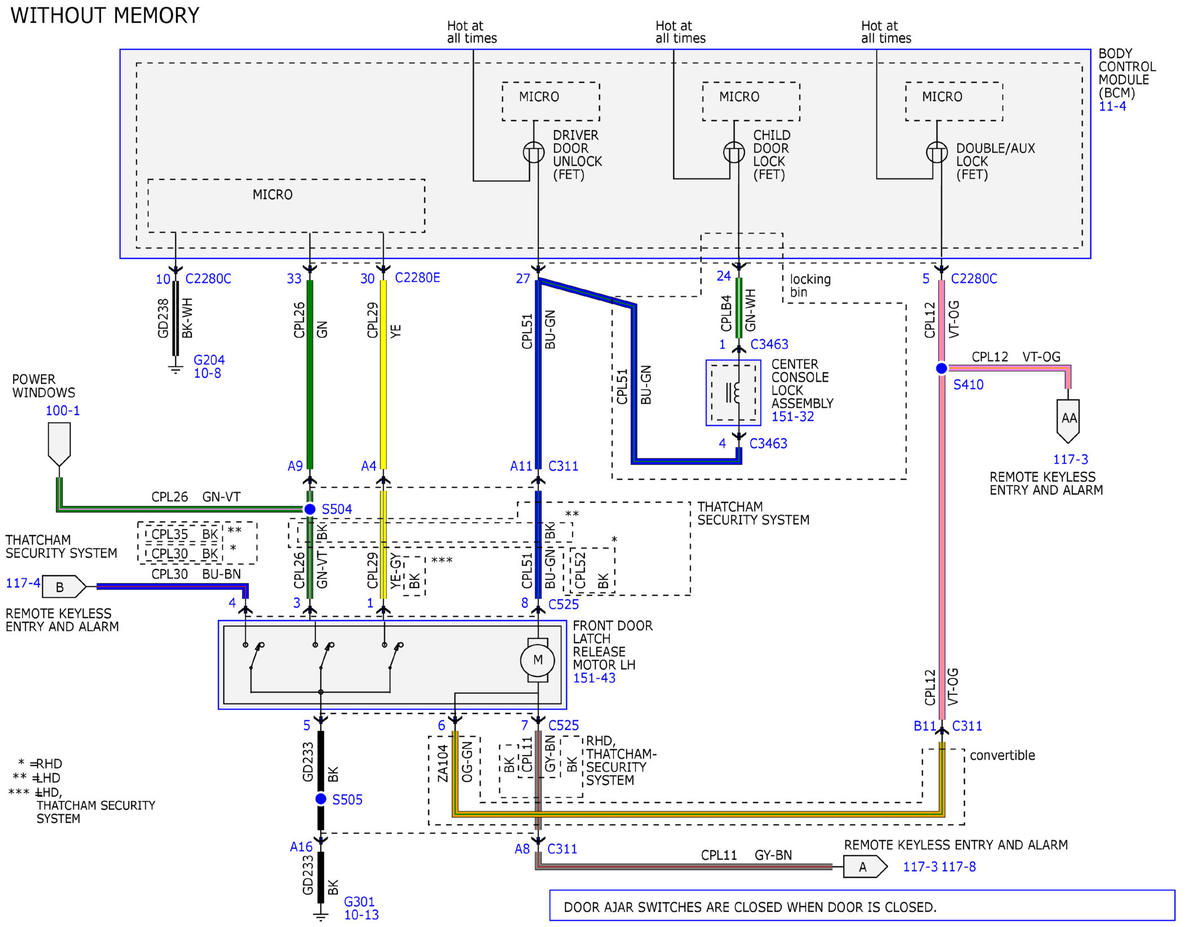

Fig 7: Remote Keyless Entry and Alarm Wiring Diagrams (7 Of 15)
Courtesy of FORD MOTOR COMPANY

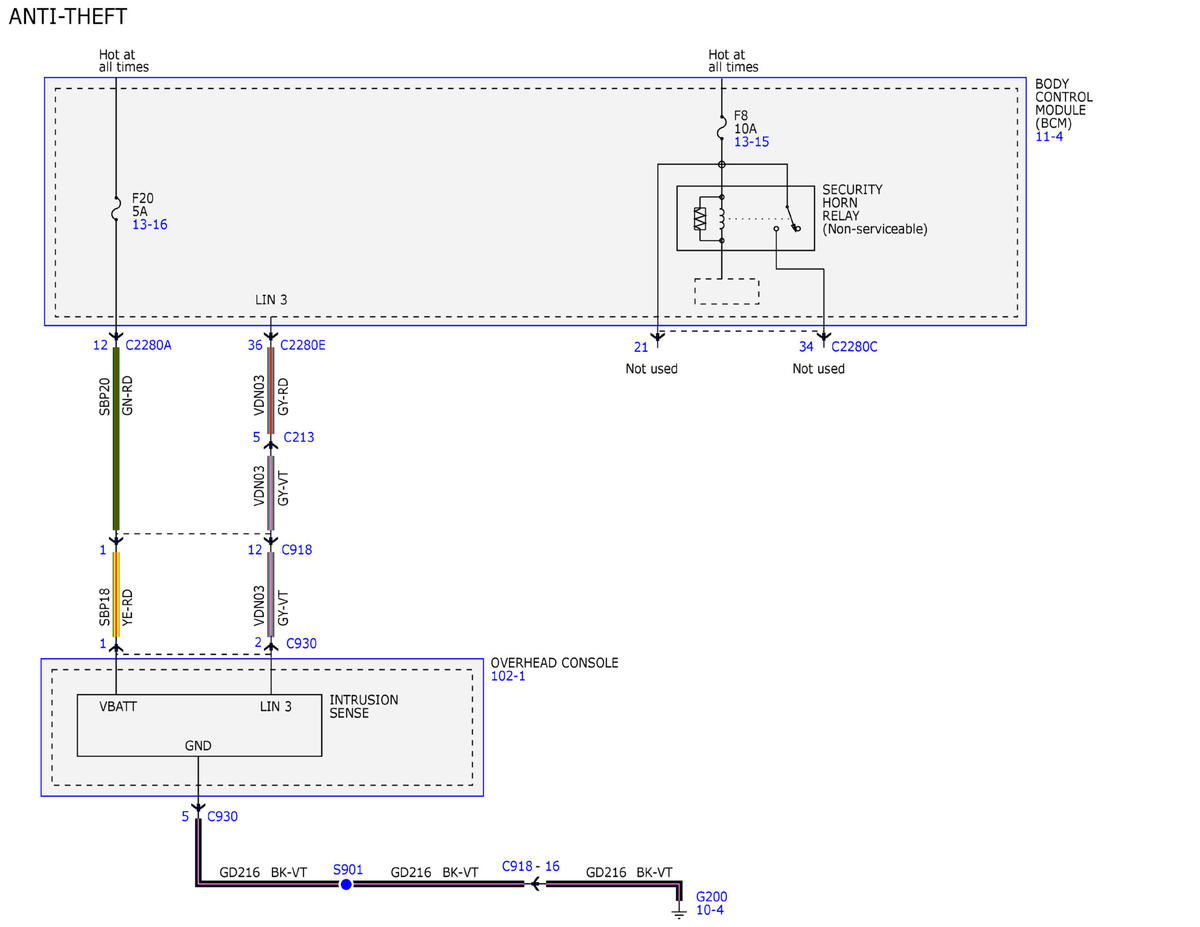

Fig 8: Remote Keyless Entry and Alarm Wiring Diagrams (8 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 9: Remote Keyless Entry and Alarm Wiring Diagrams (9 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 10: Remote Keyless Entry and Alarm Wiring Diagrams (10 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 11: Remote Keyless Entry and Alarm Wiring Diagrams (11 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 12: Remote Keyless Entry and Alarm Wiring Diagrams (12 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 13: Remote Keyless Entry and Alarm Wiring Diagrams (13 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 14: Remote Keyless Entry and Alarm Wiring Diagrams (14 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 15: Remote Keyless Entry and Alarm Wiring Diagrams (15 Of 15)
