WARNING: This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

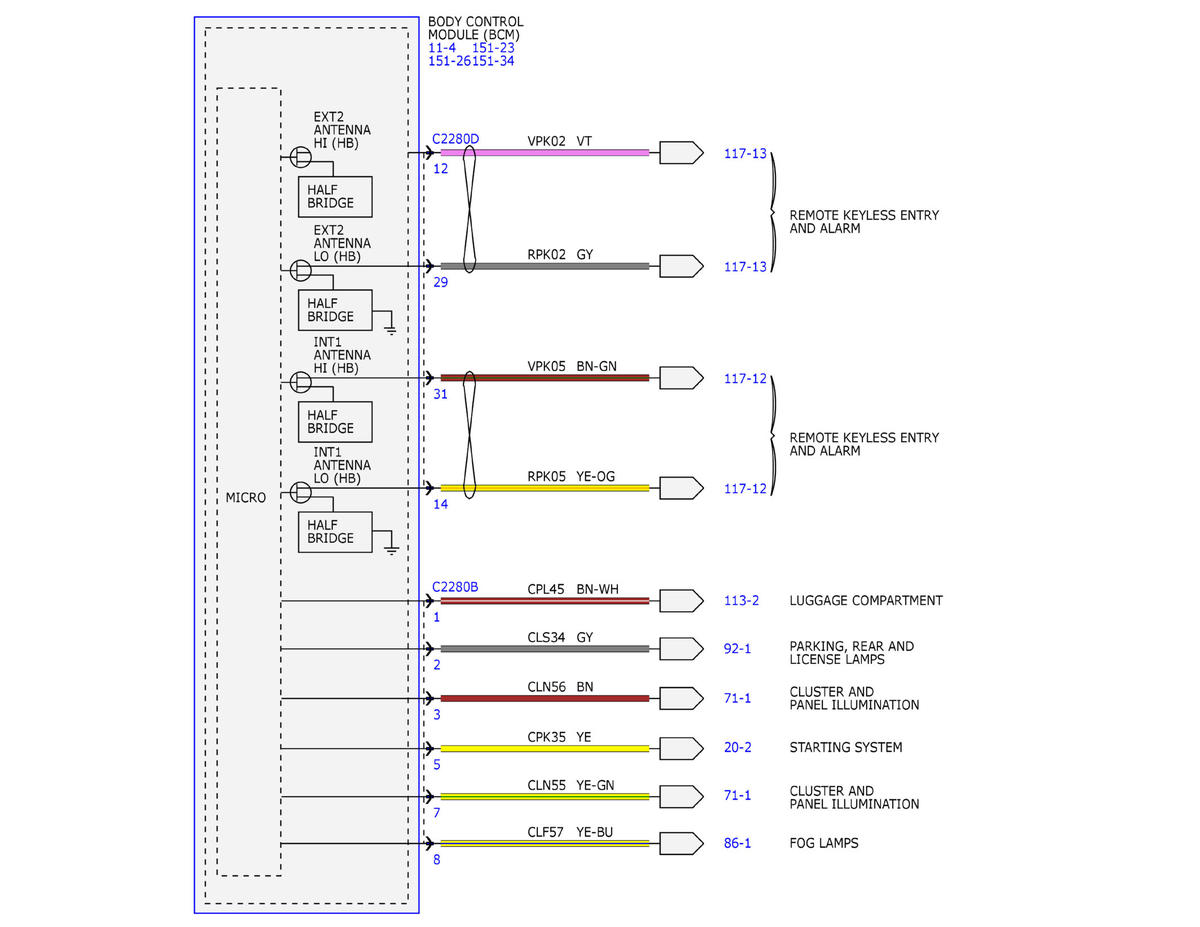

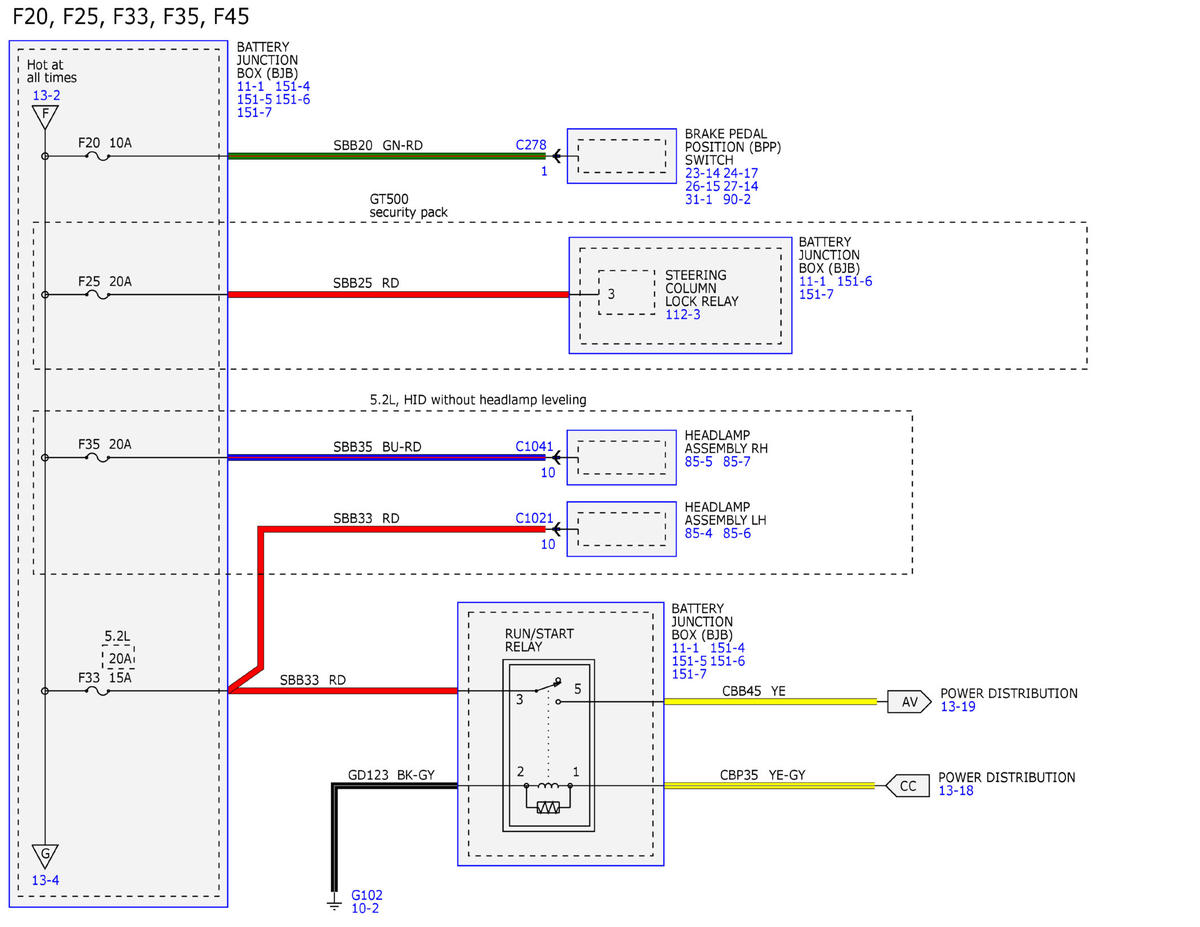

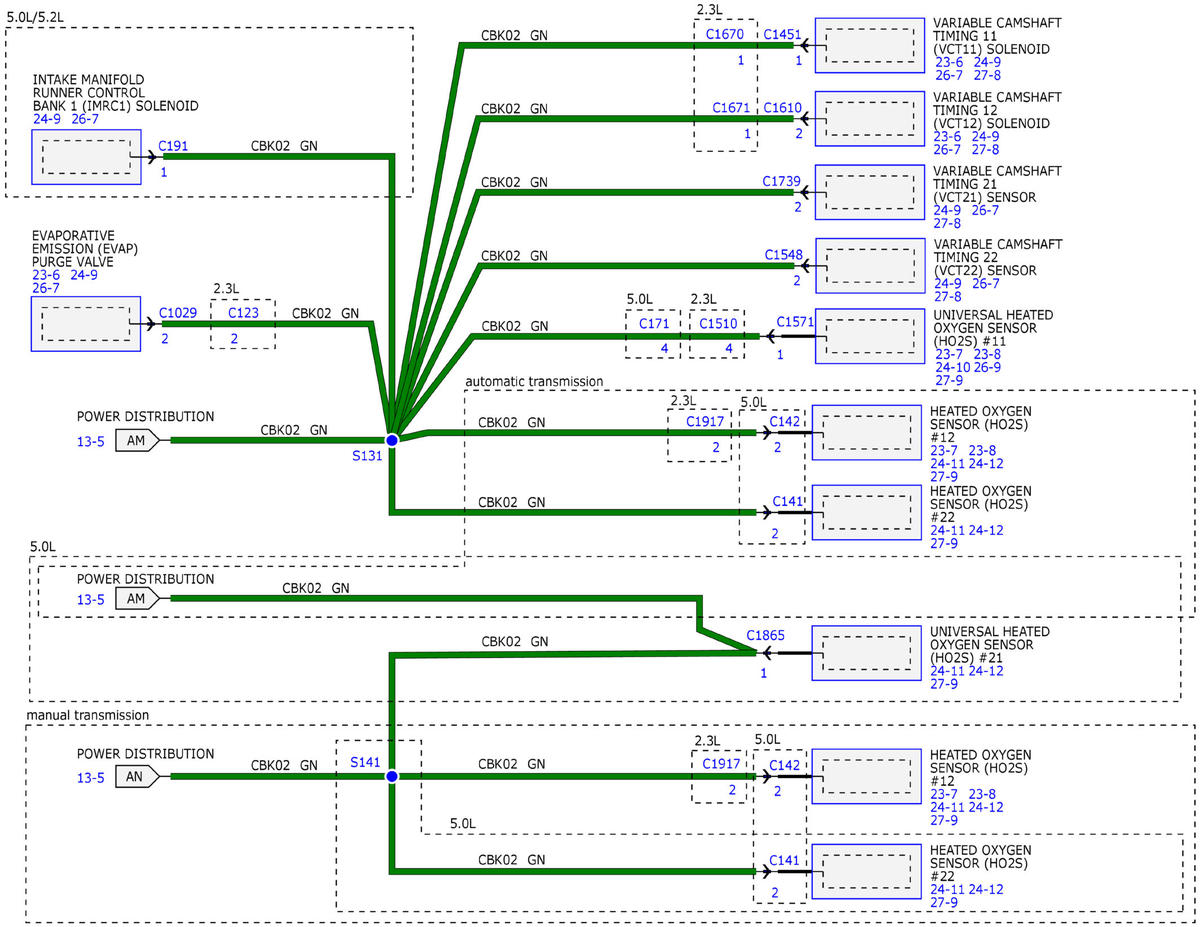

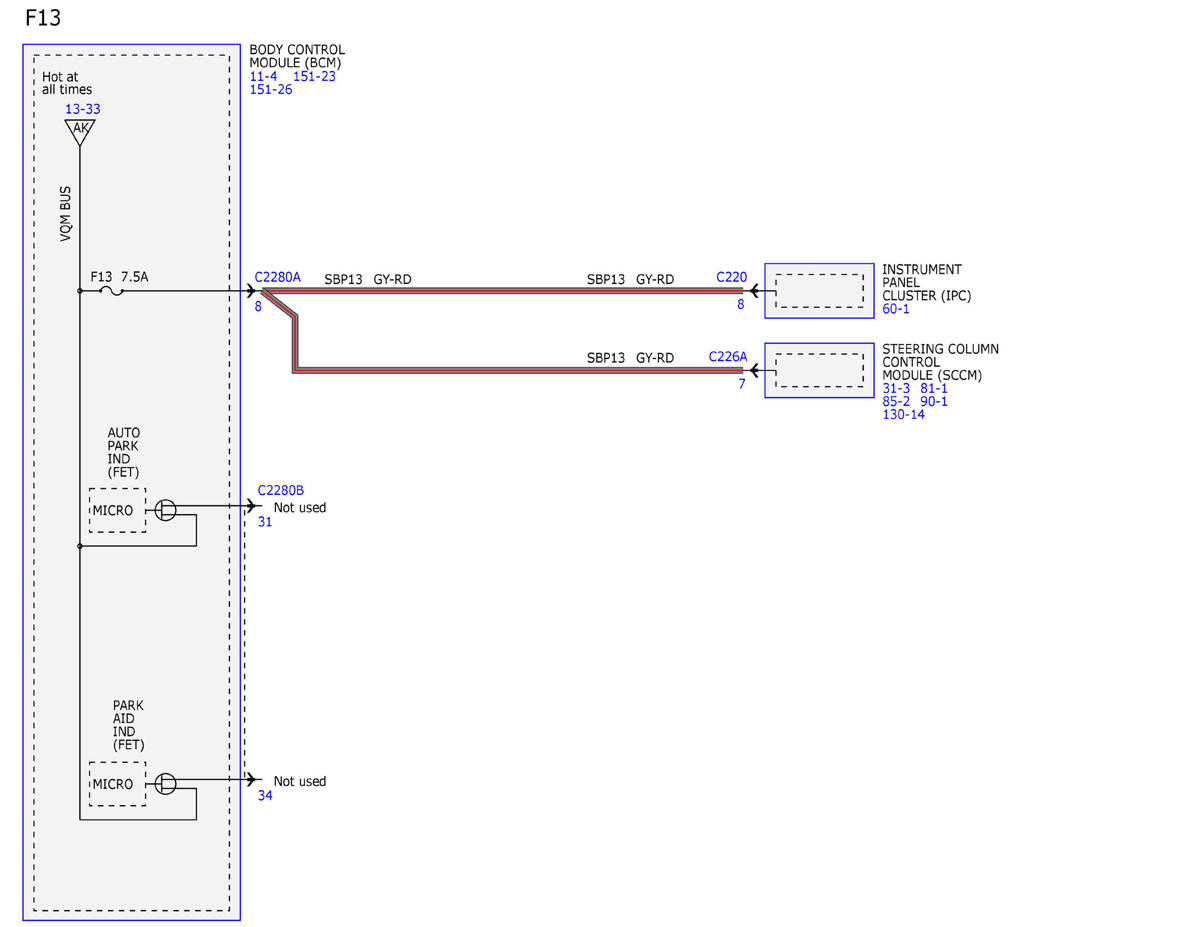

Fig 1: Power Distribution Wiring Diagrams (1 Of 39)
Courtesy of FORD MOTOR COMPANY

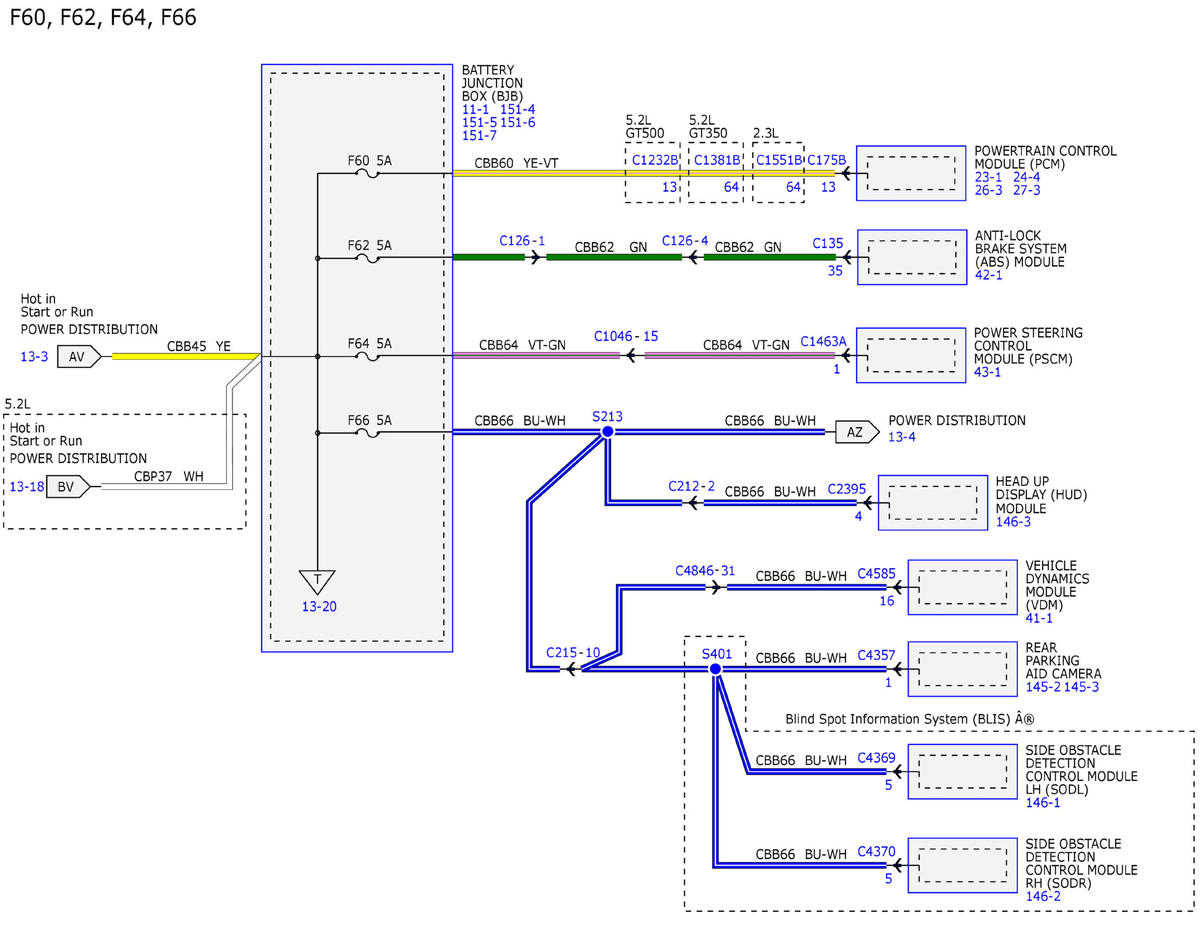

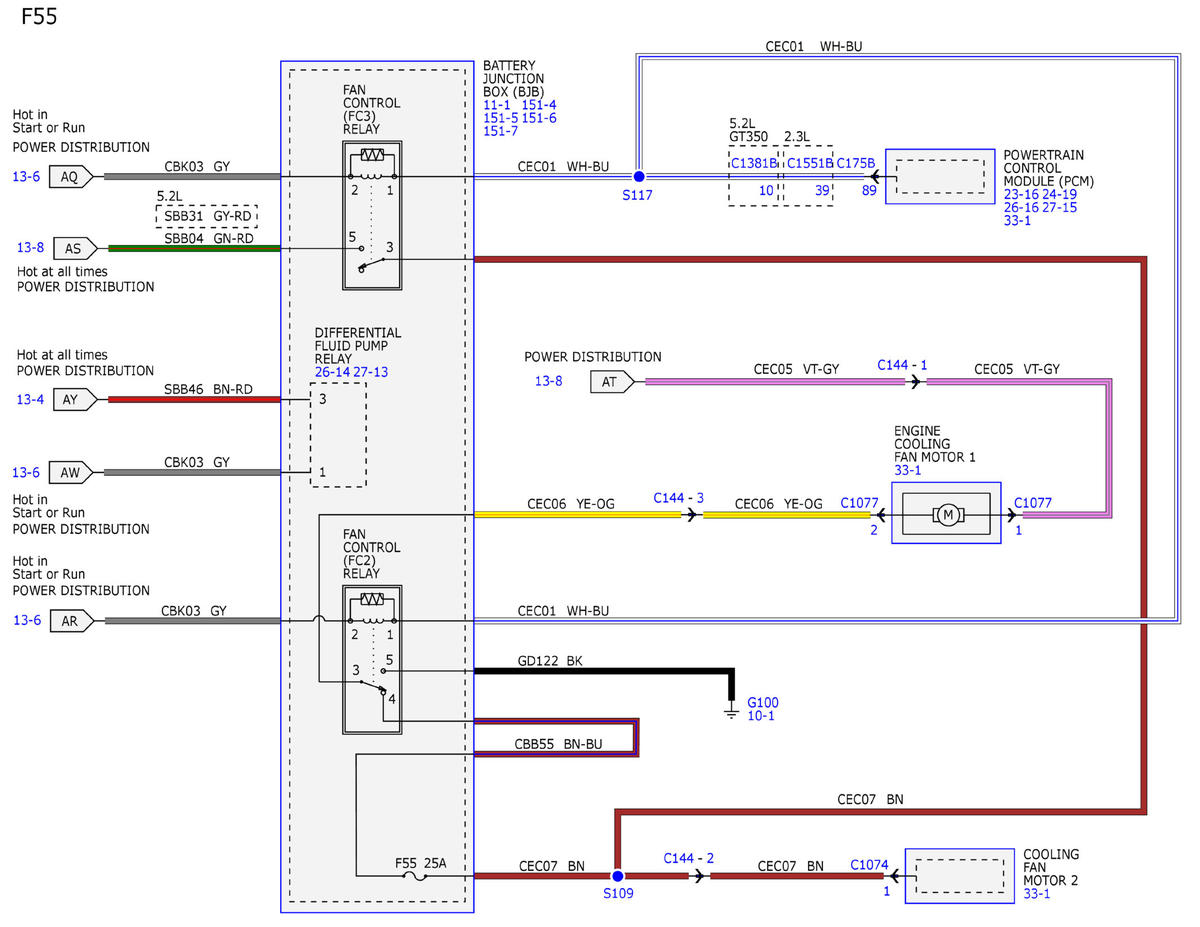

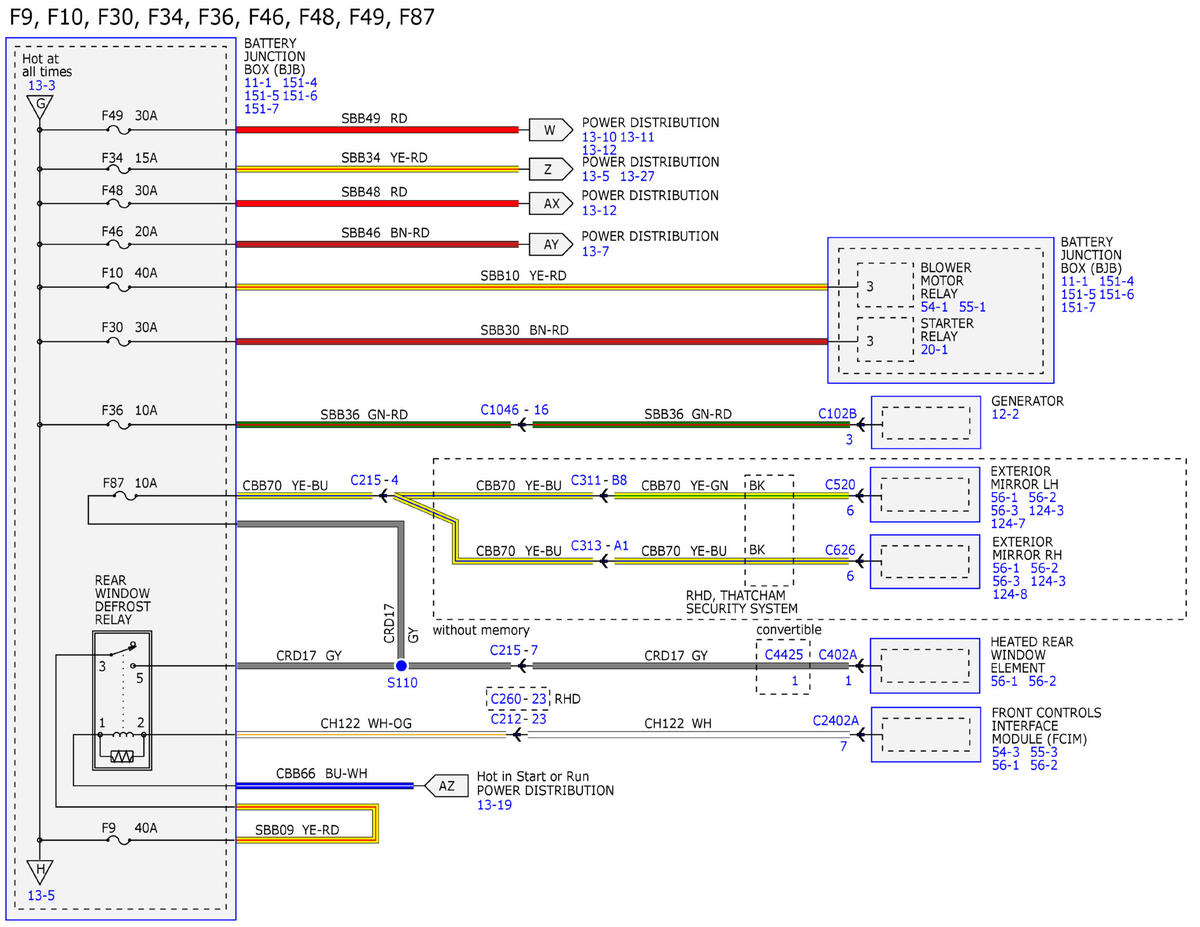

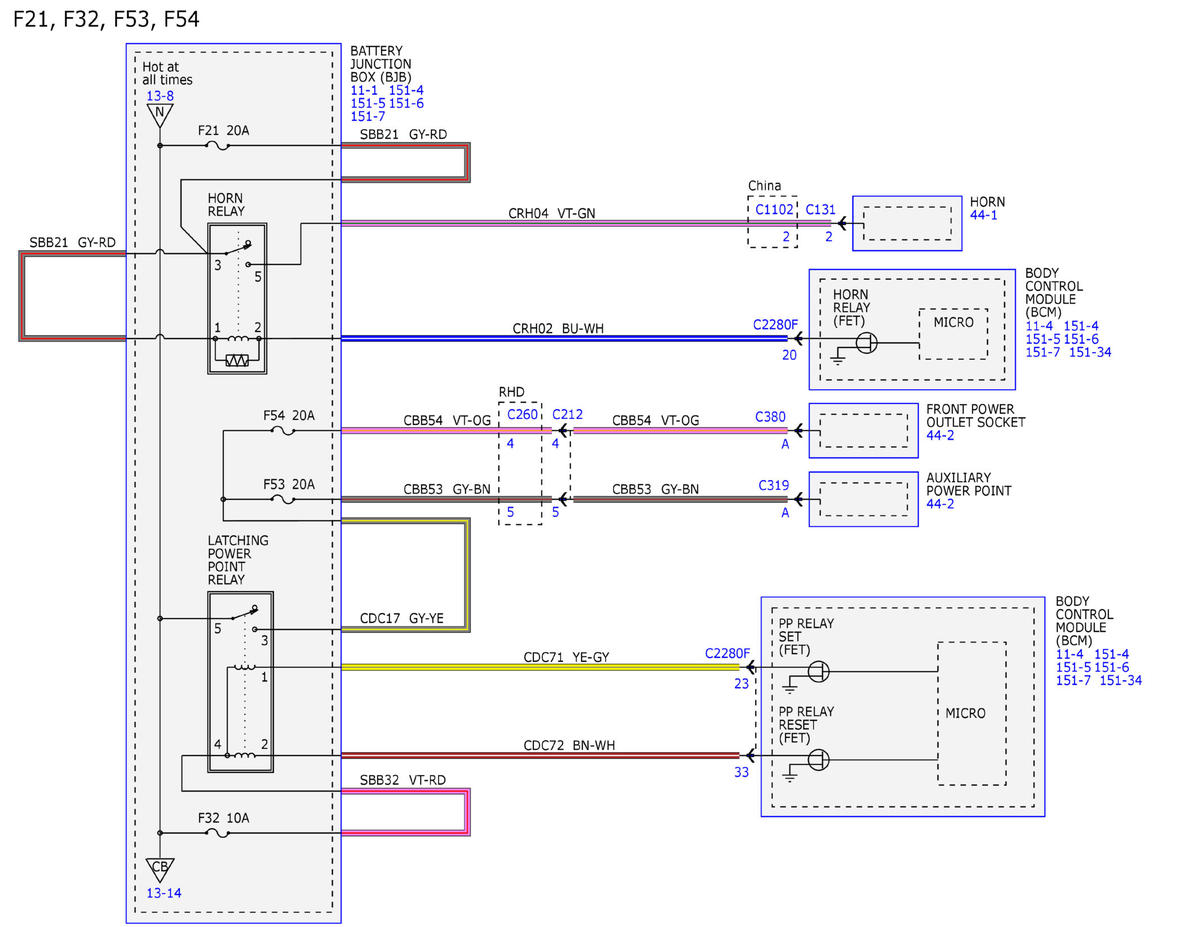

Fig 2: Power Distribution Wiring Diagrams (2 Of 39)
Courtesy of FORD MOTOR COMPANY

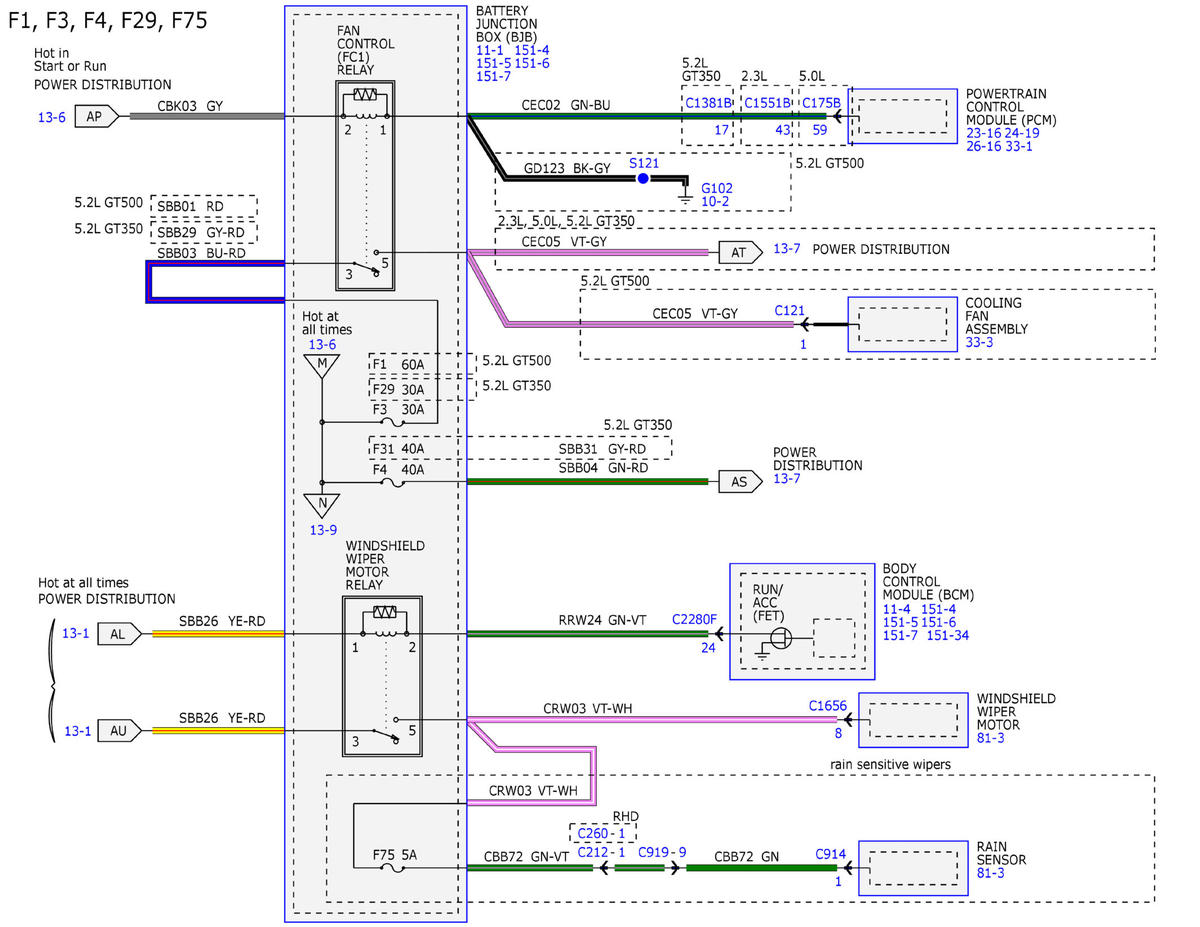

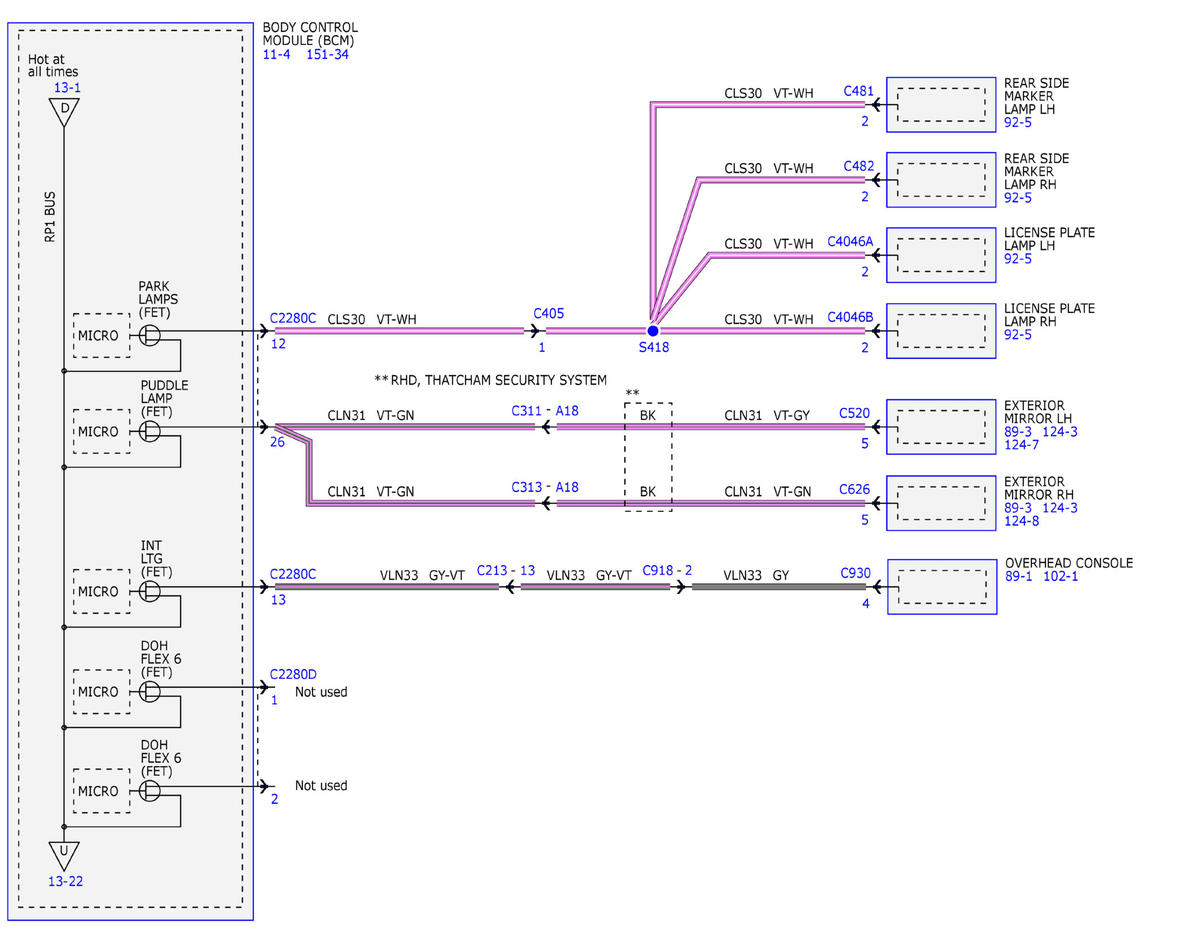

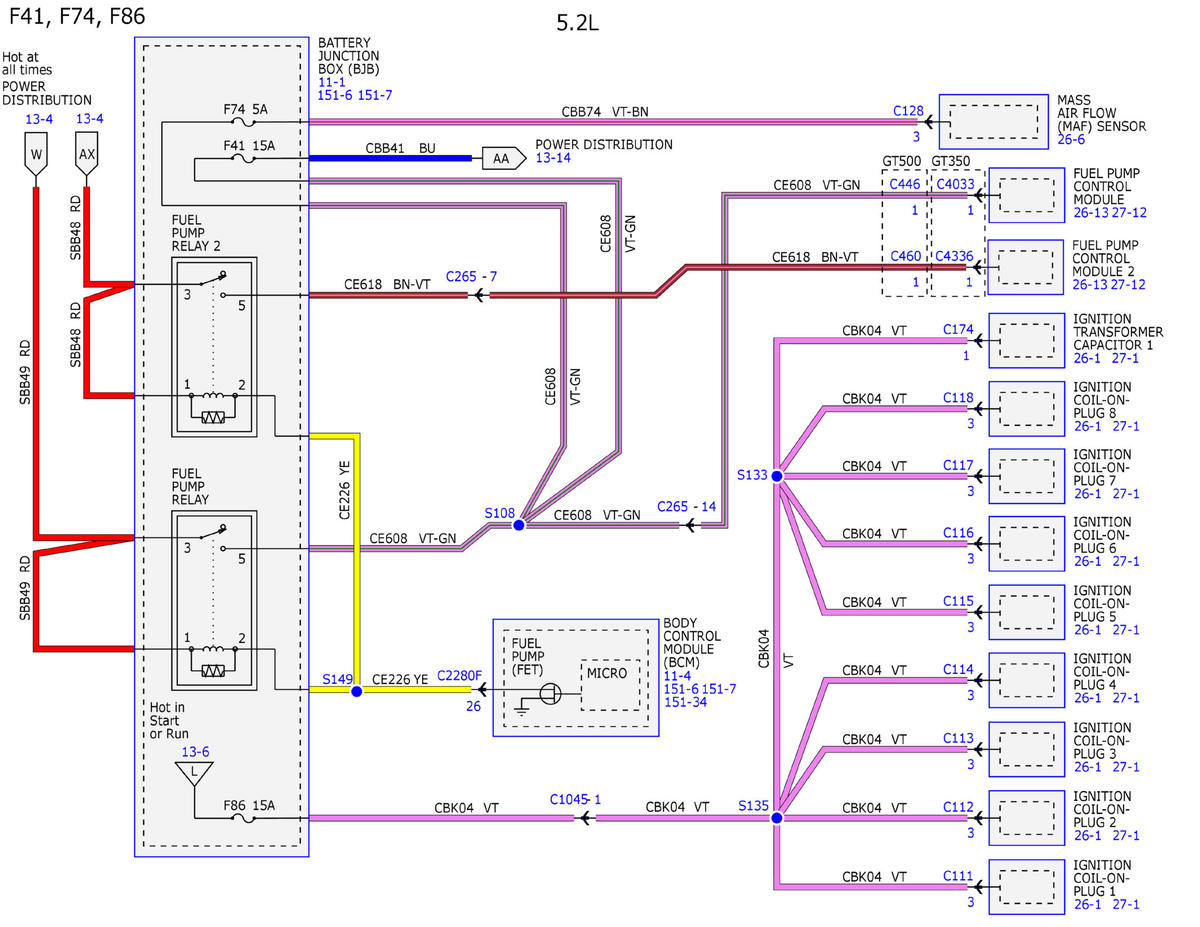

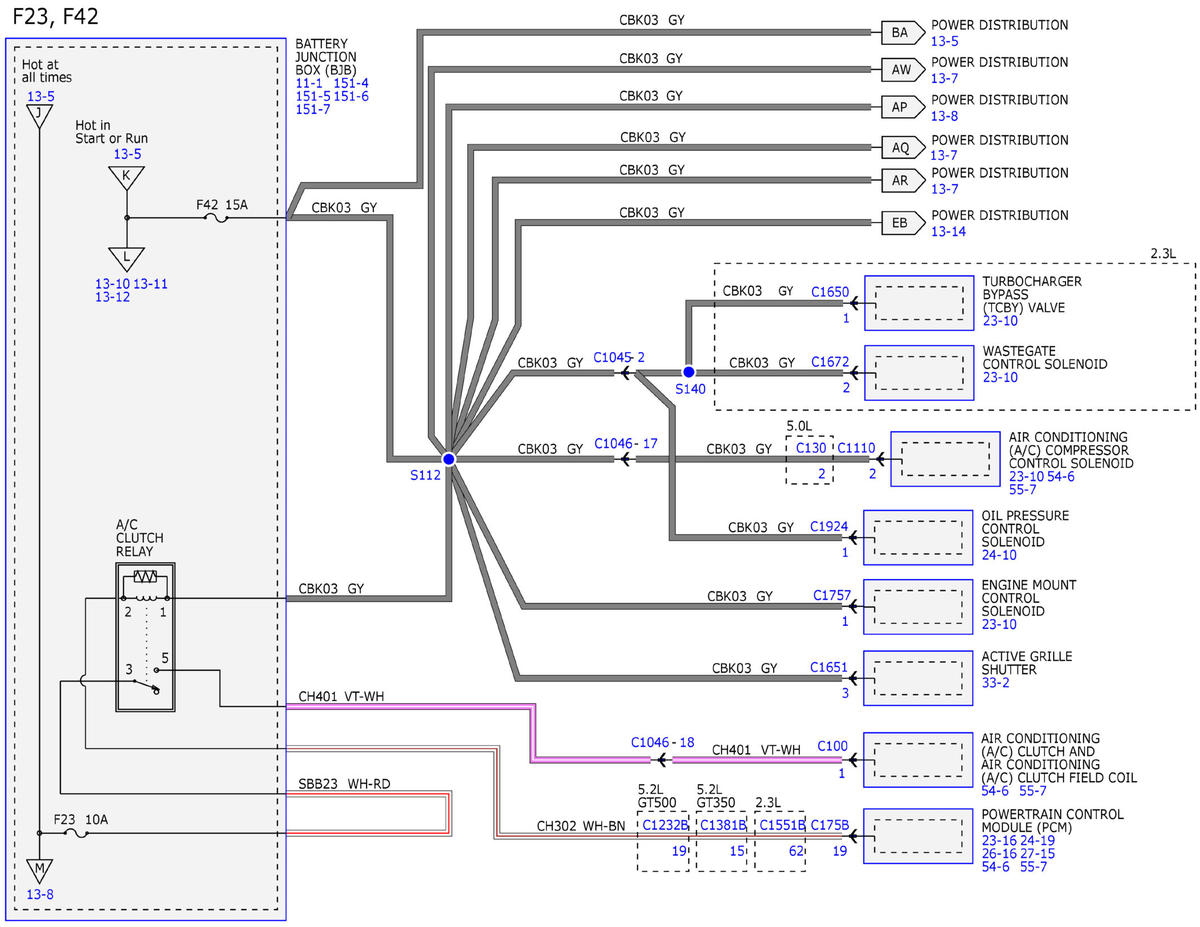

Fig 3: Power Distribution Wiring Diagrams (3 Of 39)
Courtesy of FORD MOTOR COMPANY

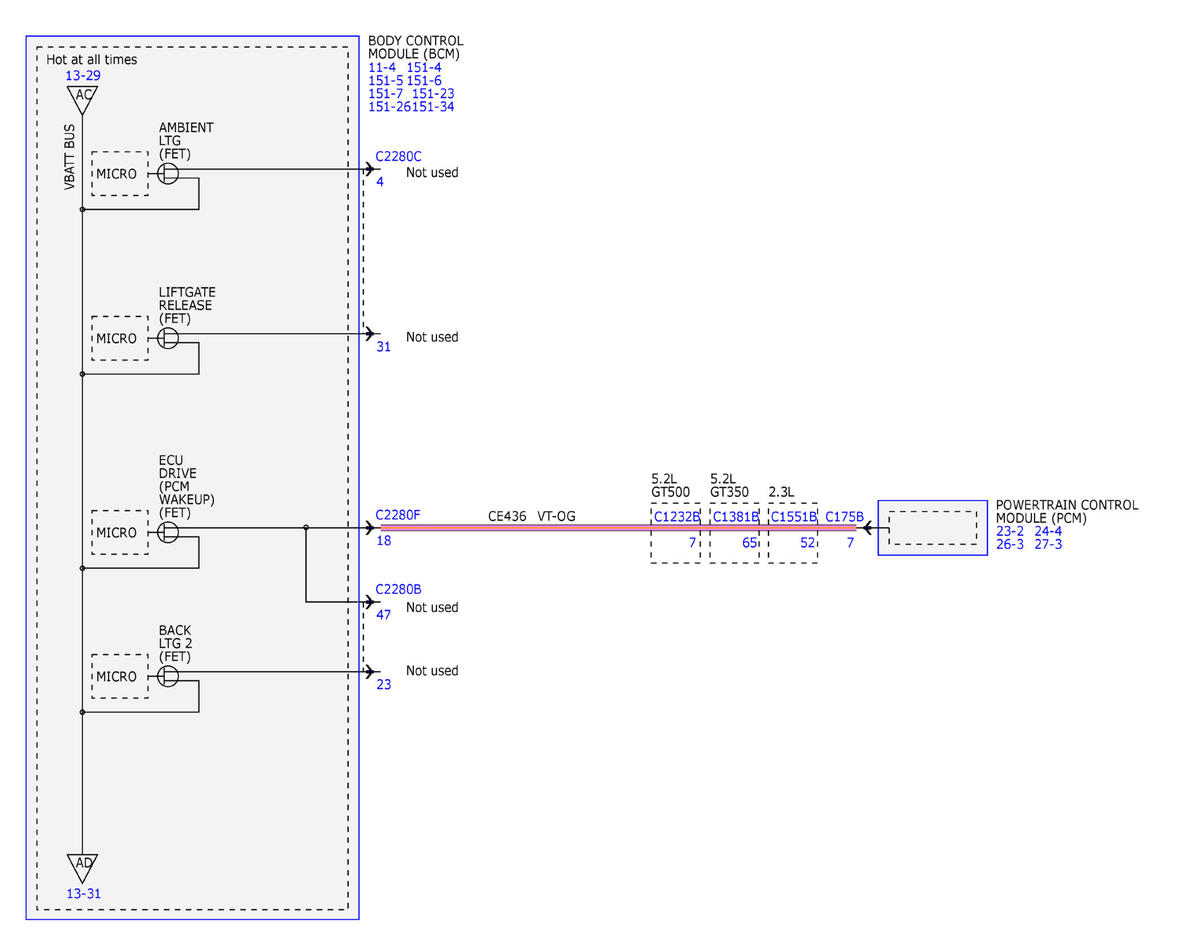

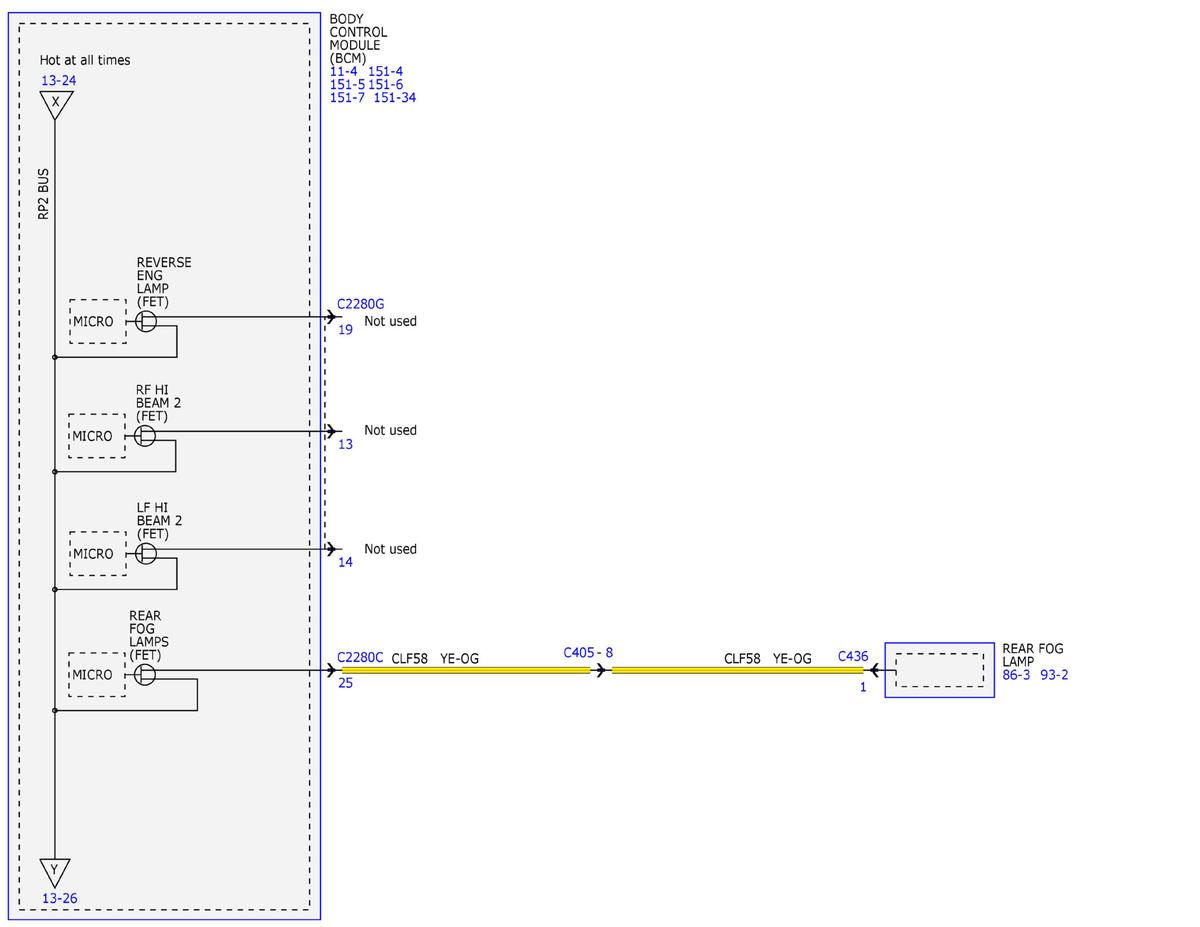

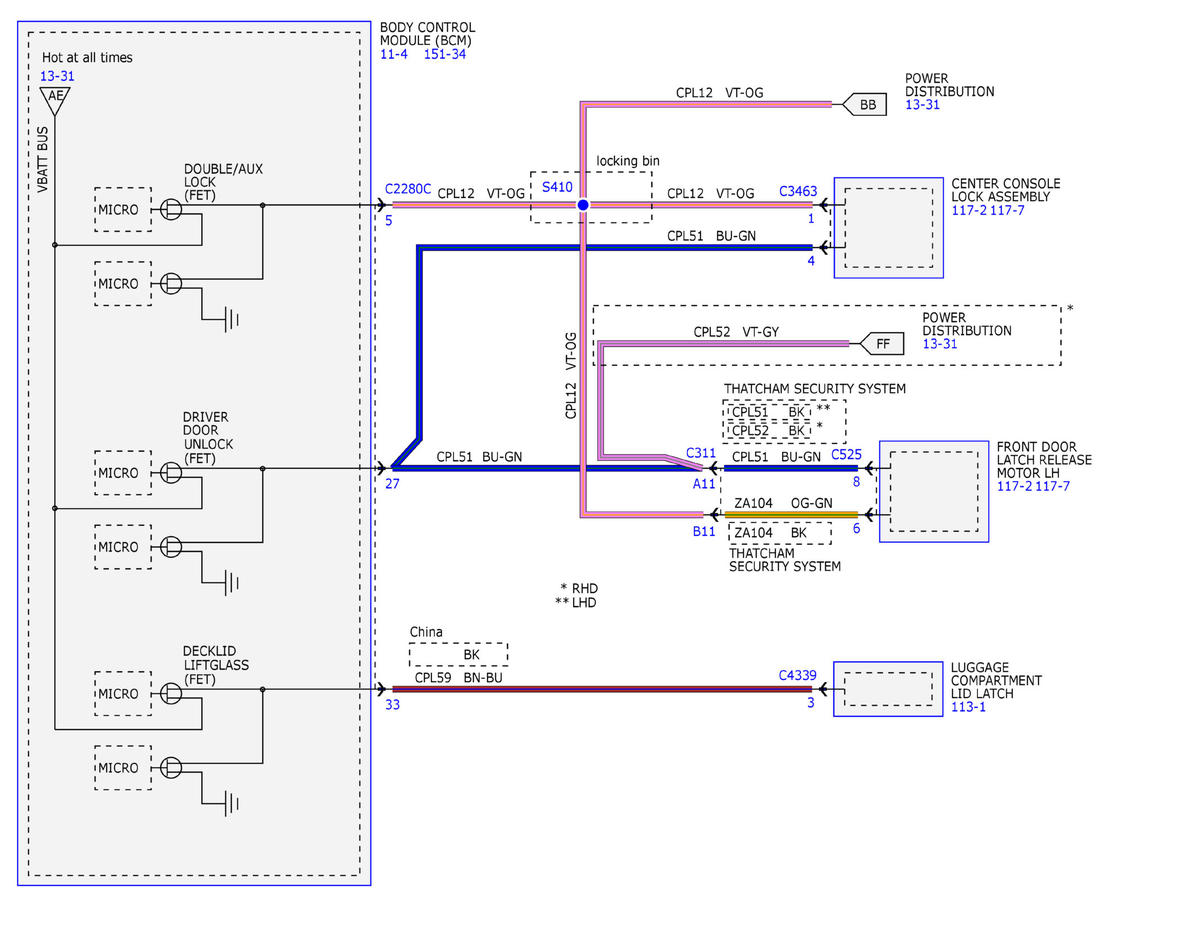

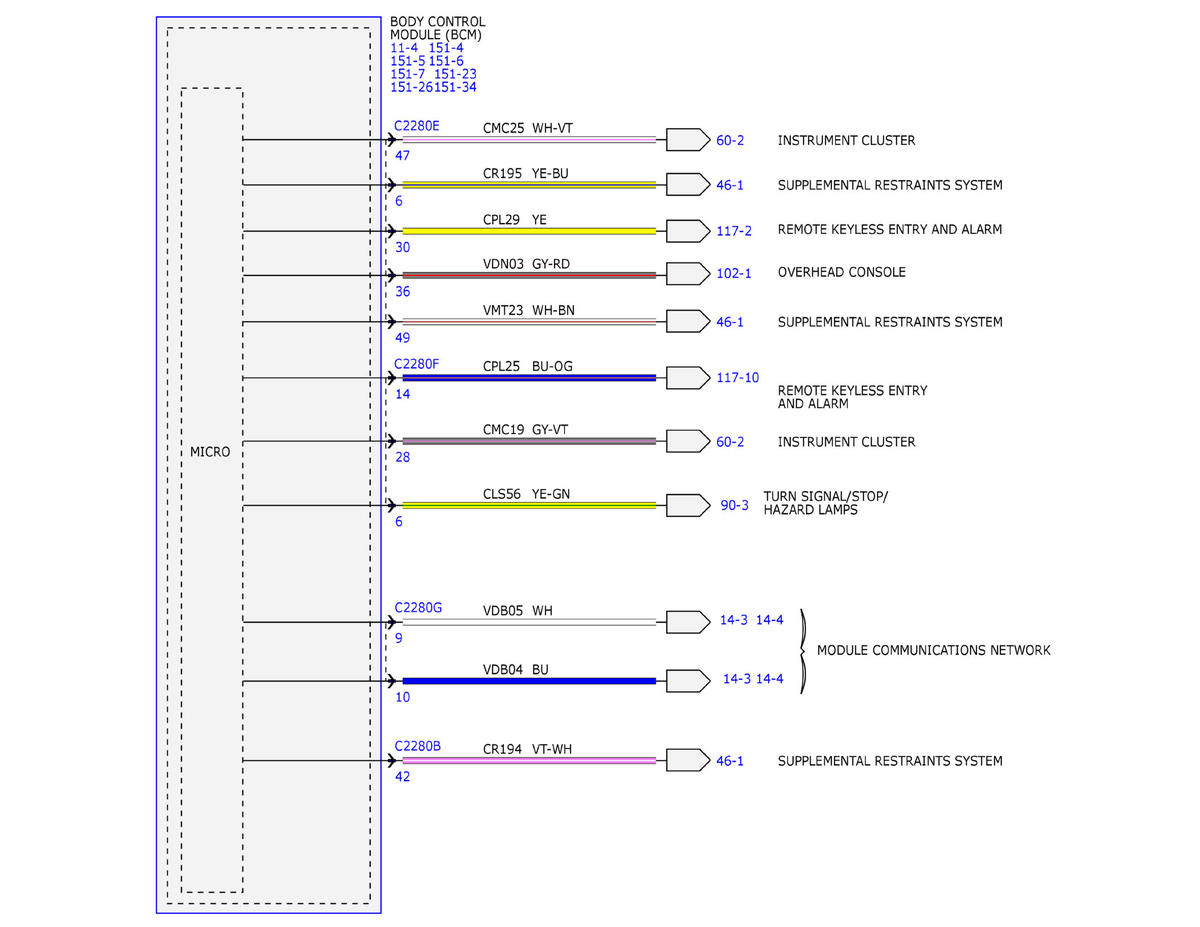

Fig 4: Power Distribution Wiring Diagrams (4 Of 39)
Courtesy of FORD MOTOR COMPANY

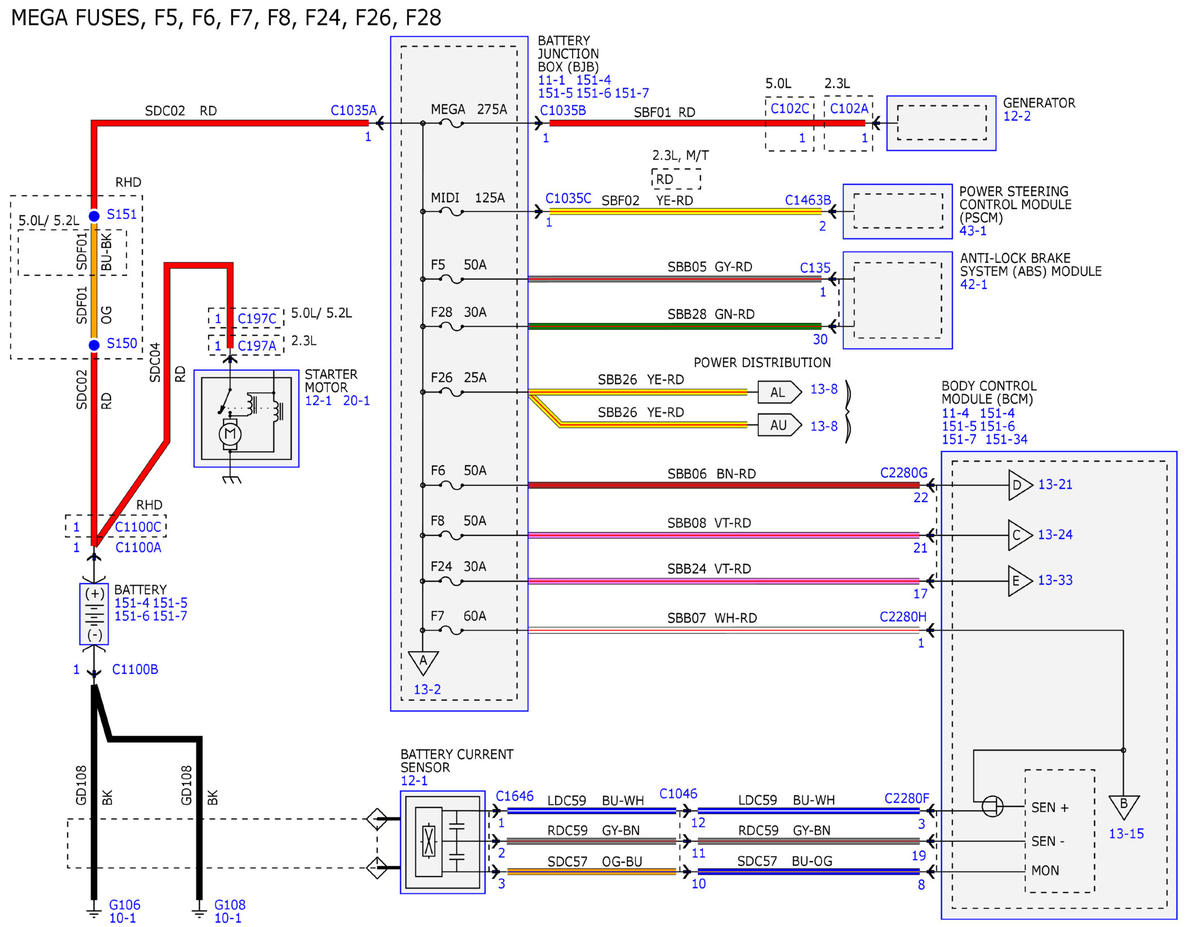

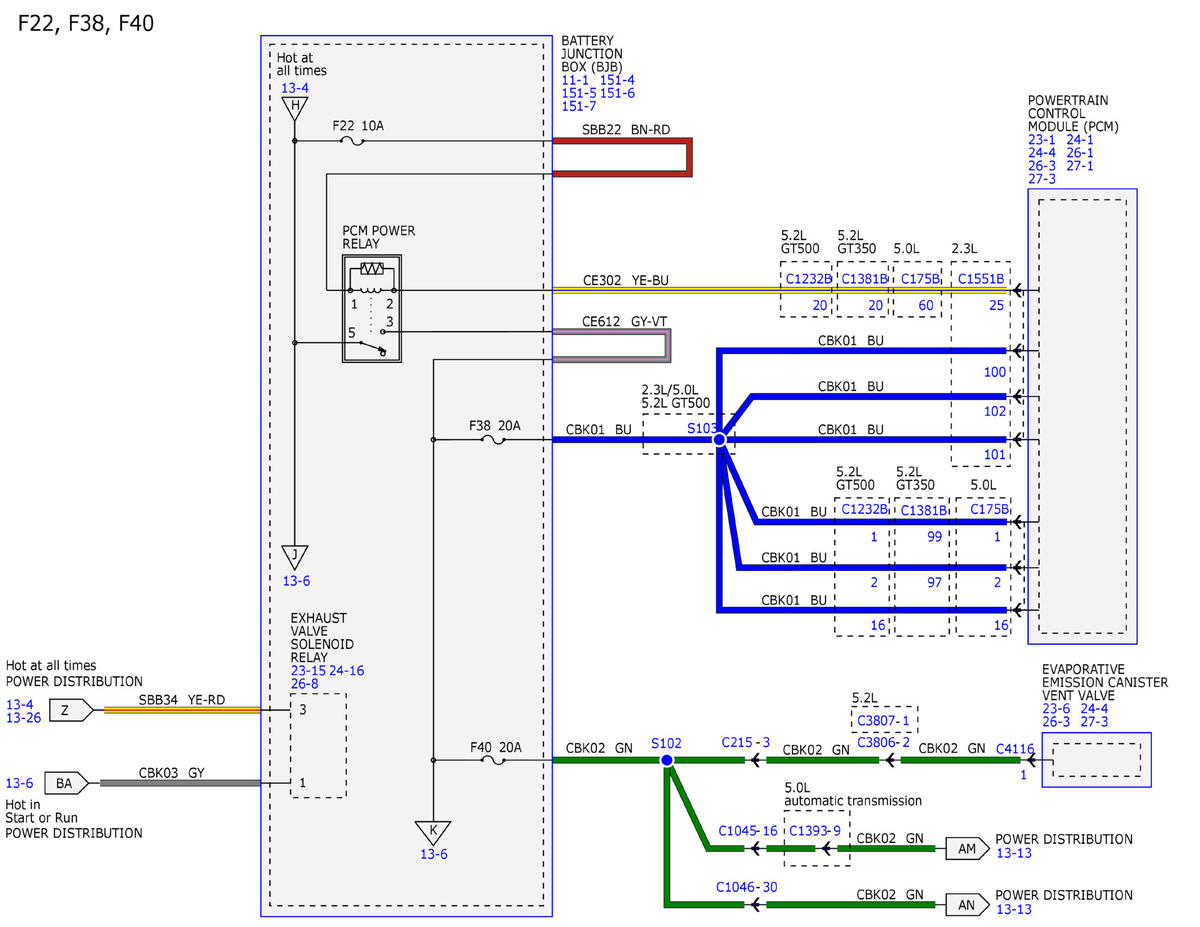

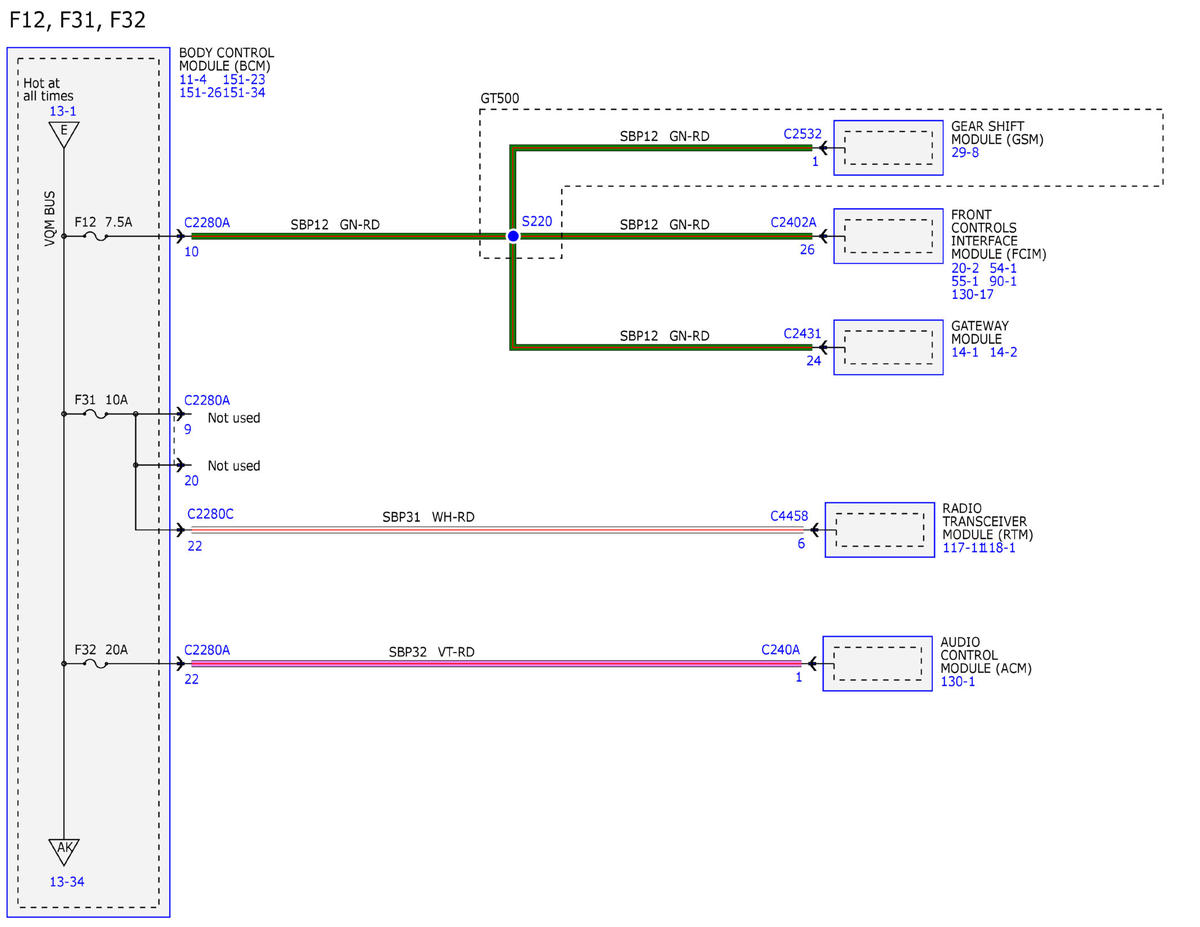

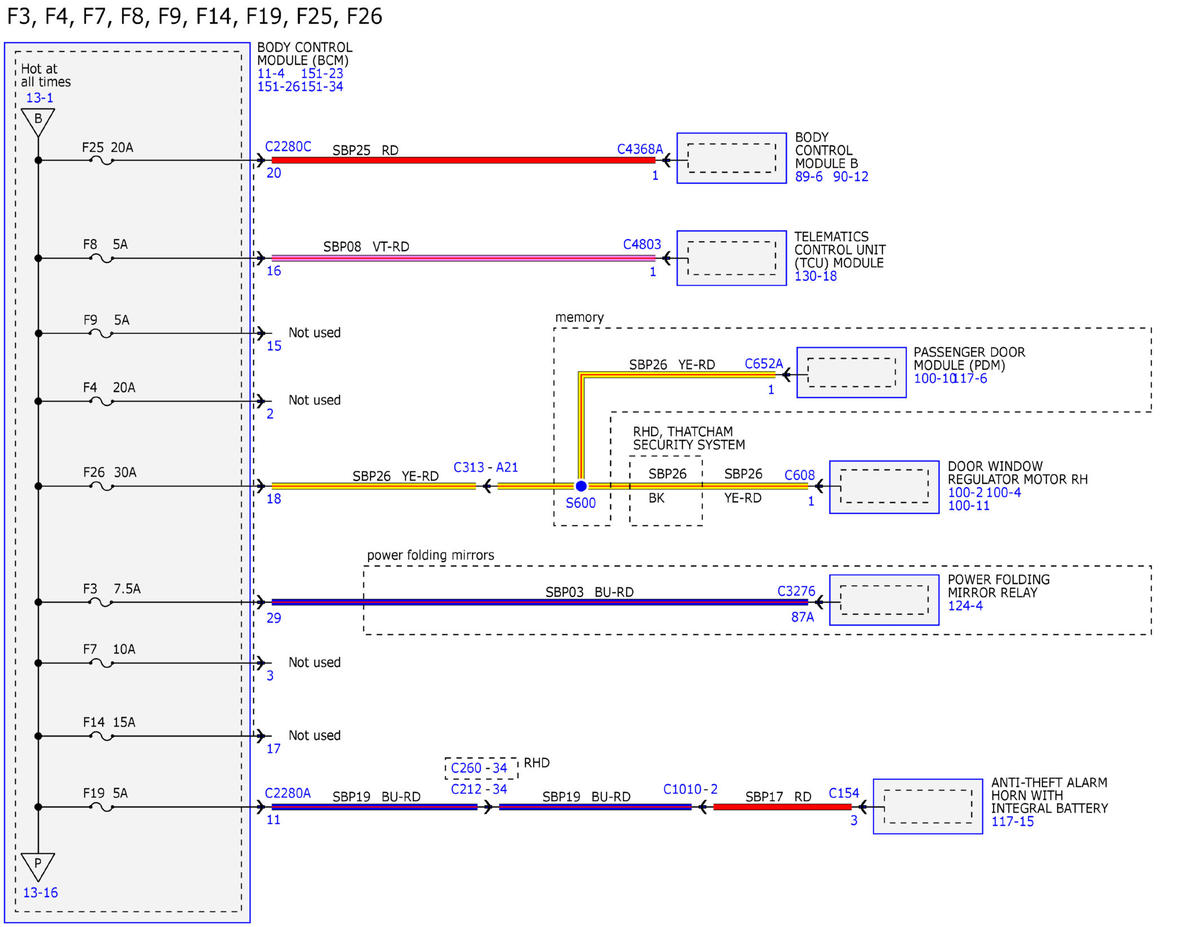

Fig 5: Power Distribution Wiring Diagrams (5 Of 39)
Courtesy of FORD MOTOR COMPANY

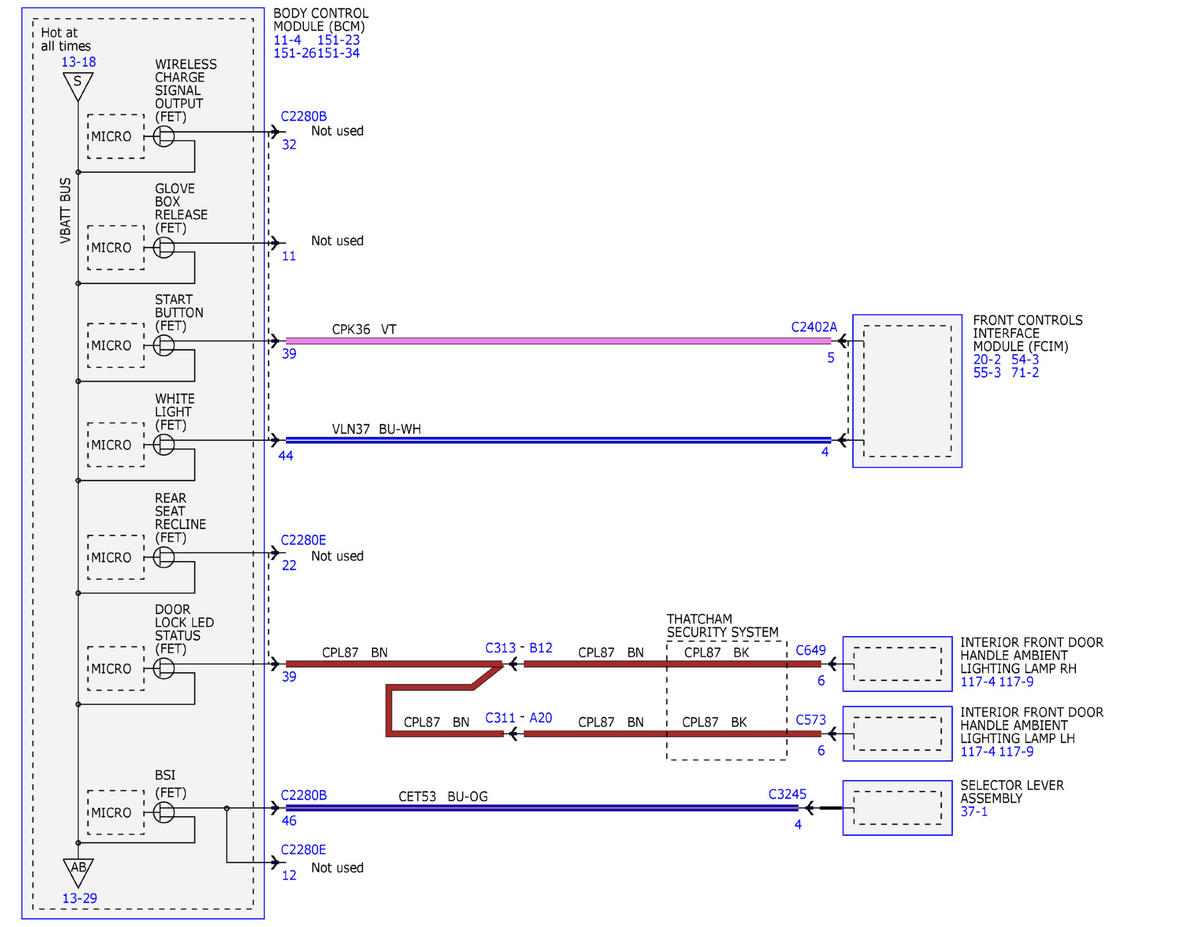

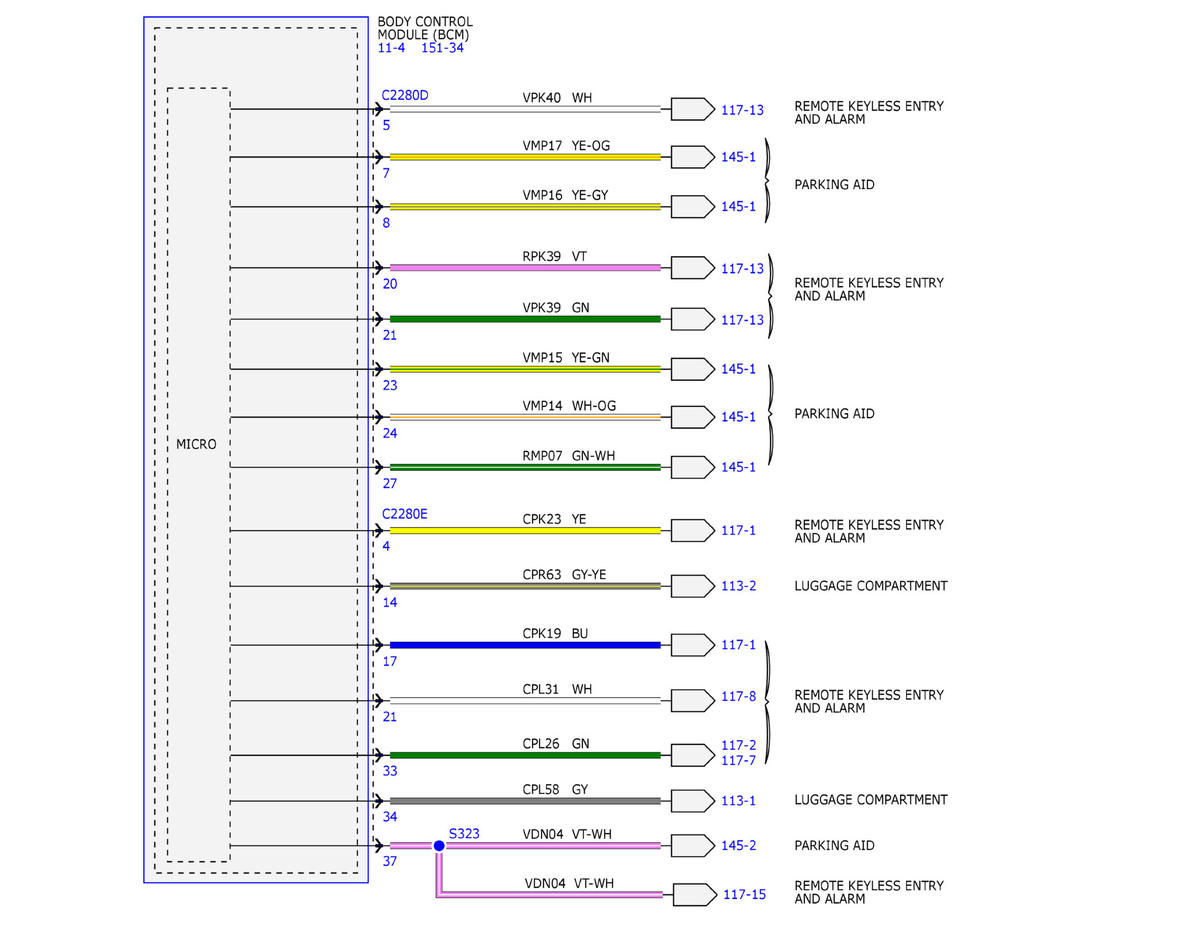

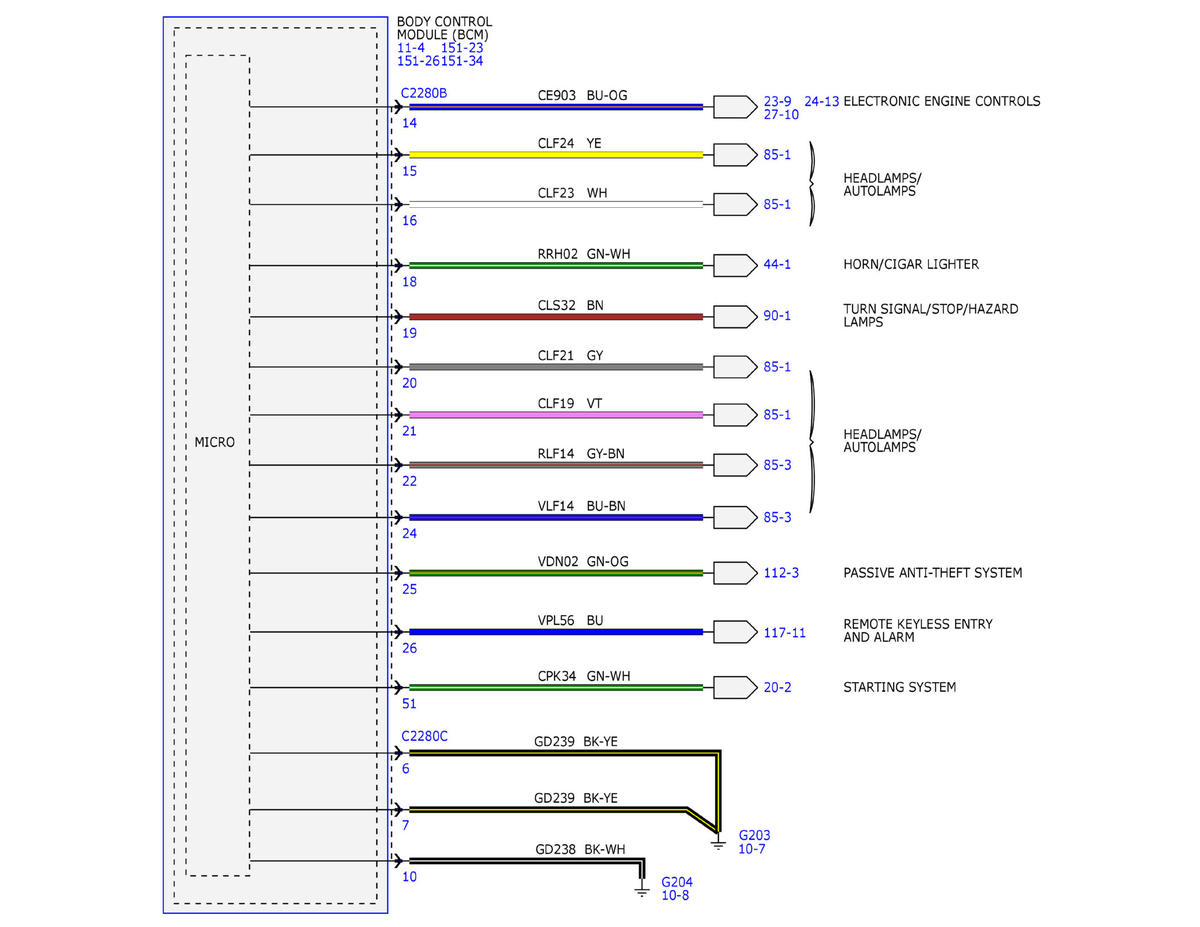

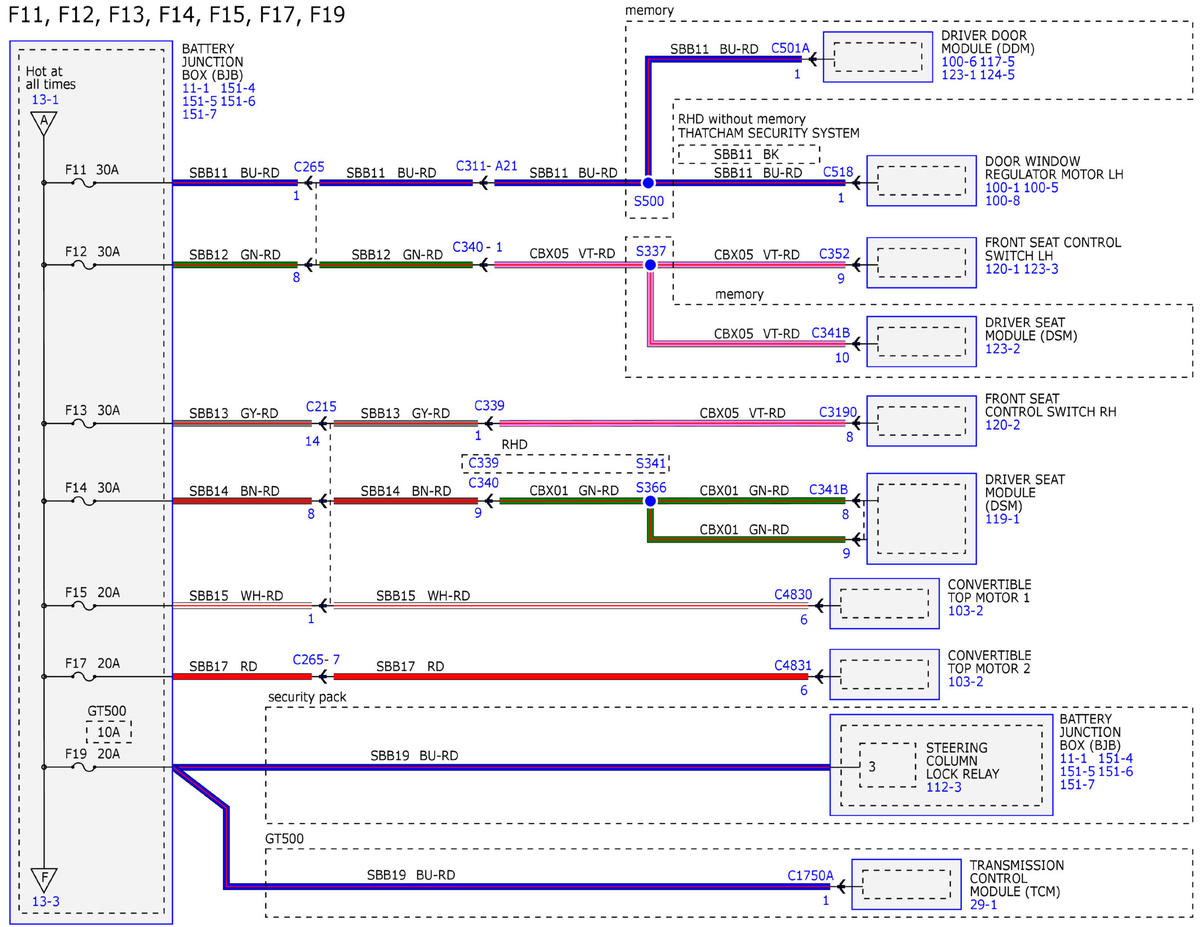

Fig 6: Power Distribution Wiring Diagrams (6 Of 39)
Courtesy of FORD MOTOR COMPANY

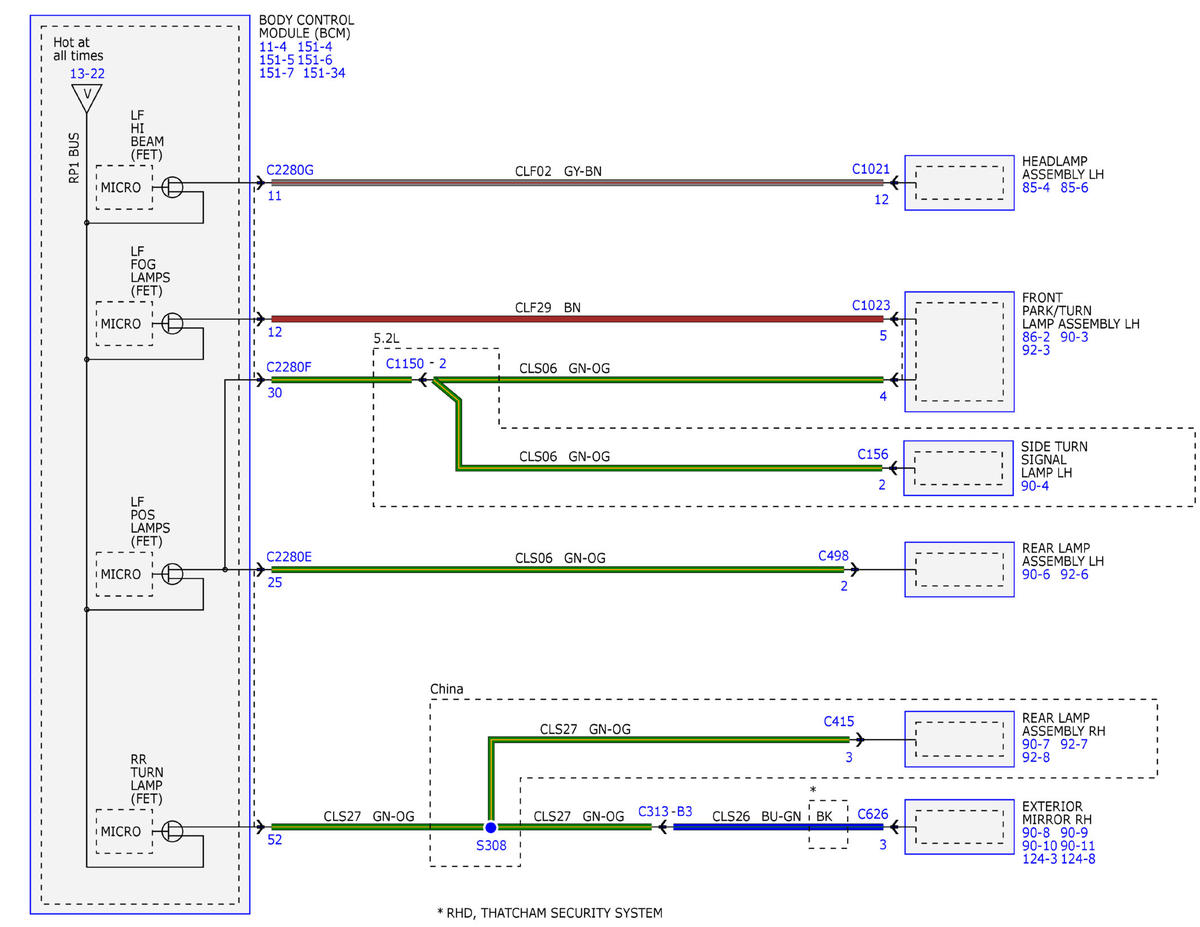

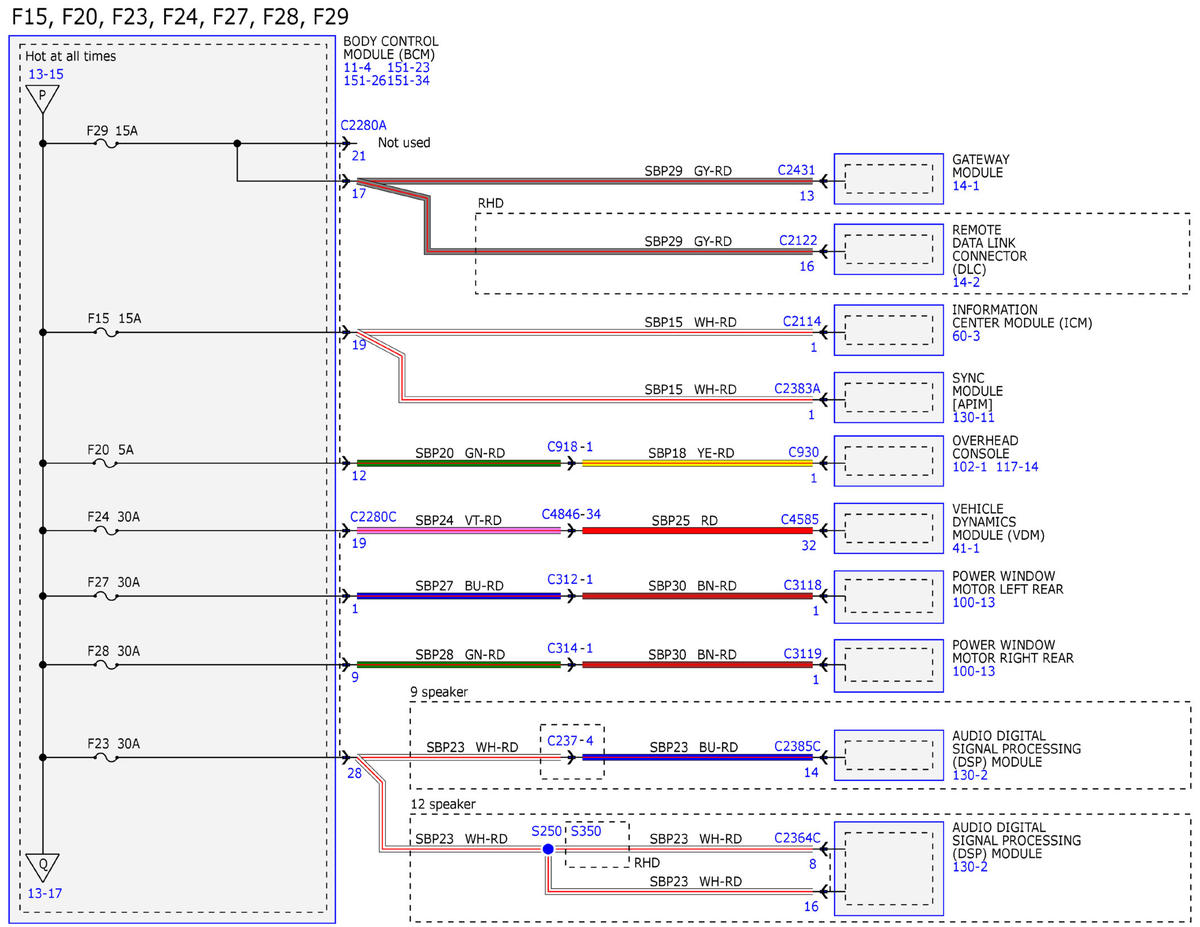

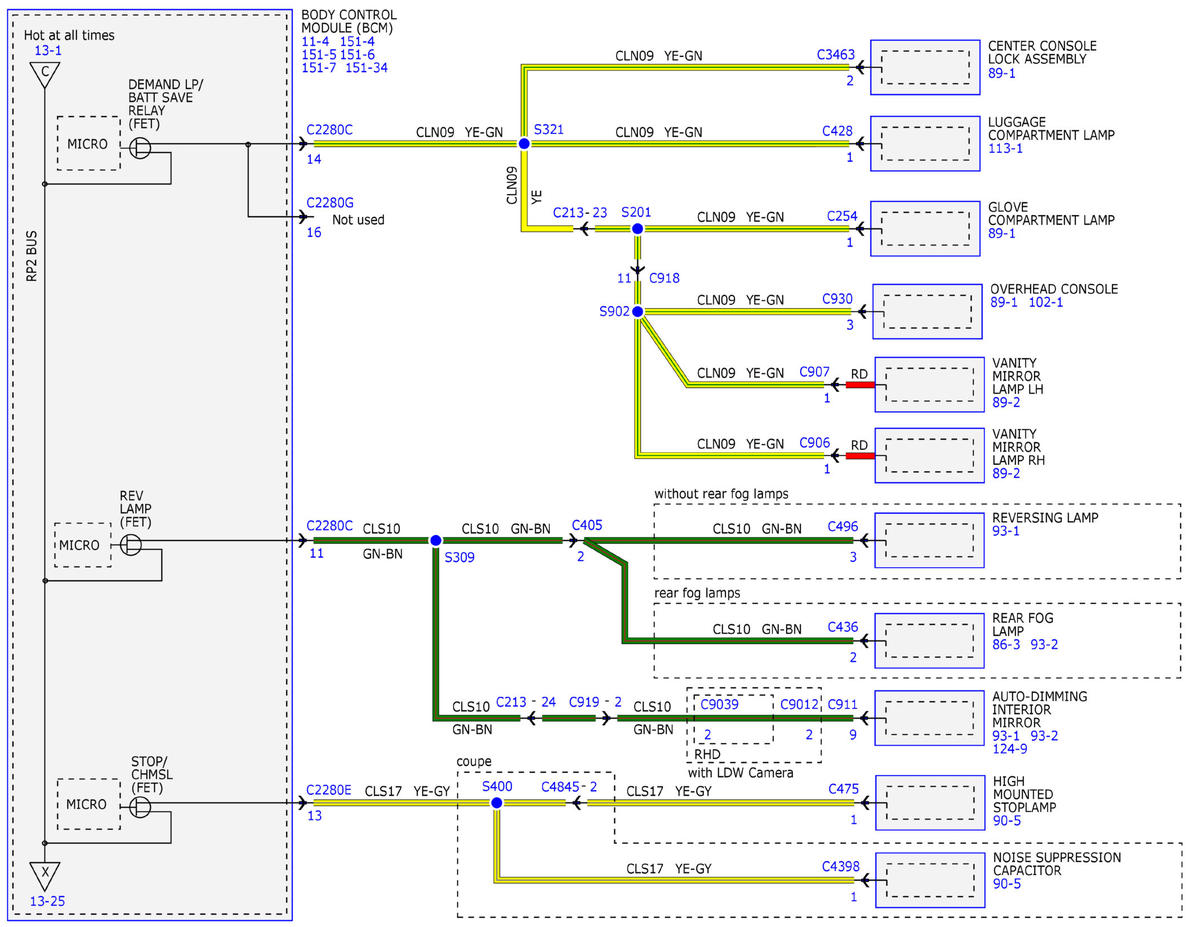

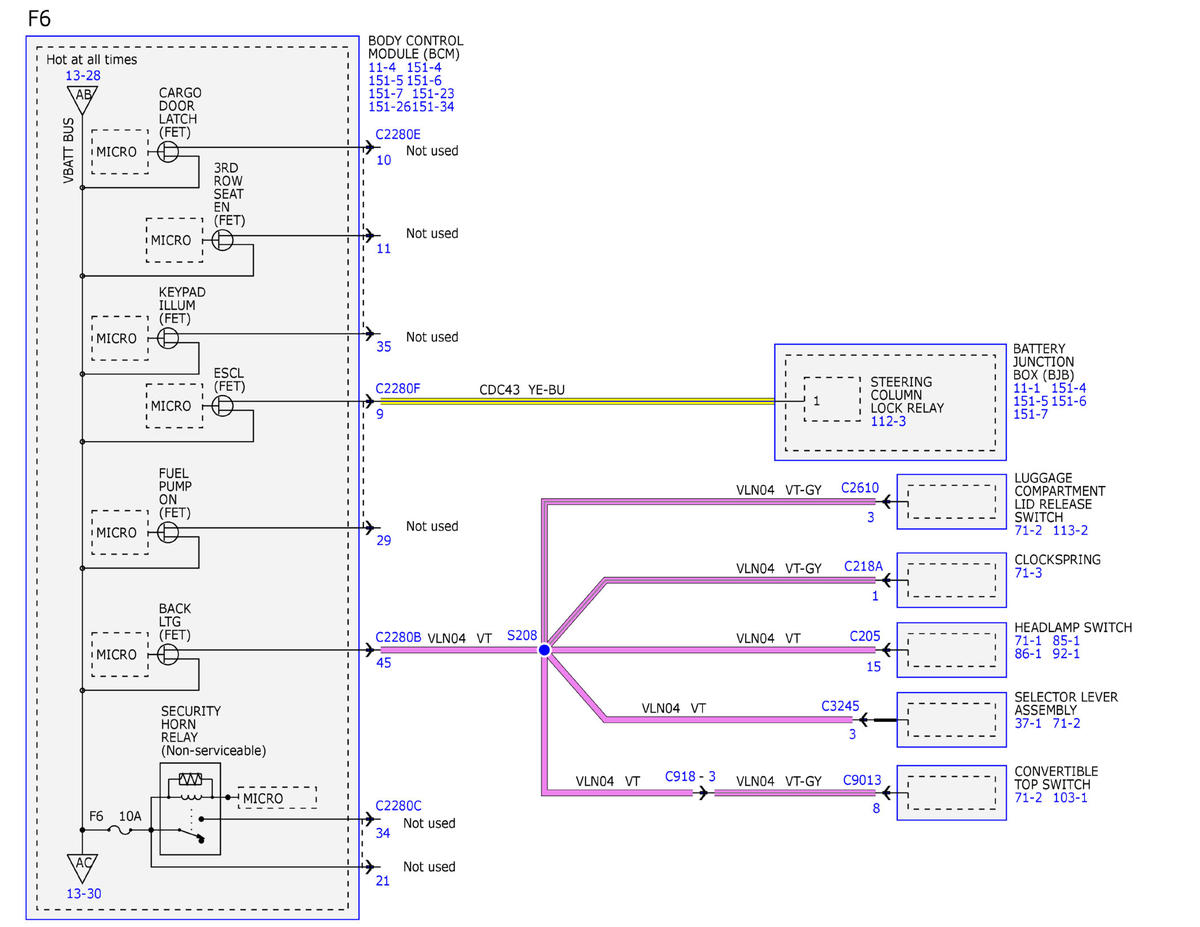

Fig 7: Power Distribution Wiring Diagrams (7 Of 39)
Courtesy of FORD MOTOR COMPANY

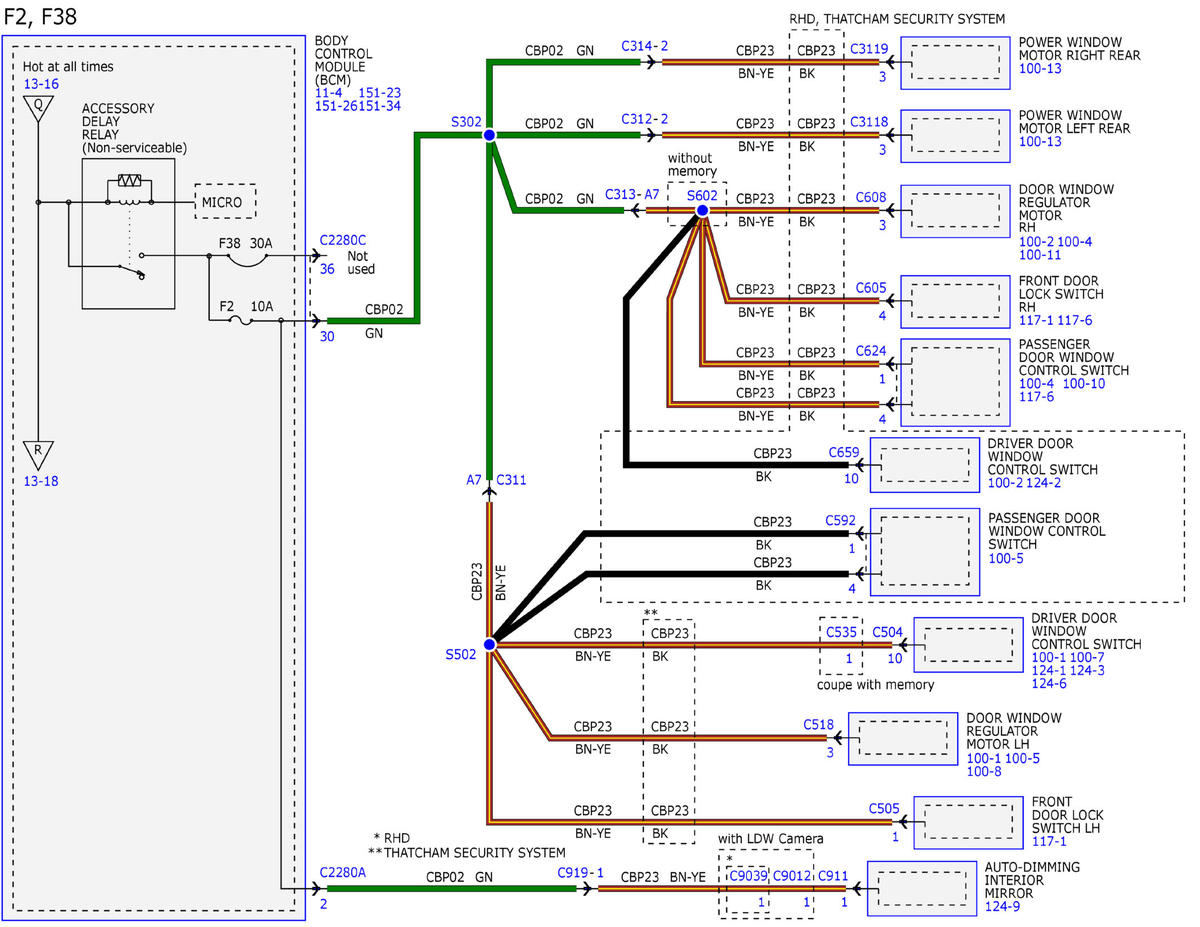

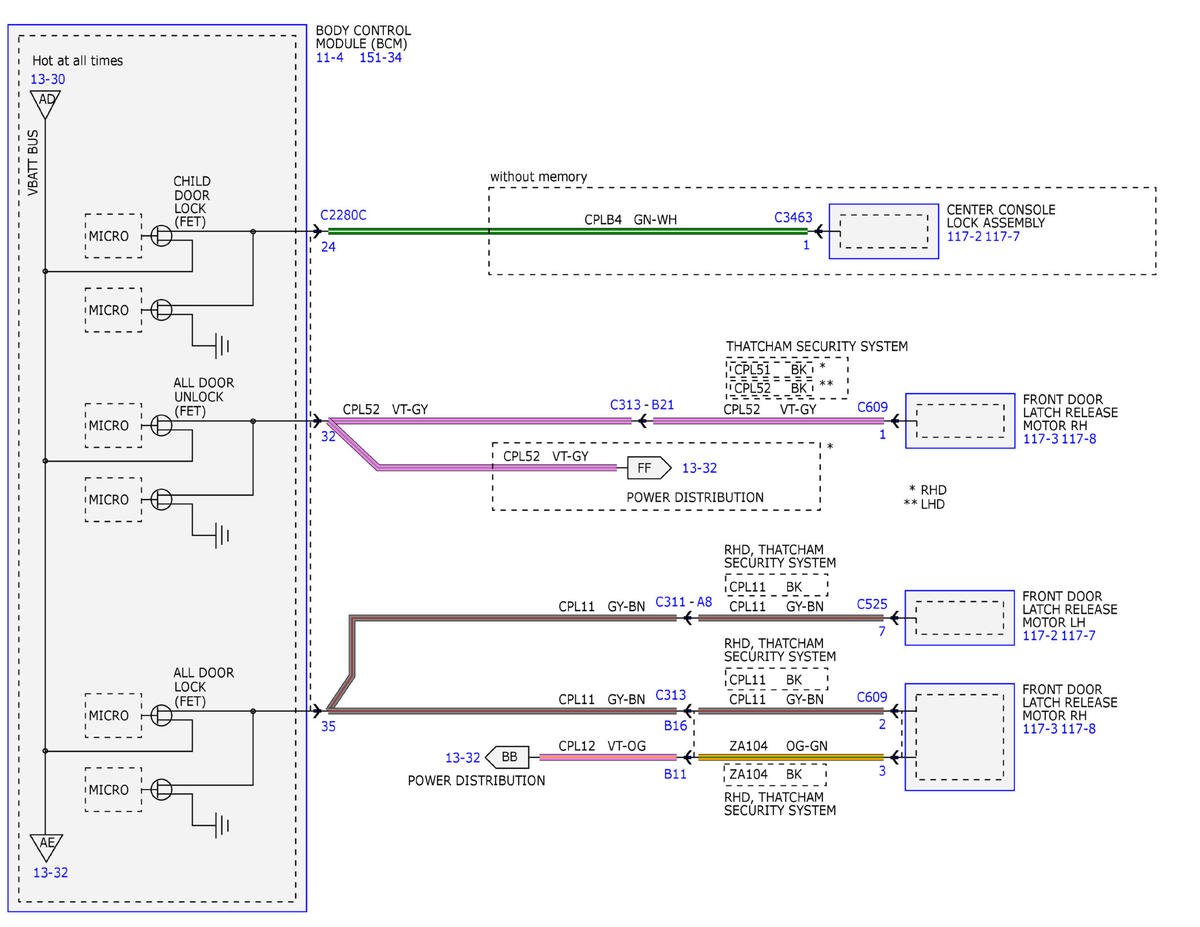

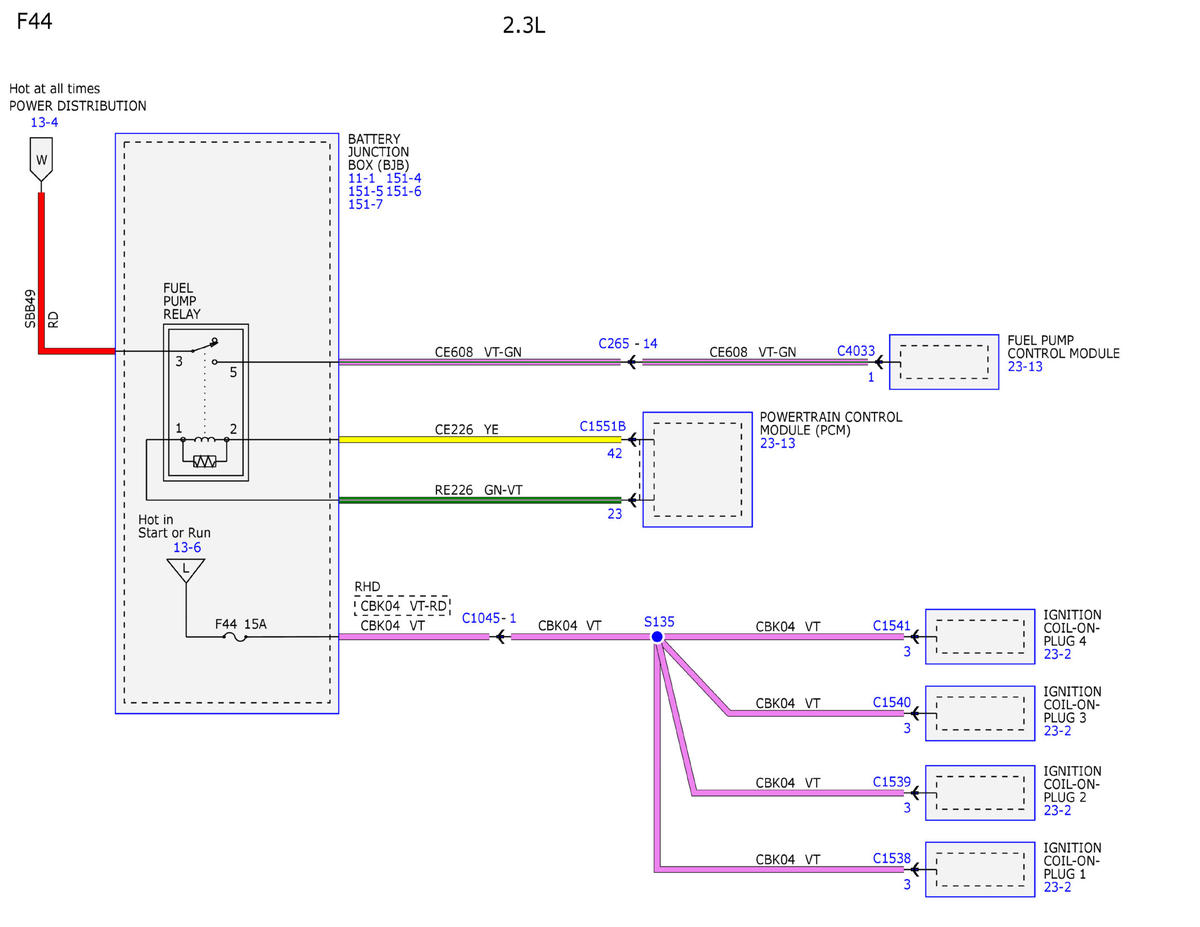

Fig 8: Power Distribution Wiring Diagrams (8 Of 39)
Courtesy of FORD MOTOR COMPANY

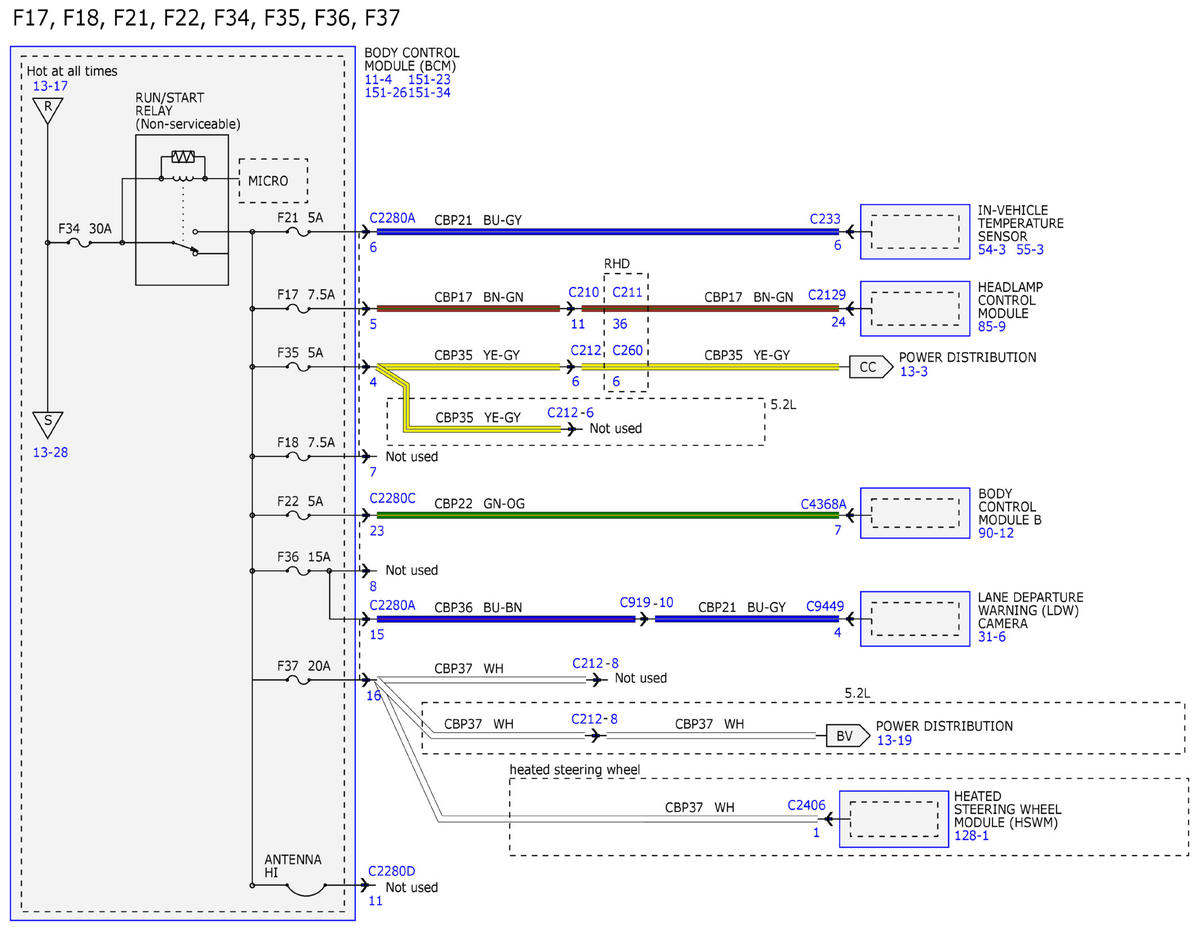

Fig 9: Power Distribution Wiring Diagrams (9 Of 39)
Courtesy of FORD MOTOR COMPANY

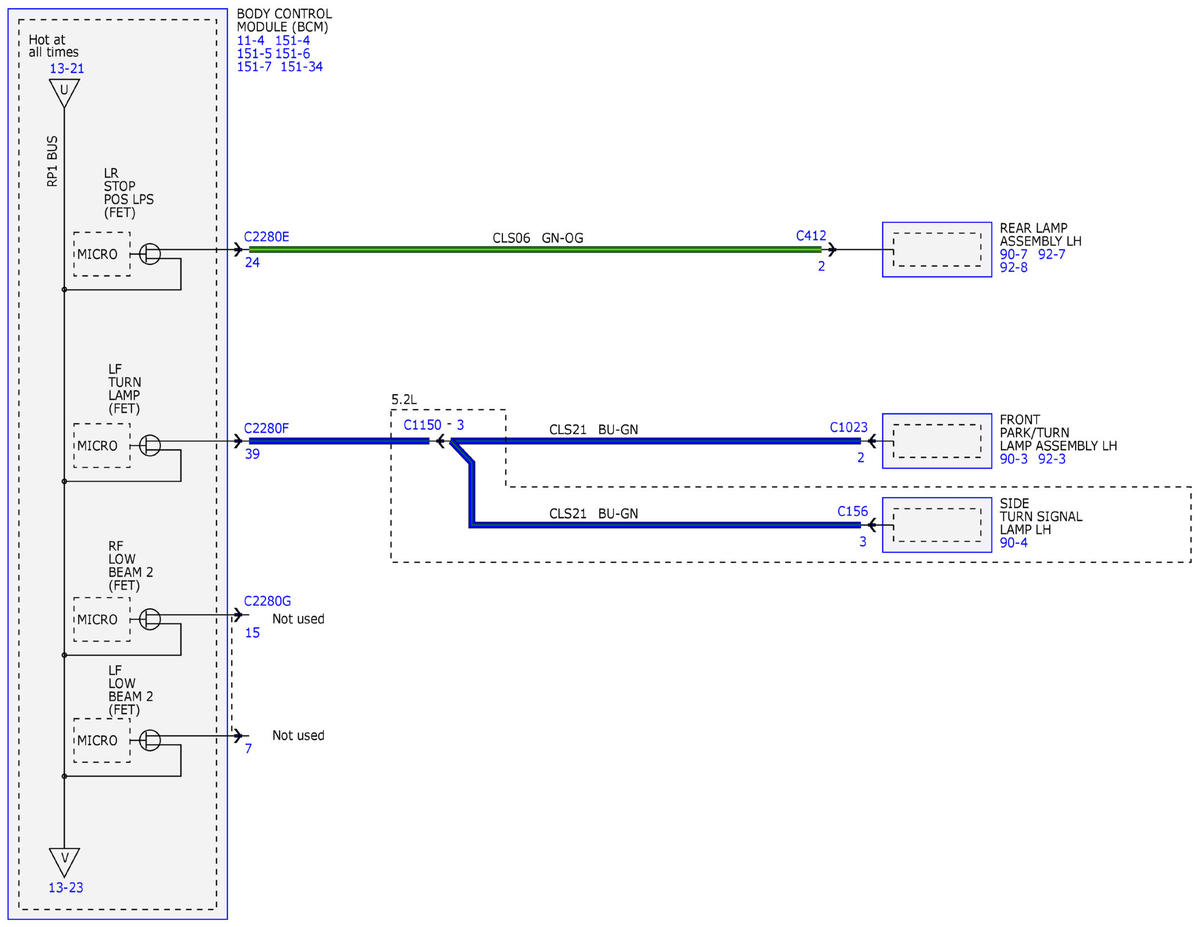

Fig 10: Power Distribution Wiring Diagrams (10 Of 39)
Courtesy of FORD MOTOR COMPANY

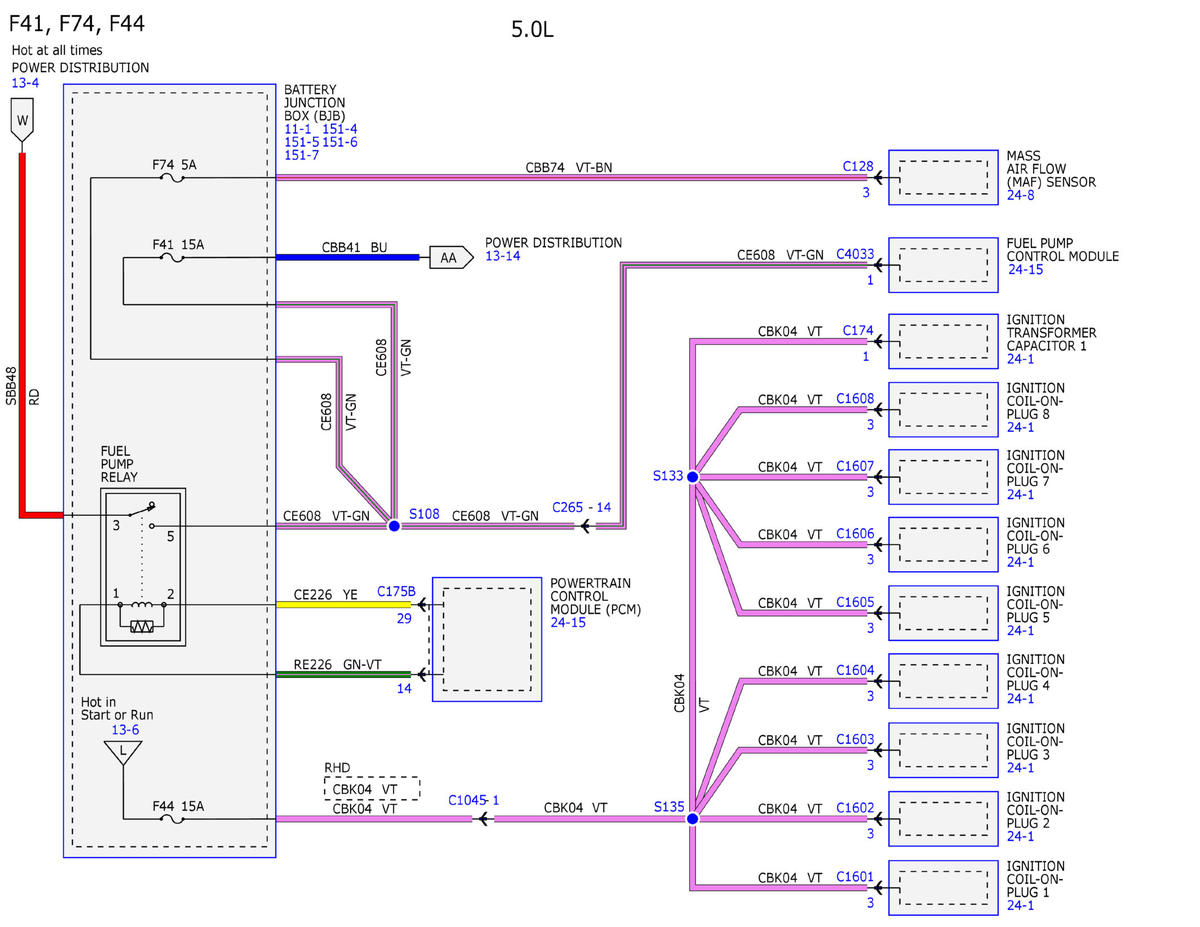

Fig 11: Power Distribution Wiring Diagrams (11 Of 39)
Courtesy of FORD MOTOR COMPANY

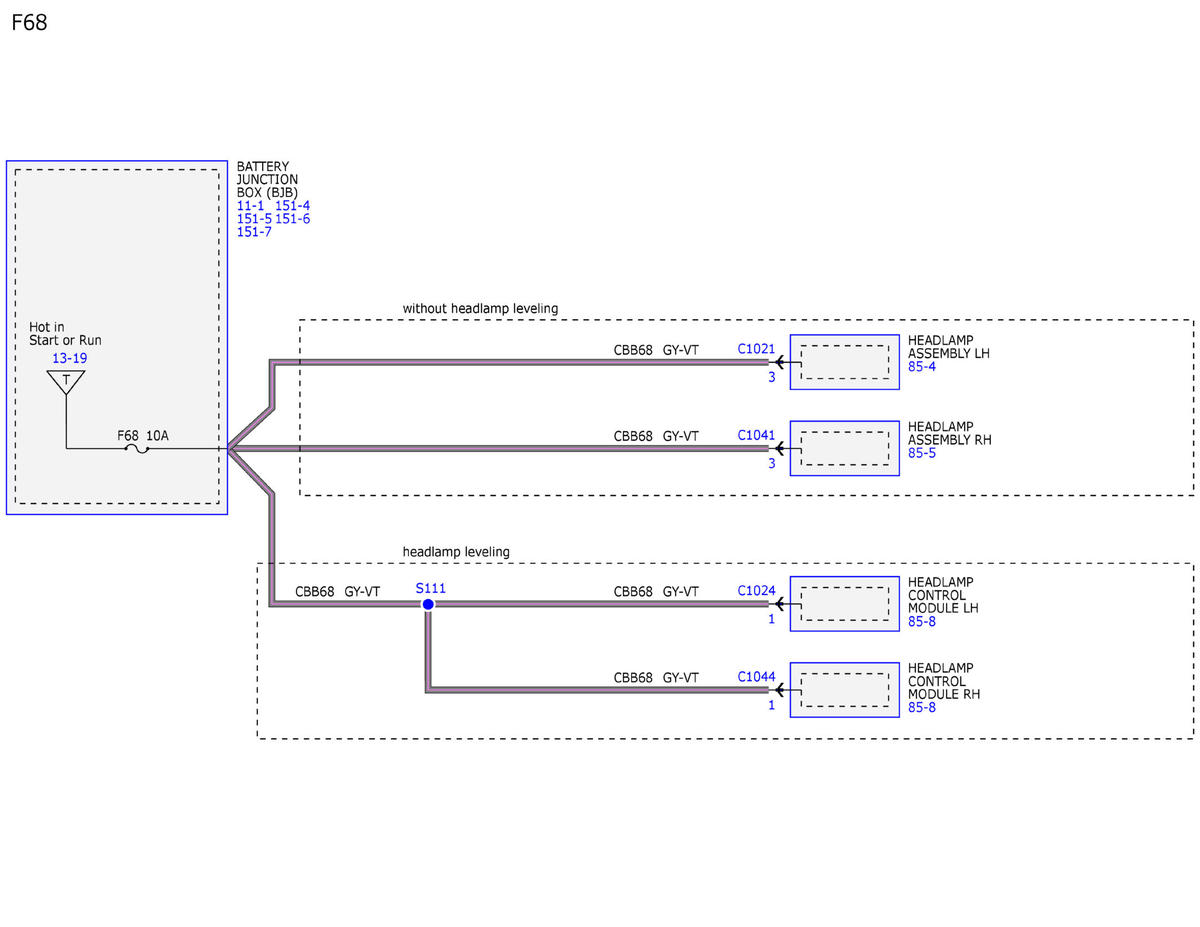

Fig 12: Power Distribution Wiring Diagrams (12 Of 39)
Courtesy of FORD MOTOR COMPANY

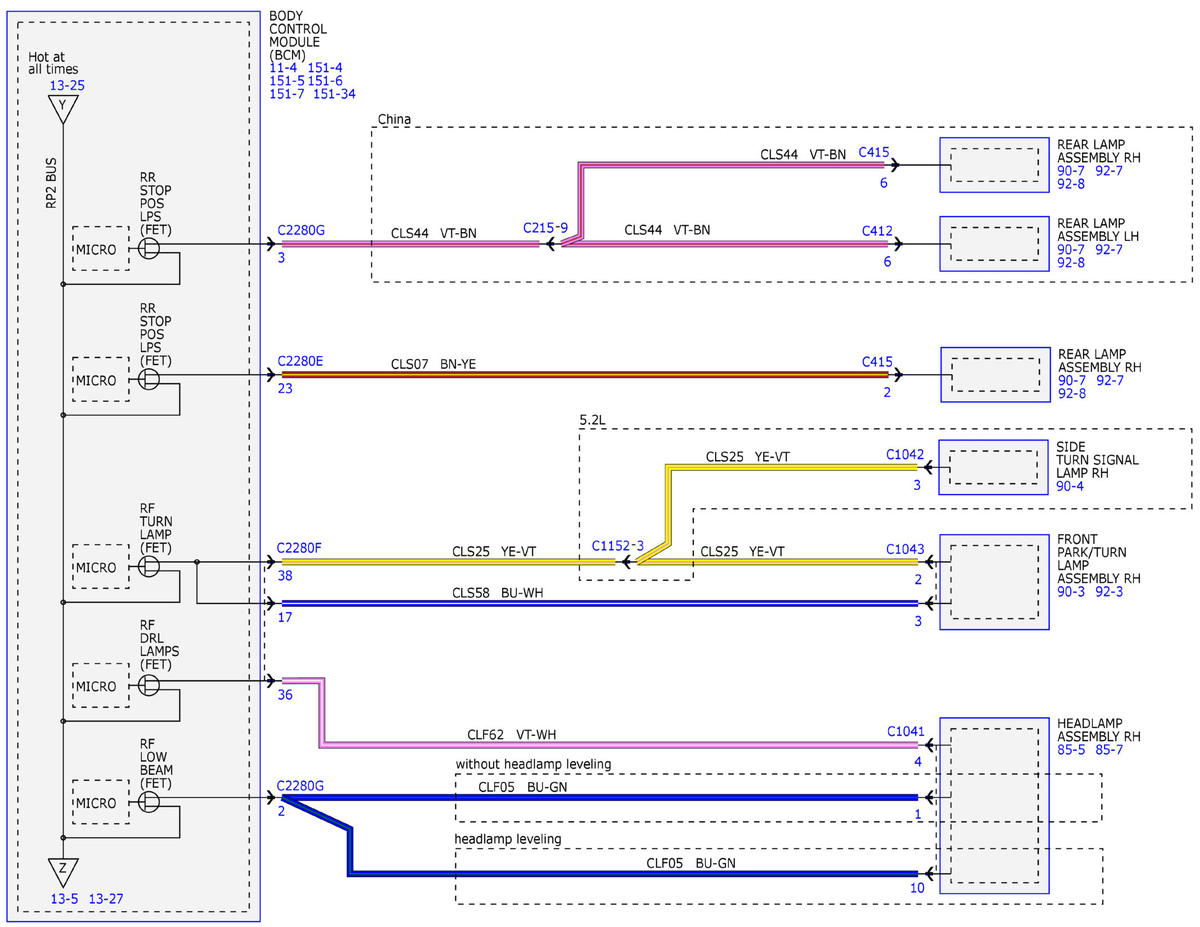

Fig 13: Power Distribution Wiring Diagrams (13 Of 39)
Courtesy of FORD MOTOR COMPANY

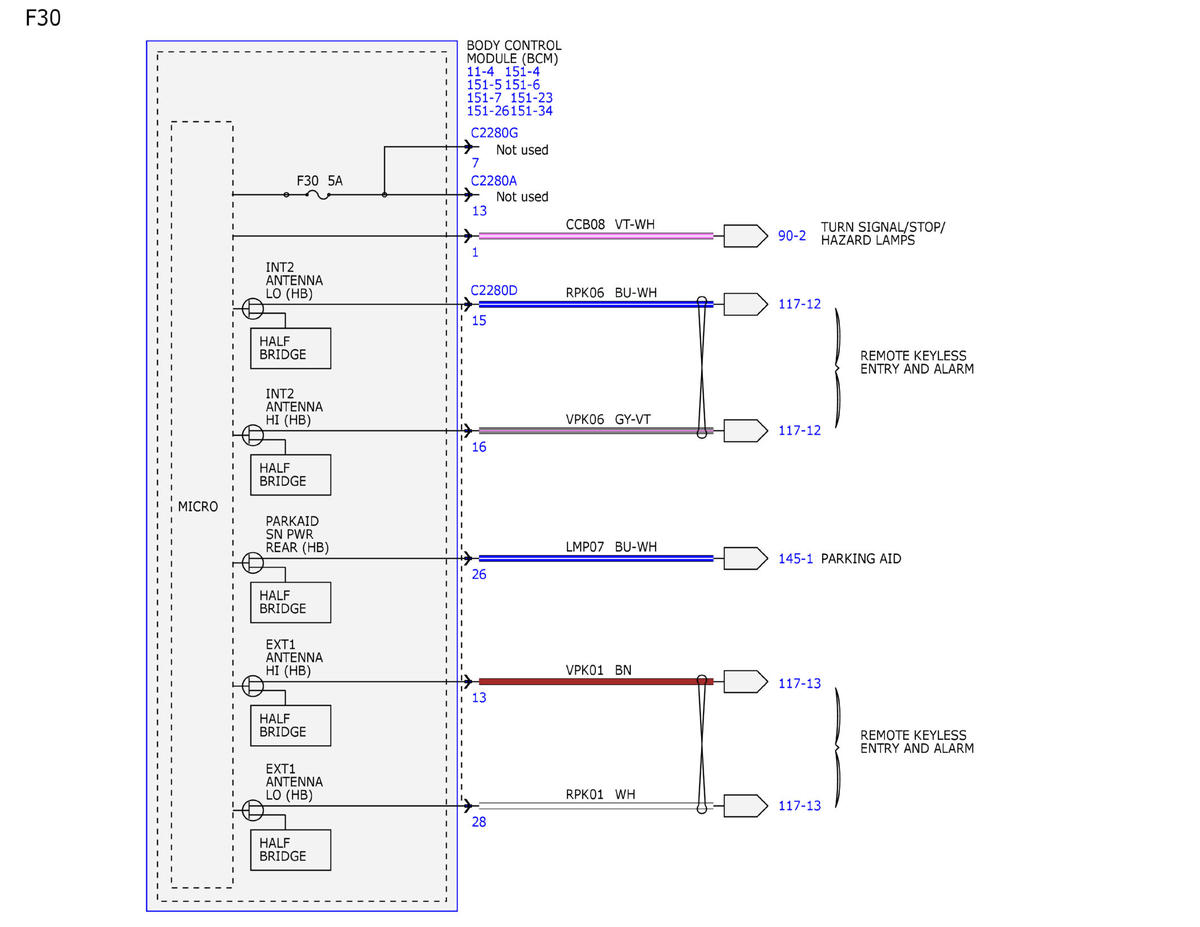

Fig 14: Power Distribution Wiring Diagrams (14 Of 39)
Courtesy of FORD MOTOR COMPANY

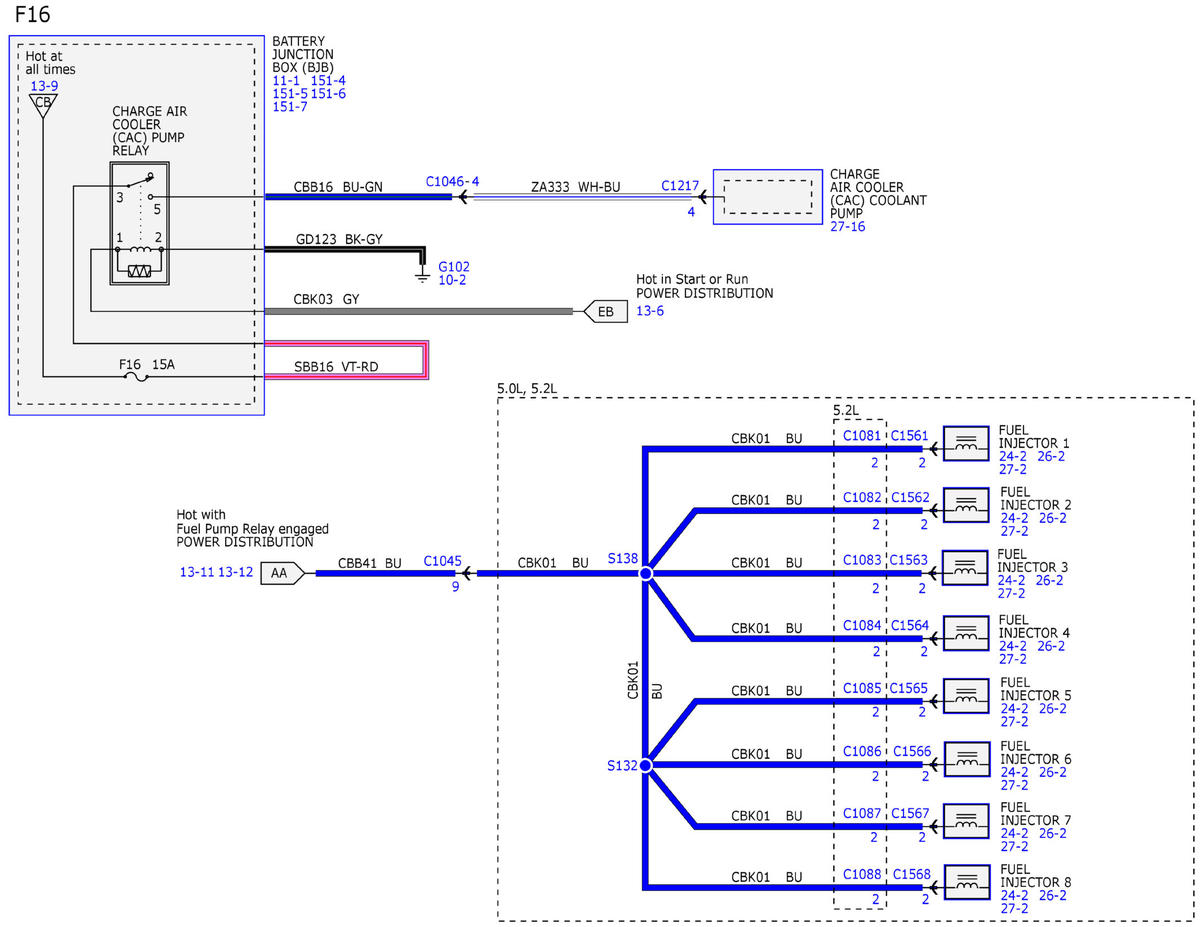

Fig 15: Power Distribution Wiring Diagrams (15 Of 39)
Courtesy of FORD MOTOR COMPANY

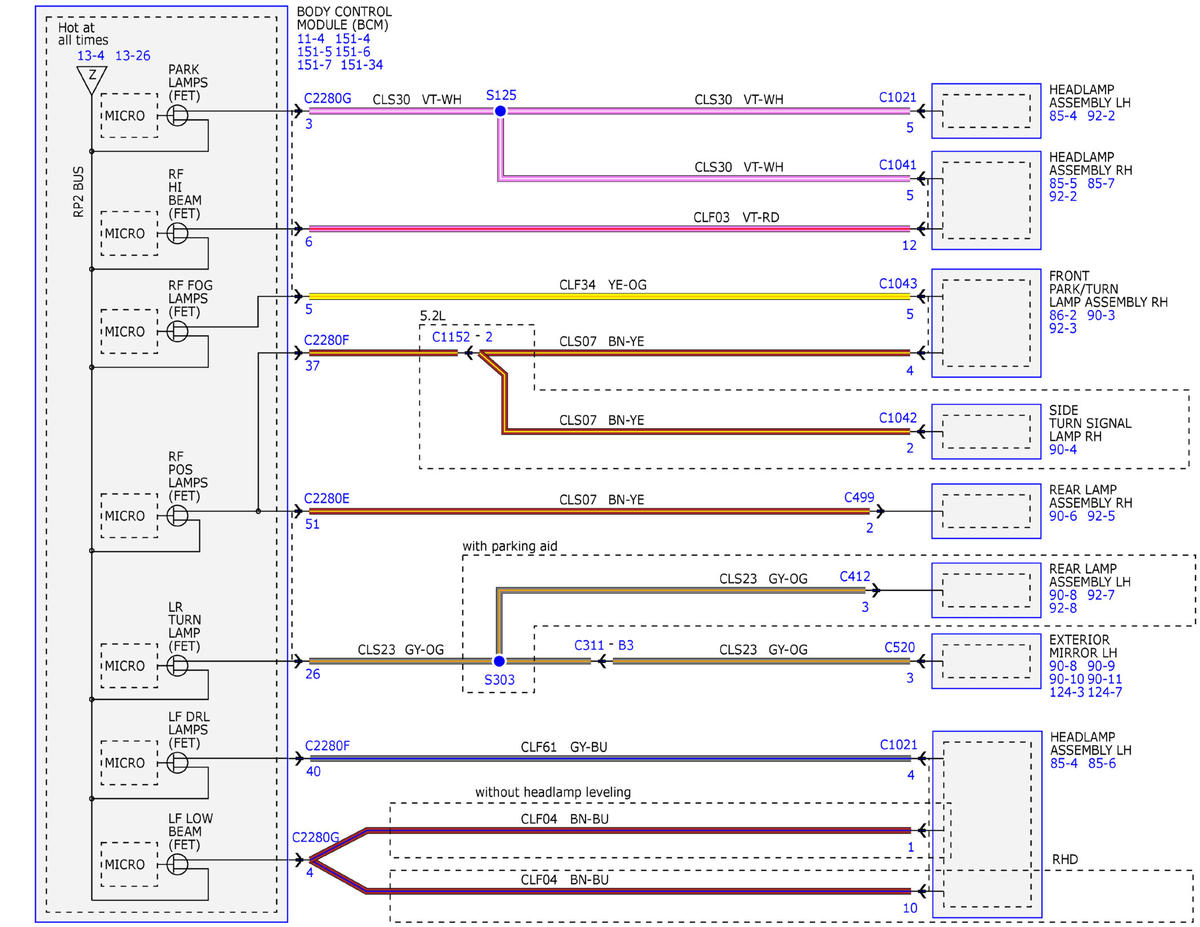

Fig 16: Power Distribution Wiring Diagrams (16 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 17: Power Distribution Wiring Diagrams (17 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 18: Power Distribution Wiring Diagrams (18 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 19: Power Distribution Wiring Diagrams (19 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 20: Power Distribution Wiring Diagrams (20 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 21: Power Distribution Wiring Diagrams (21 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 22: Power Distribution Wiring Diagrams (22 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 23: Power Distribution Wiring Diagrams (23 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 24: Power Distribution Wiring Diagrams (24 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 25: Power Distribution Wiring Diagrams (25 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 26: Power Distribution Wiring Diagrams (26 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 27: Power Distribution Wiring Diagrams (27 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 28: Power Distribution Wiring Diagrams (28 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 29: Power Distribution Wiring Diagrams (29 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 30: Power Distribution Wiring Diagrams (30 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 31: Power Distribution Wiring Diagrams (31 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 32: Power Distribution Wiring Diagrams (32 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 33: Power Distribution Wiring Diagrams (33 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 34: Power Distribution Wiring Diagrams (34 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 35: Power Distribution Wiring Diagrams (35 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 36: Power Distribution Wiring Diagrams (36 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 37: Power Distribution Wiring Diagrams (37 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 38: Power Distribution Wiring Diagrams (38 Of 39)
Courtesy of FORD MOTOR COMPANY
Fig 39: Power Distribution Wiring Diagrams (39 Of 39)
