Section 20 (OEM Wiring Diagrams)
>>
Electronic Engine Controls - 5.0L
Electronic Engine Controls - 5.0L
WARNING:
This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

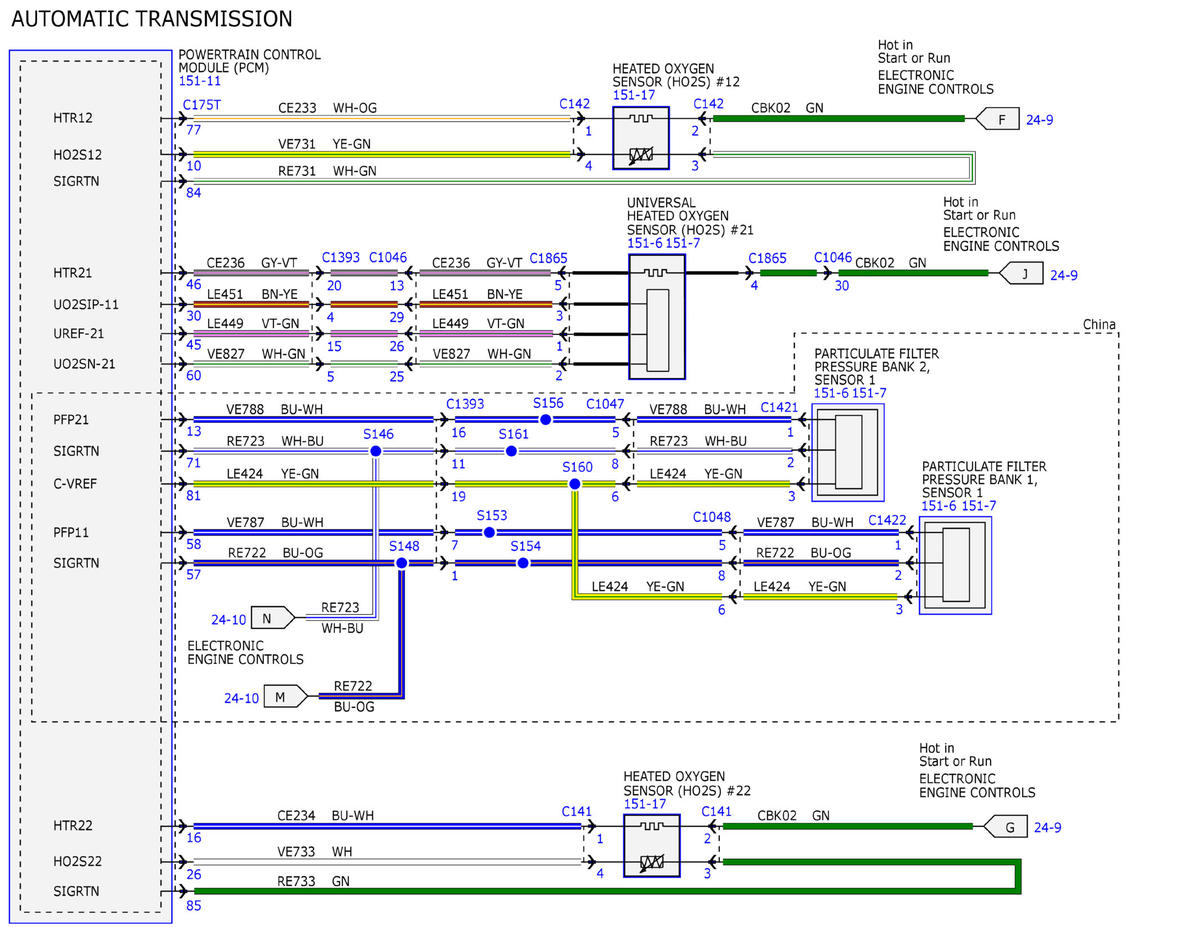

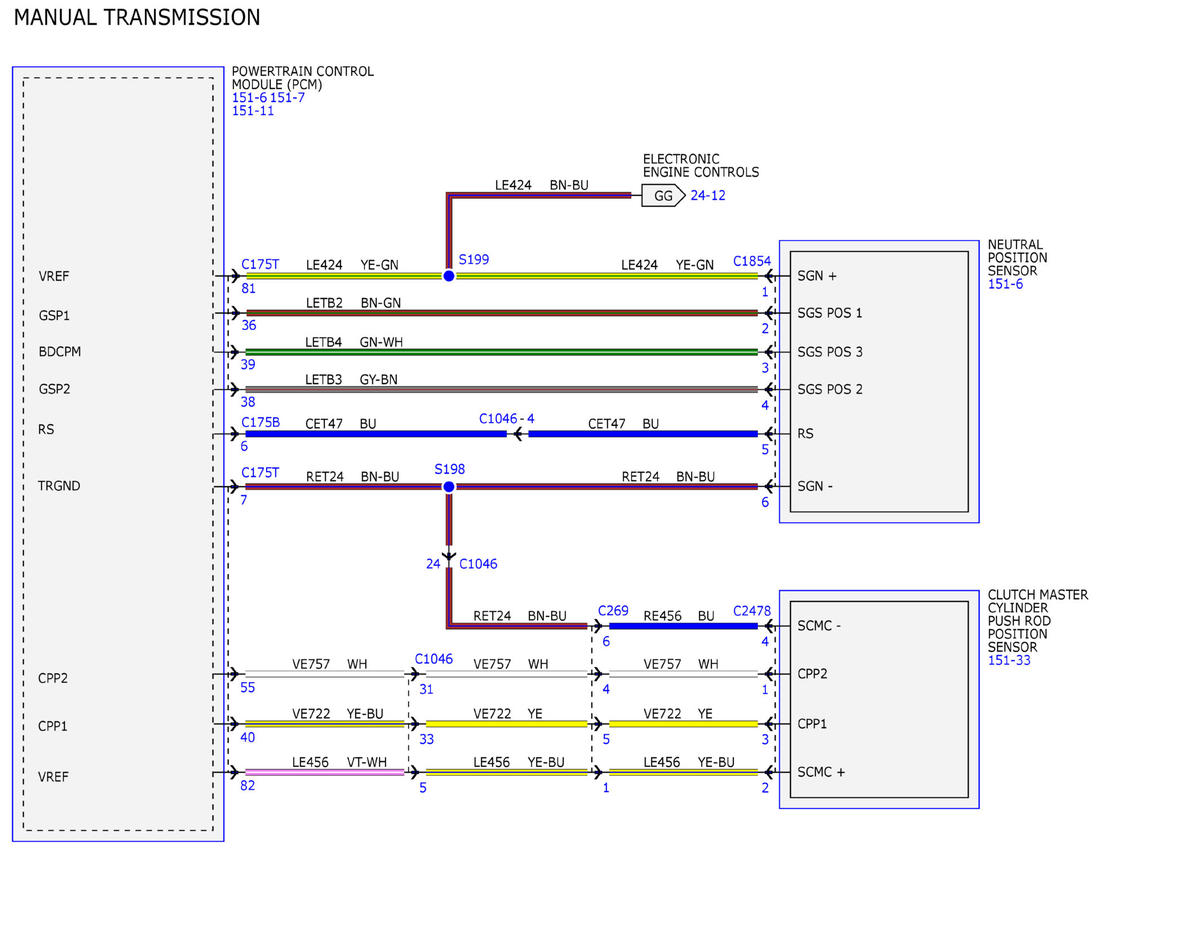

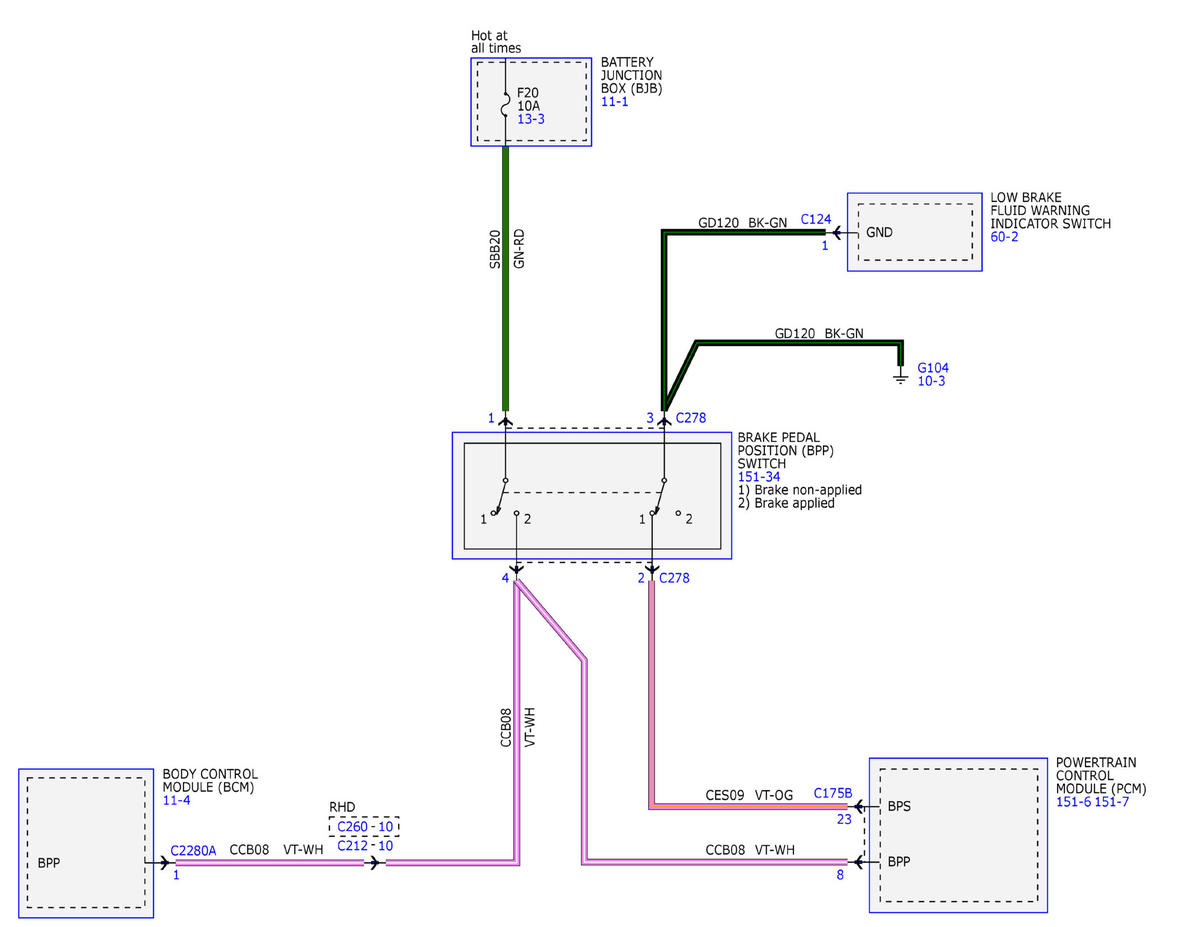

Fig 1: Electronic Engine Controls - 5.0L Wiring Diagrams (1 Of 24)
Courtesy of FORD MOTOR COMPANY

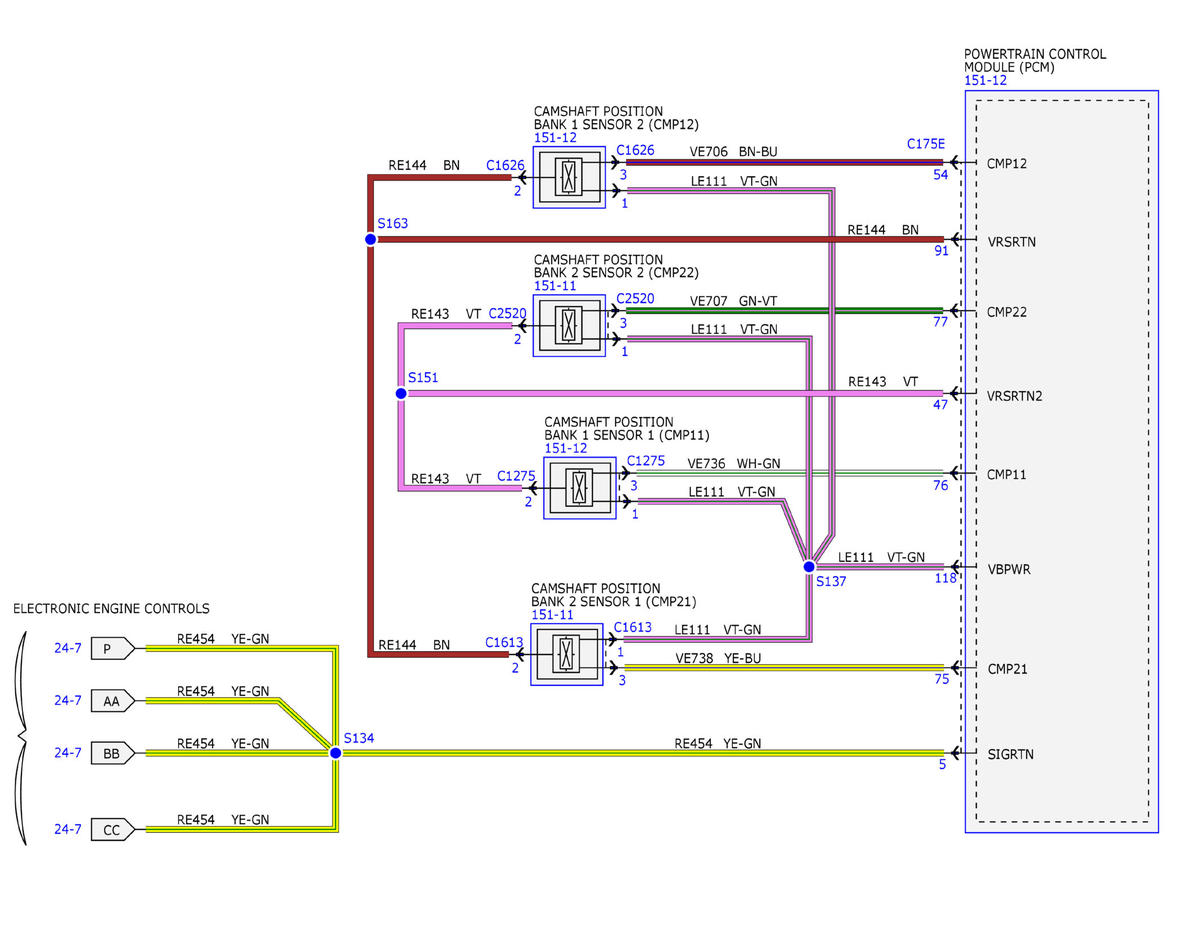

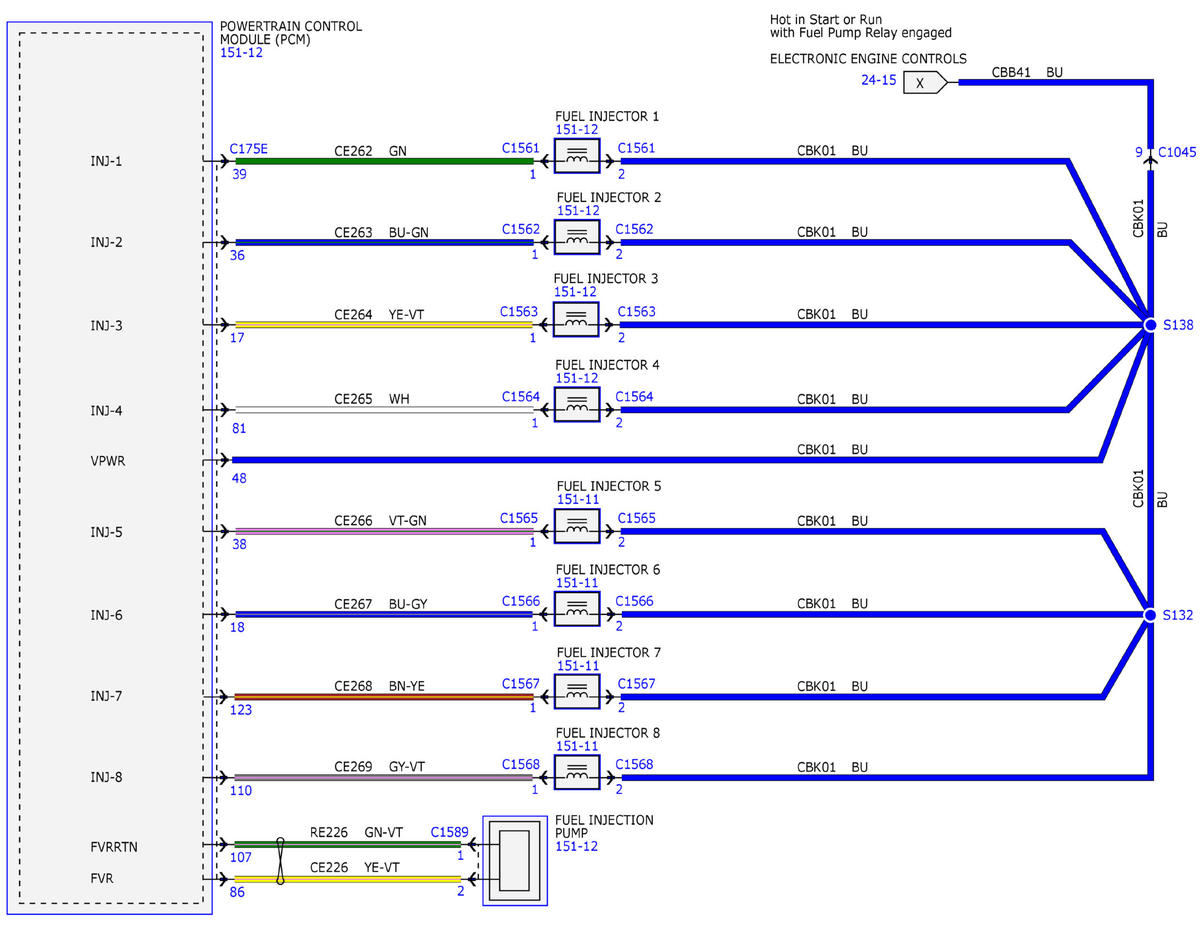

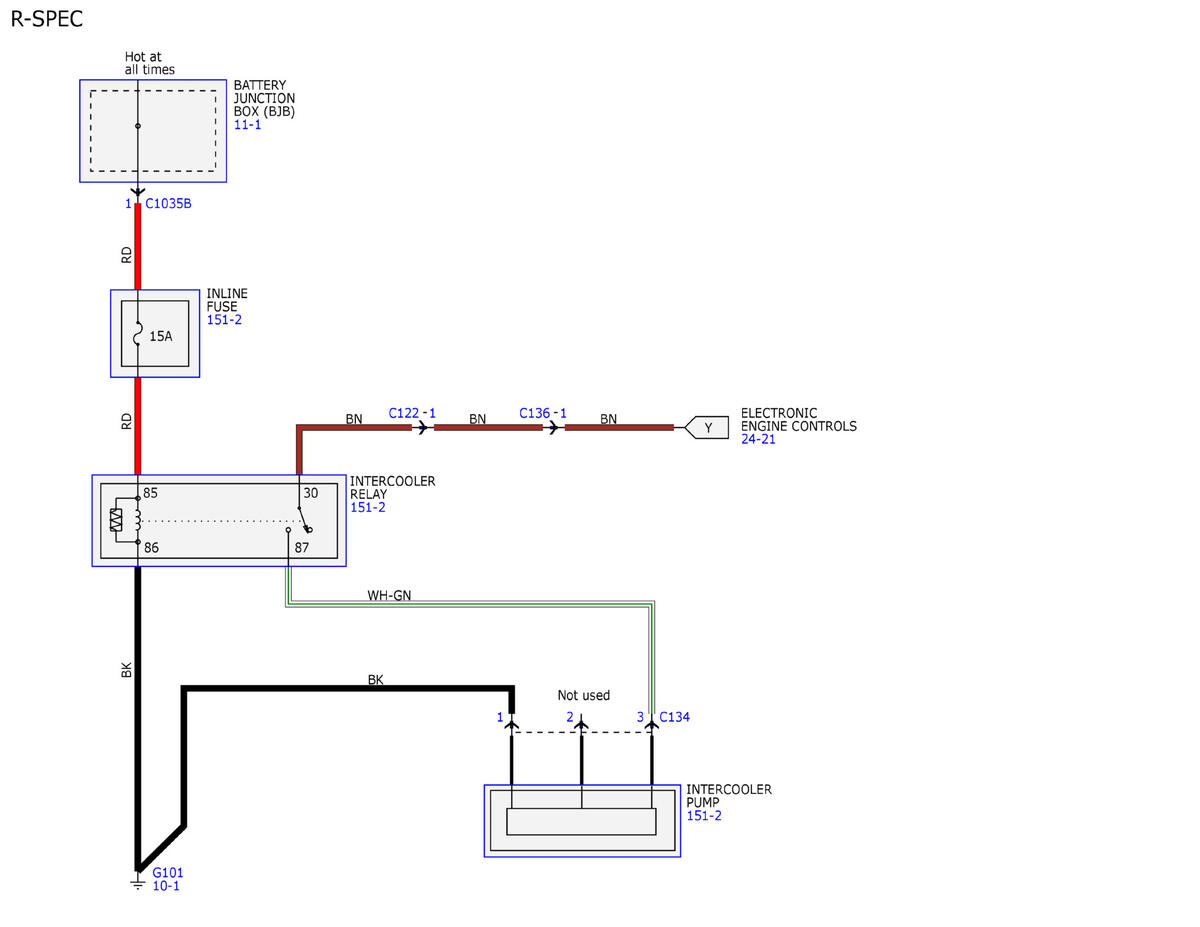

Fig 2: Electronic Engine Controls - 5.0L Wiring Diagrams (2 Of 24)
Courtesy of FORD MOTOR COMPANY

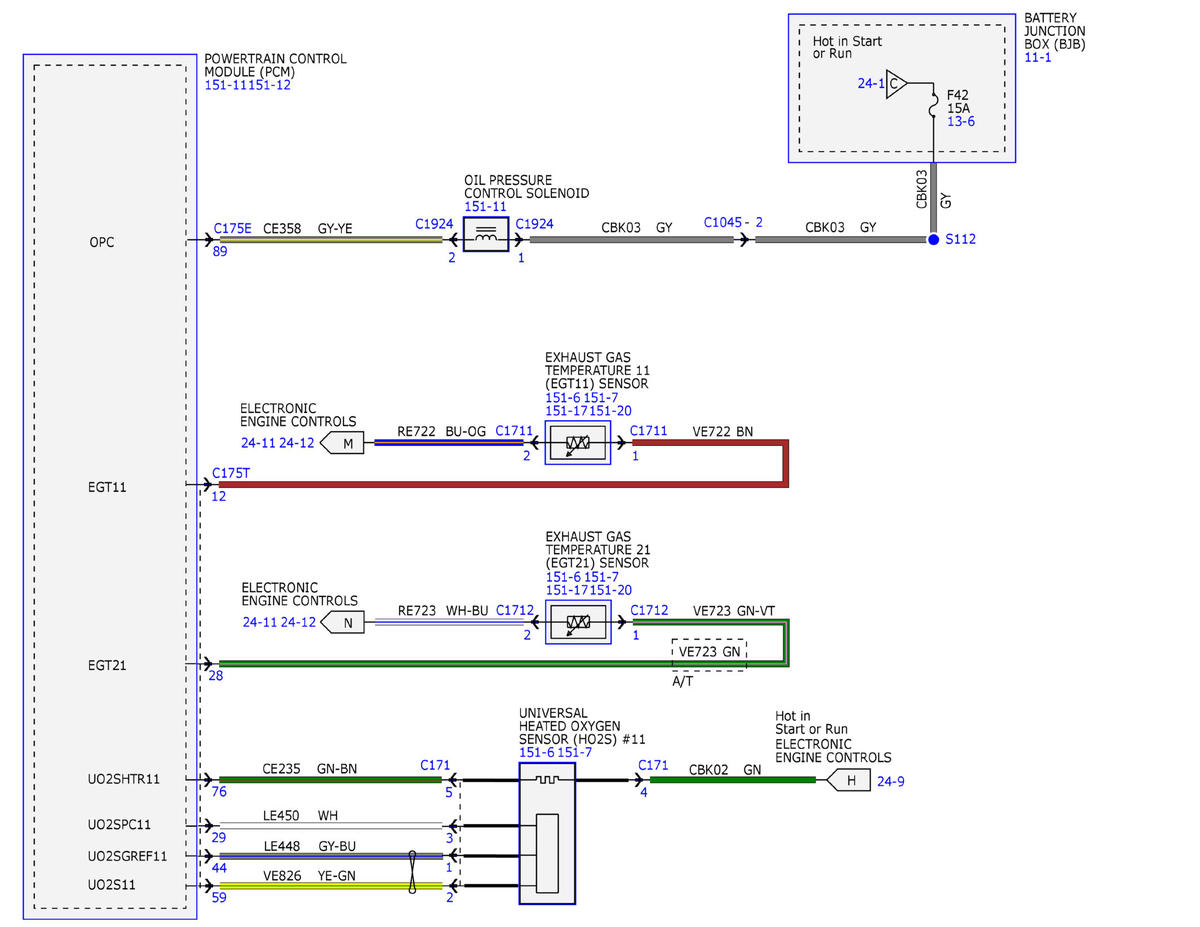

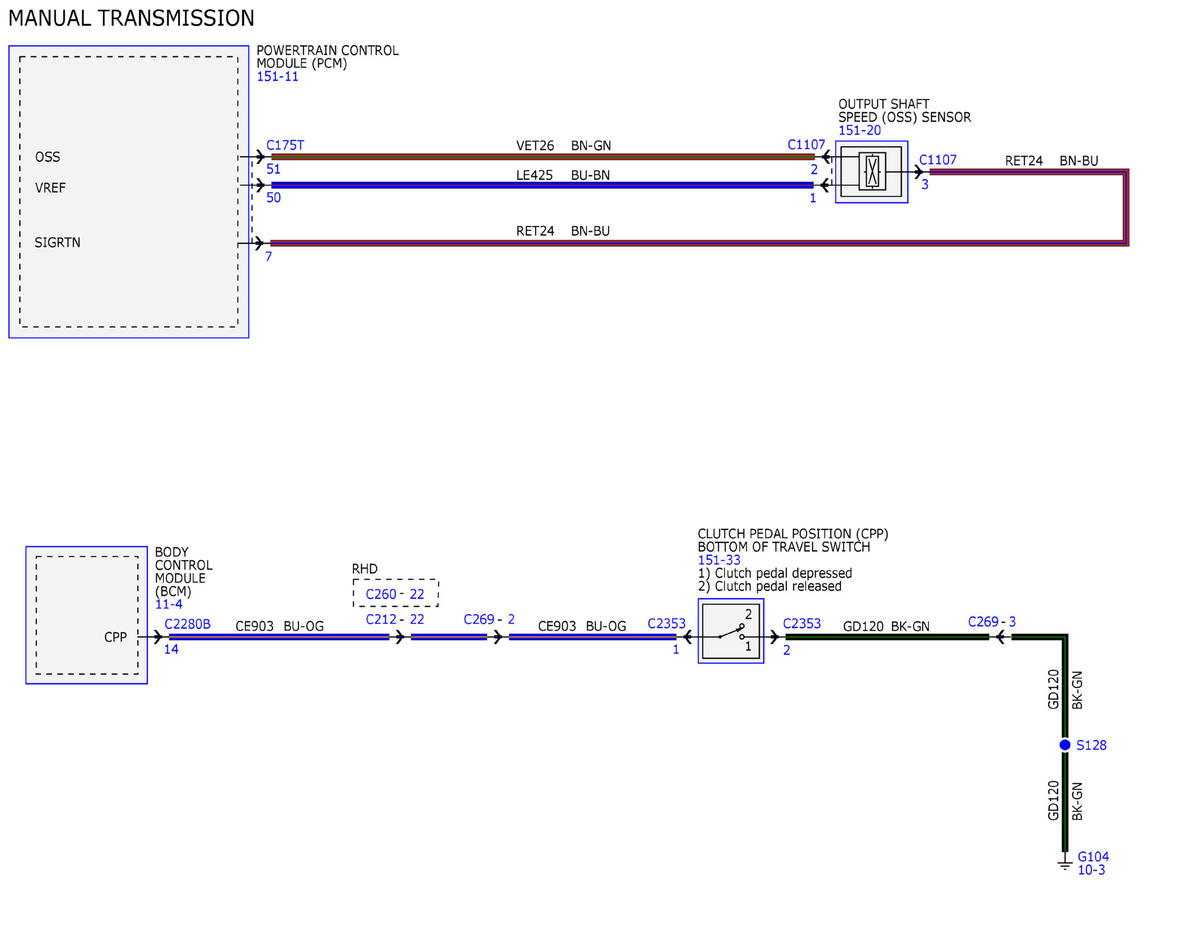

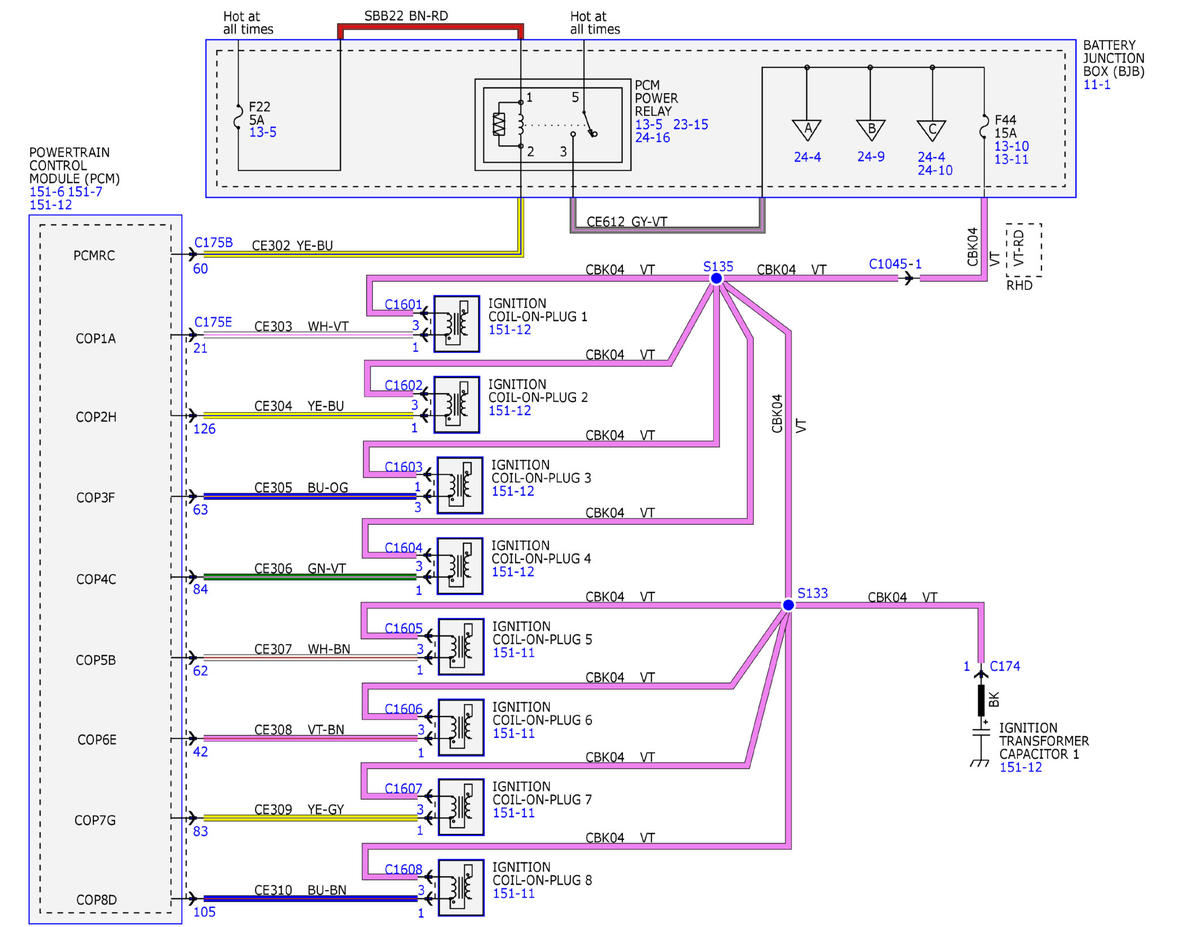

Fig 3: Electronic Engine Controls - 5.0L Wiring Diagrams (3 Of 24)
Courtesy of FORD MOTOR COMPANY

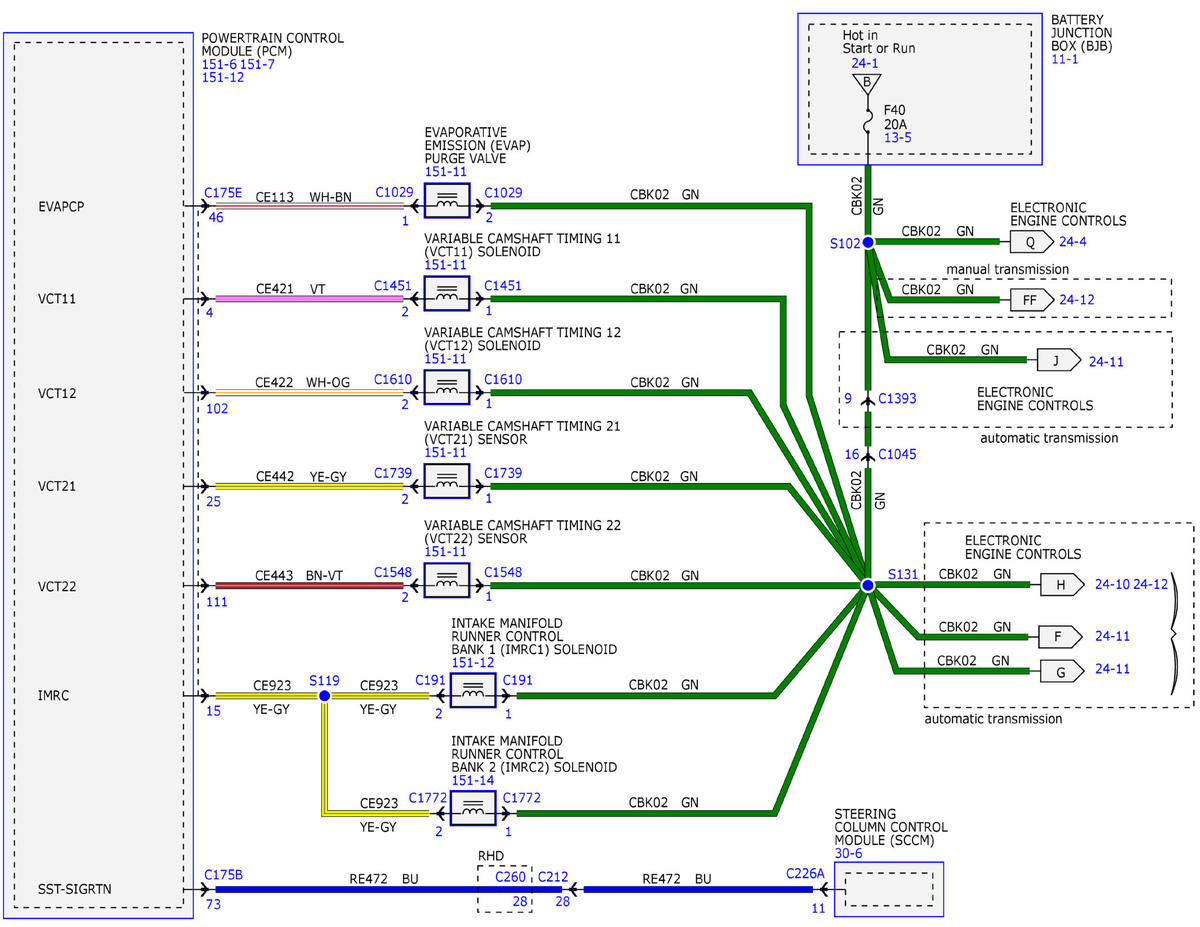

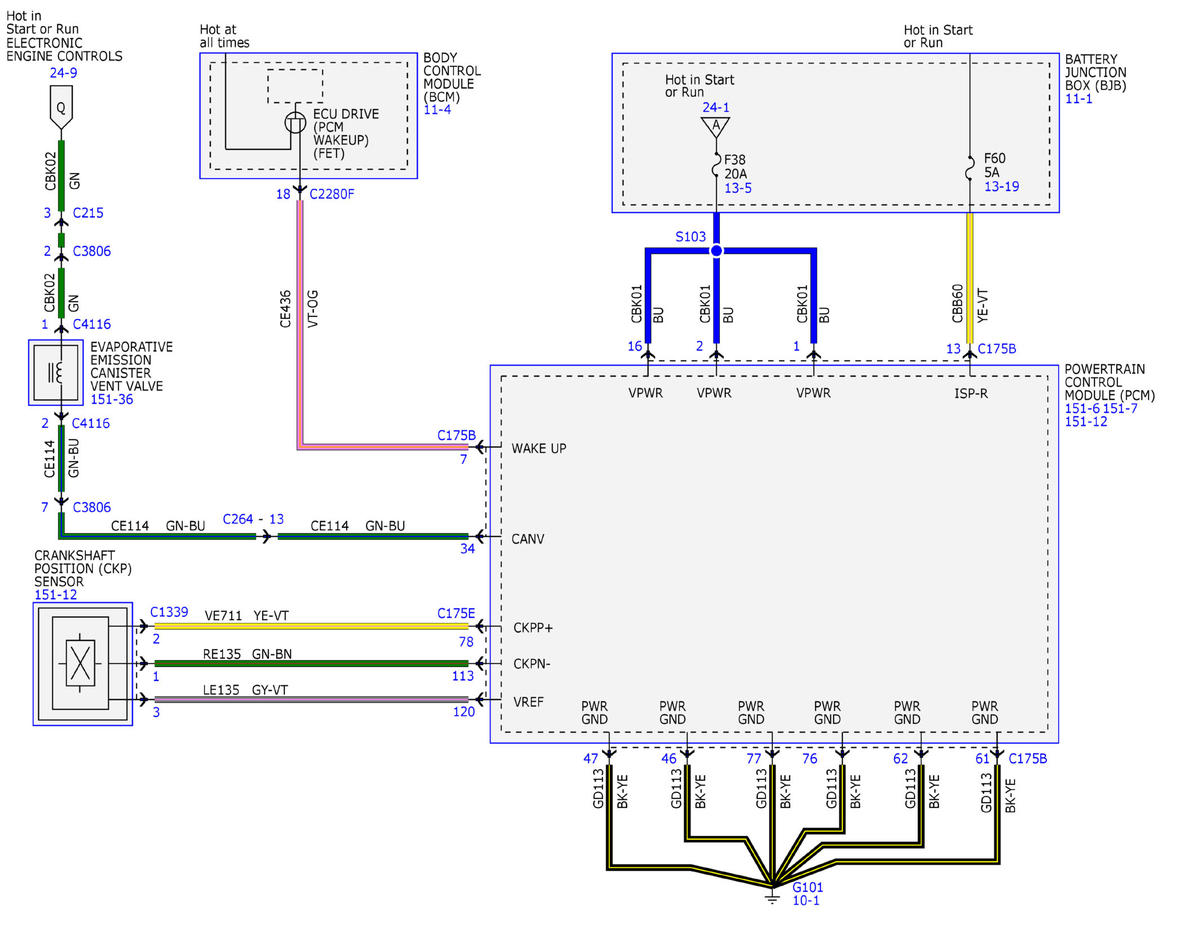

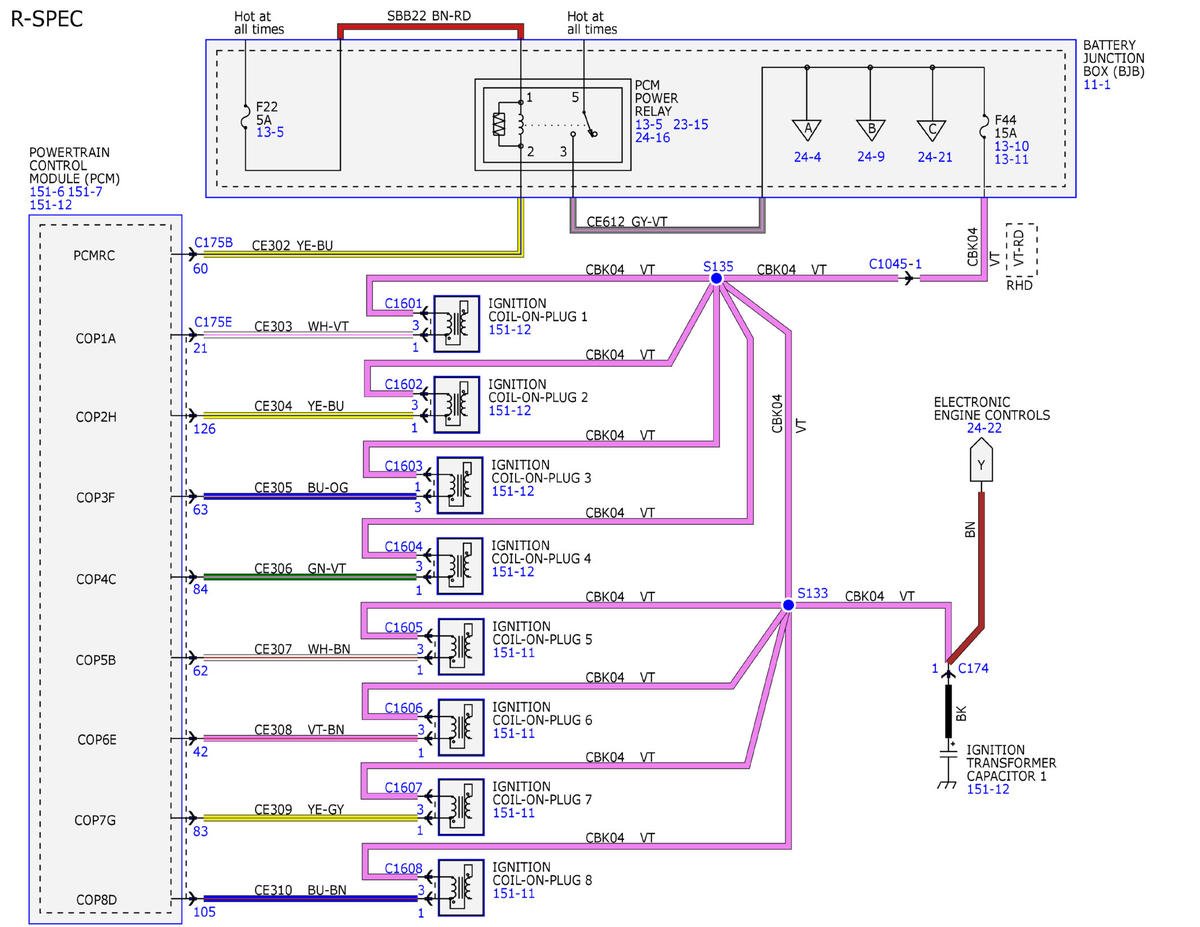

Fig 4: Electronic Engine Controls - 5.0L Wiring Diagrams (4 Of 24)
Courtesy of FORD MOTOR COMPANY

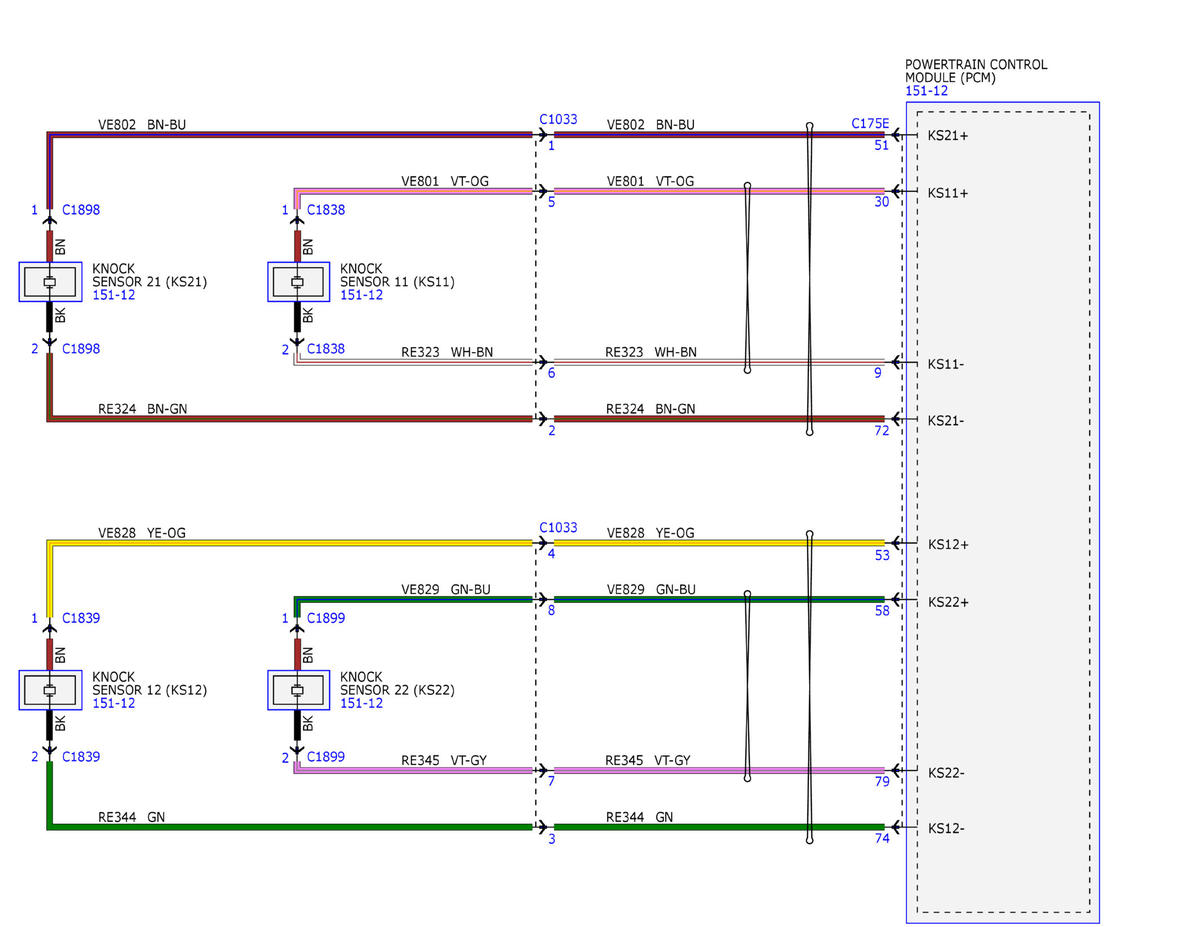

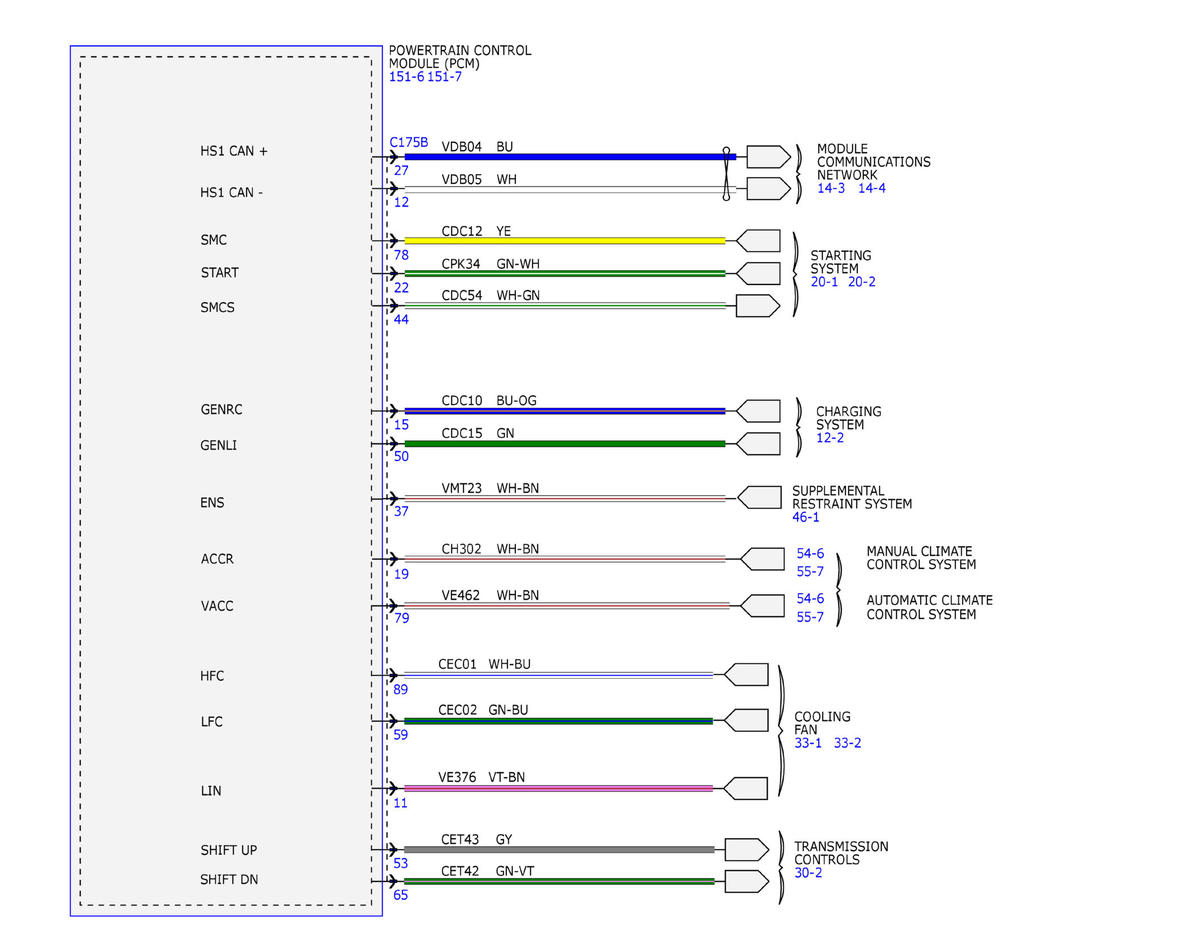

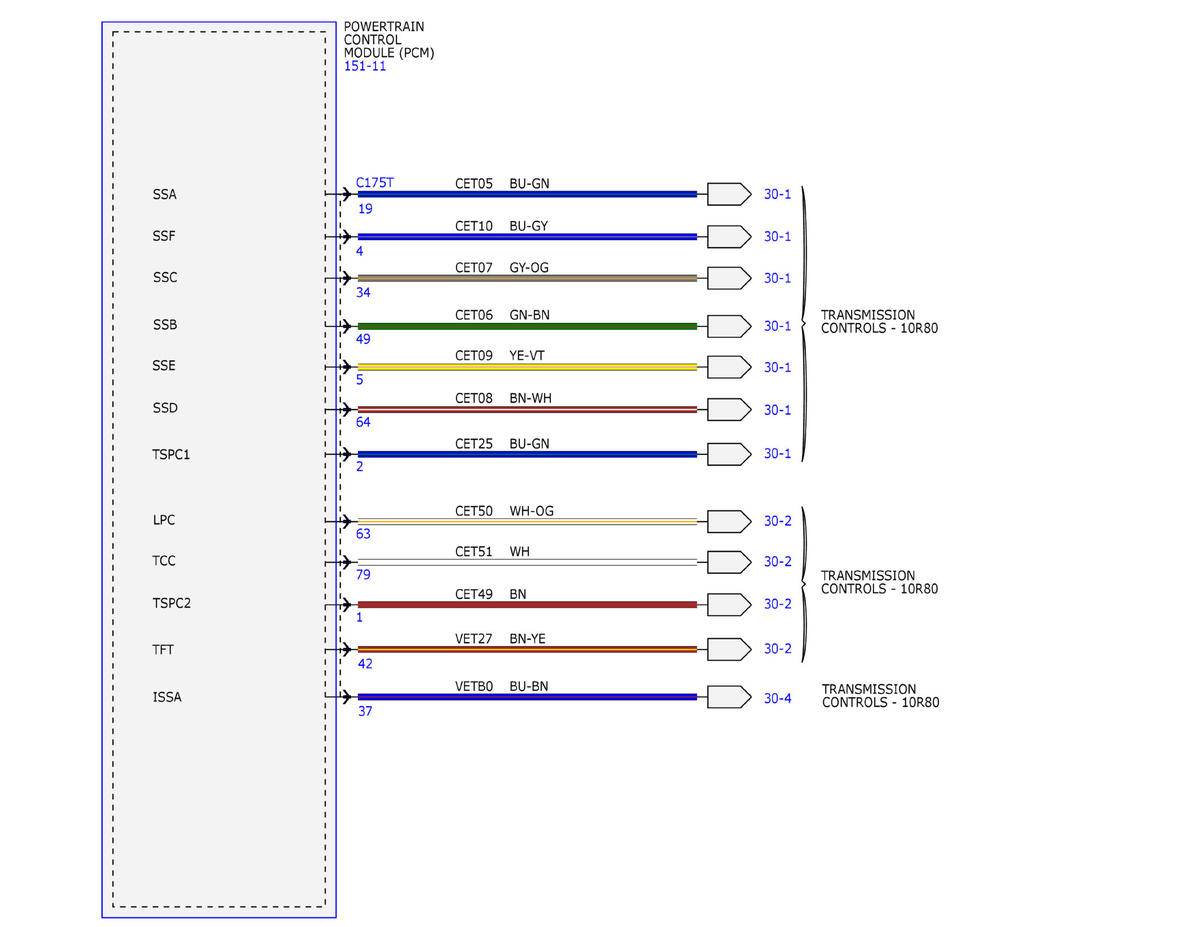

Fig 5: Electronic Engine Controls - 5.0L Wiring Diagrams (5 Of 24)
Courtesy of FORD MOTOR COMPANY

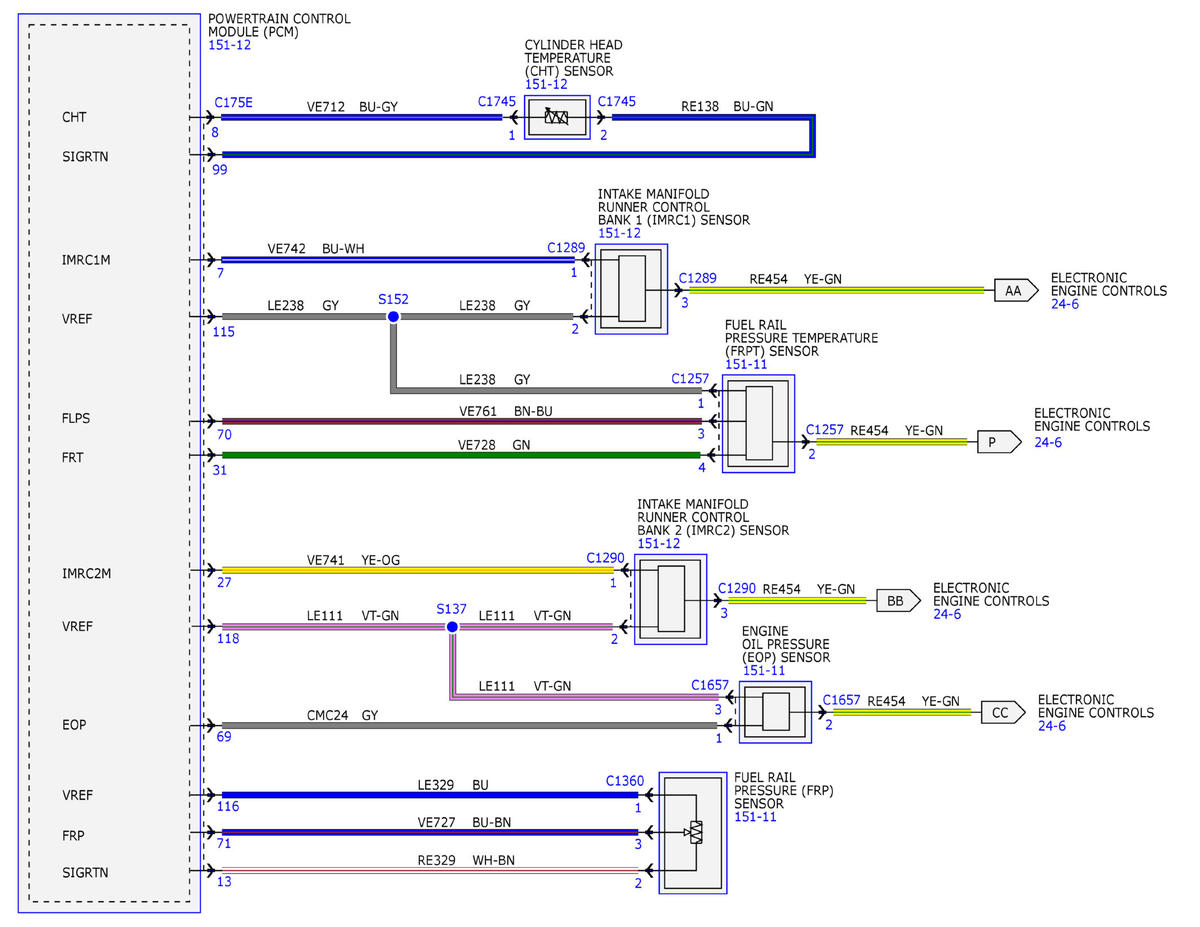

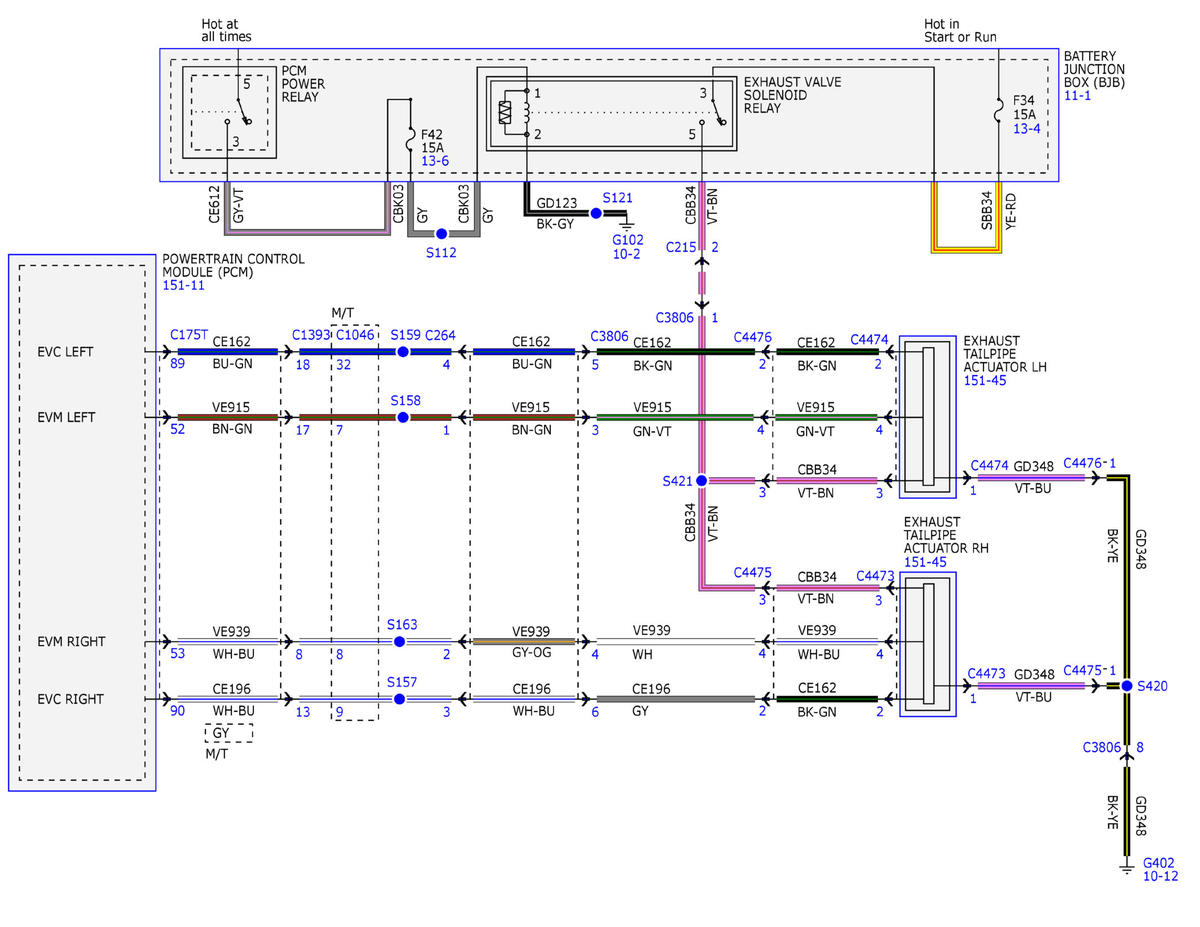

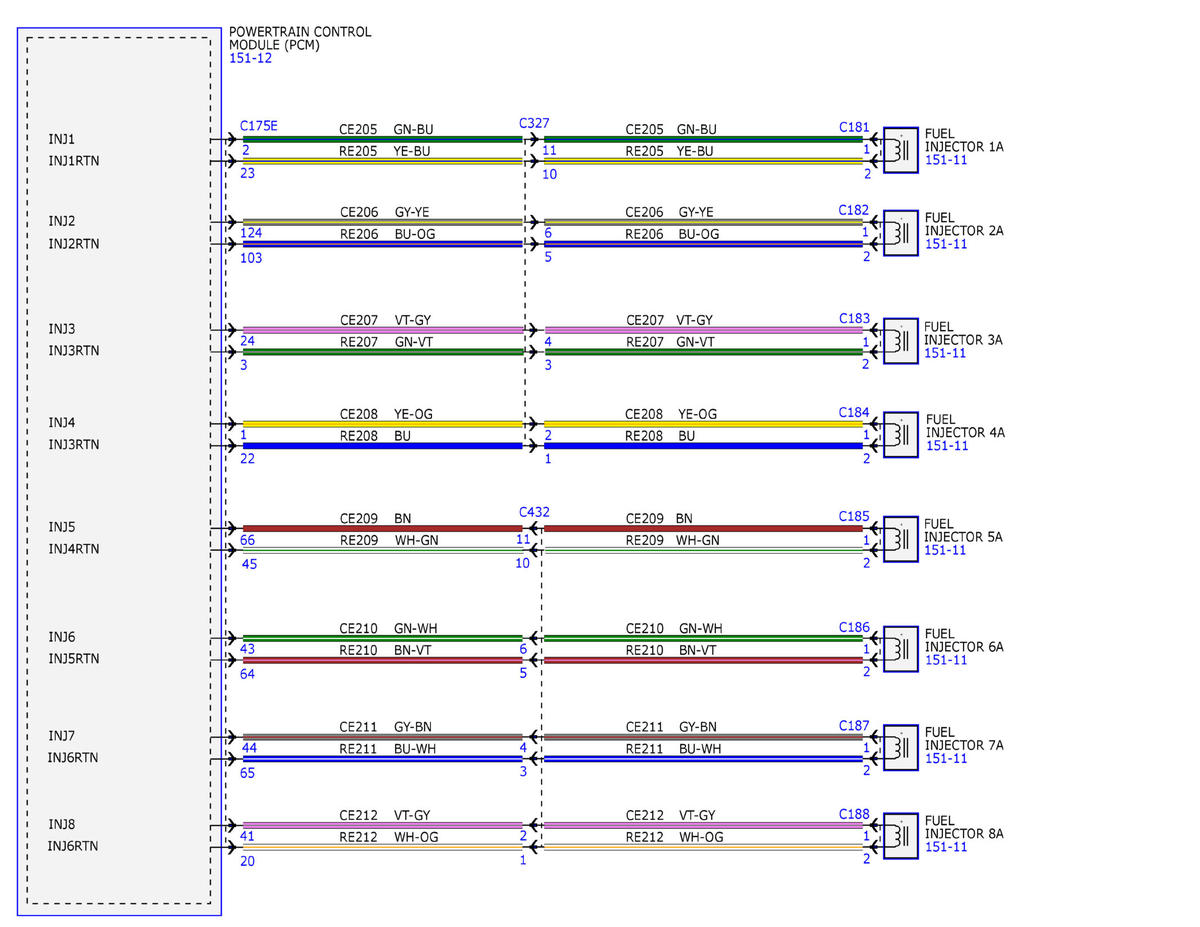

Fig 6: Electronic Engine Controls - 5.0L Wiring Diagrams (6 Of 24)
Courtesy of FORD MOTOR COMPANY

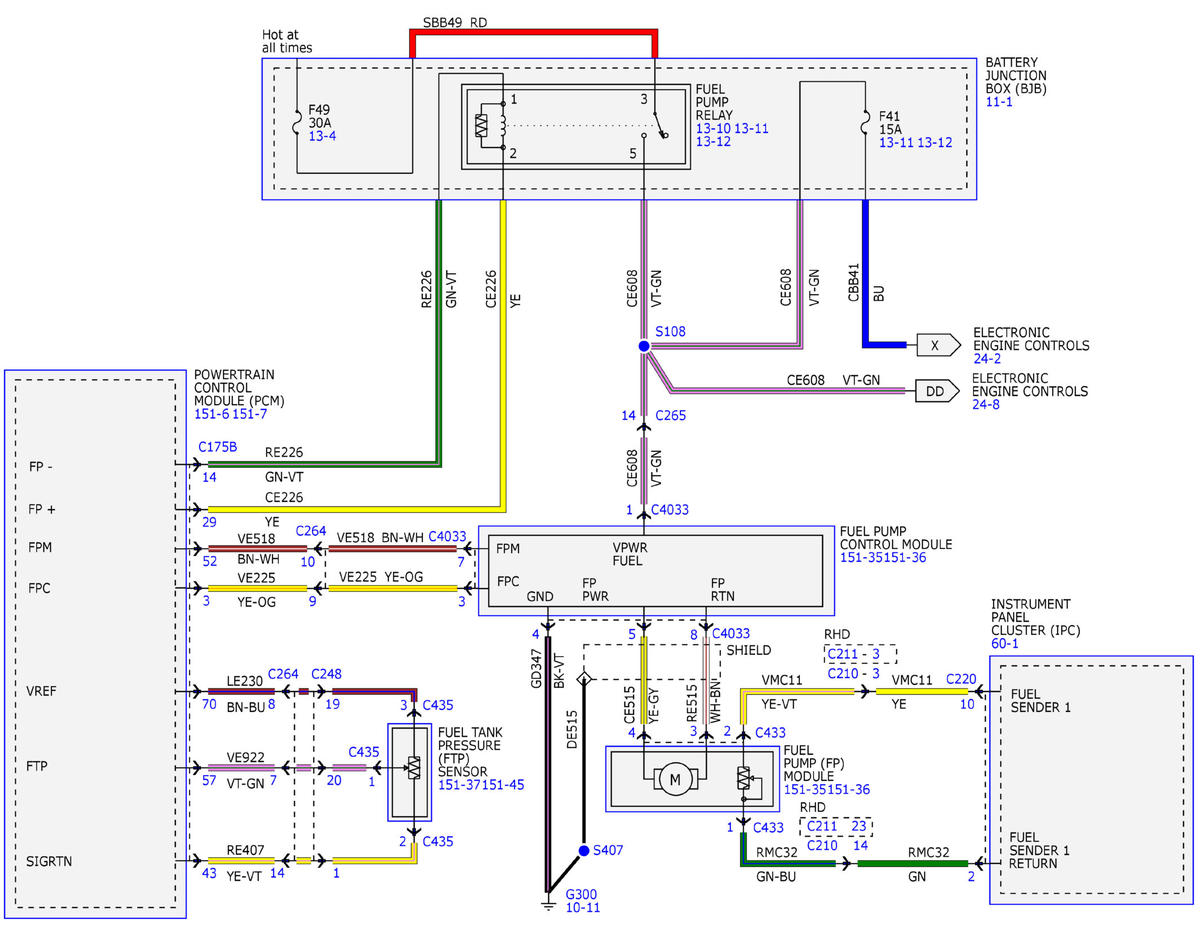

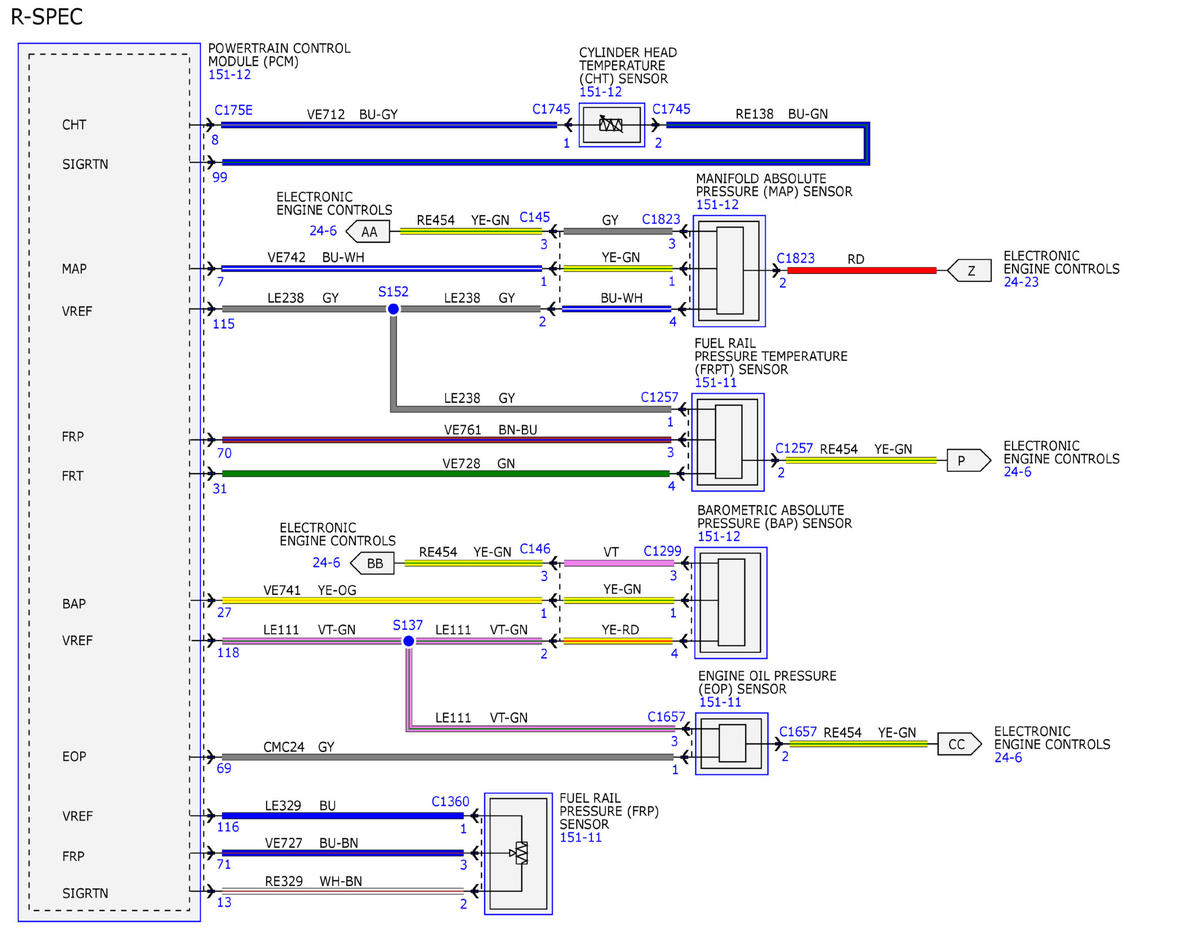

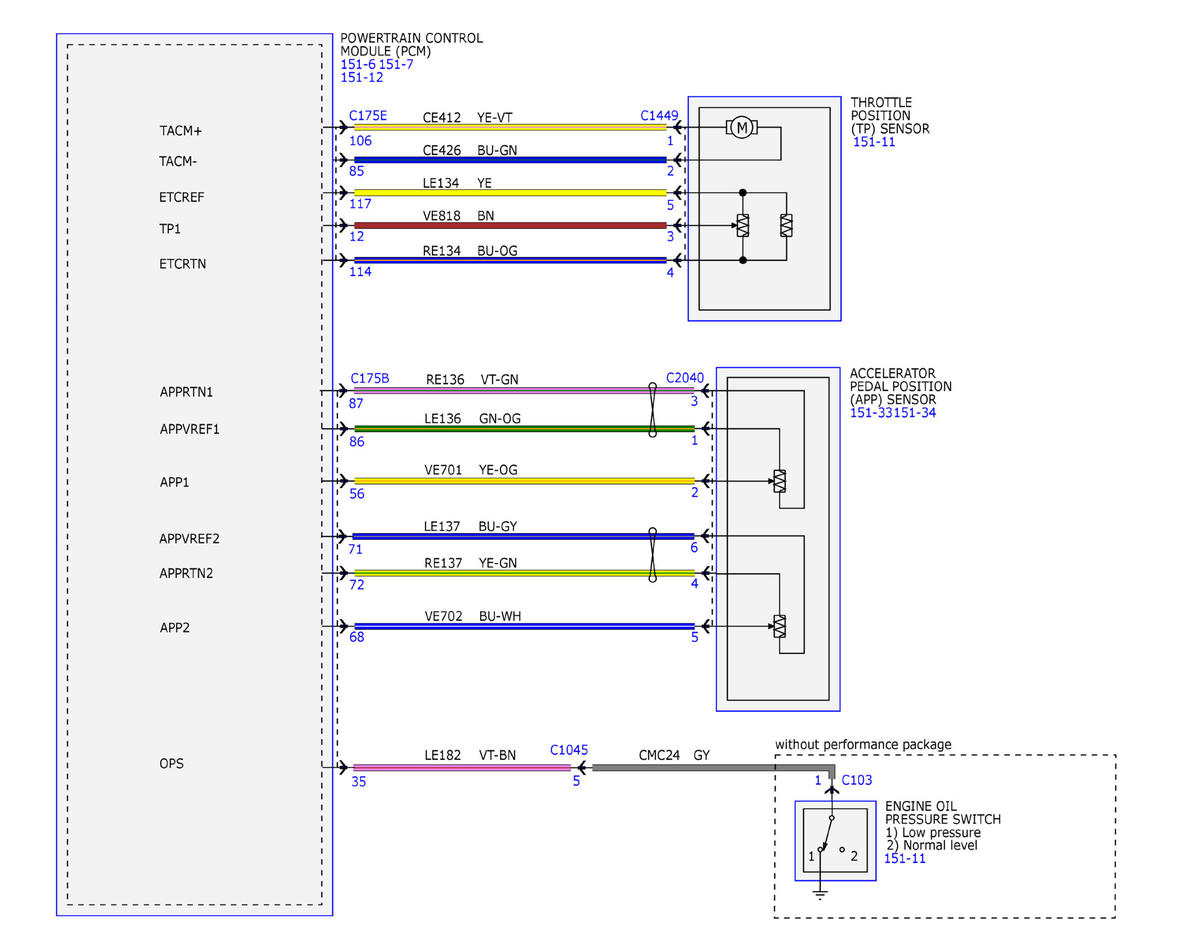

Fig 7: Electronic Engine Controls - 5.0L Wiring Diagrams (7 Of 24)
Courtesy of FORD MOTOR COMPANY

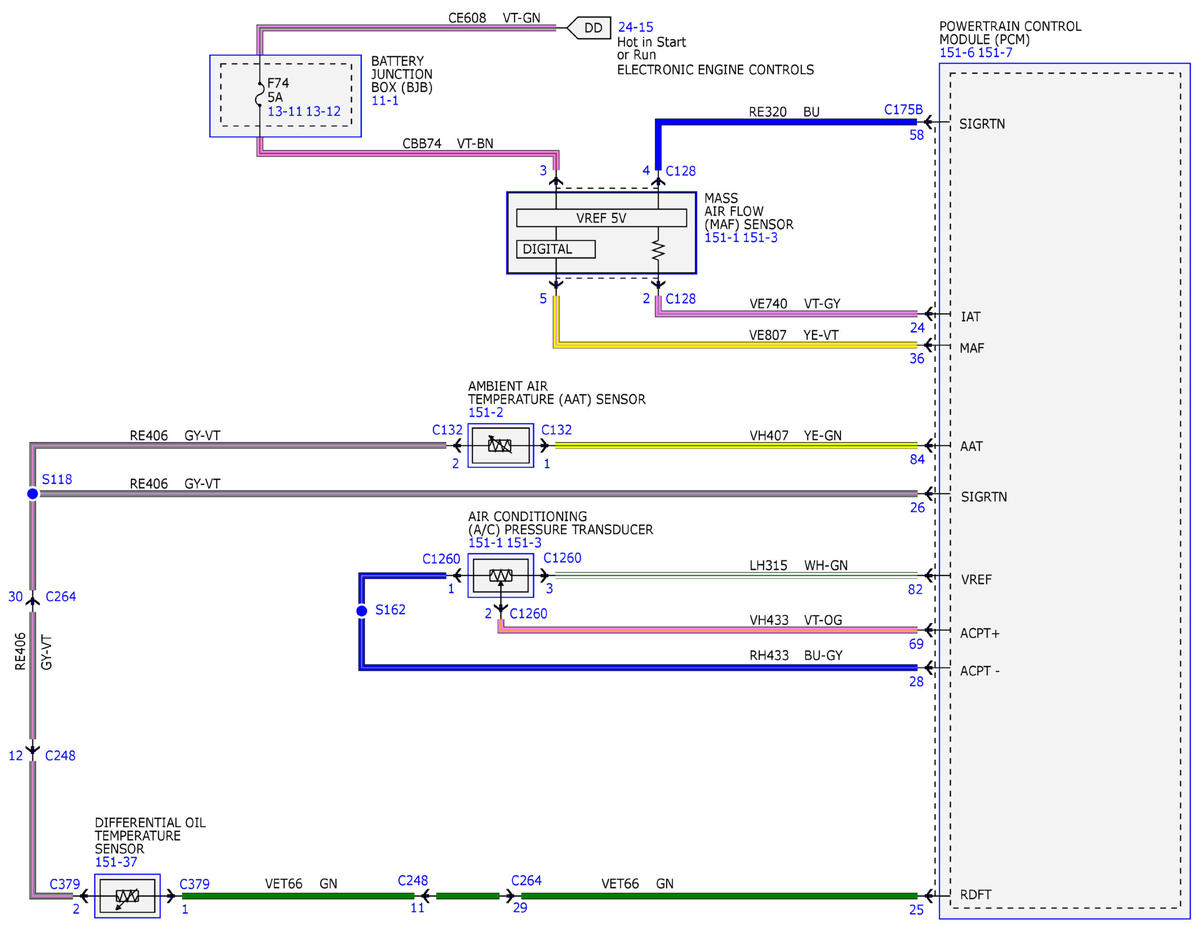

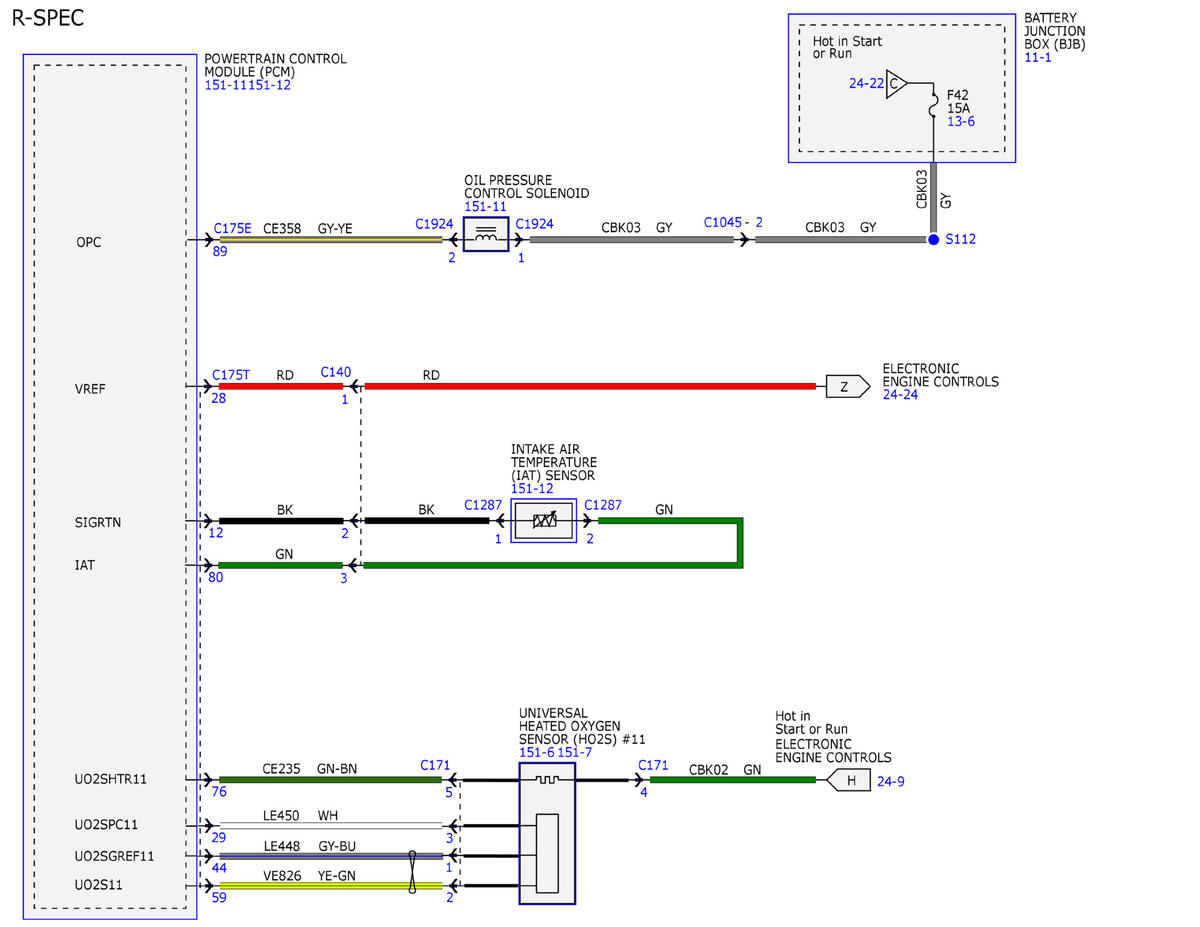

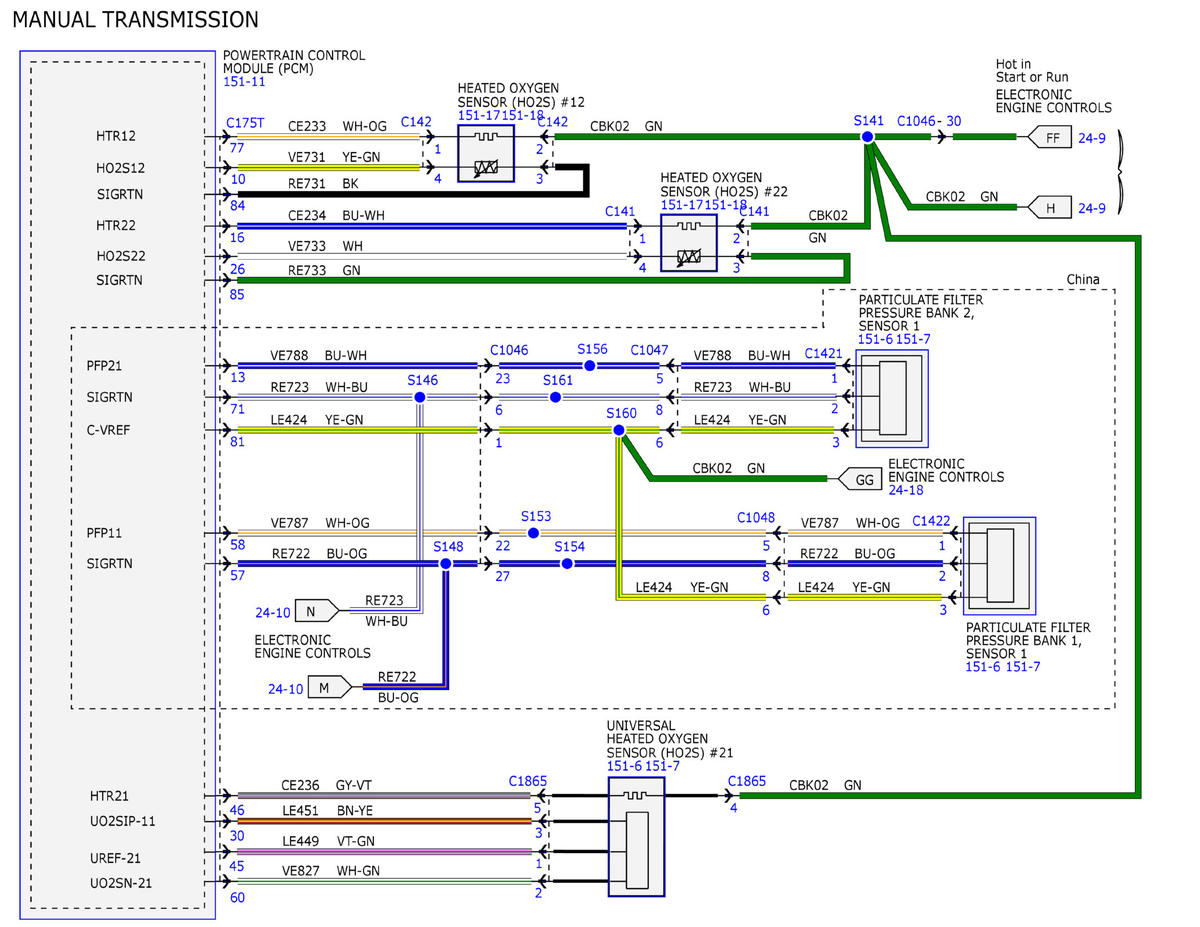

Fig 8: Electronic Engine Controls - 5.0L Wiring Diagrams (8 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 9: Electronic Engine Controls - 5.0L Wiring Diagrams (9 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 10: Electronic Engine Controls - 5.0L Wiring Diagrams (10 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 11: Electronic Engine Controls - 5.0L Wiring Diagrams (11 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 12: Electronic Engine Controls - 5.0L Wiring Diagrams (12 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 13: Electronic Engine Controls - 5.0L Wiring Diagrams (13 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 14: Electronic Engine Controls - 5.0L Wiring Diagrams (14 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 15: Electronic Engine Controls - 5.0L Wiring Diagrams (15 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 16: Electronic Engine Controls - 5.0L Wiring Diagrams (16 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 17: Electronic Engine Controls - 5.0L Wiring Diagrams (17 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 18: Electronic Engine Controls - 5.0L Wiring Diagrams (18 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 19: Electronic Engine Controls - 5.0L Wiring Diagrams (19 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 20: Electronic Engine Controls - 5.0L Wiring Diagrams (20 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 21: Electronic Engine Controls - 5.0L Wiring Diagrams (21 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 22: Electronic Engine Controls - 5.0L Wiring Diagrams (22 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 23: Electronic Engine Controls - 5.0L Wiring Diagrams (23 Of 24)
Courtesy of FORD MOTOR COMPANY
Fig 24: Electronic Engine Controls - 5.0L Wiring Diagrams (24 Of 24)
Courtesy of FORD MOTOR COMPANY
