Section 20 (OEM Wiring Diagrams)
>>
Convertible Top
Convertible Top
WARNING:
This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

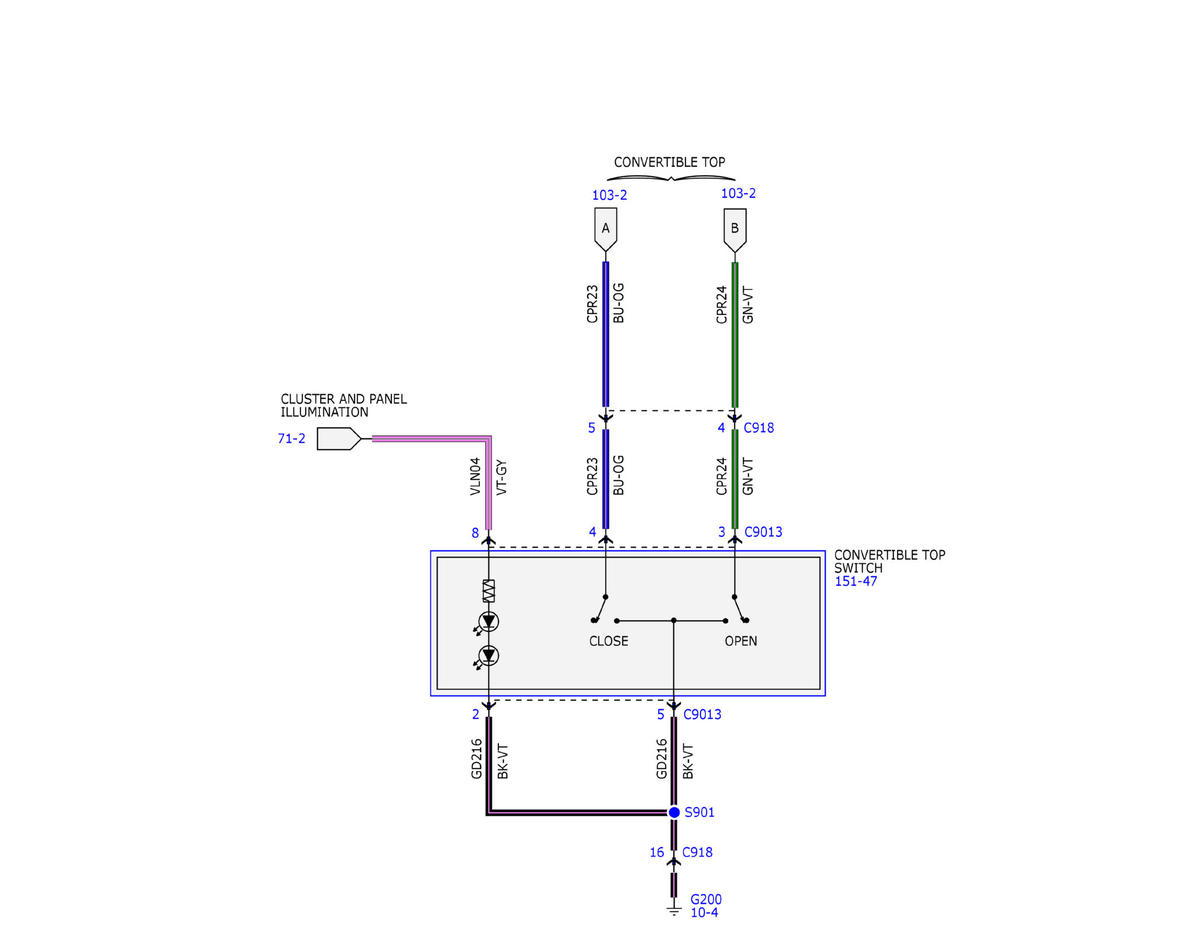

Fig 1: Convertible Top Wiring Diagrams (1 Of 2)
Courtesy of FORD MOTOR COMPANY

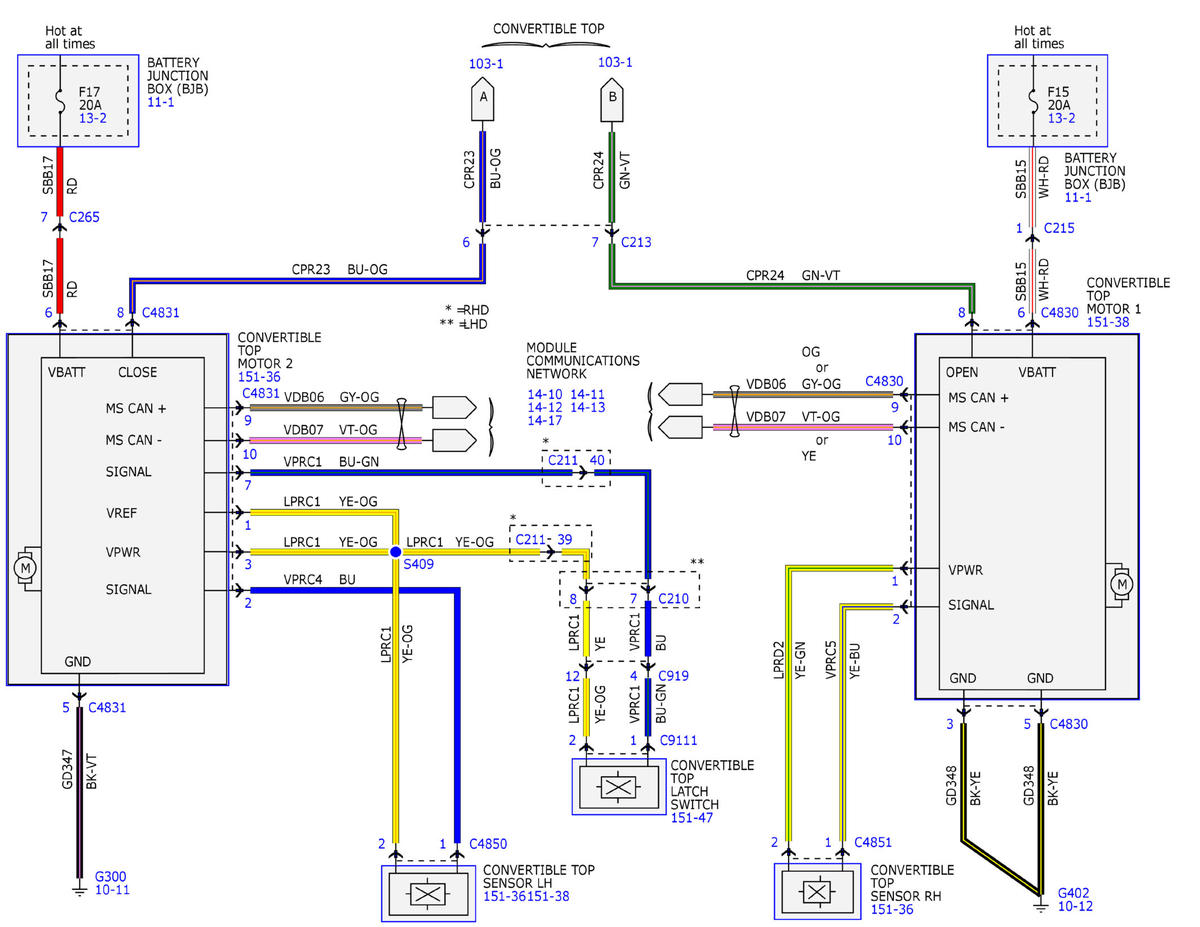

Fig 2: Convertible Top Wiring Diagrams (2 Of 2)
Courtesy of FORD MOTOR COMPANY
