WARNING: This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

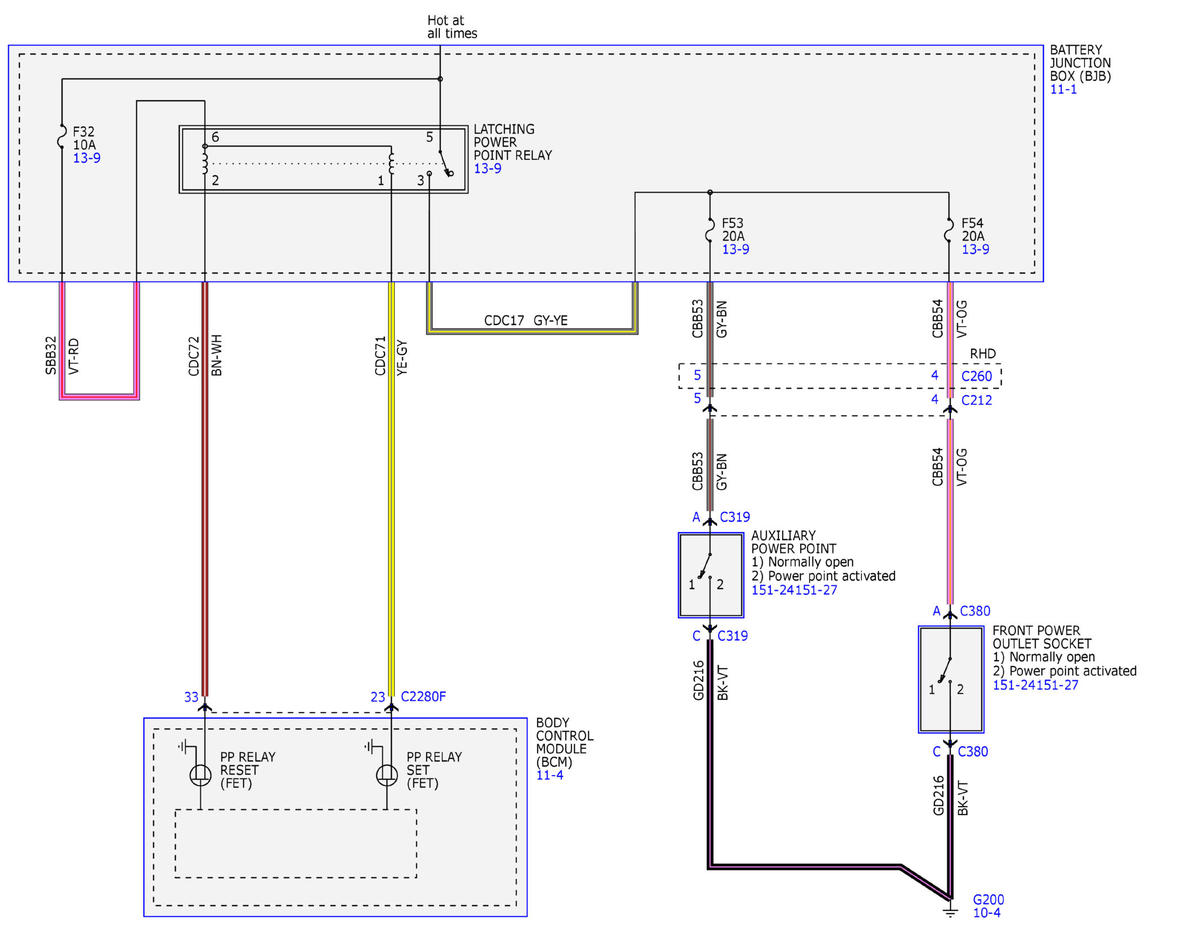

Fig 1: Auxiliary Power Point Wiring Diagrams (1 Of 2)
Courtesy of FORD MOTOR COMPANY
Fig 2: Auxiliary Power Point Wiring Diagrams (2 Of 2)
