Luggage Compartment Lid Alignment

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Inspection

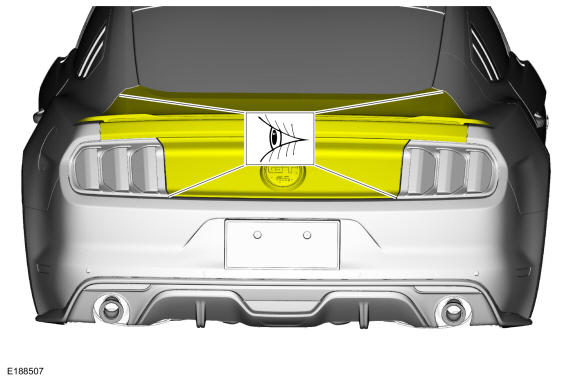

1. Check luggage compartment lid to body dimensions. Refer to: Body and Frame .

   All alignments

   NOTE: Removal steps in this procedure may contain installation details.
2. Remove the luggage compartment lid latch. Refer to: Luggage Compartment Lid Latch - Coupe . Refer to: Luggage Compartment Lid Latch - Convertible .

   Luggage compartment lid fore and aft, left and right alignments

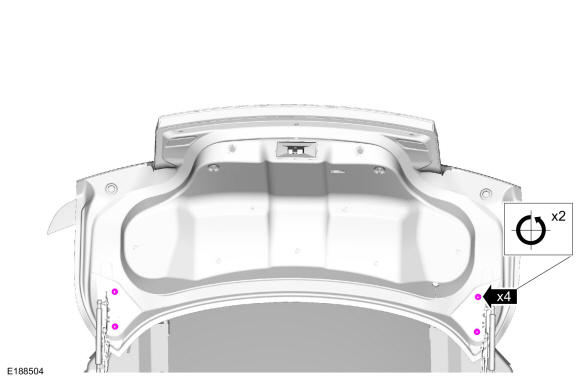

3. Loosen the bolts to permit movement of the luggage compartment lid. Loosen: : 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

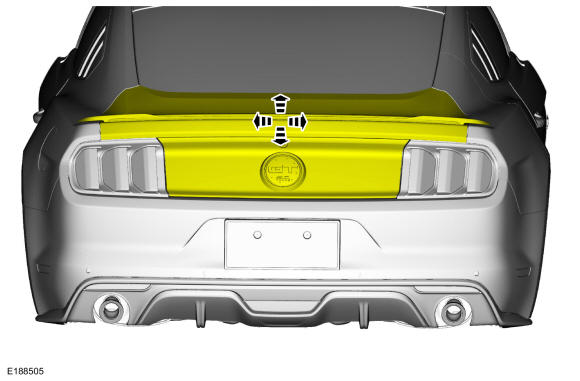

4. Adjust the luggage compartment lid to specifications. Refer to: Body and Frame .

   Courtesy of FORD MOTOR COMPANY

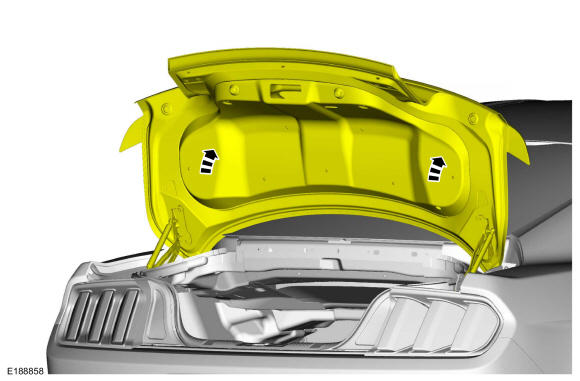

5. Carefully open luggage compartment lid.

   Courtesy of FORD MOTOR COMPANY

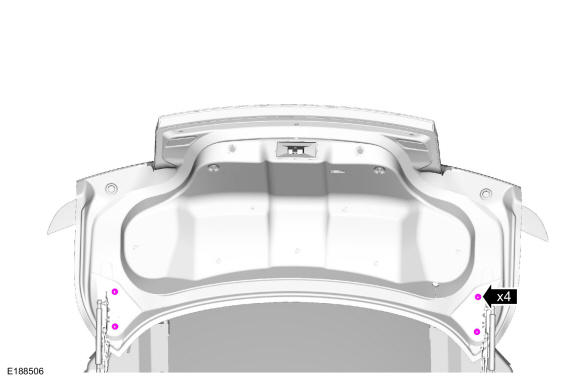

6. Tighten the nuts.

   Torque: 106 lb.in (12 Nm)

   Courtesy of FORD MOTOR COMPANY

   Luggage compartment lid up and down alignments

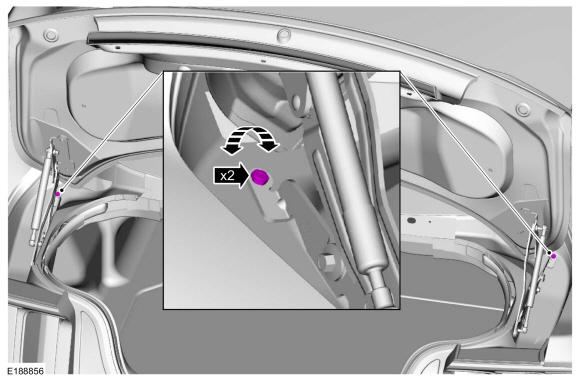

7. Adjust the adjusting screws.

   Courtesy of FORD MOTOR COMPANY

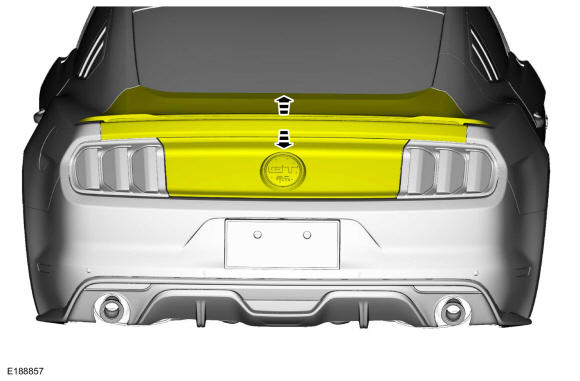

8. Adjust the luggage compartment lid to specifications. Refer to: Body and Frame .

   Courtesy of FORD MOTOR COMPANY

9. Open the luggage compartment lid.

   Courtesy of FORD MOTOR COMPANY

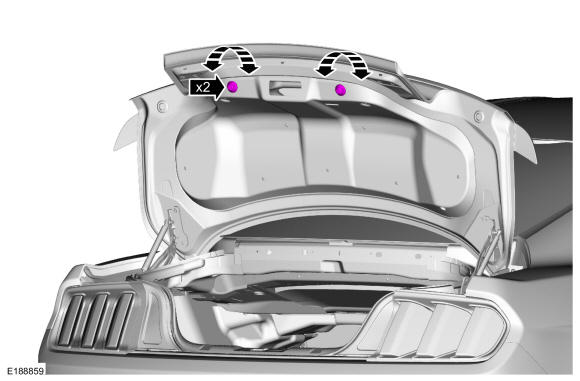

10. Adjust the luggage compartment lid bump stop rubbers.

    Courtesy of FORD MOTOR COMPANY

11. Adjust the luggage compartment lid to specifications. Refer to: Body and Frame .

    Courtesy of FORD MOTOR COMPANY

    All alignments

12. Check the body to luggage compartment lid dimensions. Refer to: Body and Frame .

    Courtesy of FORD MOTOR COMPANY

13. Install the removed components.
