Intrusion Sensor: Removal

WARNING: This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

Remove the overhead console. Refer to: Overhead Console .

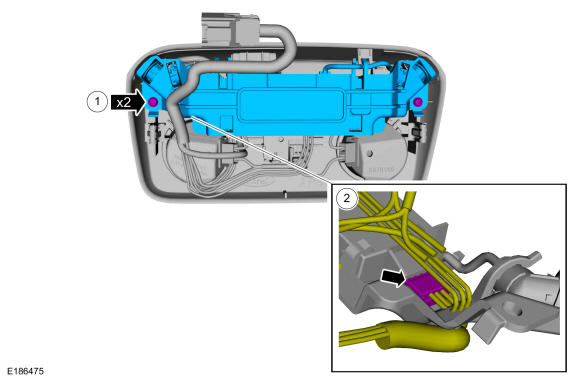

1. Remove the screws.
2. Disconnect the electrical connector and remove the bracket and sensor assembly.
Courtesy of FORD MOTOR COMPANY

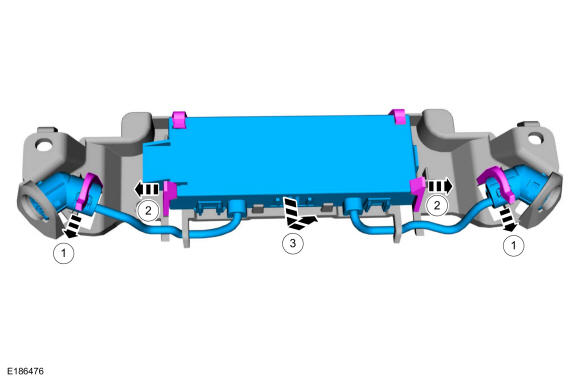

1. Release the clips and position the sensors aside.
2. Release the clips.
3. Remove the intrusion sensor.

Courtesy of FORD MOTOR COMPANY
