Auto-Start-Stop System

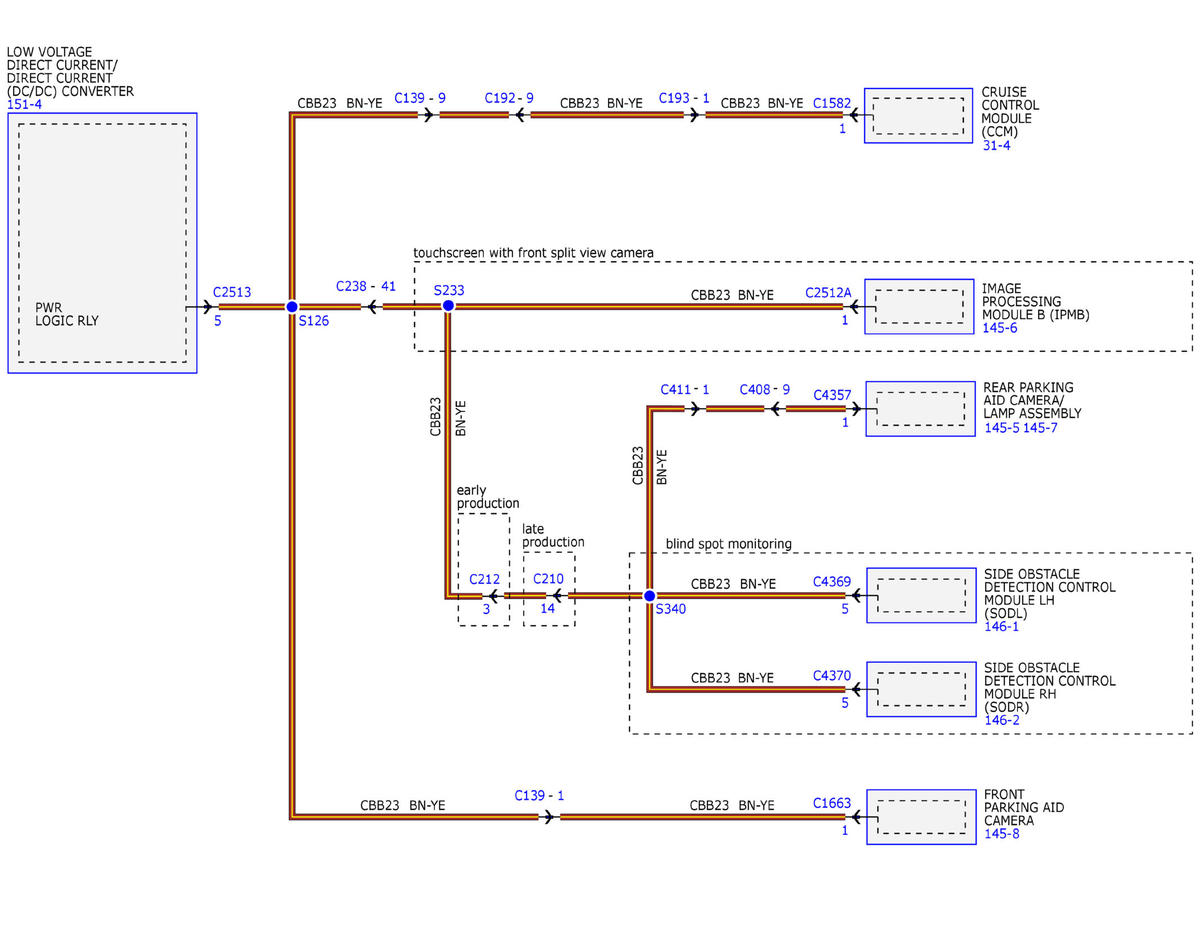

Fig 1: Auto-Start-Stop System Wiring Diagram (1 Of 3)
GFDWR108664Courtesy of FORD MOTOR COMPANY

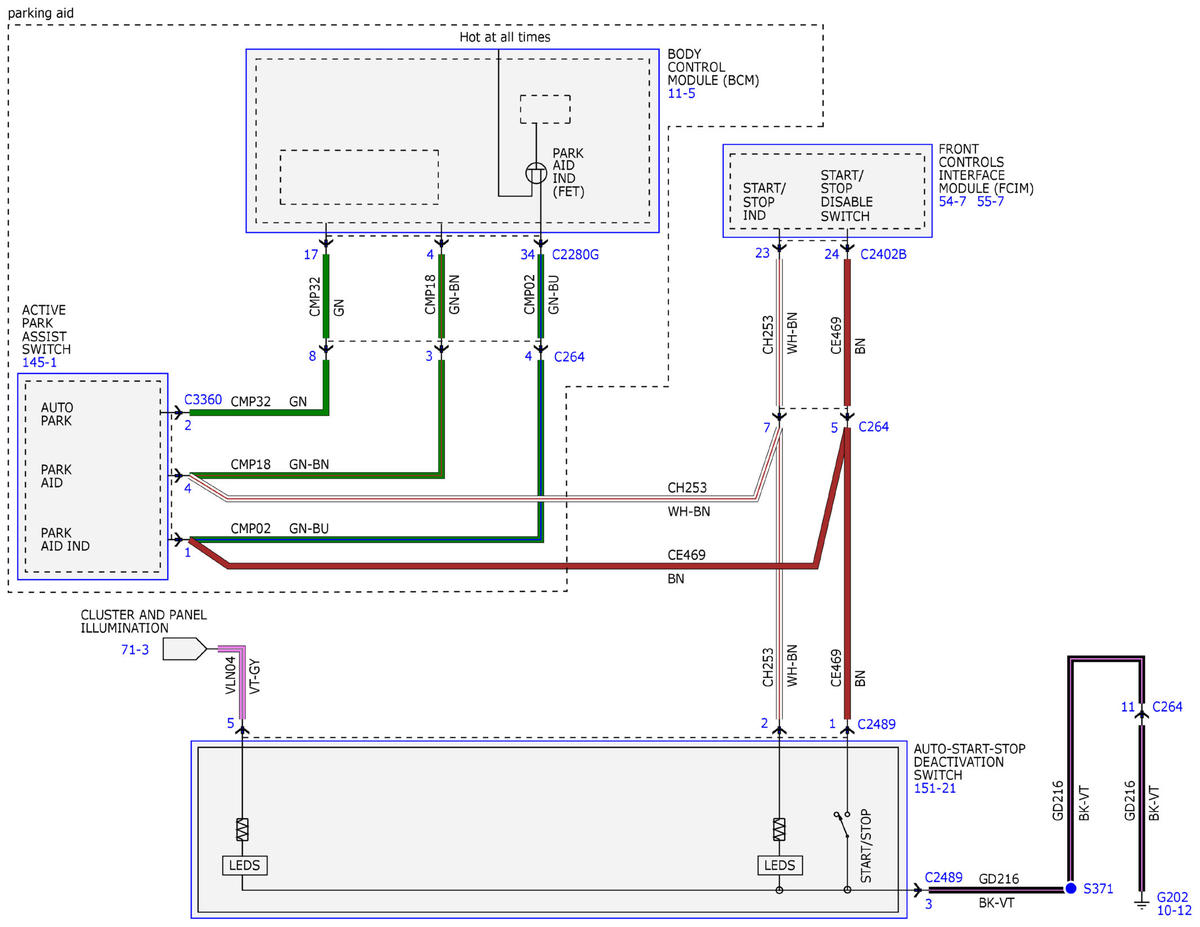

Fig 2: Auto-Start-Stop System Wiring Diagram (2 Of 3)
GFDWR108665Courtesy of FORD MOTOR COMPANY

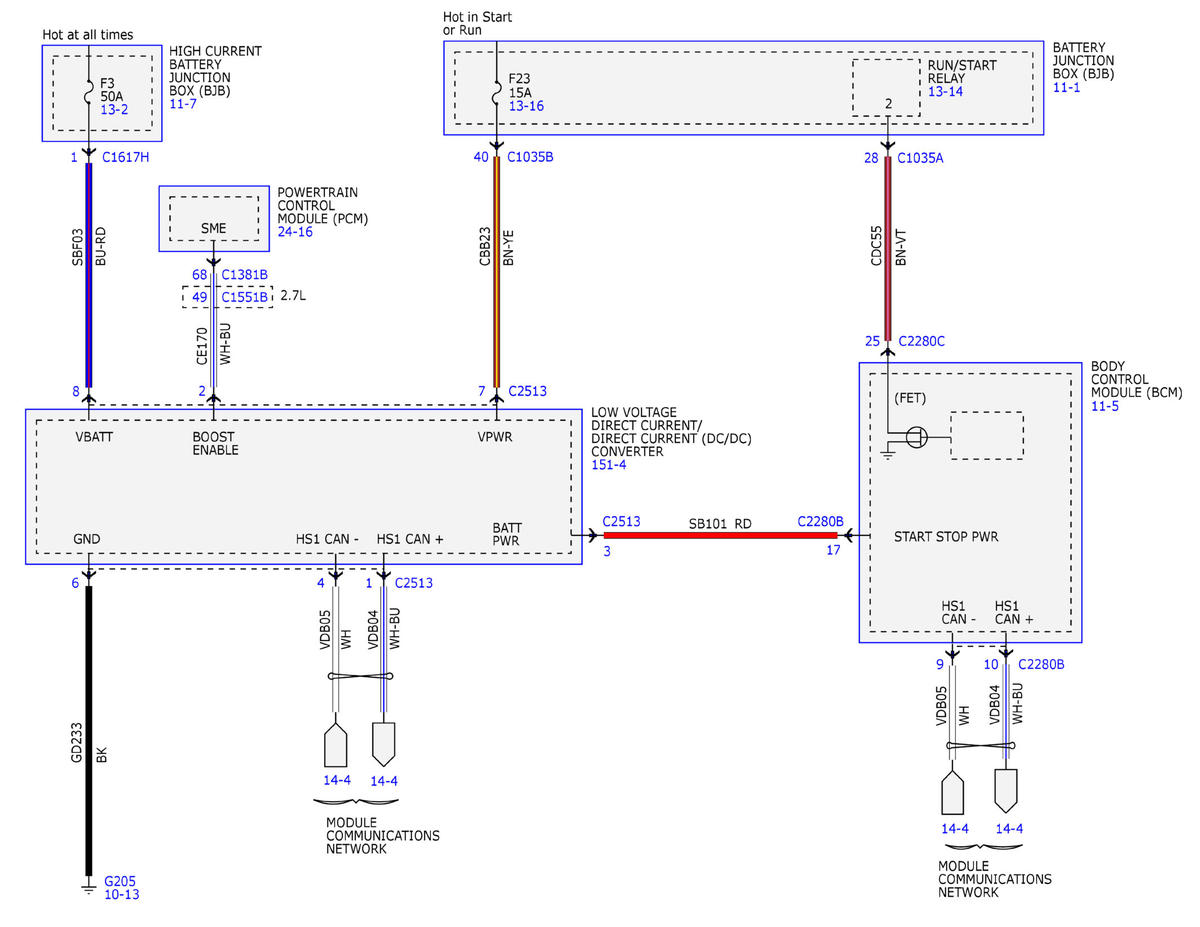

Fig 3: Auto-Start-Stop System Wiring Diagram (3 Of 3)
GFDWR108666Courtesy of FORD MOTOR COMPANY
