Transmission External Sealing
The transmission external sealing consists of the following:
- Reusable transmission main control cover gasket.
- Two rubber seals with backing rings to seal transmission cooler tubes to the transmission case.
- Unitized LH halfshaft seal that is pressed into the transmission case.
- Unitized RH halfshaft seal that is pressed into the torque converter housing.
- Selector shaft lip seal that is pressed into the transmission case.
- One rubber seal and two O-rings that seal the Auto-start-stop accumulator to the transmission case.
- One O-ring to seal the TSS/ISSA (Turbine Shaft Speed /Intermediate Shaft Speed) sensor assembly to the transmission case.
- Six pressure test tap plugs in the transmission case.
- Transmission fluid fill plug near the LH halfshaft seal.
- Transmission fluid drain plug at the bottom of the transmission case.
- Torque converter hub lip seal that is pressed into the torque converter housing.
- One plug at the rear of the torque converter housing.
| Item | Description |
|---|---|

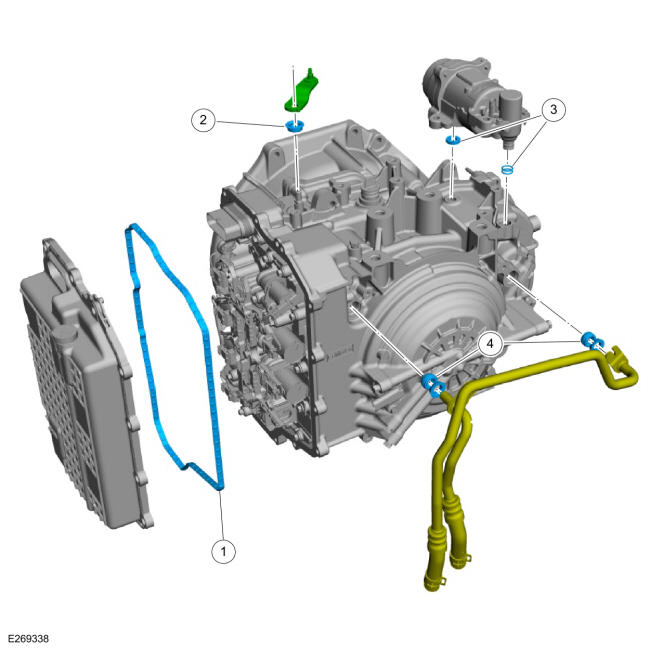

| 1 | Main control cover gasket |
| 2 | Manual control shaft seal |
| 3 | Auto-start-stop accumulator seal and O-rings (2 required) |
| 4 | Transmission fluid cooler tube seals (2 required) |

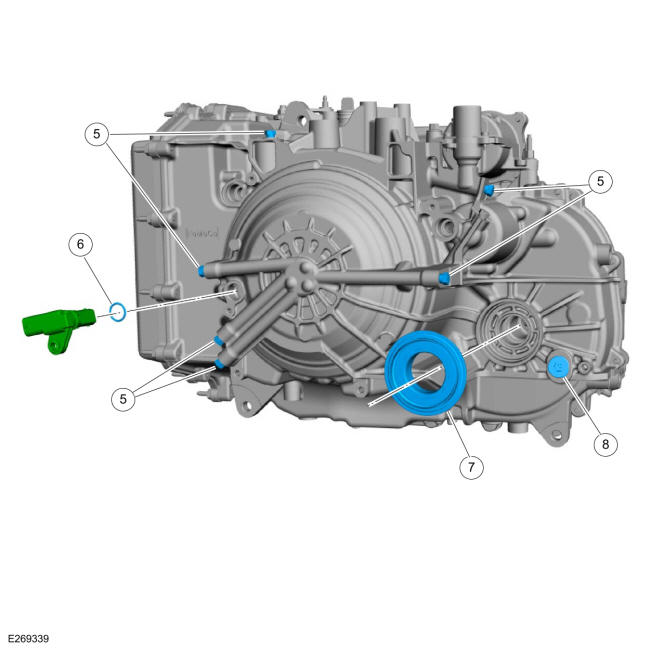

| 5 | Pressure test tap plug (6 required) |
| 6 | TSS/ISSA (Turbine Shaft Speed/Intermediate Shaft Speed) sensor assembly |
| 7 | LH halfshaft seal |
| 8 | Transmission fluid fill plug |

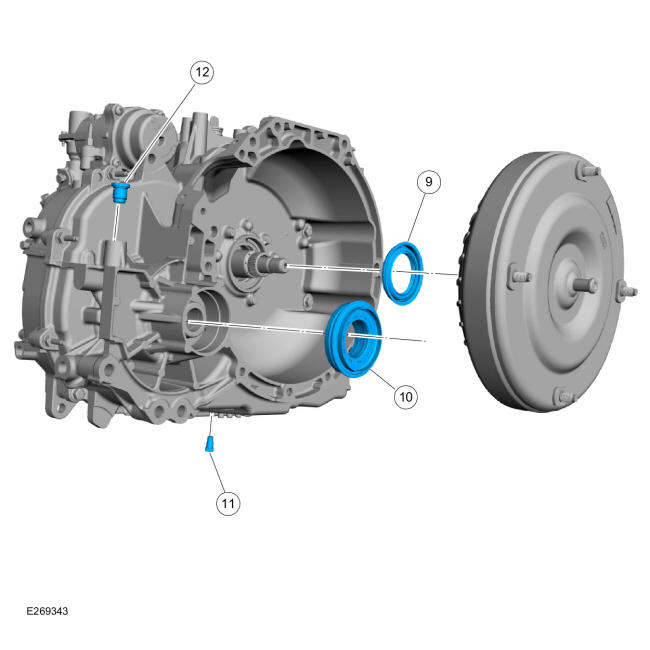

| 9 | Torque converter hub seal |
| 10 | RH halfshaft seal |
| 11 | Transmission fluid drain plug |
| 12 | Torque converter housing plug |

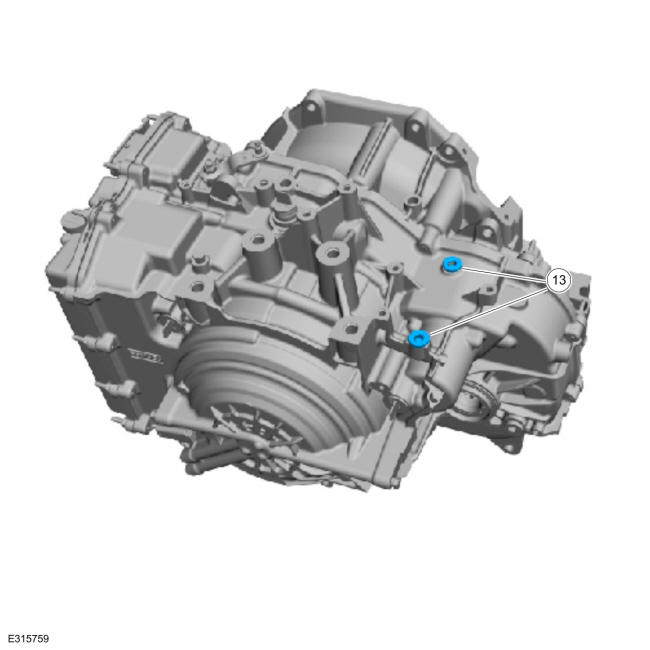

| 13 | Plug (2 required) non start/stop |
