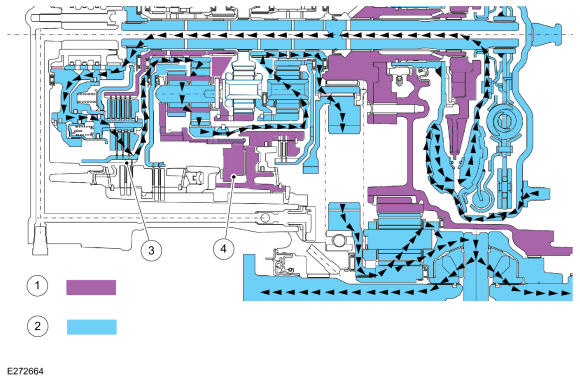

Reverse Position
| Item | Description |
|---|---|
| 1 | Held components |
| 2 | Driven components |
| 3 | B (4, 6, R) clutch |
| 4 | Hydraulic SOWC |
- With the selector lever in REVERSE, the hydraulic SOWC holds the overdrive/reaction carrier stationary.
- The B (4, 6, R) clutch drives the reaction sun gear at turbine shaft speed (1000 RPM).
- The reaction ring and output carrier rotates at -337 RPM or a 2.96:1 reserve ratio.
