Component Description: Powerflow

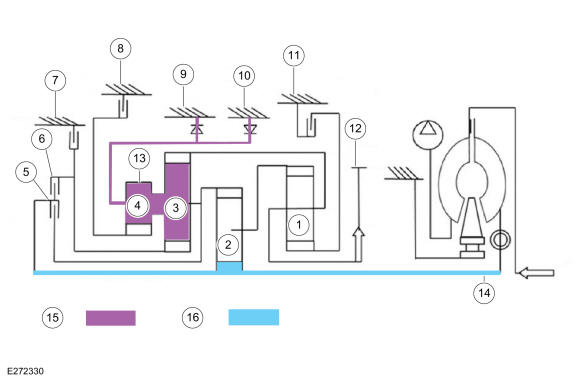

GFD526949Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 One-Way Clutch (OWC)
10 Hydraulic SOWC
11 A (1, 2, 3, 4, 5) clutch
12 0 RPM
13 0 RPM
14 1000 RPM
15 Held components
16 Driven components

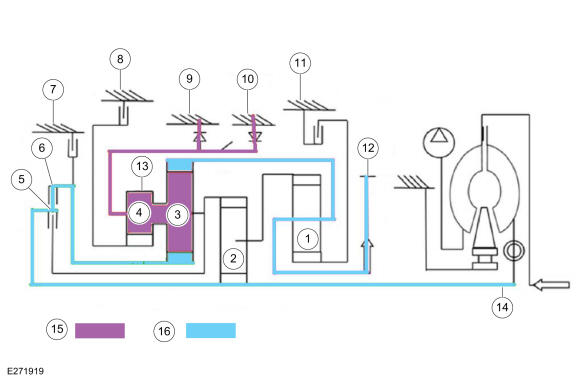

GFD526951Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 One-Way Clutch (OWC)
10 Hydraulic SOWC
11 A (1, 2, 3, 4, 5) clutch
12 -337 RPM
13 0 RPM
14 1000 RPM
15 Held components
16 Driven components


GFD526949Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 One-Way clutch (OWC)
10 Hydraulic SOWC
11 A (1, 2, 3, 4, 5) clutch
12 0 RPM
13 0 RPM
14 1000 RPM
15 Held components
16 Driven components

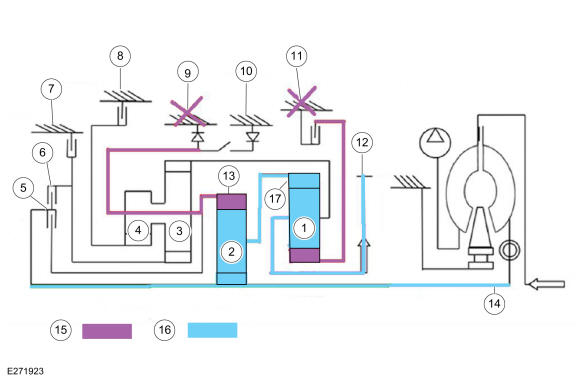

GFD526954Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 One-Way Clutch (OWC)
10 Hydraulic SOWC
11 A (1, 2, 3, 4, 5) clutch
12 213 RPM
13 0 RPM
14 1000 RPM
15 Held components
16 Driven components
17 308 RPM

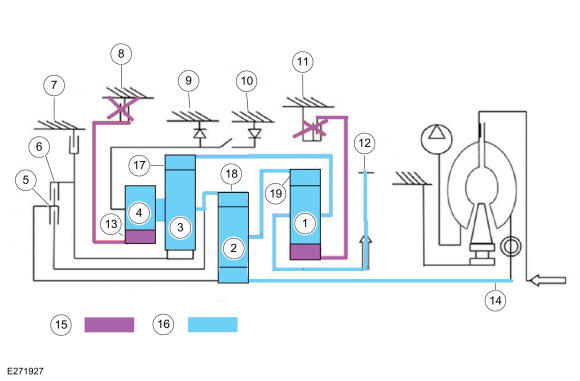

GFD526956Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 One-Way Clutch (OWC)
10 Hydraulic SOWC
11 A (1, 2, 3, 4, 5) clutch
12 302 RPM
13 0 RPM
14 1000 RPM
15 Held components
16 Driven components
17 302 RPM
18 186 RPM
19 437 RPM

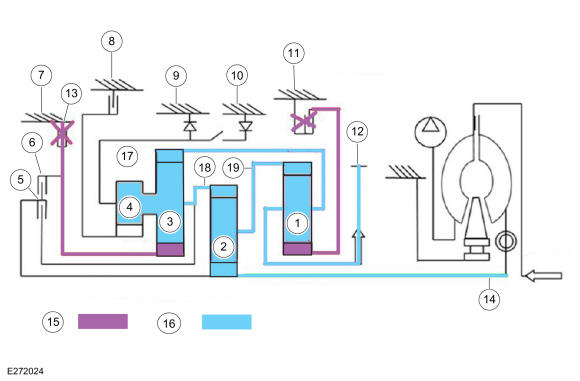

GFD526958Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 One-Way Clutch (OWC)
10 Hydraulic SOWC
11 A (1, 2, 3, 4, 5) clutch
12 332 RPM
13 0 RPM
14 1000 RPM
15 Held components
16 Driven components
17 332 RPM
18 458 RPM
19 480 RPM

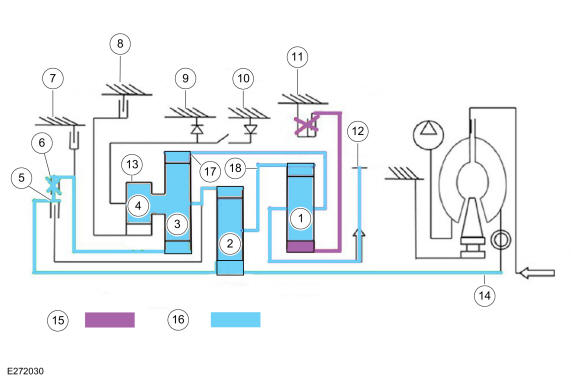

GFD526960Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 One-Way Clutch (OWC)
10 Hydraulic SOWC
11 A (1, 2, 3, 4, 5) clutch
12 520 RPM
13 525 RPM
14 1000 RPM
15 Held components
16 Driven components
17 520 RPM
18 751 RPM

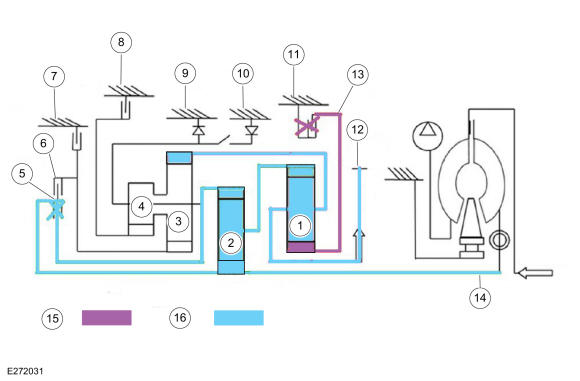

GFD526962Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 One-Way Clutch (OWC)
10 Hydraulic SOWC
11 A (1, 2, 3, 4, 5) clutch
12 692 RPM
13 0 RPM
14 1000 RPM
15 Held components
16 Driven components

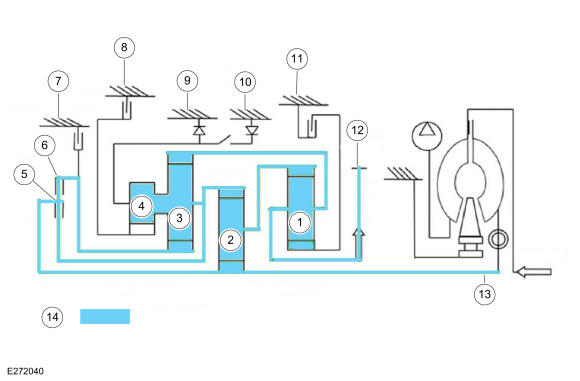

GFD526964Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 One-Way Clutch (OWC)
10 Hydraulic SOWC
11 A (1, 2, 3, 4, 5) clutch
12 1000 RPM
13 1000 RPM
14 Driven components

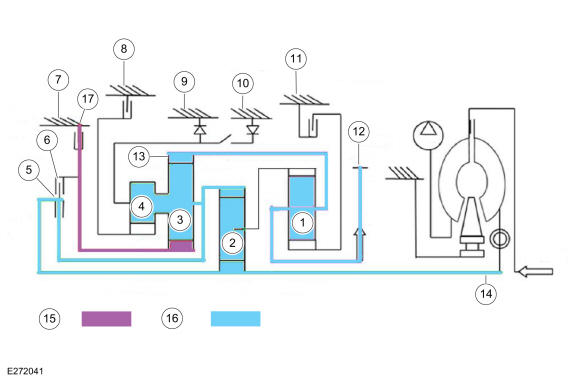

GFD526966Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 One-Way Clutch (OWC)
10 Hydraulic SOWC
11 A (1, 2, 3, 4, 5) clutch
12 1338 RPM
13 1338 RPM
14 1000 RPM
15 Held components
16 Driven components

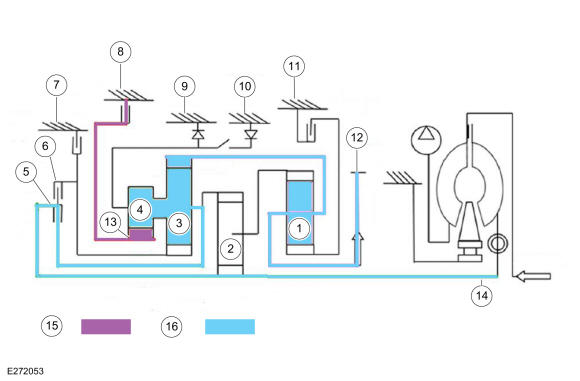

GFD526968Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 One-Way Clutch (OWC)
10 Hydraulic SOWC
11 A (1, 2, 3, 4, 5) clutch
12 1621 RPM
13 0 RPM
14 1000 RPM
15 Held components
16 Driven components
