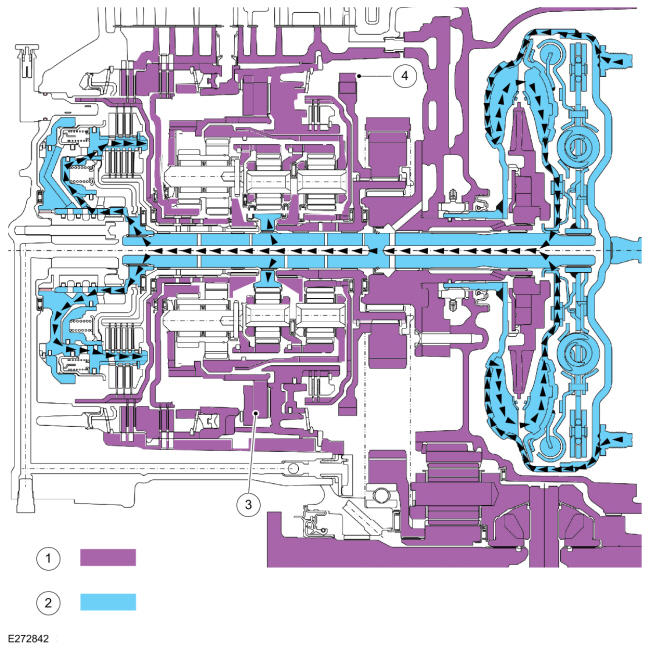

Park Position
| Item | Description |
|---|---|
| 1 | Held components |
| 2 | Driven components |
| 3 | Hydraulic SOWC |
| 4 | Park pawl |
- With the vehicle in PARK, the hydraulic SOWC holds the overdrive/reaction carrier stationary in anticipation of Reverse or 1st gear engagement.
- All gear element speeds can be predicted and a consistent engagement feel can be achieved.
