Pinpoint Test Kg: Fuel Injector: Introduction

This pinpoint test is intended to diagnose the following:

• fuel injectors (9F593)
• injector relay
• harness circuits: INJ1, INJ2, INJ3, INJ4, INJ5, INJ6, INJ7, INJ8, INJ9, INJ10 INJRLY, INJPWRM and VPWR
• PCM (12A650)

Fig 1: Injector Relay Connector

Courtesy of FORD MOTOR CO.

Harness Side

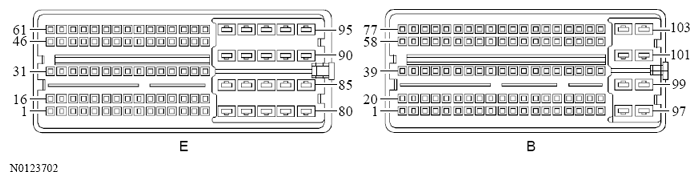

Fig 2: Powertrain Control Module (PCM) Connector - For PCM Connector Views

Courtesy of FORD MOTOR CO.

Harness Side
