Pinpoint Test RB: Exhaust Gas Temperature (EGT) Sensor: Introduction
WARNING:
Manual regeneration of the particulate filter causes the exhaust gas to quickly get very hot. Initiate a manual regeneration only when the vehicle is on the ground with the area around the tailpipe free of people, obstructions, foreign material or other items. Failure to follow these instructions may result in serious personal injury.
NOTE:
Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.
This pinpoint test is intended to diagnose the following:
EGT SENSOR TEMPERATURE AND RESISTANCE SPECIFICATIONS
| Temperature | Temperature Sensor Value | EGT PID | |
|---|---|---|---|
| °C | °F | Resistance (K ohms) | (Volts) |
| 900 | 1652 | 0.09 | 0.41 |
| 850 | 1562 | 0.11 | 0.48 |
| 800 | 1472 | 0.13 | 0.58 |
| 750 | 1382 | 0.16 | 0.70 |
| 700 | 1292 | 0.21 | 0.86 |
| 650 | 1202 | 0.27 | 1.06 |
| 600 | 1112 | 0.36 | 1.26 |
| 550 | 1022 | 0.5 | 1.67 |
| 500 | 932 | 0.73 | 2.1 |
| 450 | 842 | 1.1 | 2.62 |
| 400 | 752 | 1.77 | 3.2 |
| 350 | 662 | 3.09 | 3.78 |
| 300 | 572 | 5.92 | 4.28 |
| 250 | 482 | 12.39 | 4.63 |
| 200 | 392 | 30.28 | 4.84 |
Harness Side
| Circuit | Pin |
|---|---|
| EGT11 (Exhaust Gas Temperature Bank 1, Sensor 1) | 1 |
| SIGRTN (Signal Return) | 2 |
Harness Side
| Circuit | Pin |
|---|---|
| EGT21 (Exhaust Gas Temperature Bank 2, Sensor 1) | 1 |
| SIGRTN (Signal Return) | 2 |

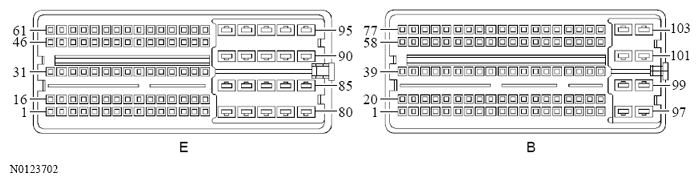

Harness Side
| Circuit | Pin |
|---|---|
| EGT11 (Exhaust Gas Temperature Bank 1, Sensor 1) | B29 |
| SIGRTN (Signal Return) | B26 |
