Piston Diameter
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
Check
NOTE:
Refer to the appropriate Engine article: 3.2L DURATORQ-TDCI (148KW/200PS) - PUMA
/3.5L ECOBOOST (235KW/320PS)
/3.7L DURATEC (199KW/270PS)
for the specification.

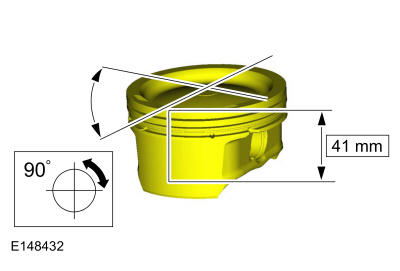

- Measure the piston diameter 90 degrees from the piston pin and 41 mm (1.61 in) down from the top of the piston at the point indicated.
