Cylinder Block Distortion: Check
NOTE:
Refer to the appropriate Engine article: 3.2L DURATORQ-TDCI (148KW/200PS) - PUMA
/3.5L ECOBOOST (235KW/320PS)
/3.7L DURATEC (199KW/270PS)
for the specification.
-
NOTE: Use a Straightedge that is calibrated by the manufacturer to be flat within 0.005 mm (0.0002 in) per running foot of length, such as Snap-On® GA438A or equivalent. For example, if the Straightedge is 61 cm (24 in) long, the machined edge must be flat within 0.010 mm (0.0004 in) from end to end.

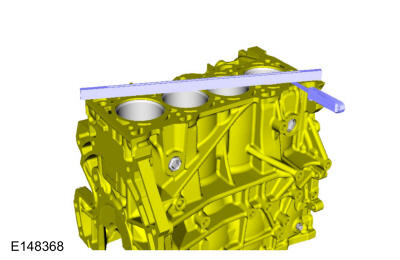

Use a Straightedge and a Feeler Gauge Set to inspect the cylinder block for flatness. Use the General Equipment: Feeler Gauge
