Power Steering System Purging

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	211-265 Evacuation Cap, Power Steering TKIT-1999M2-FLM
Courtesy of FORD MOTOR COMPANY	416-D002 Vacuum Pump Kit

Materials

Name	Specification
Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC	WSS-M2C938-A MERCON® LV

Bleeding

NOTE: If the air is not purged from the power steering system correctly, premature power steering pump failure may result. The condition may occur on pre-delivery vehicles with evidence of aerated fluid or on vehicles that have had steering component repairs.

Remove the power steering reservoir cap. Check the fluid.
Raise the front wheels off the floor. Refer to: Jacking and Lifting - Overview .

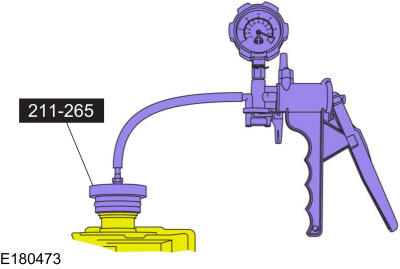

Tightly insert the Power Steering Evacuation Cap into the reservoir and connect the Vacuum Pump Kit. Use Special Service Tool: 211-265 Evacuation Cap, Power Steering, 416-D002 Vacuum Pump Kit.

Courtesy of FORD MOTOR COMPANY
Start the engine.
NOTE: If the Vacuum Pump Kit does not maintain vacuum, check the power steering system for leaks before proceeding. For additional information, refer to Power Steering Fluid Leak Test .

Using the Vacuum Pump Kit, apply vacuum and maintain the maximum vacuum of 68-85 kPa (20-25 in-Hg). Use Special Service Tool: 416-D002 Vacuum Pump Kit.
NOTE: Do not hold the steering wheel against the stops for an extended amount of time. Damage to the power steering pump may occur.

Cycle the steering wheel fully from stop-to-stop 10 times.
Stop the engine.
Release the vacuum and remove the Vacuum Pump Kit and the Power Steering Evacuation Cap.
NOTE: Do not overfill the reservoir.

Fill the reservoir as needed with the specified fluid.

Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
Start the engine.
Install the Power Steering Evacuation Cap and the Vacuum Pump Kit. Apply and maintain the maximum vacuum of 68-85 kPa (20-25 in-Hg). Use Special Service Tool: 211-265 Evacuation Cap, Power Steering, 416-D002 Vacuum Pump Kit.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not hold the steering wheel against the stops for an extended amount of time. Damage to the power steering pump may occur.

Cycle the steering wheel fully from stop-to-stop 10 times.
Stop the engine, release the vacuum and remove the Vacuum Pump Kit and the Power Steering Evacuation Cap.
NOTE: Do not overfill the reservoir.

Fill the reservoir as needed with the specified fluid and install the reservoir cap.

Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
Visually inspect the power steering system for leaks.
