Connector Repair Procedures

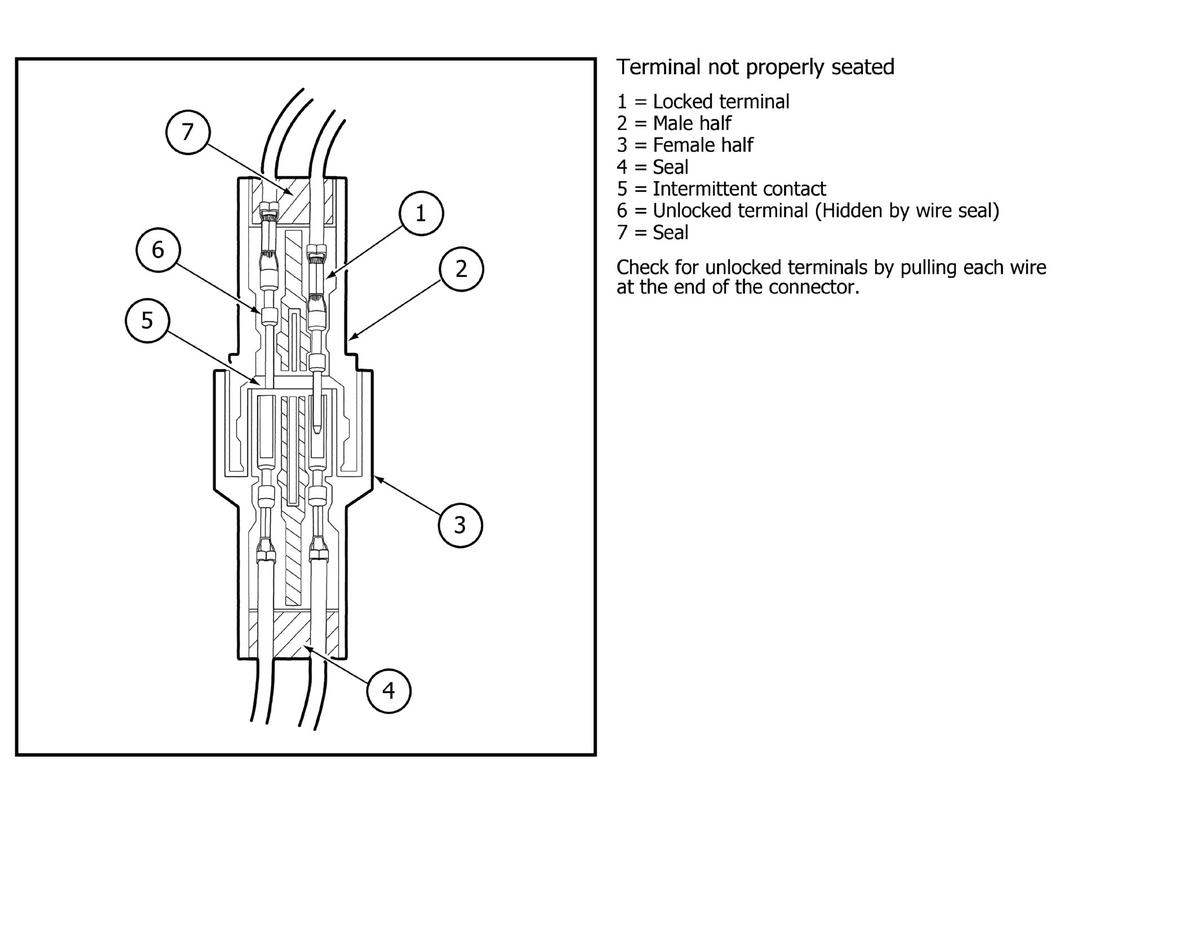

GFDWR40928Courtesy of FORD MOTOR COMPANY

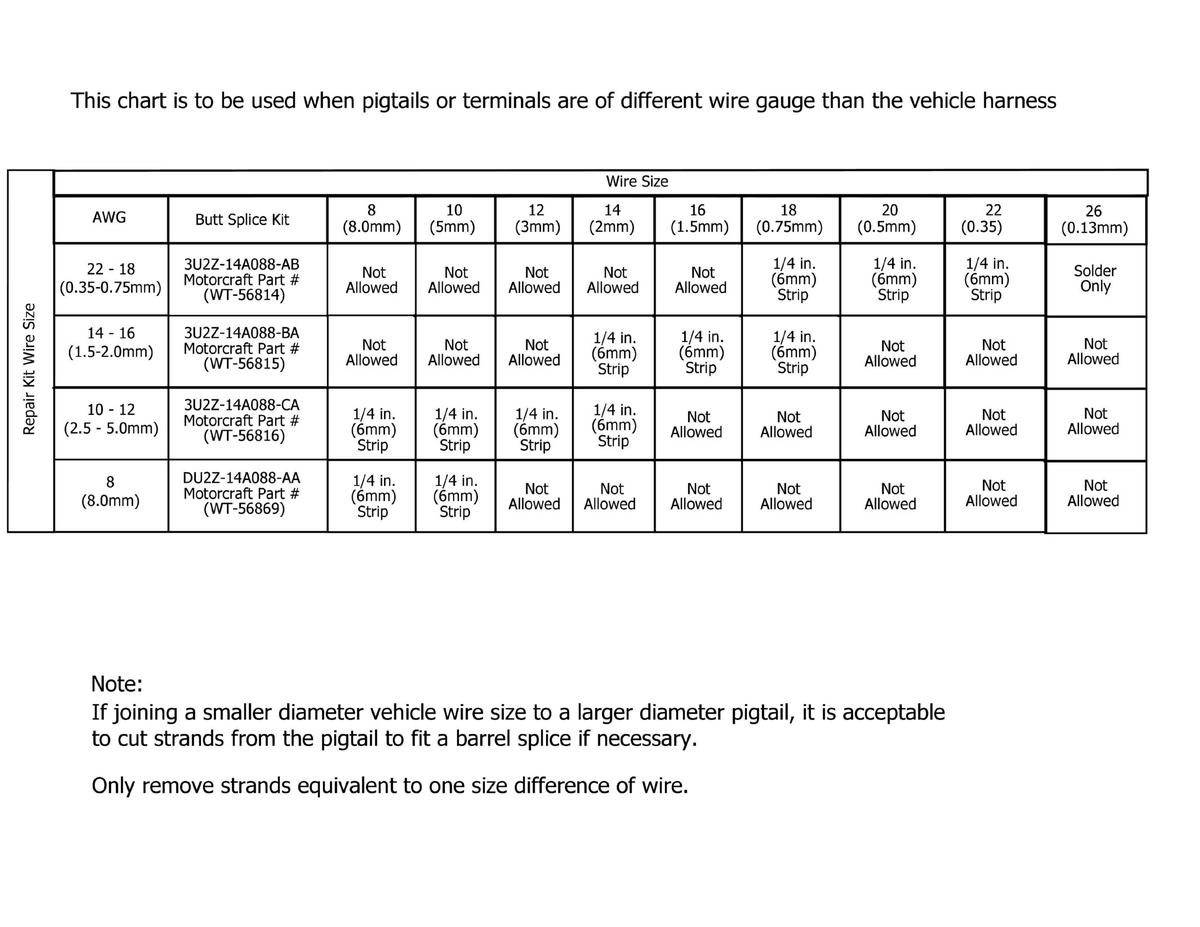

GFDWR40929Courtesy of FORD MOTOR COMPANY

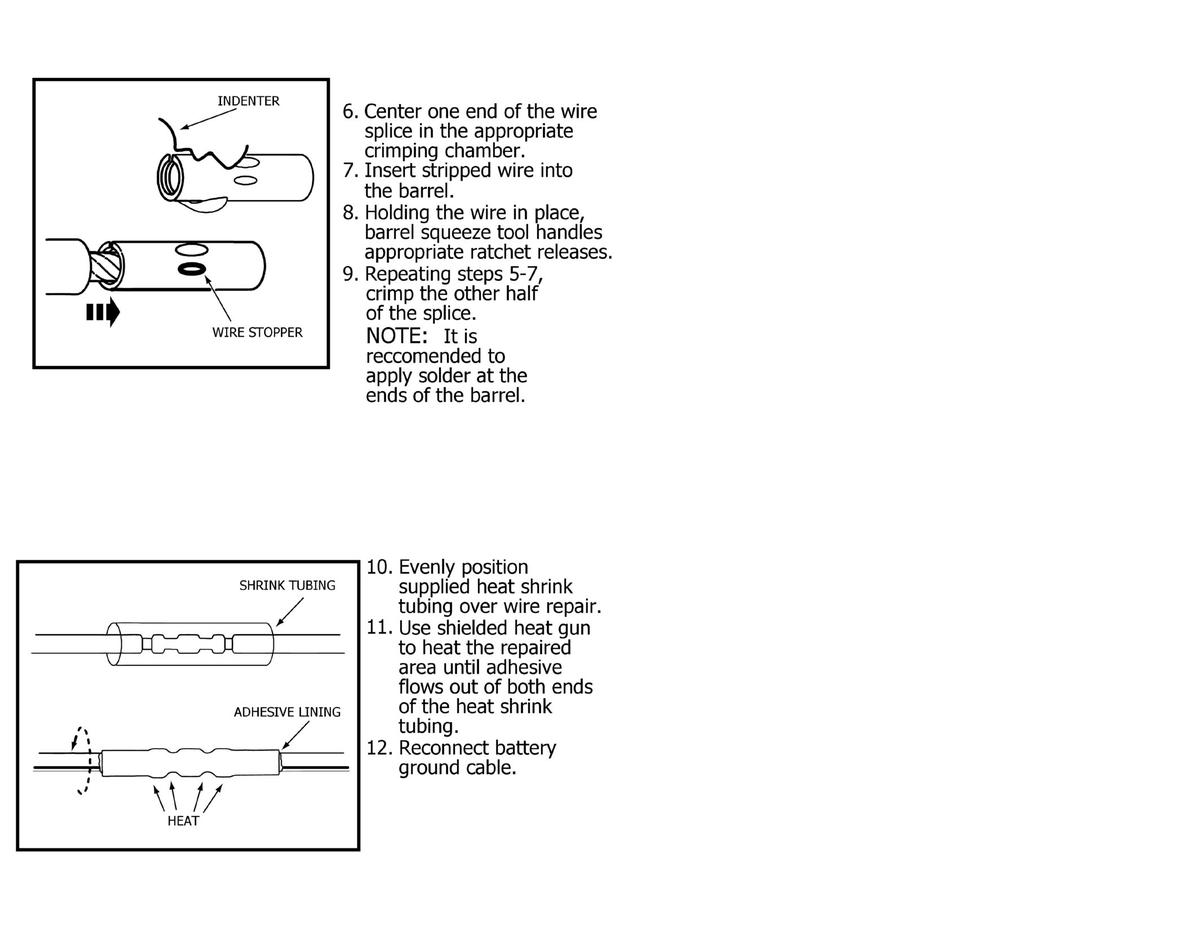

GFDWR40930Courtesy of FORD MOTOR COMPANY

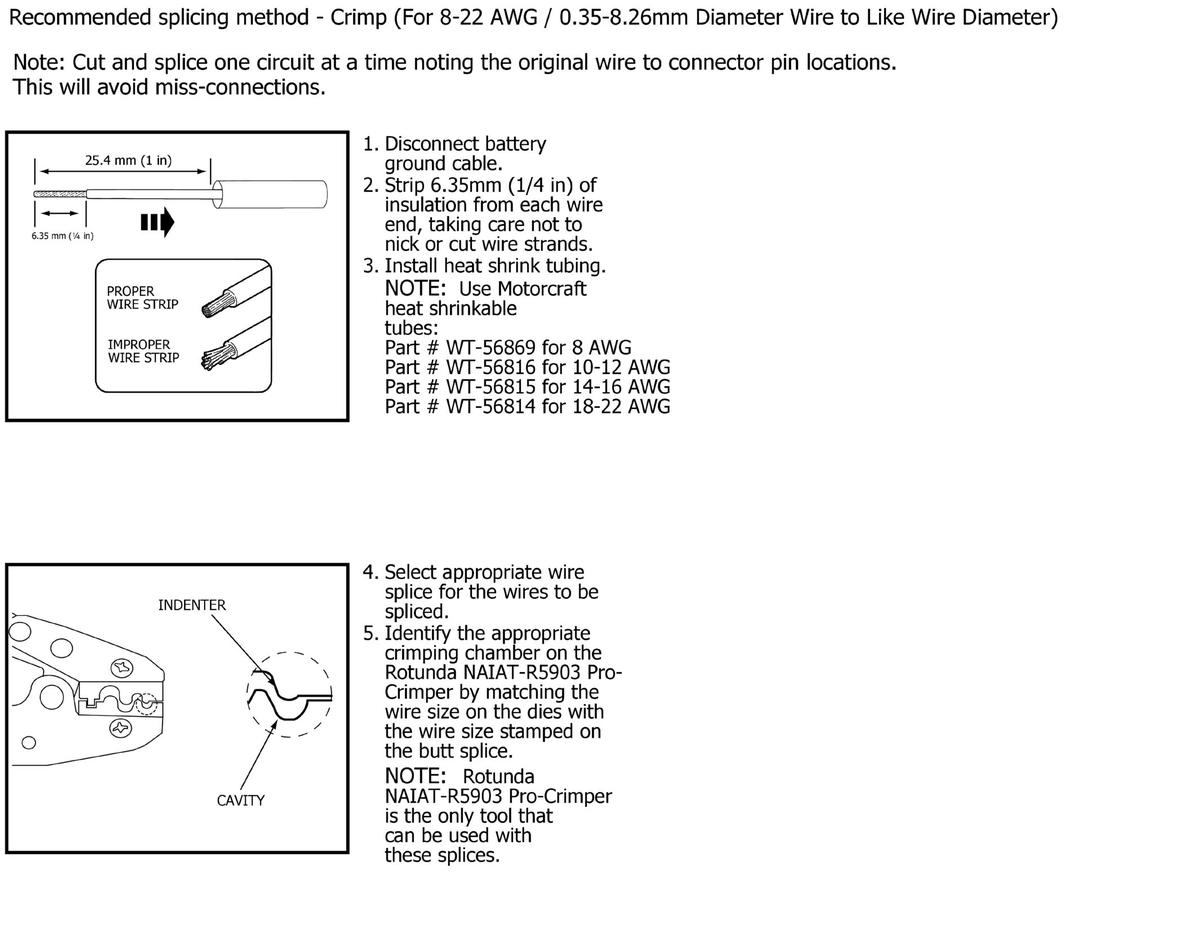

GFDWR40931Courtesy of FORD MOTOR COMPANY

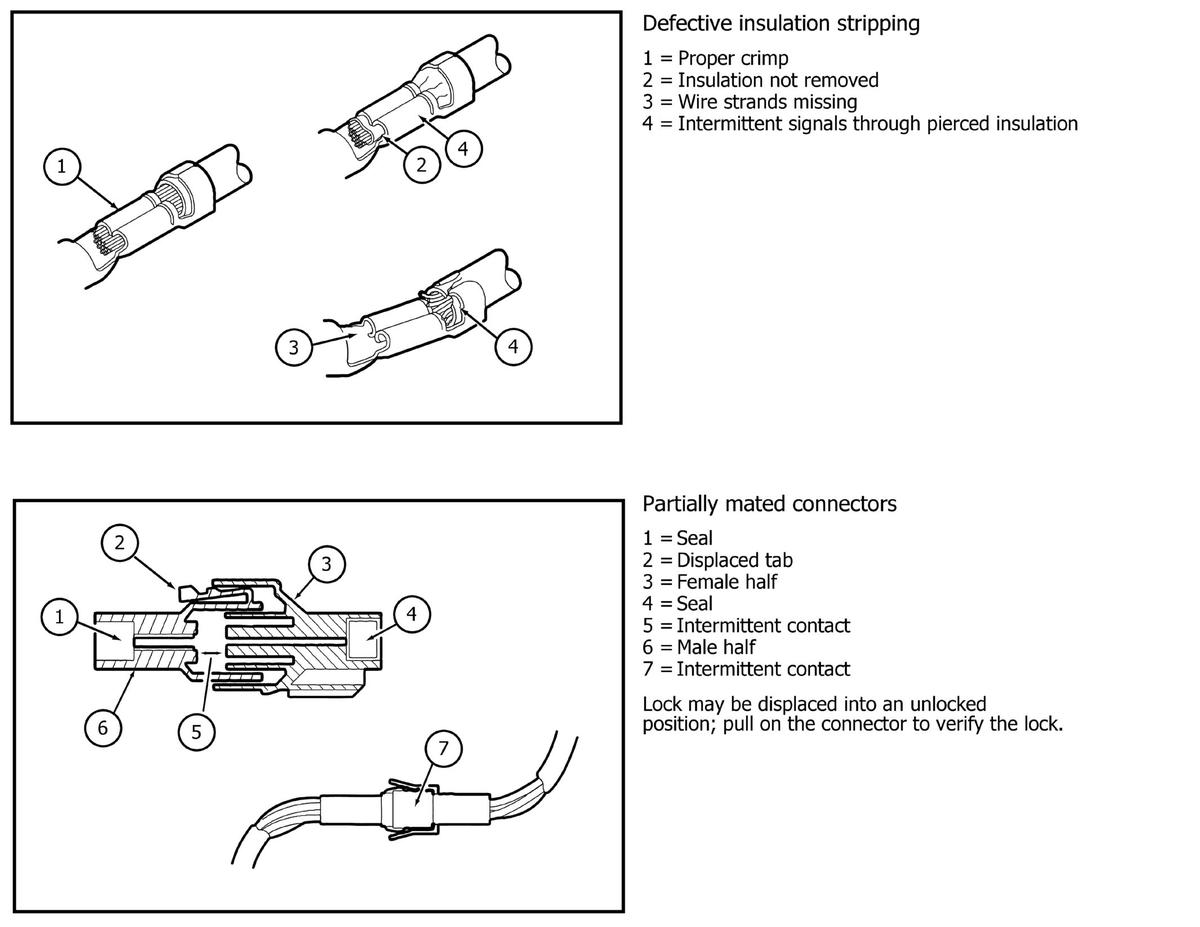

GFDWR40932Courtesy of FORD MOTOR COMPANY

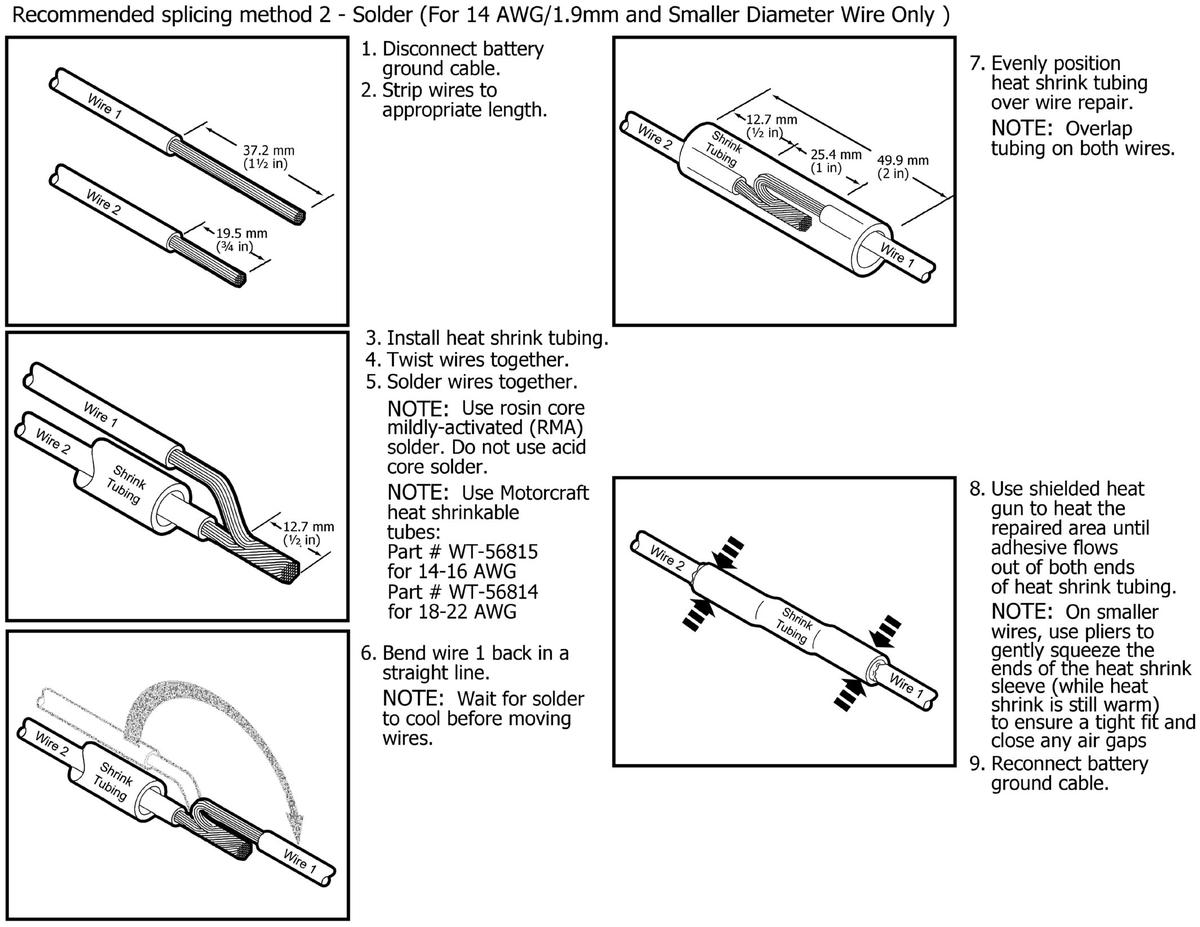

GFDWR40933Courtesy of FORD MOTOR COMPANY

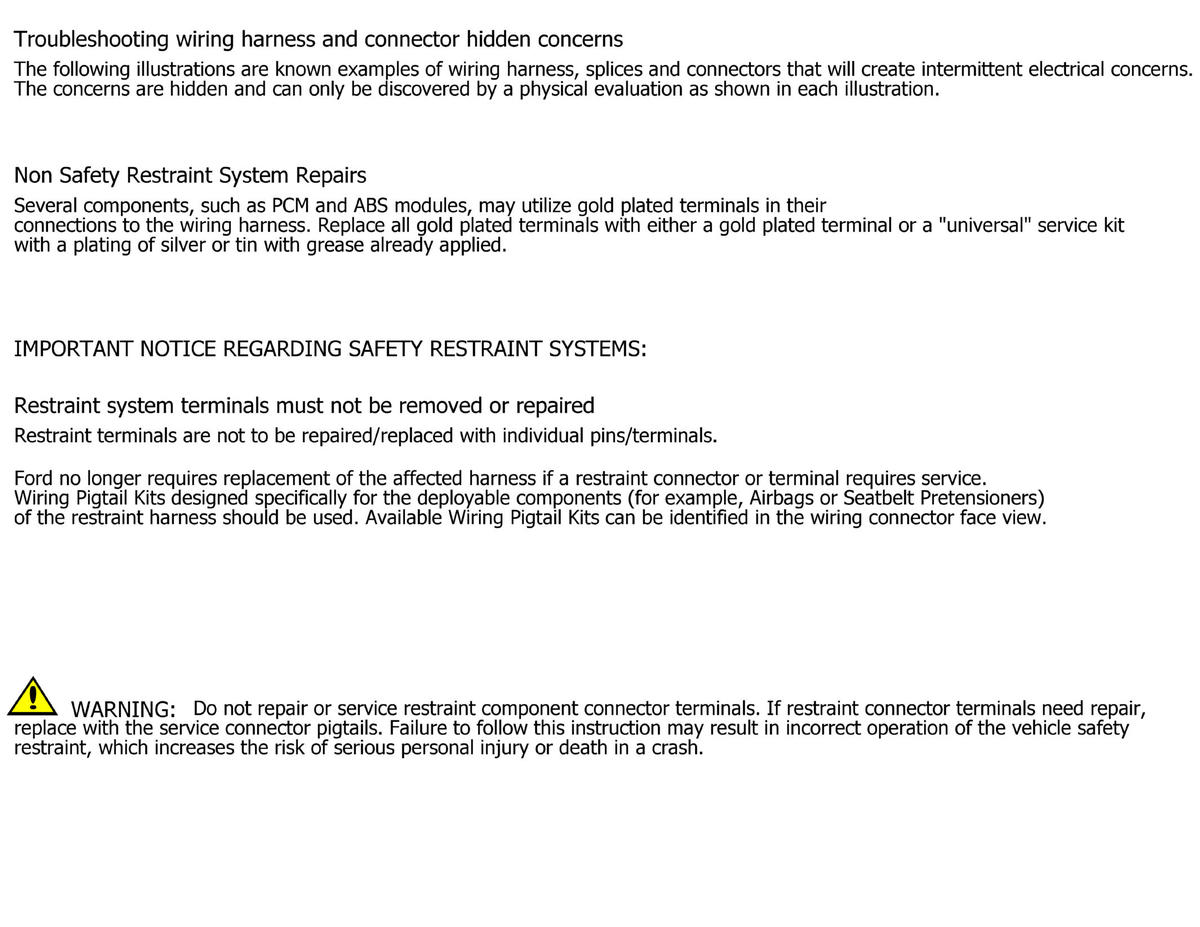

GFDWR40934Courtesy of FORD MOTOR COMPANY

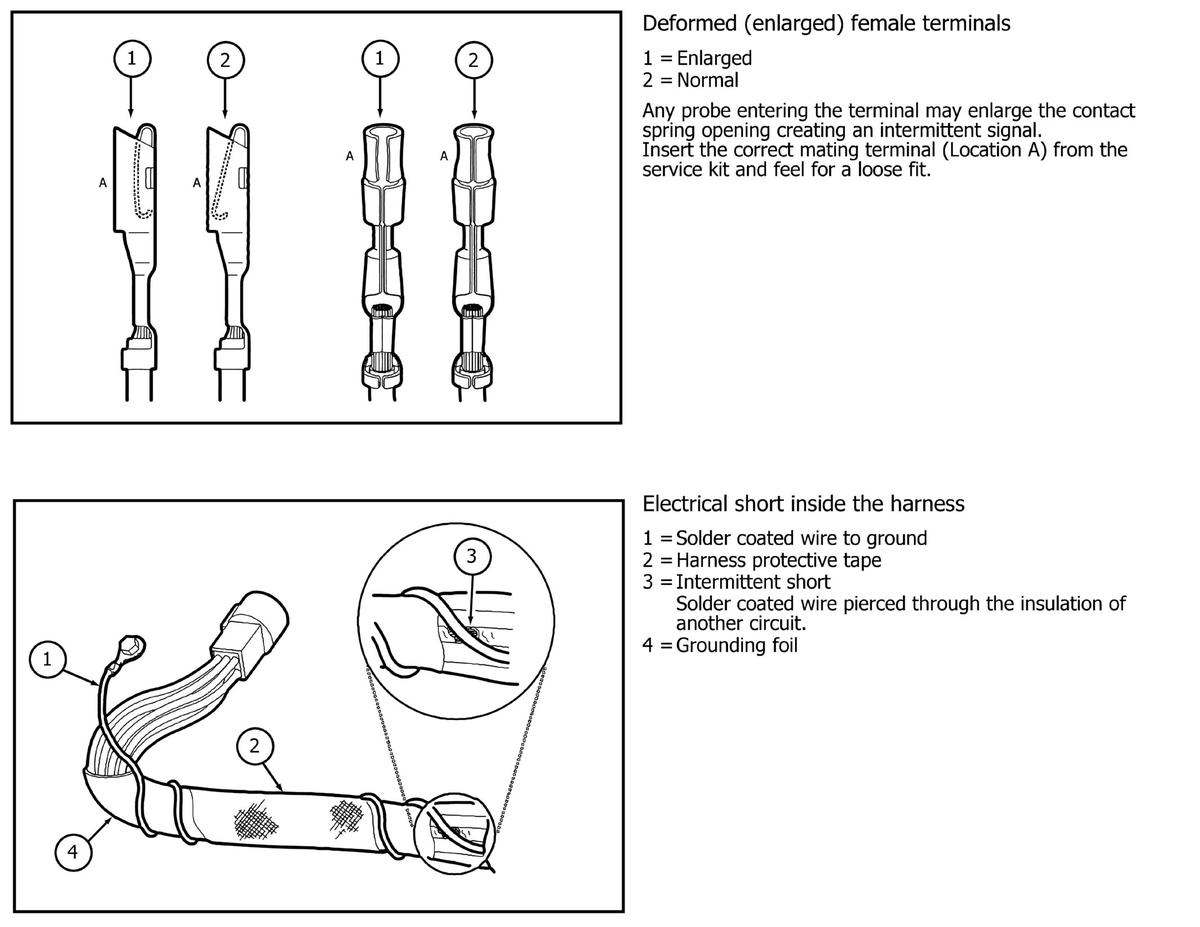

GFDWR40935Courtesy of FORD MOTOR COMPANY

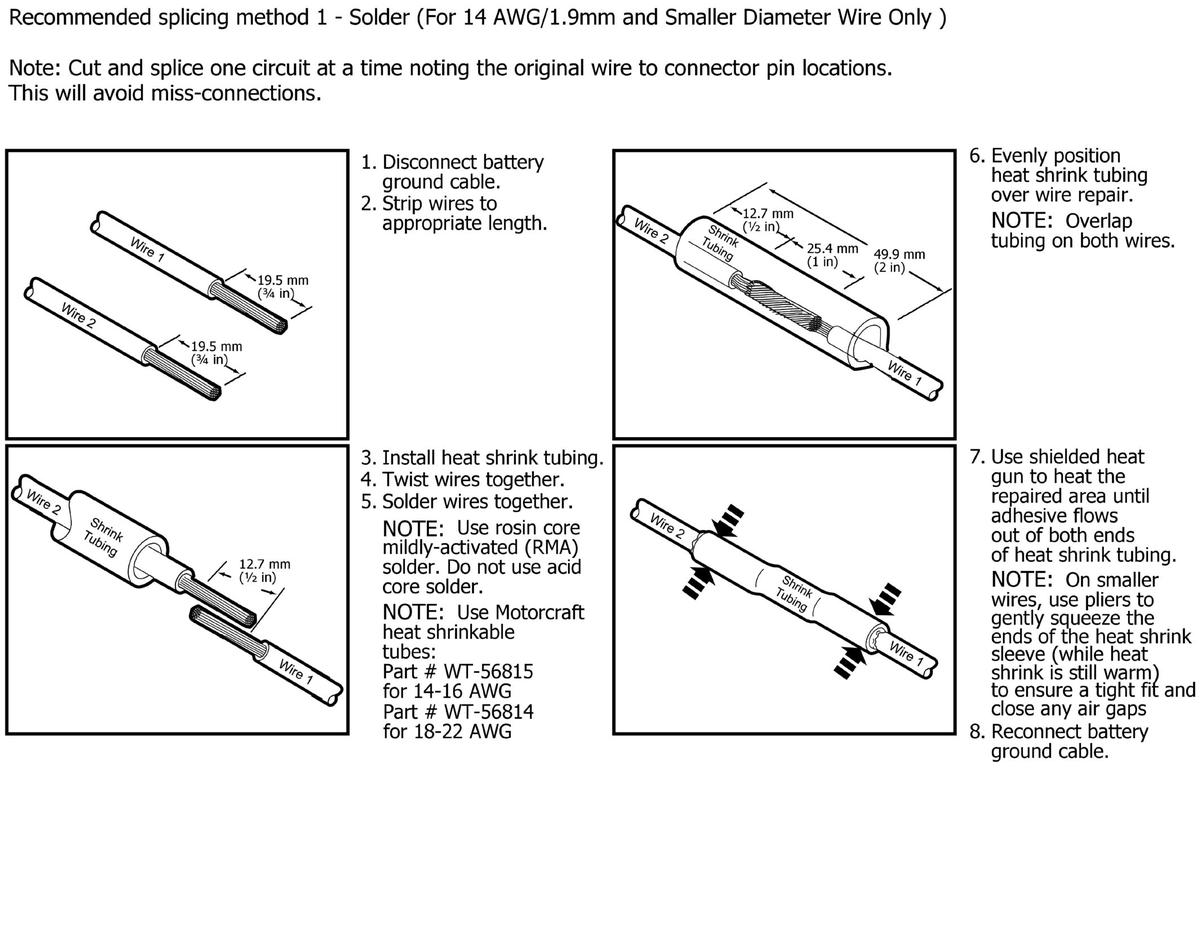

GFDWR40936Courtesy of FORD MOTOR COMPANY
