Pinpoint Tests E: Manifold Absolute Pressure (MAP) Sensor: Introduction

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

harness circuits: MAP, SIGRTN, and VREF
MAP sensor (14A464)
MAP/CACT
PCM (12A650)

Fig 1: Manifold Absolute Pressure (MAP) Sensor Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
VREF (Reference Voltage)	3
MAP (Manifold Absolute Pressure)	2
SIGRTN (Signal Return)	1

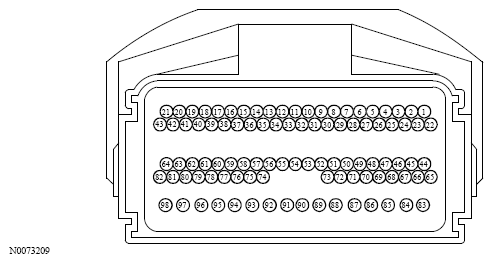

Fig 2: Powertrain Control Module-E (PCM-E) Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
MAP (Manifold Absolute Pressure)	59
