Selector Lever Knob: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Disengage the 4 retaining tabs and lift the selector lever bezel up and disconnect the electrical connectors.
    GFD355232Courtesy of FORD MOTOR COMPANY

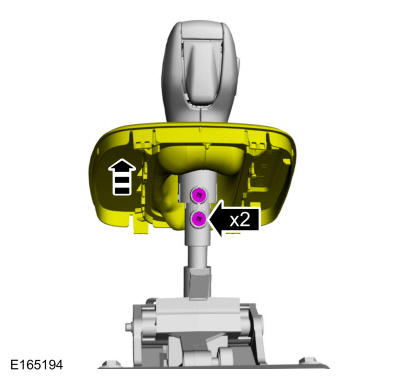

  2. Lift the selector lever bezel up and remove the retainers.
    GFD355251Courtesy of FORD MOTOR COMPANY

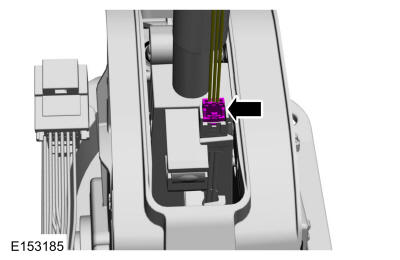

  3. Disconnect the selectshift switch electrical connector.
    GFD355252Courtesy of FORD MOTOR COMPANY

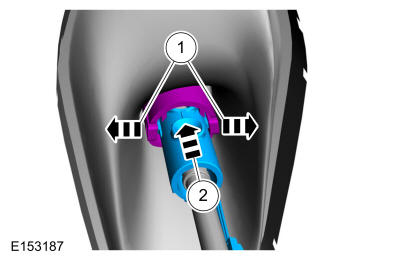

    1. Disengage the selector lever knob from the retaining tabs.
    2. Separate the selector lever knob from the selector lever bezel.
    GFD355253Courtesy of FORD MOTOR COMPANY
  5. Remove the selector lever knob.
GFD355254Courtesy of FORD MOTOR COMPANY
