Instrument Panel: Installation
- To install, reverse the removal procedure.
-

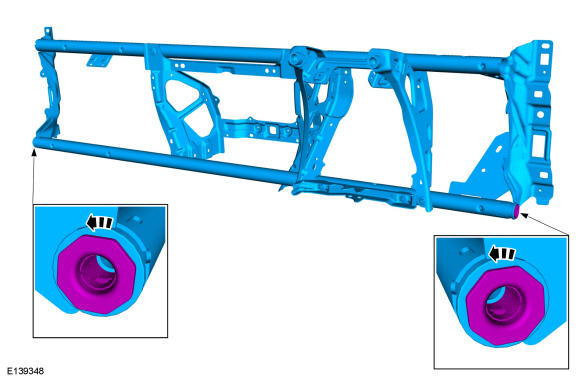

NOTE: Make sure that the tolerance absorbers turn without resistance.NOTE: In-vehicle cross beam shown without instrument panel for clarity.
Turn on both sides the tolerance absorber to the stop and turn back a half turn.
- Check on both sides that the tolerance absorber contacts the A-pillar.
- Fill and bleed the cooling system. Refer to filling and bleeding without a vacuum cooling system filler. Refer to: Engine Cooling System Draining, Vacuum Filling And Bleeding 2.0L . Refer to: Engine Cooling System Draining, Vacuum Filling And Bleeding 2.5L .
