Front Overhead Console: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the dome lamp and disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover

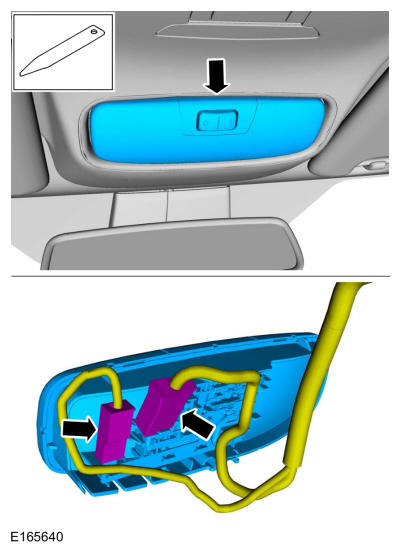

    GFD356564Courtesy of FORD MOTOR COMPANY
  2. Disconnect the electrical connector and then disengage the connector clips.

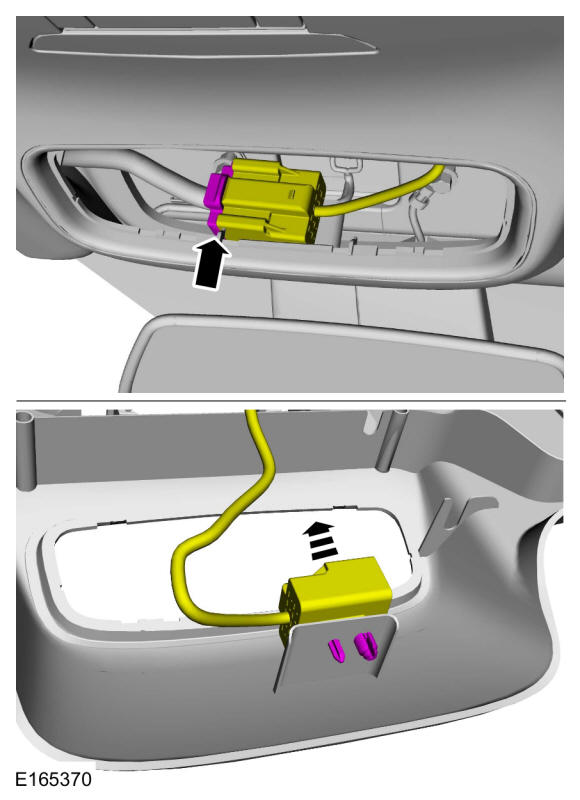

    GFD356565Courtesy of FORD MOTOR COMPANY
    • Disengage the retaining tabs and remove the roof bezel cover.

    • Disconnect the roof bezel cover electrical connectors.

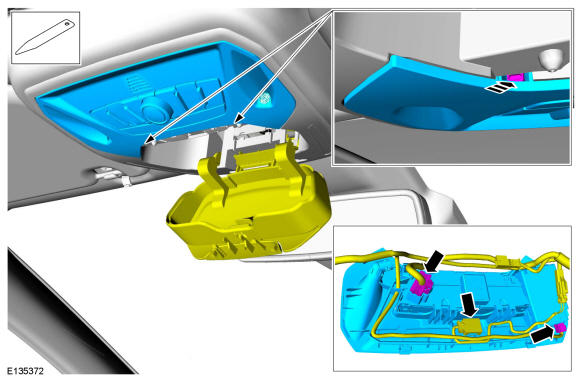

    GFD356566Courtesy of FORD MOTOR COMPANY

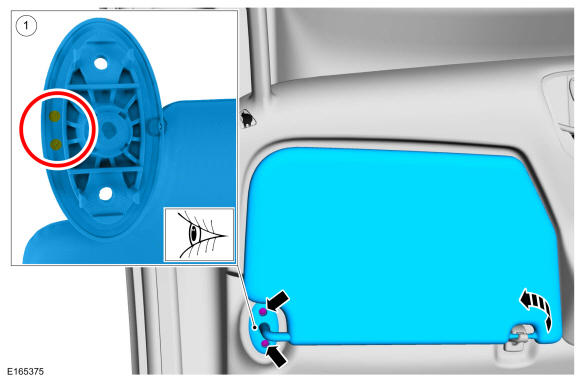

  4. GFD356567Courtesy of FORD MOTOR COMPANY

    1. NOTE: Note the position of the component before removal.

      Remove the retainers and the LH side sun visor.

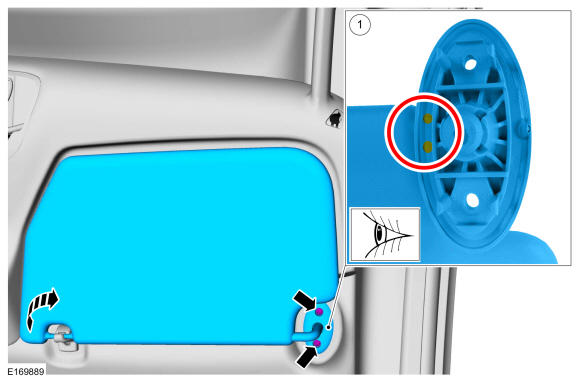

  5. GFD356568Courtesy of FORD MOTOR COMPANY

    1. NOTE: Note the position of the component before removal.

      Remove the retainers and the RH side sun visor.

  6. On both sides, remove the grab handle covers and retainers. Use the General Equipment: Interior Trim Remover

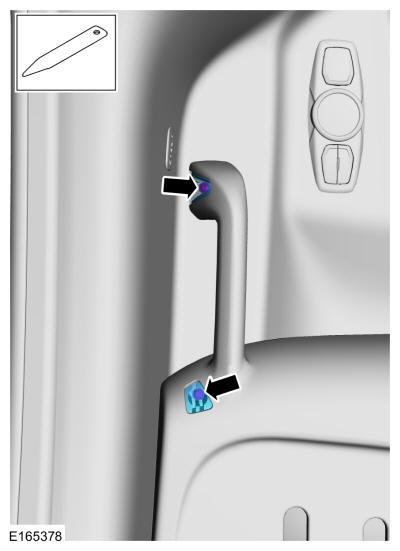

    GFD356569Courtesy of FORD MOTOR COMPANY
  7. Remove the retainers and the front seat overhead storage compartment assembly.

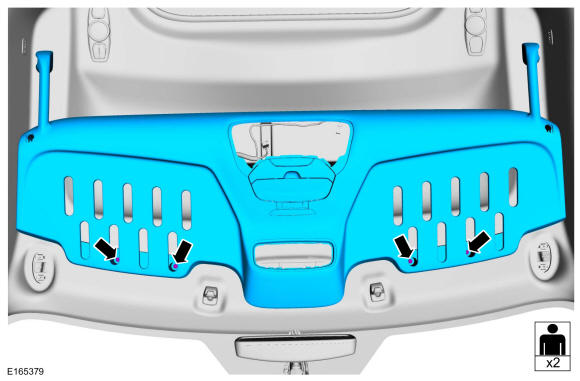

GFD356570Courtesy of FORD MOTOR COMPANY
